Lorex 4K 32-Channels 8TB Wired NVR System with 16 Bullet and 8 Dome Deterrence Cameras

N88238B-8GAB8D

Also available on:

bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Know that your property is protected around-the-clock with this 4K Ultra HD security camera system from Lorex. This system includes a total of 24 active deterrence security cameras, a 32-channel Network Video Recorder (NVR), and a 16-channel PoE switch. Cameras feature Color Night Vision, Smart Motion Detection, and have motion LED lights and a warning siren to deter uninvited guests.

32

CHANNELS

4K NVR can support up to 32 cameras

4K

RESOLUTION

4× the resolution of HD 1080p

150FT

NIGHT VISION

Maximum nightvision range

8TB

HARD DRIVE

Maximum Capacity 2 × 10TB hard drives

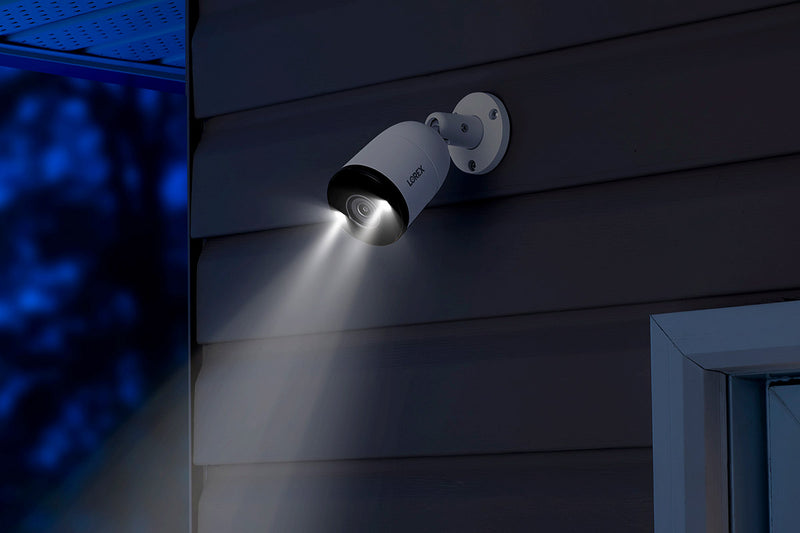

Take an active stance against uninvited guests

These cameras come with plenty of features that will help ward off uninvited guests. First, there is a motion-activated warning light that can be customized to only be triggered when a person or vehicle is detected. Second, you can use the siren that you can control from your Lorex Cloud app. When the camera sensors detect motion, the system will send a notification directly to your phone, allowing you to remotely access the camera and set off a loud warning alert.

Listen-in Audio and Two-Way Talk

A built-in speaker and microphone allows for two-way talk functionality. Listen-in audio recording on the cameras will add a whole new dimension to your overall security monitoring, as it can provide additional details (like a voice) should an incident occur. You can also use the Lorex Cloud app to communicate with those around the camera or deter unwanted guests.


Advanced Motion Detection

This system comes with advanced person and vehicle detection that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Cloud app whenever motion from a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals.

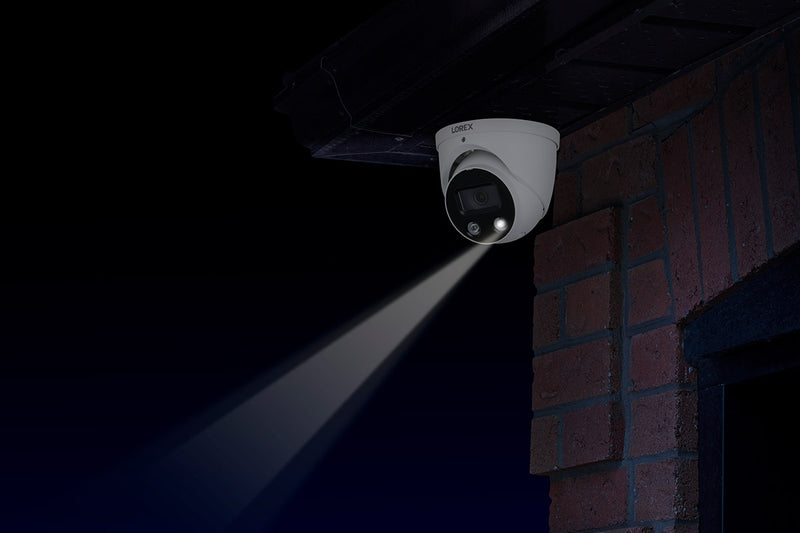

See in color through the night

The cameras features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.

Long-range IR night vision

In regular nighttime conditions that are too dark for CNV to render full-color images, the cameras will use their infrared LEDs to record crisp black and white video footage up to 150ft (46m) away and up to 98ft (30m) in complete darkness.

4K Ultra HD Resolution

Ultra HD
Resolution

All cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video.

High Dynamic Range

High Dynamic
Range (HDR)

HDR improves video clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image.

HEVC Compression

High Efficiency
Video Coding (HEVC)

HEVC compresses video file sizes without any noticable difference in quality, which will save you lots of hard drive space.

Metal housing

Full Metal
Exteriors

Heavy-duty aluminum exteriors will extend the life-cycle so you can count on years of uninterupted service.

Power Over Ethernet

Easy PoE
Installation

IP cameras only need a single Cat5e ethernet cable to connect it to a compatible NVR for video, power and a stable network connection.

Built for the outdoors

While this camera is suitable for both indoor and outdoor use, it has been especially designed to withstand the harsh impacts of nature.

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

remote monitoring NR900 Lorex Cloud App

Remote mobile viewing with Lorex Cloud App

Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device. Connect your NVR to Lorex Cloud™ and securely access your system no matter where you are in the world. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of this app.

Works With


works with Apple iPhone
Apple iPhone
works with Apple iPad
Apple iPad
works with Android phones
Android Phone
works with android tablets
Android Tablet


iphone icon
Apple iPhone
ipad icon
Apple iPad
android phone icon
Android Phone
android tablet icon
Android Tablet

32-channel NVR - add 32 cameras to one security system

What is the included PoE switch for?

The 32-channel NVR supports up to 32 security cameras but only has 16 built-in PoE ports on the back. This is why a PoE switch has been included in this system. By connecting this PoE switch to your system you can utilize the remaining open channels.

security certified NVR hard drive

Reliable security-grade hard drive preinstalled

An 8TB security grade hard drive (expandable up to 2 × 10TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.

Motion Zones

Regional
Motion Zones

Using the NVR, you can program specific motion zones so that they are customized for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").

Privacy Mask

Privacy
Masking

In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.

High Dynamic Range

Multiple Recording
Options

Record security footage continuously, during scheduled times, or when movement is detected. Motion recordings include a pre-recording function that will go back to record the five seconds before activity is detected.



What's Included?

N861 dimensions
  • Record and view video up to 4K (8MP) resolution1
  • View live footage in up to 30fps and digitally zoom in on distant objects for better clarity
  • 2 hard drive bays with up to 2 × 10TB of storage space
  • Security grade hard drive designed for advanced processing and the workload of 24/7 recording
  • Storage mirroring for continuous back-up of data from one hard drive to another
  • Get Motion push notifications when motion from a person/vehicle is detected2
  • Reduce unnecessary alerts and false alarms with advanced motion detection4
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • This NVR system contains a built-in 16-channel capacity
  • Increase your surveillance area with adding a POE switch expanding your system up to 32 channels

Each N882A38B NVR Includes:

1 × 4K Ultra HD Pro Series NVR
1 × Power Adapter
1 × USB Mouse
1 × Ethernet Cable
1 × HDMI Cable
Quick Setup Guide
  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
  3. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  4. Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  5. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  6. Both firmware and software must be updated to latest version to ensure remote connectivity.
PoE Switch Front Dimension
PoE Switch Back Dimension
  • Centralized power distribution - Easy all-in-one PoE switch
  • 1 Gigabit rated RJ45/SFP port for fast device/network connection
  • High speed transmission of IP surveillance data
  • 220W total PoE power budget (up to 30.8W per port)
  • Convenient Real-time PoE usage LED indicators

Each ACCLPS263B Includes:

1 × PoE Switch
1 × Power cable

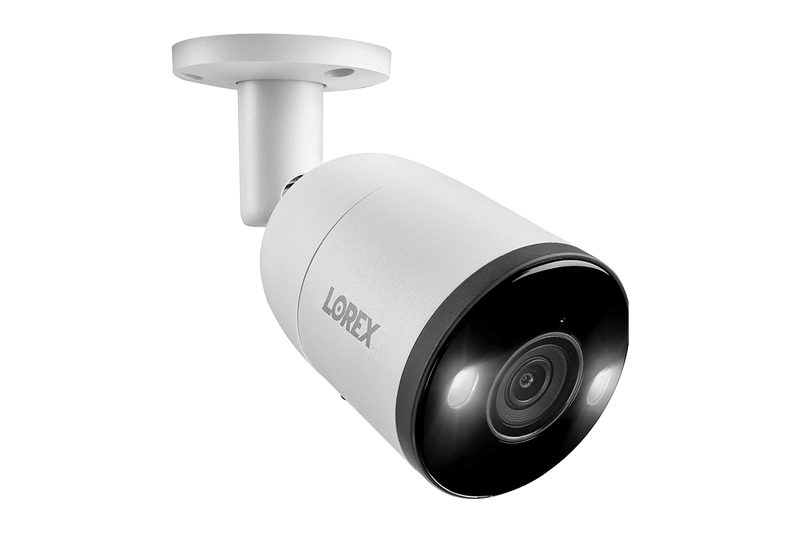

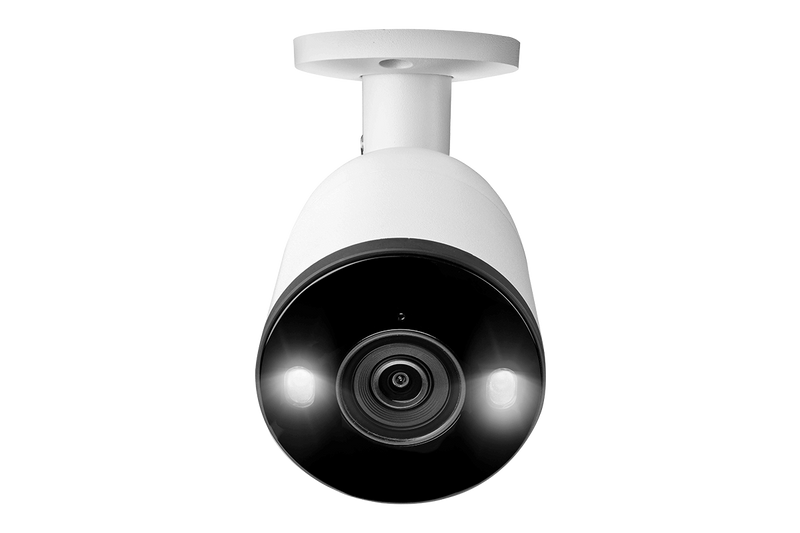

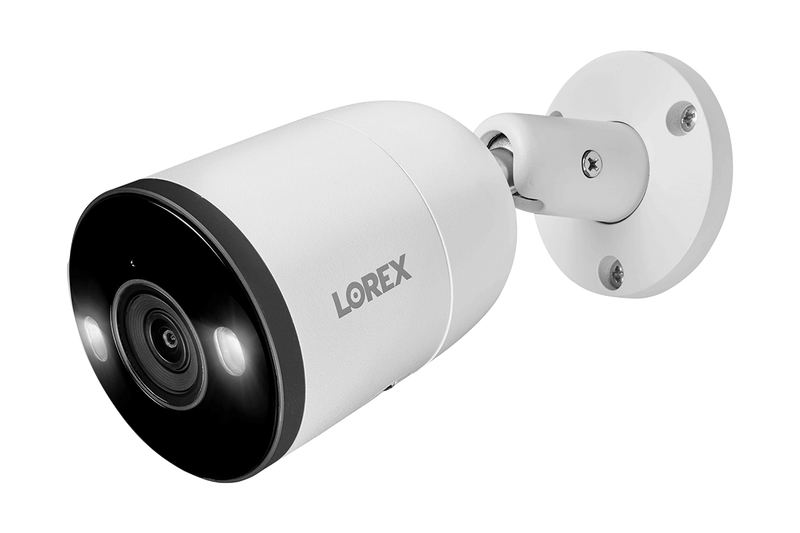

E893AB dimensions
  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 108° field of view
  • Superior nighttime clarity with Color Night Vision2
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness3
  • Warning light can be programmed to illuminate when a person or vehicle is detected
  • Enhanced Two-way Talk with Quick Response Messages lets you pre-record specific messages with your own voice
  • Deter unwanted guests with the remote-activated siren
  • Smart motion detection plus offers the option of either Face detection or Person and Vehicle Detection5
  • Receive notifications when a person, vehicle or face is detected on your property from your Lorex Cloud™ app5

Each E893AB Series Includes:

1 × 4K IP Security Camera
1 × Mounting Kit
1 × Cat5e Ethernet Cable
1 × Quick Start Guide
  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  5. For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  6. Not intended for submersion in water. Installation in a sheltered location recommended.
  7. Cable length is dependent on product configuration. See product packaging for details.
  8. Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility

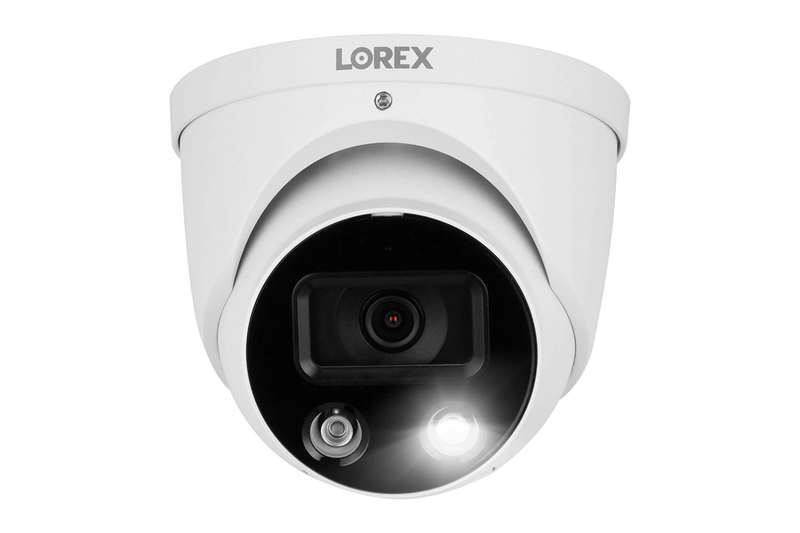

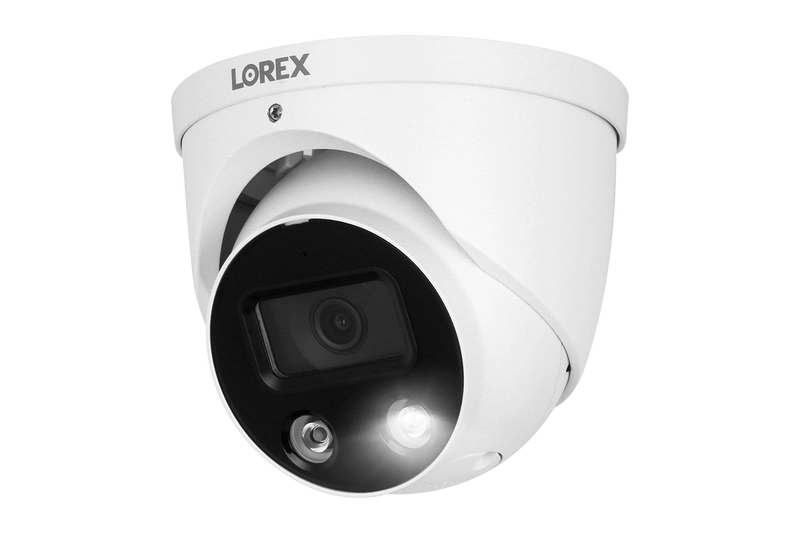

E893DD Dimensions
  • 4K (8MP) Ultra HD resolution1
  • 108° horizontal field of view
  • Color Night Vision2
  • Up to 150ft (46m) IR night vision in low light condition. Up to 98ft (30m) in total darkness3
  • Get notifications from your Lorex Cloud™ app
  • Automatic warning light during person or vehicle detection
  • Remote-activated siren
  • Built-in microphone and speaker for 2-Way Talk5
  • IP67 (Indoor/Outdoor) Environmental Rating6

Each E893DD Includes:

1 × 4K IP Security Camera
1 × Mounting Kit
1 × Cat5e Ethernet Cable*
1 × Quick Start Guides

*Cable length is dependent on product configuration. See product packaging for details.

  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. For Face Detection and Mask Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  5. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  6. Not intended for submersion in water. Installation in a sheltered location recommended.
