  • Comes with Range Detection and Fire Detection
  • Detect wildlife with complete darkness
  • 50HZ frame rate with 4 level digital zoom
  • Battery Life: >9 h (Wi-Fi hotspot off, @25°C)
  • Micro SD card capacity (Max. 256G)

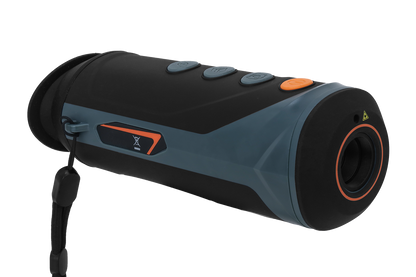

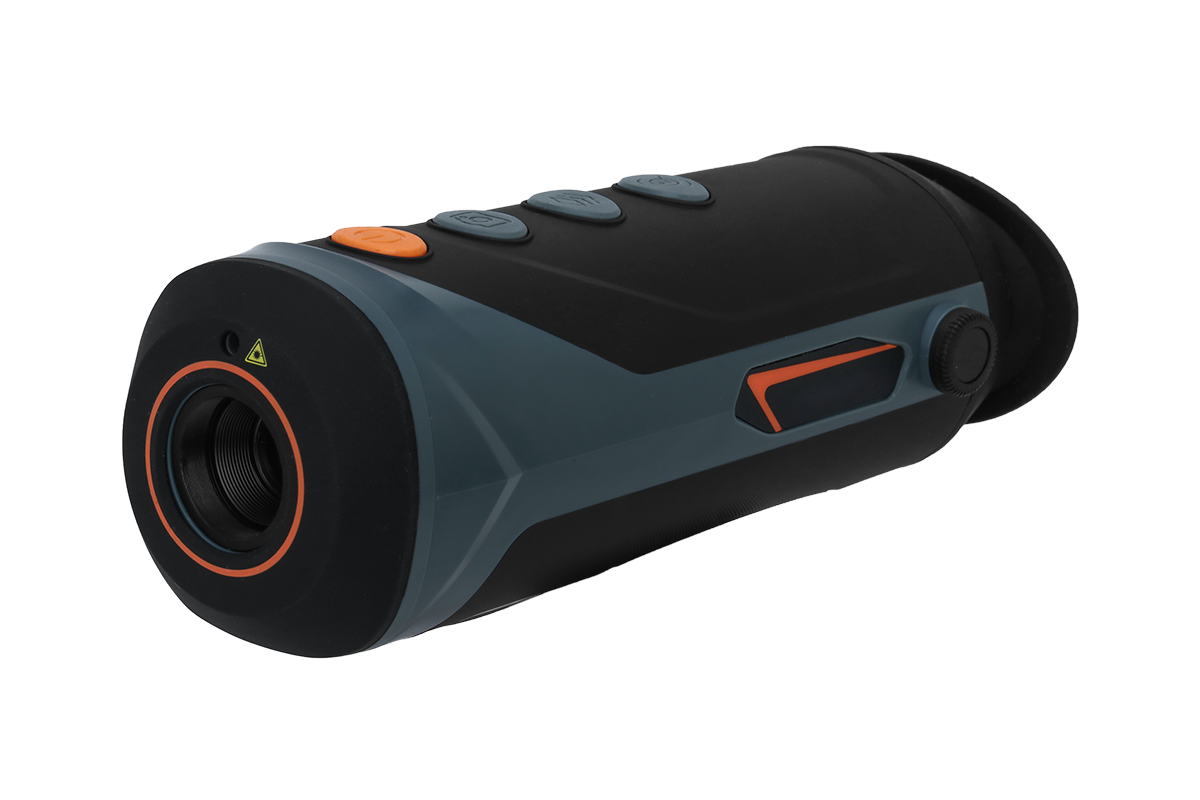

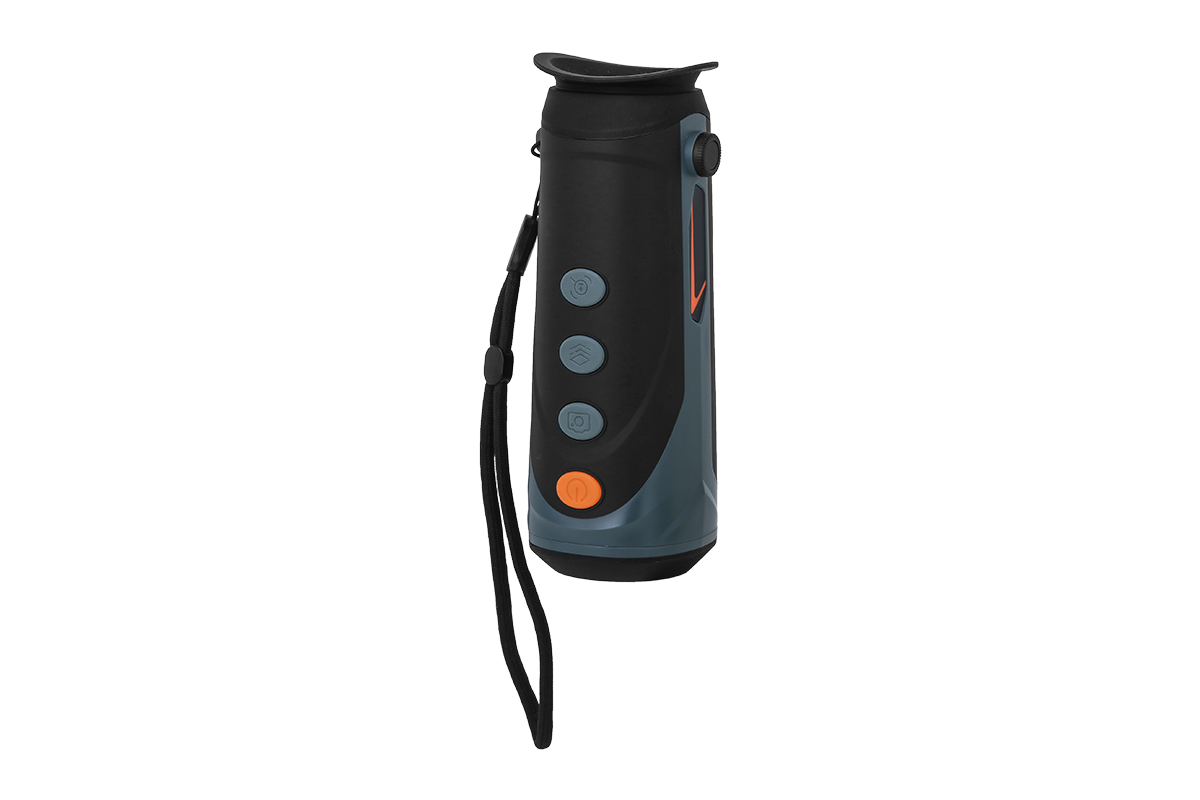

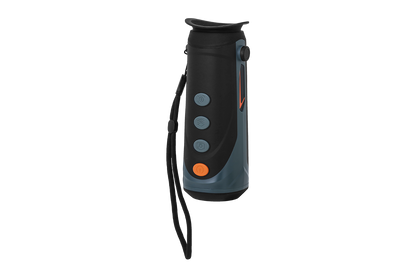

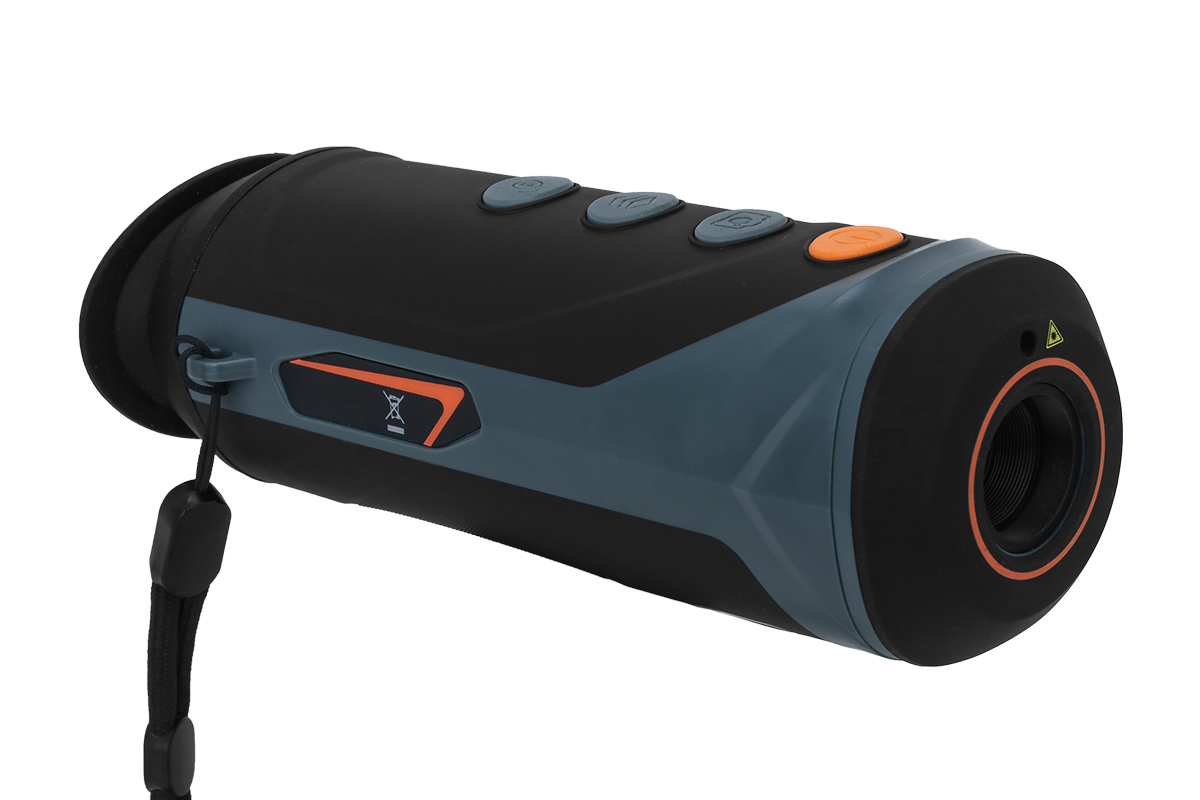

Portable Thermal Monocular Camera

ACH20-1B
Sale price$699.99
Receive an exclusive 15% discount with Lorex Upgrade Program. Click here to learn more.
  • Comes with Range Detection and Fire Detection
  • Detect wildlife with complete darkness
  • 50HZ frame rate with 4 level digital zoom
  • Battery Life: >9 h (Wi-Fi hotspot off, @25°C)
  • Micro SD card capacity (Max. 256G)
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Frequently Bought Together

+

Features

See the heat with the Thermal Monocular Camera. Rather than visible light, thermal cameras use different levels of infrared energy or heat to create an image. This allows it to easily detect people, animals, and objects in all kinds of environments, including complete darkness, haze, or glaring light.


family in woods on a hike
Easily see the heat signatures of animals through dense foliage and adverse weather, even in complete darkeness.
family in woods on a hike
Perfect for campers and hikers. Thermal cameras will help you find your way in the dark and detect animals.
man and woman police officers walking
There is no hiding from thermal cameras. They can see through bad weather, dense foliage and woods.
electricans working
A great way to spot overheating with electrical components or hotspots in machines.
firefighters walking beside fire truck
Thermal cameras allow firefighters to see through smoke, helping to detect the body heat of people.
building surveyors looking around interior of house
See underlying building issues, track moisture, and discover hot zones inside residential and commercial buildings.
veterinarian with a dog
Measure body temperature and search for underlying issues in joints, veins, and the skin of both people and animals.


man walking in woods

Portable & Durable

A small, lightweight, and IP67 weatherproof design, along with a very low power consumption rate, make this camera an especially handy long-term outdoor tool.



Distance of target

Video Ranging

With its hassle-free distance measurement feature, simply mark the top and bottom of a target on the screen, and the interface will automatically display the distance of the target from the monocular.



Fire Detection

Fire Detection

The monocular can automatically detect fires that break out in the scene and track them in real time.



Multiple Color Palettes

Choose from four different color palettes to meet your observation needs.


Iron Red

Iron Red

Improve the comfort of long-term observation under night conditions

Rainbow

Rainbow

Convenient for users to quickly identify targets

White Hot

White Hot

Suitable for observing active targets

Alarm

Alarm

Quickly detect the emergence of high-temperature targets

Product Compatibility

Product Specifications

ACH20-1B Dimensions
General
Appearance Thermal Monocular Camera
Type Monitor
Thermal
Detector Type Vanadium oxide uncooled focal plane detector
Effective Pixels 256 × 192
Pixel Pitch 12 μm
Spectral Range 8 μm–14 μm
Sensitivity (NETD) ≤50 mK@f/1.0
Focal Length 7.5 mm; 10 mm; 15 mm
Aperture F1.0
Field of View 7.5 mm
(H: 24.0°; V: 18.0°)
10 mm
(H: 17.3°; V: 13.1°)
15 mm
(H: 11.7°; V: 8.8°)
Focus Control Fixed-focal
Close Focus Distance 7.5 mm
1 m (3.28 ft)
10 mm
2 m (6.56 ft)
15 mm
3 m (9.84 ft)
DRI Detection Distance Focal Length Detection Distance Recognition Distance Identification Distance
7.5 mm Vehicle: 777 m (2,549.21 ft)
Human: 291 m (954.72 ft)
Vehicle: 194 m (636.48 ft)
Human: 75 m (246.06 ft)
Vehicle: 97 m (318.24 ft)
Human: 37 m (121.39 ft)
10 mm Vehicle: 1,111 m (3,645.01 ft)
Human: 416 m (1,364.83 ft)
Vehicle: 277 m (908.79 ft)
Human: 107 m (351.05 ft)
Vehicle: 97 m (318.24 ft)
Human: 53 m (173.88 ft)
15 mm Vehicle: 1,666 m (5,465.88 ft)
Human: 625 m (2,050.52 ft)
Vehicle: 416 m (1,364.83 ft)
Human: 160 m (524.93 ft)
Vehicle: 208 m (682.41 ft)
Human: 80 m (262.47 ft)
Digital Zoom 4 levels
Color Palettes 4 (white hot; alarm; rainbow; iron red)
Display
Video Compression H.265
Frame Rate 50 Hz
Display Screen Dimensions 0.2 inch
Resolution 720 × 540
Certification
Certification FCC: DHQA-ESH-P22030967B
CE: 479742742-3
RCM: RCMD23245 001
UKCA: 4790742742-1, 4790742742-2, 4790742742-3, 4790742742-4
Function
Storage Micro SD card (Max. 256G)
Laser Aiming 180 m (590.55 ft), Class 2 (IEC 60825-1)
Intelligence
Fire Detection Yes
Cold/Hot Spot Trace Yes
Port
Analog Output 1 × CVBS output
Wi-Fi Hotspot Yes
USB Micro USB
Power
Power Supply 5 VDC, 0.3 A or built–in battery
Battery Capacity Display Yes
Power Consumption <1.5 W
Battery Life >9 h (Wi-Fi hotspot off, @25°C)
Charging Time <3 h
Environment
Operating Temperature –20 °C to +55 °C (–4 °F to +131 °F)
Operating Humidity ≤90%
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Physical Characteristics
Protection IP67
Product Dimensions 170.9 mm × 57.6 mm × 58.6 mm (6.73" × 2.27" × 2.31") (L × W × H)
Packaging Dimensions 205 mm × 148 mm × 111 mm (8.07" × 5.83" × 4.37") (L × W × H)
Net Weight 350 g (0.77 lb)
Gross Weight 1 kg (2.20 lb)
Installation Handheld; tripod
Power Adapter Included
Lens Included
Bracket Optional
Drop Test Height 2 m (6.56 ft)

What's Included?

Package Contents:

  • 1 × Thermal Monocular Camera
  • 1 × USB cable
  • 1 × Power adapter
  • 1 × UK power plug
  • 1 × US power plug
  • 1 × AU power plug
  • 1 × EU power plug
  • 1 × Pouch
  • 1 × Lanyard
  • 1 × QSG insert
