Looking to upgrade the storage on your Lorex NVR or DVR? Since security recorders are programmed to overwrite the oldest footage with the newest footage, upgrading your hard drive will greatly prolong the number of days that data will be preserved for.
Select your camera resolution, frame rate, number of cameras, recording hours per day, and storage capacity to determine the number of recording days.
Secure hours of recording daily for:
Total Days*
Calculated using H.265 HVEC encoding.
*With Motion Recording enabled, you can expect approximately 120 events (30 seconds each) for each hour of recording. Estimate provided is approximate and must be used for reference only when planning storage needs.
Recorder and camera settings have a direct impact on the size of data. Configure your DVR / NVR to maximize storage space by modifying the following:
Record only when motion is detected.
Record only during selected times during the day.
A lower FPS will decrease video smoothness but reduce file sizes.
A lower recording resolution will decrease file size.

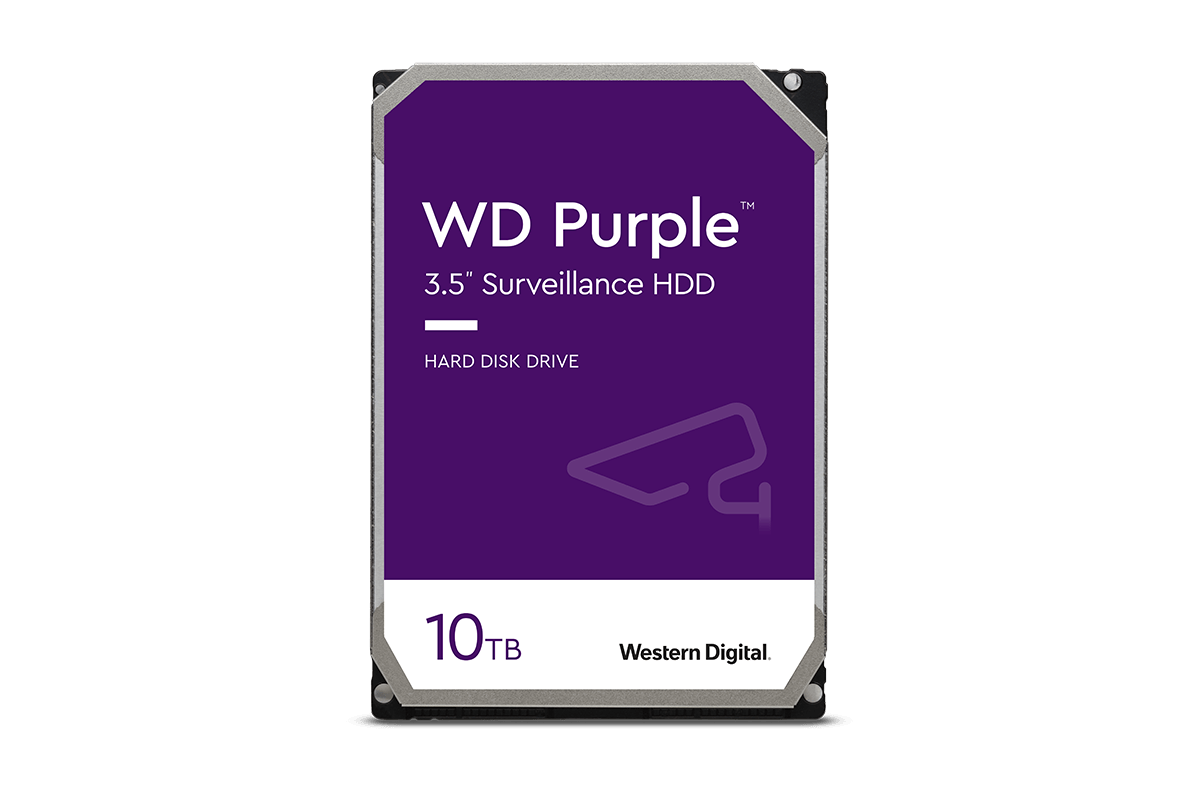

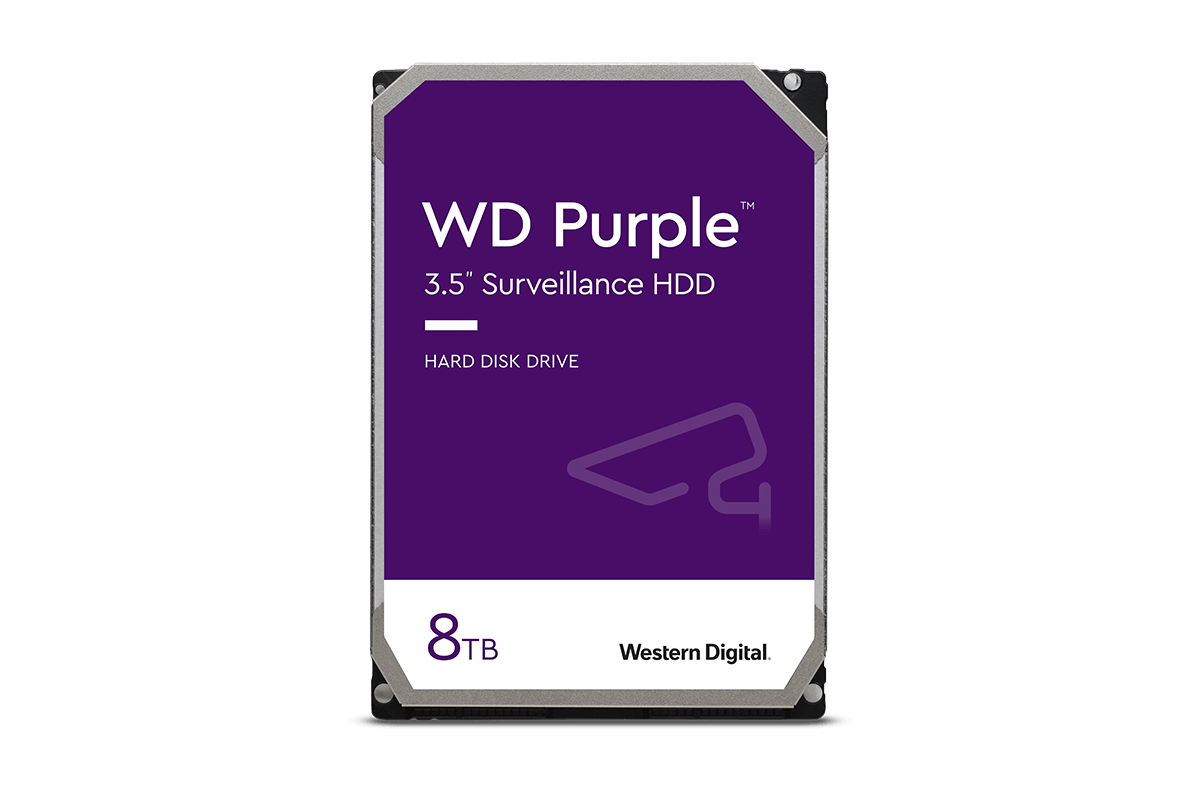

Due to the high workload rate of 24/7 monitoring, it is strongly recommended to only use Surveillance Grade Hard Drives in Lorex recorders. Note the total supported capacity of your recorder to maximize recording space and your peace-of mind.
Please take note of the following points before purchasing additional storage for your recorder:
| Recorder Series | Number of HDD Bays | Maximum Storage Capacity |
| N884 Series | 2 bays | 16TB per bay (32TB total) |
| N883 / N882 / N881 Series | 2 bays | 10TB per bay (20TB total) |
| N864 Series | 2 bays | 10TB per bay (20TB total) |
| N863 Series | 2 bays | 8TB per bay (16TB total) |
| N910 Series | 1 bay | 16TB |
| N847 / N846 / N845 Series | 1 bay | 10TB |
| N843 Series | 1 bay | 8TB |
| D242 / D251 / D881 / D863 Series | 1 bay | 16TB |
