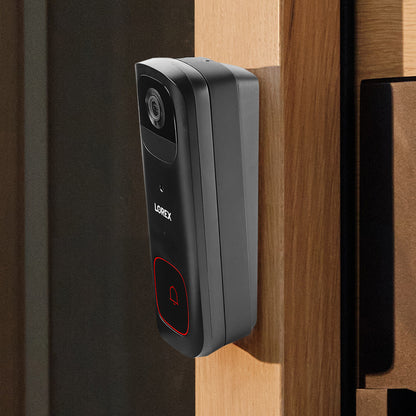

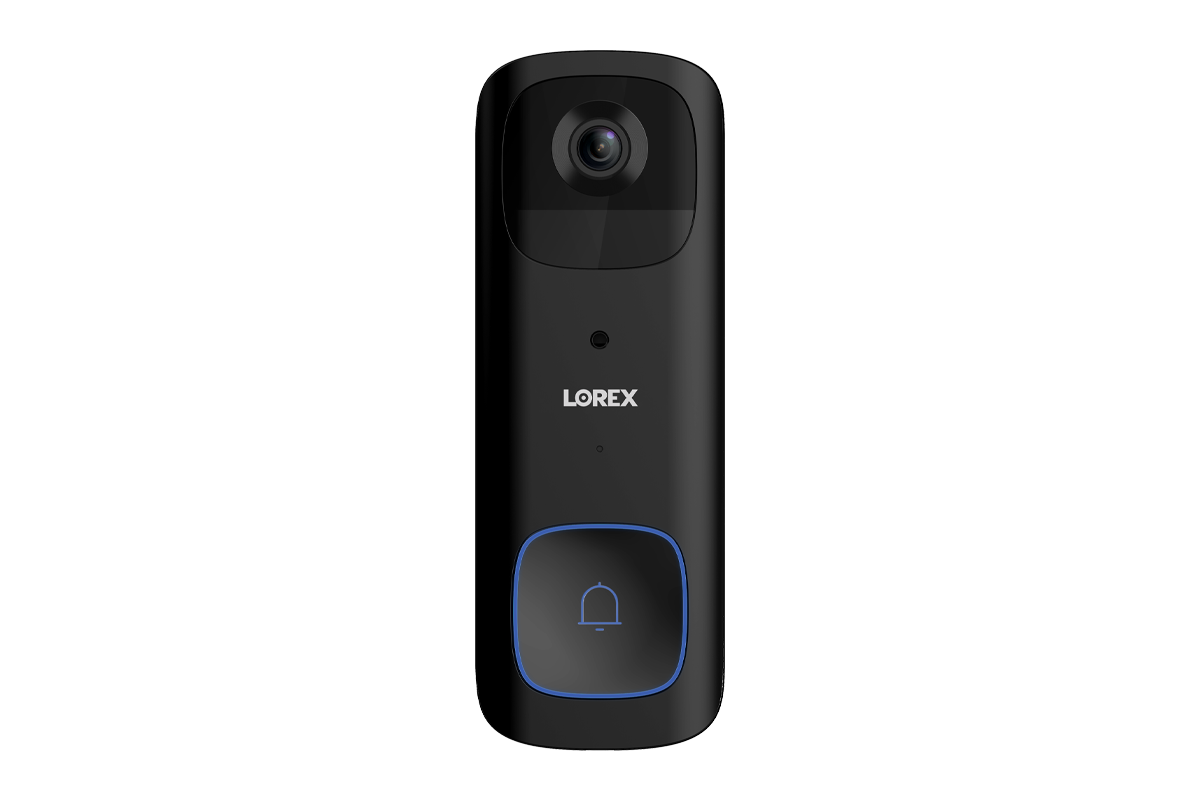

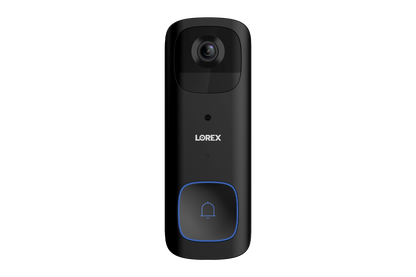

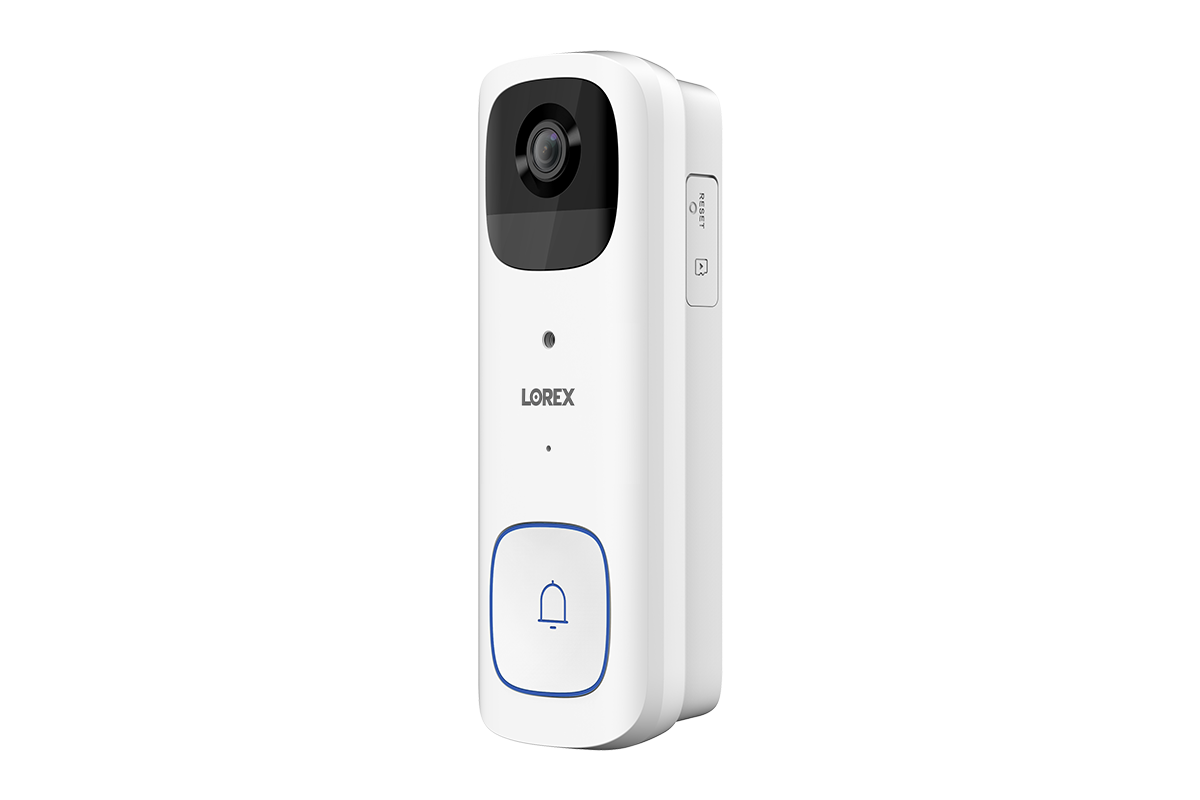

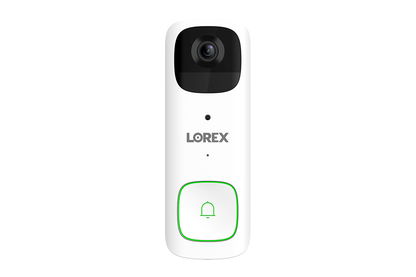

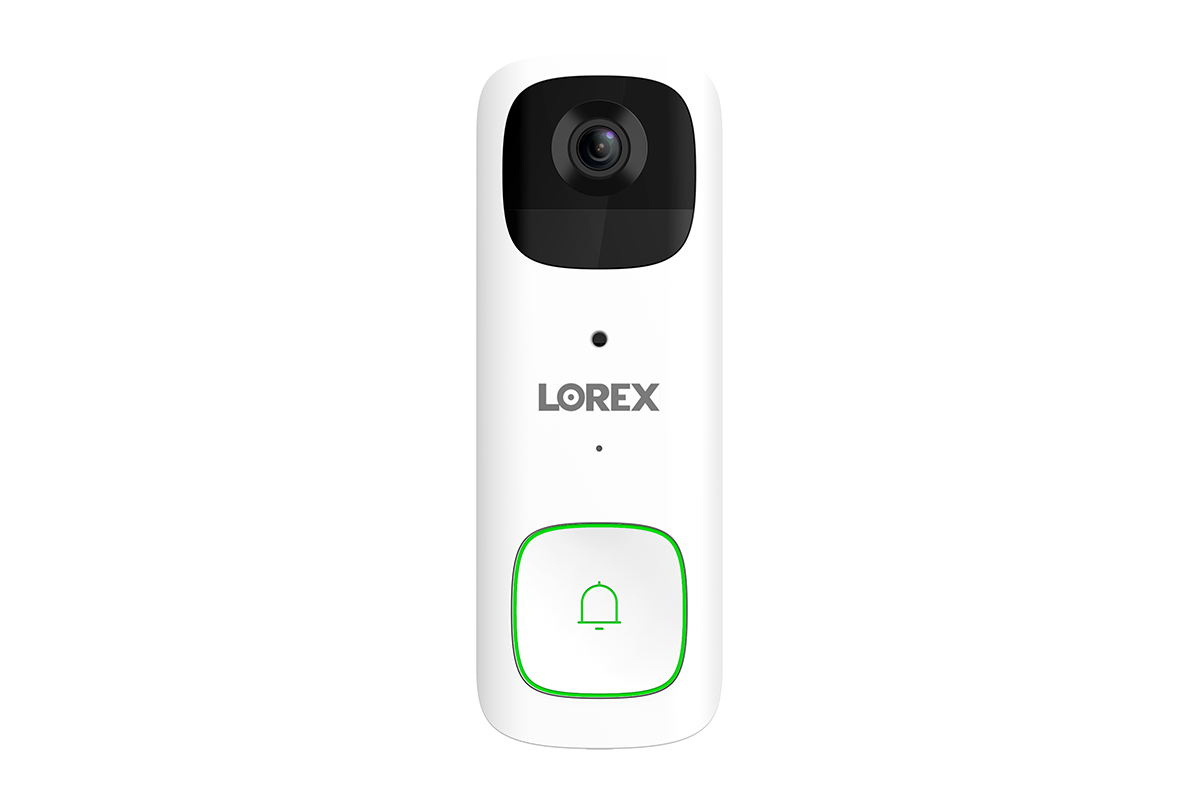

Lorex 2K Battery Video Doorbell [hidden]

B463AJDB-ENew Arrival

Safe & Secure

Apps are protected with end-to-end data encryption.


Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.


Your front door is a busy place

The Lorex 2K Battery Video Doorbell helps you stay connected, no matter where you are.

With the built-in battery, this doorbell is easy to install and fits almost any door. Choose a Wired connection if you prefer continuous power. Catch the finest details with 2K Resolution and Color Night Vision and always know who's there with Person Detection. Keep your video recordings where they belong, private and in your control with the local 32 GB Micro-SD with no monthly fees.




Color Night





Easily install almost anywhere thanks to the built-in battery. Use the included wedges to get that perfect viewing angle.

Installation Steps:


Charge the battery


Install bracket and connect doorbell


Add to Lorex Home app
If you prefer continuous power, there is an option for a wired connection.
Get up to 2-4 months or 600 events of battery life per charge*. The doorbell features a non-removable battery. To recharge, simply remove the doorbell from the bracket and connect to a power source using the charging cable.

Impressive Clarity, Day and Night

Get the best view with impressive 2K video quality and Color Night Vision (ambient light required). When light is limited, you can always rely on IR Night Vision, which produces clear black and white video.


Welcome Home

Fumbling for your keys in the dark? Shed light on your doorstep with the LED Nightlight. Schedule to activate at a certain time or when motion is detected.


Get alerts that matter

Know who's there with Person Detection, which will send mobile push notifications when someone arrives on your property.

Answer instantly

Answer your door from anywhere with the 2-way talk. If you're busy, have quick response speak for you. Record your own personalized welcome message to greet guests.

Keep your video recordings private

Your security camera records countless hours of you and your family. Keep your video footage private and in your control with the locally stored 32GB MicroSD. Access all camera features, recordings and settings at no monthly fees.

Lorex Fusion Ecosystem

Build your security the way you want with the Lorex

Fusion Collection

All-in-One Security

Connect all of your devices to one recorder with secure local storage for enhanced privacy and protection.

24/7 Recording

Continuous recording directly to your device with upgradable storage and no monthly fees.

One App Access

Remotely view all of your Lorex devices from one app, allowing for easy control and monitoring of your property from anywhere.

Smart Home Compatible Wi-Fi Camera

Smart Home compatibility

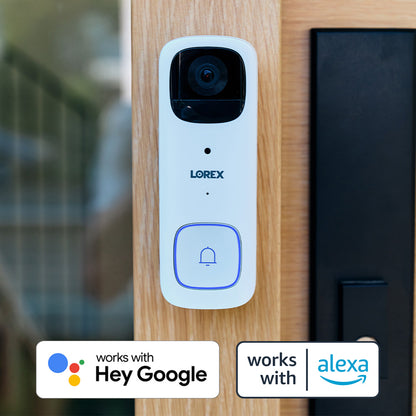

Get faster access to your doorbell with hands-free voice control. Use simple voice commands to activate features with Amazon Alexa™ and Google Assistant™. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

Stay connected on-the-go with the Lorex Home™ app


Your floodlight will always be within reach with help from the Lorex Home App. This versatile app allows you to remotely access your Lorex cameras so you can easily view live videos, customize your system settings, playback recorded motion events and more.

Download on the App Store
Get it on Google Play

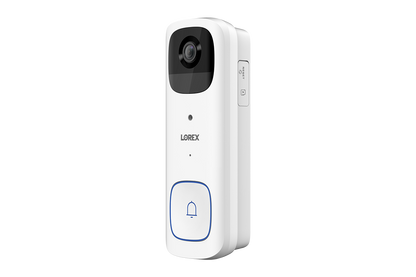

360° Product View


Doorbell Comparison Chart


1080p Wired Video Doorbell


2K Wired Video Doorbell


2K Battery Video Doorbell

Resolution 1080p / 2MP 2K / 4MP 2K / 4MP
Dark Grey
White, Black
White, Black
Detection Person Person Person
Power Wired Wired Built-in Battery
Storage 32GB 32GB 32GB
Network Connectivity 2.4GHz Wi-Fi 2.4GHz / 5GHz Wi-Fi 2.4GHz / 5GHz Wi-Fi
Chime Not Included Yes (chime kit included) Not Included
Lorex Compatibility Fusion,
ACCHM2 Wi-Fi Chimebox
Lorex Smart Home Security Center,
ACCHM2 Wi-Fi Chimebox
ACCHM2 Wi-Fi Chimebox
Third-Party Compatibility Alexa, Google Assistant Alexa, Google Assistant Alexa, Google Assistant
Communication (Audio) 2-Way Talk,
Quick & Custom Response
2-Way Talk,
Quick & Custom Response
2-Way Talk,
Quick & Custom Response
Aspect Ratio 16:9 4:3 4:3
Night Vision IR / Color IR / Color IR / Color
Operating Temperature -4°F / -20°C - 122°F / 50°C -4°F / -20°C - 122°F / 50°C 14°F to 122°F / -10°C to 50°C

Product Specifications

Max Video Resolution 2K (2560 × 1920)
Aspect Ratio 4:3
Video Modes 2K, 1080p, D1
Video Features HDR
Max Lens Field of View 124º Horizontal
164º Diagonal
Nightlight / Warning Light Yes
Quick Responses Yes
Built-in Battery 6200mAh
Night Vision High powered Infrared LEDs
(850nm) with IR Cut Filter
Color Night Vision Yes
Indoor / Outdoor Outdoor, IP65 rated
Microphone Microphone with noise cancellation
Speaker / Siren Yes
Audio 2-Way audio
Network Connectivity 2.4/5Ghz 802.11b/g/n/ac
Operating Temperature 14°F to 122°F / -10°C to 50°C

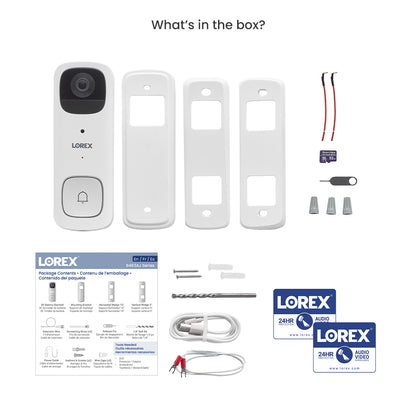

What's Included?

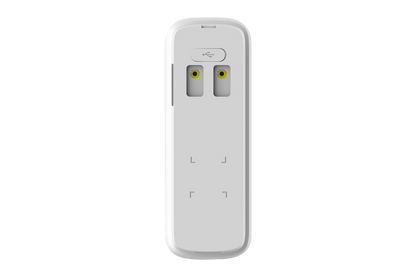

B463AJD Overview
  1. Release Tab
  2. USB Charging Port
  3. Reset Button*
  4. MicroSD Card Slot
  5. Power Terminals
  6. QR Code
  7. Speaker
  8. Camera
  9. IR Light
  10. PIR Sensor
  11. Light Sensor
  12. Microphone
  13. Status Indicator
  14. Call Button
  15. Night Light
*Press and hold the reset button until you hear the audio prompts.

Package Contents:

1 × 2K Battery

1 × Mounting

1 × Horizontal

1 × Vertical

1 × USB Power

1 × Extension

2 × Connecting

1 × Release

2 × Anchor
& Screws

1 × 1/4" Drill

3 × Wire

  1. Require a high-speed internet connection and a Wi-Fi router (not included) that supports 2.4Ghz. A minimum upload and download speed of 10 Mbps is required for optimal performance.
  2. Install wire-free, using the built-in (non-removable) battery. For wired installation, a voltage range of 8-24 VAC is required. If the voltage is less, a transformer will be required to operate properly. Consult with a licensed electrician.
  3. Audio and video recordings without consent, is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform to local laws.
  4. Person Detection accuracy is compromised when the face and/or body is partially covered.
  5. Not intended for submersion in water. Installation in a sheltered area is recommended.
  6. When MicroSD card storage is full the older previously recorded video will automatically be overwritten with the latest recordings. NOTE: There is a limited number of write/re-write cycles rated by the MicroSD card, before performance is reduced.

Lorex products are designed for consumer and business use only and not for US federal governments, federally-funded projects or contractors subject to NDAA.

For smart home compatibility, features, and instructions visit

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.

Amazon, Alexa and all related logos are trademarks of, Inc. or its affiliates. 2-Way communication is not available via Alexa.

Images may be simulated for illustrative purposes only, and may not have been taken by the camera series depicted.
