Lorex Fusion 4K 16-Channel 3TB Wired NVR System with 12 Cameras + 2K Wi-Fi Video Doorbell, Wi-Fi Floodlight Camera and Smart Sensor Kit

N4K3-1612WB-DSF
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

LOREX FUSION COLLECTION

This Fusion NVR system is united by our Lorex Home app, which can "fuse" the included wired 4K cameras and Wi-Fi Doorbell and Floodlight on the same NVR!

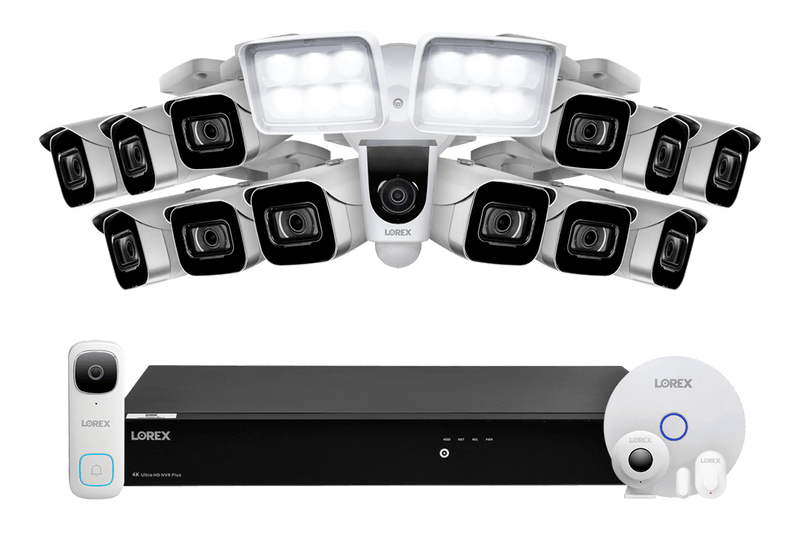

What's Included (N4K3-1612WB-DSF)

Wired NVR System

Wired NVR System

16 Channels  |  12 Cameras  |  3TB HDD

Wi-Fi cameras

Wi-Fi Cameras

1 × 2K Doorbell & 1 Floodlight

lorex Sensor starter kit

Sensor Kit

Lorex Sensor Hub & 2 Sensors

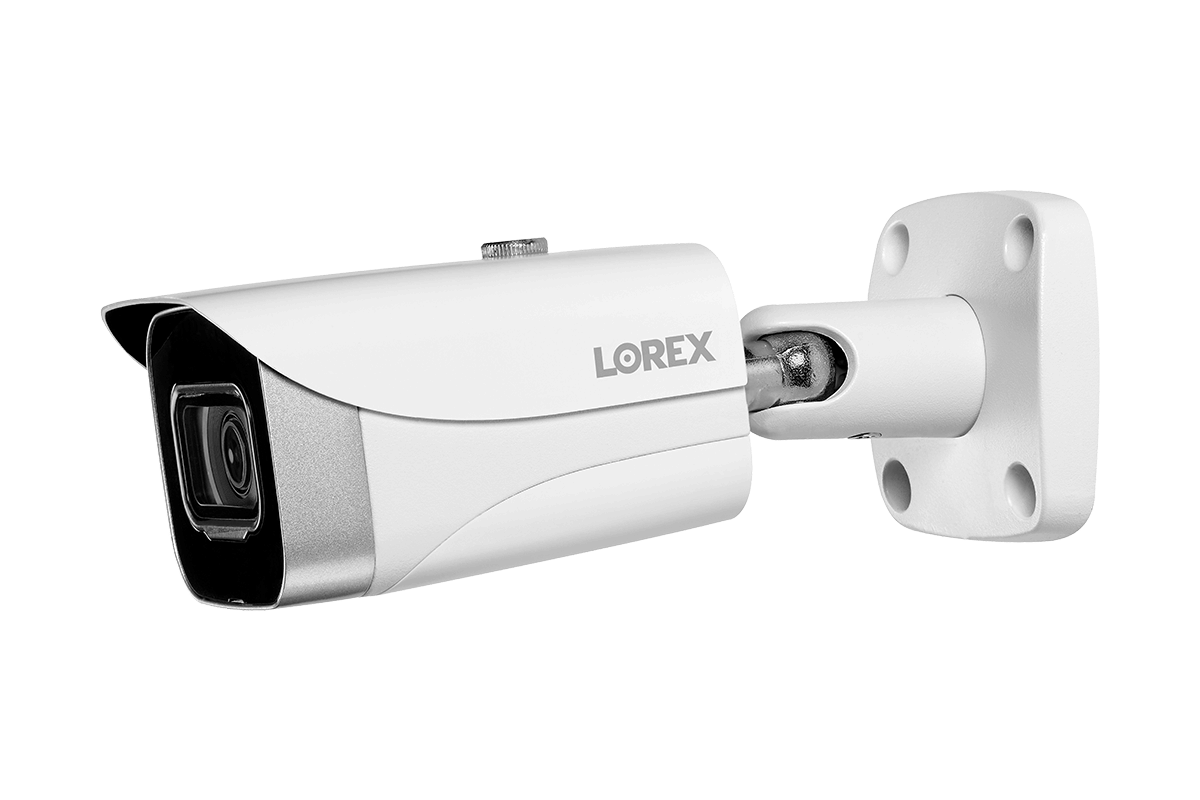

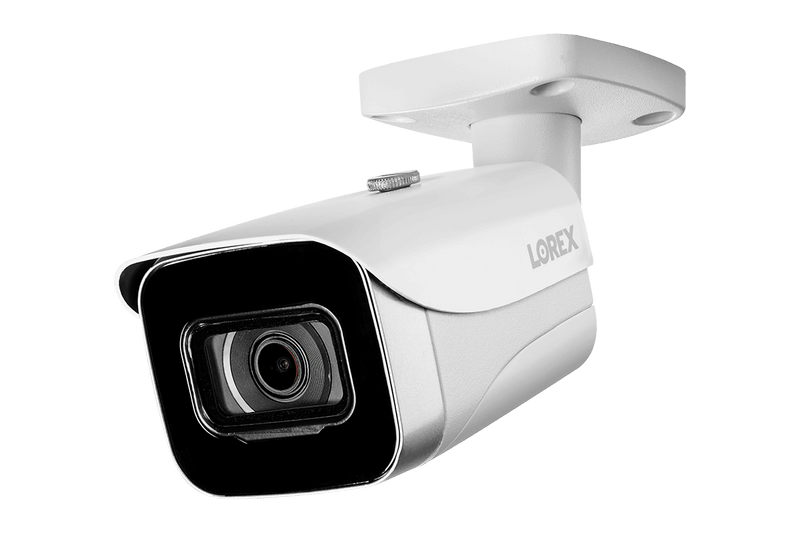

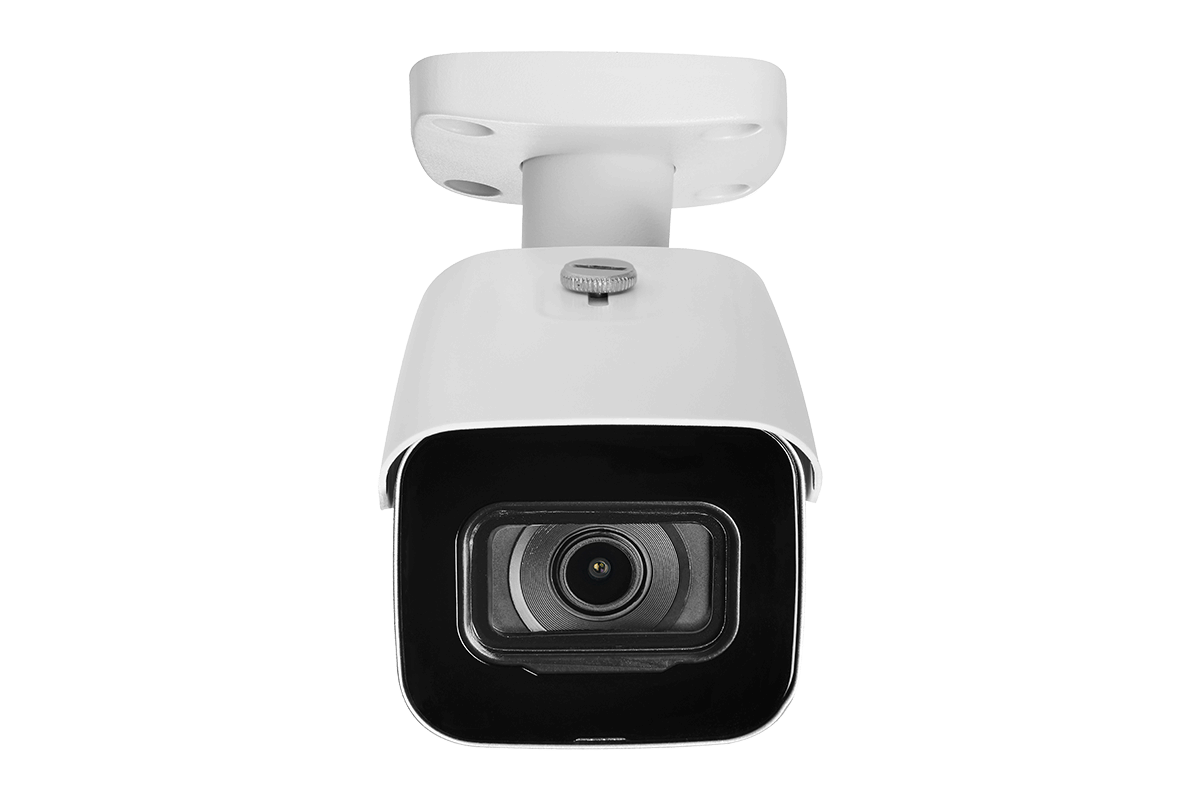

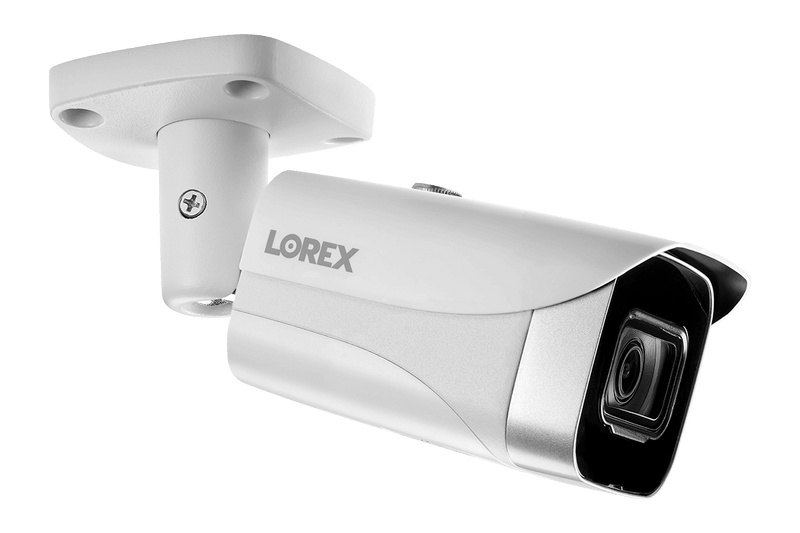

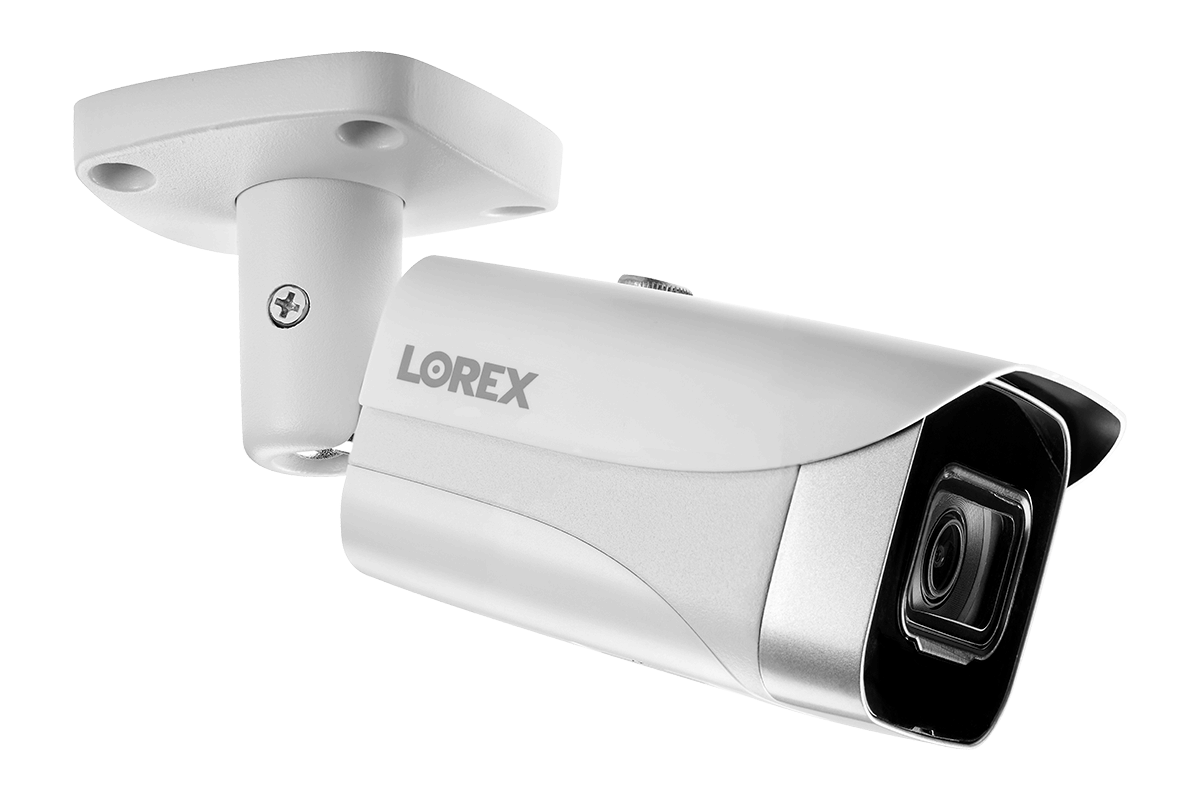

4K Ultra HD IP Security Cameras

Record the highest level of detail to help you capture moments like never before!

Learn More

4K means there are more than 8 million pixels, and that results in sharper video and realistic color representation

See full color with the help of ambient lighting or long-range infrared night vision in low-light settings.

Metal exteriors provide year-round protection from the elements.

HEVC compresses video file sizes without any noticable difference in quality.

IP cameras only need a single CAT5e ethernet cable to connect them to the NVR.

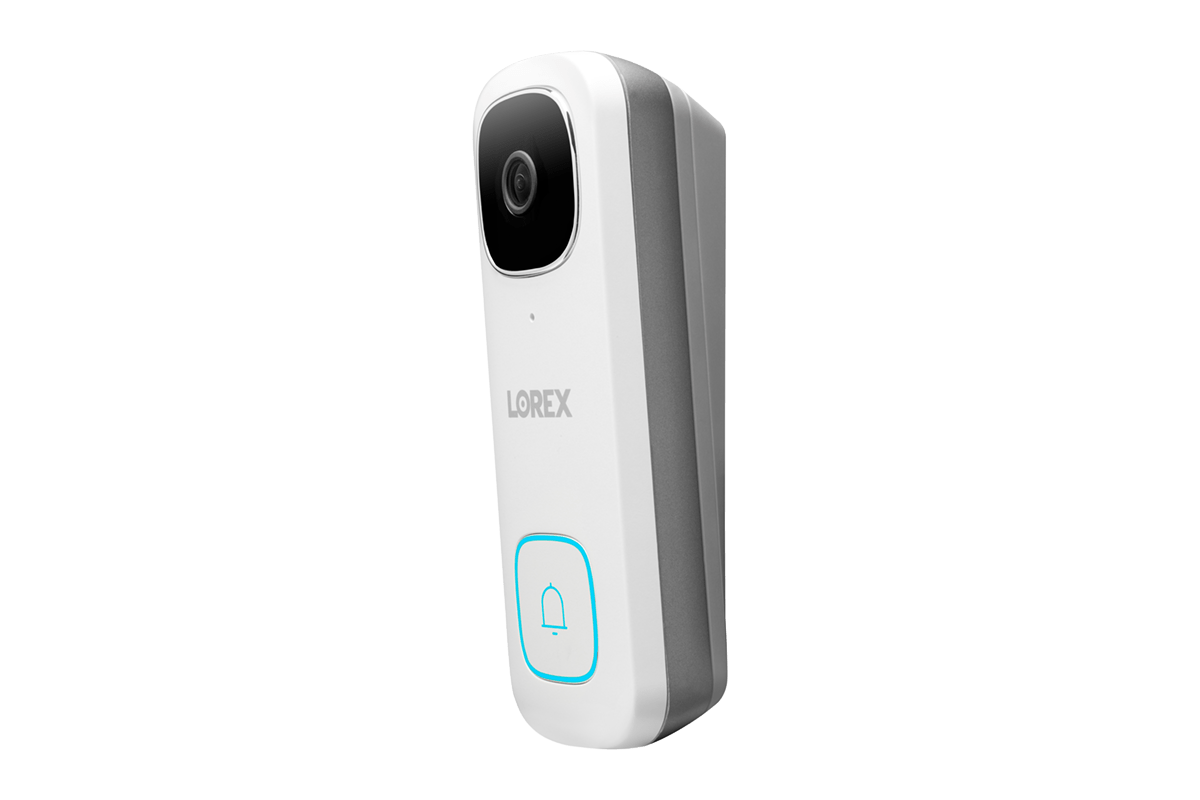

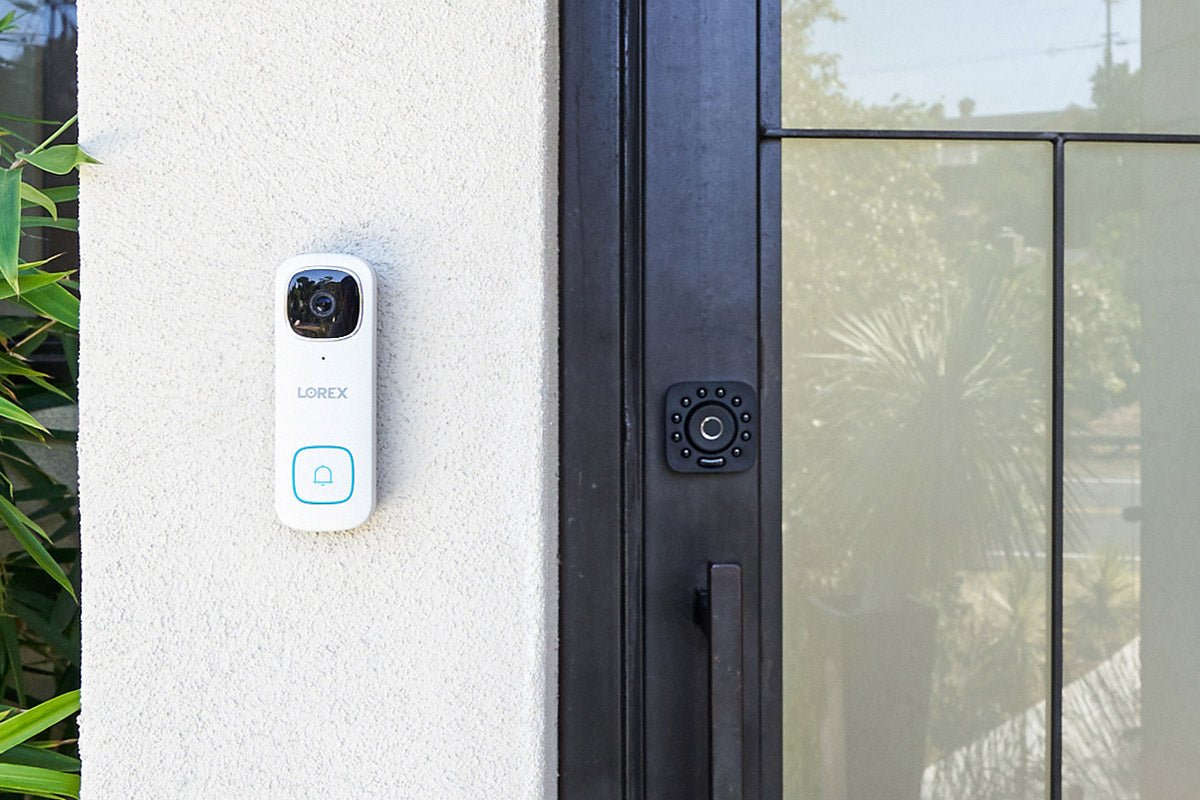

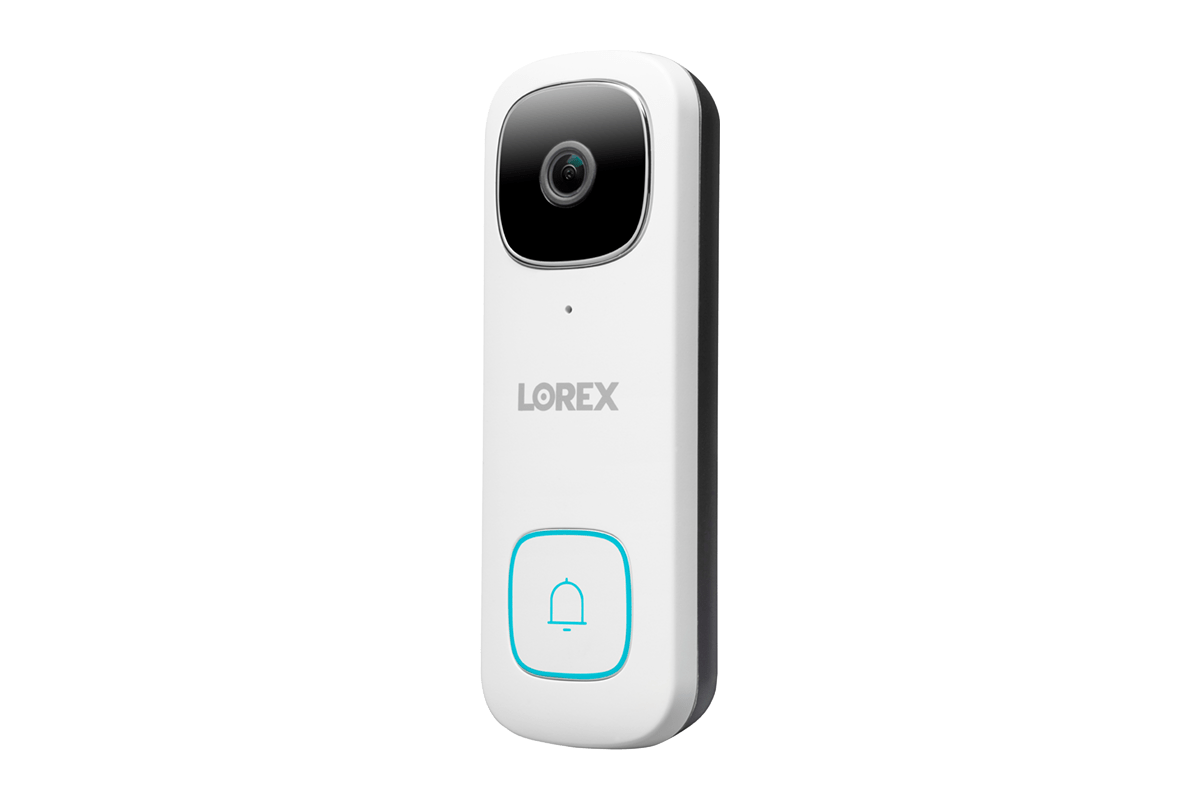

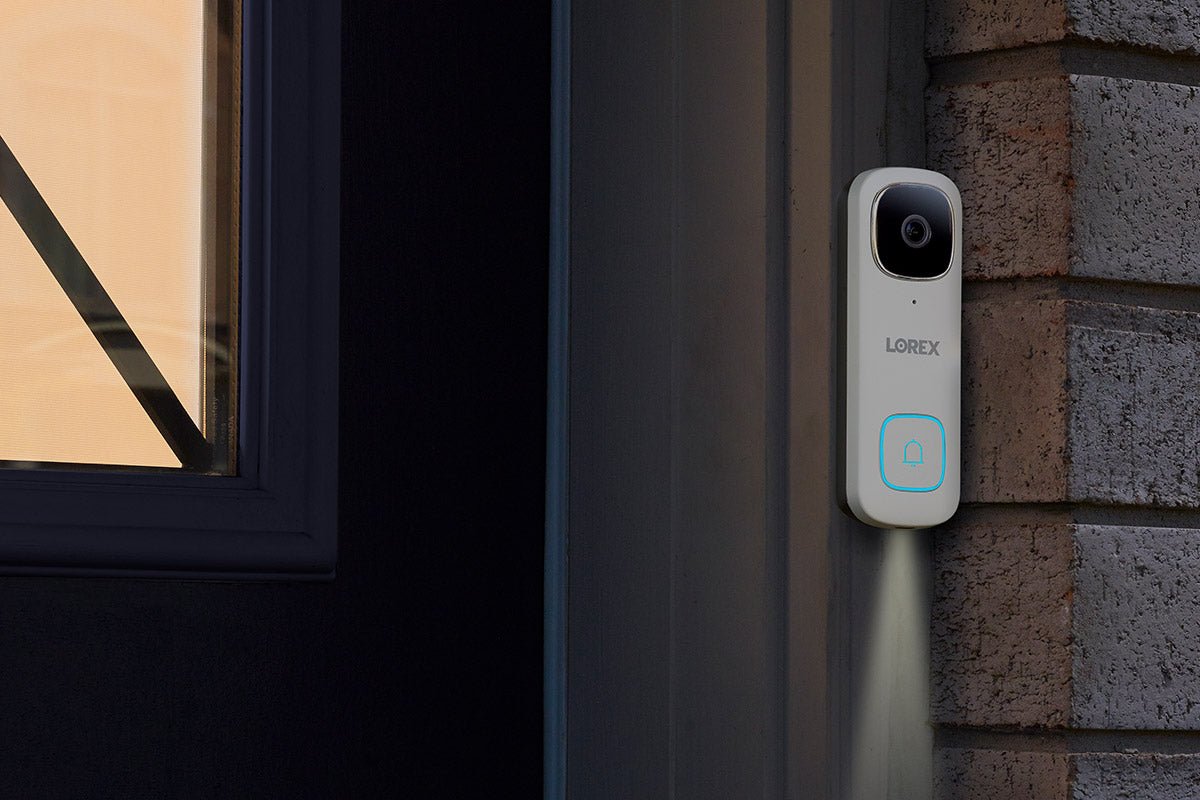

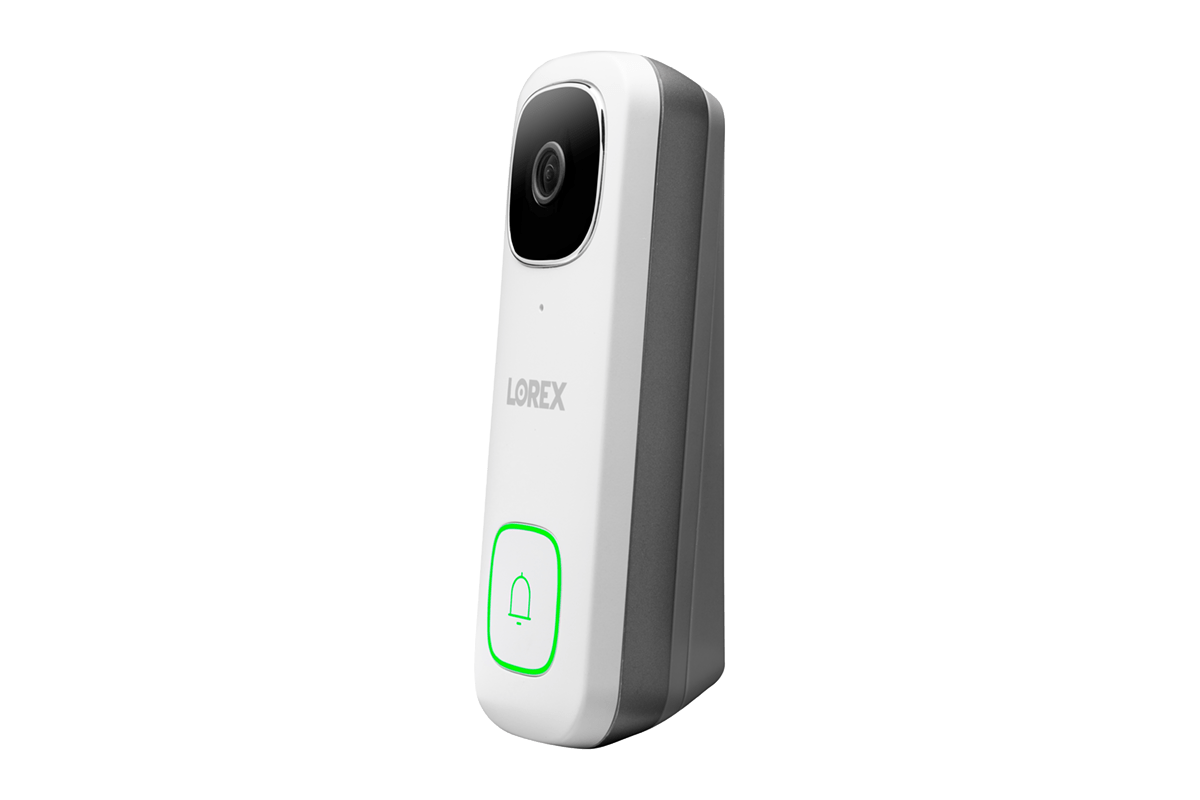

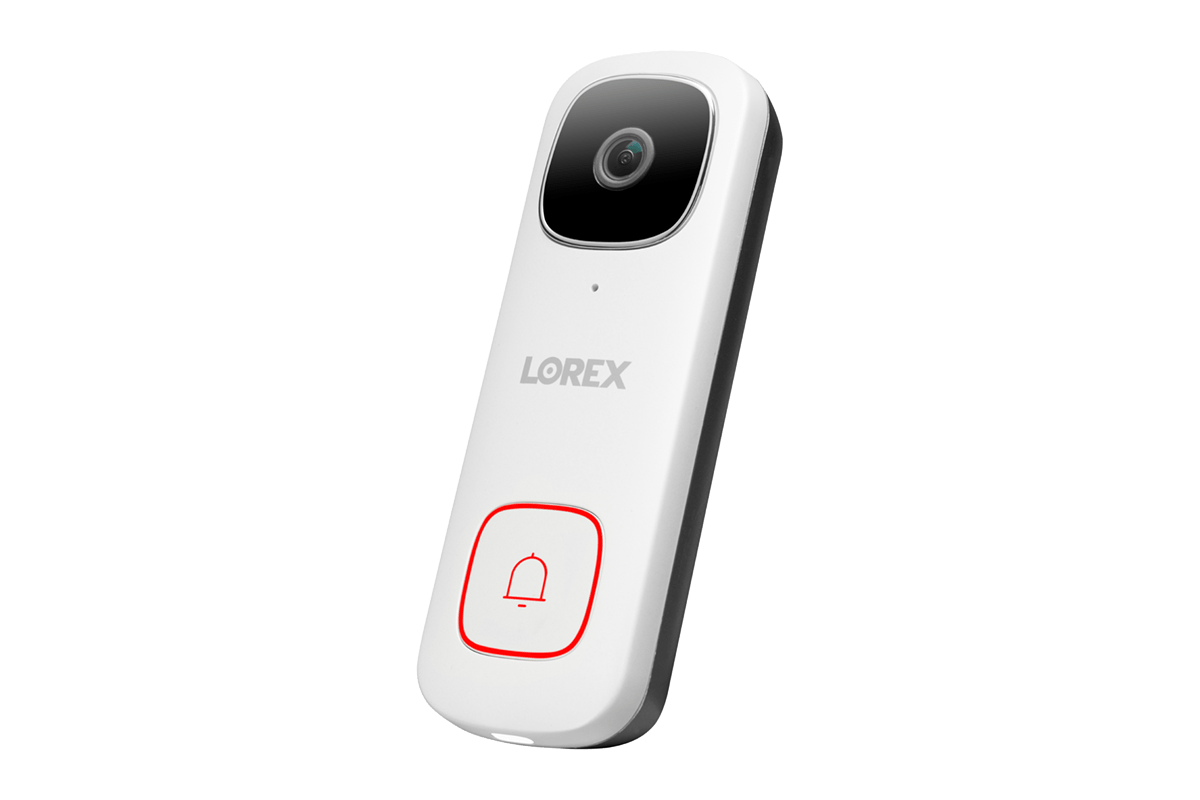

2K Wired Video Doorbell

See who's at the door, greet guests with a nightlight, answer the door from anywhere, play pre-recorded messages when someone rings, and talk to those on the other side with the 2K QHD Doorbell.

Learn More

Thanks to a pre-motion recording feature, the doorbell will automatically start recording 5 seconds before the event starts so you don't miss any action.

Automatically receive notifications to your phone telling you that there is someone at the door.

Use 1 of 3 quick responses to greet visitors who ring your doorbell. You can even record your own custom message to add your personal touch or speak directly through the doorbell using 2-Way Talk.

See more with a 164° viewing angle and 4:3 aspect ratio showing you the full picture.

HDR automatically corrects exposure when lighting is not ideal.

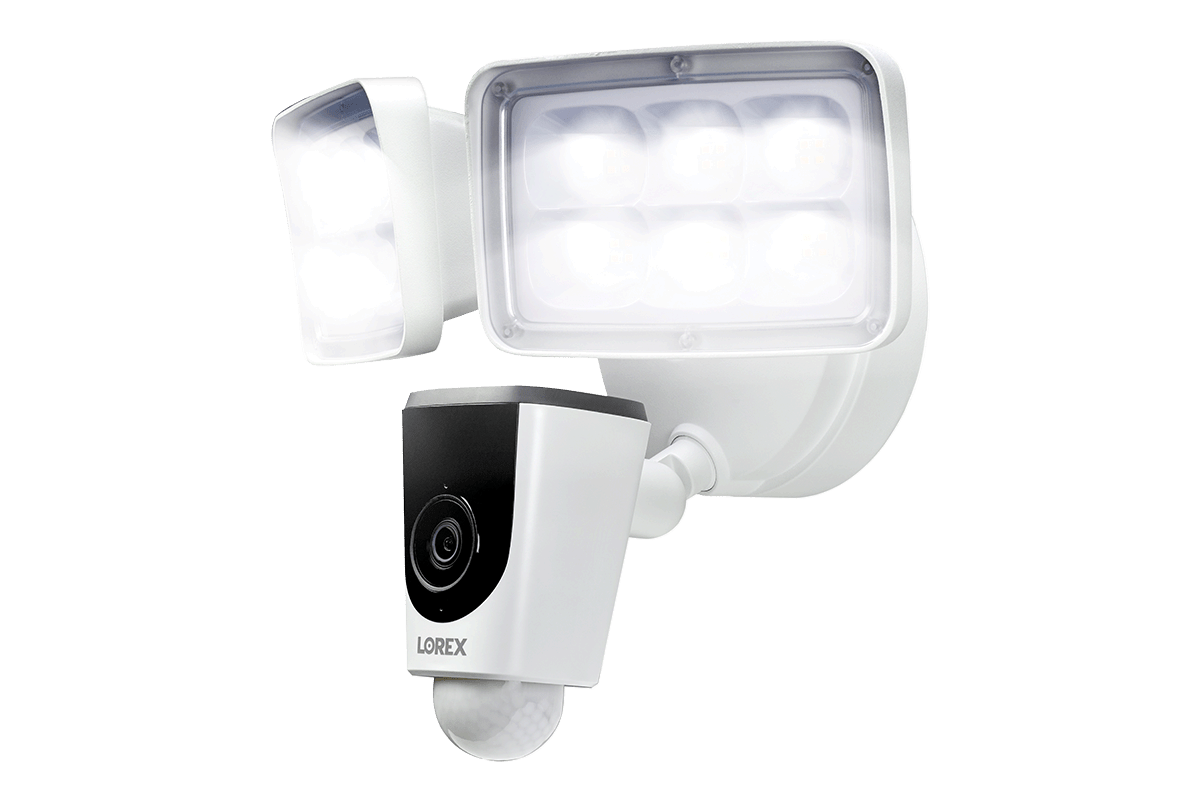

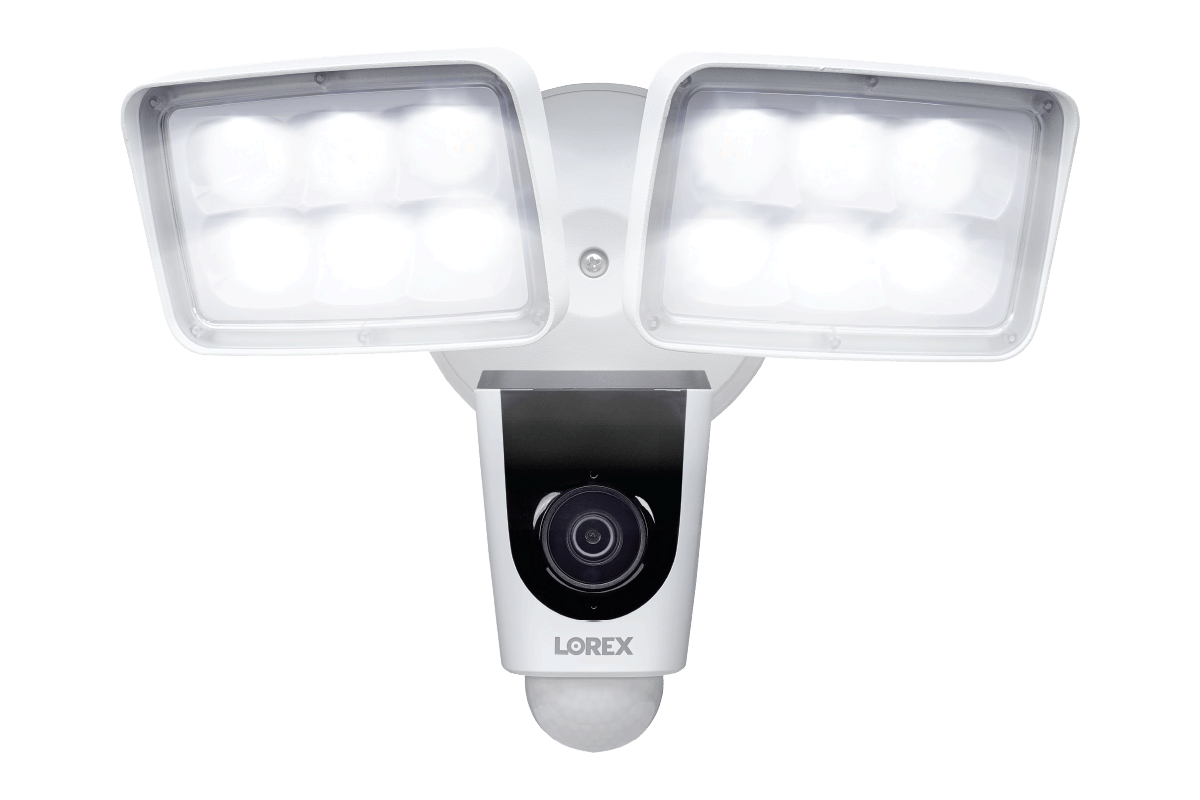

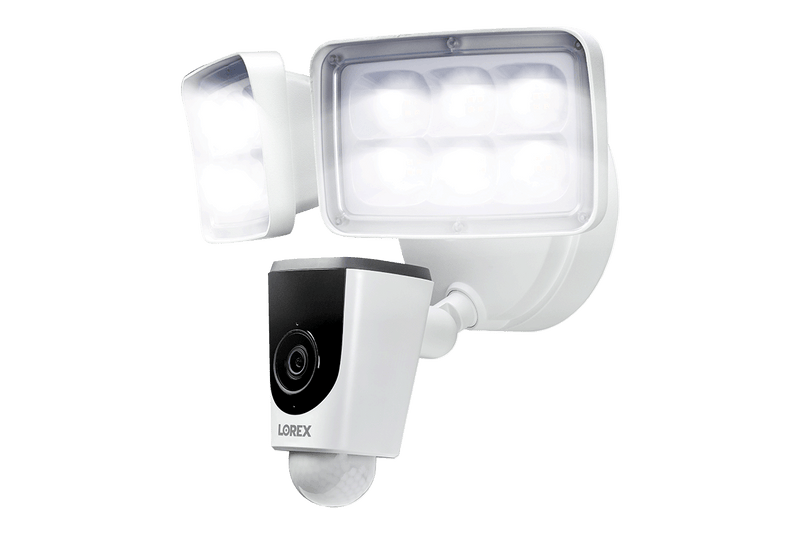

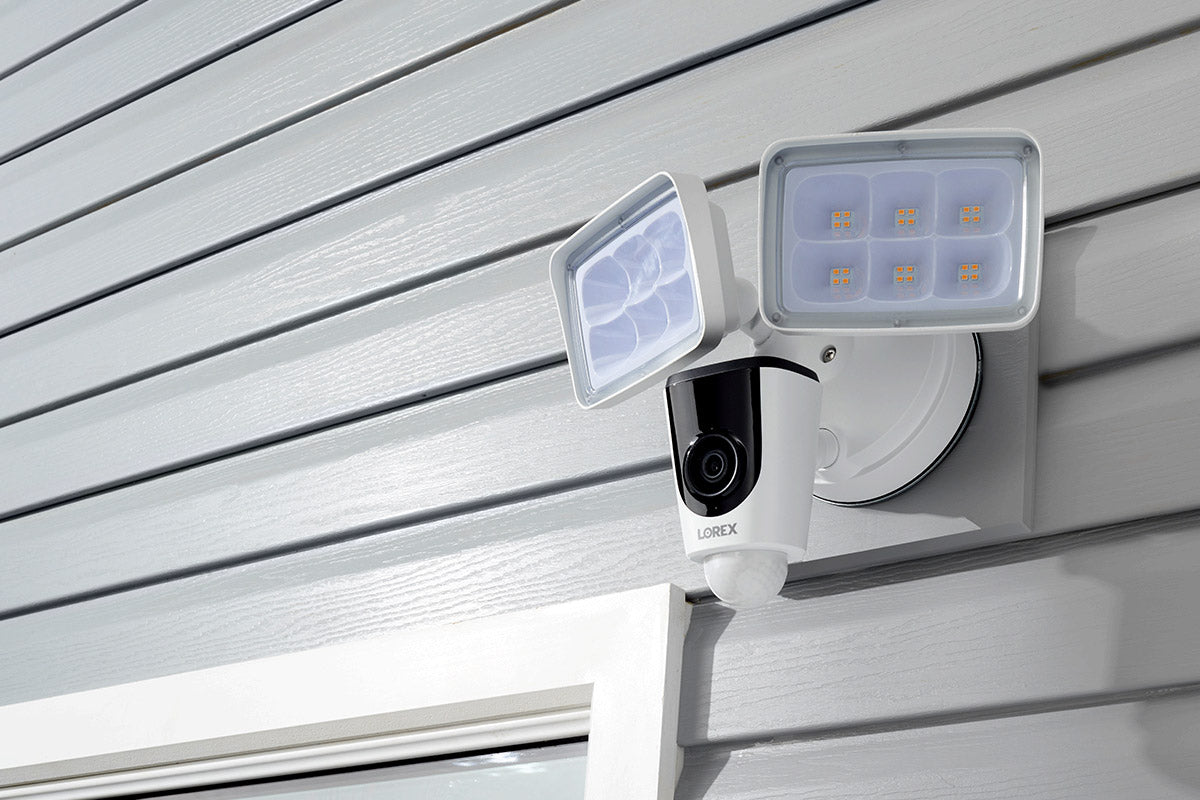

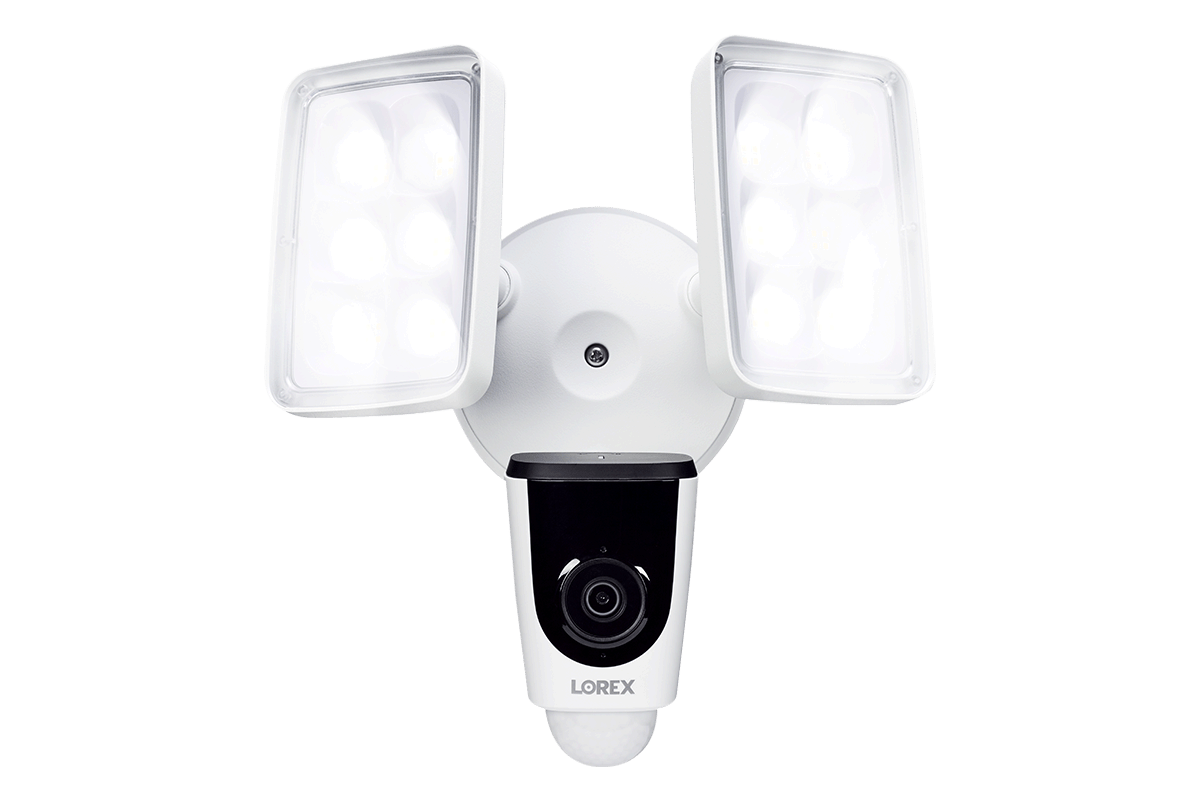

1080p Wi-Fi Floodlight Camera

Combine security and lighting with this powerful Floodlight Camera.

Learn More

Capture important details with real-time 30 fps (frames-per-second) full 1080p HD resolution recording. A wide-angle lens also provides you with more security coverage and helps with earlier detections.

The camera is equipped with dual LED floodlights, two-way talk, and a deterrence siren to stop potential events before they happen.

The Passive Infrared (PIR) motion detector has a 270° horizontal field of view and is designed to sense the infrared energy that eminates from people, animals, or vehicles.

Conveniently use the existing wiring from your previous floodlight or outdoor house light. It can also connect to your pre-existing standard junction box.

The Floodlight Camera works 24/7. It contains infrared LEDs that allows the camera to see up to 50ft (15m) in the dark.

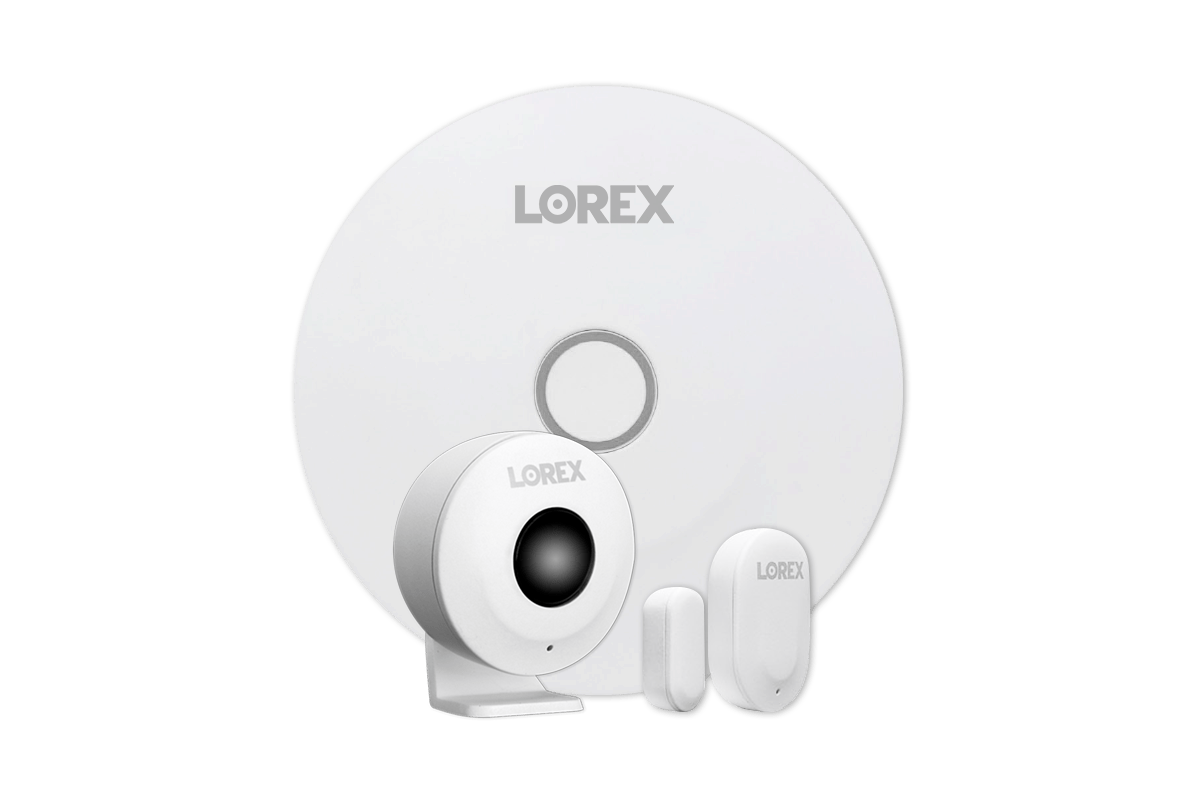

Smart Sensor Starter Kit

Add some vital security to your house without the video.

Learn More

Connect the Lorex Sensor Hub to the Lorex Home App - No NVR channel required.

Simply stick the sensors on any door or window frame in your home.

Peel and stick to locations around your house, including ceilings, walls, or the top of any flat surface.

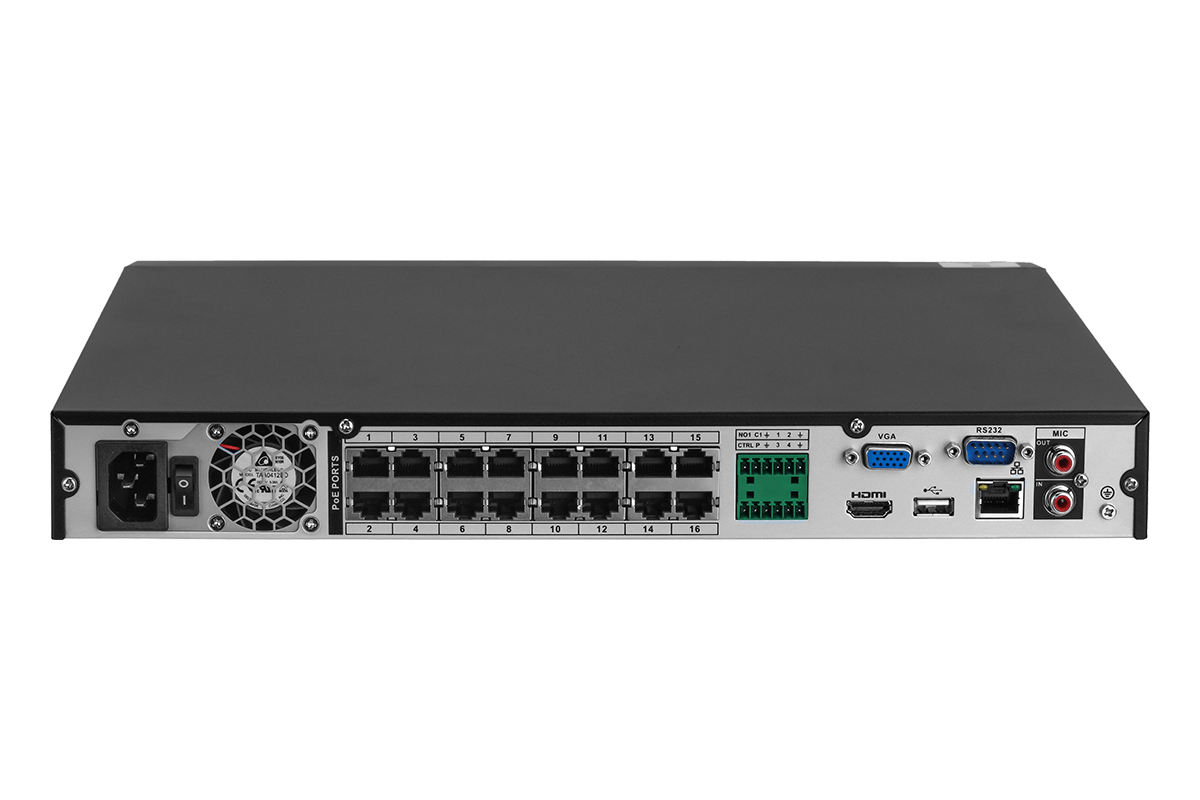

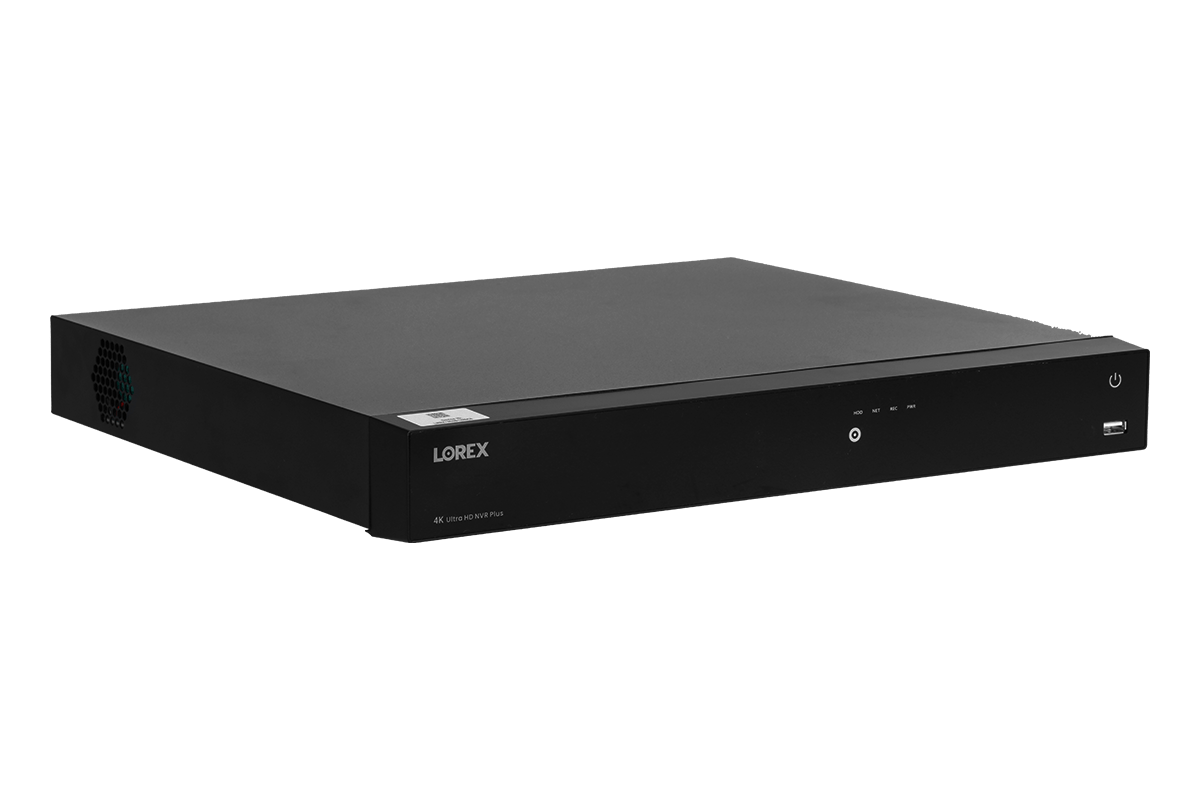

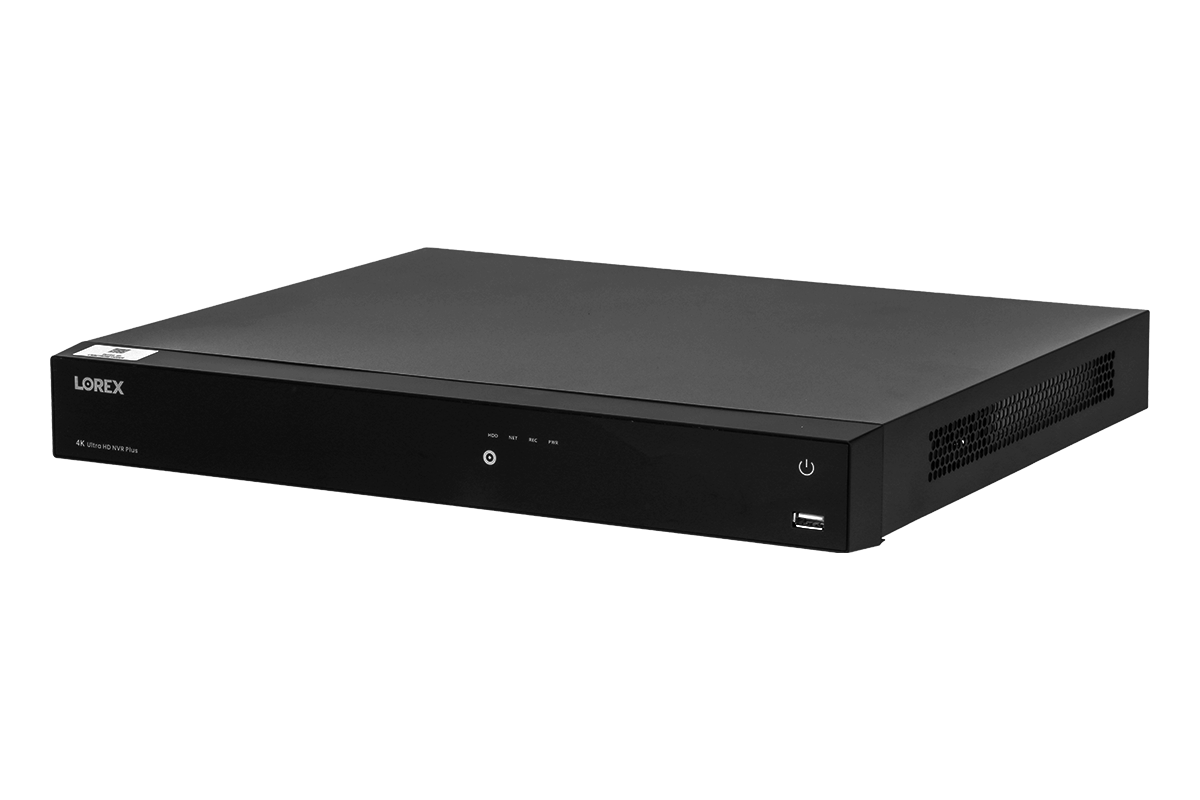

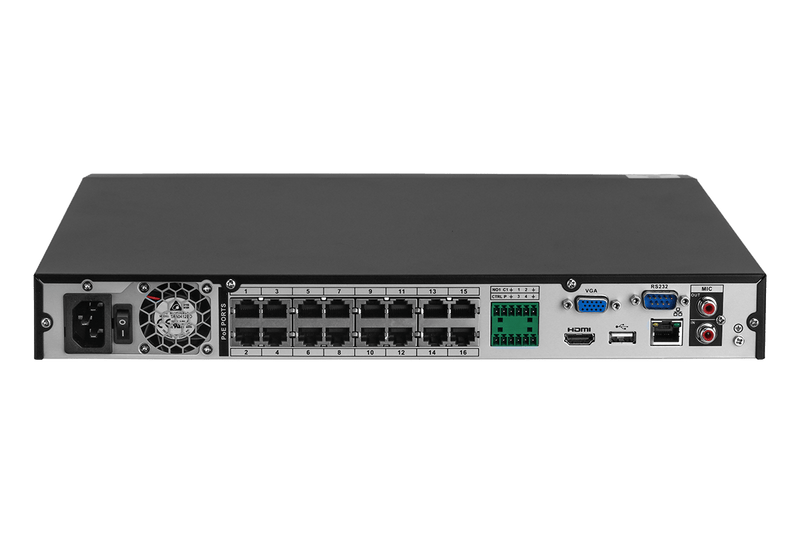

16-Channel 4K Fusion Network Video Recorder

Record 4K security video and experience the latest in smart innovations to provide the highest level of security for your property.

Learn More

View your security system remotely from your smartphone or tablet.

Select an area to playback footage showing scene changes in that area.

A 3TB security-grade hard drive keeps your data safe and local. This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 8TB, giving you the potential for a total of 16TB's of storage space.

The Lorex Sensor Hub also uses the Lorex Home App, allowing you to seamlessly integrate Add-On Sensors into your home security. Click here to learn more.

Works with Google Assistant Works with Alexa

Smart home compatibility

Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.



Stay connected on-the-go with the Lorex app



Your Lorex devices will always be within reach with help from the Lorex App. This versatile app allows you to remotely access your Lorex cameras so you can easily view live videos, customize your system settings, playback recorded motion events and more.

Download on the App Store
Get it on Google Play
phone screen with person speaking through camera

2-Way Talk

Use the 2-Way Talk via the Lorex app to talk and listen to the person on the other end of the camera.

phone screen with security event timelines

Timelines & Filters

All events will be compiled into a chronological timeline to save time while reviewing footage.

phone screen showing privacy settings

Privacy Mode

Lorex app allows you to easily stop recording with the new Privacy Mode feature.

phone screen showing motion push notifications

Notifications

Receive instant alerts directly to your smartphone whenever a person is detected on your property.



What's Included?

N863 Dimensions

  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity2
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection3
  • Get push notifications when motion from a person or vehicle is detected4
  • A choice of four different siren sounds are available including a Police siren or a house alarm sound5
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place.
  • Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)6
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
  • 2 bay hard drive with up to 2 × 8TB of storage space with no hidden monthly fees
  • Local built-in security-grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • For improved security simply use the Lorex Home app to set a notification for when someone enters your business without a proper face mask
  • The voice prompt is another benefit that can be used to alert and remind non-mask wearers: "Please wear your face mask"
  • Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more7
  • Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
  • Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD

Each N863A63B Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides
  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
  4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visitwww.lorex.com/smarthome
  7. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  8. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  9. NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility

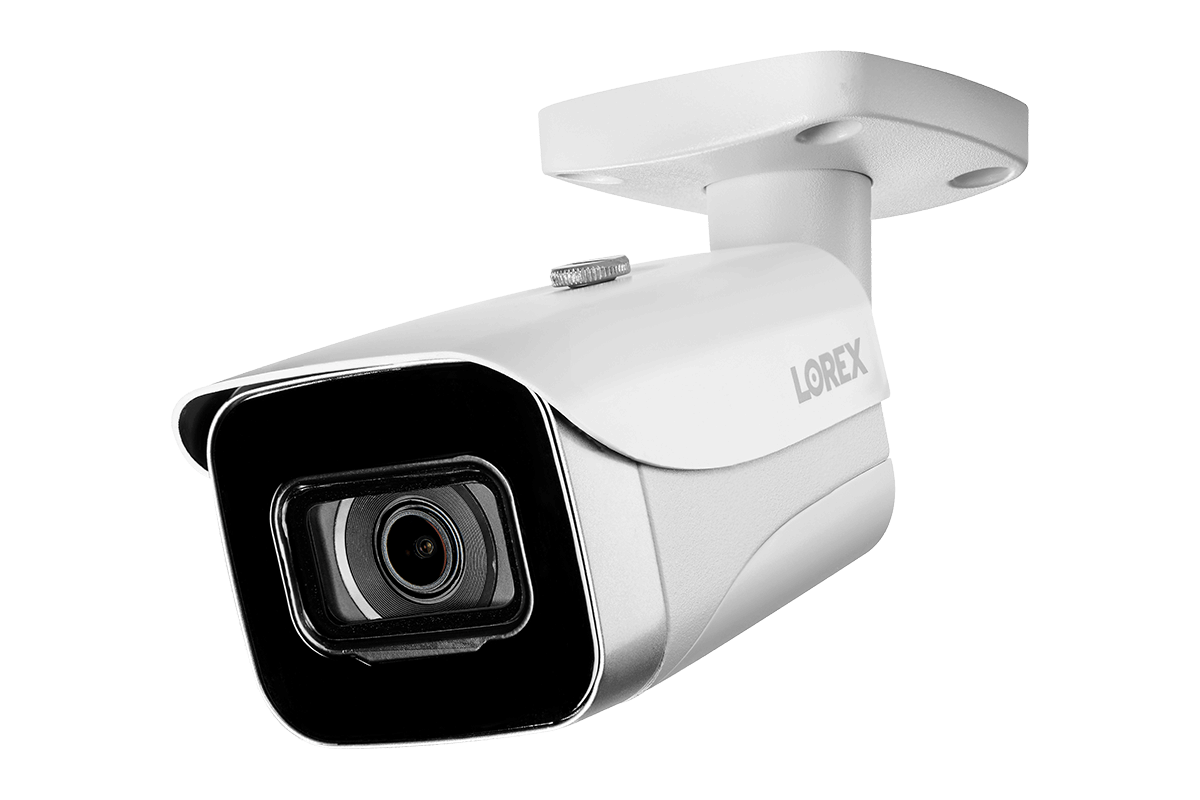

E841CA Dimensions

  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 105° field of view
  • HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
  • Weatherproof rated (IP67)2
  • Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
  • Aluminum Alloy housing, designed to withstand harsh weather conditions
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
  • Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4

Each E841CAB/E841CA-E Includes:

1 × 4K IP Security Camera
1 × Mounting Kit
1 × 100ft Cat5e Cable
1 × Quick Start Guides
  1. Compatible with select Lorex Series NVRs. For a list of compatible recorders, please visit lorex.com/compatibility
  2. Not intended for submersion in water. Installation in a sheltered location recommended.
  3. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  4. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 90ft/27m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  5. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
B451AJ dimensions
  • Impressive 2K QHD Resolution for clear video quality.
  • See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
  • Get the best picture always with HDR imaging.
  • Use pre-recorded messages or 2-way talk1 to greet visitors.
  • Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
  • Deter unwanted guests with the remote-activated siren.
  • Be aware of activity around your doorstep with built-in Person Detection feature.
  • Receive notifications from the Lorex Home™ app when motion is detection2.
  • Local microSD storage, expandable up to 256GB.
  • Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
  • Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
  • Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
  • Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3

Each B451AJD Camera Includes:

Video Doorbell
Chime Kit
Pre-inserted microSD Card
USB Cable
Electrical Wiring
15° Horizontal Bracket
5° Vertical Bracket
Mounting Kit
Quick Start Guide
  1. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  2. Requires a high-speed internet connection and a Wi-Fi router (not included) for remote access. A minimum upload speed of 3.5 Mbps is required for the best video performance.
  3. Requires 16 - 24 VAC. If the install location does not have this, a transformer will be required to operate properly. Consult a licensed electrician if in doubt.
  4. Not intended for submersion in water. Installation in a sheltered area recommended.
  5. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
V261LCD HD WiFi Floodlight security camera
  • 2 × 2000 lumens light arrays for optimal light coverage
  • LED floodlight can activate when motion is detected, manually, or on a schedule
  • See more with 1080p resolution and a wide 137° Field of View (diagonal)
  • PIR Motion 270° Field of View (diagonal)
  • IR night vision up to 50ft (15m)1
  • No monthly fee for video recording, storage and photo capturing
  • Includes a 32 GB microSD card. Supports up to 256 GB microSD storage
  • Built-in mic and speaker for 2-way talk. Listen or talk directly to anyone on your property using the Lorex Home App2
  • Conveniently use the existing wiring from your previous floodlight or outdoor house light

Each V261LCD-E Camera Includes:

1 × HD Video Floodlight
1 × Mounting Kit
1 × MicroSD Card
1 × Quick Start Guide
  1. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 50ft/15m). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption
  2. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  3. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.

Smart Sensor

AY41TR-KTK1-MTK1

AY41TR Sensor Hub
AY41TR Sensor Hub
Color White
Power Power adapter input: 100-240V AC, Power adapter output: 5V DC
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements Lorex Home APP
Compatibility Lorex DVR's or NVR's using Lorex Home APP
Operating Conditions Indoor Use
Warranty 1 year limited warranty
AM41TK PIR Motion Sensor
AM41TK PIR Motion Sensor
Color White
Power Battery: CR2450, included
Connectivity BLE5.0
Detection Range 26ft Max.*
Detection Angle 110° Max.
Installation Type Tabletop, wall or ceiling
Lights Status Indicator Light
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex Home Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty
AK41TK Door and Window Sensors
AK41TK Door / Window Sensors
Color White
Power Battery: CR1632, included
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex Home Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty

Each Smart Sensor Starter Kit Includes:

1 × Sensor Hub
1 × PIR Motion Sensor
2 × Door / Window Sensors
1 × Power Accessories
1 × Sensor Hub Bracket
1 × PIR Motion Sensor Bracket
Mounting Adhesives
1 × Pin

*Range will be affected by environmental factors

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

Reviews and Q&A

You may also like

Recently viewed
