LNR100 Series 8-Channel Security NVR with Weatherproof HD IP Cameras

LNR100-8ch-Series
Receive an exclusive 10% discount with Lorex Upgrade Program. Click here to learn more.
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Viewing your world in high definition has never been easier than with the LNR100 Series Network Video Recorder (NVR). The system is coupled with HD IP cameras, which use a single Ethernet cable that provides both power and video using Power over Ethernet (PoE) technology. Connect the cameras to the NVR's 4 integrated PoE ports for a truly plug-and-play surveillance experience that will have you up and running in no time. Record surveillance video in full 1080p HD up to 30 frames per second for footage as lifelike as life itself. Maintain vigilance with the ultimate in recording resolution and picture quality in your corner.

High definition IP camera

Compatibility Notice

This HD NVR is compatible with Lorex PoE IP cameras only. It is not compatible with third-party IP cameras. Click here for full camera compatibility list.

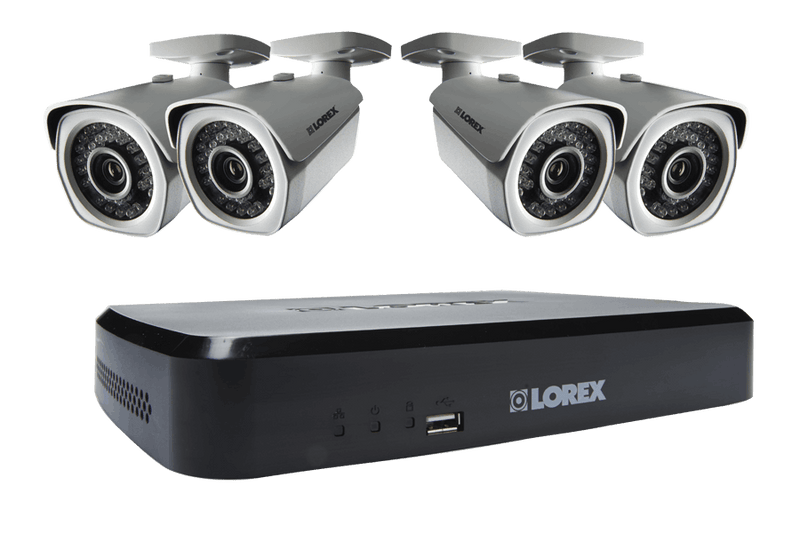

The system includes 4 HD IP bullet cameras (LNB3153), which boast smooth FULL HD 1080p video and outstanding night vision. The end result of stunning high definition video of your home or business provides you with that crucial peace-of-mind you need.

The weatherproof IP cameras feature advanced Digital Noise Reduction combined with Spatial Noise Reduction, delivering a more accurate image, with better clarity, sharpness, greater disc space for storage, and improved motion detection. High-powered Infrared LED's deliver outstanding night vision range up to 150ft away in ambient lighting and up to 100ft away in total darkness, ensuring extremely clear HD viewing in all low-light conditions. Digital-Wide Dynamic Range backlight compensation provides clear detailed images where very bright and very dark areas exist in the same field of view.

FLIR Cloud connectivity solution

FLIR Cloud remote viewing

Introducing FLIR Cloud™, our innovative hassle-free cloud connection service. Say goodbye to IP & router port forwarding issues - you can quickly and easily connect to your security system using a smartphone, tablet, PC or Mac. FLIR Cloud™ connects you to your system remotely within minutes on your iOS

What's Included?

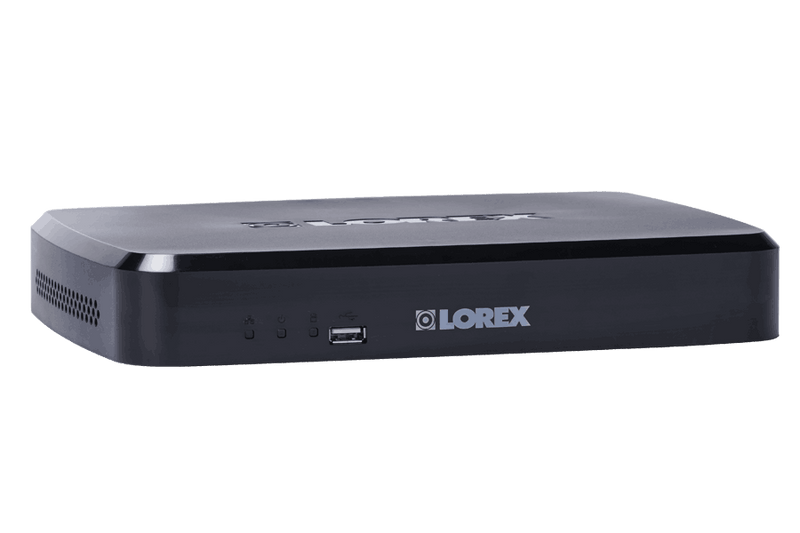

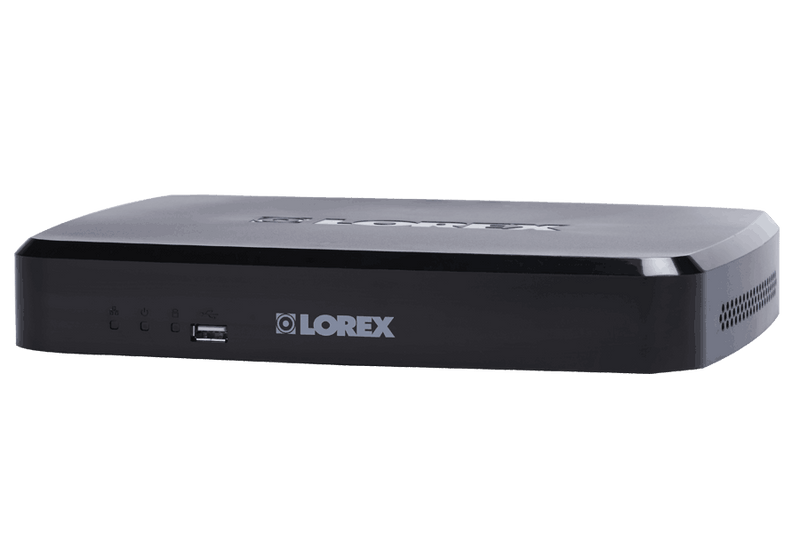

LNR100

Network Video Recorder Features:

  • High definition 1080p Recording
  • Real-time recording at 30fps per channel1

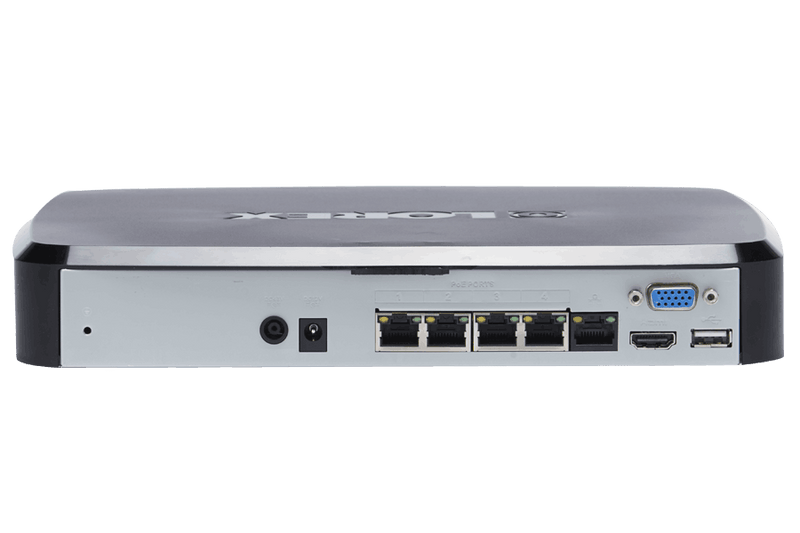

  • 4 Built in PoE (Power Over Ethernet) ports providing video and power on a single Ethernet cable
  • Automatically detects compatible IP cameras in the network2
  • Expand your system with a network PoE switch, sold separately3
  • 24/7 security-grade hard drive4
  • Continuous, scheduled and motion recording
  • Simultaneous playback and live view on the same screen
  • Selectable area digital zoom in live view and playback
  • Accurate time stamps with NTP & daylight savings time
  • H.264 video compression4
  • Instant USB backup of live video from selected camera
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD TVs
  • Keep up to date with automatic firmware upgrades5
  • 3-Step remote view with Lorex Cloud™ 6
  • PC and Mac compatible 7
  • Free iOS™ and Android™ compatible apps with live viewing, playback, video recording, and snap shot 7
  • Dedicated iPad® app with multi-channel live viewing and playback7
  • Push notifications of motion events
  • Instant email alerts with snap shot attachment
  • Dual streaming to conserve bandwidth

Each LNR1182 Includes:

1 × NVR
1 × HDMI Cable
1 × Power adapter
1 × Mouse
1 × Ethernet Cable
Quick Start Guides

1. Real time recording on 4 Channels at 1080p (1920x1080), 8 channels at 720p (1280x720)
2. Compatible with Lorex 1080p wired PoE HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
3. NVR includes 4 built in PoE ports. Up to 4 cameras can be added with the addition of a PoE switch (sold separately, www.lorextechnology.com)
4. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
5. The NVR firmware and software must be upgraded to the latest version to use the Lorex Cloud™ service. When the system is connected to the Internet, it will automatically alert you if there is a firmware upgrade available.
6. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time.
7. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

† Smart Phone & Tablet Compatibility: iPad®, iPhone®, Android™. Mobile phone data plan is required (not included). For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

LNB3153

Weatherproof 1080p HD Night Vision IP Security Camera Features:

  • High definition 1080p Sony Exmor image sensor delivers superior detail1
  • Crystal clear video with outstanding quality, day or night
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 80ft (24m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Digital wide dynamic range backlight compensation ensures clear images in high and low light areas
  • Anti-glare feature ensures clear images under strong lighting conditions
  • ClearNight imaging for superior low light performance, improving recording efficiency
  • 2D DNR Digital Noise Reduction for clear accurate images
  • Split glass design minimizes IR reflection
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
  • Wide angle 72° field of view
  • Vandal resistant design with cable pass-through bracket
  • Heavy-duty durable metal housing
  • Versatile ceiling or wall mounting options
  • Residential and business friendly compact design
  • Expand your coverage with camera Ethernet cable up to 300ft from the NVR

Each LNB3153 Includes:

1 × IP Bullet Cameras
1 × Mounting Kit
1 × 60ft Cat5e Cable

1. Compatible with Lorex HD NVR LNR100/LNR400 series only
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
