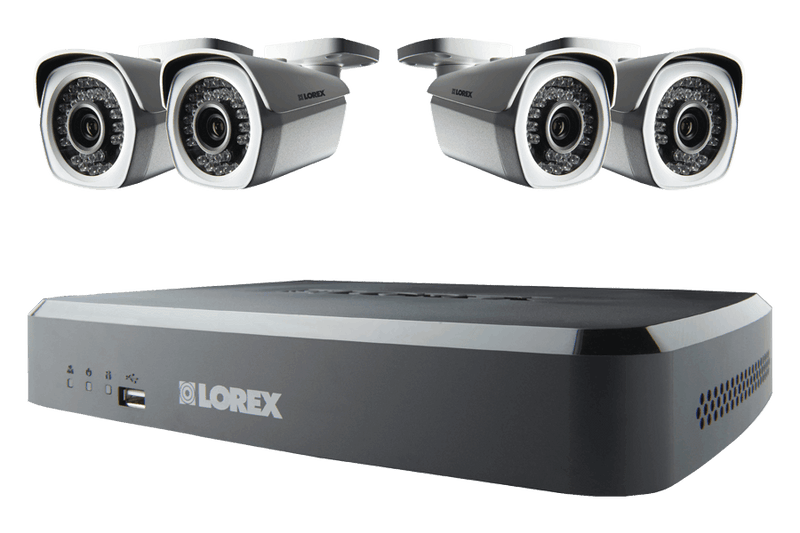

4 Channel Series HD Security NVR with 1080p Recording

LNR1141TC4P
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Experience the next generation of premium, do-it-yourself security with the LNR110 Series Network Video Recorder (NVR). Our cutting-edge NVR is bundled with weatherproof HD IP cameras to provide stunning 1080p HD recording in real-time on all channels. Each camera requires just a single Ethernet cable connecting it to the NVR, which provides both power and video using Power over Ethernet (PoE) technology. Connect the cameras to the NVR's 4 integrated PoE ports for a truly plug-and-play surveillance experience that will have you up and running in no time. Maintain vigilance with the ultimate in recording resolution and picture quality in your corner.

The LNR110 Series features a simplified installation that saves time when setting up your cameras. The auto-detect function automatically discovers and configures compatible IP cameras on the same local network as the NVR. Simply connect your cameras to the built-in Power over Ethernet (PoE) ports using a single Cat5E Ethernet cable - no power supply required.

High definition IP camera

Compatibility Notice

This HD NVR is compatible with Lorex PoE IP cameras only. It is not compatible with third-party IP cameras. Click here for full camera compatibility list.

The weatherproof IP cameras feature advanced Digital Noise Reduction combined with Spatial Noise Reduction, delivering a more accurate image, with better clarity, sharpness, greater disc space for storage, and improved motion detection. High-powered Infrared LED's deliver outstanding night vision range in ambient lighting and total darkness, ensuring extremely clear HD viewing in all low-light conditions. Digital-Wide Dynamic Range backlight compensation provides clear detailed images where very bright and very dark areas exist in the same field of view.

What's Included?

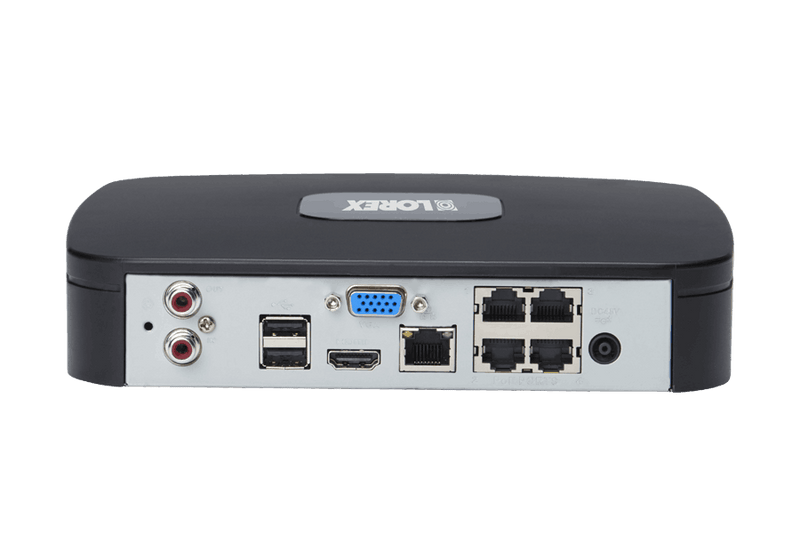

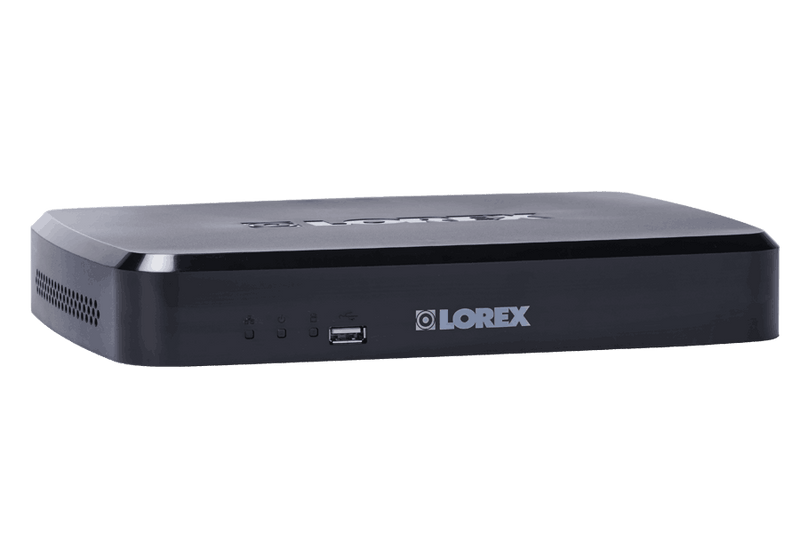

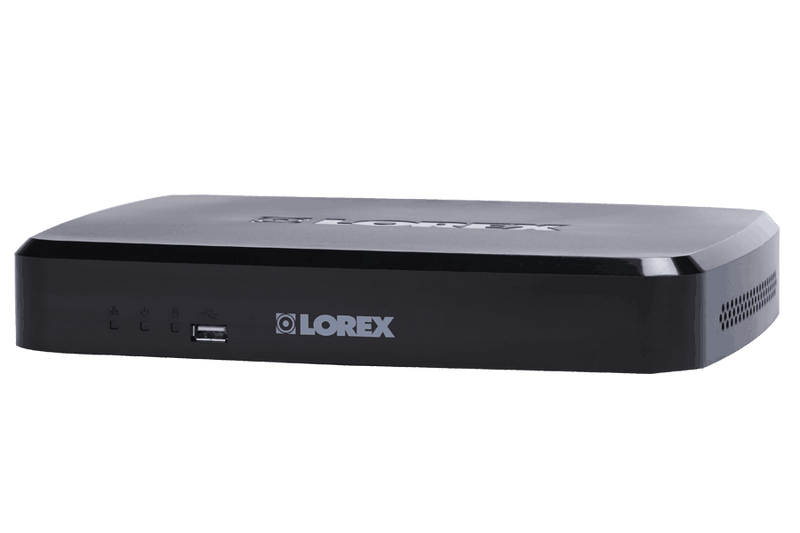

LNR110

Network Video Recorder Features:

  • High definition 1080p Recording
  • Real-time recording at 25/30fps per channel1
  • 4/8 Built in PoE (Power Over Ethernet) ports providing video and power on a single Ethernet cable
  • Automatically detects compatible IP cameras in the network2
  • Expand your system with a network PoE switch, sold separately3
  • 24/7 security-grade hard drive4
  • Continuous, scheduled and motion recording
  • Simultaneous playback and live view on the same screen
  • Selectable area digital zoom in live view and playback
  • Accurate time stamps with NTP & daylight savings time
  • H.264 video compression4
  • Instant USB backup of live video from selected camera
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD TVs
  • Keep up to date with automatic firmware upgrades5
  • 3-step remote view with Lorex Cloud™6
  • PC and Mac compatible7
  • Free iOS and Android compatible apps with live viewing, playback, video recording, and snap shot7
  • Dedicated iPad app with multi-channel live viewing and playback7
  • Push notifications of motion events
  • Instant email alerts with snap shot attachment
  • Dual streaming to conserve bandwidth

1. Real time recording on 4/8 Channels at 1080p (1920x1080), 720p (1280x720).
2. Compatible with Lorex 1080p wired PoE HD cameras only. Click here for a list of compatible cameras.
3. 4 channel NVR includes 4 built in PoE ports. 8 channel NVR includes 8 built in PoE ports.
4. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
5. The NVR firmware and software must be upgraded to the latest version to use the Lorex Cloud™ service. When the system is connected to the Internet, it will automatically alert you if there is a firmware upgrade available.
6. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time.
7. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support.

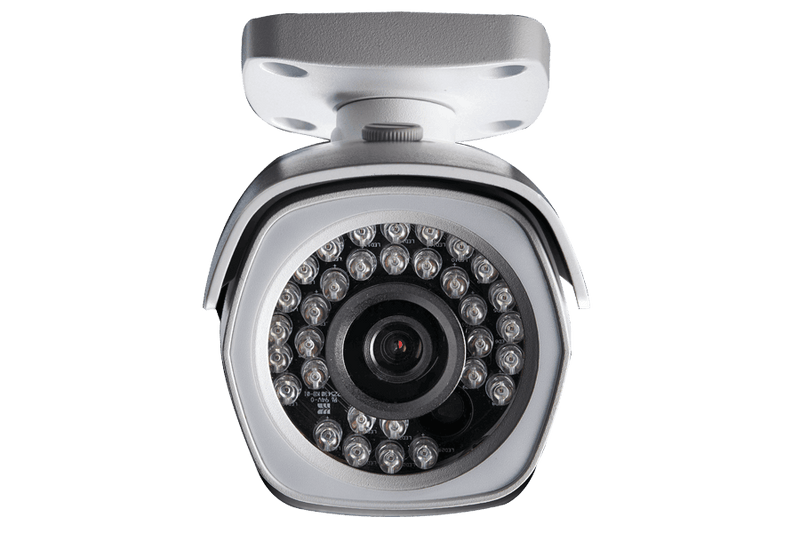

LNB3143

Weatherproof 1080p HD Night Vision IP Security Camera Features:

  • High definition 1080p Sony Exmor image sensor delivers superior detail1
  • Crystal clear video with outstanding quality, day or night
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 80ft (24m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Digital wide dynamic range backlight compensation ensures clear images in high and low light areas
  • Anti-glare feature ensures clear images under strong lighting conditions
  • ClearNight imaging for superior low light performance, improving recording efficiency
  • 2D DNR Digital Noise Reduction for clear accurate images
  • Split glass design minimizes IR reflection
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
  • Wide angle 72° field of view
  • Vandal resistant design with cable pass-through bracket
  • Heavy-duty durable metal housing
  • Simple installation of video and power on a single cable with Power over Ethernet (POE) CAT5e cable
  • Versatile ceiling or wall mounting options
  • Residential and business friendly compact design
  • Expand your coverage with camera Ethernet cable up to 300ft from the NVR

Each LNB3143 Includes:

1 × IP Bullet Camera
1 × Mounting Kit
1 × 60ft Ethernet Cable

1. Compatible with Lorex HD NVR LNR100/LNR400 series only
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
