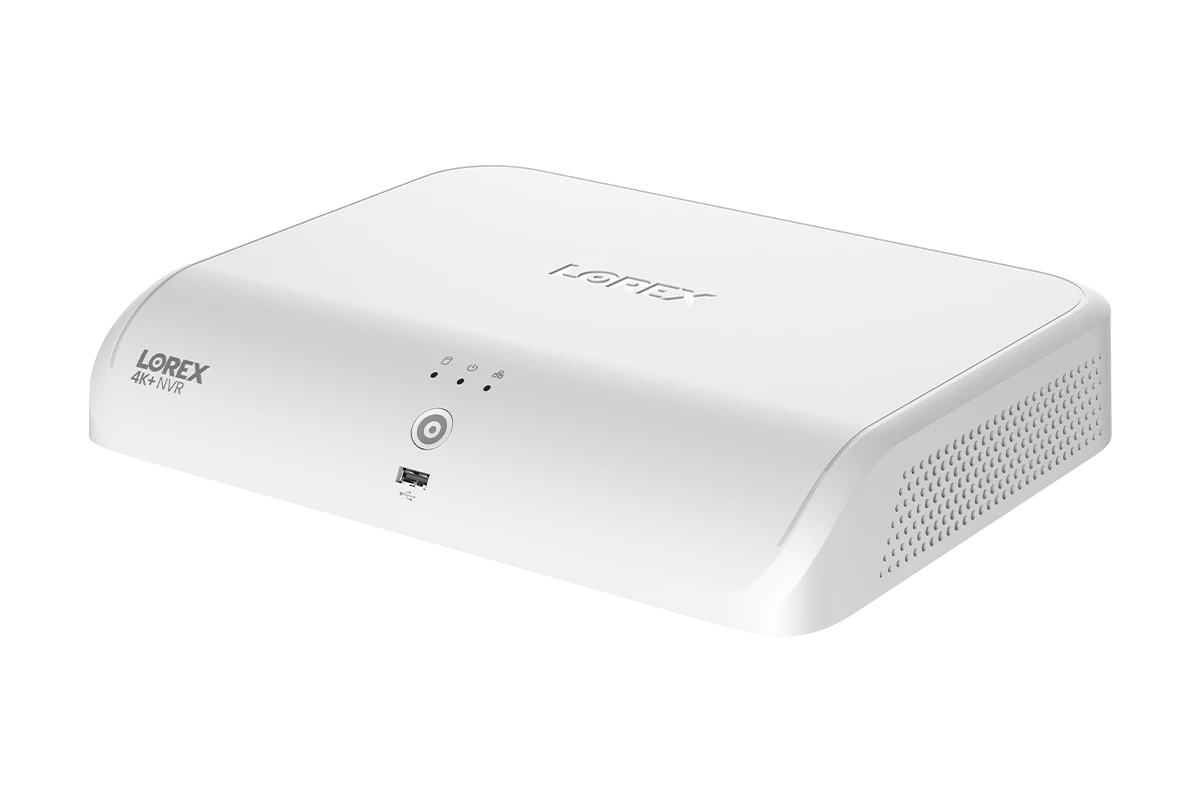

Lorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video Recorder
Lorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video Recorder
Lorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video Recorder
Lorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video Recorder
zoom Roll over image to zoom in Click on image to zoom
Fusion Series

4K+ 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) NVR

N910A61
$399.99
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Taking your security further

Update or start your security system with this future-ready 16 camera capable (8 wired + 8 Fusion Wi-Fi) NVR. For the first time, this NVR introduces 12MP recoding capabilities, a revamped Fusion onboarding experience, and Matter compatibility. Along with support for all the latest smart detection, deterrence, and privacy features, this NVR will be a powerful cornerstone for your security ecosystem for years to come.


Lorex App Live View screenshot

Most of your security footage is of you!

Keep your recordings private and in your control.

Dedicated Local Storage

  • Keep Moments Private
  • All Data/Footage Stored Locally

In-Camera Edge AI

  • Detection Processed Locally
  • Private and Secure Data

Private by Design

  • Enhanced Privacy Features
  • Control Devices, Storage, and Settings

Learn More

From 4K to 4K+

See your property like never before. This NVR works with cameras with ultra high-definition 12MP sensor, which produces 50% more pixels than 4K (8MP), delivering impressive clarity and enhanced detail to your video footage.




Simplify your Smart Home with

Matter


Introducing the first-to-market Matter compatible NVR! Control the warning lights and sirens of your cameras with Matter compatible devices.


works with Google works with Alexa

*Internet connection is required.


No Monthly Fees

Access all premium features and have ample storage for your video recordings without recurring fees or subscriptions.

Keep your video recordings private

Your security camera records countless hours of you. Keep your recordings in your control thanks to the NVR’s local 1TB security grade hard drive. Equipped with the largest storage capacity to date, this NVR can be upgraded to a maximum 16TB of storage.




Get Alerts that Matter

Get detailed notifications when motion is detected and personalize your settings to only receive the alerts you want.





Quick Search

Easily find the video clips you need with Quick Search. Search based on the color of a car or a number (such as digits on a licence plate) to help find and save the evidence you may need.



Lorex Fusion Ecosystem

Build your security the way you want with the Lorex

Fusion Collection


Easily grow your security by adding Lorex Fusion Wired and Wi-Fi Cameras.

All-in-One Security

Connect all of your devices to one recorder with secure local storage for enhanced privacy and protection.

24/7 Recording

Record continuously to your NVR’s local (and upgradeable) storage with no monthly fees.*

One App Access

Remotely monitor and control your Lorex devices from anywhere using the Lorex app.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.



Product Compatibility

Product Specifications

Recording Resolution 12MP (16:9) and 4K+ (11.3MP 16:9)
Recording Schedule Schedule recordings through Continuous, Motion, Smart Motion (Person, Vehicle and Face), Alarm, Day, Hour per channel
Video Compression H.265/H.264
Hard Drive Bays 1 Bay
Hard Drive Capacity Up to 16TB (SATA)
Wired/Wireless Fusion support Yes
Lorex Sensor (only) Compatible Yes
Detection Support Person, Vehicle, Face, Mask, Package (Missing and Left Behind), Animal
Active Deterrence Support Yes
Active View Support Yes
Selectable Siren Support Yes
Panic Button Yes
Smart Search Yes
Attribution Search (Person Clothes Color, Vehicle Color and Number) Yes
Voice Control Amazon Alexa™, Google Assistant™
Streaming Options Chromecast™, Amazon Echo Show™, Google Home Hub™
Matter Yes
Mobile Viewing Android, iOS
Compatible APP Lorex Home™
PC/Mac Remote Viewing Yes/Lorex Cloud™ client
Email Notification Text and Snapshot
Power Consumption Approx. 8.3W (HDD excl.)
Supply Voltage 100VAC-240VAC, 50/60hz, DC 53V/1.8A
Total PoE Power Output PoE: Max 25.5W for single port, 72W total
Unit Dimensions
(W × D × H)		 12.9 x 9.6 x 2.1” / 328 x 245 x 53 mm
Unit Weight 2.75 lbs. / 1.26 kg (excl. HDD)
Operating Temperature 14° ~ 131°F / -10° ~ 50°C
Humidity 10 ~ 90% RH

What's Included?

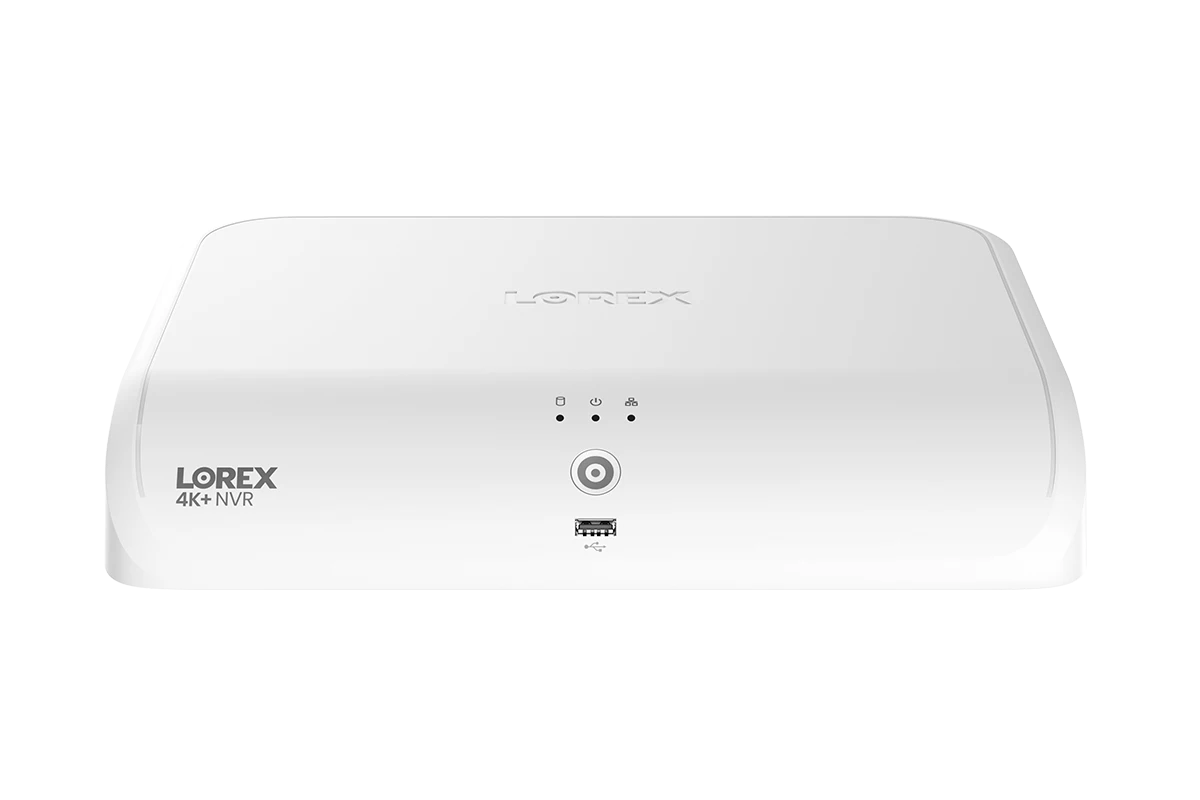

N910 Front Overview

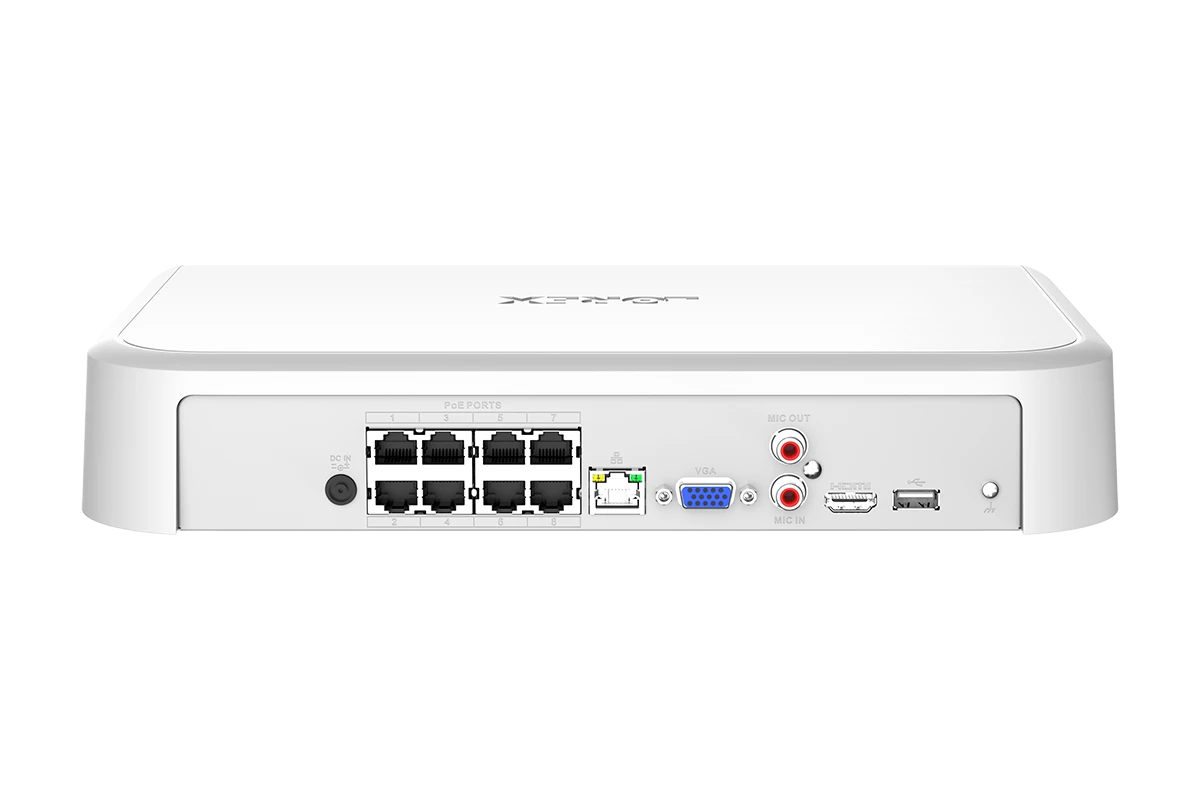

N910 Back Overview
  1. Hard Drive, Power & Network Statuses
  2. USB Port
  3. Info / Panic Button
  4. Power Connection
  5. Camera Connection (PoE)
  6. Network Connection (LAN)
  7. Monitor Connection (VGA)
  8. Audio Out / In
  9. Monitor Connection (HDMI)

Package Contents:

4K+ Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Lorex Fusion supports compatible Lorex wired cameras and Wi-Fi devices with sufficiente signal strengh between the Wi-Fi devices and your Wi-Fi router. All cameras must be connected to the same network. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6Mbps is recommended for reasonable video performance.
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  8. Detection types need to be supported by the camera.

Lorex products are designed for consumer and business use only and not for US federal governments, federally-funded projects or contractors subject to NDAA.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.

Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
