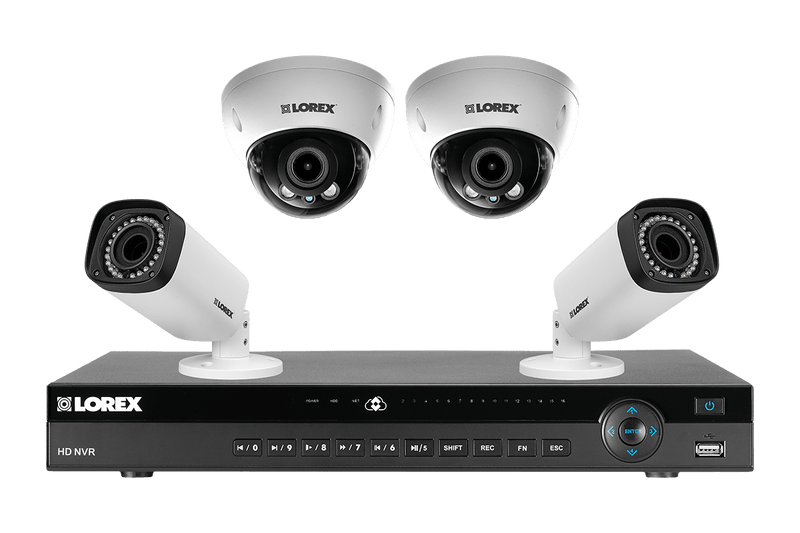

2K Camera System with 8-Channel NVR with 4 Motorized Zoom Cameras, 140FT Night Vision

HDIP822VW
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

HDIP822VW security system

Confidently protect the things that matter with this robust security monitoring system ideal for your home or small business. This web exclusive security system features our 4K, 8-channel NR900 network video recorder (NVR). It also includes four 2K resolution IP cameras (2 domes and 2 bullets). These IP security cameras feature motorized varifocal lenses and outstanding night vision capabilities. Perfect for your growing small business, there’s room to accommodate four additional IP cameras (including 4K security cameras) as your security needs evolve.

HDIP822VW

SPECIFICATIONS

8

CHANNELS

4K NVR can support up to 8 cameras

4

CAMERAS

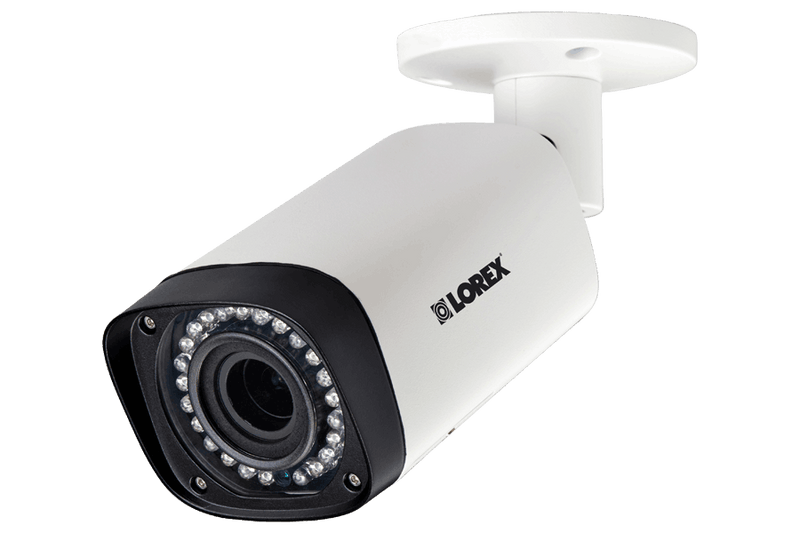

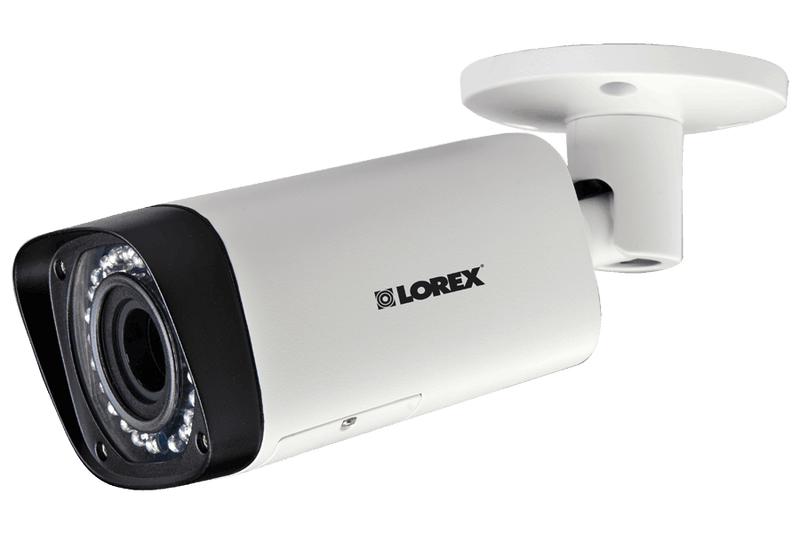

2 bullet + 2 dome 2K varifocal cameras

140FT

NIGHT VISION

Maximum night vision

2TB

HARD DRIVE

Maximum Capacity 2 x 8TB hard drives

network IP camera security monitoring in 1080p HD resolution


Leave nothing to question with 2K resolution

Capture the details you need with 2K high definition security monitoring - it can be the difference in identifying vital details such as faces. These IP cameras use advanced 3-megapixel image sensors to deliver 150% more than the resolution of 1080p. They also use 3D digital noise reduction (DNR) technology to filter noise from your image (day and night) for a cleaner, more accurate image.

easy installation of network IP cameras with PoE (Power over Ethernet technology)

Plug-and-play installation via PoE

The HDIP822VW security system uses power-over-ethernet (PoE) technology for an easy and flexible installation process. With PoE technology, each camera only requires a single cable to connect it to the NVR. This all-in-one cable provides both power and video transmission up to 300ft / 91m. This allows you to position your cameras where you need them most without the need to have a power outlet nearby. A network security system like the HDIP822V can also incorporate a PoE switch. This allows you to minimize the amount of cabling needed for larger installations.

zoom lens security camera

Lenses with 3× optical zoom

The security cameras in the HDIP822VW security system feature advanced zoom lenses. Otherwise known as "motorized varifocal lenses" these zoom lenses let you remotely fine-tune your security camera’s field of view (FOV). Focus in on narrow pathways (down to 33°) or expand the camera’s view up to 93° for large areas like backyards or parking lots. These adjustments are made remotely from your Lorex NVR, or even a connected mobile device.

High definition network night vision security cameras

Around-the-clock security coverage with night vision

Keep your property safe around the clock with Lorex’s professional-grade night vision technology. Both sets of HD IP cameras in this security system will help you do just that. They feature excellent night vision ranges up to 140ft / 43m in ambient lighting (and up to 90ft / 27m in total darkness) - so even during the darkest hours of the night, you can be confident that your security cameras will be there for you when you need them most.

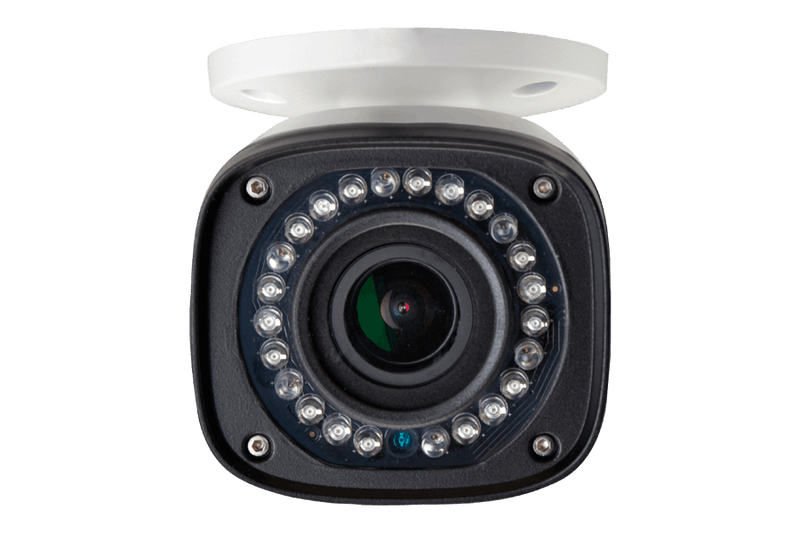

LNB3373B Night Vision Range
LND3374B Night Vision Range
DNR security camera

Enhanced clarity in low-light situations

Both sets of cameras in this system use DNR (Digital Noise Reduction) technology to filter out noise (grain) from low-light settings, as well as any noise caused by motion. By eliminating this graininess, your will receive cleaner, more accurate video with better clarity, sharpness, and improved motion detection. DNR will also help reduce video file sizes, giving you longer record times.

Lorex Cloud App

Remote viewing on your mobile with Lorex Cloud App

Download the free Lorex Cloud app for your mobile device and always have your security system at your fingertips. See what your IP cameras see (or watch recorded playback) whenever you want. This app can also send push notifications for motion-triggered events so you are always in-the-know.

Works With

 src=
 src=
IK10 vandal-proof IP security camera

Vandal-proof housing keep your cameras safe

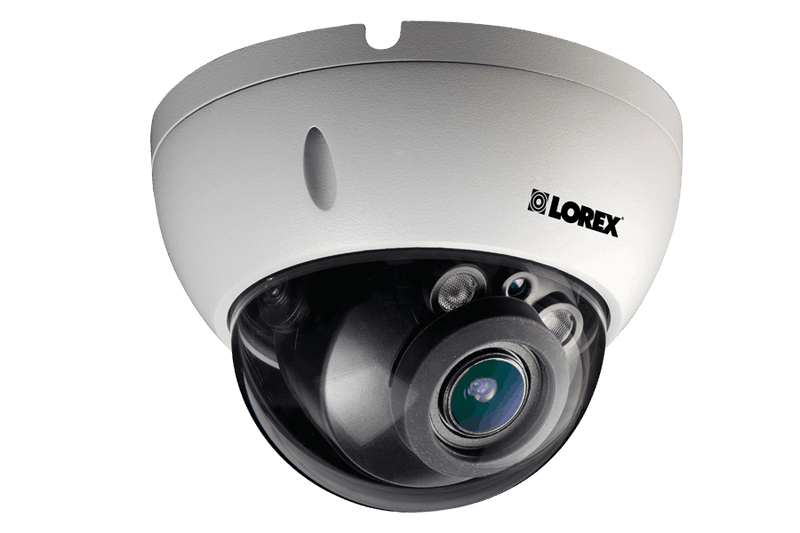

The strong exteriors of the LND3374SB dome IP security cameras featured in Lorex’s HDIP822VW security system ensure remarkable protection against vandalism. A rating of IK10 (vandal-proof) means that these security cameras are capable of looking after themselves while they look after you.

HD weatherproof and vandalproof (IK10) cameras

Year-round weatherproof IP security cameras

Safely use these four HD security cameras inside or outside. Whether in a torrential downpour or a furious snowstorm, these IP66 rated weatherproof security cameras can persevere. They will even continue to operate in extreme temperatures as low as -22°F (-30°C) - so you can count on year-round security coverage that never stops.

sub-zero

These Lorex security cameras have been rigorously tested in the most frigid conditions to ensure that they will continue to function even in extreme cold. Tested in temperatures as low as -22°F / -30°C, they are guaranteed to keep you secure, no matter what they endure.

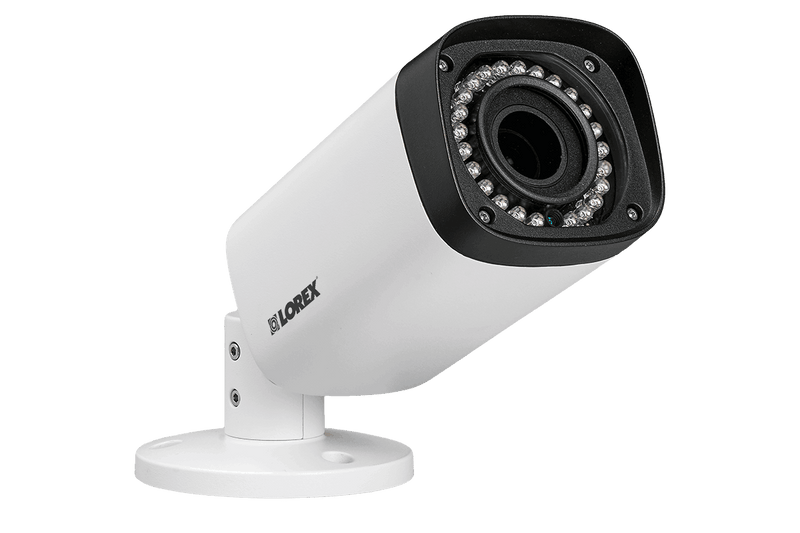

LNB3373B

LNB3373SB

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

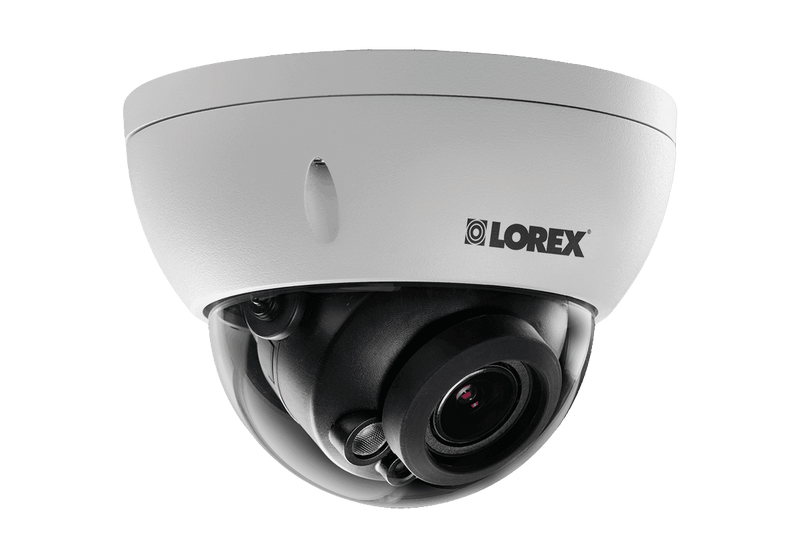

LND3374B

LND3374SB

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

Security certified hard drive for recording security footage

Pre-installed security grade hard drive

Weeks (if not months) of recorded security footage can be safely stored on the dependable 2TB security certified hard drive inside of the NR900. Not only is this HDD designed to be in constant use, it can easily continue to record even while you watch recorded footage. Schedule specific time periods or adapt the NVR to record at a lower resolution to extend available hard drive space. You can also maximize storage space by recording only when movement is detected.

Image resolution comparison

2K 4mp Comparison Chart
  2K HDIP HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording 3mp (2304

Video

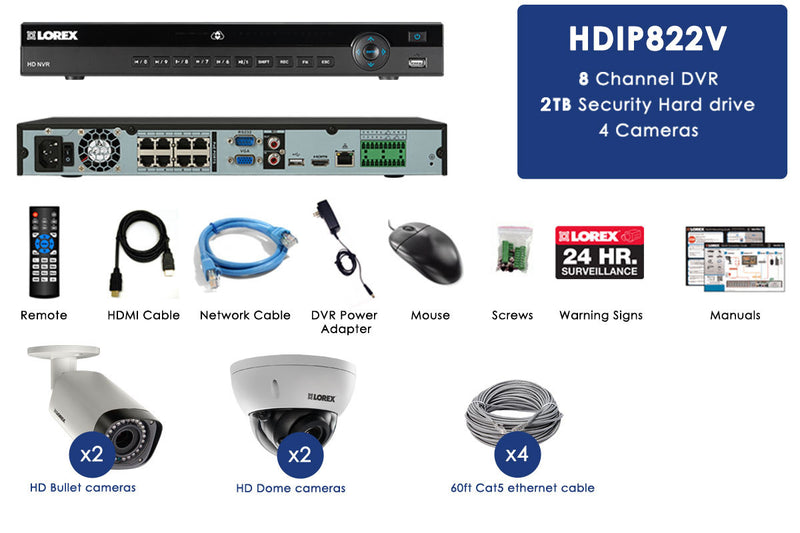

What's Included?

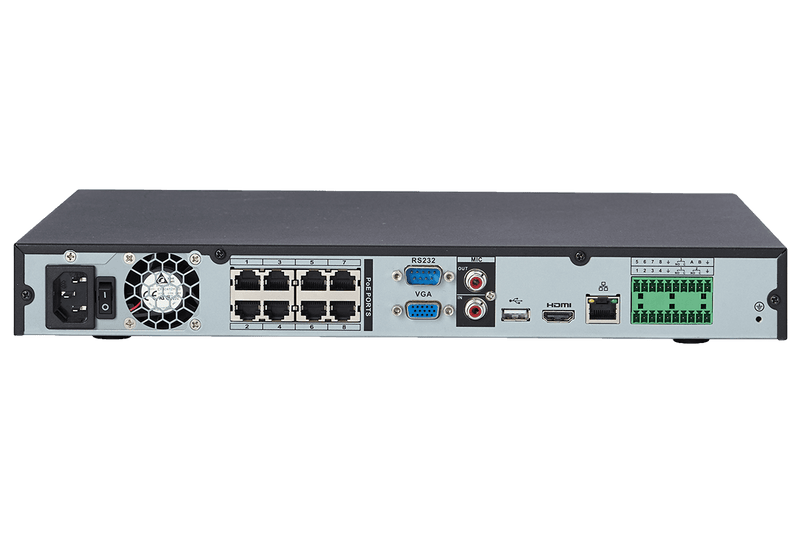

NR9082

8 channel, 4K ultra HD network video recorder:

  • Real-time recording up to 8MP on all channels - 4× the detail of 1080p
  • Supports industry-leading 4K recording 1
  • 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
  • RapidRecap® - see the day in a minute with hours of activity compiled into a short video summary
  • Lorex Cloud™ apps for live viewing, playback, video recording & snapshots (iPhone® / iPad® / Android™) 2
  • PC and Mac compatible - Lorex Cloud™ video management software gives you complete control over your security systemfrom anywhere 2
  • 24/7 security-grade pre-installed hard drive 3
  • Expandable high capacity storage up to 16TB (2×8TB HDD)
  • Automatically detects compatible IP cameras in the network 4
  • 4K video output - view multiple HD channels at once in full resolution on a 4K TV
  • H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing 3
  • Mirror hard drive recording - secure your recordings by backing up footage to an internal hard drive at the same time asrecording to the primary hard drive 5
  • Pentaplex Operation - view, record, playback, back up & remotely control the system simultaneously
  • Click-and-drag digital zoom in live view and playback
  • Convenient front panel button controls
  • Accurate time stamps with NTP & daylight savings time
  • Instant backup of live video to a USB flash drive
  • Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date 6
  • Push notifications of motion events
  • Instant email alerts with snapshot attachment
  • Multi-streaming to conserve bandwidth
  • Continuous, scheduled, and motion recording
  • Dual video outputs (HDMI and VGA) to connect multiple monitors
  • HDMI cable included for simple connection to HD amp; 4K TVs
Operating System Linux (embedded)
Pentaplex Simultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels 8/16/32 Channels
Video IN 8ch: 8 PoE, 16/32ch: 16 PoE
Video OUT No
VGA OUT Yes
HDMI Yes
Audio IN 1 Line IN (RCA) for service only
Audio OUT 1 Line OUT (RCA) for service only
USB Port 1 at the back, 1 at the front
Alarm IN 4 Alarm IN
Alarm OUT 2 Alarm OUT
Video Output Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
PTZ control Lorex IP PTZ cameras only
Display 8ch: 1/4/8, 16ch: 1/4/8/9/16, 32ch: 1/4/8/9/16/25/36
Live Display Speed 8ch: 240fps NTSC / 200fps PAL, 16ch: 480fps NTSC / 400fps PAL, 32ch: 960fps NTSC / 800fps PAL
OSD ON/OFF
System Navigation USB Mouse, IR Remote Control, Front Panel Buttons
Motion Area Setting Fixed Grid (22×18)
Sensitivity Levels 100
Firmware Upgrade Automatic over the Internet & via USB device and network
User Authority By user group
Time Synchronization Automatic time sync by NTP server
Video Compression H.264 / H.265
Audio Compression G.711
Resolution Up to 4K (3840×2160), 1080p (1920×1080)
Record Rate 8ch: 240fps@720p/1080p/3MP/4MP/8MP, 16ch: 480fps@720p/1080p/3MP/4MP/8MP, 32ch: 960fps@720p/1080p/3MP/4MP/8MP
Recording Resolution Setting Per camera for different resolutions
Recording Quality Control 6 Levels
Recording Schedule By hour, by day, by recording mode, by motion, by alarm, by channel
Pre Recording Max. 4 Secs
Post Recording Max. 5 Minutes
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes
Playback Channel 1CH/4CH@4K, 8CH@4MP, 16CH@2MP
Playback Speed Variable Max 16x
Playback Players Backup Player
Search By Time & Event
Log Search Up to 1,000 lines for motion detected, configuration, changes, connects/disconnects and video loss
Audio Play Yes (audio camera required)
Storage Up to 2 HDDs (SATA)
Maximum Capacity Up to 2×8TB (16TB Max)
Backup Media USB Flash Drive & HDD
Backup File Format DAV or ASF File
Cloud Connection Lorex Cloud™
Supported Operating Systems Windows™ / Mac OS X
Remote Software Client Software (PC & Mac)
Email Notification Text with snapshot
Instant Smart Phone & Tablet Android™, iPad®, iPhone®
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by User
Network Protocol HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
Network Interface 10/100/1000-Base-TX, RJ-45
Network Bit Rate 320Mbps total, 48~8192kbps per camera
Power Consumption Approx. 15W (no HDD included)
Supply Voltage 100VAC-240VAC, 50/60Hz
Total PoE Power Output 130W (Max 25W per Camera)
Unit Dimensions (W × D × H) 14.7 × 12.9 × 2.1" / 375 × 327 × 53mm
Unit Weight 8ch: 5.1lbs / 2.6kg, 16/32ch: 13.2lbs / 2.7kg
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH

Each NR9082 Includes:

1 × NVR
1 × Power cable
1 × Remote control
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 8MP IP cameras are required to take advantage of 4K recording.
2. Requires a high speed internet connection and a router (not included). A minimum upload speed of 3.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support
3. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
4. Compatible with Lorex PoE HD IP cameras only. For a list of compatible cameras, please visit www.lorextechnology.com/support
5. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored hard drive must be as large or larger than the primary hard drive to backup all recordings. Backup begins from when the mirrored hard drive is installed and configured.
6. Both firmware and software must be updated to latest version to ensure remote connectivity. Firmware updates are pushed to the NVR automatically over the Internet (available at www.lorextechnology.com). Always update to the latest software after upgrading the NVR firmware.

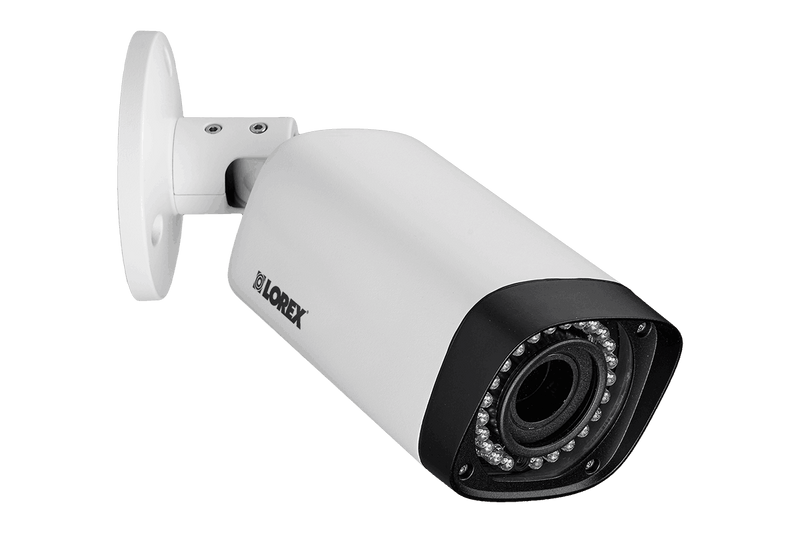

LNB3373SB

3 megapixel Indoor/Outdoor Security Camera with Motorized Lens

  • High definition 3MP image sensor delivers 50% more detail than 1080p HD1
  • 3
