16 Channel High Definition Digital Video Recorder

LHV10162TW
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

LHV10162T

Experience the gold standard in analog surveillance video that is second only to being there yourself. This HD DVR records video in real-time at 720p HD, double the resolution of 960H, on every channel. Maintain vigilance with a DVR that is designed to work exclusively with advanced megapixel security cameras, for stunning 720p video that captures every detail. View your world with new eyes and best-in-class image quality.

LHV10162T

SPECIFICATIONS

16

CHANNELS

DVR supports up to 16 cameras

720p

RESOLUTION

High definition 720p resolution

2TB

HARD DRIVE

Maximum Capacity 1 x 4TB hard drives

Which Cameras Work with the LHV1000 DVR?

Our LHV1000 Series network video recorder (DVR) is compatible with many of Lorex HD security cameras. Click the button below for the complete list:

Lorex Cloud app LHV2000

Remote viewing from your mobile with Lorex Cloud™

Introducing Lorex Cloud™, our innovative hassle-free cloud connection service. Say goodbye to IP & router port forwarding issues - you can quickly and easily connect to your security system using a smartphone or tablet. Lorex Cloud™ connects you to your system remotely within minutes on your iOS® or Android™ device. Simply download the free App, scan the QR code and start viewing your world securely online! Stay abreast of important developments with push notifications for motion events, and instant email alerts with snapshot attachments.

Works With

 src=
 src=
High quality hard drive reliability

High quality hard drive reliability

Record in real-time 30 frames per second to the security grade 100% duty-cycle hard drive designed for surveillance, providing weeks or even months of reliable video. Customize the recording settings to fit your needs. Record at 720p HD (1280x720) for the highest resolution, or change the settings to a lower resolution for extended recording time.



Visit our Hard Drive Calculator to estimate your desired specifications.

For those who already own a wired security system, upgrading to HD surveillance has never been easier - simply swap out your old BNC cameras for new 720p wired HD cameras that use the same cabling. Extend the video signal up to 800ft (242m) with a single run of RG59 coaxial cable for flexible installation.

Extend video up to 800ft with RG59 coaxial cable

Connect the HD DVR to a TV or LCD monitor with industry standard HDMI and VGA inputs. The intuitive interface with simple menus and icons allow for easy & efficient security DVR programming. Other advanced features of the HD DVR include click-and-drag digital zoom in live view and playback, dynamic drag & drop camera assignment, and PTZ control through coaxial cabling.


The HD DVR is designed for use with 720p wired HD cameras that use standard BNC cabling to transmit HD images. Industry leading 720p (1280x720) recording resolution ensures high quality live-viewing and recording, boasting a 100% increase over 960H resolution (960x480) and a 1000% increase over CIF. The result is a sharper, undistorted image with a true-to-life aspect ratio that leaves nothing to the imagination.

1080 MPX Comparison Chart
  HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording Full 1080p HD (1920x1080) 720p HD (1280x720) Analog 1080p HD (1920x1080) 720p HD (1280x720)
Platform 1080p HD NVR systems 720p HD NVR systems 1080p HD DVR systems 720p HD DVR systems
Video Digital IP / RJ45 connection Digital IP / RJ45 connection Analog BNC / RG59 connection Analog BNC / RG59 connection
Power PoE (Power over Ethernet) PoE (Power over Ethernet) Standard DC power Standard DC power
Installation Connect cameras to NVR or to router/LAN Connect cameras to NVR or to router/LAN Cameras require wired connection to DVR Cameras require wired connection to DVR

Video

What's Included?

HD Digital Video Recorder Features:

  • High definition 720p recording. Double the resolution of 960H1
  • Real-time recording at 30fps per channel
  • 24/7 security-grade hard drive
  • Continuous, scheduled and motion recording
  • H.264 video compression2
  • HDMI cable included for simple connection to HD TVs
  • PTZ cameras supported, remote control through App1
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade
  • 3-step remote view with Lorex Cloud™3
  • PC and Mac compatible4
  • Free iOS and Android compatible apps4
  • Advanced apps with live viewing, playback, video recording, and snap shot
  • Push notifications of motion events
  • Instant email alerts with snap shot attachment
  • Dual streaming to conserve bandwidth

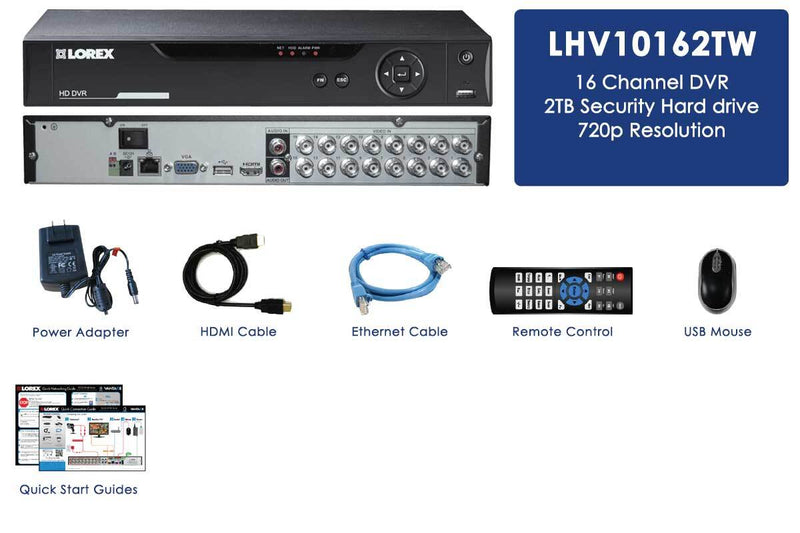

Package Includes:

  • 1 × 16-Channel DVR with Pre-Installed HDD
  • 1 × HDMI Cable
  • 1 × Remote Control
  • 1 × Power Adapter (for DVR)
  • 1 × Mouse
  • 1 × Ethernet Cable
  • Quick Start Guides

Disclaimers

1. Compatible with Lorex 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time.
4. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
