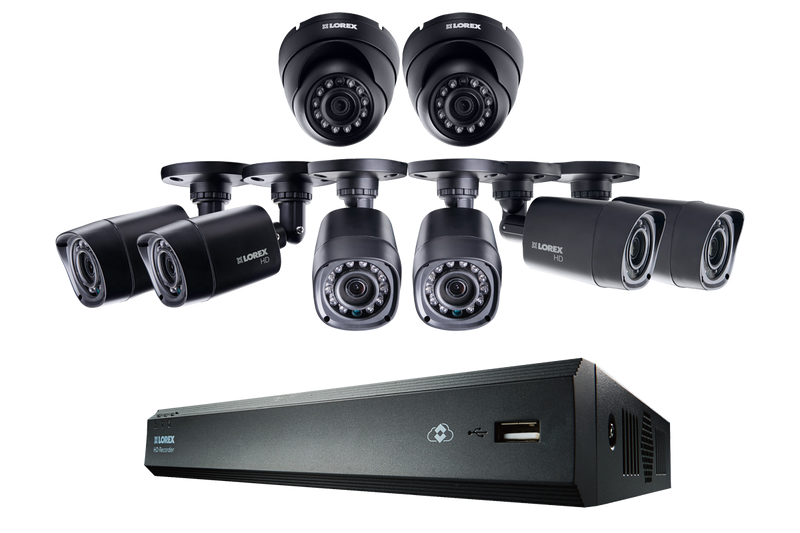

16 Channel Series Security DVR system with Lorex Secure and 720p HD Cameras

LHV00161TC6D2PM
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Stay connected to what’s going on around your home or business with the Lorex LHV0000 Series HD DVR. Connect to the included 720p HD cameras, or take advantage of backwards compatibility with traditional analog security cameras. One of our 100% duty cycle security-grade hard drives is pre-installed inside the DVR, letting you store weeks or even months of security video at a time. Free remote viewing apps for smartphones, tablets and computers allow you to keep an eye on what matters most from anywhere with no recurring fees. Experience the LHV0000 Series HD DVR and maintain vigilance both at home and away.

Lorex Secure

Smart monitoring with Lorex Cloud app

Connect this NVR to our Lorex Cloud app to stay connected to your security system no matter where in the world. View live and recorded video straight from your smartphone or tablet using this app. It is easy to use and ready in 3 simple steps.

Compatible with 720p HD and standard analog cameras


Compatible with 720p HD & standard analog cameras

This unique DVR is designed for use with our 720p HD cameras, allowing you to view your world in greater detail than ever before. It also has backwards compatibility with standard analog cameras, giving you the flexibility to keep your current cameras and upgrade to HD at a later date. High-definition 720p (1280×720) recording ensures crisp live-viewing and recording, boasting a 100% picture quality increase over 960H resolution (960×480) and a 1000% increase over CIF.

Advanced H.264 compression maximizes the amount of high-definition video you can store, allowing you to keep plenty of footage without compromising on recording quality for full detail at all times.

Flexible setup & easy upgrade to HD

Flexible setup & easy upgrade to HD

Our security camera systems come with everything you need to create a custom security system that meets your needs exactly. Cameras connect easily to your DVR using industry-standard BNC cables to carry HD video. The 60ft (18m) BNC coaxial cables included with our systems are high-grade mini RG59 cables that are UL-compliant, a recognized certification for in-wall use.

For those who already own a security camera system, upgrading to high-definition video quality is simple and cost-effective. Simply swap out your DVR and cameras and use the existing cables to transmit HD images (RG59 or higher grade required). Need long cable runs? No problem! Video from our 720p HD cameras can be extended up to 800ft (244m) using a single run of coaxial BNC cable.

Motion detection & other smart monitoring

Motion detection & other smart monitoring

Even the most vigilant homeowners just don’t have the time to review hours of security footage, or to keep checking throughout the day to make sure all is well. Our security systems come loaded with advanced features to help you monitor smarter.

Motion detection comes as a standard feature, allowing you to save hard drive space by only recording scenes of movement. You can also choose to receive email alerts of motion events with snapshot attachments, or push notifications sent to your smartphone / tablet.

Long range night vision

Long range night vision

Stay confident that your security cameras will never miss a beat with professional-grade night vision that leaves nothing to the imagination. Our infrared (IR) LEDs provide unparalleled performance in the dark, allowing you to clearly in regular nighttime conditions as well as total darkness. The integrated infrared cut filter switches on and off between day and night, ensuring accurate color reproduction in all lighting conditions.

Weatherproof security cameras

Weatherproof security cameras

Our rugged, weatherproof cameras are IP66-rated to ensure protection against all types of bad weather. Be it heavy wind, rain, or snow, we’ve engineered our cameras to withstand unforgiving North American climates. Our camera design makes concealing cables easy, allowing a professional looking installation that is virtually immune against vandalism and tampering.

Security-grade hard drive

Security-grade hard drive

Record crisp 720p video to the pre-installed security grade hard drive, or record in 960H resolution in real-time (30 frames per second). The 100% duty-cycle hard drive is designed for surveillance, providing reliable storage for weeks or even months of security footage.

Customize the recording settings to fit your needs. Record at 720p HD (1280×720) for the highest video quality, or set to a lower resolution for improved recording efficiency. You can also conserve hard drive space by recording only scenes with movement or by recording between scheduled times of the day.

Video

What's Included?

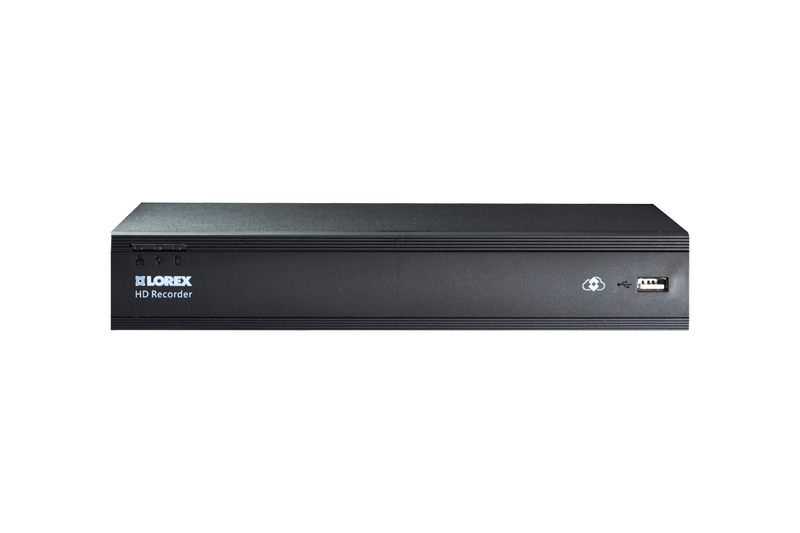

LHV0000

Digital video recorder features:

  • High definition 720p recording. Double the resolution of 960H1
  • Compatible with 720p HD and standard Analog cameras up to 900TVL 1
  • 24/7 security-grade hard drive
  • Continuous, scheduled and motion recording
  • H.264 video compression1
  • HDMI output (HDMI cable included) for simple connection to HDTVs2
  • PTZ cameras supported, remote control through App1
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback

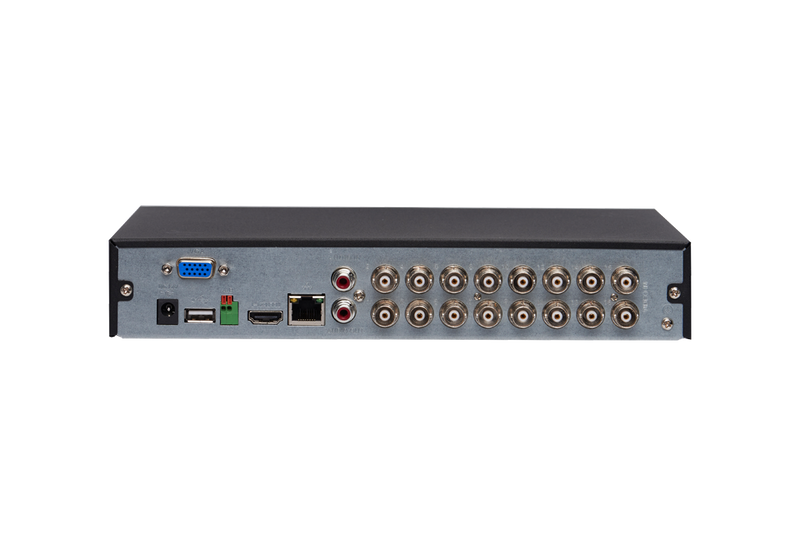

  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade
  • Lorex Cloud app with 3-Step setup3
  • PC and Mac compatible3
  • Free iOS and Android compatible apps4
  • Advanced apps with live viewing, playback, video recording, and snap shot
  • Motion push notifications and email alerts
  • Instant email alerts with snapshot attachment

Each LHV0000 Includes:

1 × DVR
1 × HDMI Cable
1 × Power adapter
1 × Mouse
1 × Ethernet Cable
Quick Start Guides

1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time.
4. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

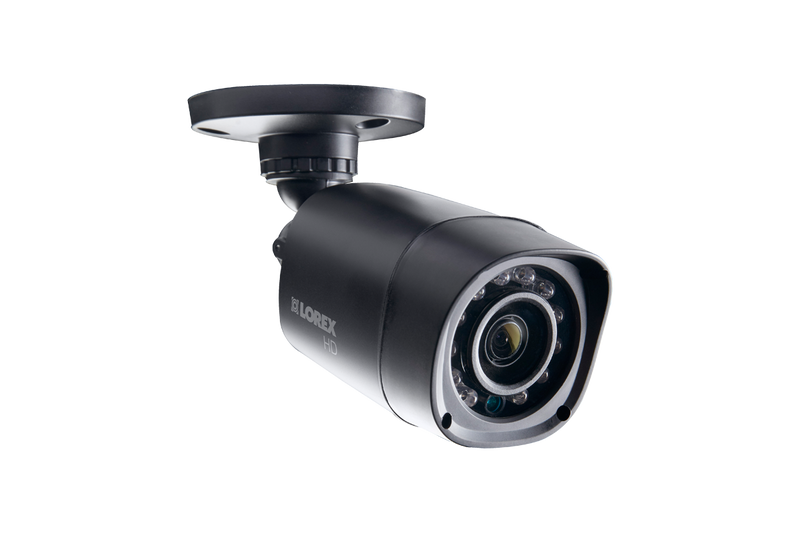

LBV1511

720p HD Bullet Security Camera Features:

  • High definition 720p 1 megapixel image sensor delivers double the resolution of 960H1
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
  • Anti-glare feature ensures clear images under strong lighting conditions
  • Split glass design minimizes IR reflection
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
  • Cold climate capability (-22° ~ 140°F / -30° ~ 60°C)
  • 55° horizontal field of view
  • Vandal resistant design with cable pass-through bracket
  • Lightweight and durable Polycarbonate housing
  • Extend the video signal up to 800ft (242m) with a single-run RG59 coaxial cable for flexible installations4
  • UL-rated extension cable included for in-wall installation
  • Versatile ceiling or wall mounting options
  • Residential and business friendly compact design

Each LBV1511 Includes:

1 × HD Bullet Camera
1 × 60ft Extension Cable
1 × Mounting Kit
1 × Power Adapter

1. 720p cameras are compatible with Lorex’s 720p & 1080p HD DVR recorders only.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.
4. The extension cable must be a single stretch of cable between the DVR and camera for cable runs over 200ft (61m). For cable runs above 330ft (100m) you must connect the power adapter directly to the camera, rather than to the end of the extension cable.

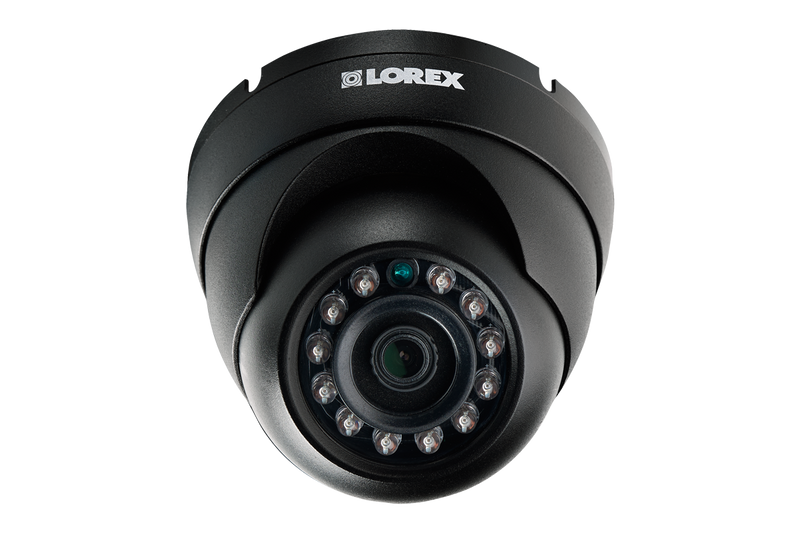

LEV1512

HD Dome Security Camera Features:

  • High definition 720p image sensor delivers double the resolution of 960H 1
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 112ft (34m) in ambient lighting & 75ft (23m) in total darkness 2
  • Anti-glare feature ensures clear images under strong lighting conditions
  • Split glass design minimizes IR reflection
  • Vandal resistant design
  • 3-axis design for wall / ceiling mounting
  • Residential and business friendly compact design
  • 55° field of view (horizontal)
  • UL-rated extension cable included for in-wall installation
  • Extend the video signal up to 800ft (242m) with a single-run RG59 coaxial cable for flexible installations
  • Weatherproof for outdoor & indoor installation (IP66 Rated) 3
  • Cold climate capability (-22°F ~ 140°F / -30° ~ 60°C)

Each LEV1512 Includes:

1 × Dome camera
1 × 60ft Power extension
1 × Mounting Kit
1 × Power Adapter

1. 720p MPX cameras are compatible with MPX HD DVR recorders only. For a list of compatible recorders please visit lorextechnology.com/support.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
