This article gives installation instructions for your E920SB Series IP Wired Security Cameras.

What is included:

Bullet E920SB Camera:

• 4K+ Bullet Camera
• Mounting Template
• Anchors & Screws (4×)

Camera Placement Tips:

• Take into consideration what you want to monitor and where is the best coverage area.
• Place your camera close to the area of interest.
• Point your camera where there is the least amount of obstructions (i.e. tree branches).
• Install your camera in a location that is difficult for thieves and vandals to reach.
• The best position is 10 ft (3 m) above ground, angled 15° down.
• Secure cabling so that it is not exposed or easily cut.

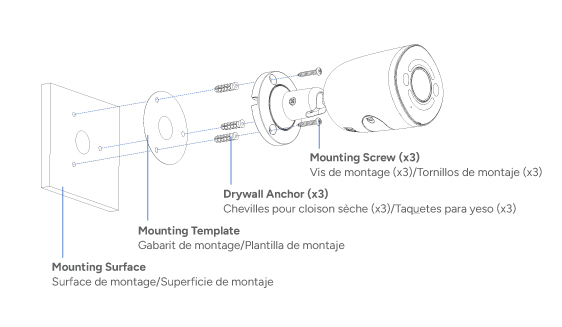

Mounting your E920SB Bullet Camera:

1. Use the mounting template to drill holes for screws, then insert the drywall anchors. Drill a hole for your camera’s cable if you plan to run it through the mounting surface.
2. Use the screws to mount your camera base to the surface. If you are running cables along a wall/ceiling, make sure to pass the cable through the cable notch.
3. Feed your camera’s cable through the camera base, then connect the cables.
4. Loosen the adjustment screw and position your camera as needed, then tighten to secure it in place.
5. Remove the vinyl film from the camera lens once your installation is complete.

Connecting your Camera:

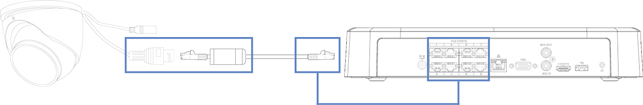

Connect your camera directly to your recorder using your camera’s Ethernet extension cable.

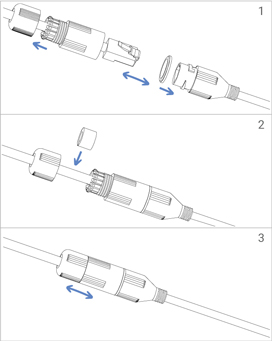

Twist the Ethernet extension cable’s pre-attached weather-resistant cap securely onto your camera’s Ethernet connector. If exposed to regular precipitation, seal the cap with silicone and electrical tape.

Installing your NVR

For instructions on installing your NVR, please refer to your NVR's Installation Guide.
