Outdoor Audio HD Pan-Tilt IP Dome Security Camera

LNZ3522RB

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

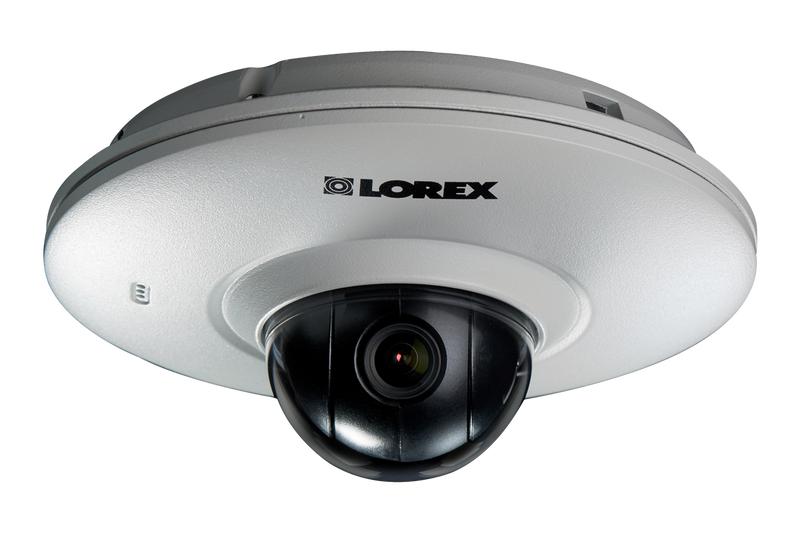

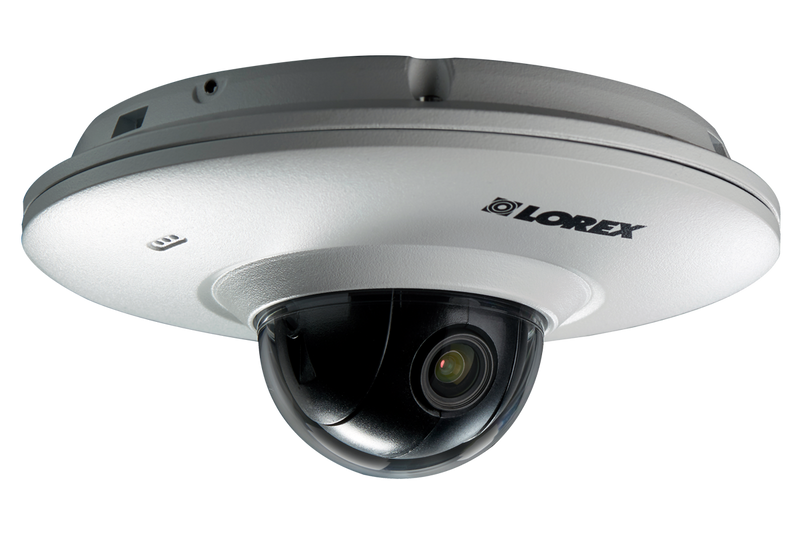

1080p pan-tilt security camera from Lorex by FLIR

Don’t miss a single detail with our powerful pan-tilt IP security camera. The LNZ3522B surveillance camera has the ability to record full 1080p footage and can see in all directions. It is easily connected to a compatible HD network video recorder (NVR) by a single ethernet cable. This cable provides video, audio and power transmission, as well as pan-tilt commands from your NVR or a connected smartphone / tablet.

LNZ3522B

SPECIFICATIONS

PT camera

Pan-Tilt audio security camera

1080p

RESOLUTION

High definition 1080p resolution

AUDIO

MONITORING

Built-in microphone for listen-in audio

90°

MAX FOV

Pan function is ideal for large areas

Full 1080p HD picture quality


Full 1080p HD video

Record smooth 30 frames per second (fps) video in stunning 1080p high definition thanks to the advanced 2.1MP image sensor. A wide 90° field of view allows you to monitor large areas or cover multiple points of entry at once.

IP camera with adjustable pan-tilt camera module

Adjustable Pan-Tilt camera

Monitoring a large area comes with its share of obstacles – overcome those challenges with a camera that is truly all-seeing. Our specialized IP camera features a pan-tilt module that lets you change the viewing angle of the camera at any time using your NVR, smartphone or tablet. Pan-tilt features include:

  • Full 360° panning
  • Quick 100° per second panning speed
  • 25 programmable preset positions
Expand your security coverage with listen-in audio security cameras from Lorex

Expand your security coverage with listen-in audio

Add a further layer of security with the LNZ3522B’s listen-in audio capability. The built-in microphone allows you to hear and record the sounds of events around your property.* This can help in several ways:

  • Detect and interpret events - even if they occur off-screen
  • provide additional details (such as voices) if an intrusion should ever occur
  • Audio detection alerts will notify you of any unusual sounds outside of your home or business

*Please note, audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.

learn more lorex audio IP security cameras
learn more lorex audio IP security cameras
minature HD security camera with listen-in audio

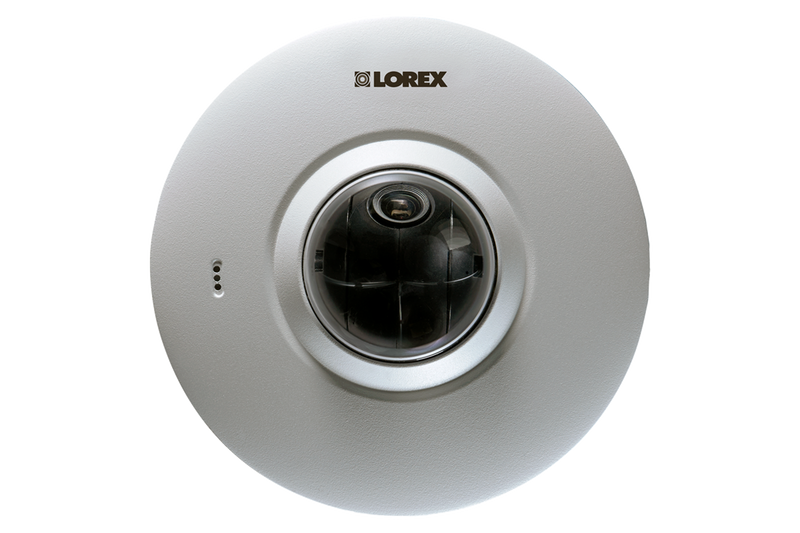

Small-sized security camera

The camera measures just 5” wide and 2” tall, but don't let that fool you. Within its minuscule structure it has everything and more to keep your property secure. They are perfect for unobtrusive monitoring of activity close to buildings or wide indoor areas.

Enhanced Security Monitoring with HDR

Your security camera uses HDR (High Dynamic Range) technology that works to ensure you capture the most important details, regardless of lighting conditions. Dynamic range is measured as the difference between the brightest point and the darkest point of the video. HDR technology uses this difference to automatically adjust the picture's brightness, resulting in optimized, highly-detailed security video.



What is HDR - high dynamic range

Enhanced Clarity in Low-Light Situations

Your camera uses DNR (Digital Noise Reduction) technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess, your camera provides a cleaner, more accurate image with better clarity, sharpness, and improved motion detection, enhancing your HD experience even in the dark! Not only does DNR reduce noise, but it reduces video file sizes as well, giving you greater disc space for storage.



What is DNR - digital noise reduction
wall mount for security camera

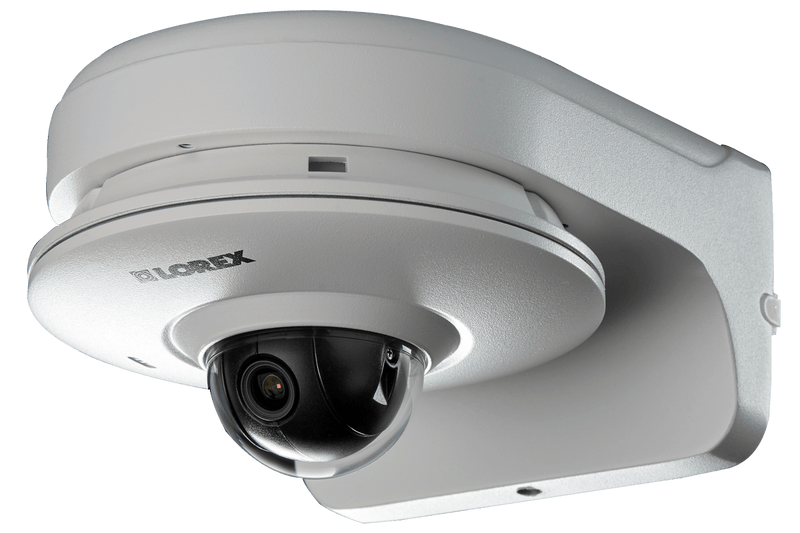

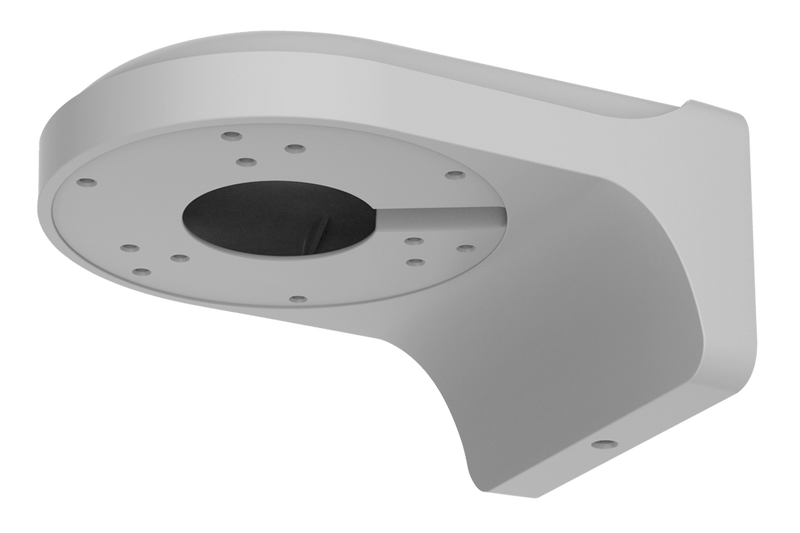

Weatherproof wall mount included

Simply attach this camera to your ceiling or use the included wall mount to install your camera to any wall. This aluminum mount is built to withstand all types of weather and destructive impacts. It is also designed to hide the camera cables so they cannot be cut by vandals.

IK10 vandalproof security camera

Rugged vandal-proof exteriors

Be confident that this micro security camera is capable of looking after itself. It is engineered with an IK10 vandal-proof rating - meaning its resilient metal housing is made to withstand all types of violent impacts.

Triplex performance - audio, video and power over ethernet

Plug-and-play setup

The micro PT dome camera features an easy plug-and-play setup that will have you up and running in minutes. Simply connect the camera to a compatible Lorex NVR using a single ethernet cable that provides video and audio transmission, power for the camera, and Pan-Tilt commands from your NVR, smartphone or tablet.

Cold climate resistant and weatherproof IP camera

Cold climate resistant camera

Professional-grade components allow this premium IP camera to stand up to the wear and tear of the elements. The heavy-duty metal housing is fully weatherproof and can withstand anything from a light drizzle to a full-out blizzard.

LNZ3522B

LNZ3522B

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-4°F | -20°C

Cold Rating

Metal Housing

Full Metal Camera Housing

Built from a solid unibody metal housing, the LNZ3522 allows for durability while still maintaining a lightweight design. The corrosion-resistant aluminum body makes this camera perfect for both indoor and outdoor use, protecting it from even the harshest of weather; rain, snow, or hail. Engineered from the same material that is used in construction of airplanes and cars, this Lorex camera is strong enough to withstand large impacts unlike conventional plastic security cameras.

Camera compatibility



Video

What's Included?

LNZ3522B

Micro Pan-Tilt Dome IP Security Camera Features:

  • High definition 1080p resolution 2.1MP Sony Exmor® image sensor
  • Full 360° pan rotation for complete area coverage and up to 100° per second panning speed
  • Micro dome form factor only 5” in diameter and just over 2” tall
  • 25 programmable preset positions
  • Built-in microphone for listen-in audio
  • Wide angle 3.6mm lens with 90° field of view
  • Plug-and-play setup with a single network cable for video, power, audio and Pan-Tilt control
  • Program preset viewing points when connected to a compatible NVR1
  • Remote control of the Pan-Tilt camera using a smartphone or tablet when connected to a compatible NVR1
  • 3D DNR (Digital Noise Reduction) for clear images at night
  • ClearNight imaging for superior low light performance2
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
  • Extreme temperature performance (-4° ~ 140°F / -20° ~ 60°C)
  • Vandal-proof heavy-duty durable metal housing
  • Simple installation of video, power and audio through a single cable with Power over Ethernet (PoE)
  • 60ft Ethernet extension cable included
  • Expand your coverage with extension cables up to 300ft from the NVR
  • Ceiling mountable

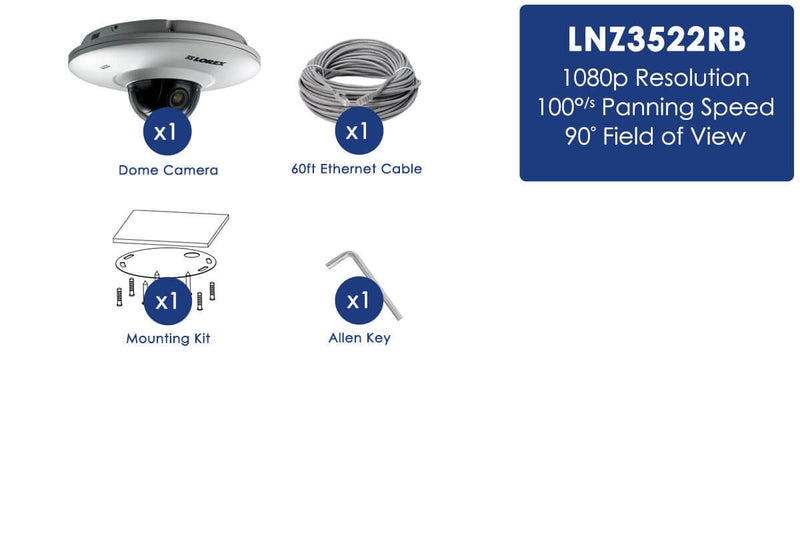

Each LNZ3522B Includes:

1 × Dome Camera
3 × Mounting Screws
3 × Mounting Anchors
1 × Mounting Template
1 × 60ft Ethernet Cable
Instruction Manual

1. Compatible with Lorex HD NVR LNR100 / LNR400 / LNR500 Series only.
2. This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-Red LEDs. The camera requires ambient lighting (for example, street/building lighting, star or moon light) to render a night time image. In total darkness (zero Lux) the camera will not produce a night time image and therefore the camera should not be installed in areas with complete darkness.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
