H Series

Lorex H20 - 4K IP Wired Dual Lens Security Camera with Smart Security Lighting and Smart Motion Detection

E871AB
Multi-pack:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features



The Lorex 4K Dual Lens Wired Security Camera.



Increase your security coverage with a complete 180° panoramic view thanks to the built-in dual lenses. With 4K clarity, Color Night Vision, Smart Security Lighting and more, this camera provides complete coverage - day and night.

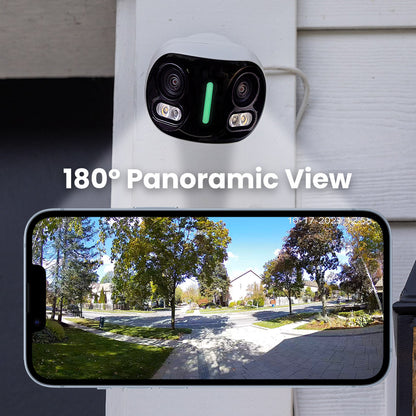

Double your view

Monitor larger areas with less cameras. The Dual Lens features two built-in professional-grade lenses, which connects two adjacent scenes together to create one continuous 180° panoramic view.






Superior video quality, day and night

Add colorful details and improve clarity with Color Night Vision*. In complete darkness, the camera will use its Infrared Night Vision to record crisp black and white video so you’re never left in the dark.



*Ambient lighting required

Smart Security Lighting

Add some colour to your security with the ability to personalize your LEDs with a choice of over 16 Million colors. Assign colors for motion events and camera modes, which can be seen from a distance deterring unwanted visitors in their tracks.

Proactive Prevention

With proactive features like motion-activated warning lights and siren, this camera will help stop crime before it even happens!

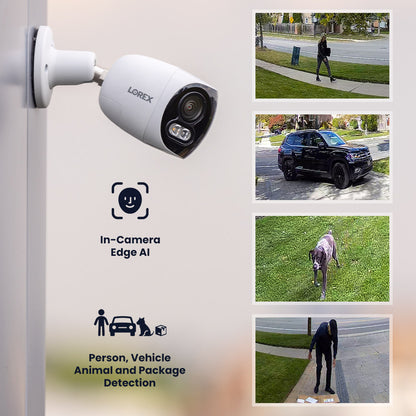

Get Alerts that Matter

Get detailed notifications regarding what type of motion is detected and personalize your settings to only receive the alerts you want. The 180° field of view has a slight curvature throughout, which enhances the detection feature accuracy.


Person, Vehicle, Animal and Package detection

Two stitched into one

In order to achieve the expansive 180° coverage, the two connected views are fused together with Image Stitching Technology. Depending on placement and distance factors, camera performance may adjust with curvature or misalignment. Click here for more info.


*For best results, install the camera to be horizontally parallel to the ground (i.e. do not tilt/rotate sideways)

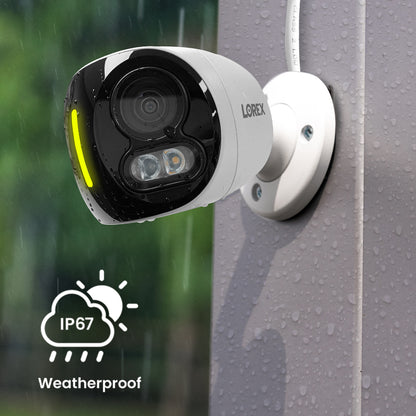

Year-Round Durability

This camera is built to last. IP67 Rated, the housing protects against harsh conditions like snow, rain, dust and extreme heat, allowing for years of service, no matter the weather.



131°F | 55°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof Rating

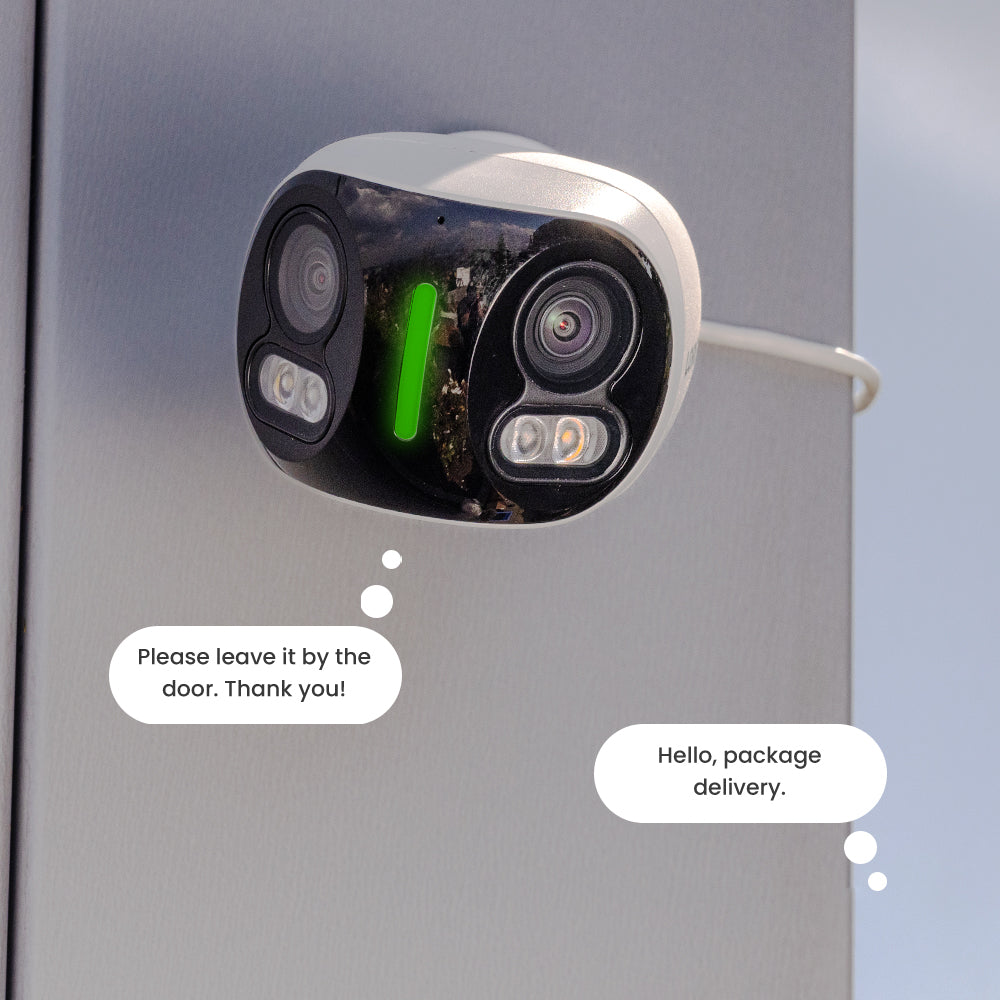

Answer Instantly

Hear and speak to anyone through the camera using 2-Way Talk. If you're busy, select a Quick Response message to answer for you.





Enjoy the Reliability of Wired Security

A stable wired camera connection provides reliable 24/7 security. You can customize where you want to install each type when integrating them into your property.



Auto-Framing

Automatically track, follow and zoom in on a person, vehicle or animal as they move across the field of view - all hands-free!



Product Compatibility

Product Specifications

Viewing Angle (diagonal) 180° Panoramic View
Lens/Lens type 2.1mm F1.6/Fixed
Resolution/Frame rate 4096x1856@15fps, 2880x1312@15fps, 2048x932@15fps
Effective Pixels 4096 x 1856
Microphone/Speaker Yes/Yes
Siren Yes
Two-way Talk Yes
Night Vision Range (Total Darkness) 65ft (20m)
Night Vision Range Max. 98ft (30m)
Color Night Vision Yes, 0.008 Lux@F1.6 (Color 30IRE)
Smart Motion Detection Package, Vehicle, Person, Face and Animal
Heat Mapping Yes
Supports in App Quick Messaging Yes
Active Deterrence Warning Light, Siren, Pre-Recorded Message
Smart Security Lighting Yes
Camera Housing Material Alluminum Alloy + Plastic
Power Requirements PoE (Power over Ethernet Class -802.3af)/12V DC
Power Consumption (max) 8.2 W (12 VDC); 9.1 W (PoE)
Camera Dimensions (W x D x H) 6.8 x 3.9 x 3.0"
172 x 99 x 76mm
Camera Weight 1.75lbs / 0.79kg
Operating Temperature -22°F (-30°C) ~ +131°F (+55°C)
Environmental Rating IP67

What's Included?

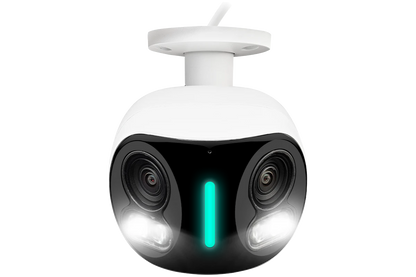

E871AB Overview
  1. Microphone
  2. Dual Lens
  3. Smart Security Lighting
  4. IR (Infrared) Lights
  5. Warning Lights ×2
  6. Adjustment Screws ×2
  7. Camera Base
  8. MicroSD Card Slot*
  9. Reset Button
  10. Speaker & Siren
  11. Cable Notch


Package Contents:

4K Dual Lens Bullet Camera

Mounting Kit

Ethernet Extension Cable

*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
