1. Wireless cameras require a wired connection to power outlet. Not intended for direct exposure to rain or snow. For outdoor applications, install under shelter protected from the elements.
2. Requires a high speed Internet connection and a wired connection to a router (not included). An upload speed of 3Mbps is recommended for optimal video performance. Up to 3 devices may connect to the system at the same time. For the latest compatibility list check www.lorextechnology.com/support as new models become available in the market.
3. Viewing and recording in 720p resolution should be limited to 2 cameras. For systems using up to 4 cameras, VGA resolution is recommended for optimal video performance. 720p resolution recordings and live view can only be viewed in HD using devices that support 720p (1280×720) or higher resolutions. Included monitor resolution is 800×480.
4. Motion recording for a single camera based on VGA (640×480) recording resolution with 40 motion events per day and 30 second recording duration per event. Maximum recording time may vary based on the number of cameras that are recording, the amount of motion in the scene, and the size of the memory card used (8GB SD card included; 64GB supported).
5. Stated IR illumination ranges are based on ideal conditions in typical outdoor night time ambient lighting and total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption.
6. Wireless cameras automatically reconnect with the receiver upon detecting low signal strength to optimize the wireless connection. Maximum wireless transmission range of 150ft (46m) indoors / 500ft (152m) outdoors. Actual range dependent upon building materials and other obstructions in the path of the wireless signal.
Features

Enjoy a simplified installation, secure wireless video, and no recurring fees with the LHD74 premium home monitoring system. The wireless cameras included in this system feature a 720p HD video resolution and two-way audio. These features will help you capture the information you need from your home security system. View your cameras from home with the included LCD monitor or stay connected when away with our free app that allows you to view live and recorded video anytime you want.
LHD74
SPECIFICATIONS
4
CHANNELS
Wireless system can support up to 4 cameras
4
CAMERAS
4 Wireless HD security cameras
65ft
NIGHT VISION
Maximum night vision
2-Way
AUDIO
Built in speaker and microphone

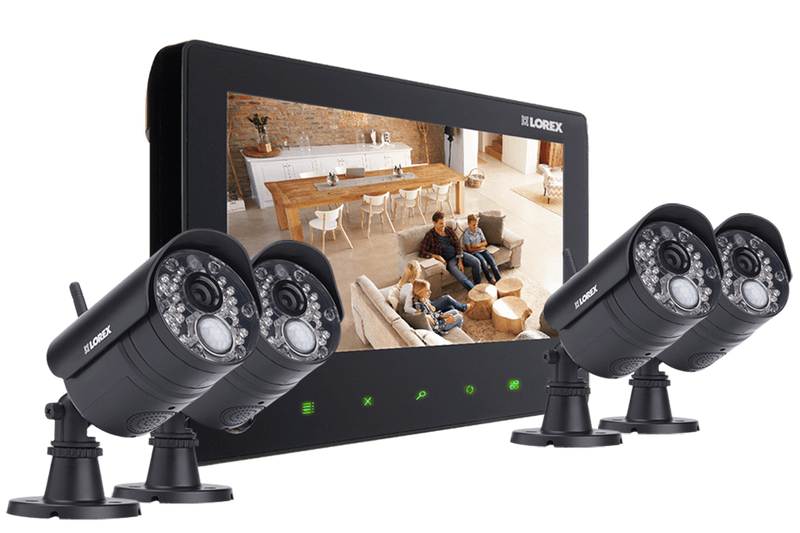

7" LCD monitor / recorder
Use the stylish all-in-one 7" LCD monitor and recorder to view live and recorded video. A user-friendly interface and feather-touch controls give you complete control of your security system. See all four cameras at once (or change viewing modes to focus on just one), enable recording and configure menu options all with the tap of a button.

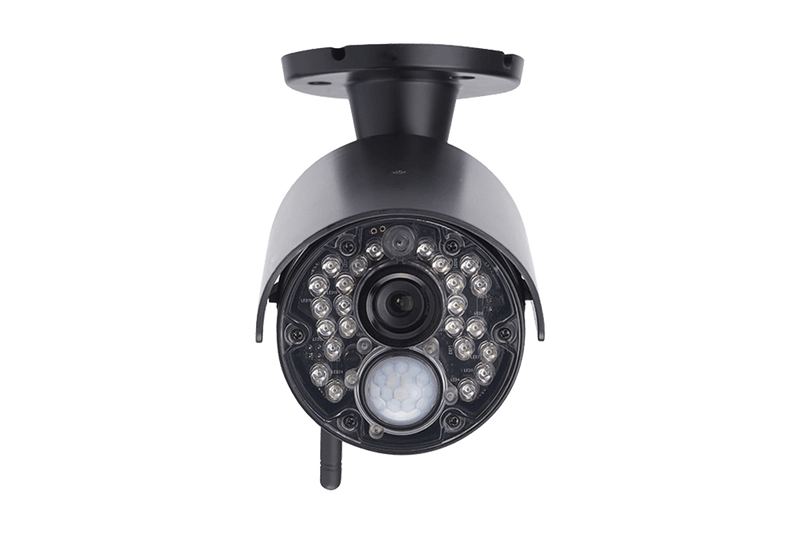

High-quality 720p HD wireless security cameras
Your wireless security cameras will record stunning 720p video. This will help you capture the details you need. Video footage is recorded to the included 8GB SD card (up to 32GB SD card supported). This provides plenty of storage for recordings and makes it easy to backup files to an external device like a computer.

Easy remote connectivity
Simply download the SD Pro app for your iPhone®, iPad® or Android™ device to enable remote monitoring. This app is free with no recurring fees. With it you can view live video or recorded playback from anywhere with an internet connection. You can also use this app to review the event log to see a list of motion-based events. Each event is stamped with the date and time when the event took place, as well as the camera that captured the event.

Around-the-clock protection
Reliable security means protection at all times - even at night. Your cameras provide this with infrared LED night vision. Clearly see up to 65ft / 20m away in low-light conditions and up to 45ft / 14m away in total darkness. An integrated automatic Infrared Cut Filter (ICR) ensures accurate color representation during the day and detailed low-light footage through the night.


Superior motion-detection abilities
Your wireless cameras come with two types of motion detection that will drastically improve alert accuracy. Along with smart video motion detection, these cameras use advanced Passive Infrared (PIR) detection that tracks heat from moving objects.

Two-way audio capabilities
Each camera contains a built-in microphone and speaker. Use the monitor (or your smart device) to hear activity around your security cameras and communicate with people near them. This two-way audio intercom is a great way to stay connected - whether you're instructing a postal worker or greeting a family member.

Install your security cameras where you need them most
Your wireless monitoring cameras are perfect for outdoor or indoor surveillance. High gain antennas ensure a long-range wireless signal up to 150ft / 50m indoors and up to 500ft / 152m outdoors. Their rugged exteriors are specially designed to endure bad weather (IP65-rated) while their compact housings are suitable for indoor home monitoring applications as well.
Image resolution comparison

![]() | ![]() | ![]() | ![]() | |
Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
Video

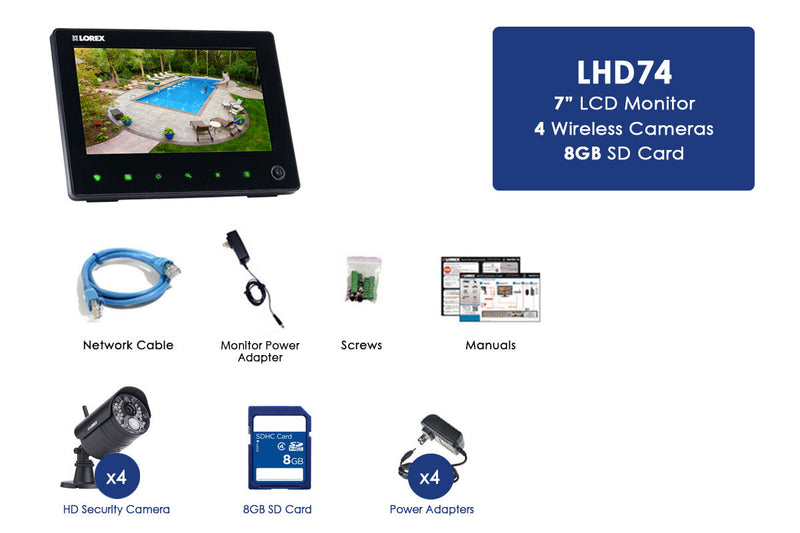

What's Included?
LW2762H
Wireless 720p HD video security system features:

- 7” LCD monitor / recorder
- Weather resistant HD wireless cameras1
- Simple installation. No video cables required
- Free iOS / Android apps for smartphones & tablets2
- Record video in 720p HD with audio3
- Manual, motion, and schedule recording
- Triplex operation: view live video, record, and playback simultaneously
- Up to 45 days of recording4
- Pre-event motion detection recording
- Dual motion detection technology for more accurate alerts
- Motorized camera filter provides accurate color reproduction in all lighting conditions
- Secure wireless signal
- Time and date stamped recordings for easy retrieval
- 2-way audio intercom
- Push notifications sent to your smartphone / tablet when motion is detected
- Expandable up to 4 cameras
- Night time viewing up to 65ft (20m) away in ambient night time lighting conditions and up to 45ft (14m) away in total darkness5
- High gain antennas provide up to 150ft (46m) indoor / 500ft (152m) outdoor wireless range6
- 8GB SD card included; 64GB supported

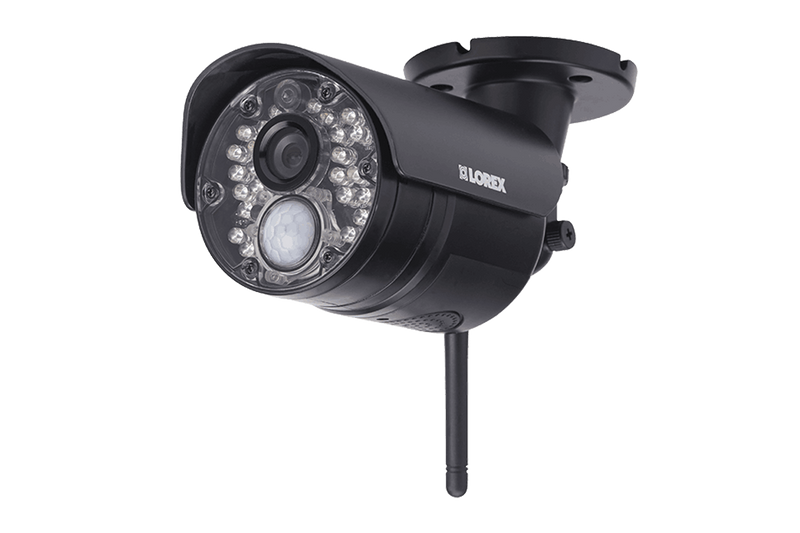

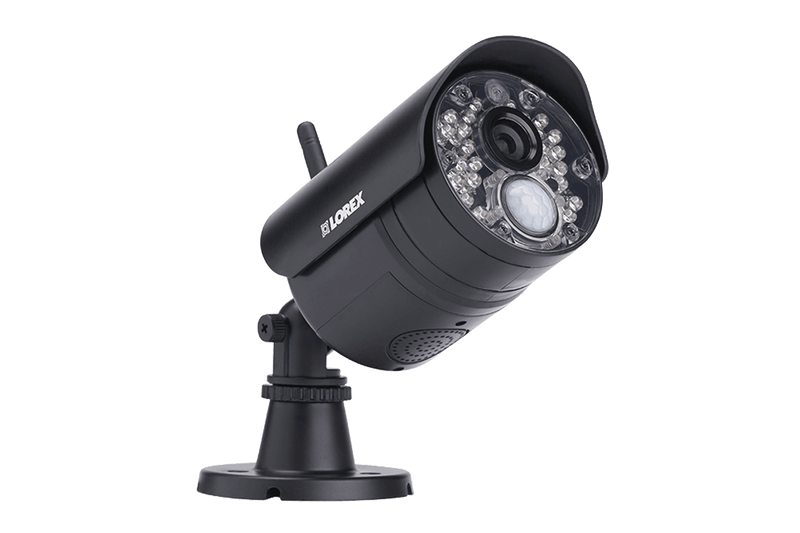

Each LW2762H Includes:

- Weather resistant wireless camera1
- Record video in 720p HD with audio2
- 2-way audio Intercom
- Simple installation. No video cables required
- Dual motion detection technology for more accurate alerts
- Motorized camera filter provides accurate color reproduction in all lighting conditions
- Night time viewing up to 65ft (20m) away in ambient night time lighting conditions and up to 45ft (14m) away in total darkness3
- Secure wireless signal
- Up to 165ft (50m) indoor / 660ft (200m) outdoor wireless range4
Each LW2770HAC1 Includes:
1. Wireless cameras require a wired connection to power outlet. Not intended for direct exposure to rain or snow. For outdoor applications, install under shelter protected from the elements.
2. 720p HD (1280×720) up to 20 fps with 2 cameras, or VGA (640×480) in real-time (30fps). 720p resolution recordings and live view can only be viewed in HD using smartphones / tablets that support 720p (1280×720) or higher resolutions or view recordings on a computer (SD card reader not included). Included monitor resolution is 800×480.
3. Stated IR illumination ranges are based on ideal conditions in total darkness and typical outdoor night time ambient lighting. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption.
4. Based on line of sight. Actual range will vary depending on obstructions.
