720p Wireless Video Surveillance System for Home, 2 Outdoor Cameras with Audio and 65FT Night Vision

LHD72W

EXTENDED HOLIDAY RETURN PERIOD: Returns on items purchased between Nov 8th and Dec 31st will be accepted until Jan 31st, 2022

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

LNZ32P12 security camera

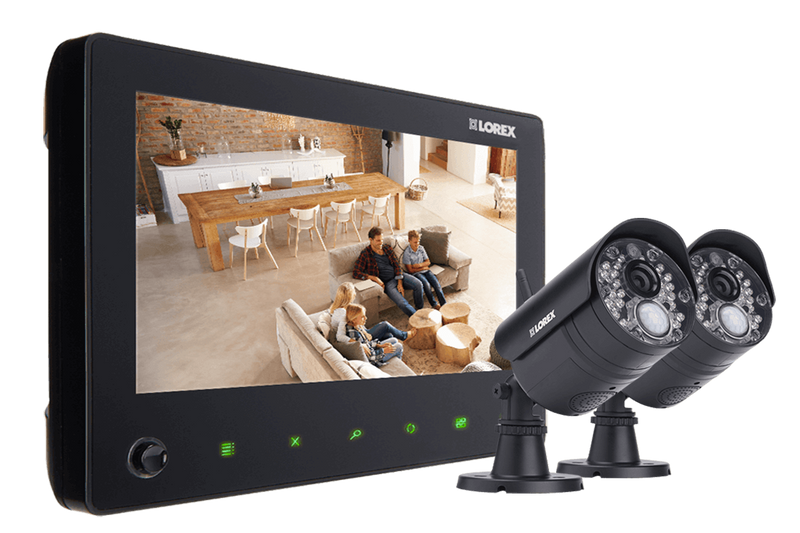

The LHD72 is a premium home monitoring system. It features a simplified installation, secure wireless video, and no recurring fees. 720p HD video resolution and two-way audio will help you capture the information you need from your security system. Stay connected no matter where you are with our free app that allows you to view live and recorded video anytime you want.

LHD72

SPECIFICATIONS

4

CHANNELS

Wireless system can support up to 4 cameras

2

CAMERAS

2 Wireless HD security cameras

65ft

NIGHT VISION

Maximum night vision

2-Way

AUDIO

Built in speaker and microphone

7? LCD monitor / recorder

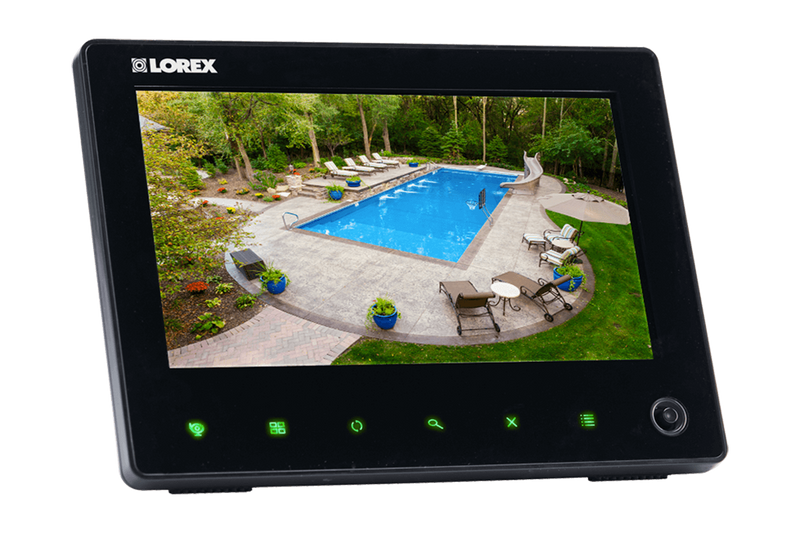

7" LCD monitor / recorder

View live and recorded video from room-to-room on a stylish all-in-one 7" LCD monitor and recorder. This monitor gives you complete control of your security system with a user-friendly interface and feather-touch controls. Change viewing modes, enable recording and configure menu options all with the tap of a button.

720p HD wireless video

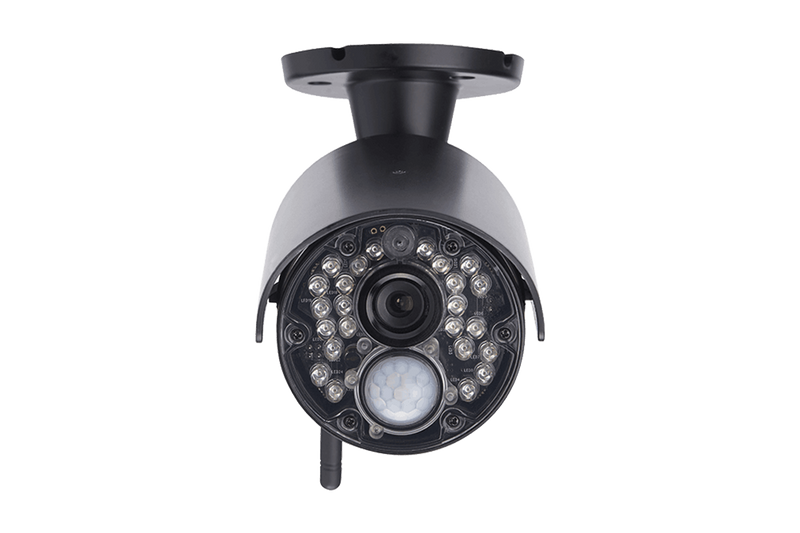

High-quality 720p HD wireless security cameras

Leave nothing to the imagination. Your wireless security cameras record stunning 720p video that captures every detail. Video footage is recorded to the included 8GB SD card. This provides plenty of storage for recordings and makes it easy to backup files to an external device like a computer.

Remote connectivity for viewing on-the-go

Easy remote connectivity

Remote monitoring is a breeze with the LHD72 home monitoring system. Simply download the free SD Pro app for your iPhone®, iPad® or Android™ device, scan the QR code on the monitor, and start to view live and recorded video from anywhere in the world. You can also use the event log to review motion-based events using this app. Each event is stamped with the date and time when the event took place, as well as the camera that captured the event.

Expand your home monitoring system

Add extra wireless monitoring cameras

The LHD72 security system can be expanded with two additional security cameras. Adding a camera to this wireless security system is simple – just pair the new camera to an open channel and it will be connected.

* Add-on camera model number: LW2770HAC1

Crystal clear night vision

Around-the-clock protection

Reliable security means protection at all times - even at night. Your cameras provide this with infrared LED night vision. Clearly see up to 65ft / 20m away in low-light conditions and up to 45ft / 14m away in total darkness. An integrated automatic Infrared Cut Filter (ICR) ensures accurate color representation during the day and detailed low-light footage through the night.

Night Vision Range
Long range night vision

Superior motion-detection abilities

Your wireless cameras come with two types of motion detection that will drastically improve alert accuracy. Along with smart video motion detection, these cameras use advanced Passive Infrared (PIR) detection that tracks heat from moving objects.

Audio monitoring and 2-way intercom

Two-way audio capabilities

Each camera contains a built-in microphone and speaker. Use the monitor (or your smart device) to hear activity around your security cameras and communicate with people near them. This two-way audio intercom is a great way to stay connected - whether you're instructing a postal worker or greeting a family member.

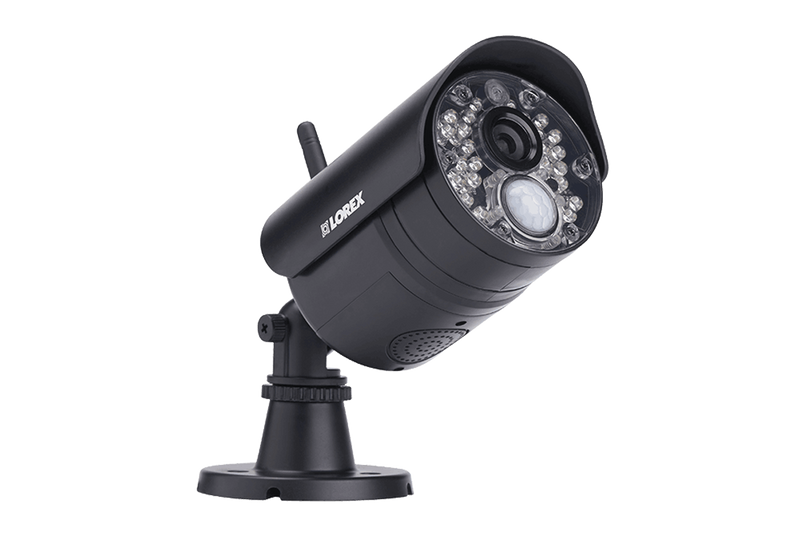

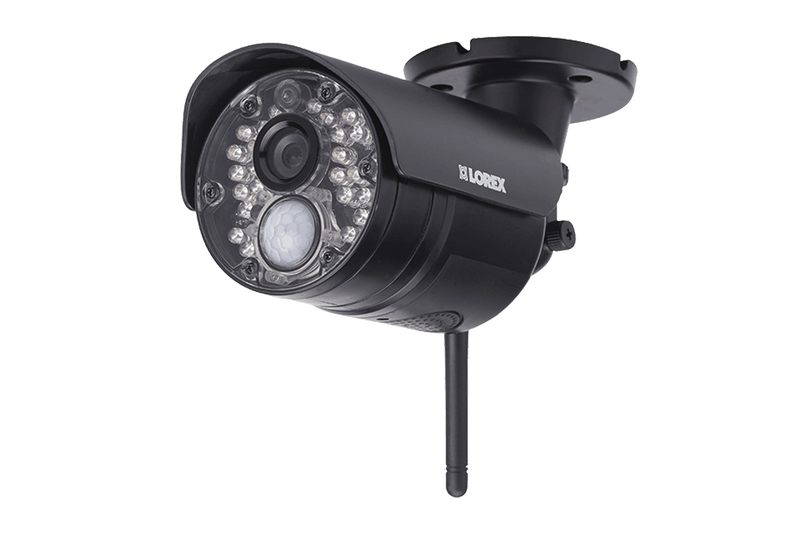

Weather resistant wireless cameras

Install your security cameras where you need them most

Your wireless monitoring cameras are perfect for outdoor or indoor surveillance. High gain antennas ensure a long-range wireless signal up to 150ft / 50m indoors and up to 500ft / 152m outdoors. Their rugged exteriors are specially designed to endure bad weather (IP65-rated) while their compact housings are suitable for indoor home monitoring applications as well.

Image resolution comparison

1080 MPX Comparison Chart
  HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording Full 1080p HD (1920x1080) 720p HD (1280x720) Analog 1080p HD (1920x1080) 720p HD (1280x720)
Platform 1080p HD NVR systems 720p HD NVR systems 1080p HD DVR systems 720p HD DVR systems
Video Digital IP / RJ45 connection Digital IP / RJ45 connection Analog BNC / RG59 connection Analog BNC / RG59 connection
Power PoE (Power over Ethernet) PoE (Power over Ethernet) Standard DC power Standard DC power
Installation Connect cameras to NVR or to router/LAN Connect cameras to NVR or to router/LAN Cameras require wired connection to DVR Cameras require wired connection to DVR

Video

What's Included?

LW2762H

Wireless 720p HD video security system features:

  • 7” LCD monitor / recorder
  • Weather resistant HD wireless cameras1
  • Simple installation. No video cables required
  • Free iOS / Android apps for smartphones & tablets2
  • Record video in 720p HD with audio3
  • Manual, motion, and schedule recording
  • Triplex operation: view live video, record, and playback simultaneously
  • Up to 45 days of recording4
  • Pre-event motion detection recording
  • Dual motion detection technology for more accurate alerts
  • Motorized camera filter provides accurate color reproduction in all lighting conditions
  • Secure wireless signal
  • Time and date stamped recordings for easy retrieval
  • 2-way audio intercom
  • Push notifications sent to your smartphone / tablet when motion is detected
  • Expandable up to 4 cameras
  • Night time viewing up to 65ft (20m) away in ambient night time lighting conditions and up to 45ft (14m) away in total darkness5
  • High gain antennas provide up to 150ft (46m) indoor / 500ft (152m) outdoor wireless range6
  • 8GB SD card included; 64GB supported

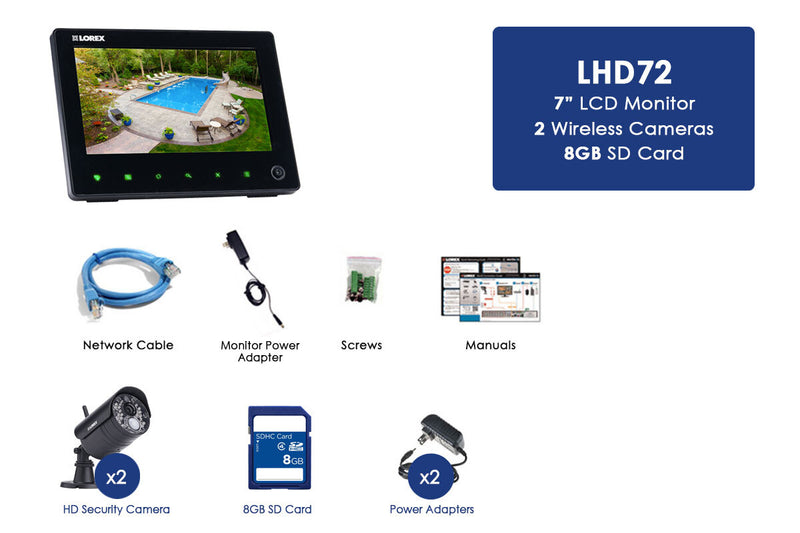

Each LW2762H Includes:

1 × 7” LCD Monitor
2 × Wireless Cameras
3 × Power Adapters
1 × Ethernet Cable
1 × 8GB SD Memory Card
Quick Setup Guides

1. Wireless cameras require a wired connection to power outlet. Not intended for direct exposure to rain or snow. For outdoor applications, install under shelter protected from the elements.
2. Requires a high speed Internet connection and a wired connection to a router (not included). An upload speed of 3Mbps is recommended for optimal video performance. Up to 3 devices may connect to the system at the same time. For the latest compatibility list check www.lorextechnology.com/support as new models become available in the market.
3. Viewing and recording in 720p resolution should be limited to 2 cameras. For systems using up to 4 cameras, VGA resolution is recommended for optimal video performance. 720p resolution recordings and live view can only be viewed in HD using devices that support 720p (1280×720) or higher resolutions. Included monitor resolution is 800×480.
4. Motion recording for a single camera based on VGA (640×480) recording resolution with 40 motion events per day and 30 second recording duration per event. Maximum recording time may vary based on the number of cameras that are recording, the amount of motion in the scene, and the size of the memory card used (8GB SD card included; 64GB supported).
5. Stated IR illumination ranges are based on ideal conditions in typical outdoor night time ambient lighting and total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption.
6. Wireless cameras automatically reconnect with the receiver upon detecting low signal strength to optimize the wireless connection. Maximum wireless transmission range of 150ft (46m) indoors / 500ft (152m) outdoors. Actual range dependent upon building materials and other obstructions in the path of the wireless signal.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
