4K Ultra High Definition Dome Security Camera

LEV8532 Series
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

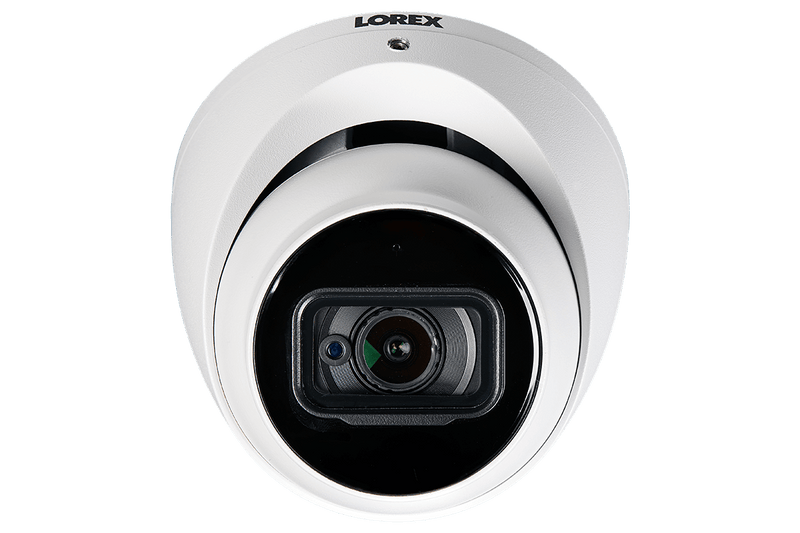

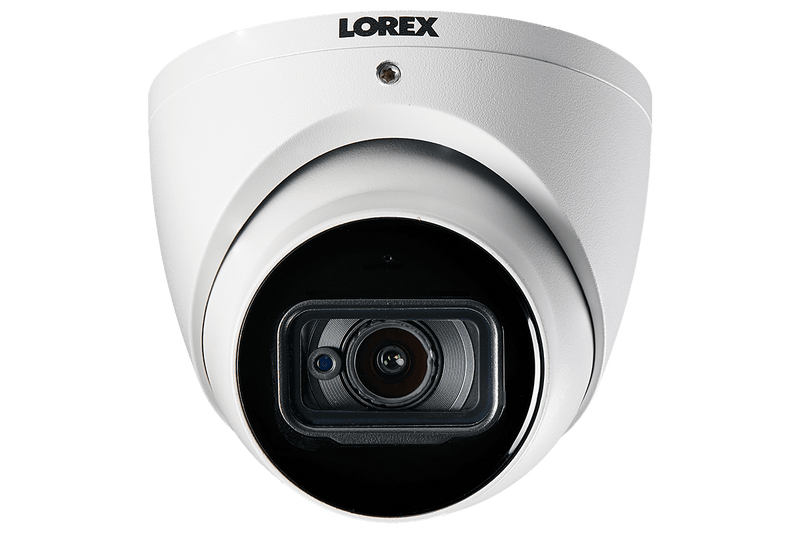

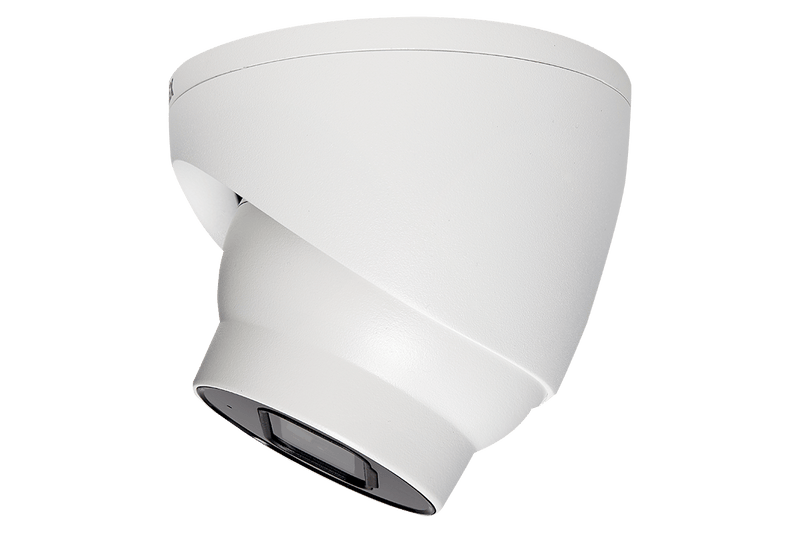

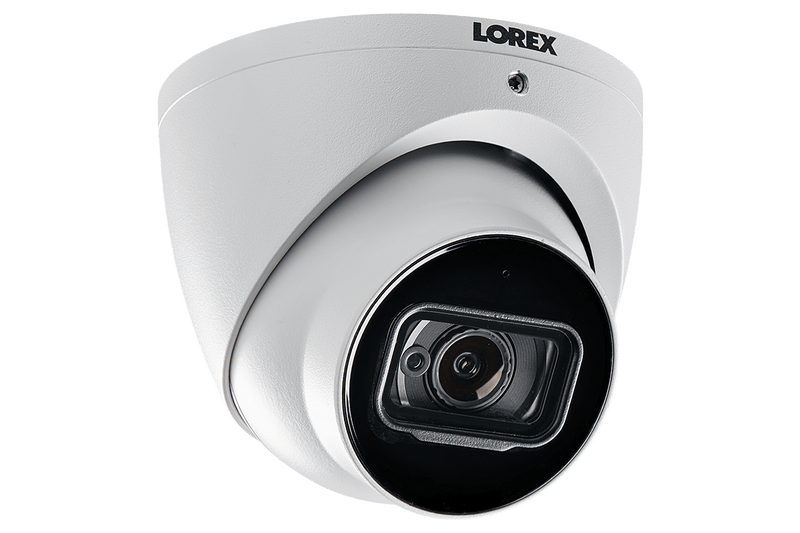

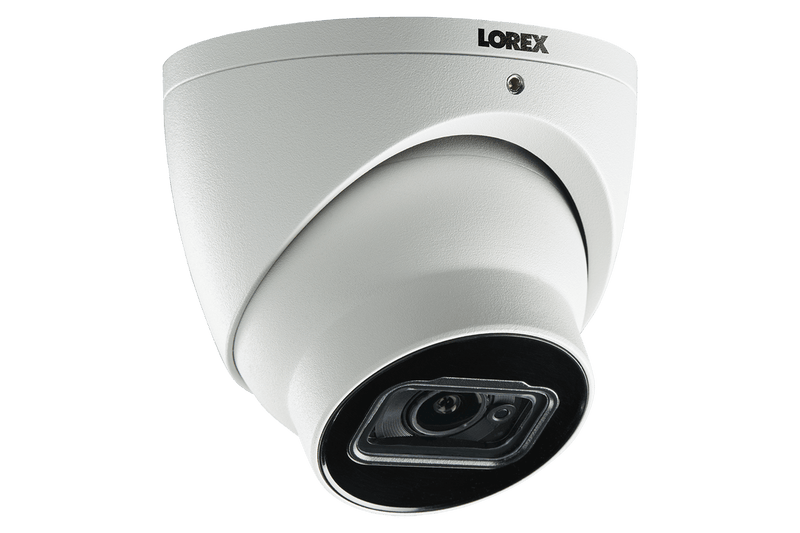

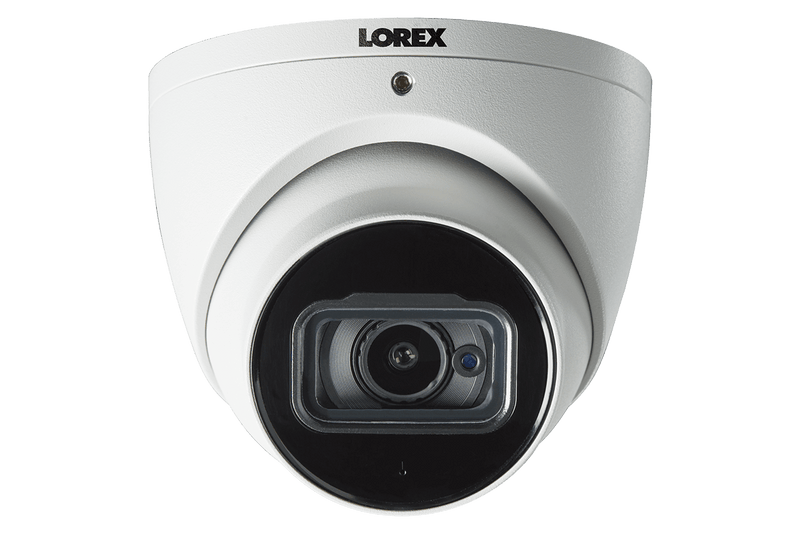

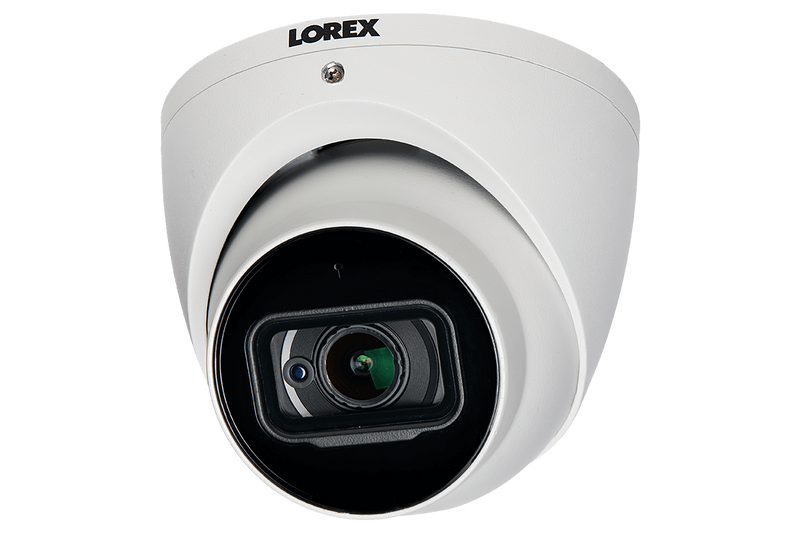

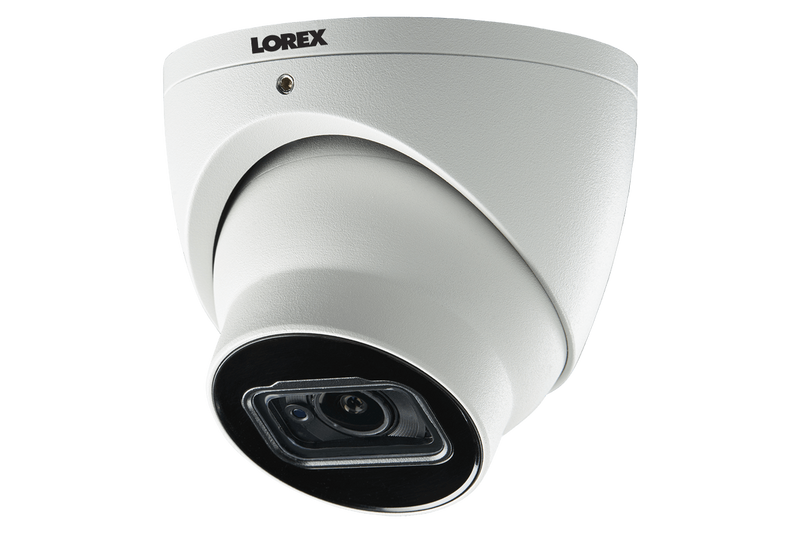

4K Ultra HD MPX Eyeball Dome Camera

Don't ever miss those vital details again with this 4K MPX dome security camera from Lorex. This security camera will bring a whole new level of detail and clarity to your home or business surveillance needs thanks to the 8-megapixel image sensor at its core. Capable of recording 4× the resolution of 1080p (4K), this Ultra HD security camera will give you the best chance to capture specific details (such as distinctive facial features). This security camera is also fully weatherproof (IP67-rated) and comes with our revolutionary Color Night Vision™ (CNV) technology that will continue to deliver full-color video in low-light conditions.

LEV8532 Series

SPECIFICATIONS

8 MP camera

MPX security camera

4K

RESOLUTION

4x the resolution of HD 1080p

150FT

NIGHT VISION

Maximum night vision range

87°

FIELD OF VIEW

Ideal for monitoring wide, open areas

4K MPX security camera


Ultra HD security camera

The main reason to purchase a security camera is to capture useful evidence should an incident ever occur on your property. This 4K camera will do just that. It is capable of recording a 4K pixel resolution of 3840 × 2160 - that's 4× the amount of pixels of 1080p resolution. A foremost benefit of this higher resolution is that it allows for greater digital zooms while reviewing video. This means that details in the distance of the video will remain visible for longer as the digital zoom is applied.

easy MPX security camera installation

Straightforward connection

This MPX security camera comes with a siamese coaxial cable (60ft) to connect it to an Ultra HD DVR (not included). This single cable splits into two heads at both ends (one head is for power, the other for video). Simply connect the video cable to the DVR and the power cable to an electrical outlet. Then connect the other two ends to the corresponding connections on the camera for an easy plug-and-play installation.

best color night vision dome IP cameracolor night vision (CNV) dome IP camera

See at night - in color!

The 4K Ultra HD dome camera uses our Color Night Vision™ technology in low light conditions. Without any external lighting sources, the camera will automatically switch to infrared black and white night vision. With this camera, you can expect to see up to 150ft (46m) in ambient nighttime conditions and up to 100ft (31m) in total darkness. Smart IR imaging also ensures that close-up objects or people will not be over-exposed by the infrared lights.

MPX with excellent night vision range
security camera with metal housing

Full Metal Camera Housing

Built using the same heavy-duty aluminum that is used in the construction of airplanes, this Lorex camera is strong enough to withstand large impacts, unlike conventional plastic security cameras.

IP67 security camera

IP67 weatherproof rating

Install this security camera wherever you need it. It is manufactured to be fully weatherproof (IP67), so you can count on all-season security monitoring that never stops working.

sub-zero security camera

Built to endure the cold

Your Lorex security camera is perfect for those living in extremely cold atmospheres. They can endure sub-zero temperatures as low as -22°F / -30°C.

LEV8532B

LEV8532 Series

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

Camera compatibility



Video

What's Included?

LEV8532 Series

4K Ultra HD Dome Security Camera Features:

LEV4712B 2K Super HD Dome Security Camera
  • View in exceptional 4K (8MP) Ultra High Definition with an image sensor that delivers four times the detail of 1080p1
  • 4K (8MP) Ultra HD video recording provides superior quality for reviewing fine details in increased resolution
  • Infrared cut filter ensures accurate color representation
  • Color Night Vision™ provides color images (with ambient lighting from porch or street lamps) letting you identify objects and people more accurately than in black & white2
  • Night vision range up to 150ft (46m) in ambient lighting and 100ft (31m) in total darkness3
  • Close up recognition in the dark with SmartIR
  • Large 1/2" image sensor offers very high quality night time video
  • ClearNight imaging for improved low light performance and improved recording efficiency
  • Split glass design minimizes IR reflection
  • Weatherproof for outdoor & indoor installation (IP67 Rated)4
  • Extreme temperature performance (-22° ~ 140°F / -30° ~ 60°C)
  • 87° horizontal field of view
  • Durable metal housing
  • 3-axis design for wall / ceiling mounting
  • Includes 60ft video/power cable for simple installation5
Image Sensor 4K (8MP), 1/2" CMOS
Video Format NTSC / PAL
Effective Pixels H: 3840 V: 2160
Resolution 4K(8MP)@15fps
Scan System Progressive
Sync System Internal
S/N Ratio >65dB (AGC Off)
Iris AES
AES Shutter Speed 1/30 ~ 1/100,000 sec.
Min. Illumination 0.01 Lux without IR LED, 0 Lux with IR LED
Video Output MPX
Lens / Lens Type 3.6mm F1.6 / Fixed
Field of view (Horizontal) 87°
Termination BNC Type
IR LED Qty / Type 2 pieces (High Power) / 850nm
Night Vision Range 150ft (46m) / 100ft (31m)
Power Requirement 12V DC ±10%
Power Consumption Max. 585mA (w/IR), 7.0W
Operating Temp. Range -22°F ~ 140°F / -30° ~ 60°C
Operating Humidity Range <90% RH
Environmental Rating Weatherproof (IP67)
Weight (including stand) 0.7lbs / 0.3kg

Each LEV8532 Includes:

1 × 4K HD Dome Camera
1 × Mounting Kit*
1 × 60ft Extension Cable*
1 × Power Adapter**

1. 4K (8MP) Ultra HD cameras are compatible with select Lorex 4K HD DVR recorders. For a full list of compatible recorders, visit www.lorextechnology.com/compatibility
2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
4. Not intended for submersion in water. Installation in a sheltered location recommended.
5. This camera should only be used with the supplied cable and power adapter, or an extension cable meeting the specifications listed in the Quick Setup Guide / Installation Guide. The use of any other power adapter or cabling will adversely affect performance.

* Per camera in multi-camera packs.
** A multi-camera power adapter that provides power to multiple cameras or individual power adapters may be provided depending on product configuration.
