1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
5. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
6. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility

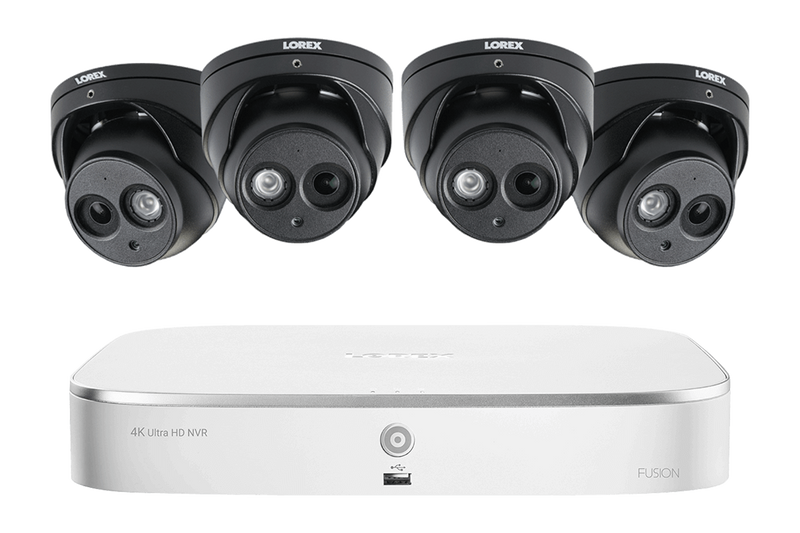

Know that your property is secure while you're there and while you're away with this Nocturnal security camera system from Lorex. This system features four powerful Nocturnal dome security cameras with 4K recording resolution, a built-in microphone for listen-in audio capabilities and extreme weather performance. It also comes with a powerful eight channel N841 Series Network Video Recorder (NVR). These features make this an incredibly security system perfect for any type of property.
4K NVR can support up to 8 cameras
4 × 4K dome security cameras
Maximum night vision range
Expandable up to 6TB
Wired / Wireless Fusion™
As part of the Lorex Fusion™ collection, you can pair this NVR with additional Lorex Wi-Fi products such as, Wi-Fi cameras, doorbells, and floodlights. For more information, please visit our Fusion Collection Guide and Fusion Support Page.
Capture the details you need with 4K resolution
All cameras in this bundle use an 8.51-megapixel (MP) image sensor which makes the cameras capable of producing 4K Ultra HD video. With this sensor, you can capture critical details which can be useful for possible investigations, including distinct facial characteristics.
4× better than 1080p
These cameras are four times more powerful than your neighbor's 1080p cameras. The difference is vast, as these cameras sport an enormous 8.3 million pixels. In video surveillance, every detail counts, and these cameras will not disappoint. They can give you a good amount of confidence to zoom further into the footage than the 1080p camera may otherwise be incapable of doing. With eight 4K cameras at your disposal, there is no hiding from your view. You can basically capture all details, including facial features, night and day.
HEVC / H.265 compression
Keep the 4K footage without the 4K file sizes with High Efficiency Video Compression (HEVC) compression technology. Also known as H.265 or MPEG-H Part 2, this feature will compress video file sizes up to 40% more than the previous video compression technology without any noticable difference in quality. When combined with one of our 4K security recorders that are capable of receiving this type of encoding, you can expect smaller file sizes, longer record times, and higher remote viewing video quality without large data transfers.
Expanded coverage with built in microphone
Each of the Nocturnal dome cameras in this bundle have a built-in microphone for audio recording. This feature can provide you with more information (such as voices) should an incident ever occur. It will also help provide more insight into key events, even if they occur off-screen.
* Please note, audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for the use of its products that do not conform with local laws.
Say goodbye to grainy nighttime video for good. Nocturnal security cameras are equipped with powerful LED bulbs that emit infrared light in the camera's field of view. Invisible to the naked eye, but not to the camera, this infrared lighting will allow your security camera to see in complete darkness.
For an added level of nighttime protection, Nocturnal security cameras can also capture color footage, thanks to our state-of-the art Color Night Vision (CNV) technology. CNV brings extra details to light, such as the color of a car, a person's clothes, and also provides better contrast for enhanced detection.
Enhanced security monitoring with HDR
Each of the cameras in this bundle use the latest High Dynamic Range (HDR) technology. High Dynamic Range technology is capable of finding the sweetest spot between the brightest and darkest points of an image to deliver high-quality footage. This results in optimized, highly-detailed security video in all sections of the frame.
Increased clarity in low-light settings
Another technology these black Nocturnals are equipped with is called 3D-DNR (digital noise reduction). As the name suggests, this technology is responsible for removing noise in low-light footage, as well as noise caused by motion blur. With 3D-DNR, the footage you get is crisp and clear, no matter what the circumstances.
All-weather security camera
There are no ifs, ands, or buts about it, this dome secuirty camera is an absolute beast. Rated IP67, it can endure all types of weather, even torrential downpours and freezing climates.

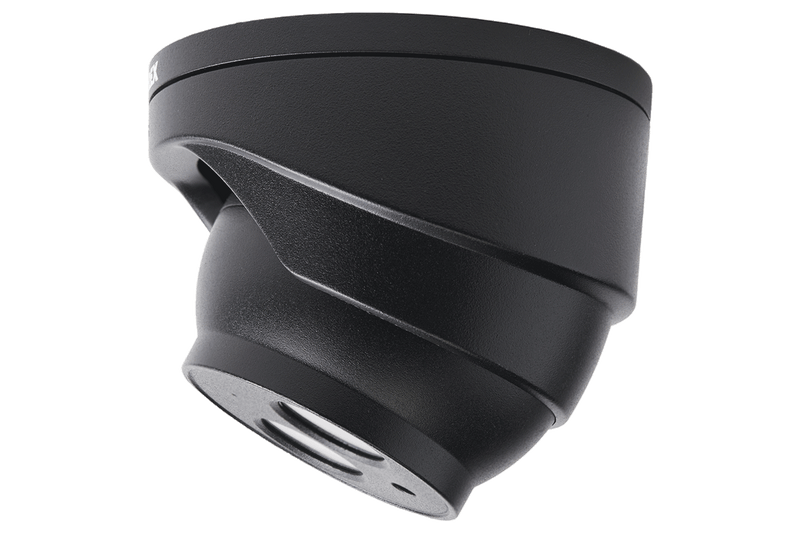

Full Metal Camera Housing
Both models of security cameras included in this system are built with a solid metal housing. This makes them ideal for outdoor use, as it will protect them from even the harshest of weather or vandalism.
Remote viewing from your mobile with Lorex Home™
This feature-rich system is designed for use with our innovative, hassle-free Lorex Home™ app. Using Lorex Home, you can quickly and easily view your security system remotely from your smartphone or tablet. Simply download the free app, scan the QR code on the NVR and your cameras will appear for you to monitor (or review footage). You can also program the app to send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.
Easy PoE installation
This 4K security camera system will be up and running in no time thanks to Power-over-Ethernet (PoE) technology. Each security camera only needs a single Cat5e ethernet cable to connect it to the NVR. This cable provides video transmission, power to the camera, a stable network connection, and installation flexibility up to 300ft (as the camera does not need to be plugged into a nearby power source).
Reliable security-grade hard drive preinstalled
A 2TB security grade hard drive (expandable up to 6TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.
Find what you are looking for quickly with Lorex's Area Search. Select an area of interest and automatically playback any video footage showing scene changes in that area. Ideal for doorways, drive ways, etc.
Regional motion zones
There may be certain sections in the camera's field of view that you want to focus more on, such as the front door, garage or backyard. Create up to four custom motion zones for each camera and adjust the motion sensitivity to best suit your needs. That way, even the slightest movement near important areas, such as an entranceway, will trigger the camera and create a motion event, but inanimate objects like trees or bushes would need more significant movement in order to set off the motion detection.
If there are certain areas in the camera's field of view that you do not want recorded, you can block those sections using privacy masking. Simply use the NVR to outline the areas you want blacked out with a square or rectangle.
- Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
- Digitally zoom in on distant objects for better clarity2

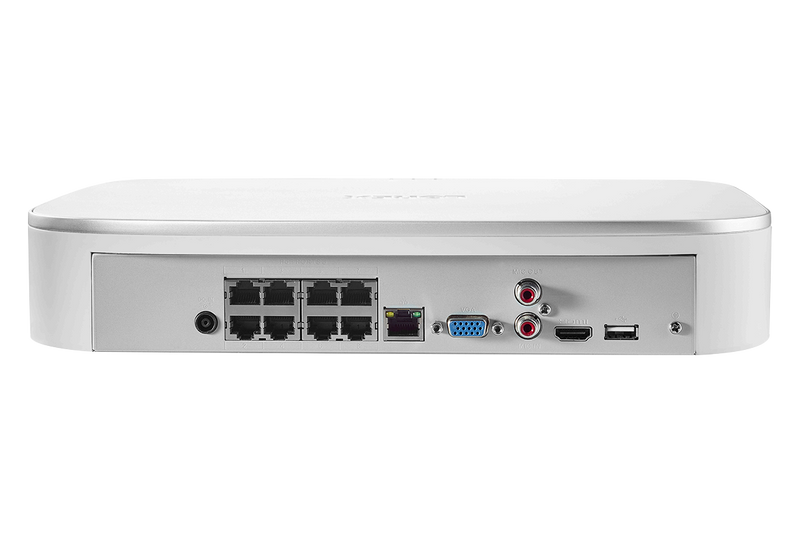

- Expand your security system with up to 8 IP cameras with built-in PoE ports
- Pair your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more3
- Allows for Wi-Fi cameras to record continuously
- Back up continuous video from your Wi-Fi camera(s) to the recorder
- Quickly access your live footage with simple voice commands (compatible with Alexa and Google)4
- Control your Deterrence cameras features with your voice (compatible with Google Assistant only)4
- Support for Smart Motion detection - Get notifications with the Lorex Home™ App when motion is detected from a person or vehicle5
- Use Smart Search to search through recorded footage and filter events for motion detected by a person or vehicle6
- Local built-in security-grade hard drive ensures only you can access your footage
- Max 6TB storage space with no hidden monthly cloud fees
- Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
Each N841A82 Includes:
1. 4K (8MP) IP cameras are required to take advantage of 4K recording.

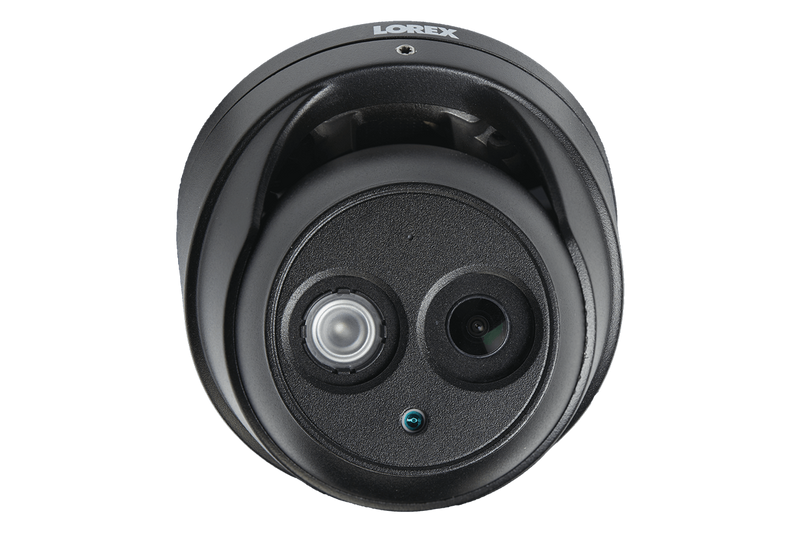

- 4K Ultra HD 8MP resolution provides the highest standard in image clarity and detail for evidence collection
- Wide angle lens provides 113° Field of View
- Long range night vision up to 200ft1
- Color Night Vision™ provides full color images at night, letting you identify objects and people more accurately than in black & white2
- Built-in microphone for listen-in audio3
- H.265 / H.264™ compression technology4
- IP67 weatherproof-rated5
- -22°F/-30°C Cold Climate capable
- True High Dynamic Range (HDR) improves image clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image
- Simple camera installation using a single Cat5e cable with Power over Ethernet (PoE)
- 100ft (30m) Ethernet cable included for camera video and power
- Extend the camera's video and power with a single Ethernet cable up to 300ft (91m) from the recorder
|Effective pixel area||3840(H)x2160 (V)||IR LED quantity||1pcs|
|IR LED viewing angle||1 × 100°||Camera FOV (H / V / D)||H:113°; V:65° D:125°|
|Imaging Device||4K, 1/2.5 Inch||Effective Pixels||3840(H)x2160 (V)|
|Imager Type||CMOS||Image Readout||Progressive Scan|
|Day/Night||Auto(ICR)/Color/B/W||Field of View (H)||H:113°|
|IR Illumination||60m||Video Output||RJ45|
|Electronic Shutter Range||1/3(4)~1/100000s||Lens Type||Fixed|
|Lens Mount||Board-in Type||Iris Type||Fixed|
|Video Compression||H.265 / H.264 / MJPEG||Aspect Ratio||16 : 9|
|Frame rates (Maximum)||4K @ 15fps / 2K (3MP) @ 30fps||Dynamic Range||N/A|
|Noise Reduction||3D||Digital Zoom||16x|
|Camera Body Material||Aluminum Alloy||Power Input||12V DC|
|Power over Ethernet||PoE(802.3af)(class 0)||Power Consumption (Max)||5W|
|Storage Temperature||-30°C~+60°C||Operating Humidity||Less then 95% RH|
|Operating Temperature||-30°C~+60°C||Cold Start Temperature||-30°C|
Each LNE8950ABW Includes:
1. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
2. Full color nighttime video typically switches to black & white IR night vision below 1 lux to ensure optimal low-light image quality.
3. Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
4. You must connect the camera to a supporting H.265 NVR to take advantage of H.265 compression. For instructions on enabling H.265 compression, visit lorextechnology.com/support
5. Not intended for submersion in water. Installation in a sheltered location recommended.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
