4K IP System with Eight 4K (8MP) Nocturnal IP Motorized Varifocal Metal Cameras

4KHDIP86NVW-1
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

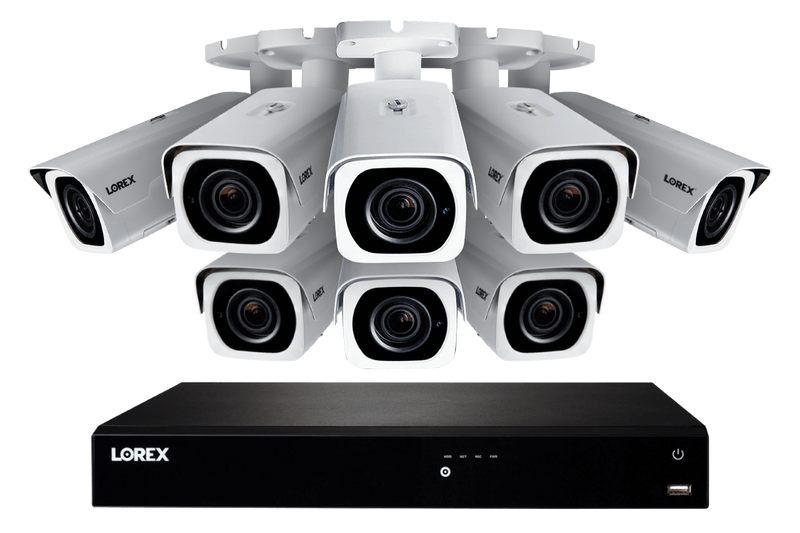

4KHDIP86NVW-1 4K nocturnal security camera system

Protect what matters most with this 16-channel Fusion NVR system including eight Nocturnal security cameras. A few of the most notable features of this system include 4K Ultra HD video recording, Color Night Vision, extreme weather performance, and the ability to remotely adjust the camera's field of view with its motorized varifocal zoom lens. These features, along with eight open channels on the NVR, make this the perfect security solution for your home or business.

Nocturnal Security Cameras logo

4KHDIP86NVW-1

SPECIFICATIONS

16

CHANNELS

4K NVR can support up to 16 cameras

8

CAMERAS

8 × 4K Ultra HD IP security cameras

250FT

NIGHT VISION

Maximum night vision range

3TB

HARD DRIVE

Maximum Capacity 2 × 8TB hard drives




Expand your system with the Fusion Collection

The Lorex Fusion Collection is a set of Network Video Recorders (NVRs) and Wi-Fi devices that are united by our Lorex Home App. Working together, the NVR can essentially "fuse" together Wired and Wi-Fi systems!


Network Video Recorders


Wi-Fi Devices


Lorex Home App

For more information, please visit our Fusion Collection Guide.


4K Nocturnal bullet security cameras


4K Ultra HD Resolution @ 15FPS

Nocturnal cameras are equipped with an 8.51-megapixel (MP) image sensor. This powerful sensor is what makes the cameras capable of delivering crisp 4K UHD video @15fps or 2K QHD video in real-time 30fps, which ultimately gives you the best chance to capture important details.

Motorized Varifocal Lenses


4

What's Included?

N862A63B

4K Ultra HD Network Video Recorder Features:

back to top
D241 demensions
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity2
  • Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more3
  • Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
  • Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD
  • Reduce unnecessary alerts and false alarms with Smart motion detection5
  • Get push notifications when motion from a person or vehicle is detected7
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • 2 bay hard drive with up to 2 x 8TB of storage space with no hidden monthly fees
  • Local built-in security-grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • Quickly access your live footage with simple voice commands (compatible with Amazon Alexa)4
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)

Each N862A63B Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides

1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
5. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
6. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
7. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
8. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
9. NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage requirements in order to not exceed the NVRs power output availability of the recorder vwhen adding cameras. Please see compatibility chart.

LNB8963

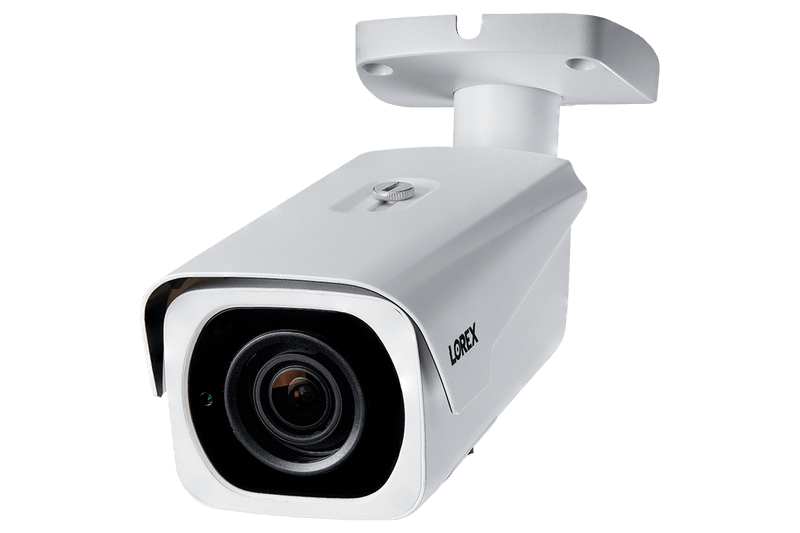

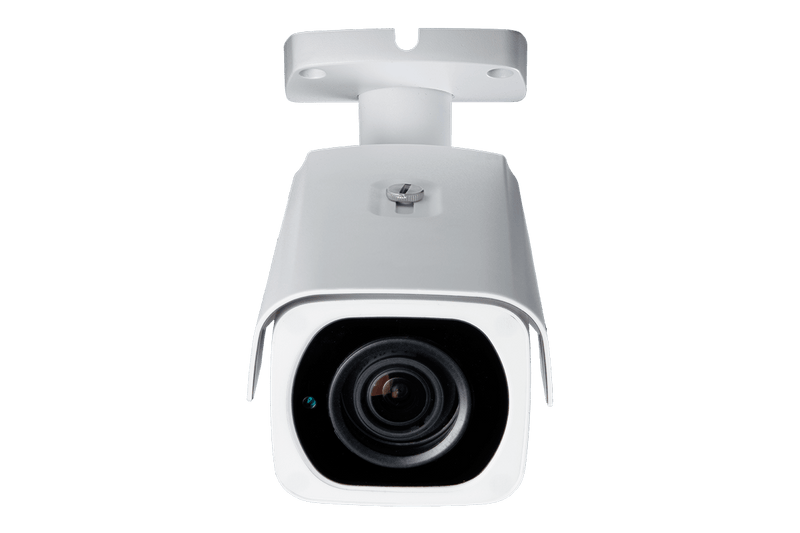

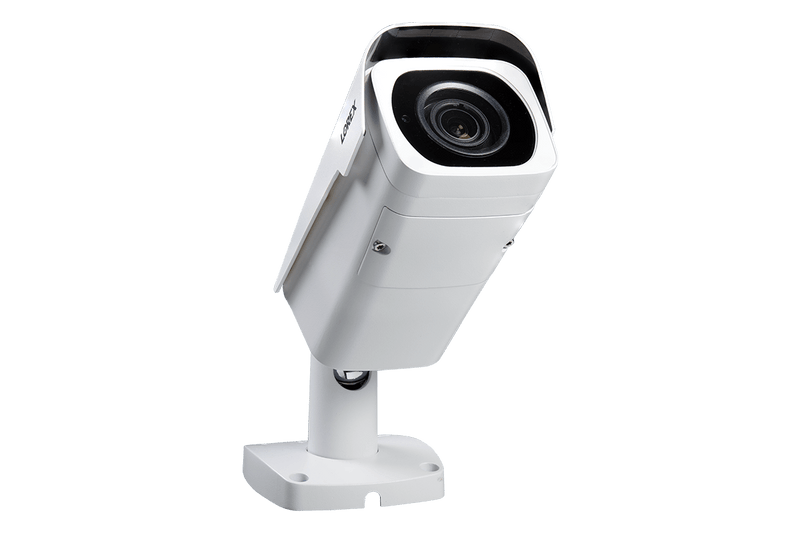

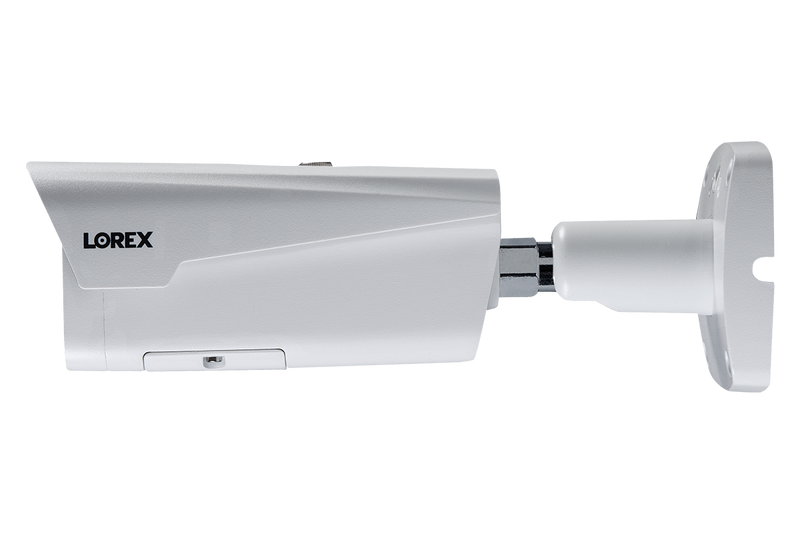

4K Motorized Varifocal HD IP Bullet Security Camera (White) Features:

back to the top
  • 4K Ultra HD (8MP 3840×2160) resolution provides the highest standard in image clarity and detail for evidence collection
  • True WDR (up to 100dB) creates more detail in high-contrast scenes
  • Remote zoom & motorized varifocal AI lens, 102-39°(H) field of view
  • Advanced H.265 & Super H.26× compression technology
  • IP67 weatherproof & IK10 vandal proof ratings
  • -22°F/-30°C Cold Climate capable
Effective pixel area 3840(H)x2160 (V) IR LED quantity 2pcs
IR LED viewing angle 1 × 45°,1 × 140° Camera FOV (H / V / D) H:102°~39°; V:55°~22° D:125°~42°
Imaging Device 4K, 1/2.5 Inch Effective Pixels 3840(H)x2160 (V)
Imager Type CMOS Image Readout Progressive Scan
Day/Night Auto(ICR)/Color/B/W Field of View (H) H:102°~39°
IR Illumination 30m Video Output RJ45
Electronic Shutter Range 1/3(4)~1/100000s Lens Type Motorized
Lens Mount Board-in Type Iris Type DC Iris
Focal Length 2.8-12mm Aperture F1.8~2.88
Video Compression Super H.265/Super H.264/H.265/H.264H/MJPEG Aspect Ratio 16 : 9
Frame rates (Maximum) 4k @ 15fps Dynamic Range Up to 90dB
Optical Zoom Digital Zoom 16x
Camera Body Material Aluminum Alloy Power Input 12V DC
Power over Ethernet PoE (802.3af) Power Consumption (Max) 8.5 W(with IR on/ ICR work/ Zoom )
Storage Temperature -30°C~+60°C Operating Humidity Less then 95% RH
Operating Temperature -22°C~+60°C Cold Start Temperature -30°C

Each LNB8963 Includes:

1 × IP Bullet Camera
1 × 100ft Ethernet Cable
4 × Mounting Screws
4 × Drywall Anchors
1 × Allen Key
1 × Mounting Template
