1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
5. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
6. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
7. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
8. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
9. NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage requirements in order to not exceed the NVRs power output availability of the recorder vwhen adding cameras. Please see compatibility chart.
Features

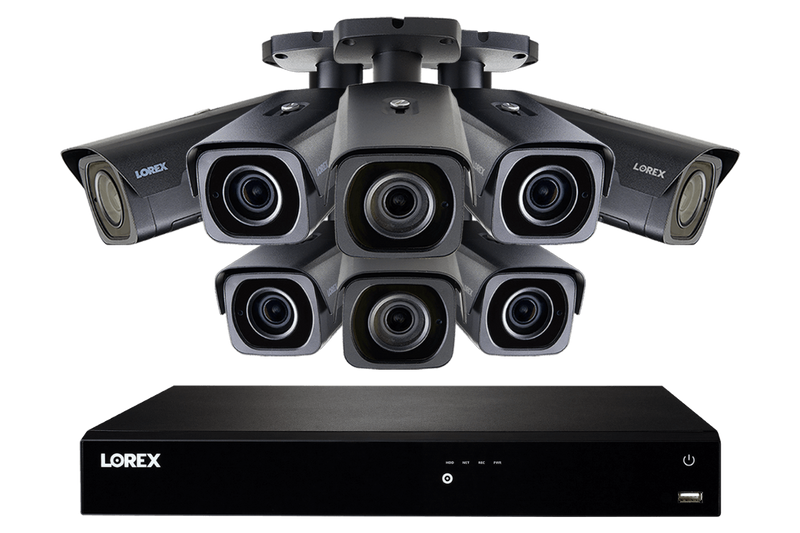

Know that your property is being monitored while you're there and while you're away with this 16-channel 4K IP system featuring 8 Nocturnal security cameras. With crystal-clear 4K recording, motorized varifocal zoom lenes, Color Night Vision, and durable metal housings, Nocturnal cameras provide reliable year-round security for any type of home or business. Also, as part of our Fusion Collection, this recorder can incorporate two additional Wi-Fi cameras on open channels.

4K Ultra HD Security Camera System
4KHDIP164I
SPECIFICATIONS
16
CHANNELS
4K NVR can support up to 16 cameras
8
CAMERAS
8 × 4K Ultra HD IP security cameras
250FT
NIGHT VISION
Maximum night vision range
3TB
HARD DRIVE
Maximum Capacity 2 × 8TB hard drives
Expand your system with the Fusion Collection
The Lorex Fusion Collection is a set of Network Video Records (NVRs) and Wi-Fi devices that are united by our Lorex Home App. Working together, the NVR can essentially "fuse" together Wired and Wi-Fi systems!


Network Video Recorders


Wi-Fi Devices


Lorex Home App
For more information, please visit our Fusion Collection Guide.

4K Ultra HD Resolution @ 15FPS
Nocturnal cameras are equipped with 8.51-megapixel (MP) image sensors. This powerful sensor is what makes them capable of delivering crisp 4K UHD video @15fps or 2K QHD video in real-time 30fps.

4× optical zoom security camera
The Nocturnal cameras included in this bundle come with a motorized varifocal lens. This type of lens lets you zoom in and out using it's 4× optical zoom, which means that you can zoom in to monitor a distant area, like a cash register or entranceway, in more detail. These field of view adjustments can be easily made with your NVR or through our the Lorex app.

Say goodbye to grainy nighttime video for good. Nocturnal security cameras are equipped with powerful LED bulbs that emit infrared light in the camera's field of view. Invisible to the naked eye, but not to the camera, this infrared lighting will allow your security camera to see in complete darkness.
For an added level of nighttime protection, Nocturnal security cameras can also capture color footage, thanks to our state-of-the art Color Night Vision (CNV) technology. CNV brings extra details to light, such as the color of a car, a person's clothes, and also provides better contrast for enhanced detection.

All-weather security camera
Feel free to install your Nocturnal security cameras outdoors. They are rated IP67, which is the highest environmental rating available.

LNB8973BW

Remote viewing from your mobile with Lorex Home
This system is designed for use with our Lorex Home™ app. With this app you can quickly and easily view your security system remotely through your smartphone or tablet. You can also program the app to send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.
Works With

Add A Sensor Kit!
The Lorex Sensor Hub also uses the Lorex Home App, allowing you to seamlessly integrate Add-On Sensors into your home security.
*Link individual sensors to another Wi-Fi camera connected to the Lorex Home App. N842, N843, N844, N862, N863, D861, D862, D871 Series recorders also support sensor linking to a wired camera through the Lorex Home App. Lorex Sensor Hub Compatibility

Works with Amazon Alexa
Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. You can also download the Lorex Home app on your Apple TV* to view live video in single or multiple feeds, or playback recorded footage. For more information about current smart home integrations, visit our Smart Home Guide.
*Requires Gen 4 or newer Apple TV with support for App Store

Reliable security-grade hard drive preinstalled
A 3TB security grade hard drive (expandable up to 2 × 8TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.

With or without the internet
This NVR can be used without being connected to the internet. This means that your data can only be accessed directly from your NVR. However, an internet connection is required to enable remote viewing, motion push notifications, and to download the latest firmware updates.

Regional
Motion Zones
The NVR can program specific motion zones for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").

Privacy
Masking
In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.

Easy Area
Search
Find what you are looking for quickly with Lorex's Area Search. Using the NVR, select an area of interest to automatically playback any video footage showing scene changes in that area.
Video
What's Included?

- Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
- View live footage in up to 15fps and digitally zoom in on distant objects for better clarity2
- Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more3
- Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
- Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD
- Reduce unnecessary alerts and false alarms with Smart motion detection5
- Get push notifications when motion from a person or vehicle is detected7
- Use Smart Search to filter motion events for reviewing footage quickly and easily
- 2 bay hard drive with up to 2 x 8TB of storage space with no hidden monthly fees
- Local built-in security-grade hard drive
- Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
- Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)4
- View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
Each N862A63B Includes:
- Ultra HD 4K image sensor delivers 4× the detail of 1080p1
- 4K video recording provides ultra HD quality even when zoomed, offering clearer identification in video evidence
- Color Night Vision™ delivers full color nighttime video for improved recognition of objects in low light conditions2
- IR night vision range up to 250ft (76m) in ambient lighting3
- ClearNight imaging for improved low light performance and improved recording efficiency
- True WDR (up to 100dB) creates more detail in high-contrast scenes
- H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4
- Intelligent compression saves recording space by optimizing video performance based on available bandwidth
- Remote zoom & focus, 2.7-12mm motorized varifocal AI lens, 102-39
