Features

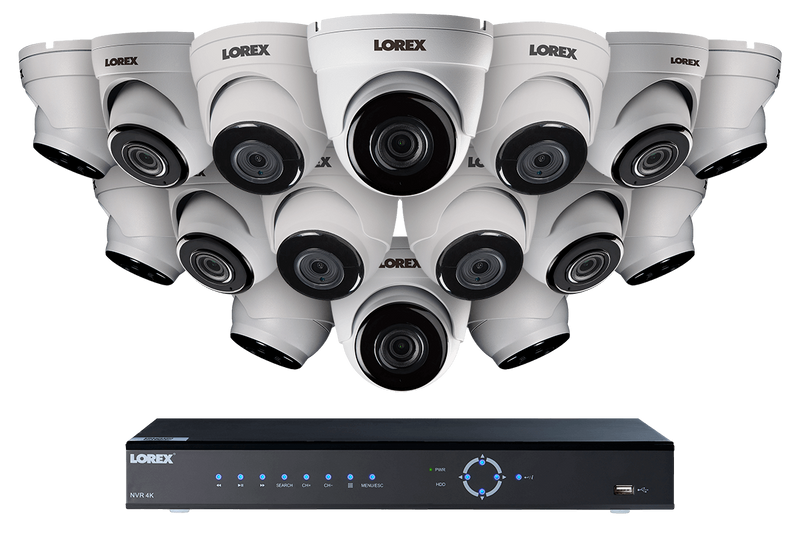

Trust in Lorex to protect the things that matter most. With our cutting-edge LNK7000 Series network video recorder (NVR) and 2K resolution IP Dome security cameras on your side, this bundle will do just that. Each camera included contains an advanced 4MP (megapixel) image sensor for 2K Super HD resolution security footage and uses our revolutionary color night vision feature to add an extra level of visual detail throughout the night.
LNK1616D
SPECIFICATIONS
16
CHANNELS
4K NVR can support up to 16 cameras
16
CAMERAS
16 dome 2K 4MP IP cameras
3TB
HARD DRIVE
Maximum Capacity 2 x 6TB hard drives
Works With
Lorex Cirrus™ App
2K Super HD resolution

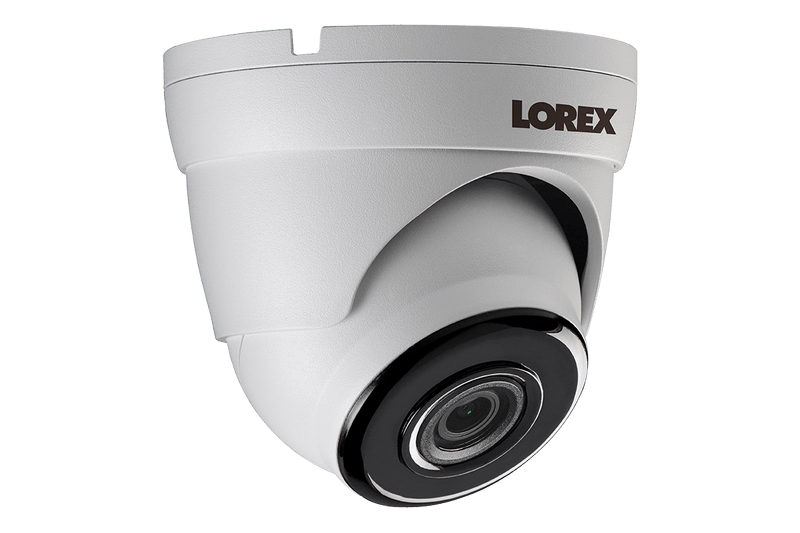

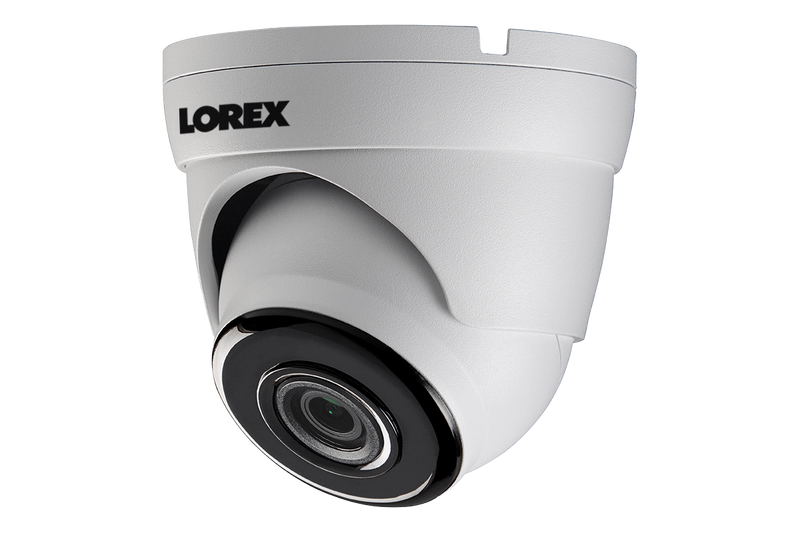

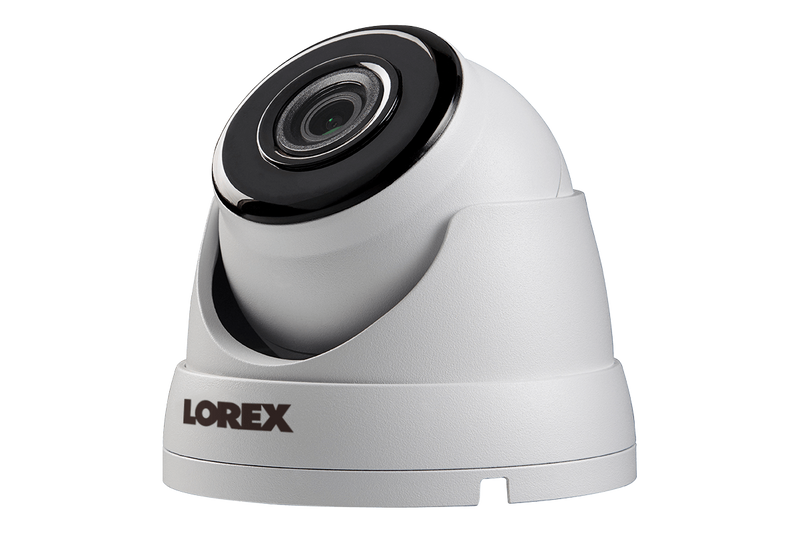

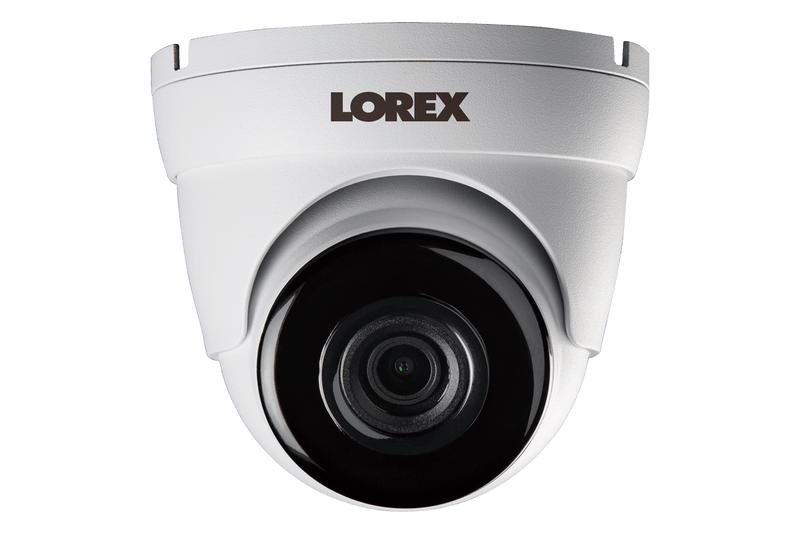

Lorex is proud to add this powerful 2K IP security camera to our extensive line of consumer security cameras. The LKE343 contains an 8MP image sensor at its core, which means that it is capable of recording a 2K pixel resolution of 2688 × 520 at 20 frames-per-second (FPS). This resolution will deliver extremely detailed images and allow for greater digital zooms so you can see further into the distance. This camera also uses industry leading H.265 compression, which will help reduce video sizes and save valuable hard drive space.
Better digital zooms
Thanks to this higher pixel count (2688 x 1520 compared to 1920 x 1080), your 2K Super HD security cameras will add an increased ability to digitally zoom in on distant objects. This is because the additional pixels will allow you to see details longer as you digitally zoom in on the image. So if an incident does occur, it will offer a better chance to capture useful evidence such as distinct facial features.
HDIP or MPX?
Choosing the right security system
Long range color night vision
Trust the LKE343 security camera to protect your property, even during the darkest hours of the night. Not only will this security camera allow you to clearly see up to 130ft / 40m away with the help of ambient lighting or up to 90ft / 27m away in total darkness, it will take your night vision security coverage one step further with our Color Night Vision™ (CNV) technology. This feature will provide full-color video in low-light conditions that will add an extra level of visual detail that can help identify people or objects. It is important to note that CNV requires ambient light - the camera will typically switch to black and white infrared night vision if the area is too dark.
Power-over-Ethernet installation
This professional grade security system does not require a professional technician for installation. This is thanks to Power-over-Ethernet (PoE) technology. Both your NVR and security cameras are equipped with PoE ports. So all that is required to connect them is a single ethernet cable. This cable not only provides the video transmission but also supplies power to the camera. So you can install your cameras where you need them most without the need to have a power outlet nearby.
Stay connected with Lorex Cirrus
Monitor your property from wherever life takes you. This security camera system is designed for use with our innovative Lorex Cirrus™ app for most smartphones and tablets. Just download the app, scan the unique QR code on your NVR, and start viewing your entire system from virtually anywhere in the world. This app will not only keep you connected, it will make monitoring your property easier. Features such as easy-to-read event history timelines and custom mobile notifications for motion events are all available to you for free.
Lorex web client available
Lorex Client 13 gives you access to your security system and its settings over the Internet using a PC or Mac computer. With this software, you will be able to view live and recorded video, as well as save manual recordings and snapshots to your computer's hard drive. The software is available under the downloads section below.
Works With
All-weather security camera
The LKE343 4MP security camera is rated IP66 (weatherproof). This means that furious winds, torrential downpours, and furious snowstorms are no match for this rugged security camera. It will even continue to operate in freezing climates as low as -22°F / -30°C. This allows you to place it where you need it most - indoors or outdoors. Its heavy duty housing is well equipped to withstand vandalism as well, providing additional protection for safe outdoor installation.
Security grade hard drive
The massive security certified hard drive within the LNK7000 Series NVR is not your ordinary hard drive. It is engineered to be in the constant operation so you never miss a moment of footage. Your NVR can also be programmed to record at a lower resolution or only when movement is detected to extend your storage space.
Image resolution comparison
 |  |  |  |  | |
| Recording | 4mp (2688×1520) | Full 1080p HD (1920×1080) | 720p HD (1280×720) | Analog 1080p HD (1920×1080) | 720p HD (1280×720) |
| Platform | 2K NVR systems | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
| Resolution | 2K = 4 megapixels | 1080p = 2 megapixels | 720p = 1 megapixels | 1080p = 2 megapixels | 720p = 1 megapixels |
