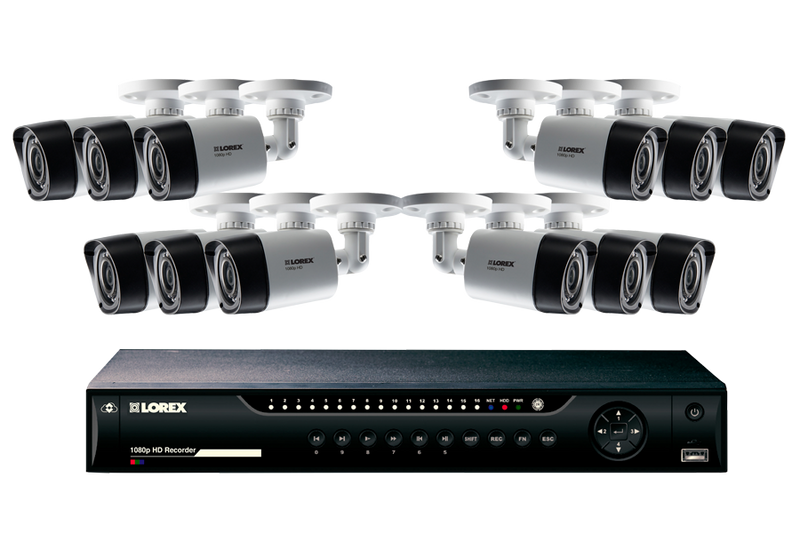

16 Channel Series Security DVR system with 1080p HD Cameras
16 Channel Series Security DVR system with 1080p HD Cameras - Lorex Corporation
16 Channel Series Security DVR system with 1080p HD Cameras
16 Channel Series Security DVR system with 1080p HD Cameras
16 Channel Series Security DVR system with 1080p HD Cameras
zoom Roll over image to zoom in Click on image to zoom

16 Channel Series Security DVR system with 1080p HD Cameras

LHV22162TC12P
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Experience the gold standard in analog surveillance video that is second only to being there yourself. This HD DVR records video in real-time at 1080p HD on all 16 channels. Including 4, 8, 12 or 16 fully-loaded megapixel security cameras, this system uses standard BNC cabling to transmit stunning HD images for a surveillance experience like no other. Maintain vigilance with best-in-class image quality and view your world with new eyes.

Connect this NVR to our Lorex Cloud™ app for easy remote monitoring and more. This easy-to-use app allows you to view live and recorded video from your security cameras on your smartphone or tablet for peace of mind no matter where in the world you are. This app will also enable convenient push notifications for motion-triggered events so you can always be in-the-know.

The HD DVR is bundled with 1080p wired HD bullet cameras that provide superb surveillance footage both day and night. The cameras are ideal for indoor and outdoor applications, with a fully weatherproof, polycarbonate housing that stands up against intruders and the elements. See it all, day and night, with best-in-class low light clarity, close up recognition in the dark with Smart IR, and an impressive night vision range of up to 130ft (40m). A high performance HD PTZ camera is included with some bundles (LHV162C8D4Z1B only) for maximum coverage in uncompromising detail.

Security certified hard drive

Record to the security grade 100% duty-cycle hard drive designed for surveillance, providing weeks or even months of reliable video. Customize the recording settings to fit your needs. Record at 1080p HD (1920x1080) for the highest resolution, or change the settings to a lower resolution for extended recording time.

For those who already own a wired security system, upgrading to HD surveillance has never been easier - simply swap out your old BNC cameras for new 1080p wired HD cameras that use the same cabling. Extend the video signal up to 800ft (242m) with a single run of RG59 coaxial cable for flexible installation.

Extend video up to 800ft with RG59 coaxial cable

Connect the HD DVR to a TV or LCD monitor with industry standard HDMI and VGA inputs. The intuitive interface with simple menus and icons allow for easy & efficient security DVR programming. Other advanced features of the HD DVR include click-and-drag digital zoom in live view and playback, dynamic drag & drop camera assignment, and PTZ control through coaxial cabling.

1080 MPX Comparison Chart
  HD 1080 Digital IP HD 720 Digital IP HD 1080 Analog BNC HD 720 Analog BNC
Recording Full 1080p HD (1920x1080) 720p HD (1280x720) Analog 1080p HD (1920x1080) 720p HD (1280x720)
Platform 1080p HD NVR systems 720p HD NVR systems 1080p HD DVR systems 720p HD DVR systems
Video Digital IP / RJ45 connection Digital IP / RJ45 connection Analog BNC / RG59 connection Analog BNC / RG59 connection
Power PoE (Power over Ethernet) PoE (Power over Ethernet) Standard DC power Standard DC power
Installation Connect cameras to NVR or to router/LAN Connect cameras to NVR or to router/LAN Cameras require wired connection to DVR Cameras require wired connection to DVR

What's Included?

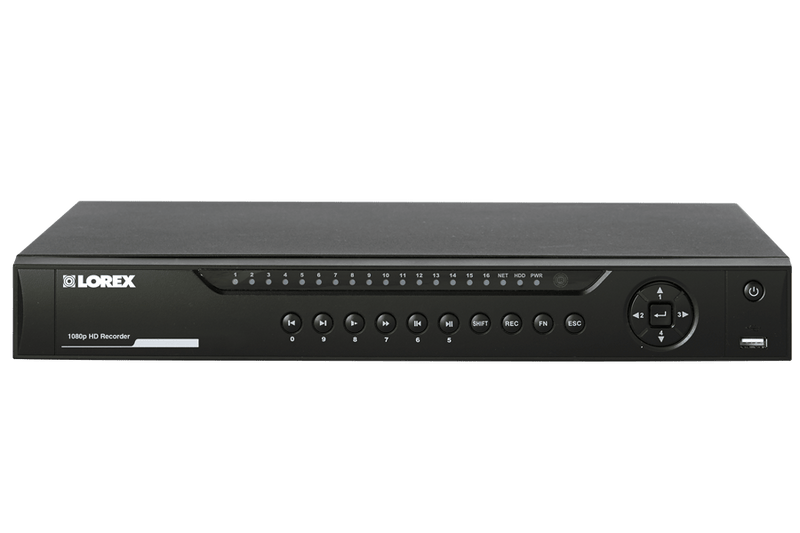

LHV2000

Digital Video Recorder features:
  • True high definition 1080p recording on all cameras1
  • 24/7 security-grade hard drive
  • Continuous, scheduled and motion recording
  • H.264 video compression 2
  • HDMI cable included for simple connection to HD TVs
  • PTZ cameras supported, remote control through App 1
  • Accurate time stamps with NTP & daylight savings time
  • Click and drag digital zoom in live view and playback
  • 2 video outputs (HDMI & VGA) to connect multiple monitors
  • Instant USB backup of live video from selected camera
  • Automatic firmware upgrade
  • 3-Step remote view with Lorex Cloud™ 3
  • PC and Mac compatible 4
  • Free iOS and Android compatible apps
  • Advanced apps with live viewing, playback, video recording, and snap shot
  • Push notifications of motion events
  • Instant email alerts with snap shot attachment
  • Dual streaming to conserve bandwidth

Each LHV2000 Includes:

1 × DVR
1 × HDMI Cable
1 × Remote Control
1 × Power adapter
1 × Mouse
1 × Ethernet Cable
Quick Start Guides

1. Compatible with Lorex 1080p and 720p wired HD cameras only. For a list of compatible cameras, please visit lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
3. Requires a high speed internet connection and a router (not included). A minimum upload speed of 1Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time.
4. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support

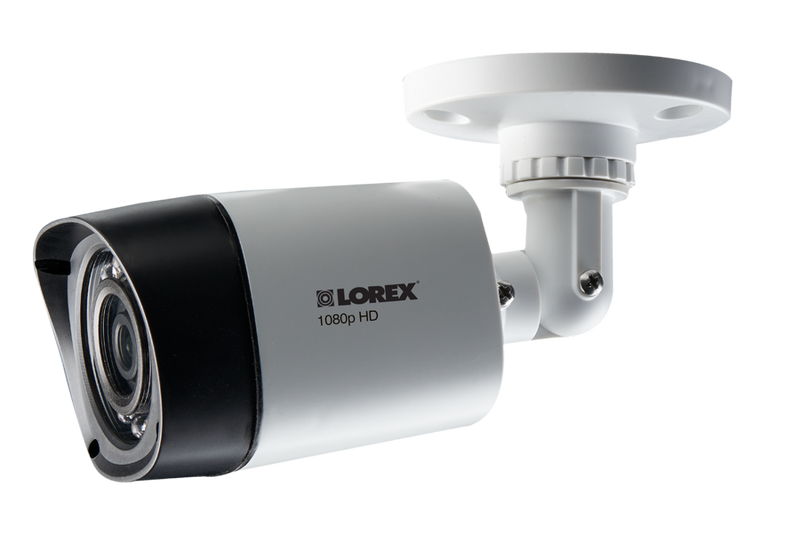

LBV2521B

1080p HD Bullet Security Camera Features:
  • True HD 1080p Image Sensor1
  • Infrared cut filter ensures accurate color representation
  • Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
  • Close up recognition in the dark with SmartIR
  • Anti-glare feature ensures clear images under strong lighting conditions
  • ClearNight imaging for superior low light performance, improving recording efficiency
  • Split glass design minimizes IR reflection
  • Weatherproof for outdoor & indoor installation (IP66 Rated)3
  • Extreme temperature performance (-22° ~ 140°F / -30° ~ 60°C)
  • 90° field of view
  • Vandal resistant design with cable pass-through bracket
  • Lightweight and durable polycarbonate housing
  • Versatile ceiling or wall mounting options
  • Residential and business friendly compact design

Each LBV2521B Includes:

1 × HD Bullet Camera
1 × 60ft Extension Cable
1 × Mounting Kit
1 × 4-in-1 Power Adapter

1. Compatible with Lorex MPX Series DVRs only.
2. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection / absorption level of object.
3. Not intended for submersion in water. Installation in a sheltered location recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
