1080p Wire Free Camera System, featuring 6 Battery Powered Black Outdoor Cameras and 16GB DVR

LWF1080BG1-66

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

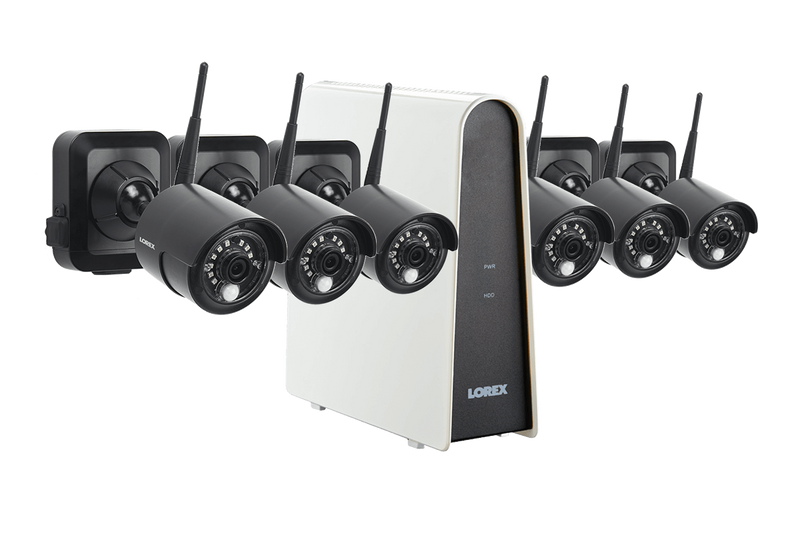

LWF1080BG1-66 HD Wire-Free Security System with six Wire-Free Cameras

Welcome to the next generation of home security monitoring. Lorex has taken its 20 plus years of experience in this industry and developed a wire-free security solution built for you. This system is ideal for those who take their security seriously but wish to avoid long distance cabling. It includes six battery operated wire-free security cameras, built-in wireless receiver, and a security grade Digital Video Recorder (DVR) with a 16 gigabyte microSD card. Wire-free camera features include full 1080p HD recording resolution, crisp infrared night vision, advanced motion detection and weather resistant housings to ensure the highest level of wire-free security available. There is also no hidden fees or monthly subscriptions moving forward with this Lorex wire-free security system.

LWF1080BG1-66

SPECIFICATIONS

6

CHANNELS

DVR can support up to 6 wire-free cameras

6

CAMERAS

6 × 1080p wire-free security cameras

40FT

NIGHT VISION

Maximum night vision range

16GB

STORAGE

16 gigabyte local storage

2K (4 megapixel) network security monitoring

Easy installation

Have your security system up and running in under an hour. The cameras included are completely wire-free. This means that there is absolutely no cabling involved to power them or connect them to the DVR. So put the cameras anywhere you want - inside or out. Simply attach the metal mount to any sturdy surface and lower the camera's base into the mount (you can also secure the camera directly to the mount to protect your camera from being stolen). Then insert the battery pack and your camera will be ready to connect.* The quick release function of this battery power pack allows you to recharge the battery without having to remove the camera from its mount.



*Wire-free cameras will already be paired to your DVR. If this is not the case, please follow the directions in the included Quick Connection Guide.

2K (4 megapixel) network security monitoring

Advanced motion detection

Lorex wire-free security cameras use a Passive Infrared (PIR) sensor to detect motion. This built-in sensor detects heat from moving objects such as people, animals, or vehicles. Upon detection, the wire-free security camera will automatically wake up and start recording.

1080p wire-free security camera


Crisp 1080p HD quality recordings

Serious security requires clear details and accurate representations of important events. This Lorex wire-free camera will provide you both of these thanks to their 1080p HD recording resolution and an 88° wide angle lens. This lens, in comparison to wider angle lenses that stretch the field of view, will accurately represent real-life with an undistorted image. This full HD quality may end up being the difference you need when identifying vital details such as facial features. Digital zoom capabilities will also help you capture the necessary evidence you need from your security camera.

wire-free security camera night vision

Infrared night vision

It is no secret that the darkness of night provides easy cover for potential intruders. This is why having a security camera that can keep a watchful eye on your property during the night can't be overstated. Thankfully, this wire-free camera has 12 powerful infrared LEDs around its lens. This will provide you with high-quality night vision up to 40 feet away with the help of ambient light (porch lights, street lights, etc.). This camera also features an automatic infrared cut filter that will automatically disengage at night. This ensures accurate color representation during the day and high-quality black and white infrared video through the night.

wire-free secuirty camera long lasting battery

Long lasting lithium-ion battery

This wire-free camera comes with a two-cell rechargeable lithium ion battery Power Pack. This battery is incredibly powerful and long lasting. With this battery you can expect up to four months of use before having to recharge it.* To ensure your camera always has power, you will receive low battery notifications through the Lorex Cirrus app so you will never have to worry about when to charge your Power Pack. The Power Pack's convenient quick-release function allows for easy battery replacement. You don't even need to remove the camera from its mount. These batteries are also designed to automatically stop charging when they are fully charged so you don't have to worry about damaging or overcharging them.



*This average is based on around 4 minutes of recording per day. High traffic areas will decrease their longevity since the camera will turn on more often.

wire-free weather resistant security camera

Safe for outdoor installations

Don't be afraid to install this wire-free security camera where you need it most - indoors or outdoors. It is weather resistant and can continue to operate through rain and snow. It will even continue to operate in temperatures as low as -4°F and as high as 104°F. For an extra level of protection and to keep the lens clean, you may want to choose a sheltered location for your camera.

LNB4321B

LWB3901AC1B

Heat Rating

113°F | 45°C

Heat Rating

Cold Rating

-4°F | -20°C

Cold Rating

16GB microSD

16GB of local storage

This Lorex wire-free system includes a professional grade Digital Video Recorder (DVR) with a class 10 16GB Micro-SD card. This will store around a month of motion events. If you require more storage, you can upgrade this microSD card to a 128GB card.*



*Class 10 or higher from recommended brands like Sandisk

no monthly fees wire-free security system

Save money on bandwidth and zero monthly fees

There are no hidden fees or monthly subscriptions with this wire-free security system. Thanks to the included DVR, a costly monthly service to store video data in the cloud is not necessary. You won't need to upgrade your internet plan either since you will also save on internet bandwidth and other internet charges. The only time you will need to use your internet bandwidth is if you need to access your security system remotely (i.e. live viewing or playback).

Lorex Cirrus keeps you connected

Lorex Cirrus keeps you connected

Securely view your wire-free cameras from virtually anywhere in the world using the free Lorex Cirrus™ app for your mobile device. This app is full of convenient features that make monitoring your home easier than ever before. Receive push-notifications straight to your phone or tablet's home screen if one of your cameras detects motion or easily review past motion events using the easy-to-read history timeline.

lorex client for mac and pc

Lorex web client available

Lorex Client 13 gives you access to your security system and its settings over the Internet using a PC or Mac computer. With this software, you will be able to view live and recorded video, as well as save manual recordings and snapshots to your computer's hard drive. The software is available under the downloads section below.

What's Included?

LHB800 Series

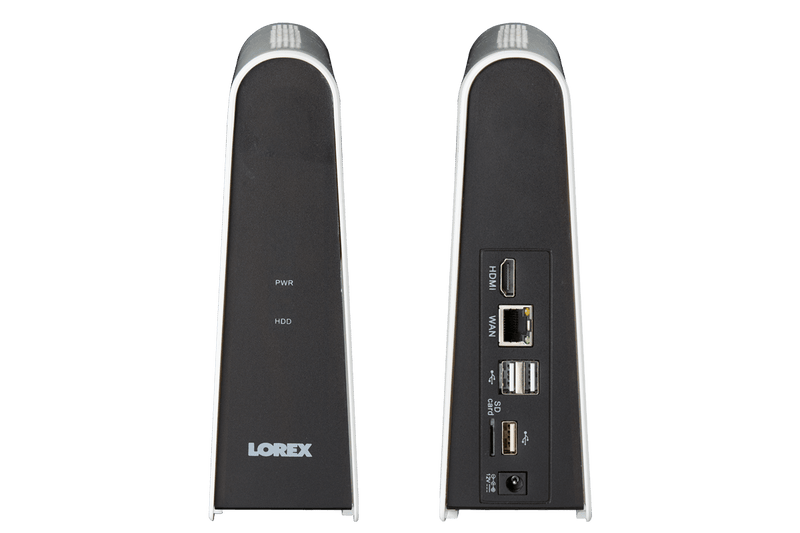

Wire-Free DVR Features:

  • See more detail with full 1080p resolution video
  • Capture only the most important events with motion recording
  • DVR supports up to 6 wire-free cameras, viewable remotely on the Lorex Cirrus app
  • PC and Mac compatible
  • Never miss a thing with accurate motion alerts
  • 24/7 pre-installed security grade HDD or microSD card for reliable recording and secure storage of motion based events
  • H.264 video compression reduces data bandwidth requirements for efficient data storage and reduced network load for easy remote connectivity
  • Accurate time stamps on video
  • Record a month of motion-based video with no monthly fees (expandable up to 128GB for longer record times)
  • View cameras remotely on the free Lorex Cirrus™ app
  • Easy connect and setup for iOS and Android Devices
  • Stay connected and get motion alerts sent right to your mobile device

Each LHB800 Includes:

1 × DVR
1 × Power adapter
1 × HDMI Cable
1 × Ethernet Cable
1 × Mouse
Quick Start Guides

1. For a list of compatible wire-free cameras please visit www.lorextechnology.com/compatibility Recording time may vary based on recording resolution and motion / manual recordings.
2. Accessing your security system remotely requires a high-speed Internet connection. Ensure your DVR has a wired connection to a router (not included). An upload speed of 3.5Mbps is recommended for optimal video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorextechnology.com/compatibility.
3. HDMI output (1920 × 1080) HD for high definition multi-channel live viewing only. 1080p recording resolution is limited to a maximum of 1920 × 1080 per channel. Image quality and resolution is dependent on the type of camera connected to the DVR.

* Frames Per Second (FPS) is affected by factors including signal strength, signal obstructions, range and the number of wireless/wire-free cameras installed in the same environment (maximum 6 recommended).

LWB3901AC1B

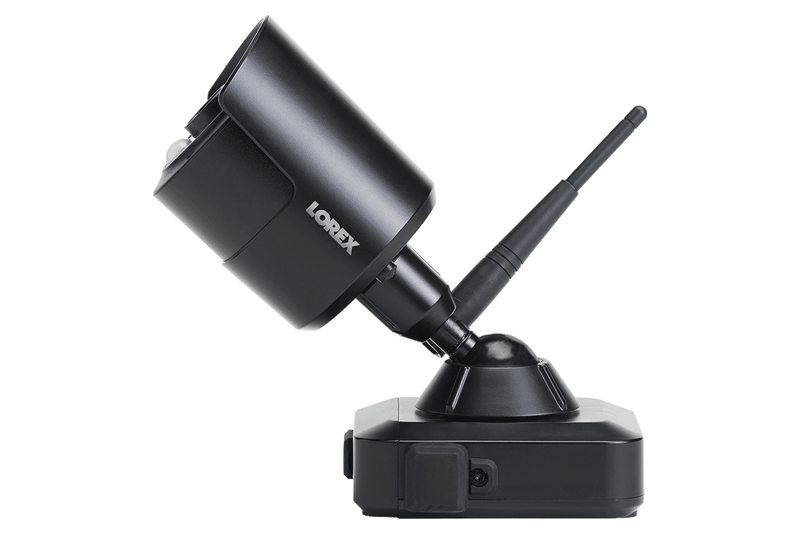

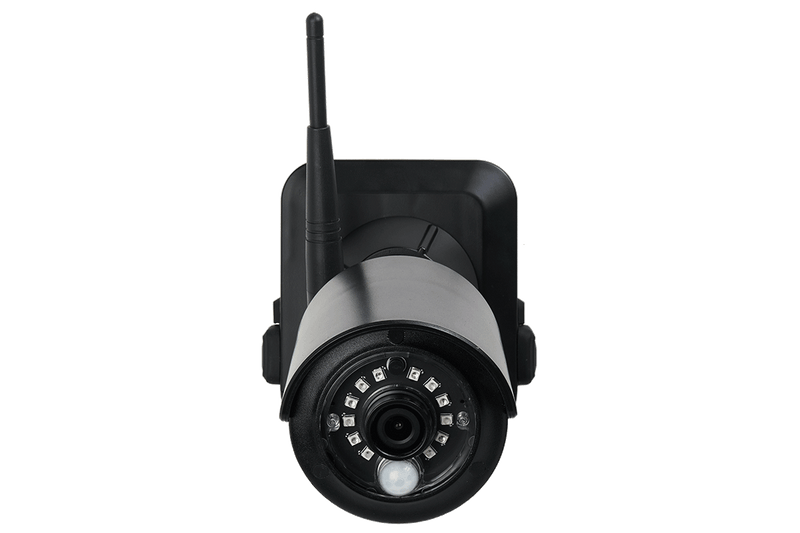

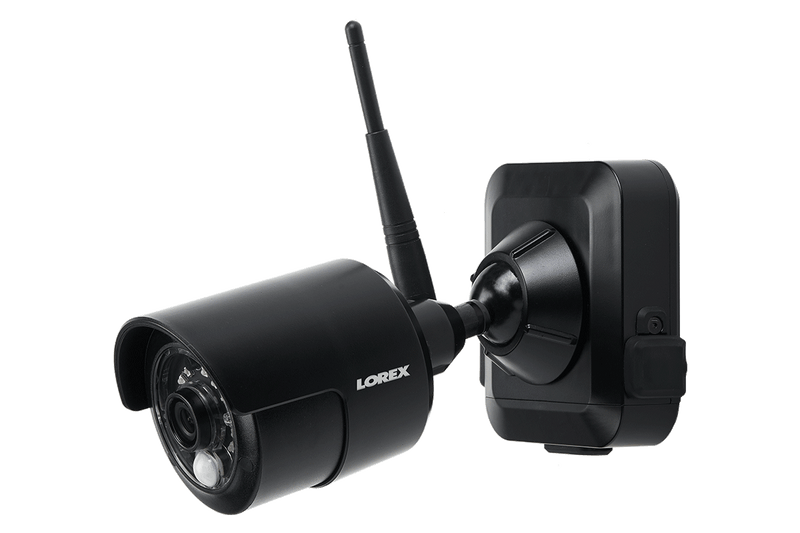

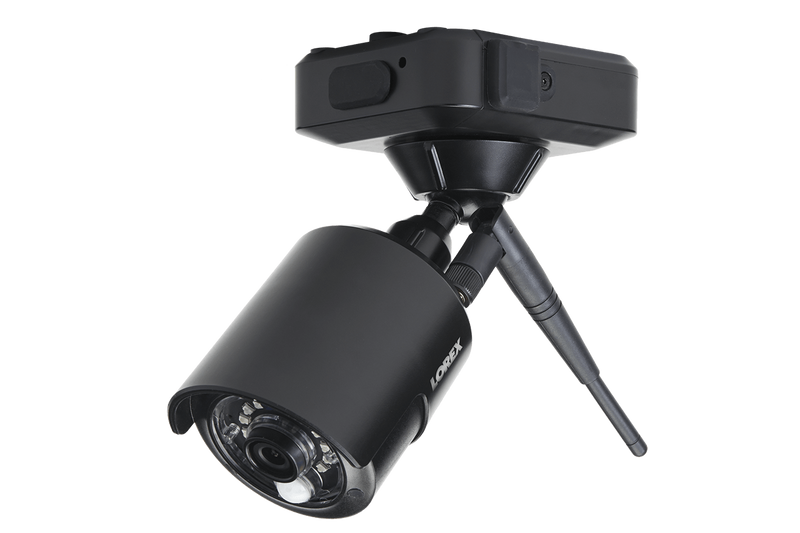

Wire-Free 1080p HD Video Security Camera features:

  • Full 1080p HD wire-free video resolution
  • Up to 450ft wireless signal range provides many placement options 1
  • Get up to 4 months of battery life without having to recharge the Power Pack 2
  • Receive low battery notifications through the Lorex Cirrus app (on compatible DVR) 3
  • Adaptive Frequency Hopping Spread Spectrum (FHSS) technology greatly reduces conflicts with competing signals
  • Don't pay a professional. Cameras are easy to install by yourself
  • Night vision up to 40ft 4
  • Weather-resistant (IP65) battery-operated cameras go almost anywhere, indoor or out 5
  • Built-in PIR camera motion sensor alerts you on the Lorex Secure app when activity is detected (on compatible DVR).
Unobstructed Wireless Range 450ft / 137m
Operating Frequency 2.4GHz
Video Resolution Up to 1080p (1920×1080)
Image Sensor 2.1MP CMOS
Video Compression H.264
IR cut-off filter Yes
Night vision Yes, 12× 850nm LEDs, Up to 40/26ft - 12/8m
Field of View 88°
PIR Motion Sensor Yes, up to 20ft/6m detection range
Battery 5200mAh (2 cell Power Pack)
Battery Level Indication Yes
Environmental Rating IP65, Weather Resistant
Operating Temperature -4° to 113° F (-20° C to 45° C)
Operating Humidity Range 30~90 % RH
Dimensions (W × D × H) 3.8 × 7.2 × 6.1", 96 × 182 × 154mm
Weight 0.9lb/0.4kg (incl. Power Pack)

Each LWB3901AC1B Includes:

1 × Wire-Free Cameras
1 × Rechargable Power-Pack
1 × Power-Pack Charger
1 × Mounting Kits

1. Maximum wireless transmission range. Actual range dependent upon building materials and other obstructions in the path of the wireless signal.
2. Battery life is based on ideal conditions and will vary depending on settings, usage, and temperature.
3. HD Wire-Free cameras are compatible with select Lorex HD Wire-Free DVR recorders. For a full list of compatible recorders, visit lorextechnology.com/compatibility.
4. Stated IR illumination ranges are based on ideal conditions in typical outdoor night time ambient lighting and total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection/absorption level of object.
5. Not intended for submersion in water.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
