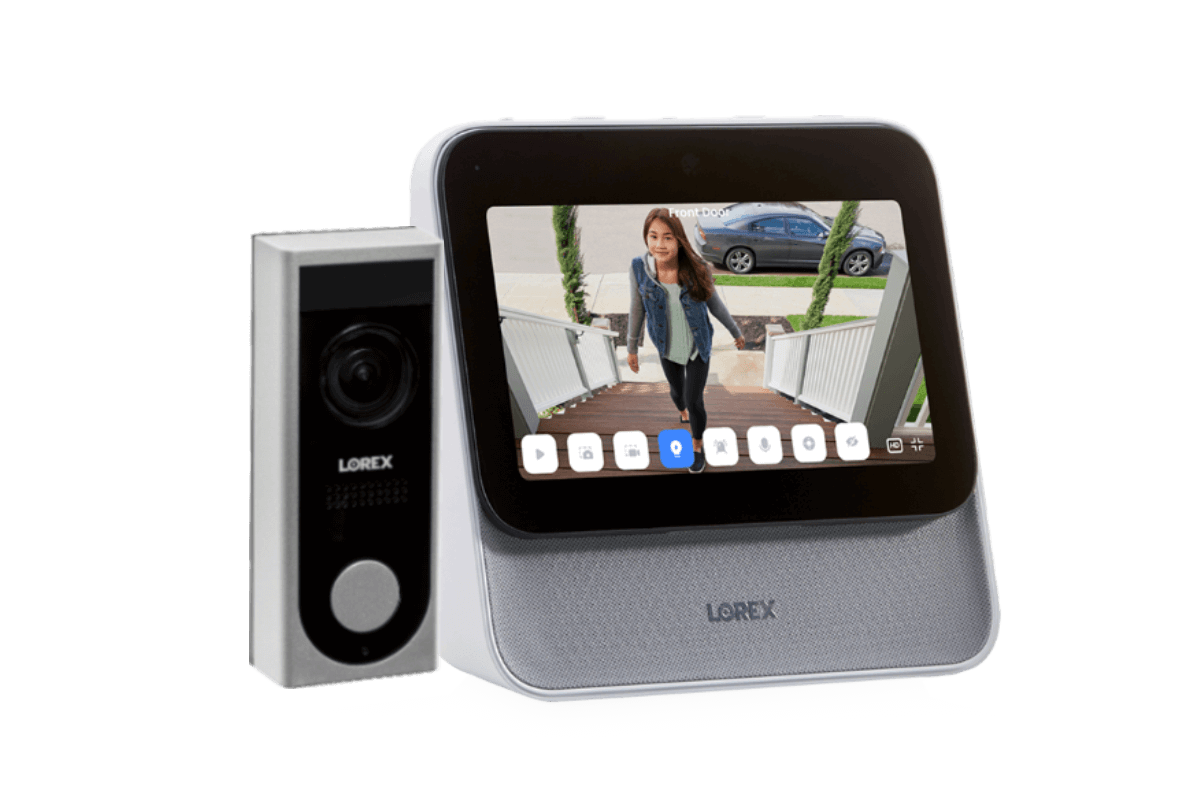

Lorex Smart Home Security Center with HD Video Doorbell

LHC-KS1Open Box
Sale price$279.99
works with google works with alexa
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

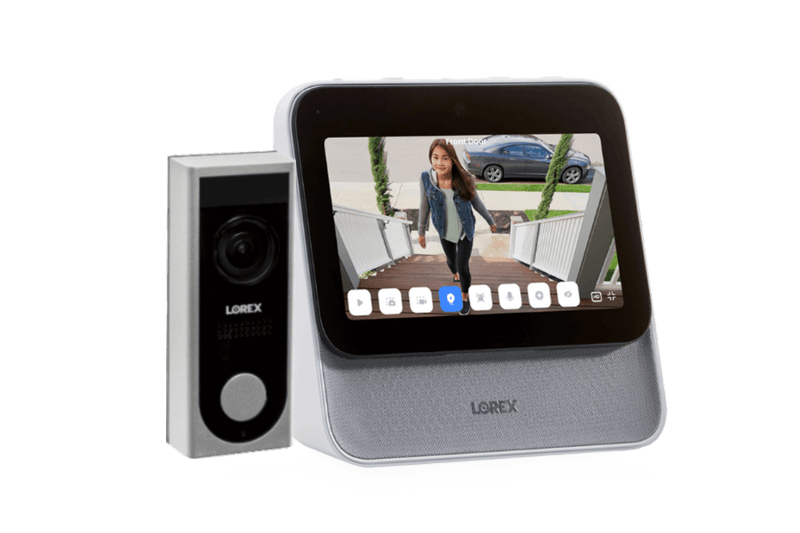

Lorex Smart Home Security Center and Indoor / Outdoor Cameras


Create your own personal smart home security eco-system with the Lorex Smart Home Security Center (LSHSC) at its core. Designed to provide easy viewing, control, and customization of your cameras, the LSHSC is a revolutionary solution to protect what matters most. This starter kit includes a 1080p HD Video Doorbell.



LHC-KS1

SPECIFICATIONS

1

LSHSC

7" touch-screen control hub

1

DOORBELL

1080p Full HD Video Doorbell

64GB

microSD

Maximum 1× 256GB microSD / 1TB M.2 2280 SATA SSD M.

0

Monthly Fees

Secure and private

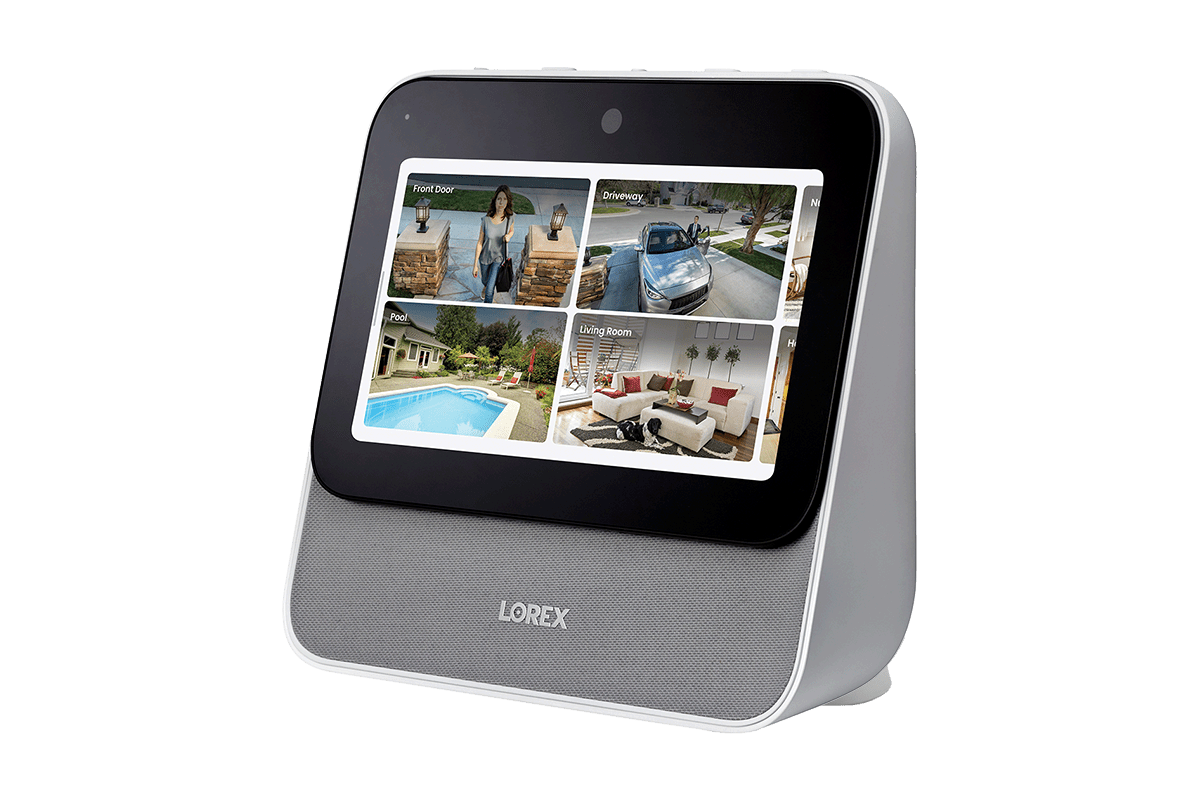

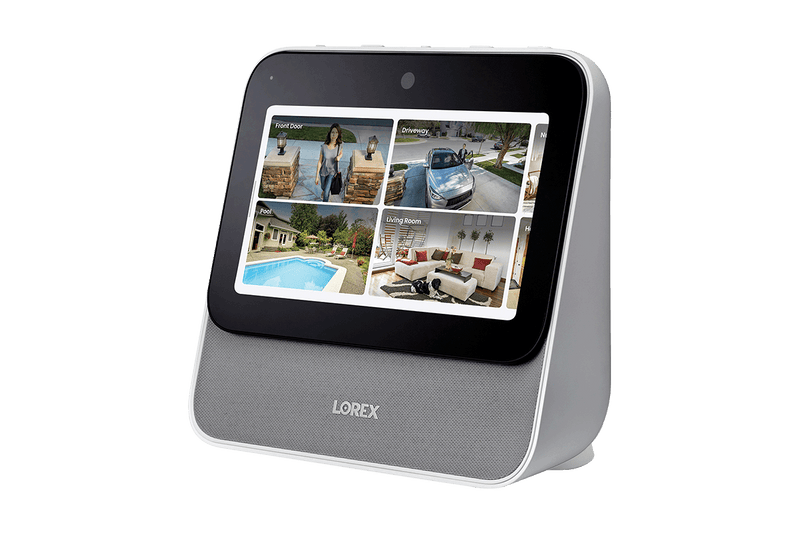

The Lorex Smart Home Security Center

More than a security system, the center of your home

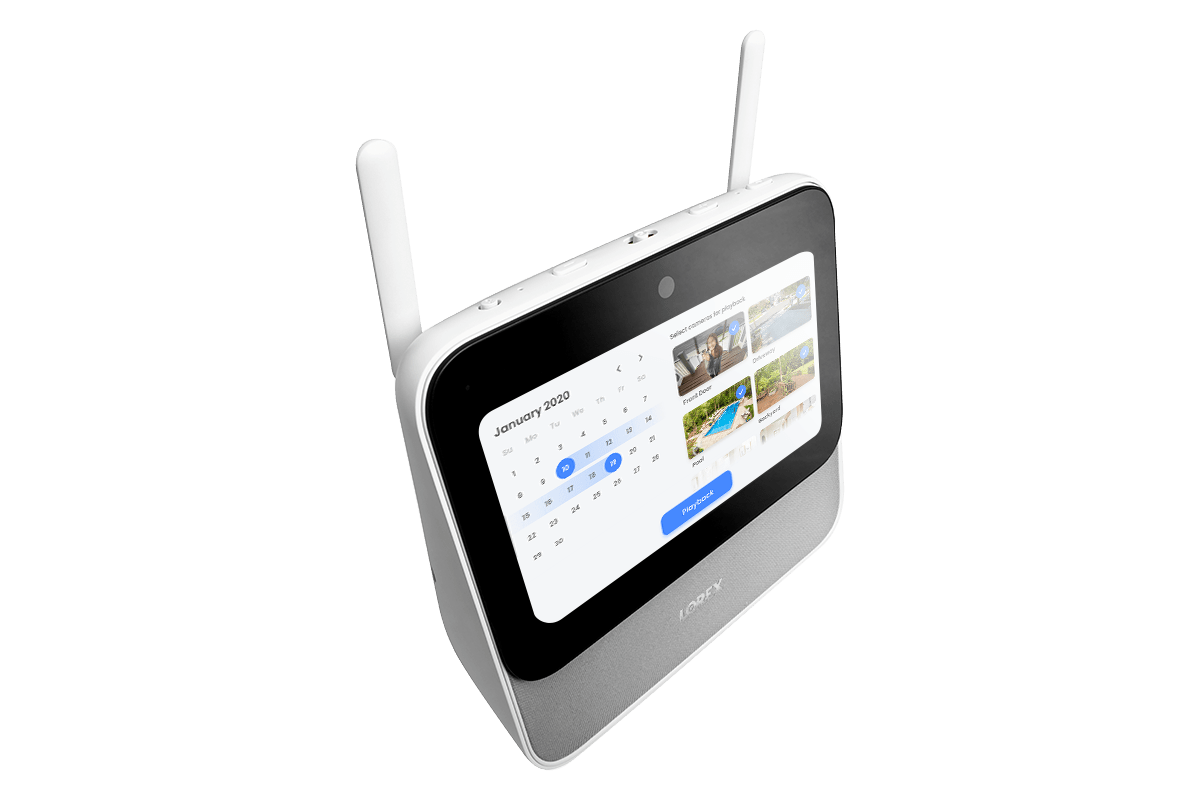

The all-in-one LSHSC simplifies your home monitoring experience with its intuitive touch smart display. You can also use your voice to perform simple commands, such as:


"Lorex, show me all outdoor cameras"
"Lorex, show me what happened yesterday at the 'front door' camera"
"Lorex, show me all people* at the 'front door' camera between 2 and 3pm"
"Lorex, turn on warning lights on all outdoor cameras"
"Lorex, turn privacy mode on for all indoor cameras"



* Requires supported camera and setting to be turned on



Control and access all compatible Lorex devices

Control features with the intuitive 7-inch touch display*.


Built with privacy in mind

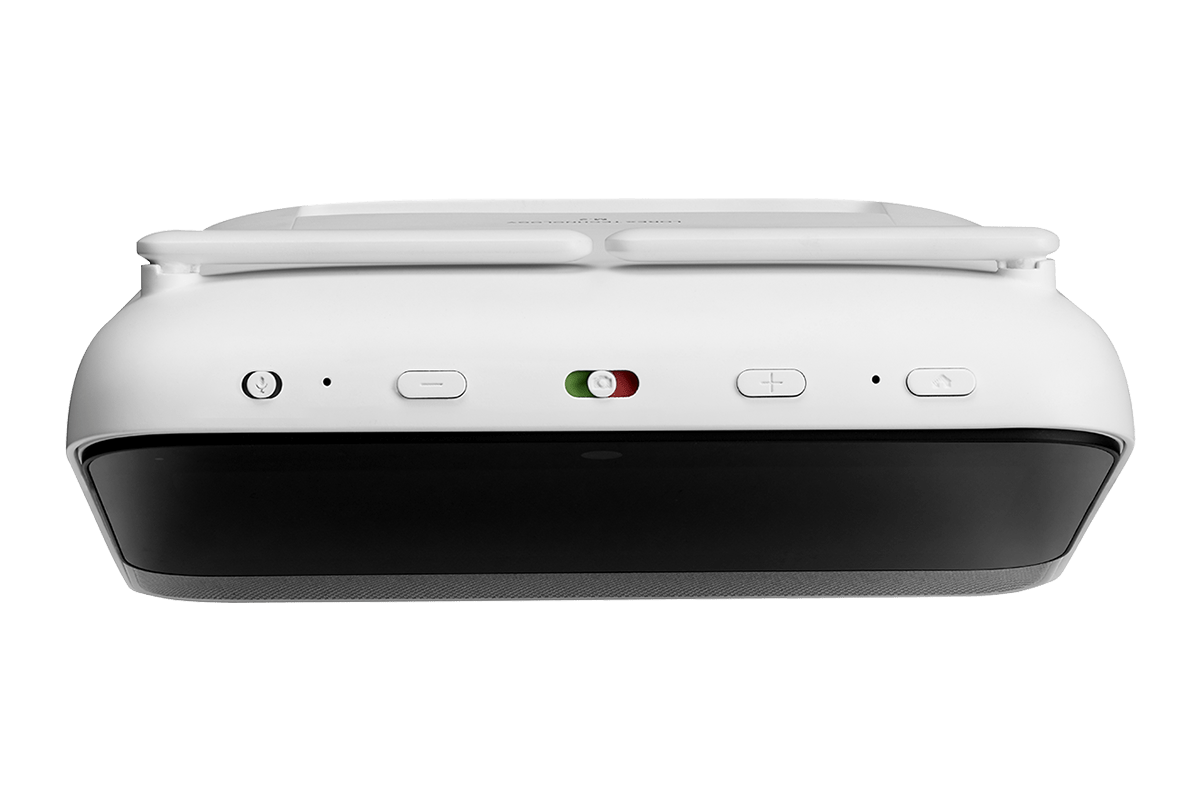

There are several built-in features to ensure your privacy - log in to the LSHSC quickly with the Face Unlock feature, select privacy mode for compatible cameras to turn off streaming and recording for those private moments, and the option to disable the built-in microphone and cover the front camera lens.

Security designed to grow with you

Pair a variety of Lorex wireless devices and control them from the LSHSC to build the perfect security system for your home. Adding new devices is simple with a built-in step by step setup guide. You can also add a Lorex Range Extender to extend the reach of your LSHSC (sold separately).

Completely offline and secure

Use the Lorex Voice™ Assistant to access your cameras and view footage with simple voice commands. This voice assistant is hosted entirely on the LSHSC and is not connected to the internet for ultimate privacy.

Keep your footage private and secure

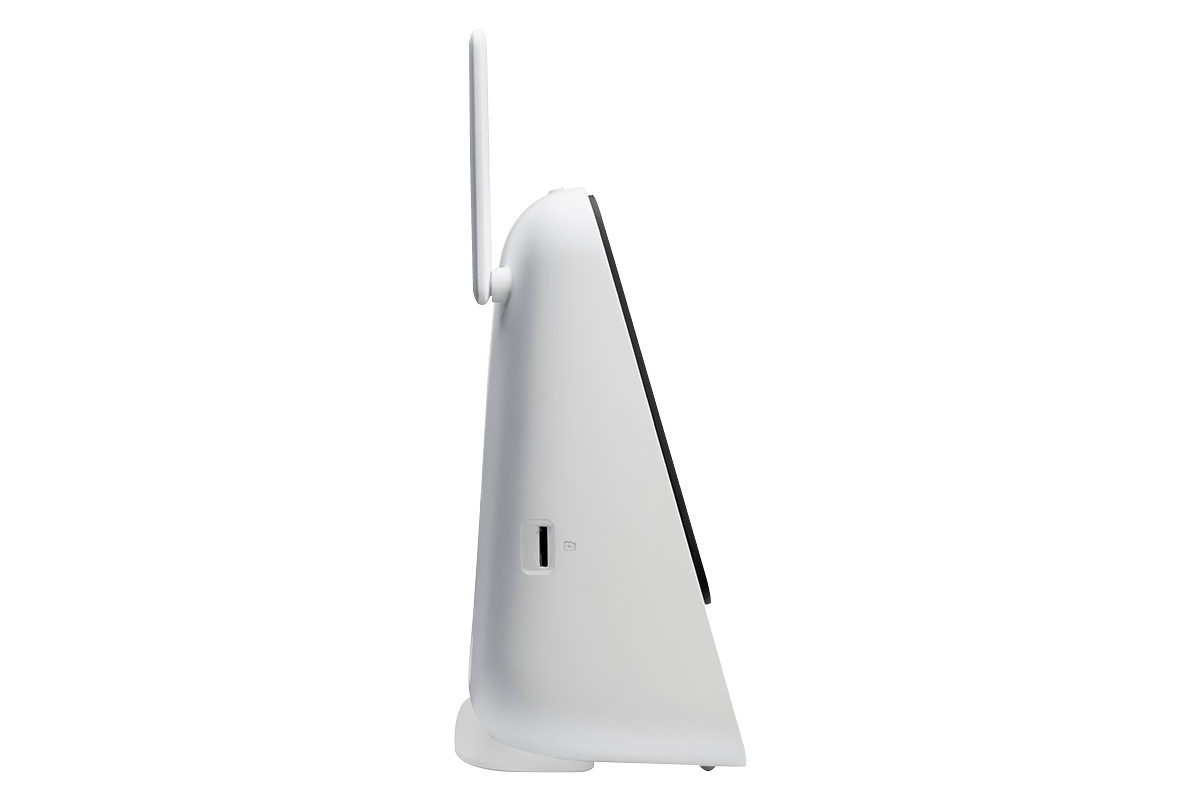

The LSHSC includes a surveillance-grade class 10 microSD card. Upgrade the storage to a maximum of 256GB microSD and/or a 1TB M.2 2280 SATA SSD M.

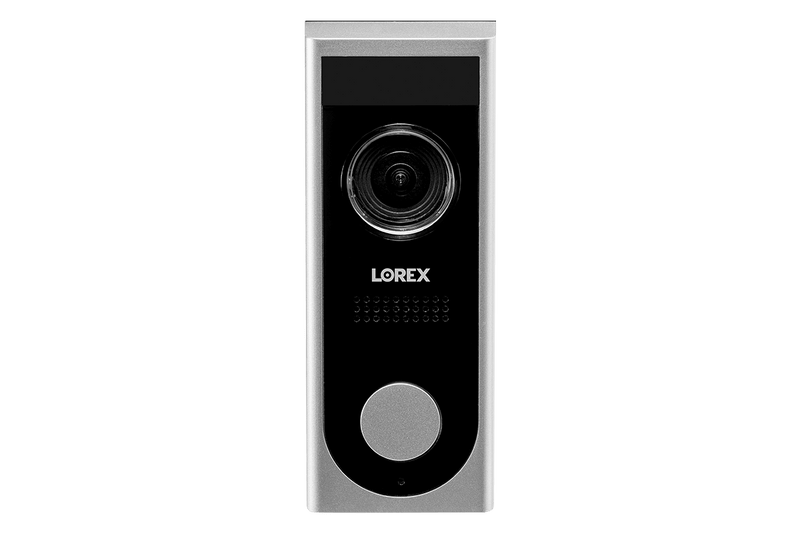

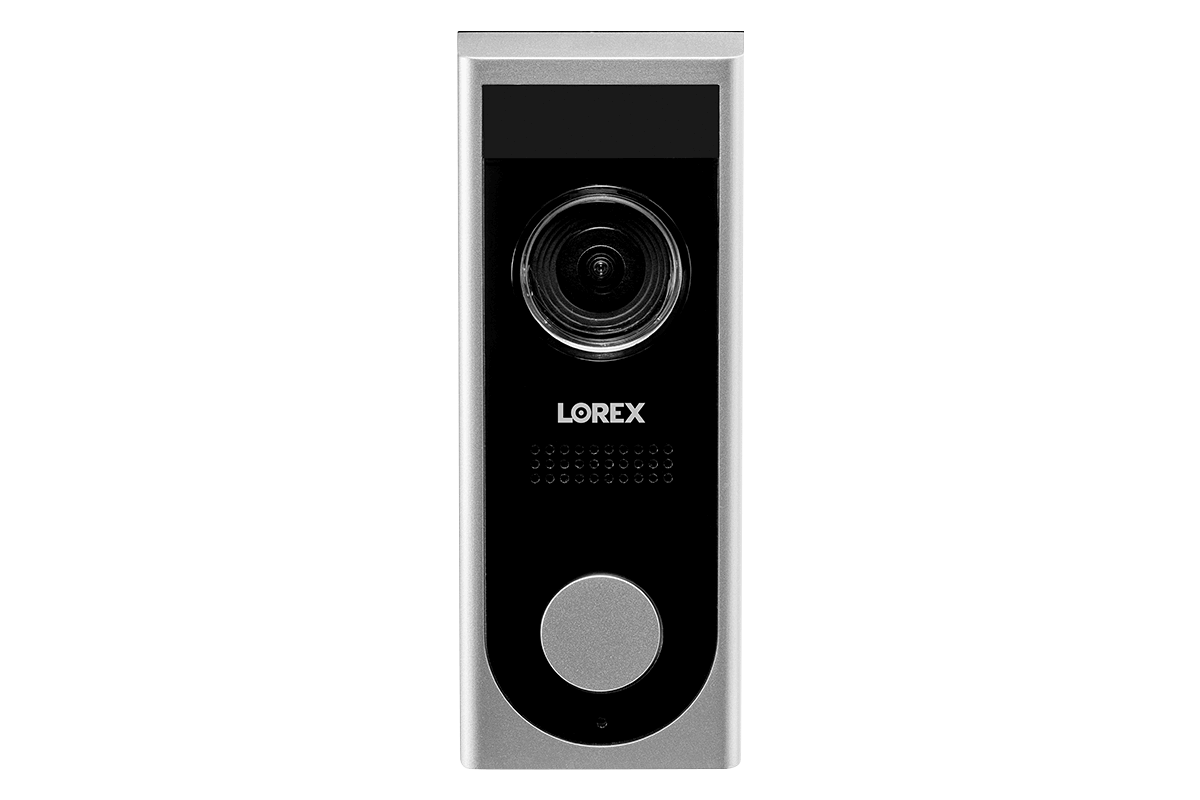

Know Before They Knock.

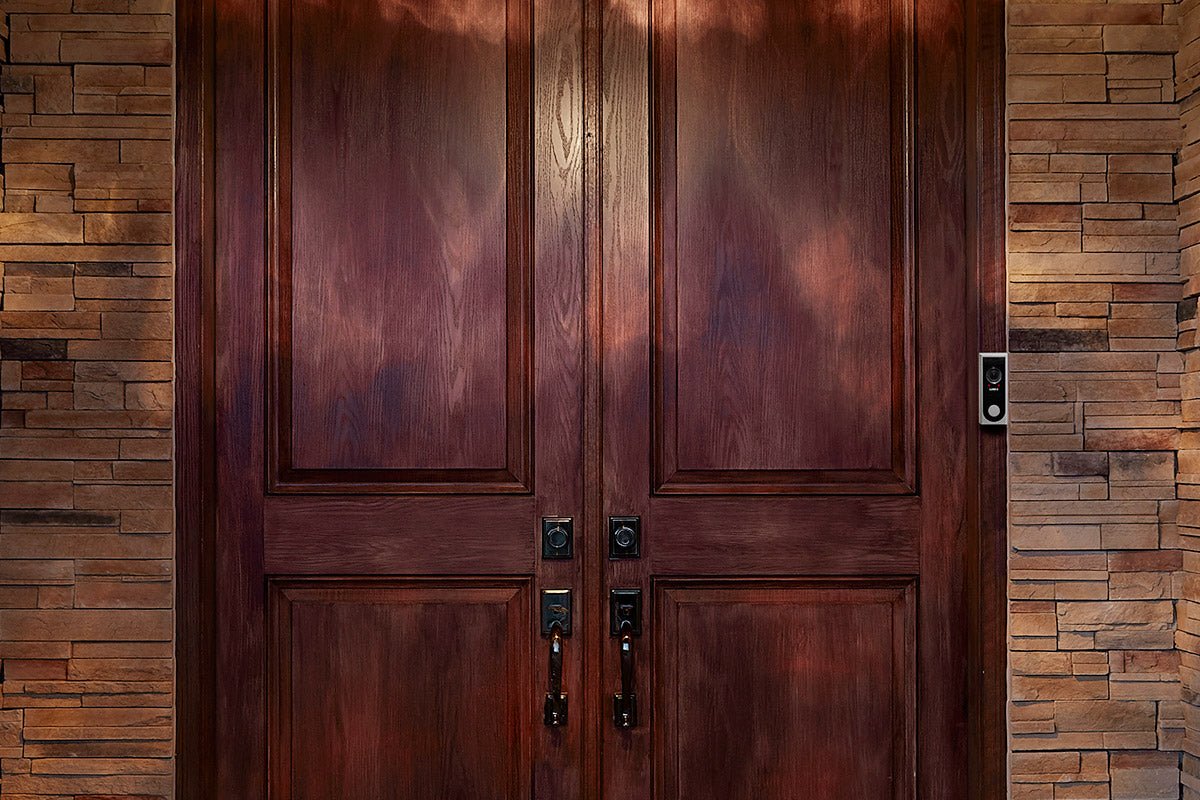

Add security and convenience to your front door with this feature-rich video doorbell.

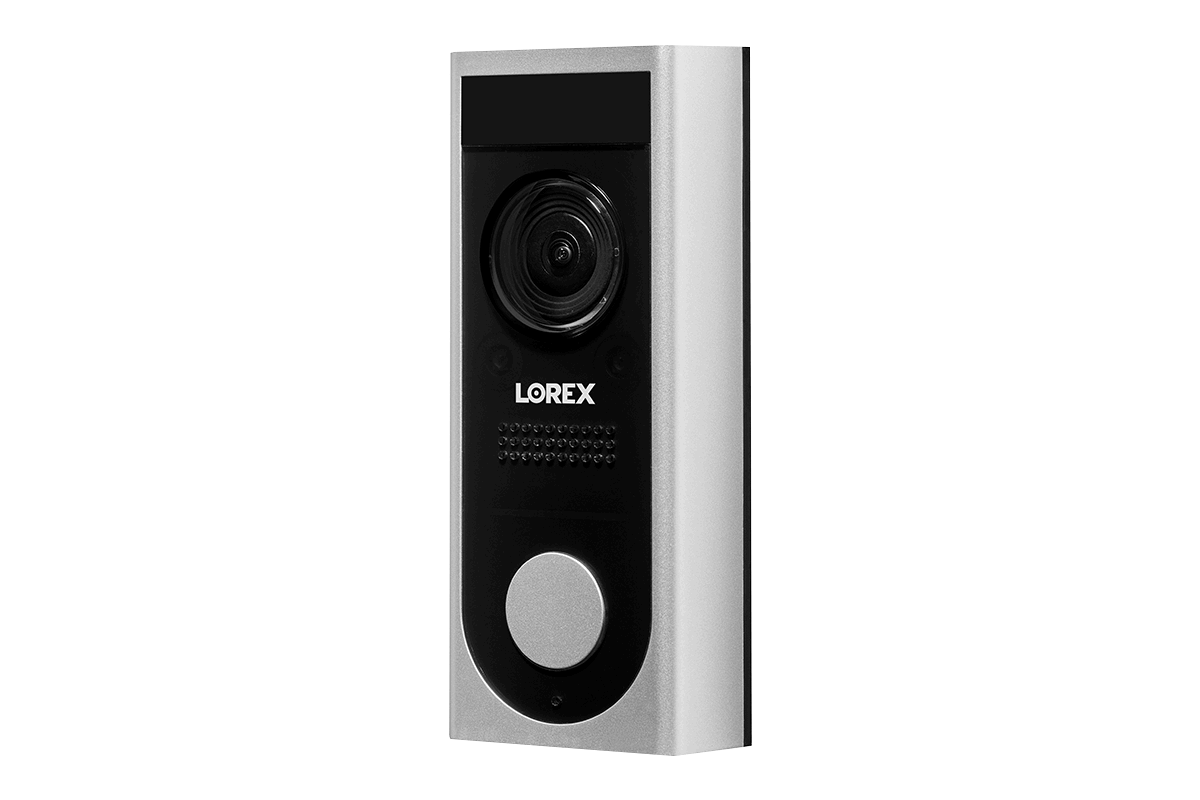

Experience the difference that full 1080p HD video makes. Using an advanced 2MP (megapixel) image sensor, this doorbell will deliver high quality video with outstanding clarity and detail.

A built-in speaker and microphone allows for two-way communication and audio recording. This allows you to speak with people on the other end of the doorbell as well as adding another dimension to your security coverage.

This doorbell camera will automatically detect the light levels dropping in the evening and switch to infrared night vision. Using high powered infrared LEDs, this doorbell camera can see objects or people up to 33ft (10m) away in the dark.

The 160° ultra-wide angle lens provides you with more security coverage, as well as helping with earlier detections, which will give you more time to react if necessary.

The Lorex doorbell is not battery operated. It is designed to easily connect to existing doorbell wiring (16V-24V) and is compatible with existing traditional mechanical and electronic digital chimes.



Lorex Smart Home Security Center Compatibility

Pair a variety of Lorex wireless devices and control them from the LSHSC.



How to Pair Devices to the LSHSC

The connection process for some LSHSC compatible devices differs:



Direct Setup Method

Connect directly to the LSHSC

*Doorbell and LSHSC firmware updates required.



App Setup Method

Connect to the Lorex Home App *

*Make sure to upgrade the camera to the latest firmware via the App


The Lorex Smart Home Security Center

Remote viewing from your mobile with Lorex Home™

Your home will always be within reach with help from the Lorex Home Mobile App. This versatile app allows you to remotely access your LSHSC so you can easily view live videos, customize your system settings, playback recorded motion events and more.


apple store badge google play store badge

Frequently Asked Questions

Step 1. Connect your LSHSC to your network via Ethernet or Wi-Fi.

Step 2. On the LSHSC, go to Home Screen > Device Settings > Device Info > LSHSC, then tap Device ID to open the QR Code.

Step 3. Now, get your smartphone and open the Lorex Home app, then tap + at the topmost right corner of the screen and scan the QR Code bring displayed on your LSHSC.

Step 4. Follow the on-screen instructions on adding your LSHSC to the Lorex Home app.

Step 1. Go to Home Screen > Device Settings > Security Settings.

Step 2. Turn On or Off Require passcode to unlock or Face Unlock.

NOTE: Using the camera cover to hide the lens will not turn off the feature. It will simply prevent video capturing for the Face Unlock feature.

NOTE: In Offline Mode, you can still view your camera, and your sensors remain functional, but you cannot see your devices remotely from the Lorex Home app.

Step 1. Go to Home Screen > Device Settings > Network Settings.

Step 2. Tap Wi-Fi Network, then toggle the button to on or off.

Step 3. Tap Wired Network, then toggle the button to on or off.

Still Have Questions?

Video

What's Included?

LSHSC Dimensions LSHSC Labels

Screen Size 7" Diagonal
Screen Type LCD Touch Screen
Audio Full Duplex 2-way Audio
Microphone 2 × Noise Cancelling Microphones
Built-in front camera 1080p, support physical cover
Speakers 3 × Speakers
Camera Built-in
Wireless Camera Support Up to 8×1080p or 4×2K
Wireless Sensor Support Up to 32
Simultanous Camera Viewing Up to 4 channels
Voice Assistant Lorex Voice Assistant
Privacy Features Local Voice Assistant, Microphone Disconnect Switch, Camera Cover
Digital Zoom Camera Dependent
Log-in Options Password or Face Unlock
Status LED Multi-color LED status bar indicator
Sensors Ambient Light
Storage microSD (up to 256GB) or M.2 2280 SATA SSD M (up to 1TB)*
Internet Recommendation 2 cameras ~4Mbps / 4 cameras ~10Mbps @1080p upload speed**
Home Router Connectivity 100Mbps Ethernet or 5GHz Wi-Fi
Device Connectivity 2.4/5GHz Wi-Fi / BLE 5.0

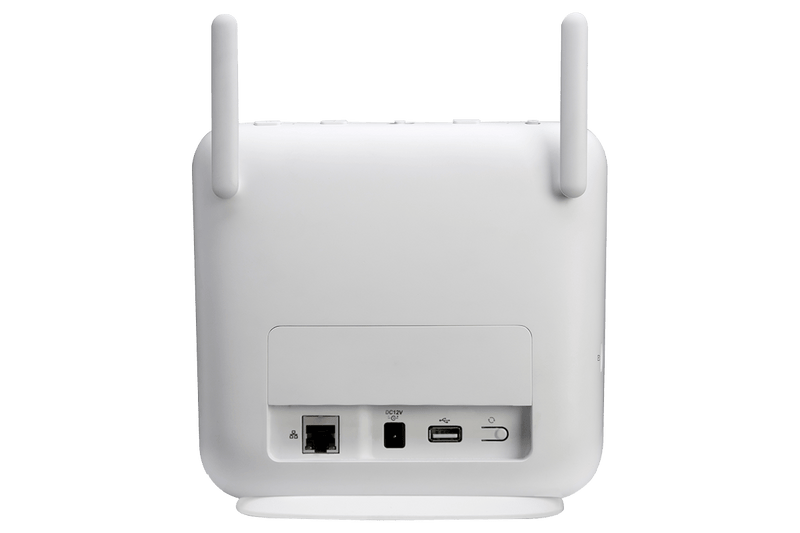

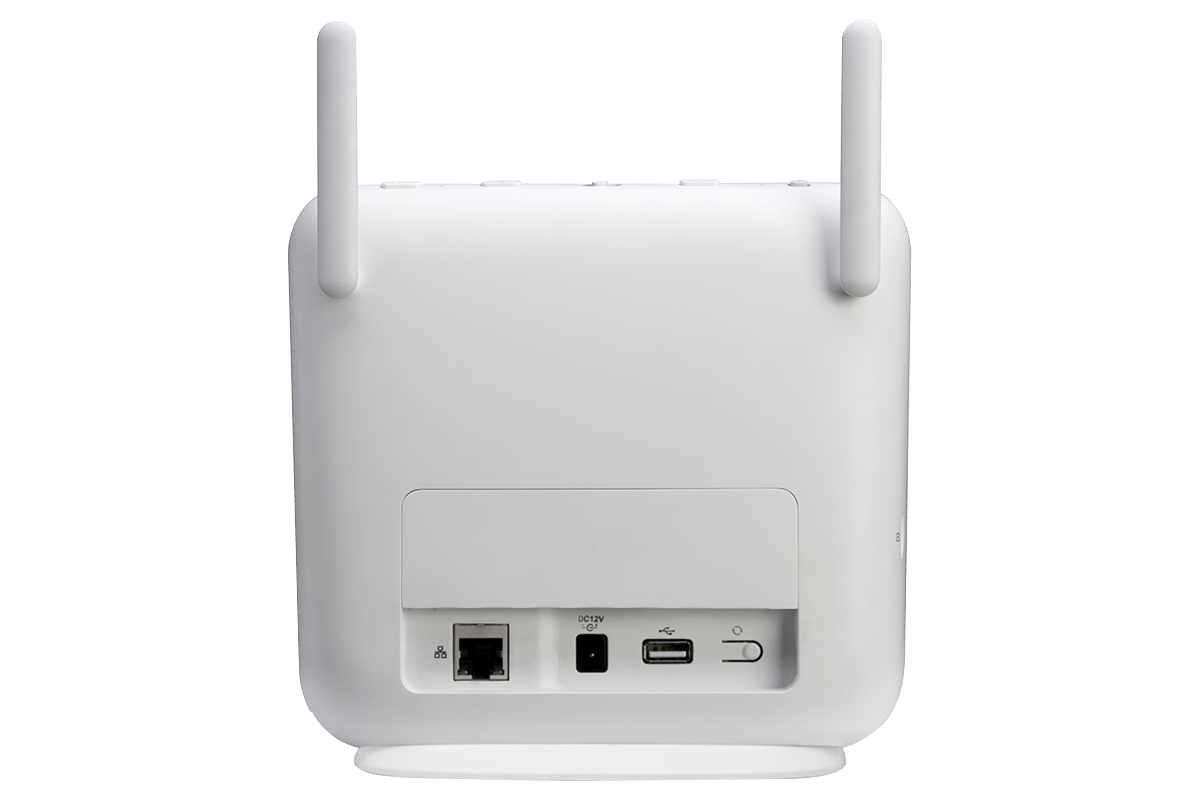

Ports Power, Ethernet, 1 × USB
Weather Rating Indoor only
Operating Temp. Range 32~104°F / 0~40?
Languages English
Power 12V DC / 2A
Available Color White
Dimensions 7.5 x 3.6 x 7.0" / 19.0 x 9.1 x 17.7cm
Weight 1.81lb / 0.92kg

Each L871T8E-E Camera Includes:

1 × Lorex Home Center
1 × Power Adapter
1 × Ethernet cable
Quick setup guide
1 × 64GB microSD card (pre-inserted)
  1. Playback screen is HD resolution. Footage can be exported at full resolution, or can be zoomed into on the device.
  2. Compatible with certain Lorex wireless cameras only. For a list of compatible cameras please visit lorex.com/compatibility
  3. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit: lorex.com/smarthome
  4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your recorder has a connection to a router (not included). An upload speed of at least 5 Mbps is recommended for remote video viewing.
  5. For the latest list of supported apps and devices, please visit lorex.com/compatibility

*Check packaging for included storage
**Devices stream by default using substream at lower resolution

LNWDB1

HD Wi-Fi Video Doorbell:

W261ASC HD WiFi security camera
  • Ultra-wide 160° Field of View (diagonal)
  • IR night vision up to 33ft (10m)1
  • Be aware of motion around your doorstep
  • Receive notifications from the Lorex Home™ app when motion is detection2
  • No monthly fee for video recording, storage and photo capturing
  • Built-in accessible 16GB microSD card
  • Upgrade storage up to a 64GB microSD
  • Built-in mic and speaker allows you to listen and speak to visitors. No matter your location, use 2-way talk through the Lorex Home™ app3
  • Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.
  • Compatible with ACCWDG Doorbell Wedge Kit (sold separately).

Each LNWDB1 Camera Includes:

1 × Wi-Fi Doorbell
1 × Chime Box
1 × MicroSD Card
Electrical Wiring
Screw Driver
Mounting Kit
Quick Start Guide
  1. Stated IR illumination range is based on ideal conditions. Actual range and image clarity depends on installation location, viewing area and light reflection/absorption
  2. Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 2 Mbps is required for the best video performance. For the latest list of supported apps and devices, please visit: www.lorex.com/support
  3. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Amazon Alexa/Google Assistant compatibility may depend on the availability of services in your country.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Google, Google Home, Google Play and Google Play logo are trademarks of Google Inc.

Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
