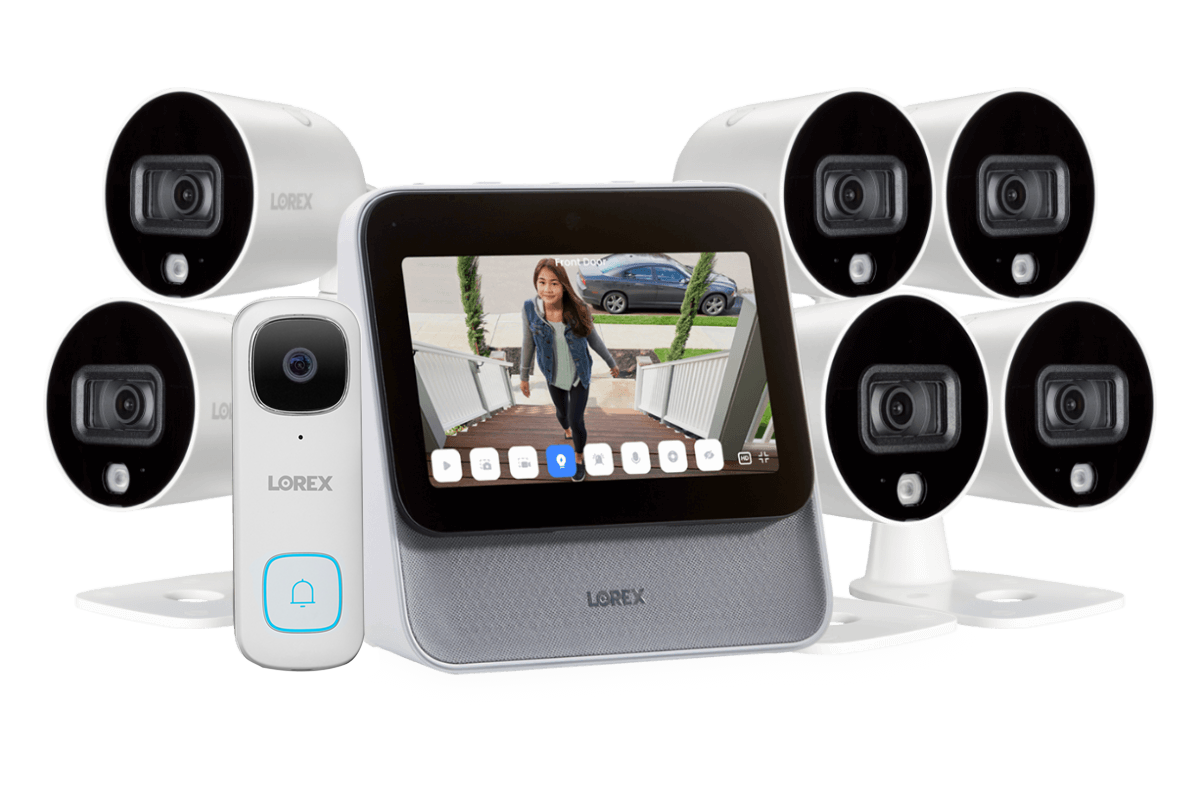

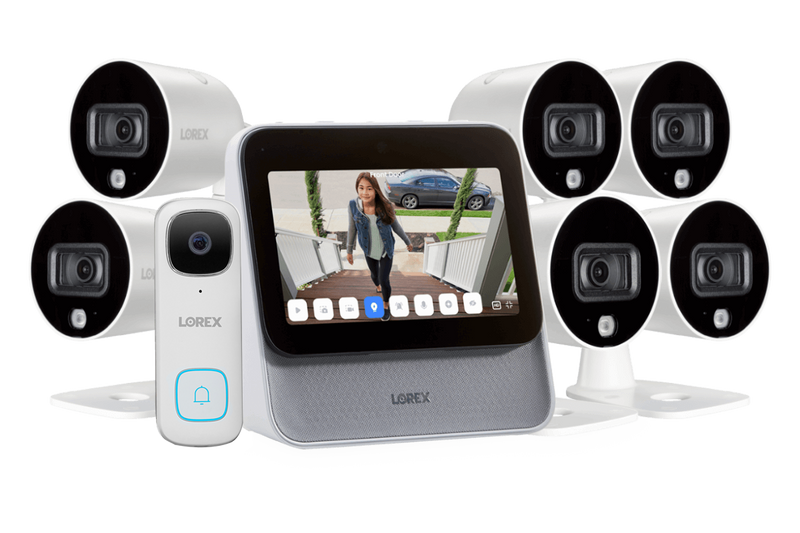

Lorex Smart Home Security Center with 6 Outdoor Wi-Fi Cameras, 2K Video Doorbell and 3 Sensors

LHC-K16
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Lorex Smart Home Security Center with 4 Cameras and Motion Sensors


The Lorex Smart Home Security Center (LSHSC) serves as the center of your own personal smart home eco-system. It is a revolutionary home monitoring solution that's designed for easy security monitoring while maintaining maximum privacy. This bundle also includes six Outdoor Wi-Fi Security Cameras, a 2K Video Doorbell and three Sensors.



LHC-K16

SPECIFICATIONS

1

LSHSC

7" touch-screen control hub

7

CAMERAS

6 × Outdoor Camera,
1 × 2K Video Doorbell

3

SENSORS

2 × Window / Door Motion Sensors, 1 × Motion Sensor

64GB

microSD

Maximum 1 × 256GB microSD / 1TB M.2 2280 SATA SSD M.

The LSHSC

More than a security system, the center of your home

The all-in-one LSHSC simplifies your home monitoring experience with its intuitive touch smart display. You can also use your voice to perform simple commands, such as:


"Lorex, show me all outdoor cameras"
"Lorex, show me what happened yesterday at the 'front door' camera"
"Lorex, show me all people* at the 'front door' camera between 2 and 3pm"
"Lorex, turn on warning lights on all outdoor cameras"
"Lorex, turn privacy mode on for all indoor cameras"



* Requires supported camera and setting to be turned on



Control and access all compatible Lorex devices

Control features with the intuitive 7-inch touch display*.


Built with privacy in mind

There are several built-in features to ensure your privacy - log in to the LSHSC quickly with the Face Unlock feature, select privacy mode for compatible cameras to turn off streaming and recording for those private moments, and the option to disable the built-in microphone and cover the front camera lens.

Security designed to grow with you

Pair a variety of Lorex wireless devices and control them from the LSHSC to build the perfect security system for your home. Adding new devices is simple with a built-in step by step setup guide. You can also add a Lorex Range Extender to extend the reach of your LSHSC (sold separately).

Completely offline and secure

Use the Lorex Voice™ Assistant to access your cameras and view footage with simple voice commands. This voice assistant is hosted entirely on the LSHSC and is not connected to the internet for ultimate privacy.

Keep your footage private and secure

The LSHSC includes a surveillance-grade class 10 microSD card. Upgrade the storage to a maximum of 256GB microSD and/or a 1TB M.2 2280 SATA SSD M.






Smart, Active and Bright.

The two 1080p Smart Outdoor Wi-Fi cameras provide complete coverage of your home, day and night.

Experience the difference that full 1080p HD video makes. Using an advanced 2MP (megapixel) image sensor, this camera will deliver high quality video with outstanding clarity and detail.

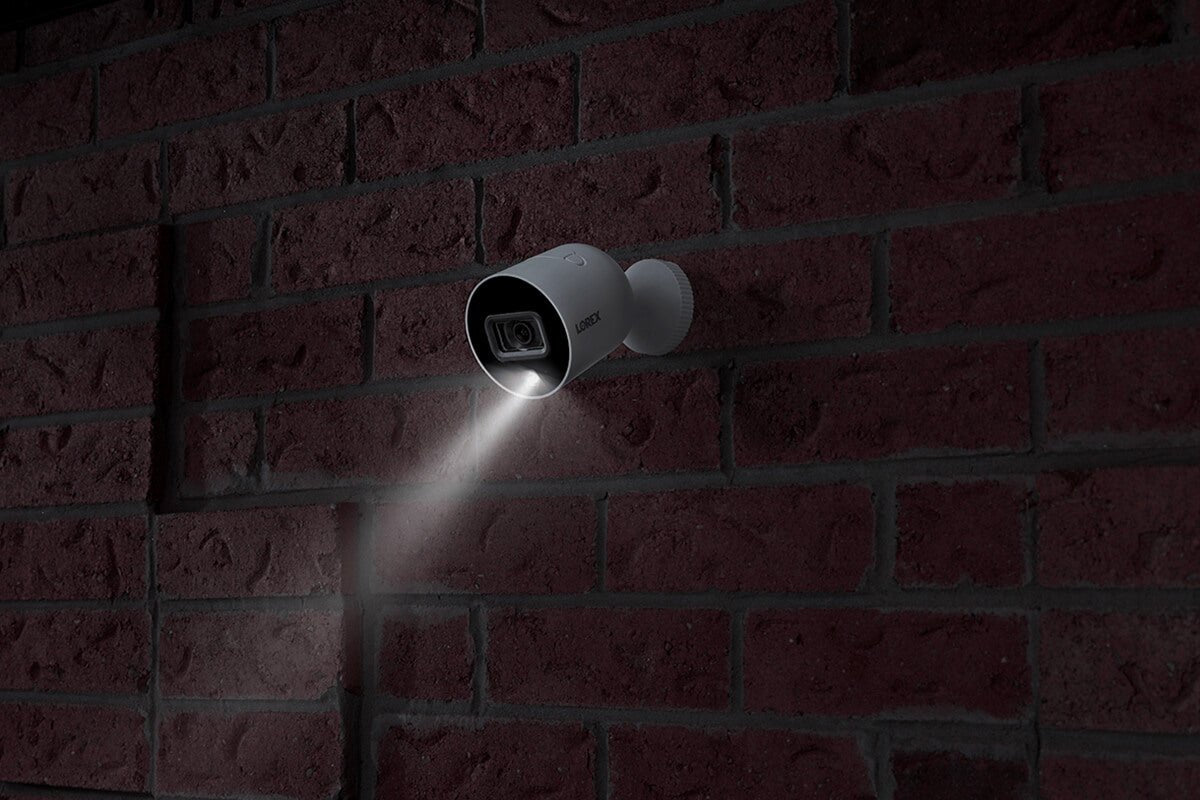

Take control of your safety with active deterrence features such as a warning siren and a LED warning light. Both can be manually enabled or customized to only be activated when a person or vehicle is detected.

Thanks to the camera's person and vehicle detection capability, you'll avoid unwanted or false notifications. This camera has been designed to distinguish movement detected by either people or vehicles, limiting unnecessary alerts to your smartphone or tablet.

Get the most out of your security camera with 2-way audio. The built-in microphone and speaker allows you to communicate to anyone at the other end of the camera.

This camera features our revolutionary Color Night Vision (CNV) technology, which will produce full-color video with the help of external lighting around the camera. In regular nighttime conditions that are too dark for CNV, this camera will use it's infrared LEDs to record black and white video footage up to 50ft (15m).






Convenience and Security

See who's at the door, greet guests with a nightlight, answer the door from anywhere, play pre-recorded messages when someone rings, and talk to those on the other side with the 2K Doorbell.

Thanks to a pre-motion recording feature, the doorbell will automatically start recording 5 seconds before the event starts so you don't miss any action.

Automatically receive notifications to your phone telling you that there is someone at the door.

Use 1 of 3 quick responses to greet visitors who ring your doorbell. You can even record your own custom message to add your personal touch or speak directly through the doorbell using 2-Way Talk.

See more with a 164° viewing angle and 4:3 aspect ratio showing you the full picture.

HDR automatically corrects exposure when lighting is not ideal.


Lorex Sensors Tiny but essential

Small But Essential Motion Sensors

Both the Motion and Window/Door Sensors are very small (37mm × 28mm and 22mm × 36mm, respectively) allowing you to place them around your house unobtrusively (up to 32). This allows you to add plenty of video-free indoor security to your house.



Lorex Smart Home Security Center Compatibility

Pair a variety of Lorex wireless devices and control them from the LSHSC.



How to Pair Devices to the LSHSC

The connection process for some LSHSC compatible devices differs:



Direct Setup Method

Connect directly to the LSHSC

*Doorbell and LSHSC firmware updates required.



App Setup Method

Connect to the Lorex Home App *

*Make sure to upgrade the camera to the latest firmware via the App


The LSHSC

Remote viewing from your mobile with Lorex™

Your home will always be within reach with help from the Lorex Mobile App. This versatile app allows you to remotely access your LSHSC so you can easily view live videos, customize your system settings, playback recorded motion events and more. You can also link your sensors to nearby Lorex Wi-Fi cameras to automatically start recording whenever one of your sensor alarms are triggered.


apple store badge google play store badge

Frequently Asked Questions

Step 1. Connect your LSHSC to your network via Ethernet or Wi-Fi.

Step 2. On the LSHSC, go to Home Screen > Device Settings > Device Info > LSHSC, then tap Device ID to open the QR Code.

Step 3. Now, get your smartphone and open the Lorex app, then tap + at the topmost right corner of the screen and scan the QR Code bring displayed on your LSHSC.

Step 4. Follow the on-screen instructions on adding your LSHSC to the Lorex app.

Step 1. Go to Home Screen > Device Settings > Security Settings.

Step 2. Turn On or Off Require passcode to unlock or Face Unlock.

NOTE: Using the camera cover to hide the lens will not turn off the feature. It will simply prevent video capturing for the Face Unlock feature.

NOTE: In Offline Mode, you can still view your camera, and your sensors remain functional, but you cannot see your devices remotely from the Lorex app.

Step 1. Go to Home Screen > Device Settings > Network Settings.

Step 2. Tap Wi-Fi Network, then toggle the button to on or off.

Step 3. Tap Wired Network, then toggle the button to on or off.

Still Have Questions?

Video

What's Included?

Screen Size 7" Diagonal
Screen Type LCD Touch Screen
Audio Full Duplex 2-way Audio
Microphone 2 × Noise Cancelling Microphones
Built-in front camera 1080p, support physical cover
Speakers 3 × Speakers
Camera Built-in
Wireless Camera Support Up to 8×1080p or 4×2K
Wireless Sensor Support Up to 32
Simultanous Camera Viewing Up to 4 channels
Voice Assistant Lorex Voice Assistant
Privacy Features Local Voice Assistant, Microphone Disconnect Switch, Camera Cover
Digital Zoom Camera Dependent
Log-in Options Password or Face Unlock
Status LED Multi-color LED status bar indicator
Sensors Ambient Light
Storage microSD (up to 256GB) or M.2 2280 SATA SSD M (up to 1TB)*
Internet Recommendation 2 cameras ~4Mbps / 4 cameras ~10Mbps @1080p upload speed**
Home Router Connectivity 100Mbps Ethernet or 5GHz Wi-Fi
Device Connectivity 2.4/5GHz Wi-Fi / BLE 5.0
Ports Power, Ethernet, 1 × USB
Weather Rating Indoor only
Operating Temp. Range 32~104°F / 0~40℃
Languages English
Power 12V DC / 2A
Available Color White
Dimensions 7.5 x 3.6 x 7.0" / 19.0 x 9.1 x 17.7cm
Weight 1.81lb / 0.92kg
1 × LSHSC
1 × Power Adapter
1 × Ethernet cable
Quick setup guide
1 × microSD card (pre-inserted)*

1. Playback screen is HD resolution. Footage can be exported at full resolution, or can be zoomed into on the device.
2. Compatible with certain Lorex wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
3. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit: www.lorex.com/smarthome
4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your recorder has a connection to a router (not included). An upload speed of at least 5 Mbps is recommended for remote video viewing.
5. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility

*Check packaging for included storage
**Devices stream by default using substream at lower resolution


W282CA

Smart Indoor/Outdoor Wi-Fi Security Camera:

W281AA active deterrence security camera
  • Smart Motion distinguishes movement detected by either people or vehicles, limiting unnecessary alerts1
  • The Lorex Home™ app sends you motion notifications ensuring you don't miss a thing
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision™2
  • When light is limited, take advantage of 50 ft (15 m) IR night vision3
  • View live or recorded video from your smartphone with the Lorex Home™ app (compatible with: Apple TV™)4
  • Local microSD storage, expandable up to 256 GB
  • Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person or vehicle is detected
  • Deter uninvited guests with remote activated siren
  • Built-in mic and speaker allows you to listen and speak to visitors with 2-way talk5

Each W282CA Camera Includes:

1 × Wi-Fi Camera
1 × Wall Mount
1 × Mounting Kit
1 × Quick Start Guide
1 × Table Stand / Ceiling Mount
1 × Power Adapter and Extension Cable*

1. Accuracy of Person and Vehicle Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 50ft/15m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, instructions visit: www.lorex.com/smarthome
5. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.

*A 10ft power extension cable is included with the power adapter (9.5ft), giving you a total of 19.5ft power cable. Use of multiple extension cable is not allowed.

B451AJD

2K Wired Video Doorbell:

back to top of features
B451AJ dimensions
  • Impressive 2K Resolution for clear video quality.
  • See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
  • Get the best picture always with HDR imaging.
  • Use pre-recorded messages or 2-way talk1 to greet visitors.
  • Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
  • Deter unwanted guests with the remote-activated siren.
  • Be aware of activity around your doorstep with built-in Person Detection feature.
  • Receive notifications from the Lorex Home™ app when motion is detection2.
  • Local microSD storage, expandable up to 256GB.
  • Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
  • Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
  • Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
  • Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3

Each B451AJD Camera Includes:

Video Doorbell
Chime Kit
Pre-inserted microSD Card
USB Cable
Electrical Wiring
15° Horizontal Bracket
5° Vertical Bracket
Mounting Kit
Quick Start Guide
  1. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  2. Requires a high-speed internet connection and a Wi-Fi router (not included) for remote access. A minimum upload speed of 3.5 Mbps is required for the best video performance.
  3. Requires 16 - 24 VAC. If the install location does not have this, a transformer will be required to operate properly. Consult a licensed electrician if in doubt.
  4. Not intended for submersion in water. Installation in a sheltered area recommended.

AM41TK

Motion Sensor:

AM41TK Motion Sensor
  • Get mobile notifications from the Lorex Home™ app or hear a chime when motion is detected in front of the sensor
  • Install throughout the inside of your home - mounted on a ceiling, wall, or placed on top of a surface
  • The battery operated and wire-free design makes for easy, seamless installation
Color White
Power Battery: CR2450, included
Connectivity BLE5.0
Detection Range 26ft Max.
Detection Angle 110° Max.
Installation Type Tabletop, wall or ceiling
Lights Status Indicator Light
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex Home Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty

Each AM41TK Includes:

1 × Motion Sensor
1 × Bracket
1 × Pin
1 × Pre-inserted battery
Mounting Adhesive

AK41TK

Window / Door Sensor:

AK41TK Door / Window Sensor
  • Receive mobile notifications from the Lorex Home™ app or hear a chime whenever your doors or windows open
  • Triggers alerts when the sensors detect windows or doors opening
  • Install the sensors on any door or window frame in your home for easy, seamless installation
Color White
Power Battery: CR1632, included
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex Home Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty

Each AK41TK Includes:

1 × Window / Door Sensor
1 × Pin
1 × Pre-inserted battery
Mounting Adhesive
