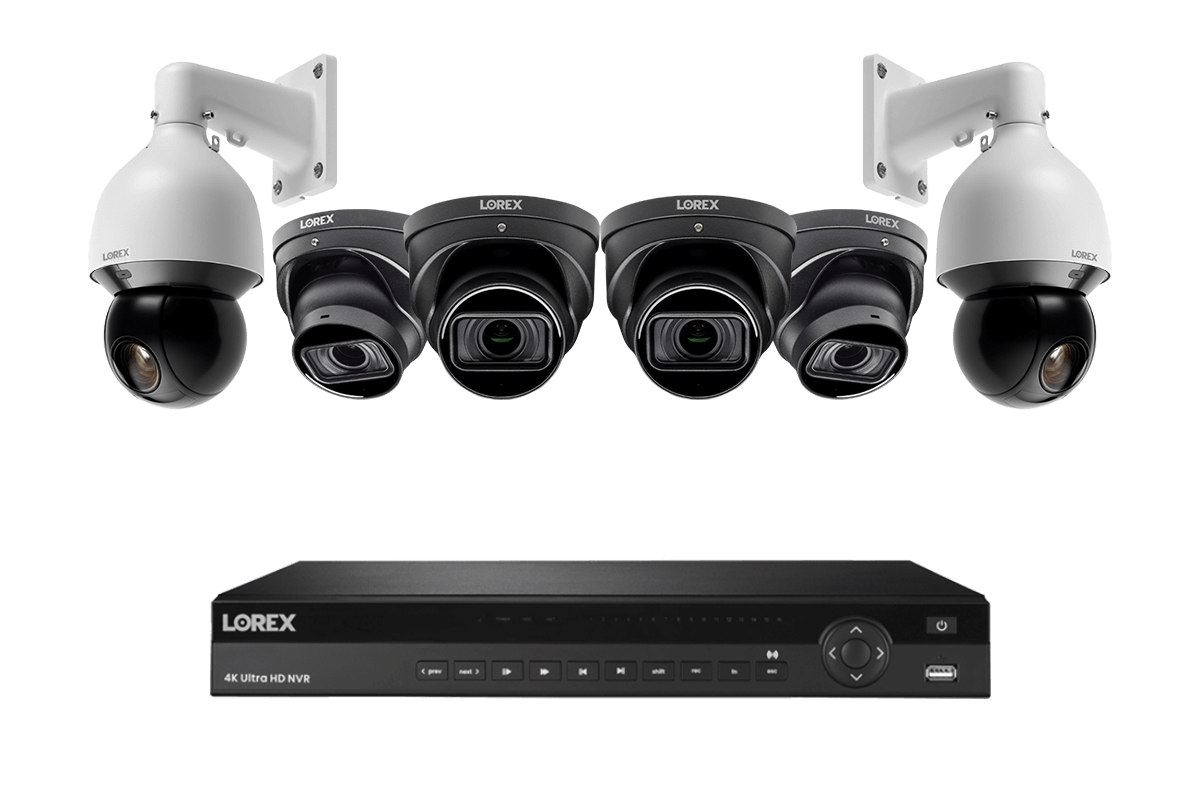

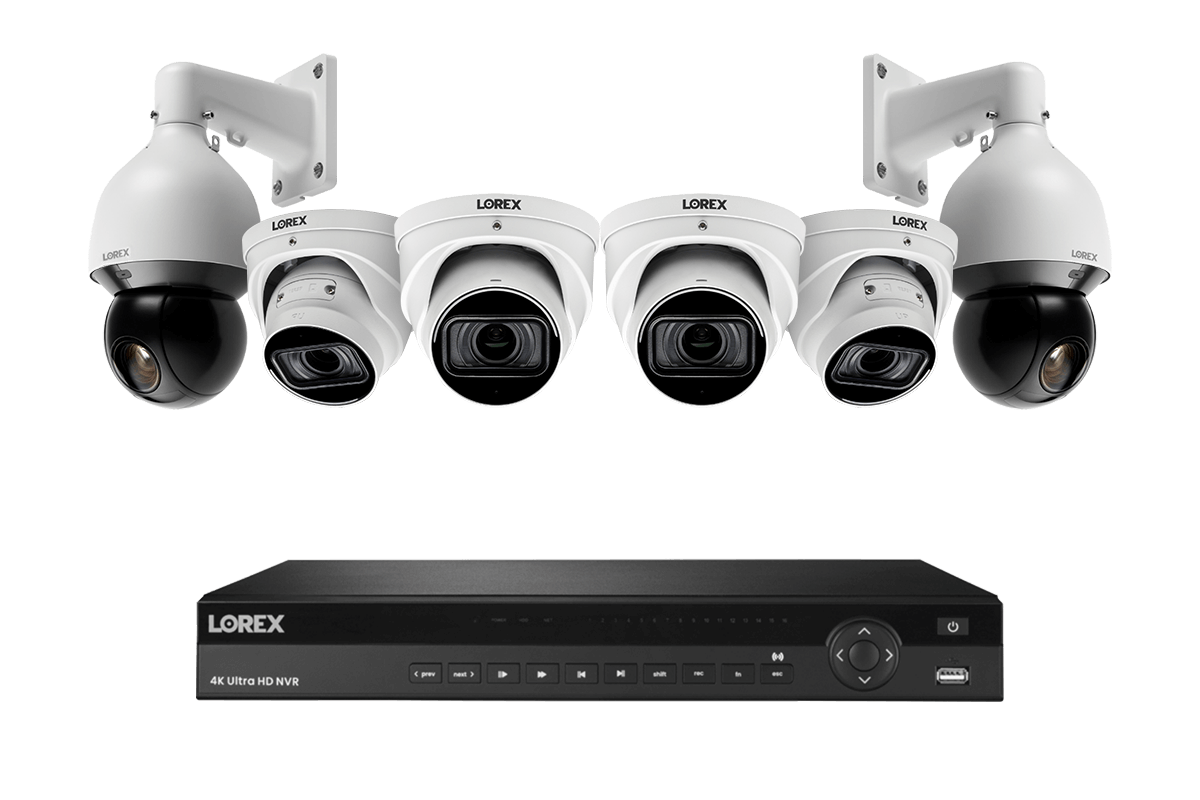

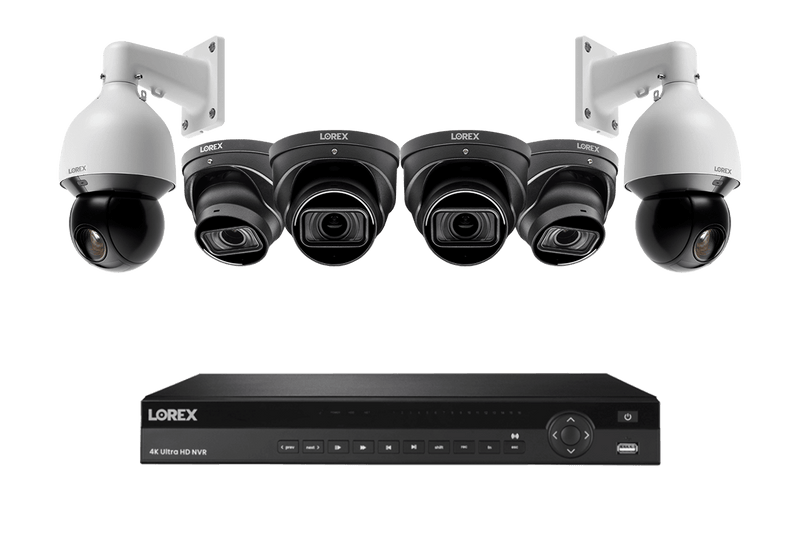

Lorex Nocturnal 4 4K (16 Camera Capable) 4TB NVR System with 4 Smart IP Dome Cameras and 2 Pan Tilt Zoom IP Cameras

NC4K4MV-164BD2PTZ
Color:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

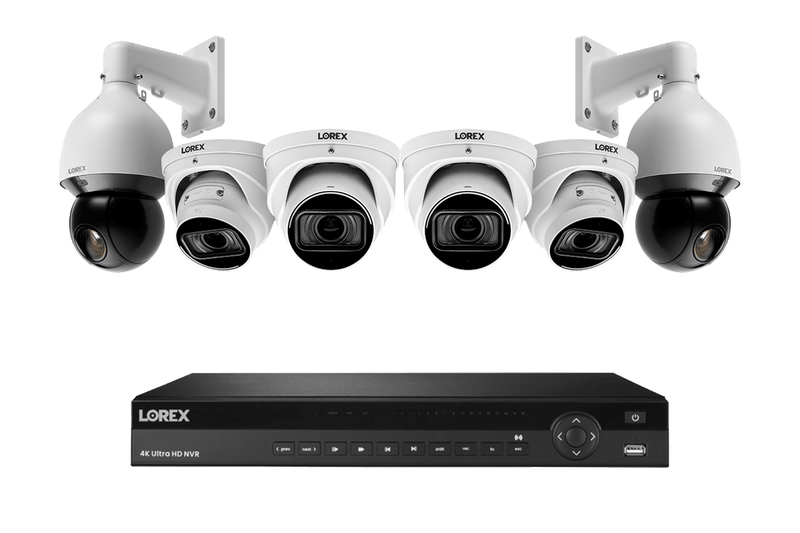

Secure your home or business with the Lorex Nocturnal 4K NVR System. This system is capable of connecting up to 16 cameras and includes Four Smart IP Dome Cameras and Two 25× Pan-Tilt-Zoom IP Cameras. All cameras record in real-time (30fps) 4K resolution and provide Color Night Vision with ambient lighting and long range IR night vision in very dark areas. They are also IK10 Vandal Resistant and IP67 Weatherproof rated.

16

CAMERA CAPABLE

4K NVR can support up to 16 cameras

6

CAMERAS

4× domes 2× PTZ

4K

RESOLUTION

4× the resolution of HD 1080p

4TB

HARD DRIVE

Maximum Capacity
2× 10TB hard drives




NOCTURNAL 4
SERIES SECURITY CAMERA

Empower your business with a top performing professional-grade monitoring solution – The Lorex 4K IP Nocturnal Motorized Varifocal Wired Camera.

LNE9393 and LNE9383 Bullet Nocturnal Cameras


See Clearly,
Day and Night




Ultra HD Resolution

Color Night Vision

Real-time 30 FPS

Motorized Varifocal Lens



Improve Service, Efficiency, and Profitability

People Counting

Advance people counting analytics provides valuable information about the number of people inside your premises at any point in time.

Heat Mapping

Heat Maps illustrate customer movement to better understand where the heaviest and lightest traffic areas are.



*People Counting and Heat Mapping features are supported by the N883 Series NVRs and Nocturnal 4 Series cameras



Go The Distance With ePoE Technology

PoE vs ePoE System


Save on long distance cabling with Nocturnal 4 Cameras. They feature Enhanced PoE (ePoE) technology, which allows you to connect them up to 600m (2000 ft) away, compared to the standard 100m (328 ft), without the need for numerous PoE switches.


*N883 Series NVRs have 8 designated ePoE ports (CH 1-8) compatible with Nocturnal 4 Series Cameras.



Audio Recording

A built in microphone on the dome cameras will add another layer of security coverage. Listen-in audio can add valuable information (such as voices) or analysis to the scene*.


*Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.



Built to Last

Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service. The included PTZ cameras are rated IK10 for additional protection to withstand direct impacts.




Built for the
Outdoors

These cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.



The IP67 durable camera exterior ensures protection against harsh weather conditions
These cameras are engineered to withstand extremely cold climates and will continue to operate in temperatures as low as –40 °C / –40 °F.
These cameras are also built to tolerate blistering hot temperatures and will continue to operate in temperatures as high as 60 °C / 140 °F.

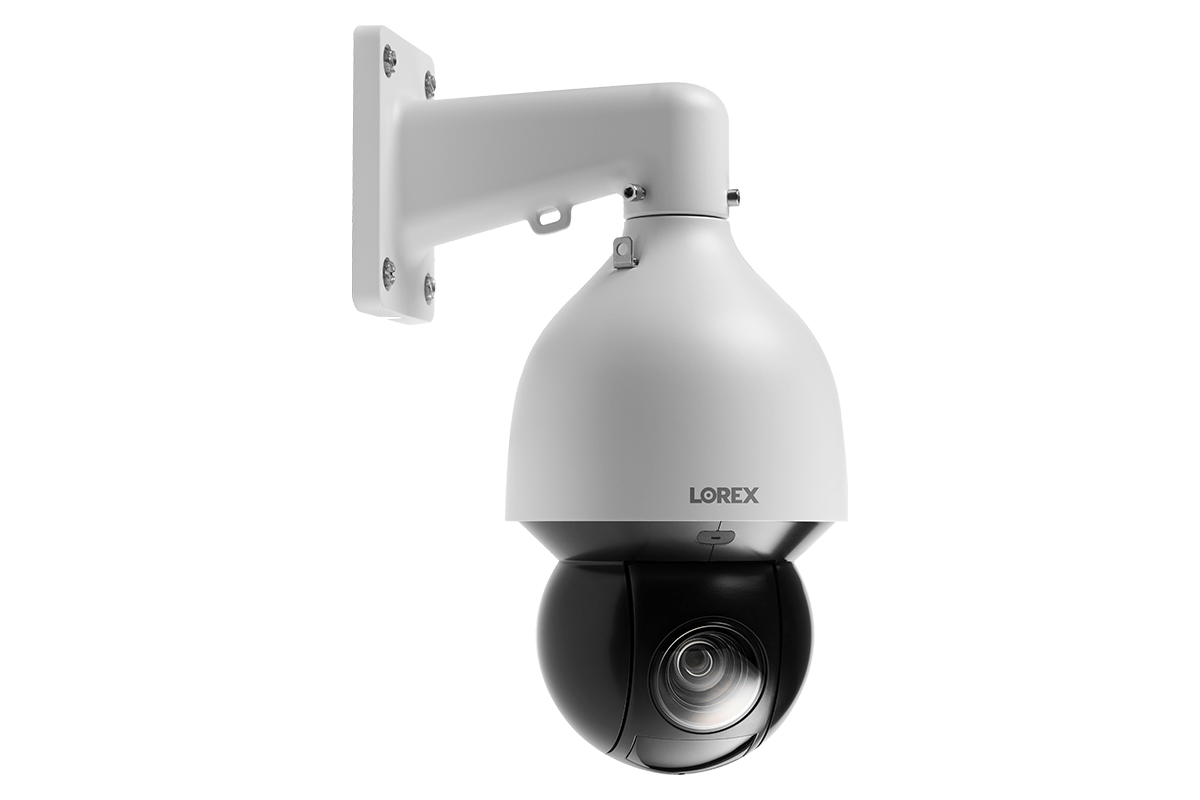

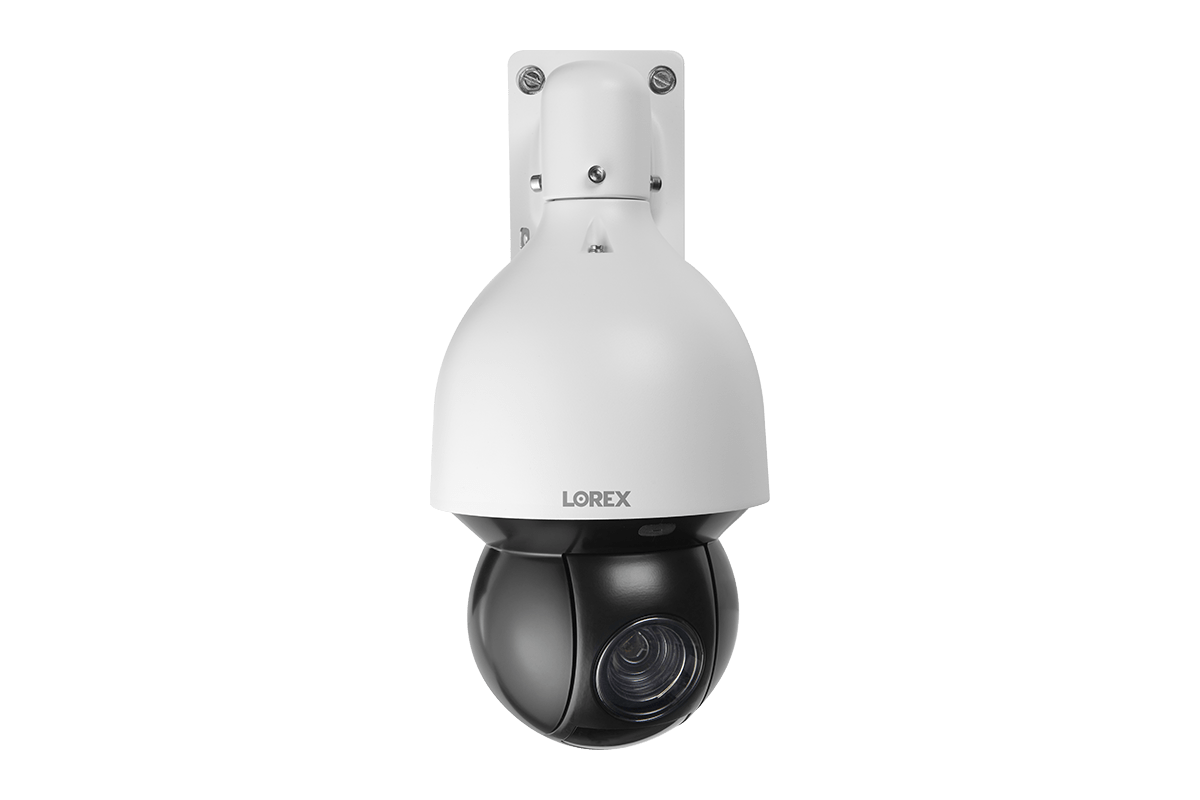

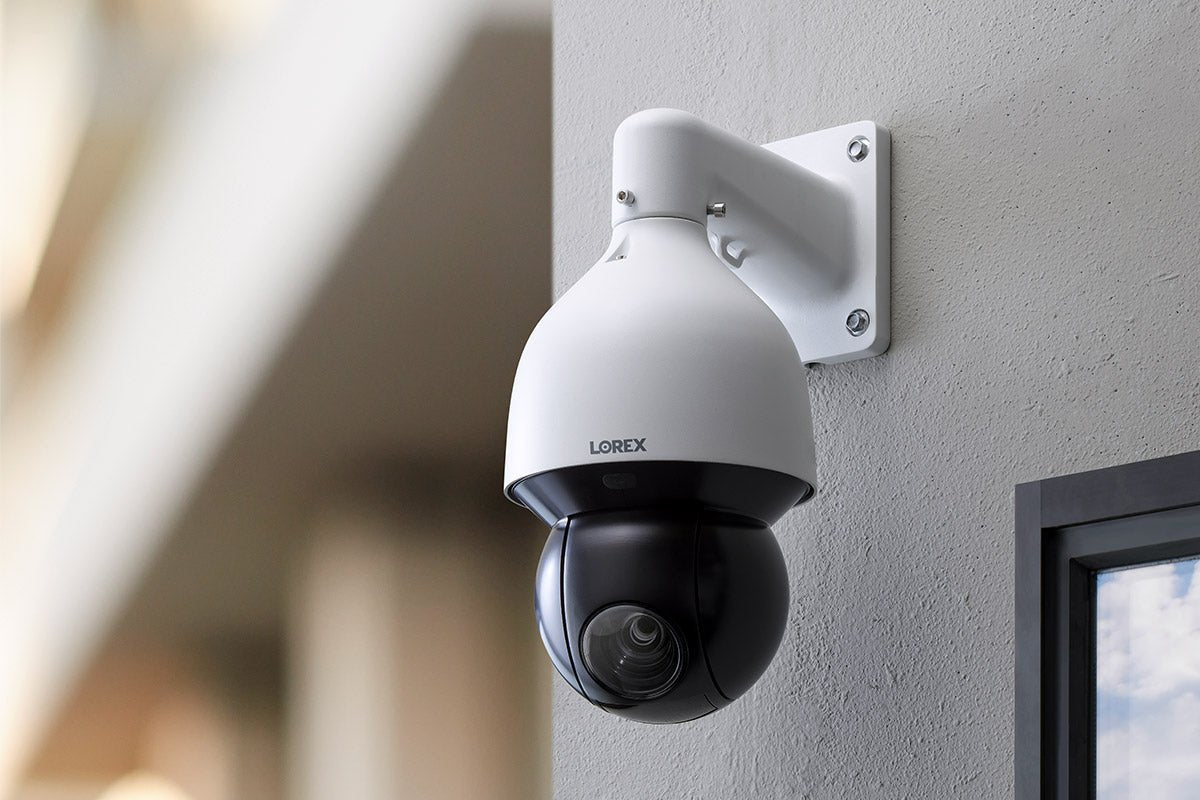

4K Ultra HD IP 25x Pan-Tilt-Zoom Camera


Security at Every Angle

Experience a heightened level of security with the Lorex 4K Pan-Tilt-Zoom IP Camera. Monitor large areas using the camera’s full 360° rotation and rapid panning and tilt-speeds. See the finest details, day and night, with 4K resolution and Color Night Vision (with the help of ambient light) or long range IR Night Vision up to 150 feet (without ambient light). View objects from afar with the impressive 25x optical zoom. The camera's real-time 30 frames-per-second recording is also perfect for high traffic areas. Monitor your large property smarter and with ease with this intuitive Lorex 4K Pan-Tilt-Zoom IP Camera.



4K
Resoluton

Color Night
Vision

Smart Motion
Detection

Wide Dynamic
Range

Pan Tilt
Zoom

Fast 400°/s
Panning Speed

IK10 Vandal
Resistant




Create Unlimited PTZ Tours

Preset Tours Mobile


Expand your security coverage with fully automated PTZ tours. These tours are designed to cycle through a number of user-defined location presets. All of the pan, tilt, and zoom features can be used during a tour. You can also create a simple "pattern" movement that will automatically cycle the camera's viewpoint between two presets. These automated tour and pattern settings can be found in the NVR's PTZ settings menu. You can even program your NVR to change the tour / pattern based on the time of day within these settings.





Always Know What's Happening

Keep an eye on trespassers and vehicles with advance AI features like Smart Motion Detection, which detects motion from person/vehicle. Use it with Auto Tracking* to cover a large area and to automatically detect, follow, and record moving objects, such as a person or vehicle. When an object triggers the motion detection rule, this camera will automatically use its pan/tilt rotation and zoom feature to lock in the moving object in the center of the screen and continue to follow it without missing any details.


Auto Tracking Person Detection
Auto Tracking Vehicle Detection

*Auto tracking feature is available on the the LNZ81P25 PTZ camera




Secure access anytime, anywhere

Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device or the Lorex Cloud client for your computer. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of the Lorex Cloud.



Local Storage - No Monthly Fees

  • Included in the NVR is a 4TB security-grade hard drive designed for advanced processing and the workload of 24/7 recording

  • 2 hard drive bays with up to 2 × 10TB of storage space

  • Storage mirroring for continuous back-up of data from one hard drive to another



What's Included?

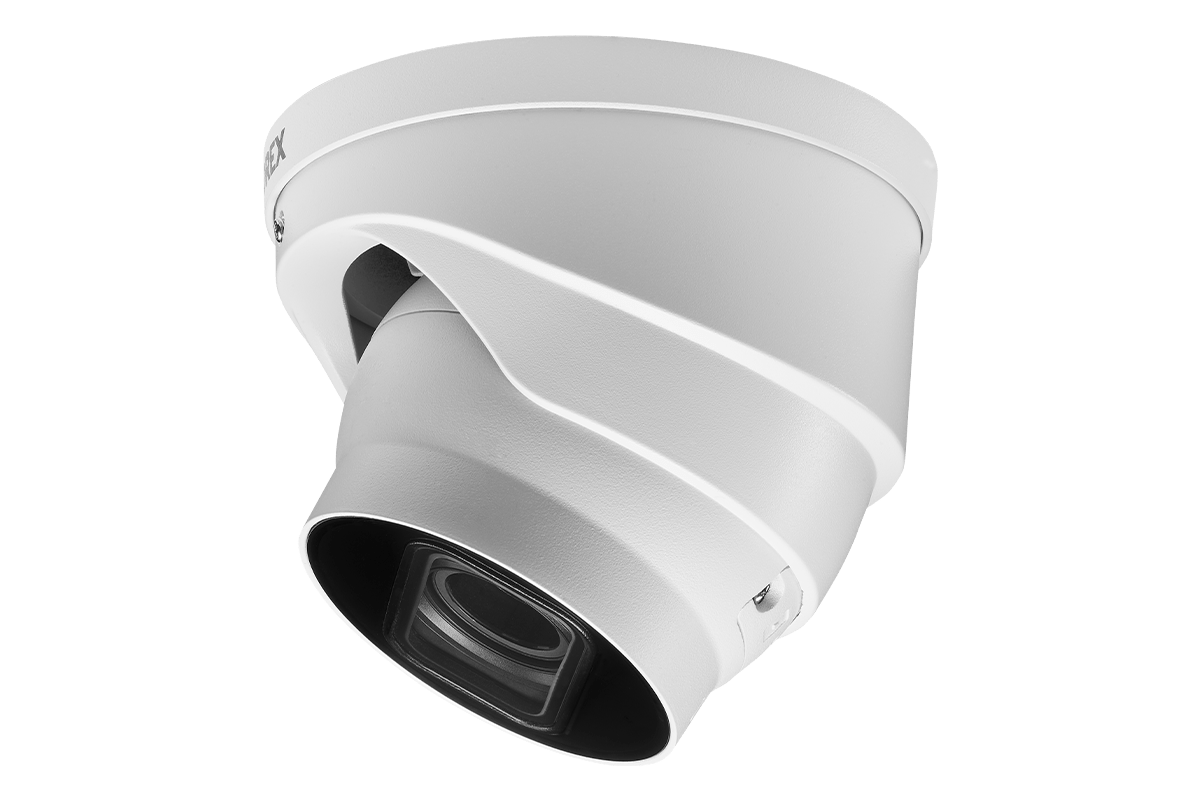

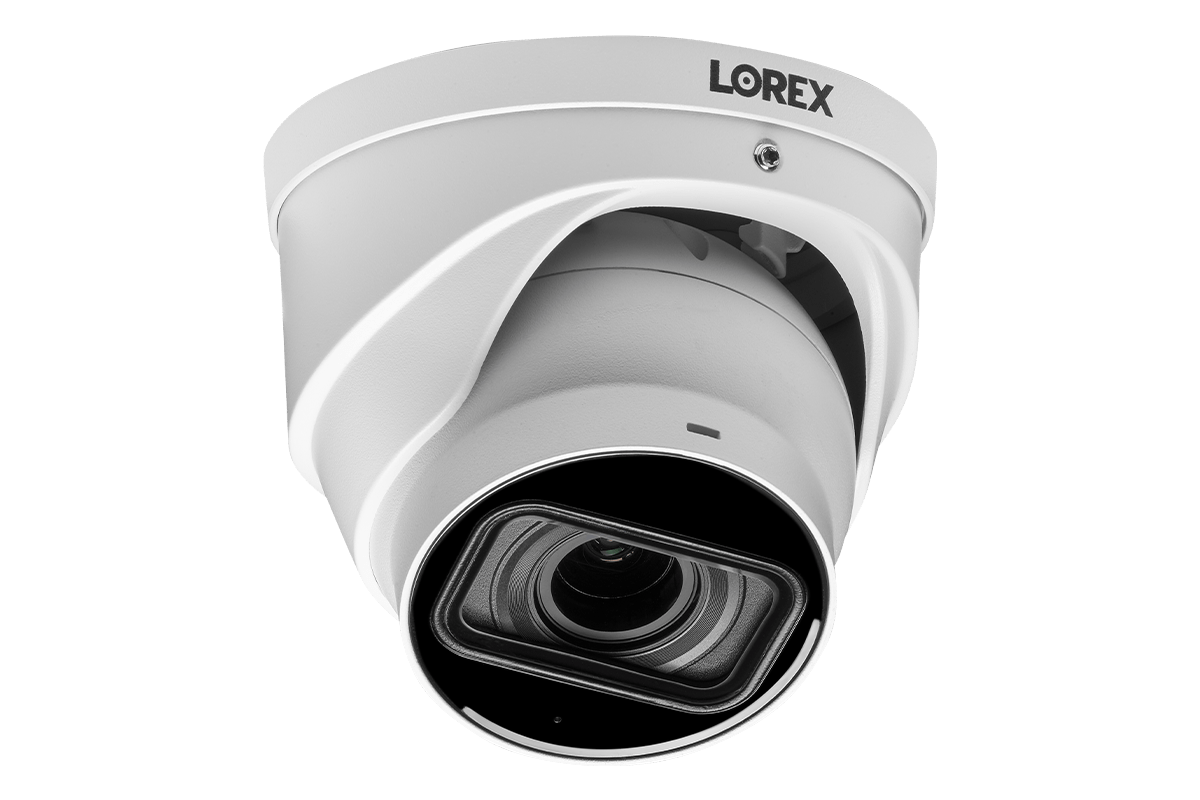

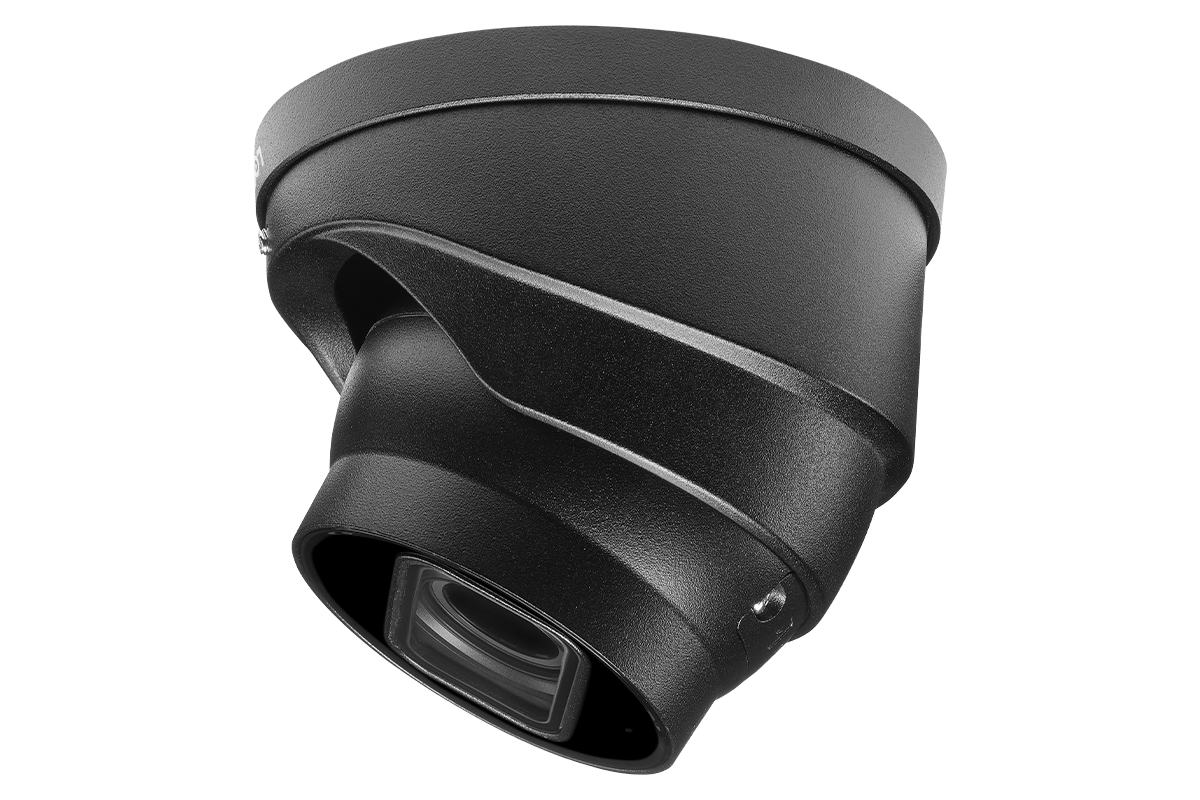

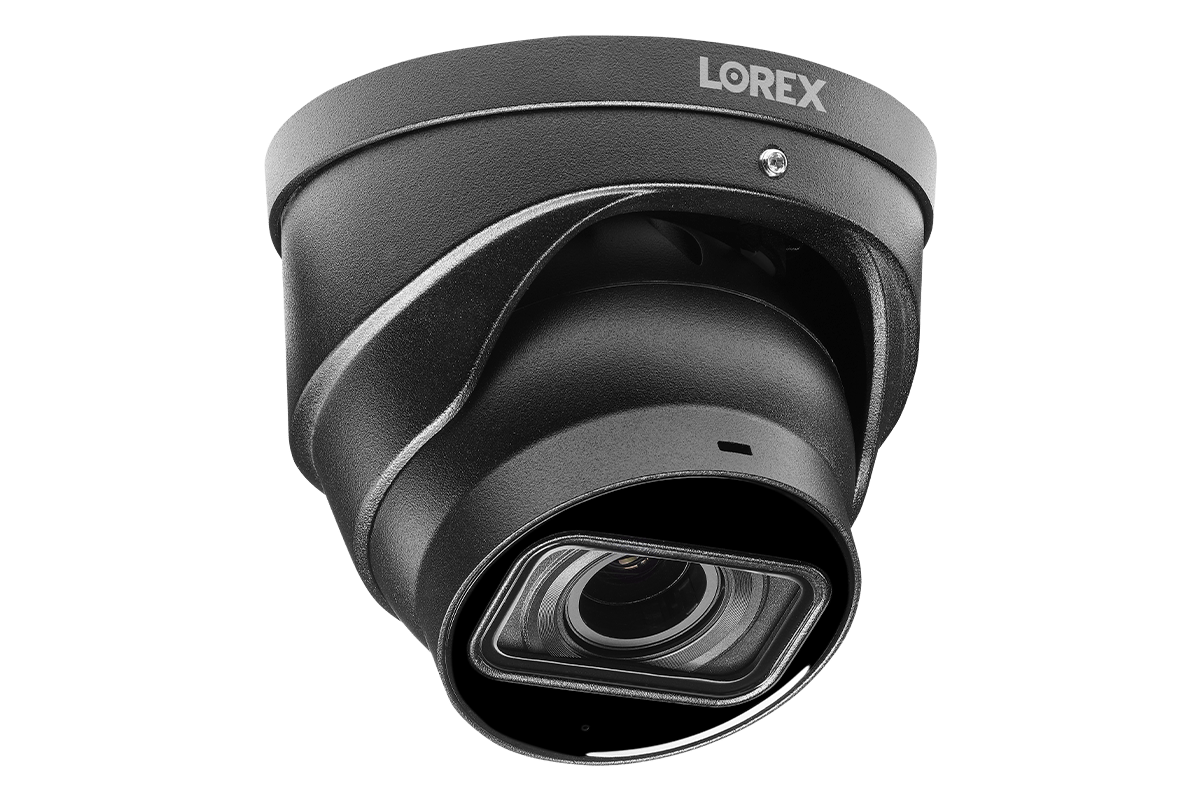

LNE9383 / LNE9393 Overview

Dimensions (LxWxH): 108.3 mm × Φ122 mm (4.3" × Φ4.8")
Weight: 1.5lbs / 685g

  1. Rear Cable Notch
  2. Camera Base
  3. Adjustment Screw
  4. Camera Lens
  5. Infrared Lights
  6. Camera Dome Cover
  7. Ball Camera
  8. MicroSD Card Slot
  9. Reset Button


Package Contents:

4K Motorized Varifocal IP Camera

Mounting Kit*

Allen Key*


*Per camera in multi-camera packs.
  1. 4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
  2. Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
  3. In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit lorextechnology.com/compatibility
  4. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  5. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  6. Not intended for submersion in water. Installation in a sheltered area recommended.



All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

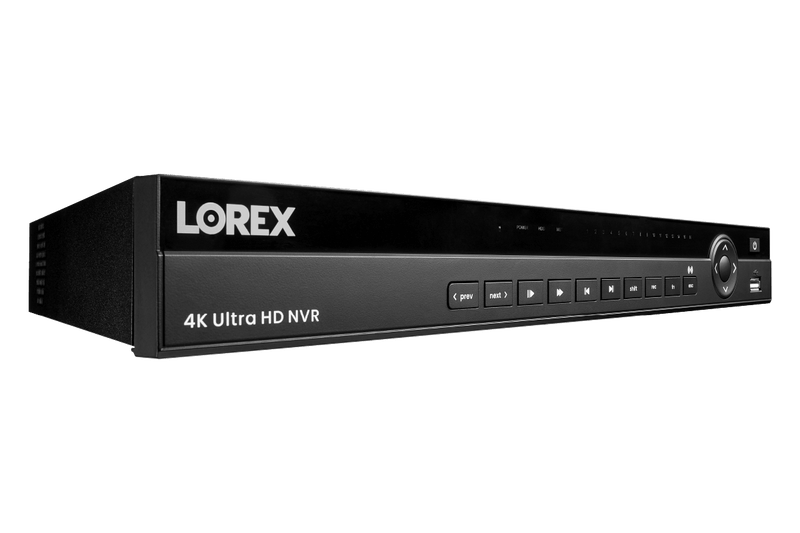

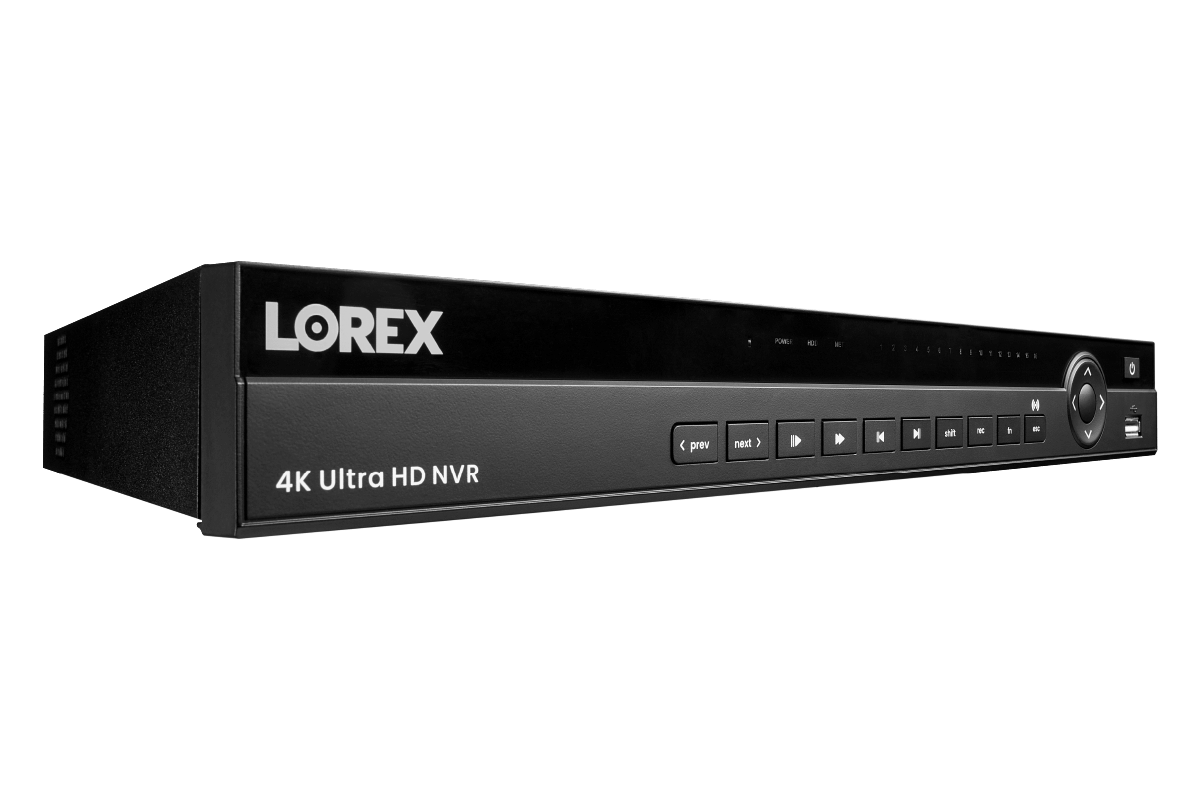

N883 Front Overview
  1. Power, Hard Drive & Network Statuses
  2. Channel Statuses
  3. Navigation Controls
  4. Power Button
  5. Playback Controls
  6. Switch Keyboards (shift)
  7. Start/Stop Recording (rec)
  8. Special Functions (fn)
  9. Back/Cancel (esc)
  10. Info Button
  11. USB Port

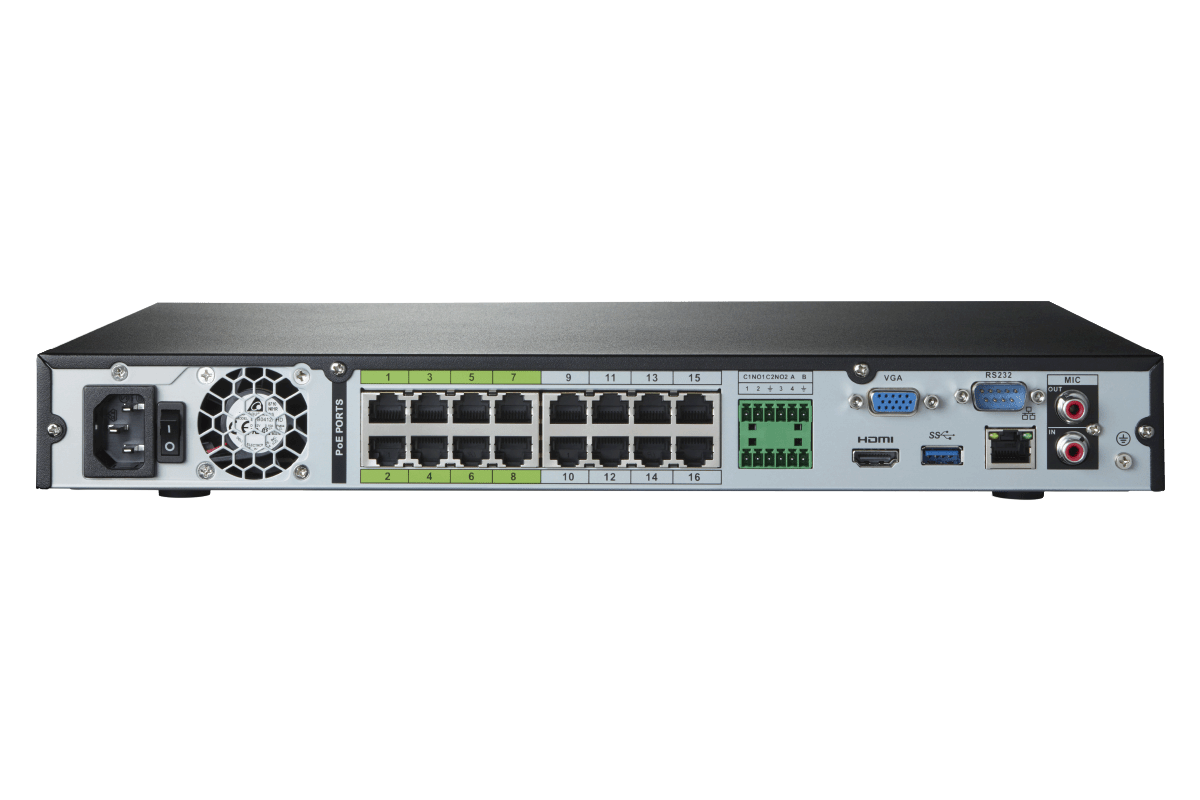

N883 Back Overview
  1. Power Connection
  2. Power Switch
  3. Camera Connection (ePoE)
  4. Camera Connection (PoE)
  5. RS485 Alarm
  6. Monitor Connection (VGA)
  7. RS232
  8. Audio In/Out
  9. Monitor Connection (HDMI)
  10. USB Port
  11. Network Connection (LAN)

Package Contents:

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

  • 4K (8MP) IP cameras are required to take advantage of 4K recording.
  • Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  • Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
  • Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6 Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  • Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  • HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  • Both firmware and software must be updated to latest version to ensure remote connectivity.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

LNZ81P25 Front Overview

Weight: 5.3kg (11.7lbs)

Package Contents:

1 × PTZ camera

1 × Wall mount

1 × Power adapter & cable

4 × Mounting anchors, screws & flat washers

1 × ESD gloves

1 × Waterproof tape

1 × Waterproof connector

1 × Safety chain

1 × Allen key (A)

1 × Torx key (B)

3 × M6x14 screws

1 × Rubber ring


  1. Compatible with select Lorex analog HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Full color nighttime video typically switches to black & white IR night vision below 1 lux to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depend on the installation location, viewing area, and light reflection/absorption level of an object. In low light, the camera will switch to black and white.
  4. Not intended for submersion in water. Installation in a sheltered area recommended.
  5. Digital zoom is a function controlled by the connected NVR. For a list of compatible NVRs visit: www.lorex.com/compatibility
  6. A Cat5e cable is required to connect to a compatible NVR. Not included.

Lorex products are designed for consumer and business use only and not for US federal governments, federally-funded projects or contractors subject to NDAA.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
