- Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
- Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
- Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
- Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
- For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
- Not intended for submersion in water. Installation in a sheltered location recommended.
- Cable length is dependent on product configuration. See product packaging for details.
- Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility

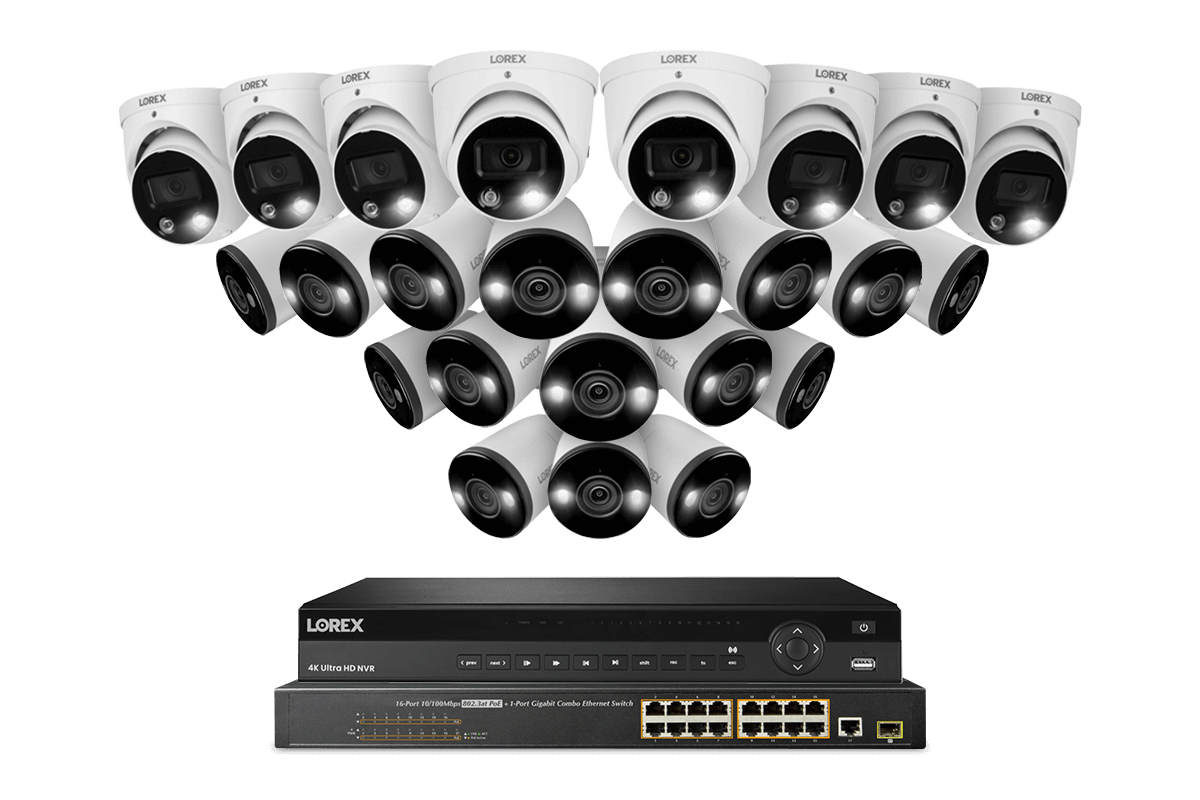

Know that your property is protected around-the-clock with this 4K Ultra HD security camera system from Lorex. This system includes a total of 24 active deterrence security cameras, a 32-channel Network Video Recorder (NVR), and a 16-channel PoE switch. Cameras feature Color Night Vision, Smart Motion Detection, and have motion LED lights and a warning siren to deter uninvited guests.
4K Ultra HD NVR System
32
CHANNELS
4K NVR can support
up to 32 cameras
4K
RESOLUTION
4× the resolution
of HD 1080p
150FT
NIGHT VISION
Maximum night
vision range
8TB
HARD DRIVE
Maximum Capacity 2 × 10TB hard drives

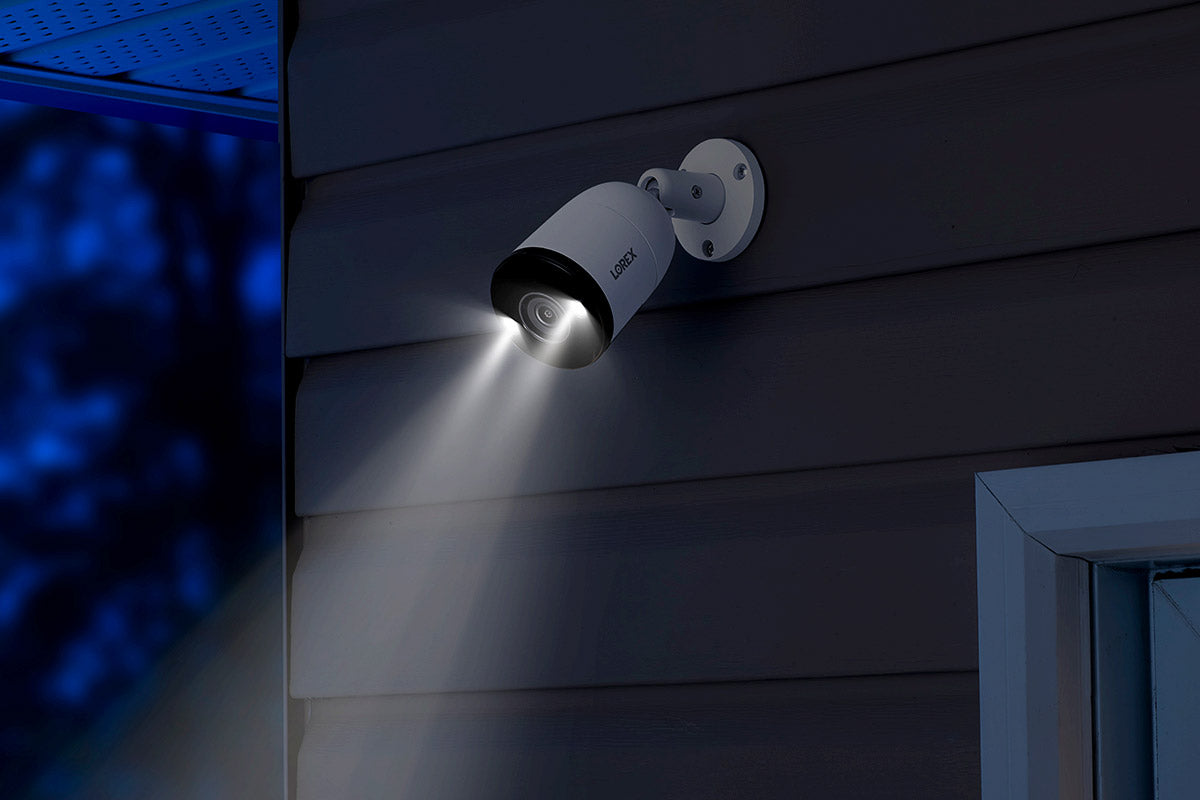

Take an active stance against uninvited guests

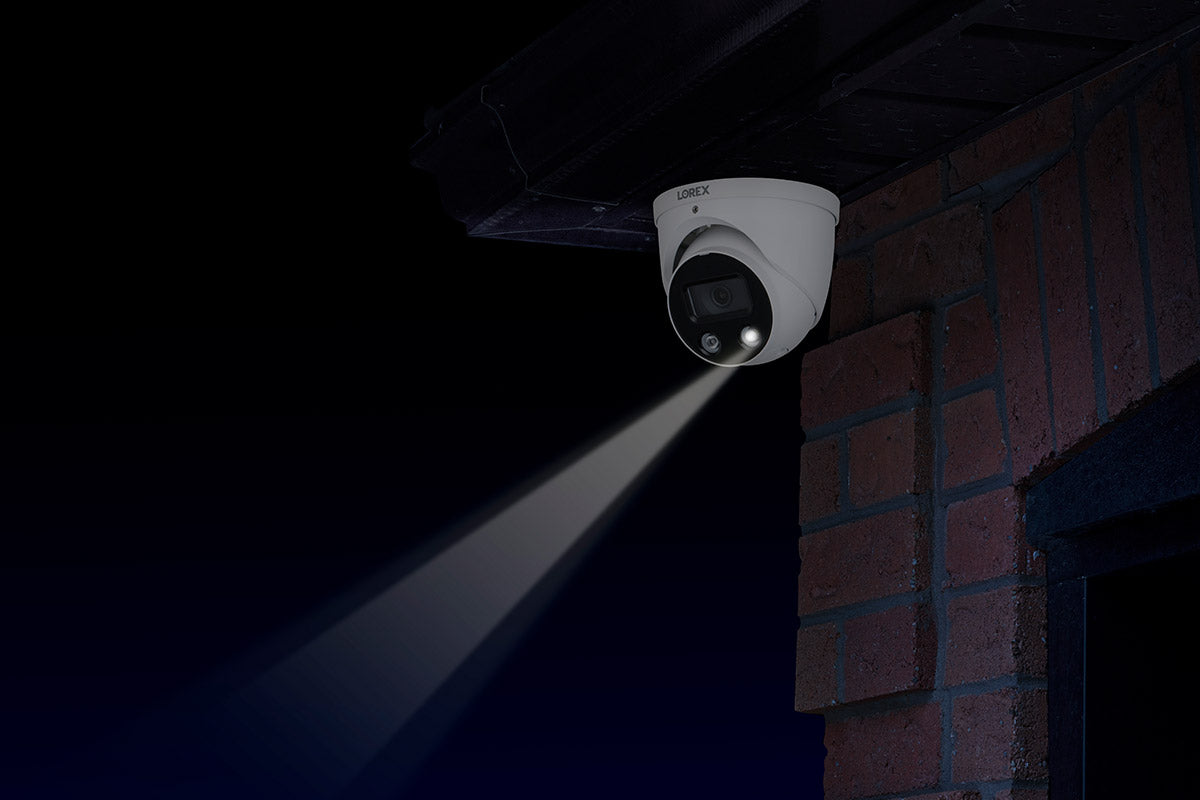

These cameras come with plenty of features that will help ward off uninvited guests. First, there is a motion-activated warning light that can be customized to only be triggered when a person or vehicle is detected. Second, you can use the siren that you can control from your Lorex Cloud app. When the camera sensors detect motion, the system will send a notification directly to your phone, allowing you to remotely access the camera and set off a loud warning alert.
Listen-in Audio and Two-Way Talk
A built-in speaker and microphone allows for two-way talk functionality. Listen-in audio recording on the cameras will add a whole new dimension to your overall security monitoring, as it can provide additional details (like a voice) should an incident occur. You can also use the Lorex Cloud app to communicate with those around the camera or deter unwanted guests.
Advanced Motion Detection
This system comes with advanced person and vehicle detection that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Cloud app whenever motion from a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals.
See in color through the night
The cameras features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects.
Long-range IR night vision
In regular nighttime conditions that are too dark for CNV to render full-color images, the cameras will use their infrared LEDs to record crisp black and white video footage up to 150ft (46m) away and up to 98ft (30m) in complete darkness.
Ultra HD
Resolution
All cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video.
High Dynamic
Range (HDR)
HDR improves video clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image.
High Efficiency
Video Coding (HEVC)
HEVC compresses video file sizes without any noticable difference in quality, which will save you lots of hard drive space.
Full Metal
Exteriors
Heavy-duty aluminum exteriors will extend the life-cycle so you can count on years of uninterupted service.
Easy PoE
Installation
IP cameras only need a single Cat5e ethernet cable to connect it to a compatible NVR for video, power and a stable network connection.
Built for the outdoors
While this camera is suitable for both indoor and outdoor use, it has been especially designed to withstand the harsh impacts of nature.
Remote mobile viewing with Lorex Cloud App
Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device. Connect your NVR to Lorex Cloud™ and securely access your system no matter where you are in the world. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of this app.
Works With

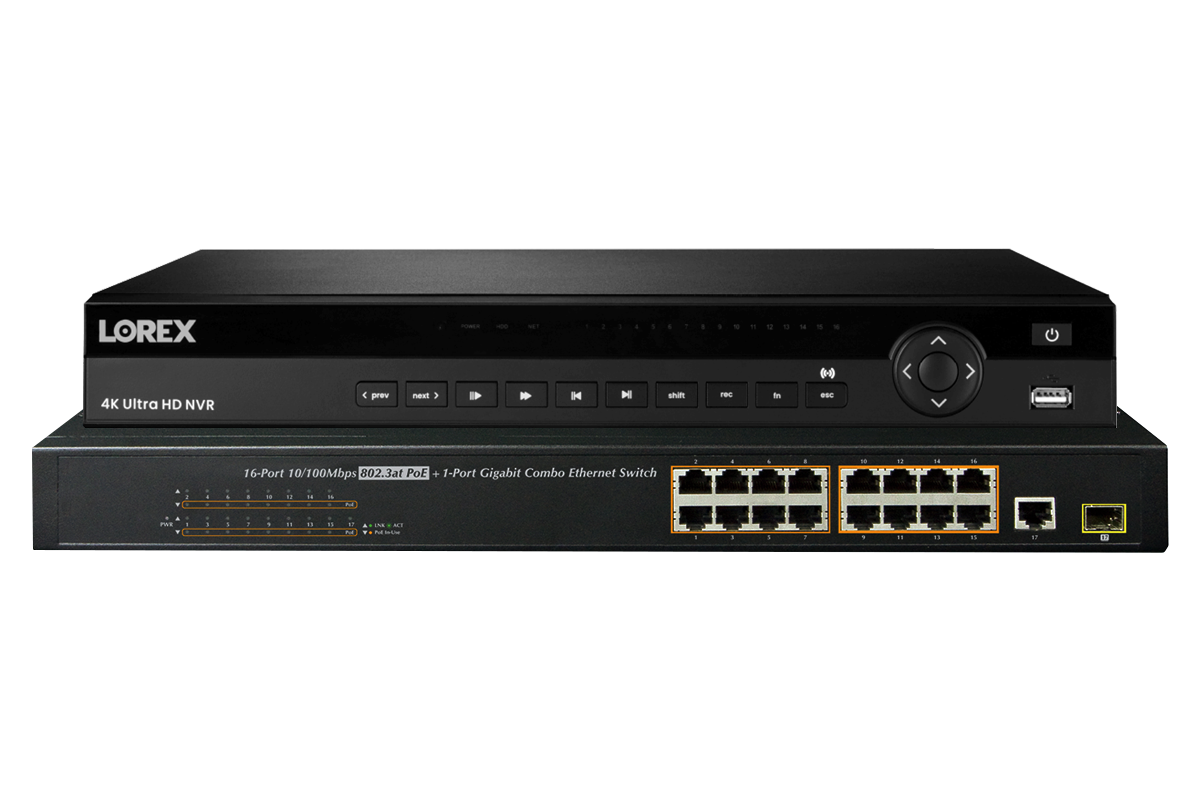

What is the included PoE switch for?

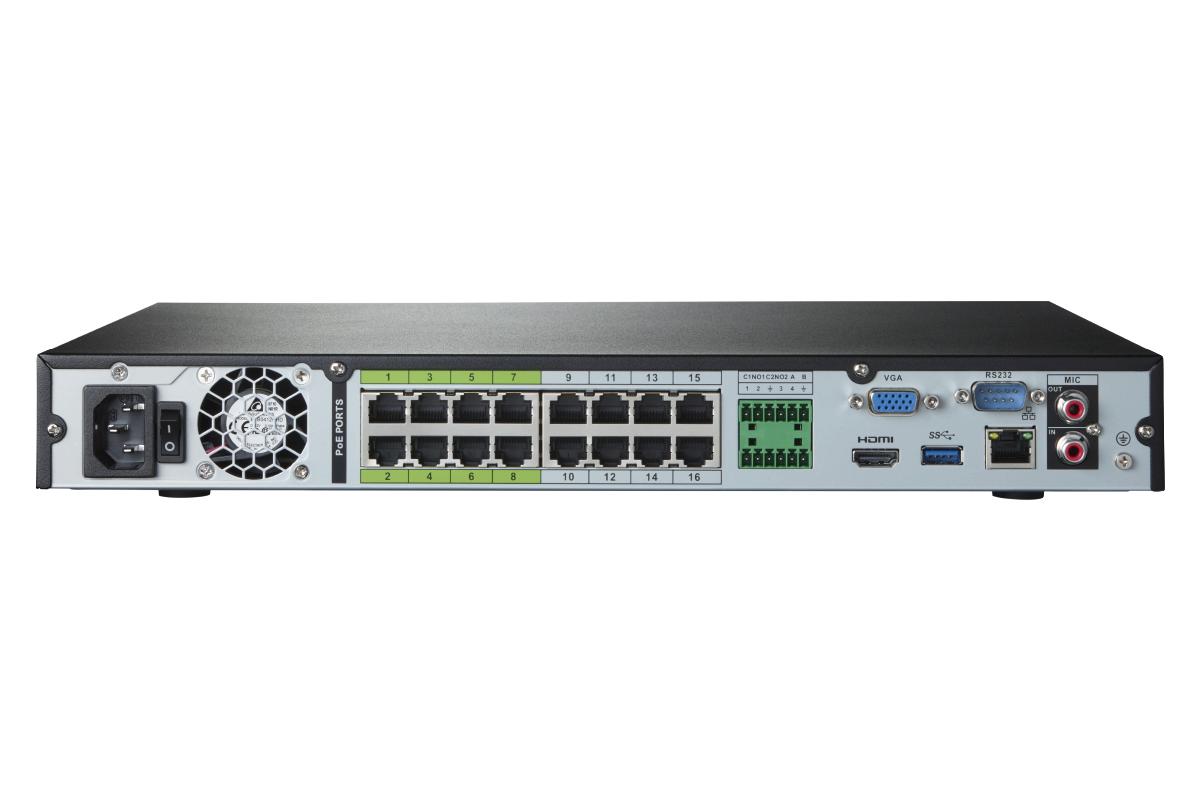

The 32-channel NVR supports up to 32 security cameras but only has 16 built-in PoE ports on the back. This is why a PoE switch has been included in this system. By connecting this PoE switch to your system you can utilize the remaining open channels.
Reliable security-grade hard drive preinstalled
An 8TB security grade hard drive (expandable up to 2 × 10TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.
Regional
Motion Zones
Using the NVR, you can program specific motion zones so that they are customized for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").
Privacy
Masking
In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.
Multiple Recording
Options
Record security footage continuously, during scheduled times, or when movement is detected. Motion recordings include a pre-recording function that will go back to record the five seconds before activity is detected.
What's Included?
- Record and view video up to 4K (8MP) resolution1
- View live footage in up to 30fps and digitally zoom in on distant objects for better clarity
- 2 hard drive bays with up to 2 × 10TB of storage space
- Security grade hard drive designed for advanced processing and the workload of 24/7 recording
- Storage mirroring for continuous back-up of data from one hard drive to another
- Get Motion push notifications when motion from a person/vehicle is detected2
- Reduce unnecessary alerts and false alarms with advanced motion detection4
- Use Smart Search to filter motion events for reviewing footage quickly and easily
- This NVR system contains a built-in 16-channel capacity
- Increase your surveillance area with adding a POE switch expanding your system up to 32 channels
Each N882A38B NVR Includes:
1 × 4K Ultra HD Pro Series NVR
1 × Power Adapter
1 × USB Mouse
1 × Ethernet Cable
1 × HDMI Cable
Quick Setup Guide
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- Both firmware and software must be updated to latest version to ensure remote connectivity.
- Centralized power distribution - Easy all-in-one PoE switch
- 1 Gigabit rated RJ45/SFP port for fast device/network connection
- High speed transmission of IP surveillance data
- 220W total PoE power budget (up to 30.8W per port)
- Convenient Real-time PoE usage LED indicators
Each ACCLPS263B Includes:
1 × PoE Switch
1 × Power cable

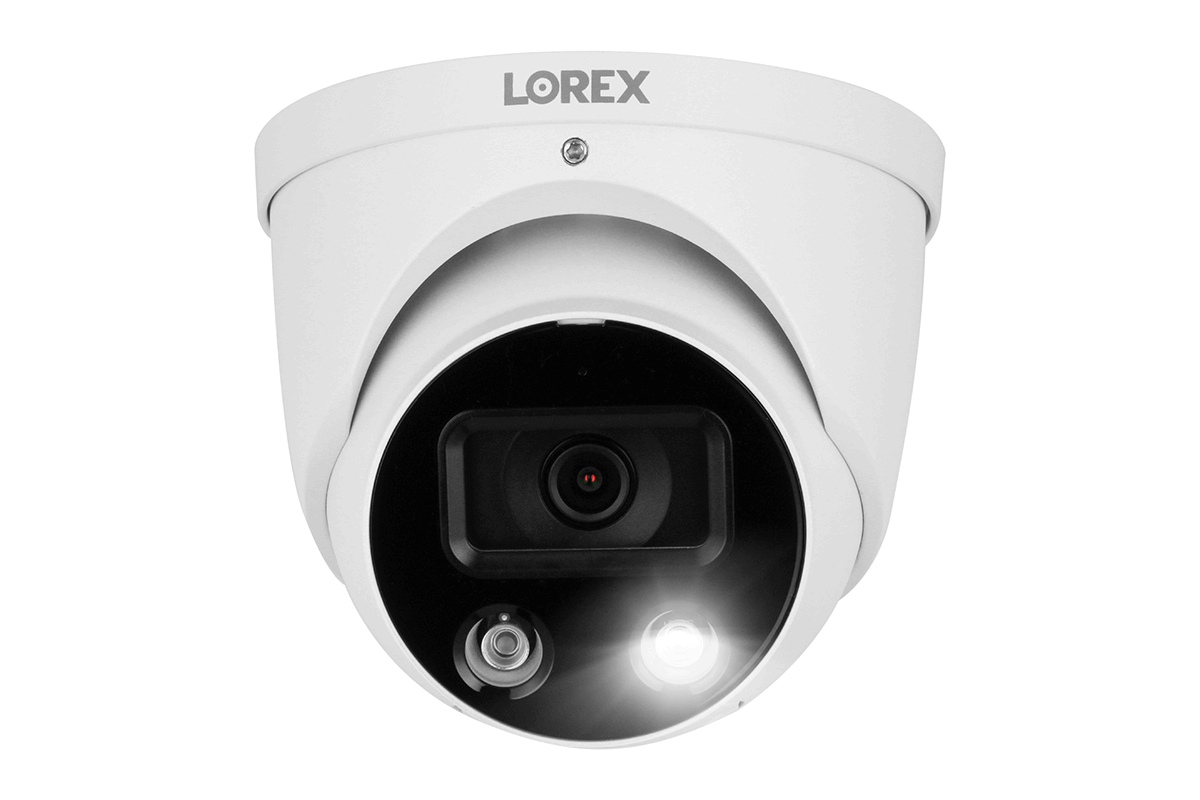

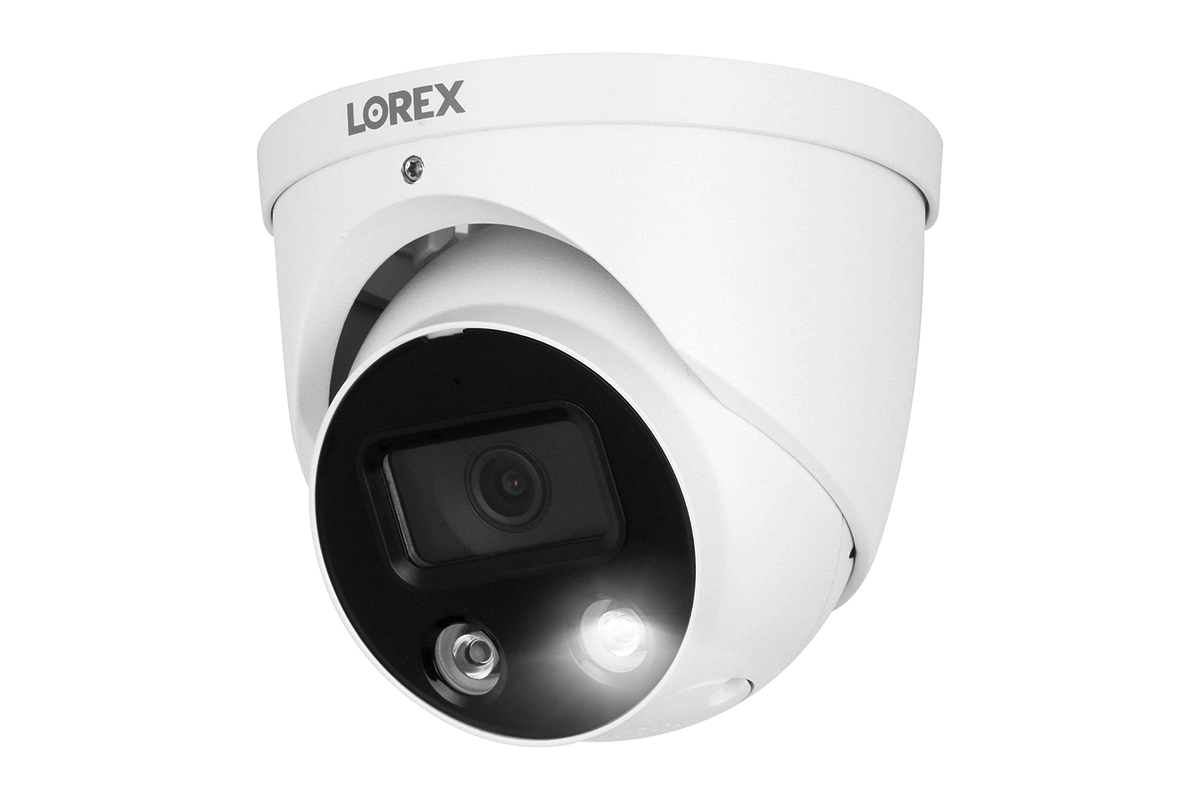

- 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
- See more with a wide-angle 108° field of view
- Superior nighttime clarity with Color Night Vision2
- Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness3
- Warning light can be programmed to illuminate when a person or vehicle is detected
- Enhanced Two-way Talk with Quick Response Messages lets you pre-record specific messages with your own voice
- Deter unwanted guests with the remote-activated siren
- Smart motion detection plus offers the option of either Face detection or Person and Vehicle Detection5
- Receive notifications when a person, vehicle or face is detected on your property from your Lorex Cloud™ app5
Each E893AB Series Includes:
1 × 4K IP Security Camera
1 × Mounting Kit
1 × Cat5e Ethernet Cable
1 × Quick Start Guide

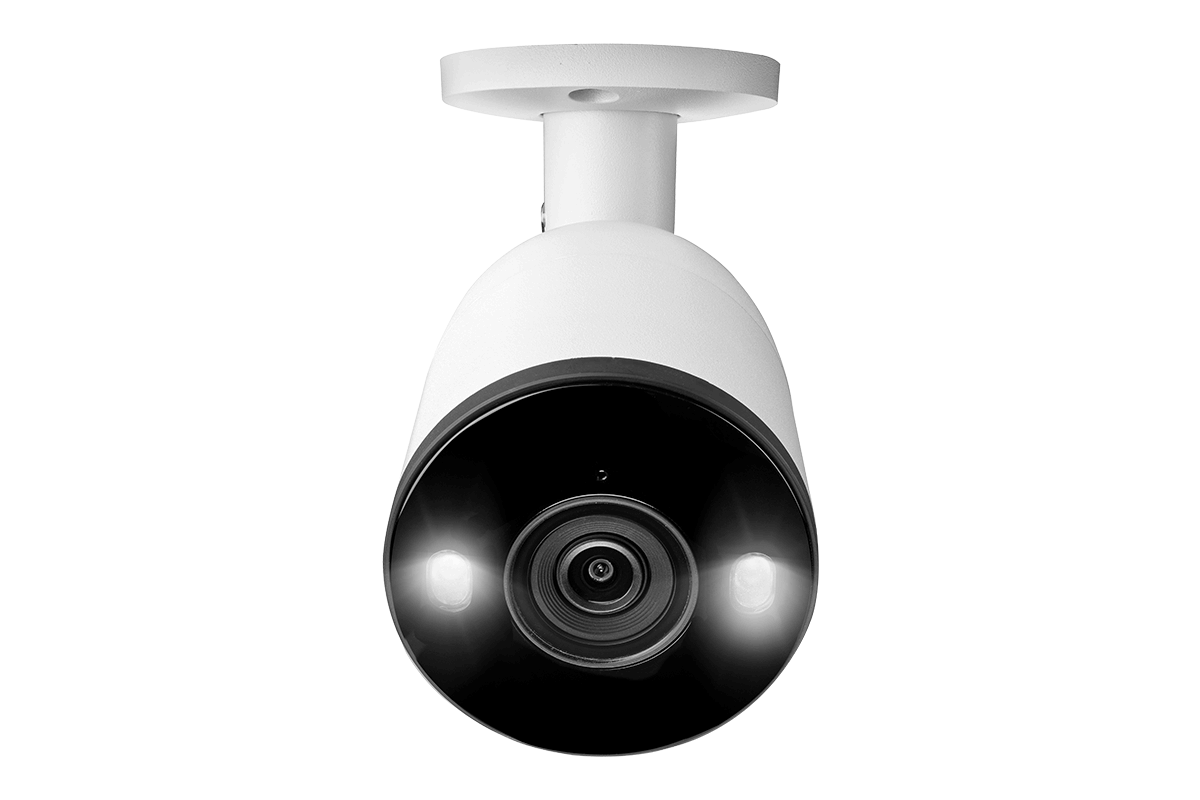

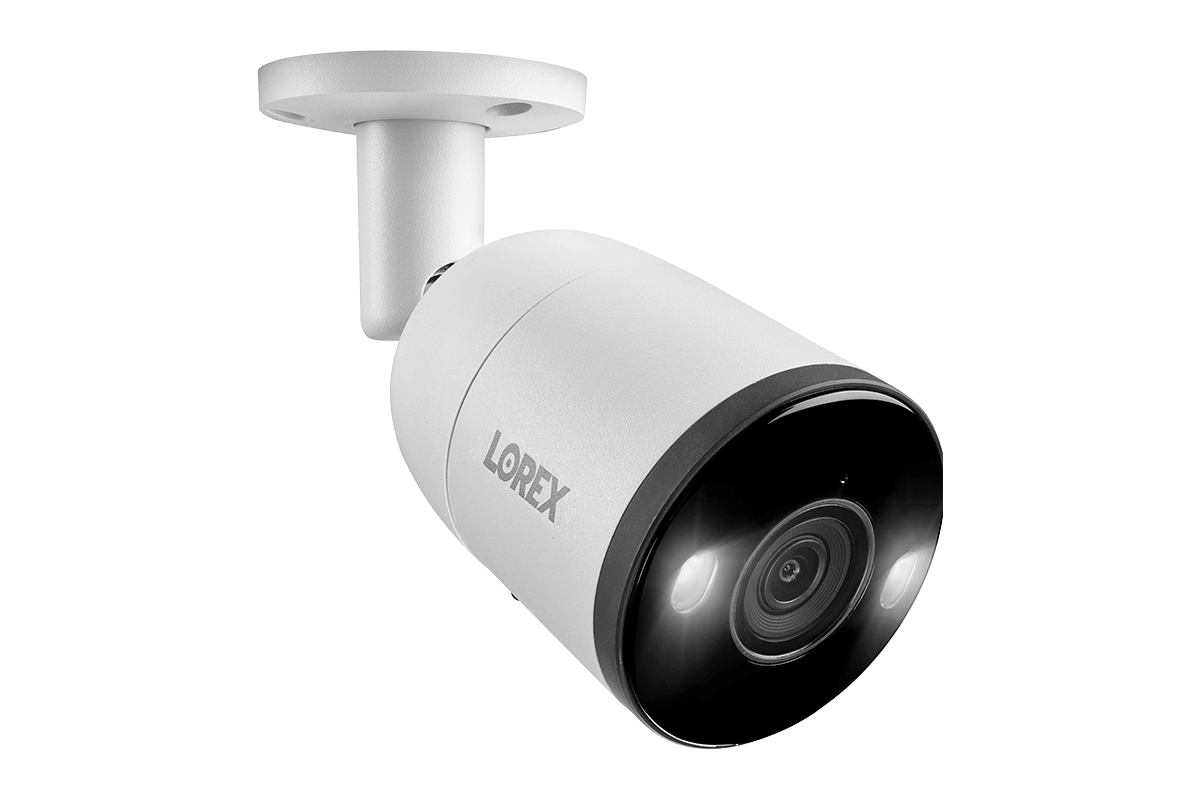

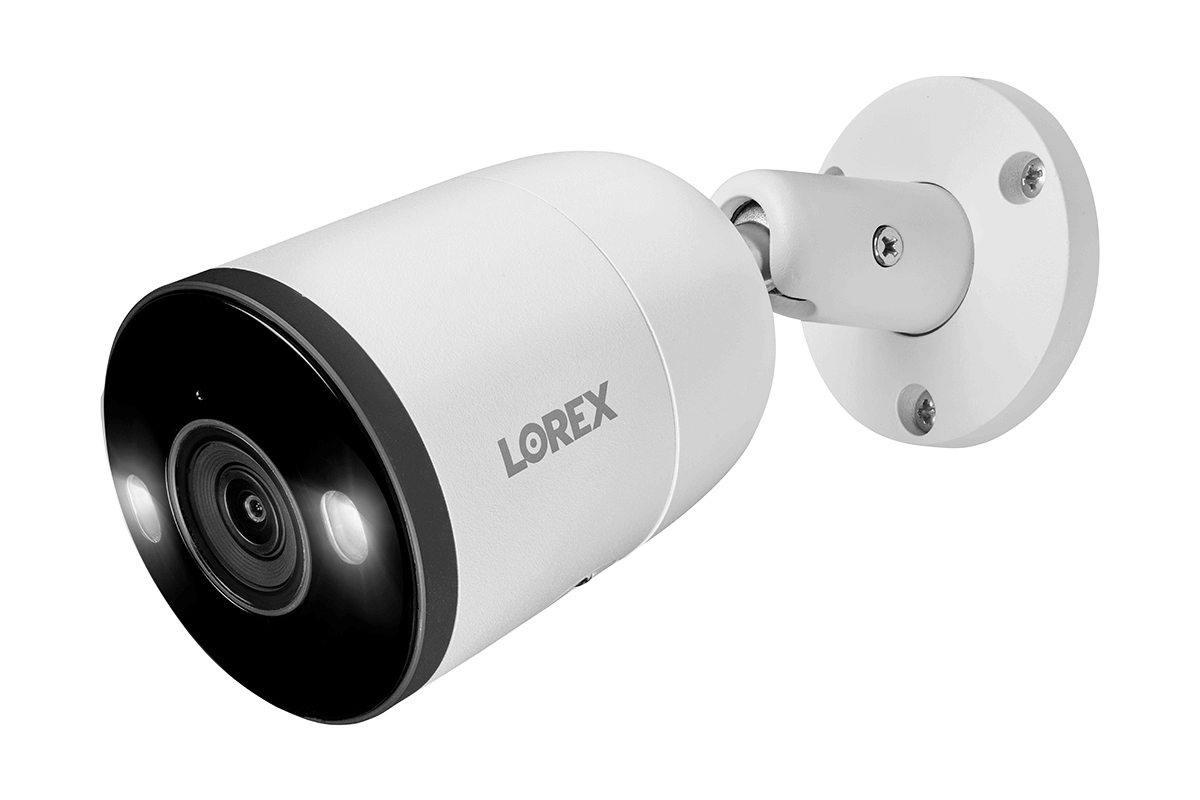

- 4K (8MP) Ultra HD resolution1
- 108° horizontal field of view
- Color Night Vision2
- Up to 150ft (46m) IR night vision in low light condition. Up to 98ft (30m) in total darkness3
- Get notifications from your Lorex Cloud™ app
- Automatic warning light during person or vehicle detection
- Remote-activated siren
- Built-in microphone and speaker for 2-Way Talk5
- IP67 (Indoor/Outdoor) Environmental Rating6
Each E893DD Includes:
1 × 4K IP Security Camera
1 × Mounting Kit
1 × Cat5e Ethernet Cable*
1 × Quick Start Guides
*Cable length is dependent on product configuration. See product packaging for details.
- Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
- Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
- Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
- For Face Detection and Mask Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
- Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
- Not intended for submersion in water. Installation in a sheltered location recommended.
