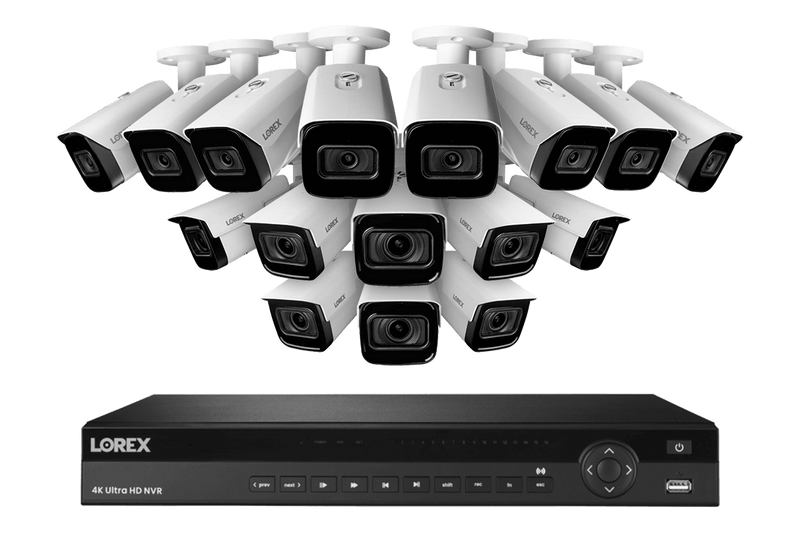

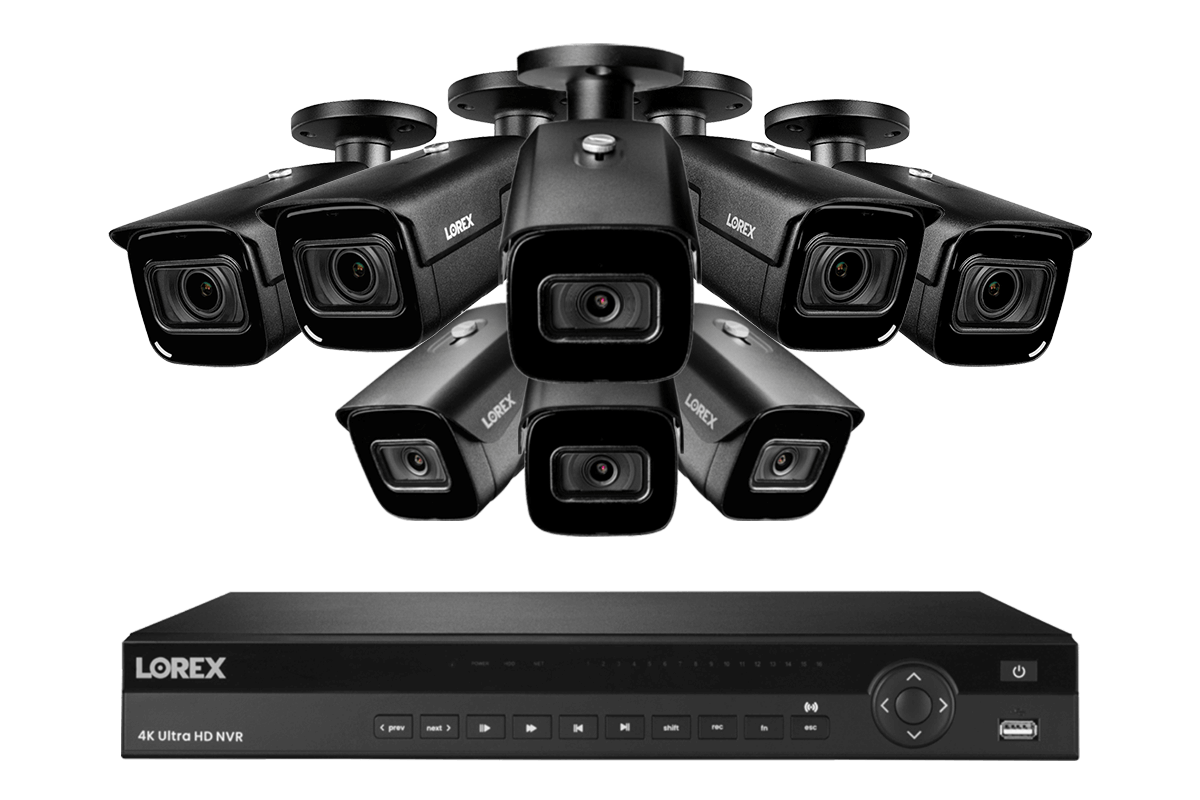

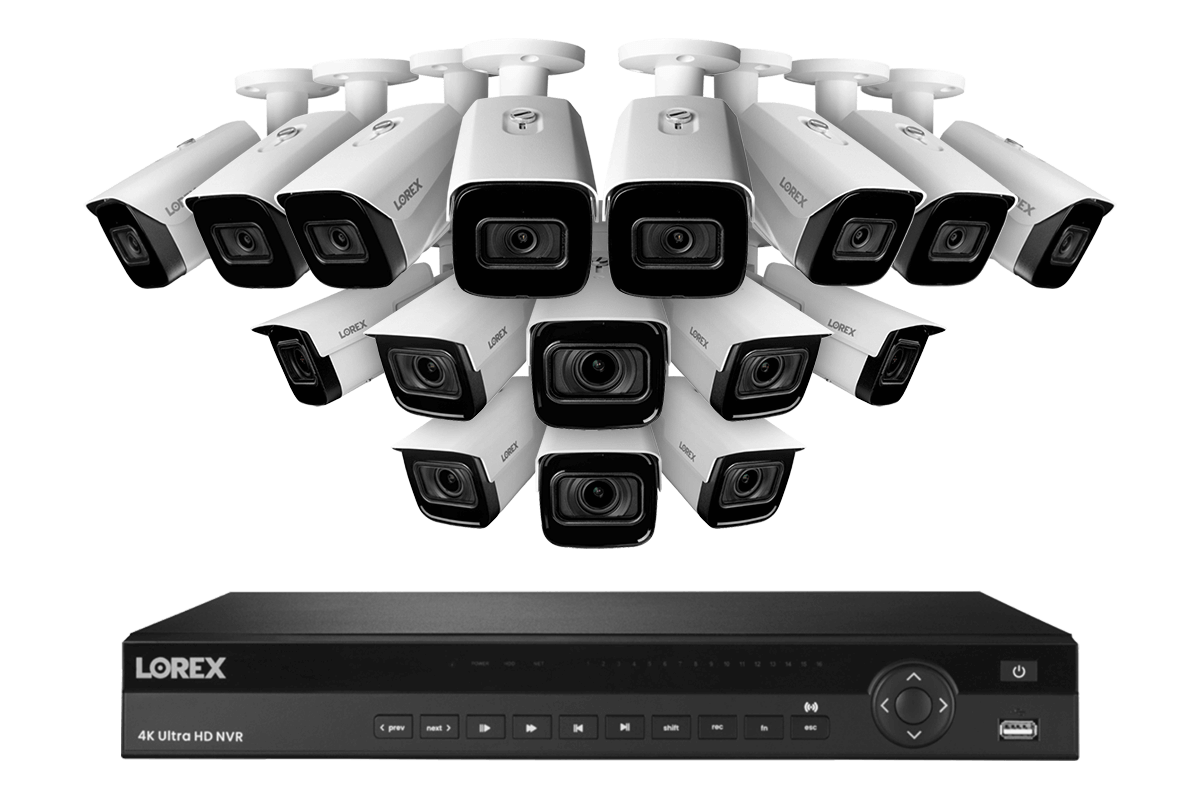

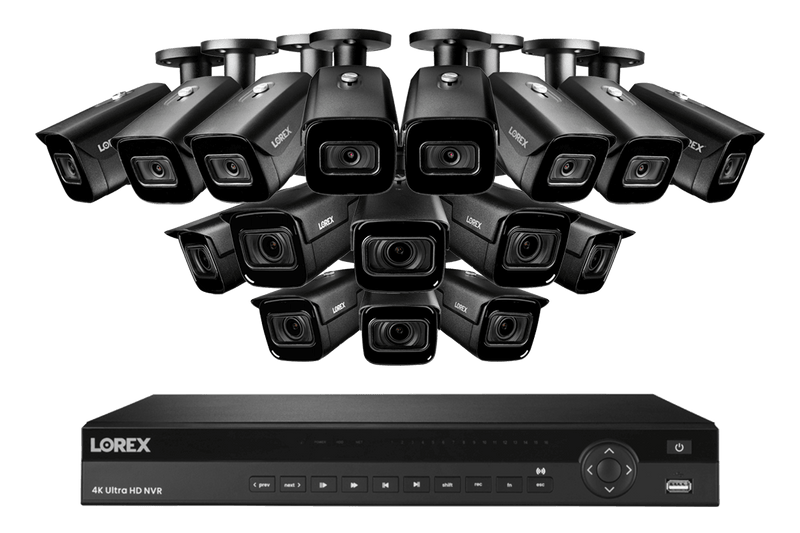

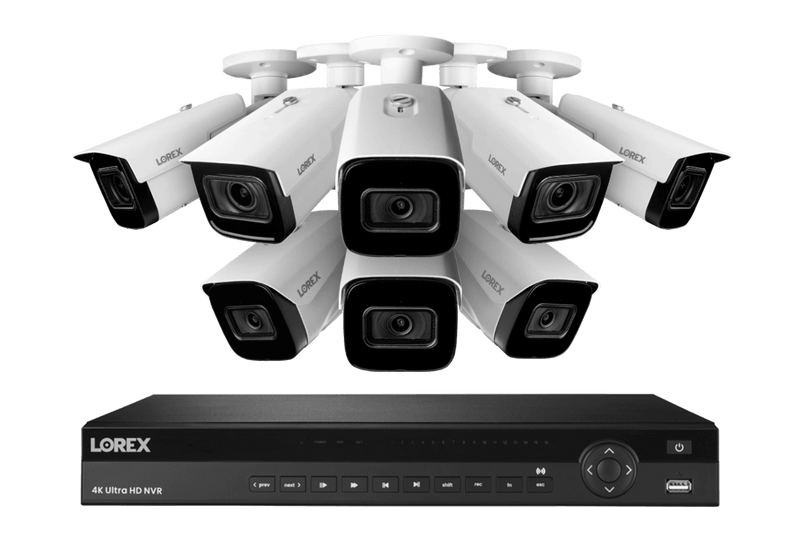

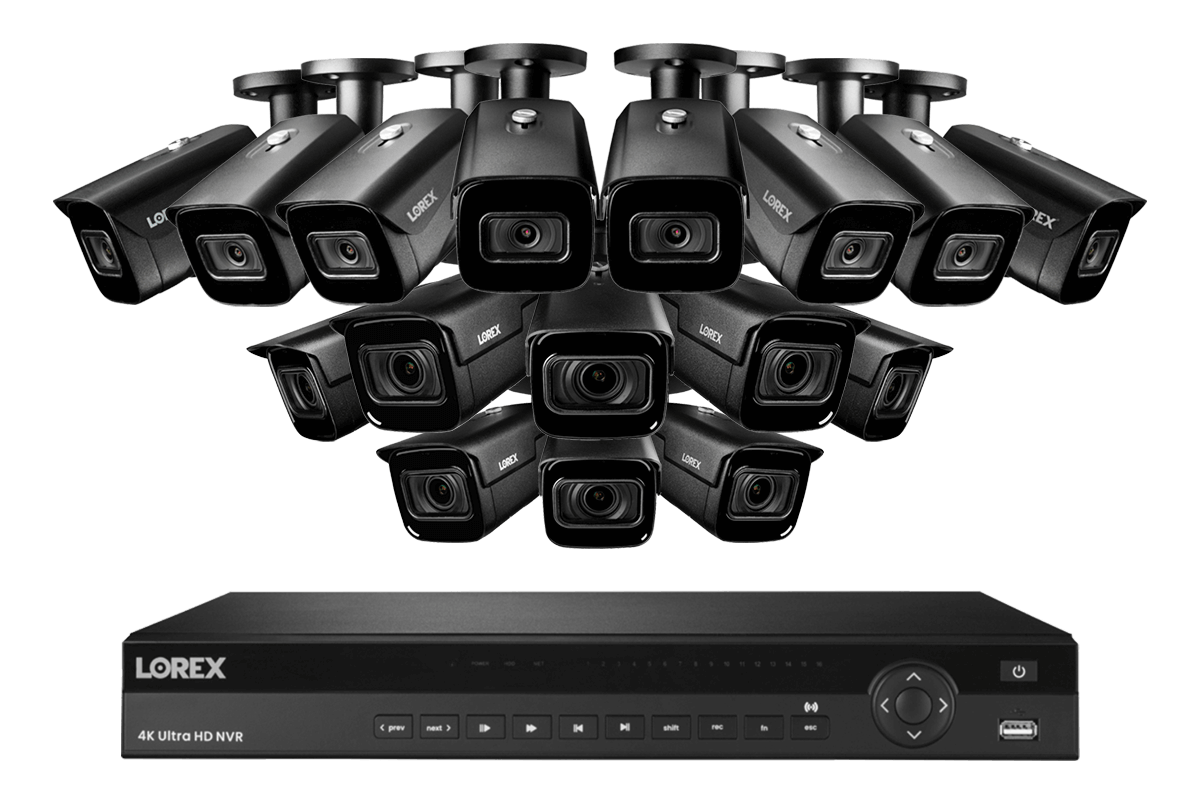

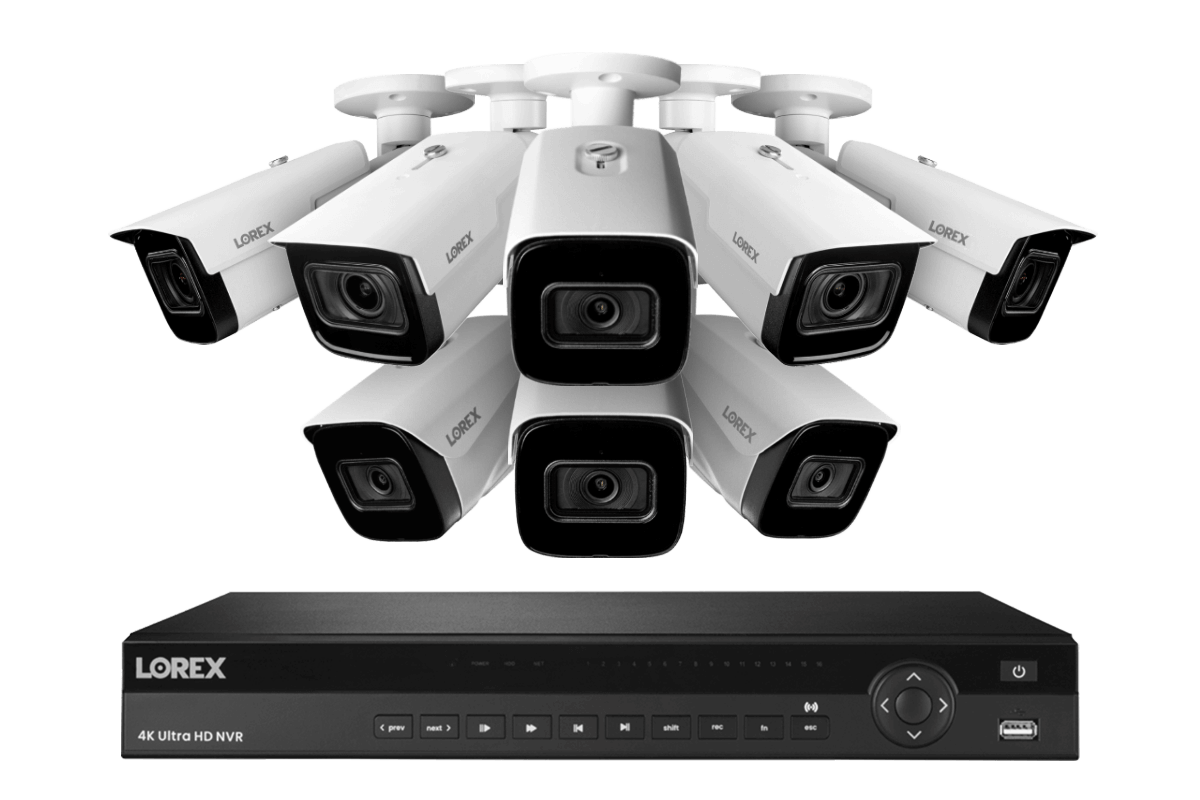

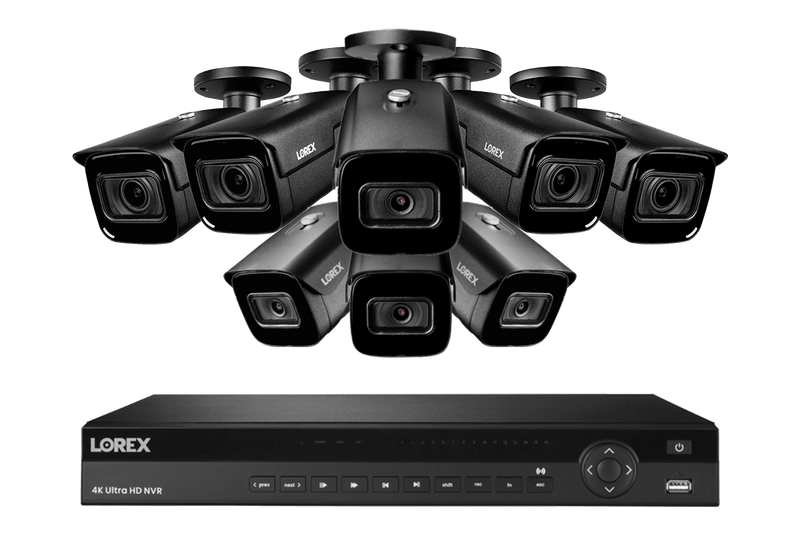

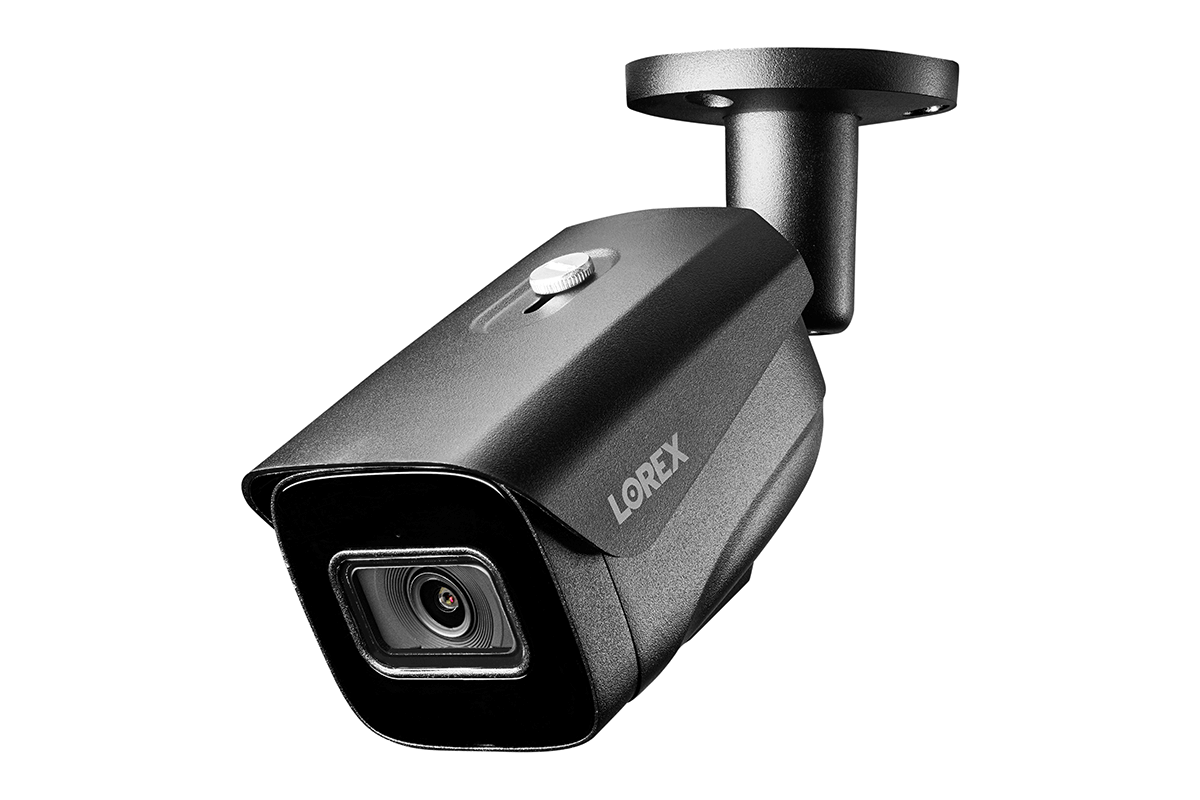

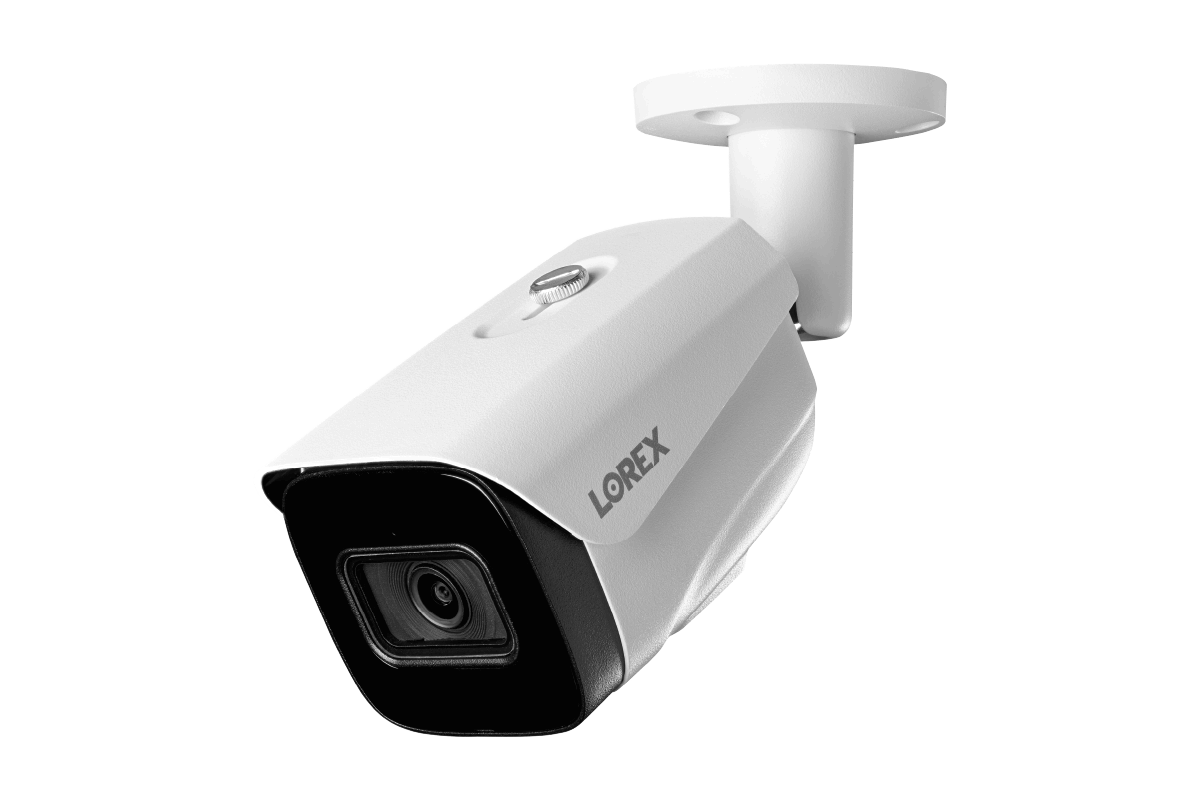

Lorex 16-Channel Smart 30 FPS 4K 4TB NVR System with Nocturnal 3 Listen-in Audio IP Cameras & Motorized Varifocal IP Cameras

NC4K4FMV-1644BB
Number of cameras:
Color:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Professionally protect your property day and night with this 16-channel NVR System featuring Nocturnal IP Security Cameras. Along with real-time 30fps 4K recording, Color Night Vision, and Smart Motion Detection, these security cameras include listen-in audio (LNB9242B and LNB9252B) and motorized optical zoom lenses (LNB9282B and LNB9292B). These features make this system an incredibly versatile security solution perfect for a large home, small business, office, or commercial facility.


NC4K4FMV-1644BB

NC4K4FMV-1644WB

NC4K4FMV-1688BB

NC4K4FMV-1688WB
# of cameras 4 × LNB9242B
4 × LNB9282B
4 × LNB9252B
4 × LNB9292B
8 × LNB9242B
8 × LNB9282B
8 × LNB9252B
8 × LNB9292B
Color Black White Black White

16

CHANNELS

4K NVR can support up to 16 cameras

4K

RESOLUTION

4× the resolution of HD 1080p

150FT

NIGHT VISION

Maximum nightvision range

4TB

HARD DRIVE

Maximum Capacity 2 × 10TB hard drives

Expect the best from Nocturnal Smart IP security cameras. They offer real-time (30 frames per second) 4K Ultra HD resolution video, long-range night vision, smart motion detection, as well as a weatherproof metal exterior that will protect them for years to come.

Real-time 30fps

Don't miss a moment with our Real-Time 4K Nocturnal Security Cameras. With 30 frames recorded within each second, the on-screen movement will look like you are witnessing events in real life.*

Color Night Vision

This camera features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera.

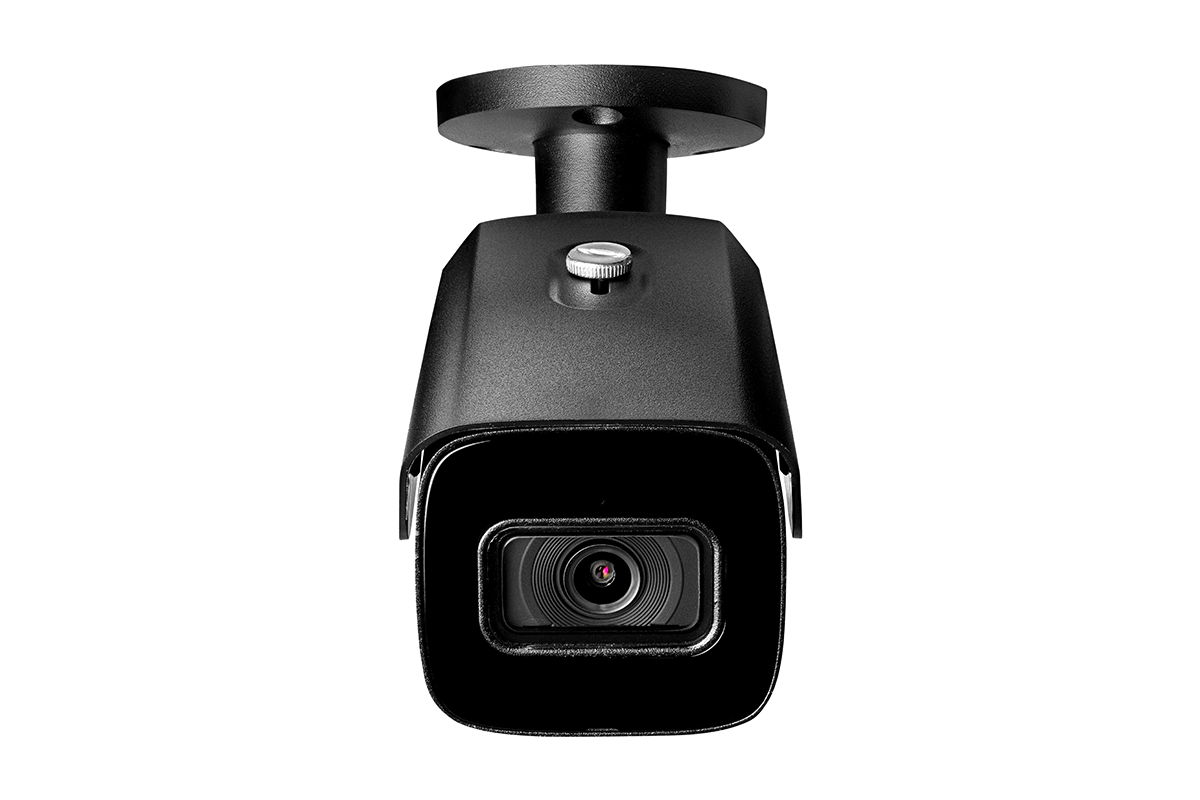

Listen-in Audio

Add another layer of security coverage with our LNB9242B and LNB9252B Nocturnal audio security cameras. Adding audio can add valuable information (such as voices) to your security system**.

*When Smart Motion Detection is enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second.
**Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.

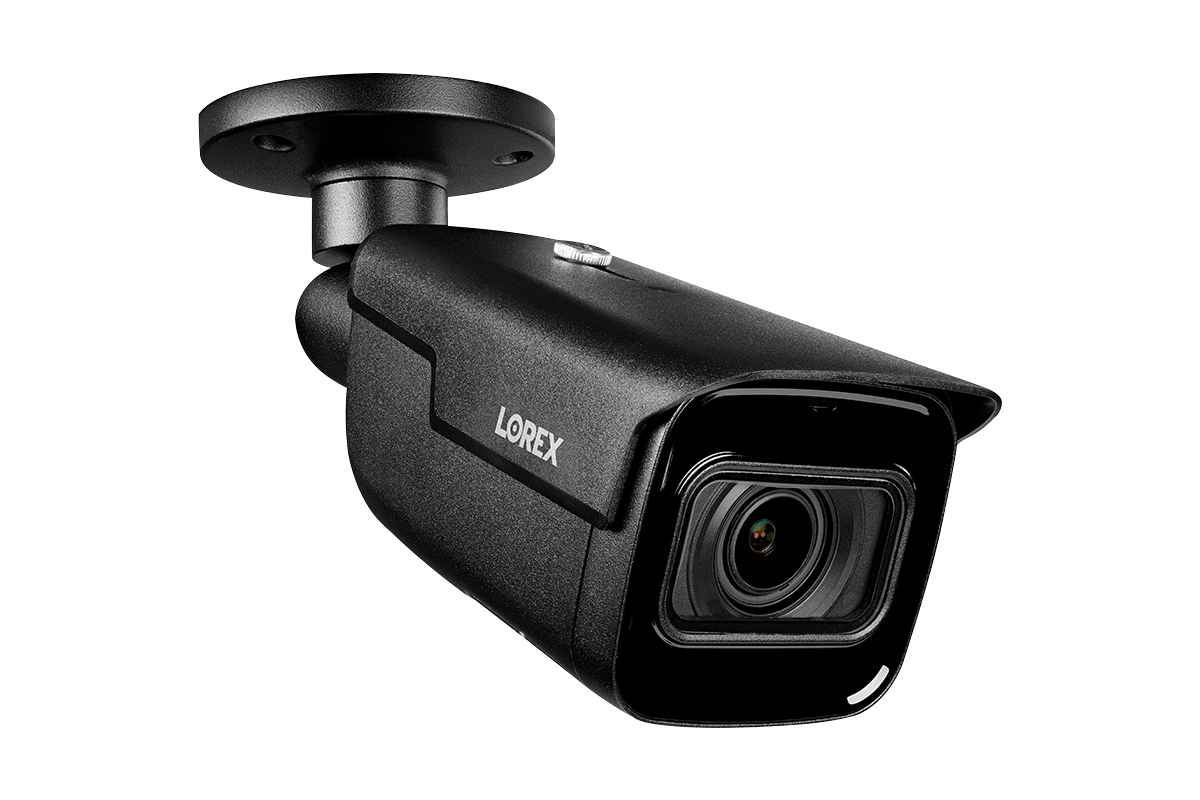

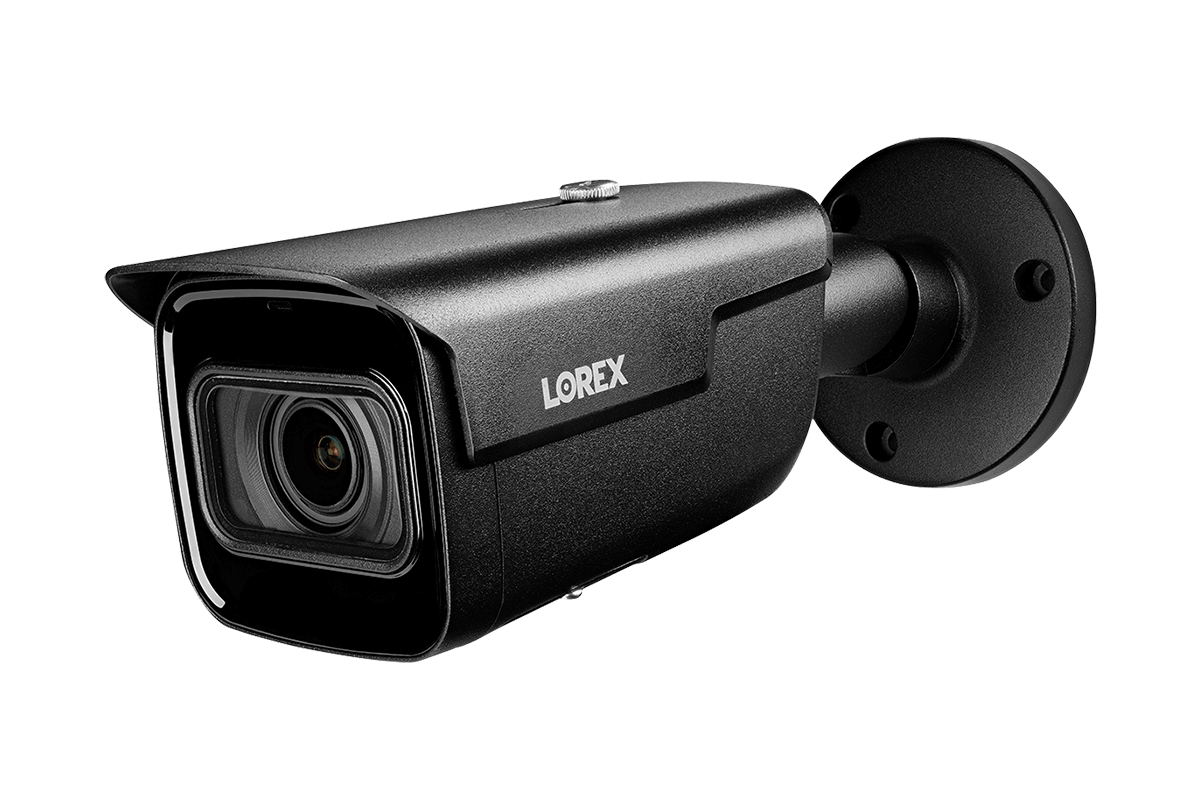

Motorized Varifocal Lenses


4× Optical Zoom Security Camera

The LNB9282B and LNB9292B varifocal cameras are able to zoom in and out using their 4× optical zoom lenses. Optical zooms mean that no video quality is lost when you are zoomed in, making these cameras extremely versatile.

Advanced Motion Detection

This system comes with Smart Person and Vehicle Detection that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Cloud app whenever motion from a person/vehicle is detected on your property*. This effectively reduces the number of unwanted false alerts.

*Please note that the mobile push notifications will not differentiate between a vehicle or person event.

4K Ultra HD Resolution

Ultra HD
Resolution

Nocturnal security cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video and incomparable low-light performance.

Color Night Vision

Infrared and
Color Night Vision

Nocturnal security cameras have the longest night vision ranges available. With the help of external lighting, these cameras will also record in full color all night long.

High Dynamic Range

High Dynamic
Range (HDR)

Using HDR technology, Nocturnal security cameras will automatially adjust the lighting in certain spots to ensure no areas are too overexposed or too dark to see details.

HEVC Compression

High Efficiency
Video Coding (HEVC)

Keep the 4K footage without the 4K file size. HEVC is used by Nocturnal cameras to drastically compress video file sizes without any noticable difference in quality.

Metal housing

Full Metal
Exteriors

Heavy-duty aluminum exteriors not only provide additional protection against vandalism, they will extend the life-cycle so you can count on years of uninterupted service.

Power Over Ethernet

Easy PoE
Installation

IP cameras only need a single Cat5e ethernet cable to connect it to a compatible NVR. This cable provides video transmission, power to the camera and a stable network connection.

Extreme Weather Capabilities

Rated IP67, Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-40°F | -40°C

Cold Rating

remote monitoring NR900 Lorex Cloud App

Remote mobile viewing with Lorex Cloud App

Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device. Connect your NVR to Lorex Cloud™ and securely access your system no matter where you are in the world. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of this app.

Works With


works with Apple iPhone
Apple iPhone
works with Apple iPad
Apple iPad
works with Android phones
Android Phone
works with android tablets
Android Tablet


iphone icon
Apple iPhone
ipad icon
Apple iPad
android phone icon
Android Phone
android tablet icon
Android Tablet

security certified NVR hard drive

Reliable security-grade hard drive preinstalled

A 4TB security grade hard drive (expandable up to 2 × 10TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record your footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.

Motion Zones

Regional
Motion Zones

Using the NVR, you can program specific motion zones so that they are customized for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").

Privacy Mask

Privacy
Masking

In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.

High Dynamic Range

Multiple Recording
Options

Record security footage continuously, during scheduled times, or when movement is detected. Motion recordings include a pre-recording function that will go back to record the five seconds before activity is detected.



What's Included?


NC4K4FMV-1644BB

NC4K4FMV-1644WB

NC4K4FMV-1688BB

NC4K4FMV-1688WB
# of cameras 4 × LNB9242B
4 × LNB9282B
4 × LNB9252B
4 × LNB9292B
8 × LNB9242B
8 × LNB9282B
8 × LNB9252B
8 × LNB9292B
Color Black White Black White

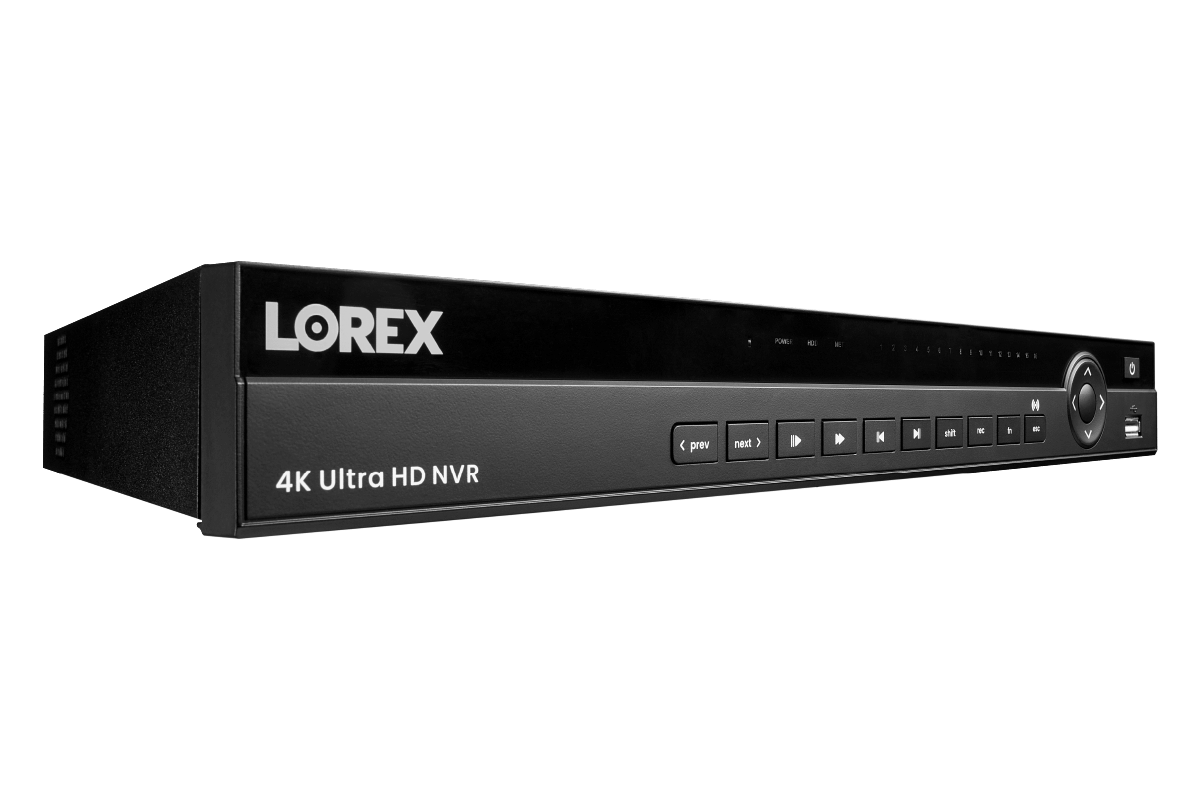

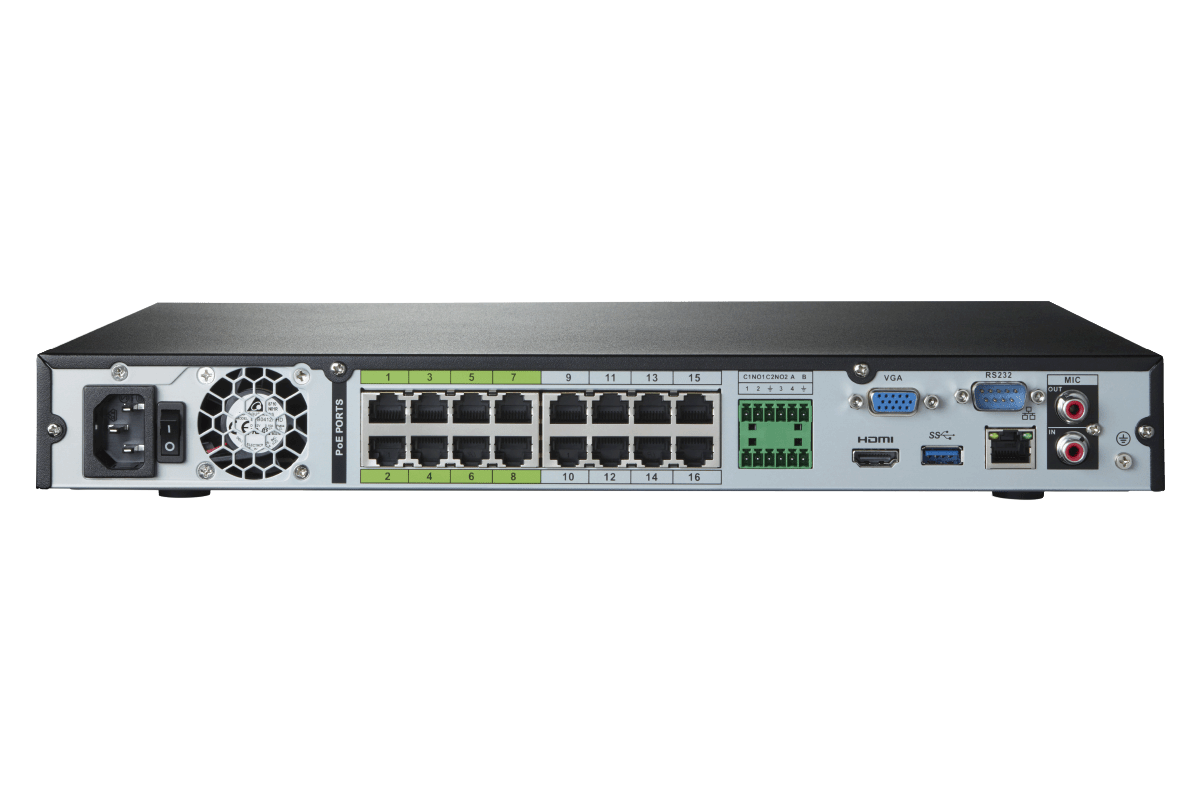

N882 dimensions
  • Record and view video up to 4K (8MP) resolution1
  • View live footage in up to 30fps and digitally zoom in on distant objects for better clarity
  • 2 hard drive bays with up to 2 × 10TB of storage space
  • Security grade hard drive designed for advanced processing and the workload of 24/7 recording
  • Storage mirroring for continuous back-up of data from one hard drive to another
  • Get Motion push notifications when motion from a person/vehicle is detected2
  • Reduce unnecessary alerts and false alarms with advanced motion detection4
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • This NVR system contains a built-in 16-channel capacity

Each N882A64B NVR Includes:

1 × 4K Ultra HD Pro Series NVR
1 × Power Adapter
1 × USB Mouse
1 × Ethernet Cable
1 × HDMI Cable
Quick Setup Guide
  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
  3. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  4. Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  5. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  6. Both firmware and software must be updated to latest version to ensure remote connectivity.

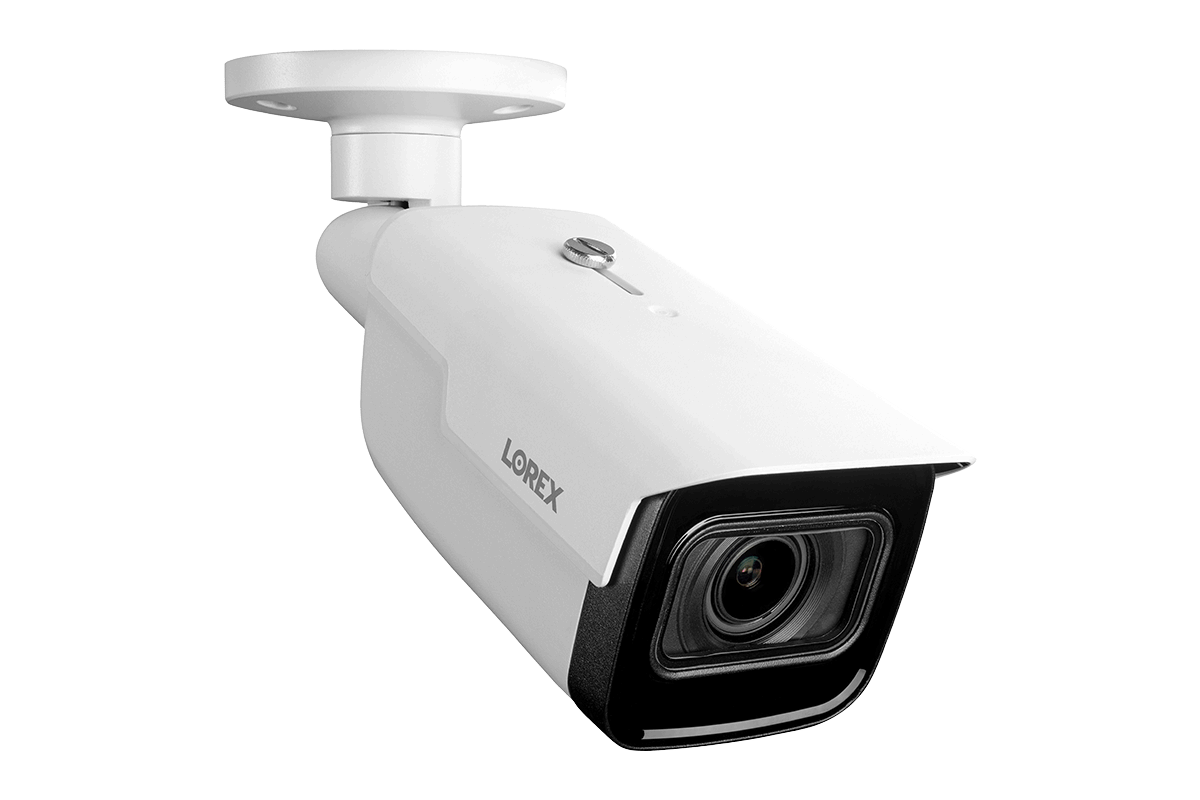

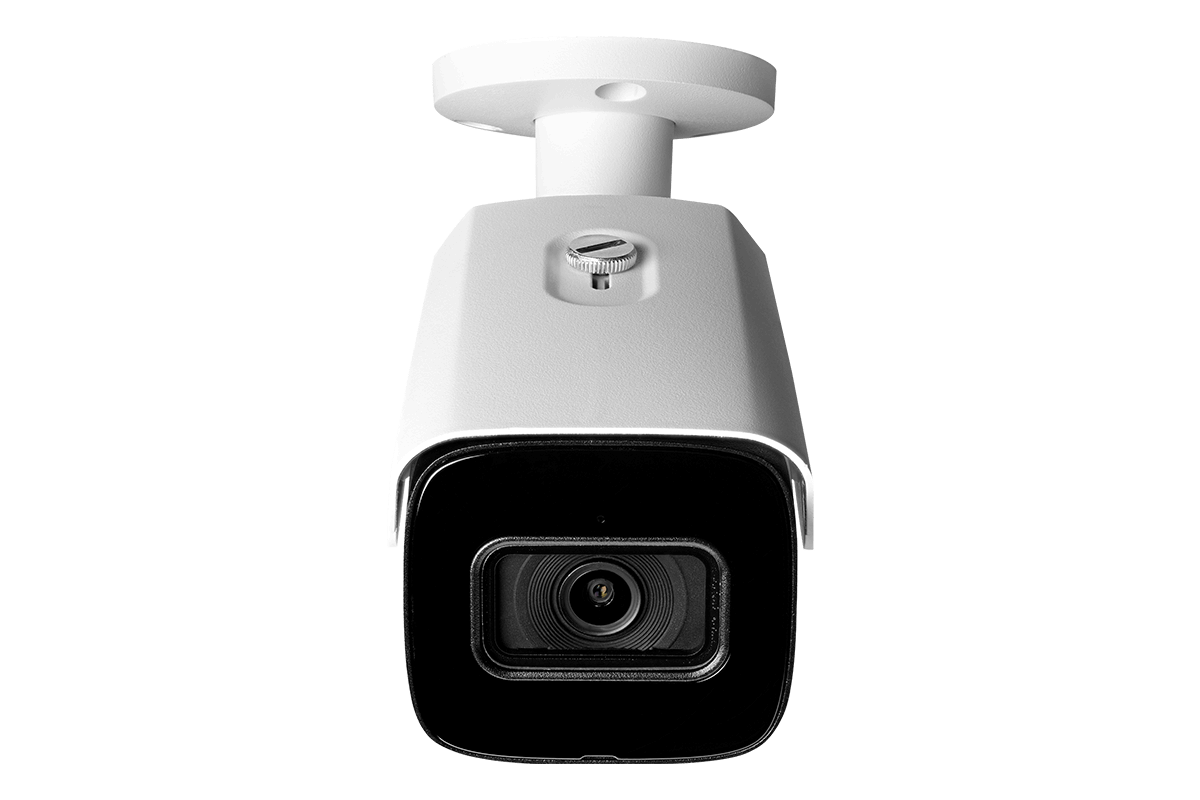

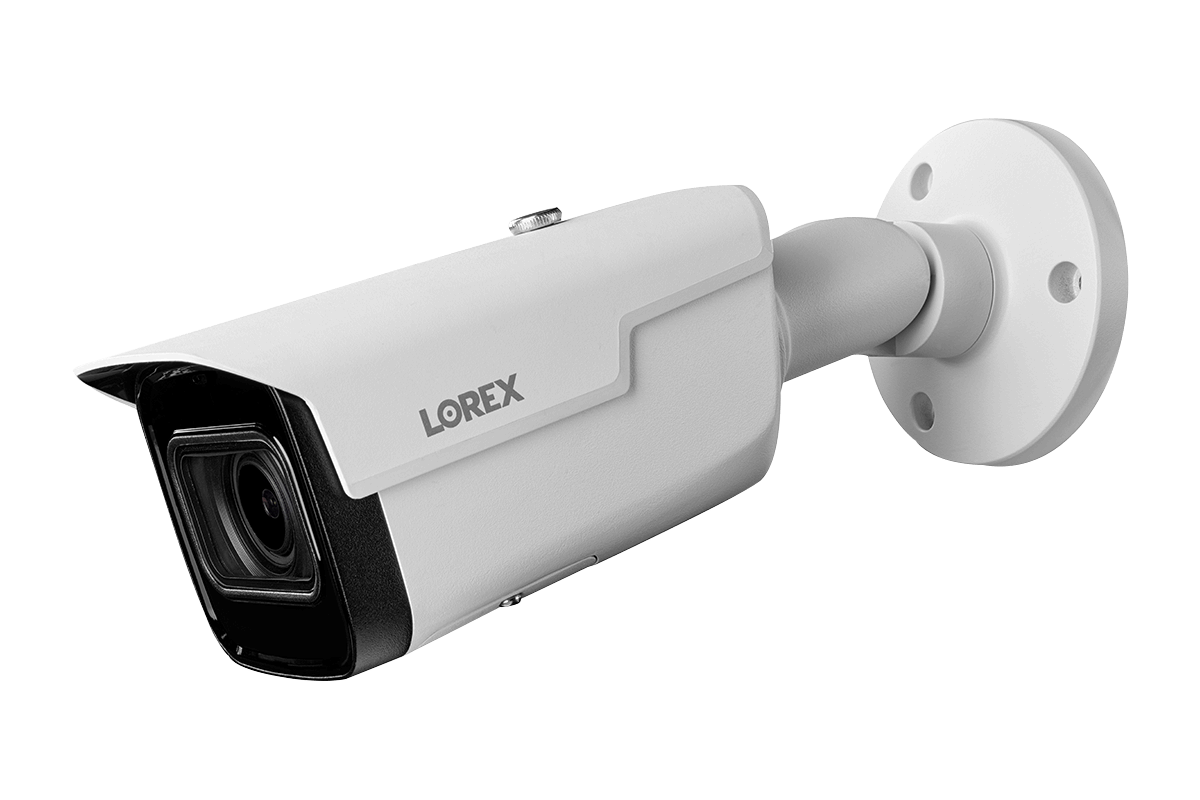

LNB9282B / LNB9292B Dimensions
  • 4K (8MP) Ultra HD resolution, ensuring clear and detailed footage1
  • See more with a with up to 113° field of view, depending on the level of zoom desired
  • Motorized varifocal lens provides 4× Optical zoom, enabling remote customization of your viewing area (and focus)
  • Record at a real-time 30 frames-per-second, providing smooth and clearer footage2
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection3
  • Receive motion notifications when only a person/vehicle is detected on your property from your Lorex App
  • Enhanced nighttime clarity with Color Night Vision™4 thanks to an impressive large format lens
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness5
  • Weatherproof rated (IP67)6
  • Operates in temperatures low as -40°F (-40°C) and high as 140°F (60°C)
  • Aluminum Alloy housing, designed to withstand harsh weather conditions

Each LNB9282B / LNB9292B Includes:

1 × IP Bullet Camera
1 × Ethernet Cable
1 × Mounting Kit
1 × Mounting Template
1 × Allen Key
  1. 4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
  2. Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
  3. In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit lorextechnology.com/compatibility
  4. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  5. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  6. Not intended for submersion in water. Installation in a sheltered area recommended.
  7. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
LNB9242B / LNB9252B Dimensions
  • 4K (8MP) Ultra HD resolution, ensuring clear and detailed footage1
  • See more with a with up to 107° field of view
  • Hear and record audio from your camera thanks to listen-in audio2
  • Record at a real-time 30 frames-per-second, providing smooth and clearer footage3
  • Enhanced nighttime clarity with Color Night Vision™4 thanks to an impressive large format lens
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness5
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection6
  • Receive motion notifications when only a Person or Vehicle is detected on your property from your Lorex App6
  • Weatherproof rated (IP67)7
  • Operates in temperatures low as -40°F (-40°C) and high as 140°F (60°C)
  • Aluminum Alloy housing, designed to withstand harsh weather condition

Each LNB9242B / LNB9252B Includes:

1 × IP Bullet Camera
1 × Ethernet Cable*
1 × Mounting Kit
1 × Mounting Template
  1. 4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
  2. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  3. Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
  4. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  5. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  6. In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit: lorextechnology.com/compatibility
  7. Not intended for submersion in water. Installation in a sheltered area recommended.
  8. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
