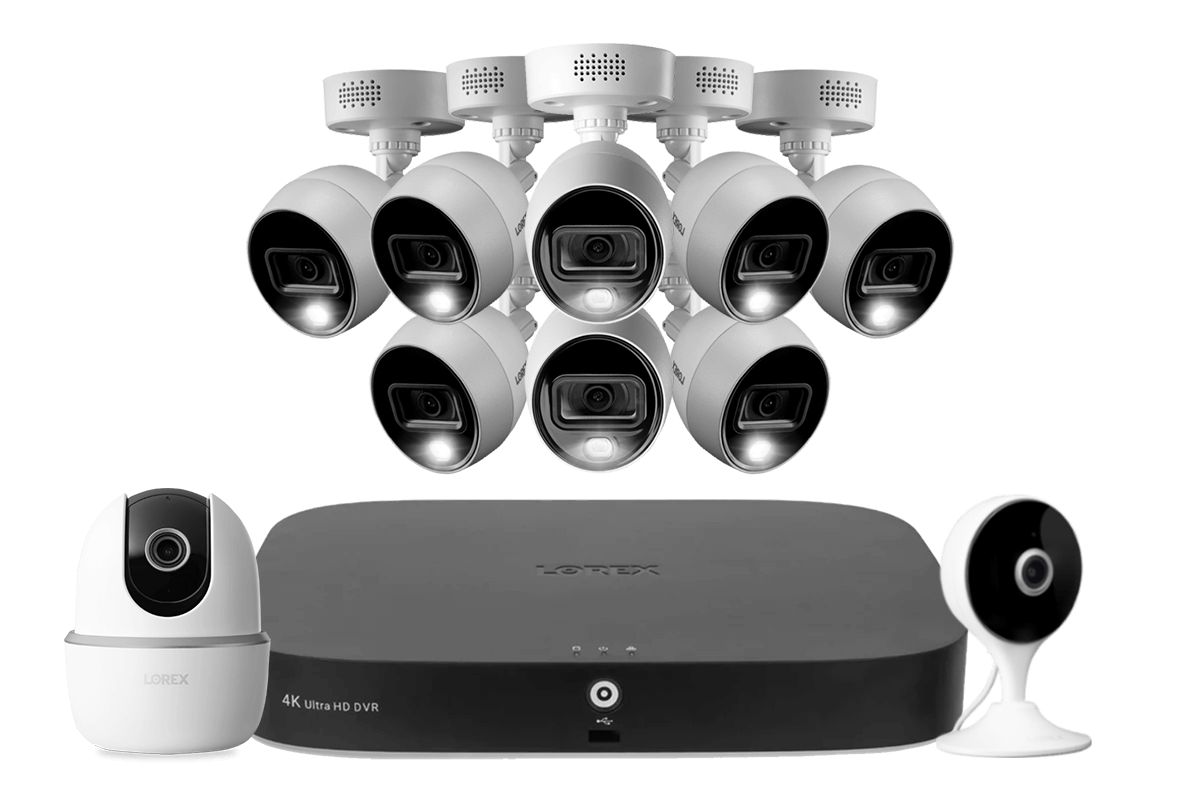

Lorex Fusion 4K 20-Channel (16 Wired and 4 Wi-Fi) 2TB DVR System with 8 Analog Active Deterrence Cameras, 2K Pan-Tilt Camera and 2K Indoor Wi-Fi Camera

D4K2AD-168-JP
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Protect your house - inside and out - with this security system featuring a 20-Channel (16 wired and 4 Wi-Fi) Fusion DVR, 4K Active Deterrence Analog Security Cameras, and two Indoor Wi-Fi Cameras. Thanks to this wired and wireless Fusion, all cameras (including the Wi-Fi cameras) can now record around-the-clock to the DVR’s security grade hard drive and can easily be monitored all in one place thanks to the Lorex app.

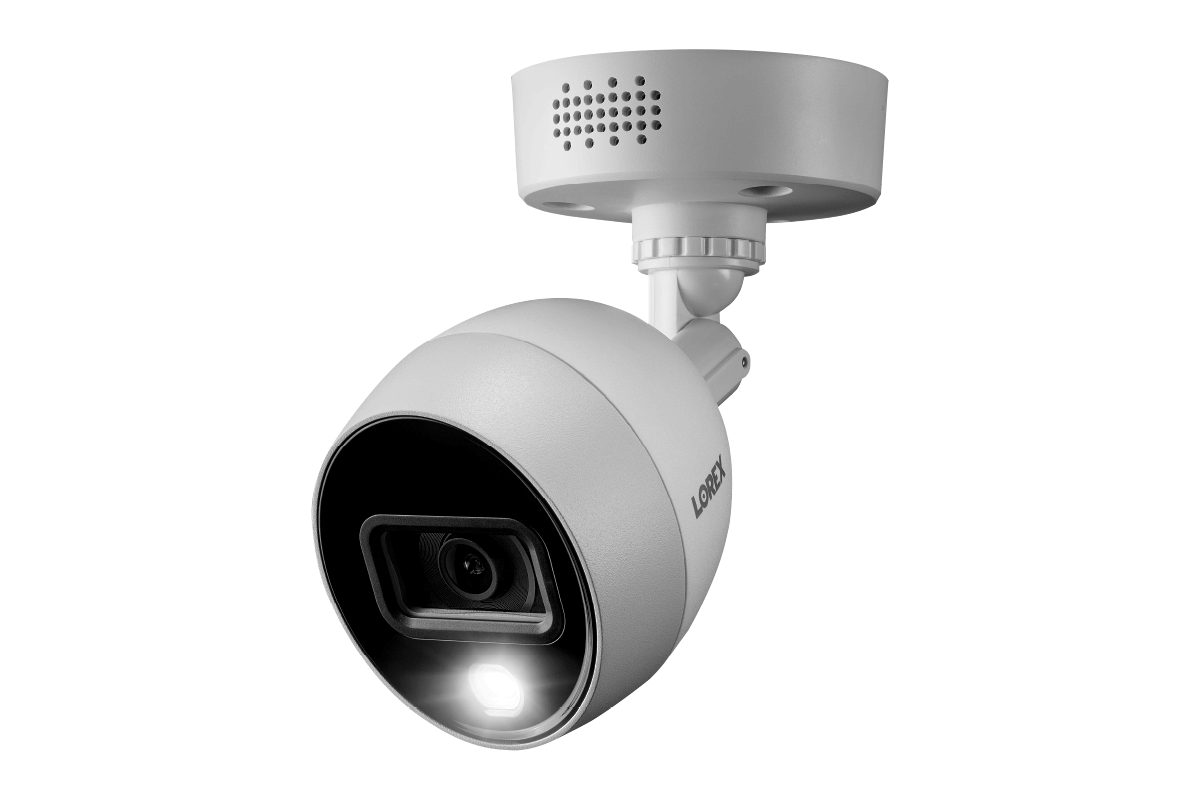

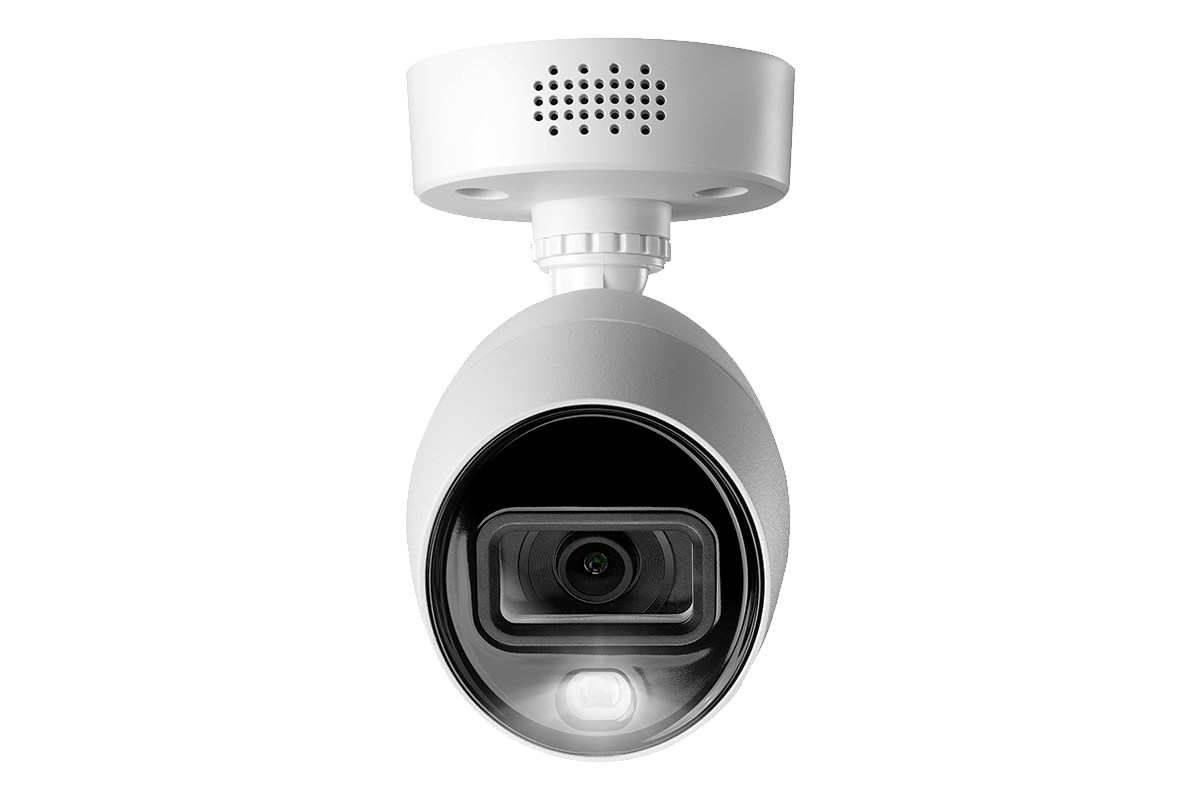

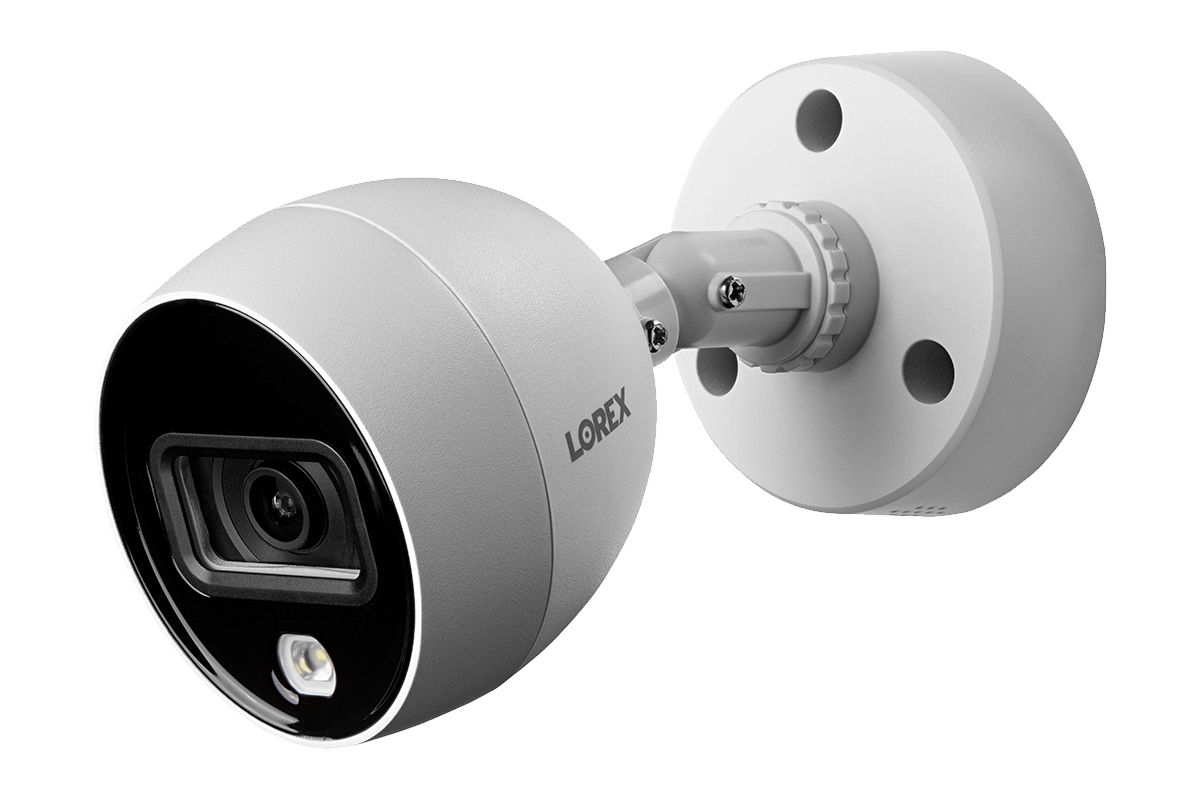

4K Analog Active Deterrence Security Cameras

Record 4K security video and experience the latest in smart innovations to provide the highest level of security for your property.

Learn More

4K means there are more than 8 million pixels, and that results in sharper video and realistic color representation

See full color with the help of ambient lighting or long-range infrared night vision in low-light settings.

Metal exteriors provide year-round protection from the elements.

There is a bright LED that can be customized to always be on or triggered by motion. Using the Lorex app or the DVR, you can customize the LED light to be always on, manually activated or triggered by motion. Also deter unwanted guests with the remote-activated siren.

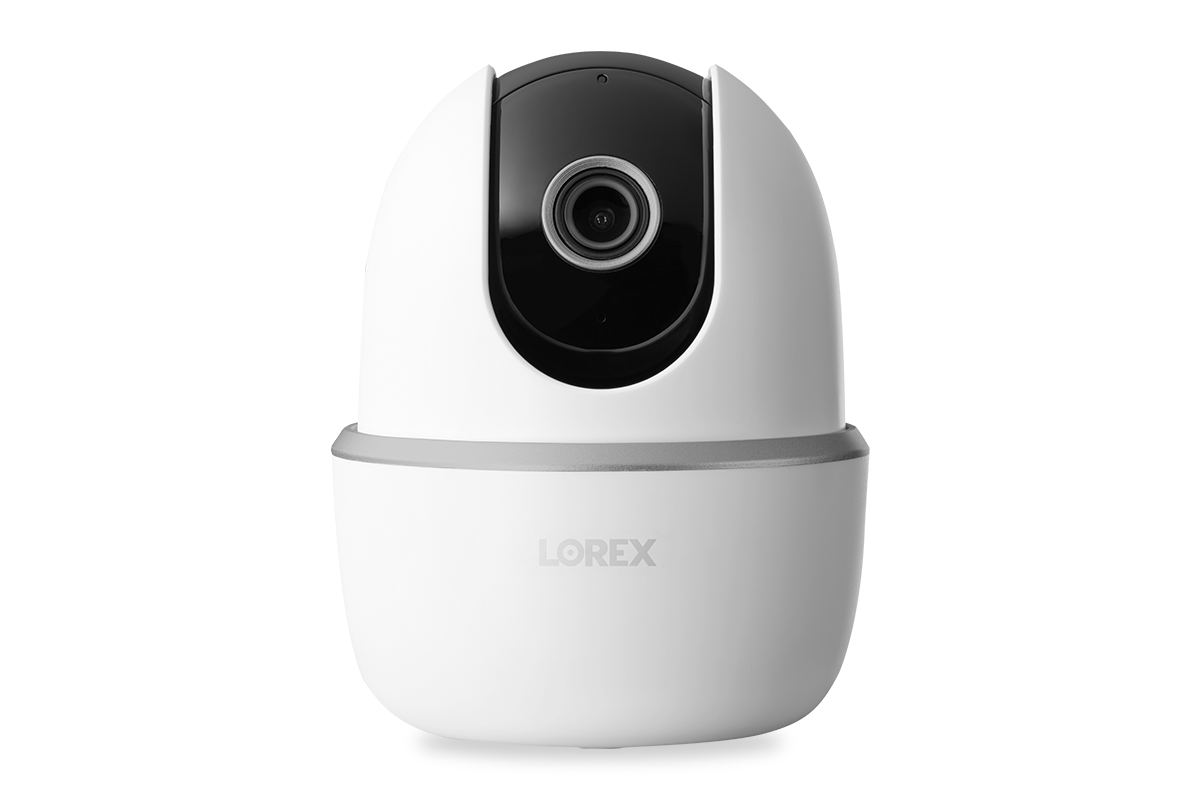

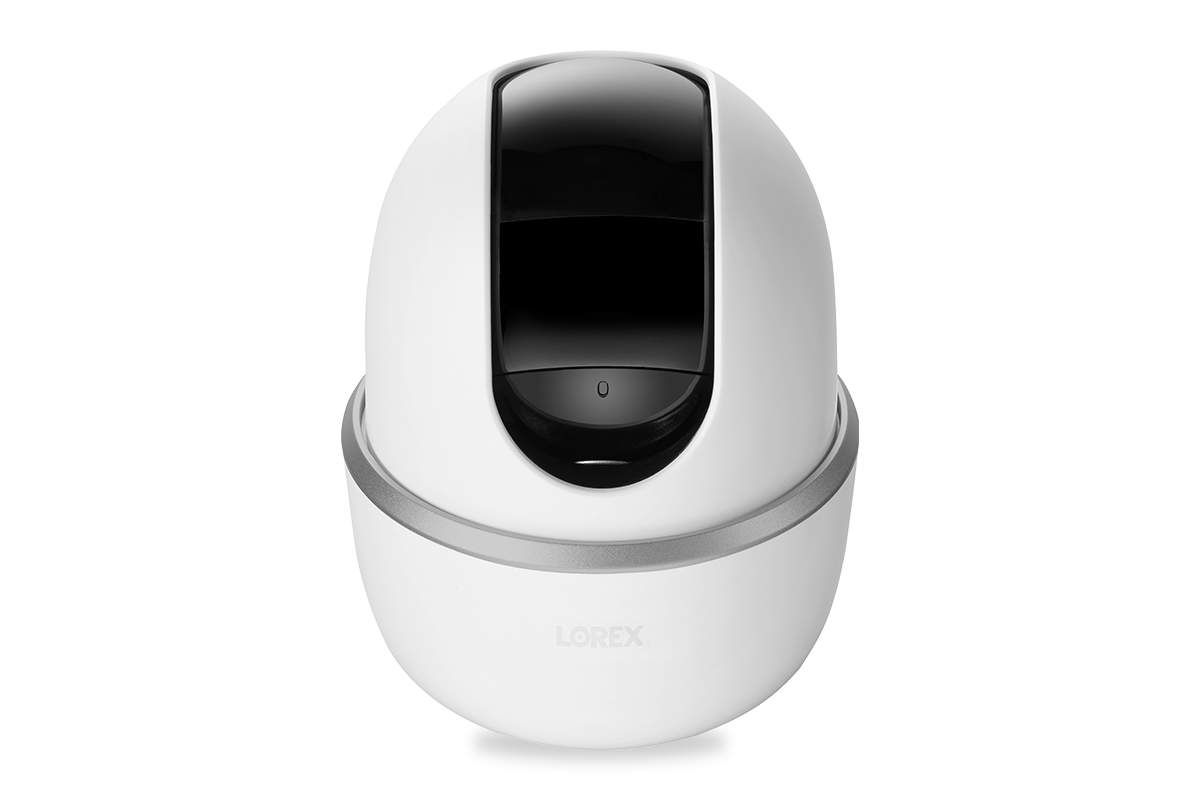

2K Pan-Tilt Indoor Wi-Fi Security Camera

This camera's Pan and Tilt feature allows you to view an entire room with just one camera, while the Privacy Mode ensures that the camera lens is hidden.

Learn More

The Pan and Tilt feature allows the camera to swivel left and right and tilt up and down for expanded coverage. The digital zoom feature on the Lorex app will also help you get closer to the action.

Avoid false alerts and unnecessary notifications with person detection, which is designed to recognize when a person enters the camera's field of view.

Use the 2-Way Talk feature to speak and listen to the person on the other end of the camera.

Enable Privacy Mode using the Lorex app to temporarily disable your camera. This may be useful while you're at home and don't need the camera to record or send notifications.

The camera will automatically switch to infrared night vision when light is limited. With a Night Vision Range up to 32ft (10m), you won't miss a thing.

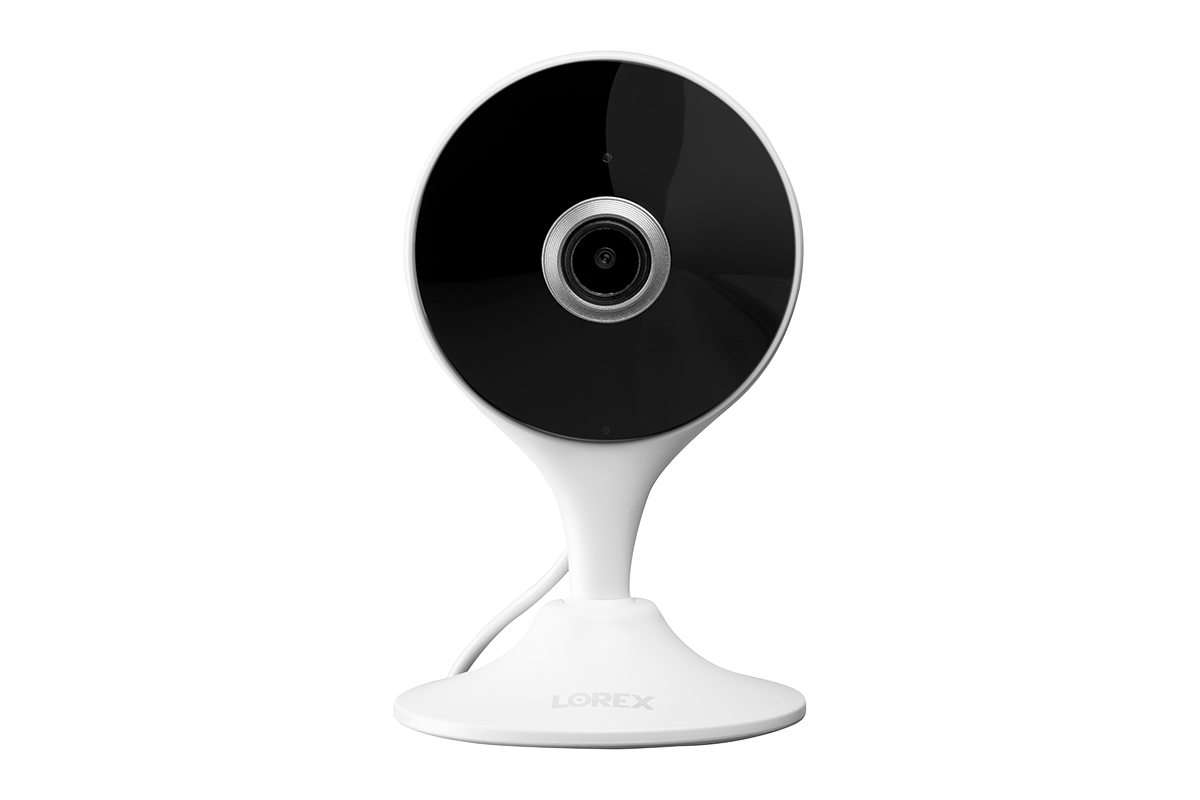

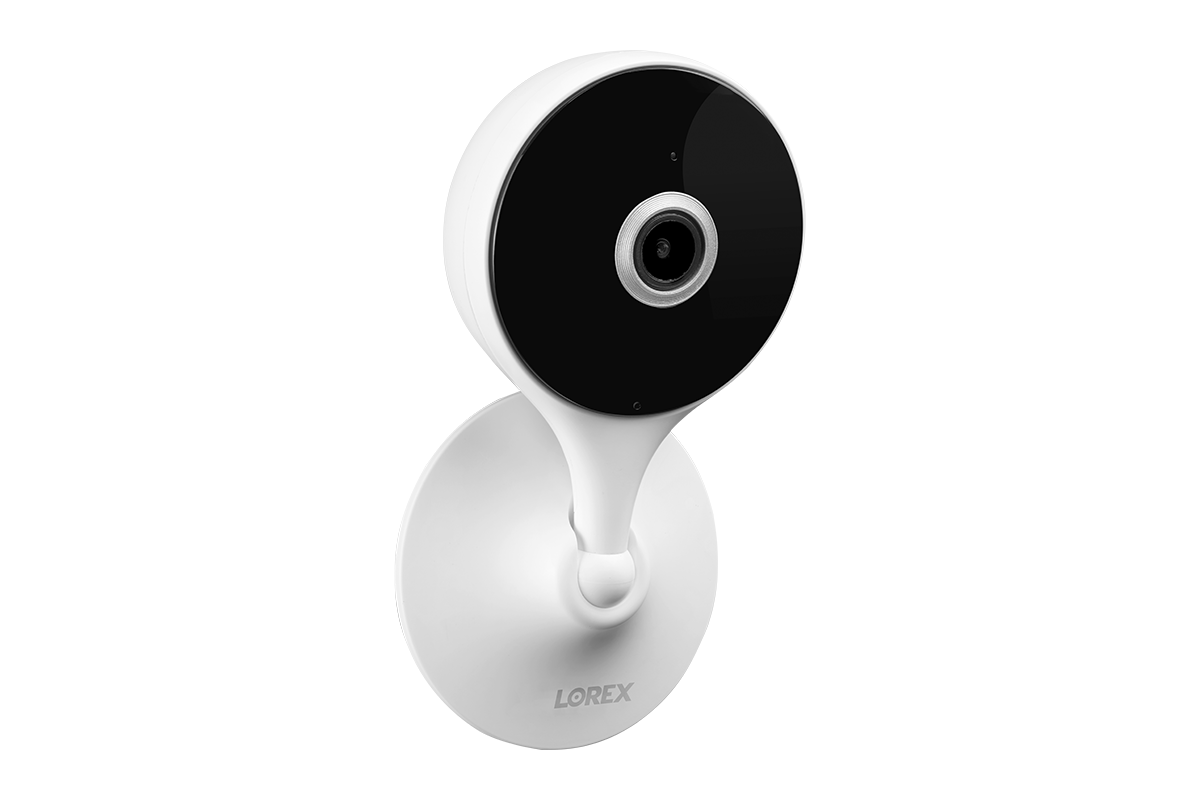

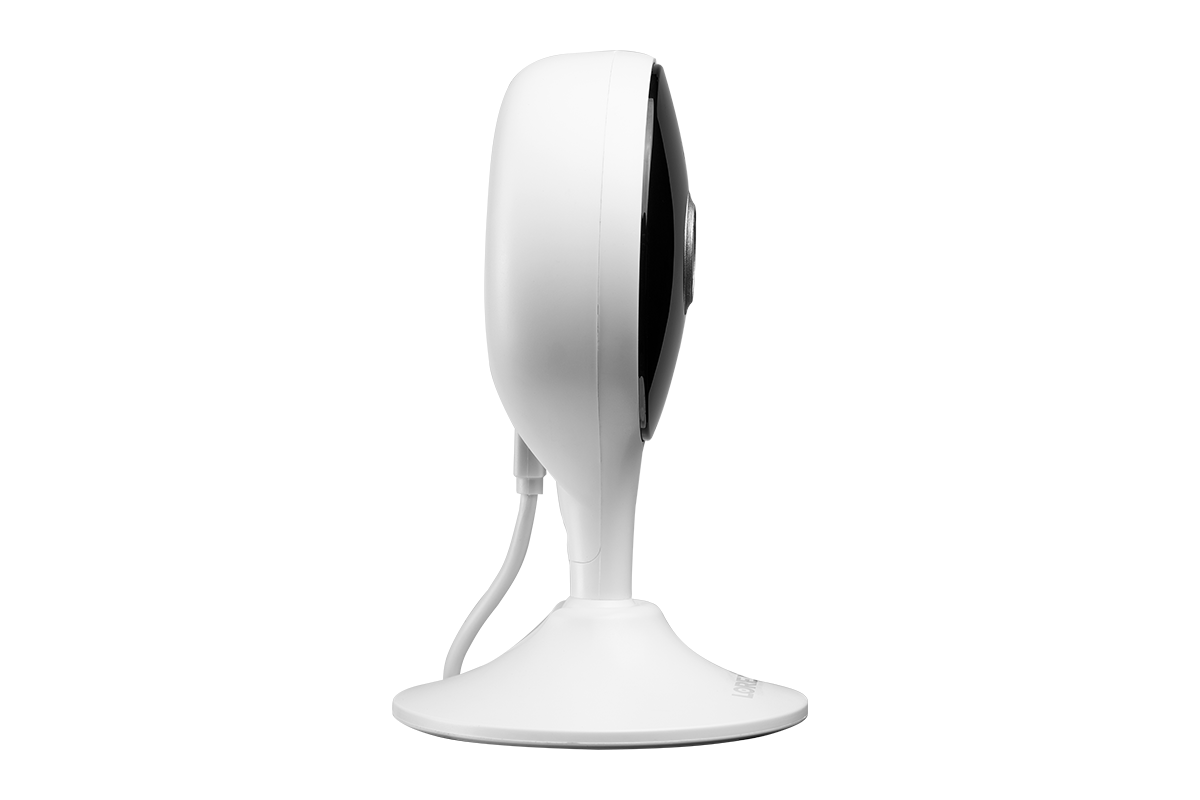

2K Indoor Wi-Fi Security Camera

The compact, lightweight design and magnetic base promise flexibility in placement, while the included mounting kit allows for ceiling or wall installation.

Learn More

A 4MP image sensor provides 2× the resolution as 1080p. This creates exceptionally sharp and detailed video.

Avoid false alerts and unnecessary notifications with person detection, which is designed to recognize when a person enters the camera's field of view.

Use the 2-Way Talk via the Lorex app to talk and listen to the person on the other end of the camera.

Keep your footage private and secure with the camera's built-in local storage or use the NVR's included hard drive storage.

When light is limited, the camera will automatically switch to infrared night vision so you won't miss a thing.

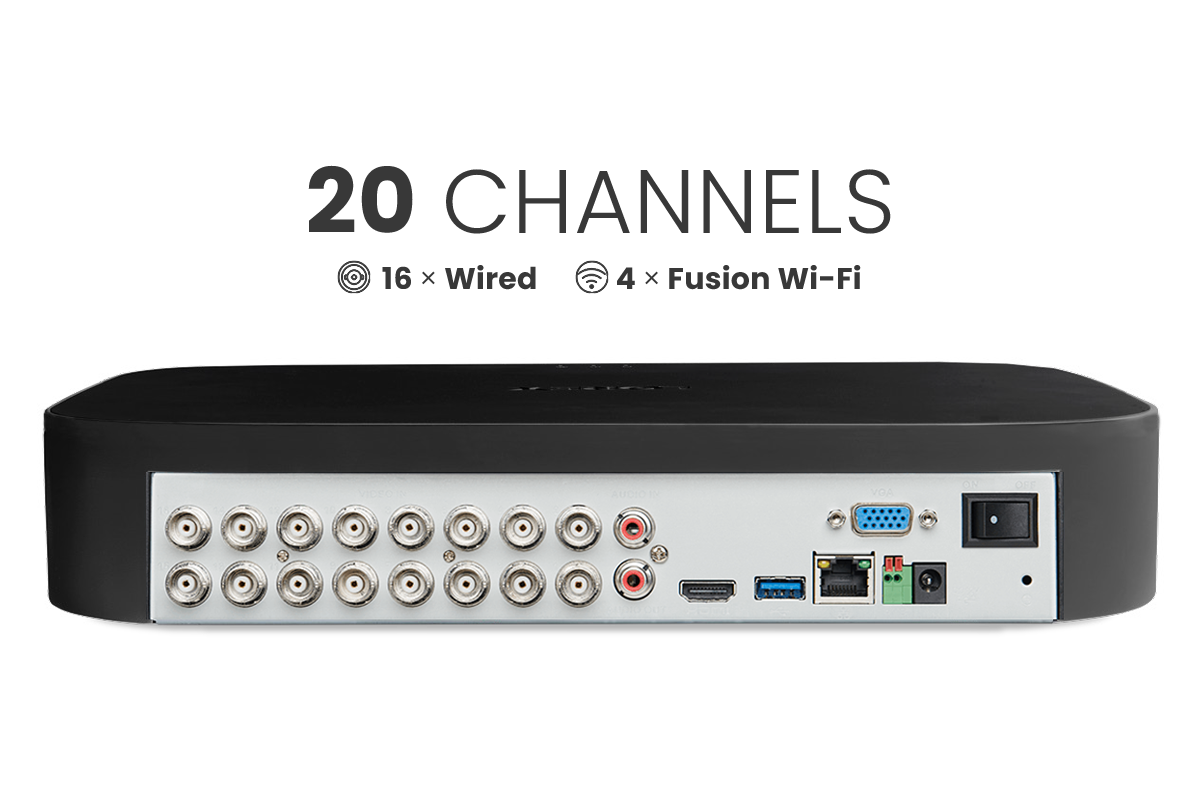

4K 20-Channel (16 Wired and 4 Wireless) Digital Video Recorder

Record 4K security video and experience the latest in smart innovations to provide the highest level of security for your property.

Learn More

A 2TB security-grade hard drive keeps your data safe and local. This DVR can be upgraded to 8TB of space.

This DVR is able to receive HEVC (High Efficiency Video Encoding) or H.265 video compression files. This type of encoding can save up to 40% more space when compared to H.264 Advanced Video Coding.

Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras to deter potential intruders.

Smart Motion Detection (person, vehicle and face detection) will deliver mobile push notifications to tell you exactly what kind of motion the camera has detected.

Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

What's Included?

C861 front dimensions

Dimensions (WxDxH): 2.9" x 6.4" x 3.3" (73mm x 164mm x 83mm)
Weight: 0.55lbs / 0.25kg



Package Contents:

4K Bullet Camera

Mounting Kit

60ft BNC/DC UL Certified Extension Cable

Power Adapter

Quick Start Guide

  1. 4K Ultra HD, ensuring clear and detailed footage, every time1
  2. See more with an 105° Field of View (horizontal)
  3. Experience enhanced nighttime clarity and better video evidence with Color Night Vision™2
  4. Up to 135ft (41m) IR night vision in low light and 90ft (28m) in total darkness3
  5. Motion-activated LED warning light
  6. Deter unwanted guests with the remote-activated siren Weatherproof rated (IP67)
  7. Operates in temperatures low as -40°F (-40°C) and high as 131°F (55 °C)
  8. Durable camera housing, designed to withstand harsh weather conditions
W461ASC dimensions

Dimensions (WxDxH): 2.7" x 2.7" x 4.3" (68mm x 68mm x 109mm)
Weight: 0.53lbs / 0.24kg

Package Contents:

2K Wi-Fi Camera

16GB MicroSD Card

Universal Mount

Power Adapter

Mounting Kit

Quick Start Guide

  1. Receive push notifications from the Lorex App1
  2. 2-way communication allows for seamless communication with your visitor/family, if you're in a different room or even different home.
  3. Easily access your videos with voice commands (Compatible with: Google Assistant and Amazon Alexa)2
  4. View live or recorded videos from your smartphone, tablet, or Apple TV3
  5. View more with night vision range up to 32ft (10m)4
  6. Convenient built-in local MicroSD card slot upgradable to 256GB

W462AQC dimensions

Dimensions (WxDxH): 3.9" x 3.9" x 4.2" (86mm x 86mm x 108mm)
Weight: 0.55lbs / 0.25kg

Package Contents:

2K Pan-Tilt Camera

16GB MicroSD Card

Universal Mount

Power Adapter

Mounting Kit

Quick Start Guide

  1. Receive push notifications from the Lorex App1
  2. 2-way communication allows for seamless communication with your visitor/family, if you're in a different room or even different home.
  3. Easily access your videos with voice commands (Compatible with: Google Assistant and Amazon Alexa)2
  4. View live or recorded videos from your smartphone, tablet, or Apple TV3
  5. Pan and Tilt capabilities allows the cameras to cover larger areas. Digital zoom on the app delivers an added level of clarity
  6. View more with night vision range up to 32ft (10m)4
  7. Convenient built-in local MicroSD card slot upgradable to 256GB

D863 Front Overview
D863 Back Overview

Dimensions (W×D×H): 12.9 × 9.6 × 2.1" (328 × 245 × 53mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Hard Drive, Power & Network Statuses
  2. USB Ports
  3. Info / Panic Button
  4. Wired Camera Connection
  5. Audio Connection (In / Out)
  6. Monitor Connection (VGA)
  7. Power Switch (On/Off)
  8. Monitor Connection (HDMI)
  9. Network Connection (LAN)
  10. PTZ Connection (RS-485)
  11. Power Connection

Package Contents:

4K Fusion DVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  2. Accuracy of Smart Motion Detection or Person and Vehicle Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
  3. Accuracy of Face Detection and Face Recognition will be influenced by the distance of the face from the camera. Partially or fully covered faces will not be detected. Night vision will impact the accuracy of Face Detection. Facial recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  4. Face Detection and Face Recognition are available on up to 2 channels only. Smart Motion Detection can not be enabled on all channels while Face Detection or Face Recognition is enabled.
  5. Virtual Fence is available on up to 2 channels only. Smart Motion Detection can not be enabled on the same channel when a single channel is enabled. To enabled Virtual Fence on 2 channels, Smart Motion Detection must be disabled on all channels.
  6. Compatible with select Lorex cameras only. For a list of compatible cameras, please visit www.lorex.com/compatibility
  7. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available.
  8. Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 7.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit: www.lorex.com/support
  9. Both firmware and software must be updated to latest version to ensure remote connectivity in all areas or networks. For compatibility, features, instructions visit: www.lorex.com/smarthome
  10. HDMI output supports up to 4K for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the DVR, as well as TV/ monitor resolution.
  11. AppleTV™ or Chromecast™ need to be connected to the same network as your recorder. Requires AppleTV Gen 4 or newer with Lorex Apple TV APP or Chromecast ™ device connected to the TV that you want to view the system on.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
