Key Features
- 4K 16 Channel NVR
- Person, Vehicle, Face, Animal and Package Detection
- Remote viewing via Lorex App
- 4 TB Local Storage (Expandable up to 2 x 10TB)
Create a tailored security system by combining both wired and Fusion Wi-Fi security cameras with this 16-channel (16 wired or Fusion Wi-Fi) 4K Fusion Network Video Recorder (NVR). With support for all of the latest detection and deterrence camera features, you will always know what's happening around your property and stop potential events before they happen. The 4TB local storage also means ample private storage with no monthly fees.
16
CHANNELS
16 × Wired or Fusion Wi-Fi
4K
RESOLUTION
Supports 4K Ultra HD resolution
4TB
HARD DRIVE
Expandable up to 2 × 10TB
See the Finest Detail
Record 4K video on every channel. 4K resolution provides the highest quality video and digital zooms, which gives you the best chance to decipher distant details.
Get alerts that matter
Reduce unwanted alerts and only get notifications you care about with key motion detection modes at no extra cost.





*Detection types need to be supported by the camera.
Smart home compatibility
Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen, or download the Lorex app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.
*Requires Gen 4 or newer Apple TV with support for App Store


Customize Your Security With Fusion
Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 16 wired or Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.
All-In-One Security
Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.
Continuous Recording
24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*
Lorex App
Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.
*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.

Panic button
Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras.

Free Local Storage, No Monthly Fees
This NVR comes with two separate hard drive bays, each one of which can be upgraded with a hard drive up to 10TB, giving you the potential for a total of 16TB's of storage space.
Product Specifications
Video Input | 16 x PoE |
---|---|
Output Resolution | Up to 4K UHD, Auto Detect |
Recording Frame Rate | 4K@15fps; 5MP@30fps;1080p@30fps;720p@30fps |
Recording Resolution | 4K (8MP)/5MP/4MP/3MP/1080p/720p |
Hard Drive Capacity | Up to 2 x 10TB (SATA) |
Smart Motion Detection | Person/Face/Mask/Vehicle Detection |
Streaming Options | Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub, Lenovo Smart Display™ |
Voice Control | Amazon Alexa™, Google Assistant™ |
Remote Viewing | Yes |
---|---|
DDNS | Yes (Optional) |
FW Upgrade | USB/Network |
Unit Dimensions (W × D × H) | 14.7 x 12.9 x 2.1” (375 x 327 x 53) mm |

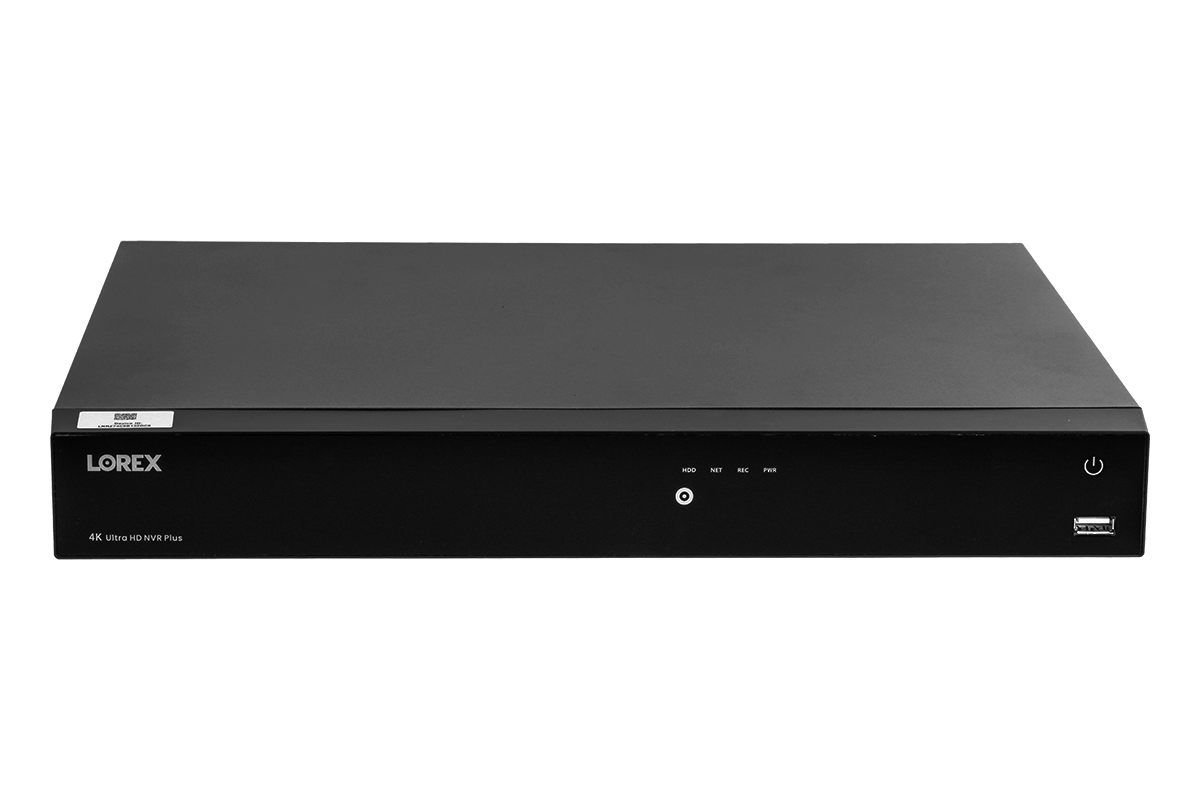

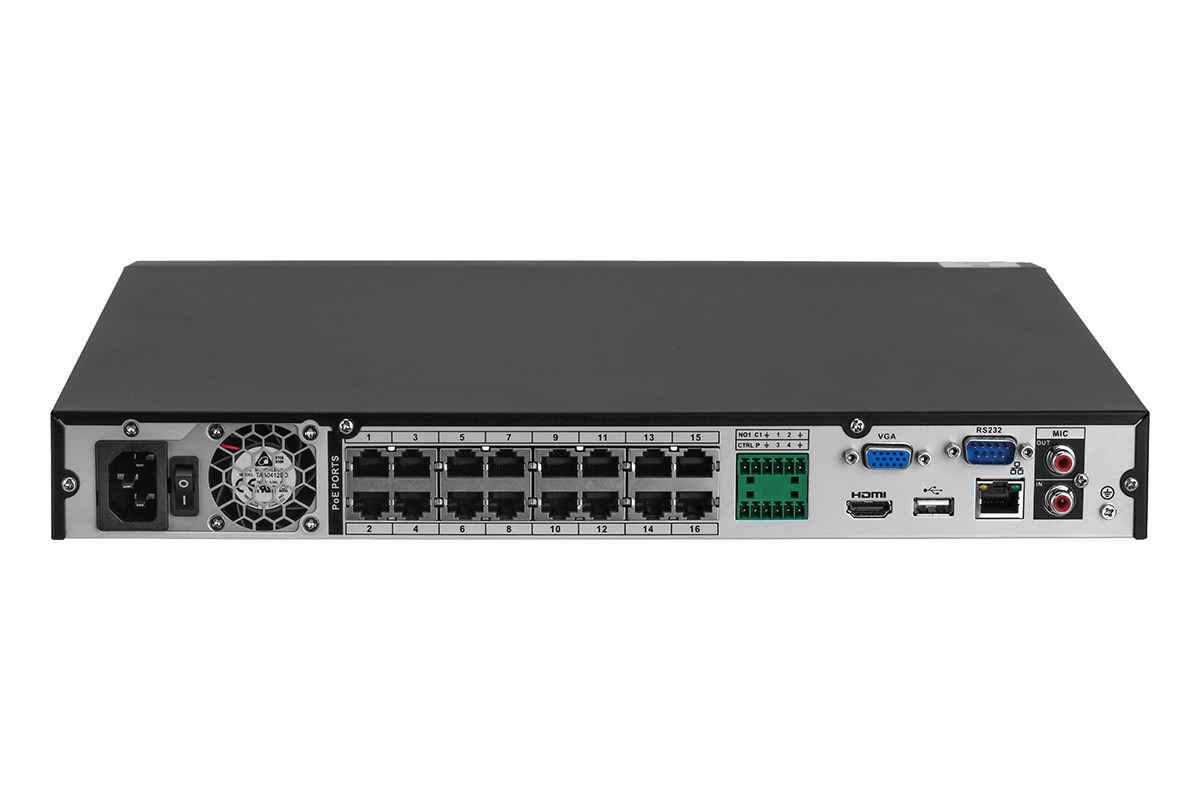

What's Included?


- Info / Panic Button
- Hard Drive, Network, Recorder & Power LEDs
- USB
- Power Button
- Power Input
- Power Switch
- PoE Ports
- Alarm
- HDMI
- VGA Port
- RS232
- LAN
- Audio In / Out
Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
- Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
- Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility
Fusion Series NVR Comparison Chart
Product Compatibility

E581CB-Series 5MP High Definition IP Camera with Color Night Vision
compatible

E581CD, 5MP High Definition IP Dome Camera
compatible

E841CA - A Series A10 4K IP Wired Bullet Security Camera
compatible

E841CD - A Series A10 4K IP Wired Dome Security Camera with Listen-in Audio
compatible

E861AB-E, E861ABB 4K Ultra HD Smart IP Security Camera
compatible

E863SD Series - 4K Smart Security Lighting Dome PoE IP Wired Camera
compatible

E891AB, 4K Ultra HD Smart Deterrence IP Camera
compatible

E892DD-Series 4K Ultra HD Smart Deterrence IP Dome Security Camera
compatible

E893AB - H Series H13 4K IP Wired Bullet Security Camera with Smart Deterrence
compatible

E893DD - H Series H13 4K IP Wired Dome Security Camera with Smart Deterrence
compatible

E895AB Series - Lorex 4K Deterrence Bullet AI PoE IP Wired Camera
compatible

E896AB - H Series H16 4K IP Wired Bullet Security Camera with Smart Security Lighting
compatible

E896DD - H Series H16 4K IP Wired Dome Security Camera with Smart Security Lighting
compatible

LNB8105X, 4K Active Deterrence Network Security Camera
compatible

LNB8111B Series 8MP HD IP camera with Night Vision
compatible

LNB8921 Nocturnal Series 4K Ultra HD IP Camera
compatible

LNB8963BW 4K Ultra HD 8MP Varifocal IP Camera
compatible

LNB8973B Series 4K Ultra HD 8MP IP Camera
compatible

LNE8950AB Series 4K Ultra HD 8MP Dome Camera
compatible

LNE8964ABW 4K Ultra HD 8MP IP Dome Camera
compatible

LNE8974 Nocturnal Series 4K Ultra HD Dome Camera
compatible

LNZ3522 Series Outdoor audio HD Pan-Tilt IP Dome Security Camera
compatible

LNZ44P12B - PTZ Series 2K IP Wired Camera with 12x Zoom
compatible

LNZ44P4B - PTZ Series 2K IP Wired Camera with 4x Zoom and IK10 Vandal-Proof Rating
compatible

B451AJD Series - 2K Wired Video Doorbell
compatible

LNWDB1 1080p Wi-Fi Video Doorbell
compatible

AY41TR Sensor Hub
compatible

LW2701AC1 Add on camera for home camera system Live SD7
compatible

F461AQD - 2K Pan-Tilt Outdoor Wi-Fi Security Camera
compatible

W261AQC-E 1080p Full HD Smart Indoor Wi-Fi Pan-Tilt Security Camera
compatible

W261ASC-E 1080p Full HD Smart Indoor Wi-Fi Security Camera
compatible

W281AA Series Smart Outdoor WiFi Security Camera With Advanced Active Deterrence
compatible

W282CAD-Series Smart Outdoor 1080p Wi-Fi Camera With Smart Deterrence
compatible

W461AS Series - 2K Indoor Wi-Fi Security Camera
compatible

W462AQC-E 2K Indoor Wi-Fi Security Camera
compatible

W482CAD Series - 2K Spotlight Indoor or Outdoor Wi-Fi Security Camera
compatible

W881AAD Series - 4K Spotlight Indoor/Outdoor Wi-Fi Security Camera with Smart Security Lighting
compatible

Lorex App
compatible

Lorex Cloud Client
compatible

The Lorex Fusion Recorders
compatible

LNB3373 Series Indoor/Outdoor Security Camera with Motorized Lens
compatible

LNB4163 Series 4MP HD IP Camera
compatible

LNB4173 Series 4MP Super HD IP Security Camera
compatible

LNB4421 - 4MP SuperHD IP Camera
compatible

LND4750AB Nocturnal Series Audio HD IP 2K Dome Security Camera
compatible

LND4751AB, Audio HD IP 2K Dome Security Camera, 150ft night vision, wide angle lens
compatible

LNE4162 Series 4MP High Definition IP Camera with Color Night Vision (Dome)
compatible

LNE4322 Series 4mp HD IP camera
compatible

LNE4422 Series 4MP HD IP Camera - dome
compatible

CAT5e Ethernet Cables
compatible

E842CA, E842CAB - A Series A14 4K IP Wired Bullet Security Camera
compatible

E842CD - A Series A14 4K IP Wired Dome Security Camera
compatible

E851AD, E851ADB - A Series A10 4K IP Wired Dome Security Camera with Listen-In Audio and IK10 Vandal Proof Rating
compatible

E863SB Series - 4K Smart Security Lighting Bullet PoE IP Wired Camera
compatible

E871AB - H Series H20 4K Dual Lens Wired Bullet Security Camera with Smart Security Lighting
compatible

E894AB, E894ABB - H Series H14 4K IP Wired Bullet Security Camera with Smart Security Lighting
compatible

LNB45ABB, LNB45ABW - A Series A4 4MP IP Wired Bullet Security Camera
compatible

LND45DVB, LND45DVW - A Series A4 4MP IP Wired Turret Security Camera
compatible

LNE45DDB, LNE45DDW - A Series A4 4MP IP Wired Turret Security Camera
compatible

W452ASD Series - 2K Wired Floodlight Security Camera
compatible

B241AJD Series - Lorex 1080p Wired Video Doorbell
compatible

B463AJ Series - Lorex 2K Battery Video Doorbell
compatible

B862AJ Series - Lorex 4K Wired Video Doorbell
compatible

W891UA Series - 4K Dual-Lens Wi-Fi Security Camera with Smart Security Lighting
compatible

AEX16 Series - 16 Port PoE Switch
compatible

AEX8 Series - Lorex 8-Port ePoE Switch
compatible

AEX8 Series - Lorex 8-Port ePoE Switch
compatible

AX8 Series - 8-Port PoE Switch
compatible

AUSC-1B Series - Rack Mount Tray for Lorex NVR
compatible

ACVRC - Coaxial to Ethernet Converter for PoE Cameras (Receiver)
compatible

SL300 Series - 2K Wi-Fi Smart Lightbulb Camera
Live View / Playback / Recording Supported
