Lorex Fusion 4K 16 Camera Capable (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 Smart Deterrence Dome Cameras, One 2K Wired Doorbell, and One 2K Floodlight
Lorex Fusion 4K 16 Camera Capable (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 Smart Deterrence Dome Cameras, One 2K Wired Doorbell, and One 2K Floodlight
Lorex Fusion 4K 16 Camera Capable (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 Smart Deterrence Dome Cameras, One 2K Wired Doorbell, and One 2K Floodlight
Lorex Fusion 4K 16 Camera Capable (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 Smart Deterrence Dome Cameras, One 2K Wired Doorbell, and One 2K Floodlight
Lorex Fusion 4K 16 Camera Capable (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 Smart Deterrence Dome Cameras, One 2K Wired Doorbell, and One 2K Floodlight
Lorex Fusion 4K 16 Camera Capable (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 Smart Deterrence Dome Cameras, One 2K Wired Doorbell, and One 2K Floodlight
Lorex Fusion 4K 16 Camera Capable (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 Smart Deterrence Dome Cameras, One 2K Wired Doorbell, and One 2K Floodlight
Lorex Fusion 4K 16 Camera Capable (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 Smart Deterrence Dome Cameras, One 2K Wired Doorbell, and One 2K Floodlight
zoom Roll over image to zoom in Click on image to zoom

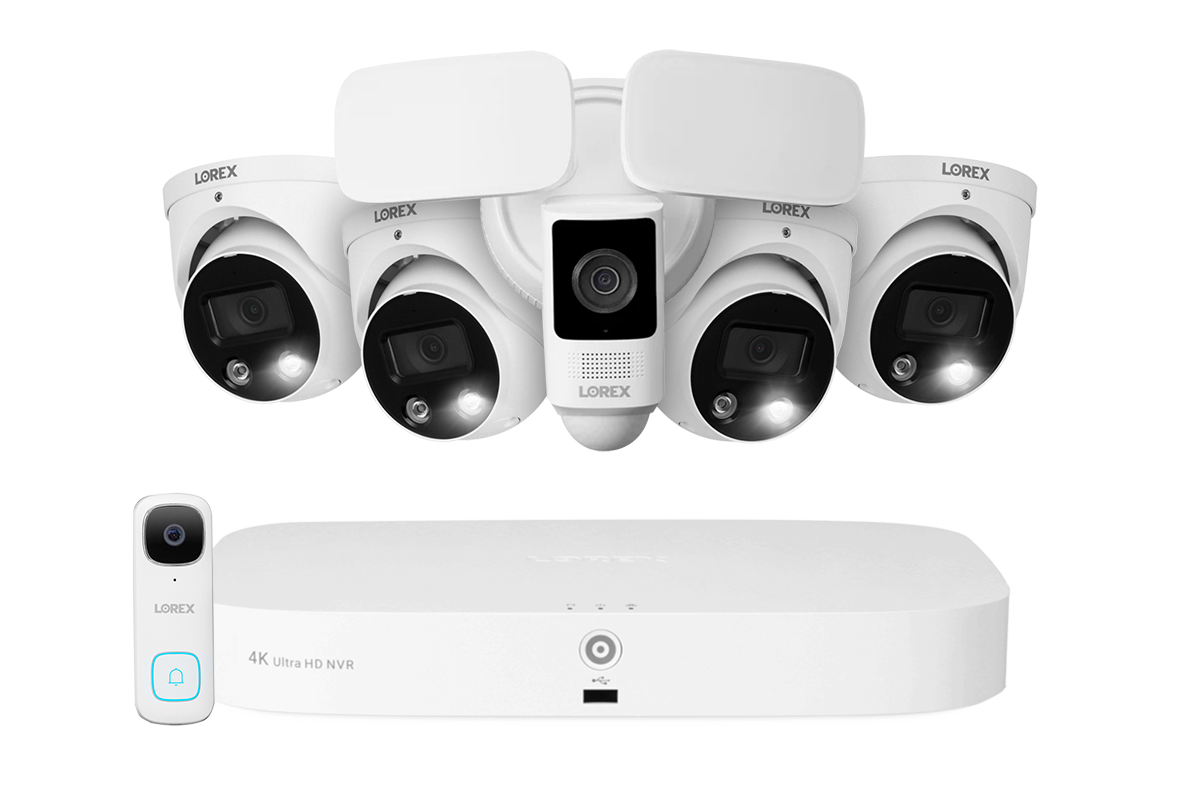

Lorex Fusion Series 4K 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi) 2TB NVR System with Four H13 IP Dome Cameras, One 2K Wired Doorbell, and One 2K Floodlight

Save $165.00 (15%)
FN4K2SD-84WD-DF
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Welcome to the next generation of Fusion. This revolutionary NVR has 8 wired channels and 8 Wi-Fi channels. This allows you to combine the reliability and performance of the 4K IP Security Cameras with the versatility and convenience of the 2K Battery-Operated Doorbell and the 2K Outdoor Floodlight. It also allows you to record all cameras (including the Doorbell and Floodlight, along with up to 6 more wireless Smart Home Wi-Fi Cameras) around-the-clock to the NVRs hard drive.



See Clearly,
Day and Night




Ultra HD Resolution

Color Night Vision



Speak with Ease

Easily communicate through the camera’s built-in microphone and speaker using the Lorex App. You can also choose pre-set or personalized voice messages to welcome or instruct visitors.


microphone

Built-In Microphone

speaker

Speaker



*Please note, audio recording without consent is illegal in certain jurisdictions. Lorex assumes no liability for the use of its products that do not conform with local laws.

Built for the outdoors

Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.



140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof



Proactive Security

Get an added layer of security with the motion-activated LED warning lights and remote-triggered siren to deter uninvited visitors.



Motion-activated LED lights

Remote-activated siren

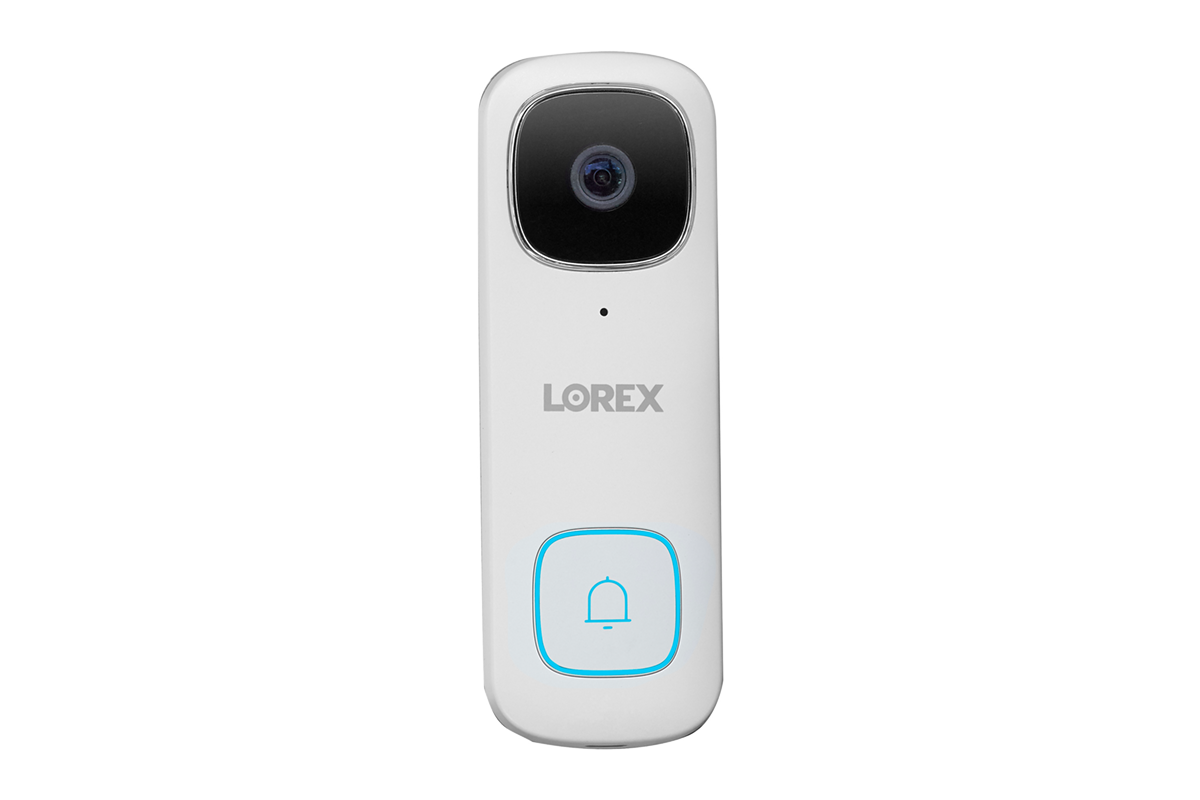

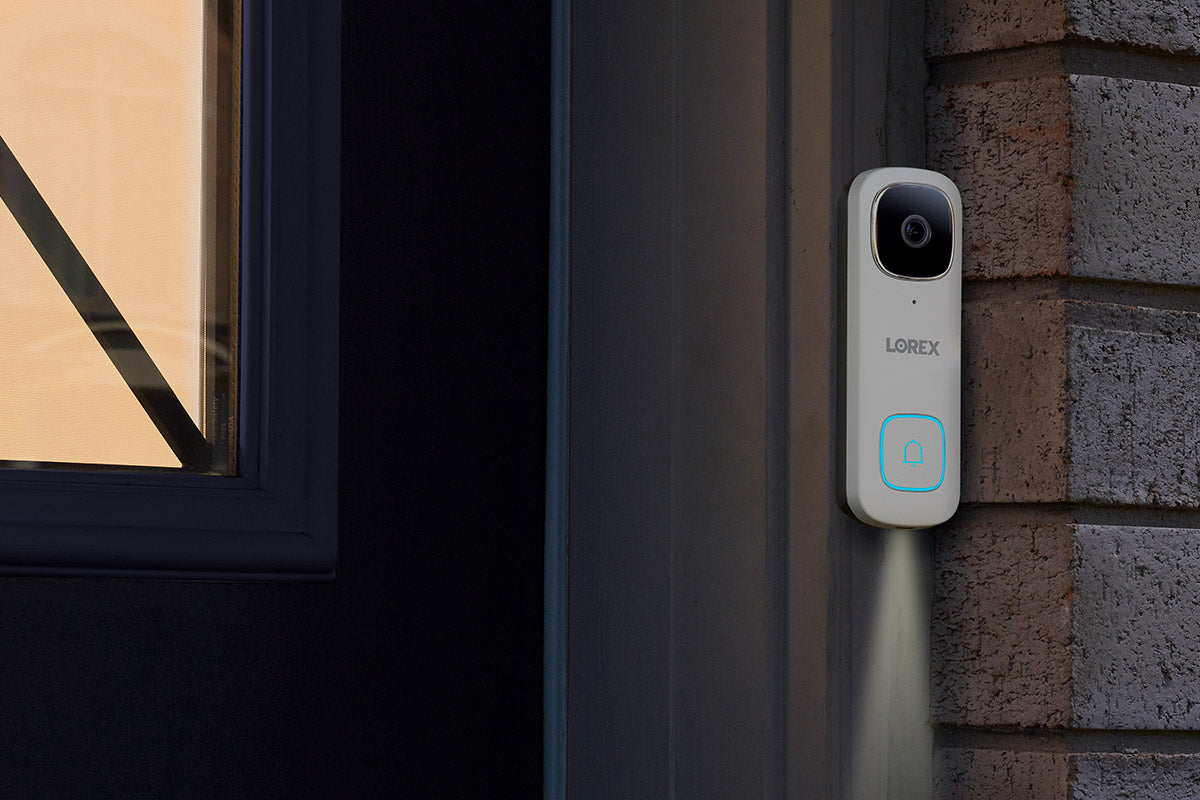

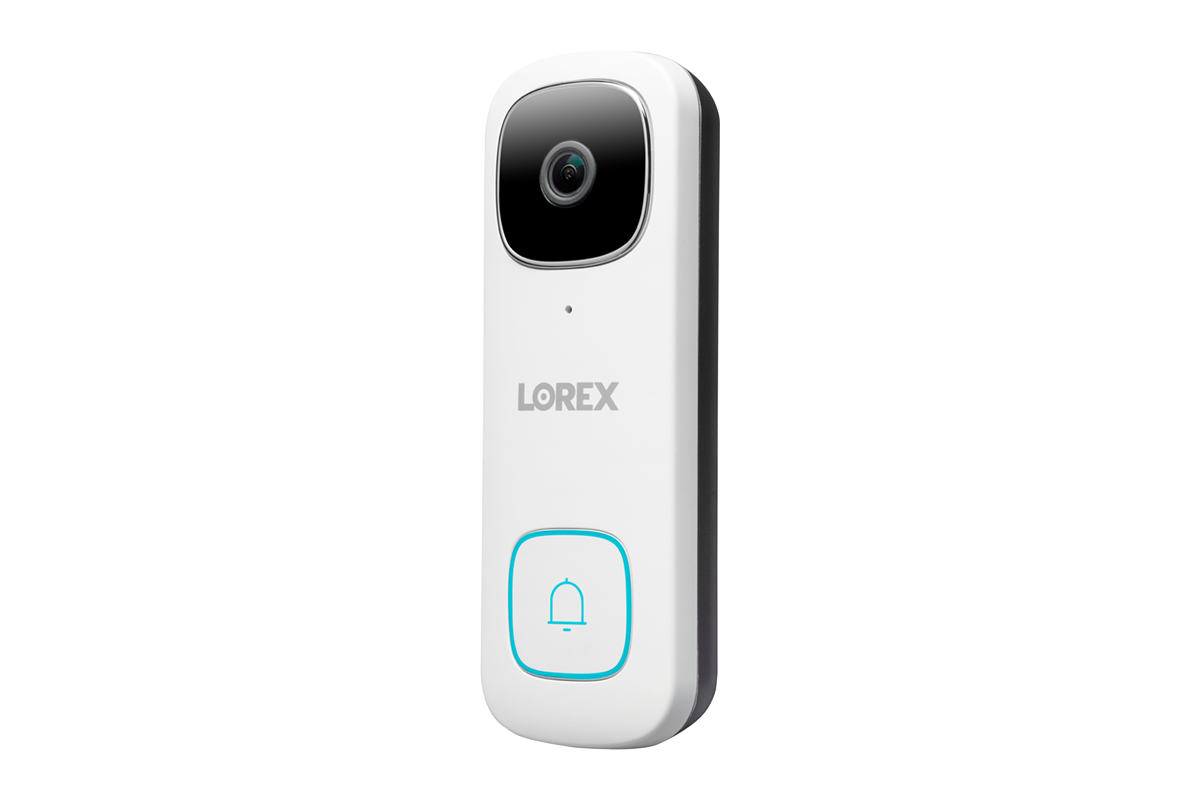

2K Wired Video Doorbell

See who's at the door, greet guests with a nightlight, answer the door from anywhere, play pre-recorded messages when someone rings, and talk to those on the other side with the 2K QHD Doorbell.

Learn More

Thanks to a pre-motion recording feature, the doorbell will automatically start recording 5 seconds before the event starts so you don't miss any action.

Automatically receive notifications to your phone telling you that there is someone at the door.

Use 1 of 3 quick responses to greet visitors who ring your doorbell. You can even record your own custom message to add your personal touch or speak directly through the doorbell using 2-Way Talk.

See more with a 164° viewing angle and 4:3 aspect ratio showing you the full picture.

HDR automatically corrects exposure when lighting is not ideal.

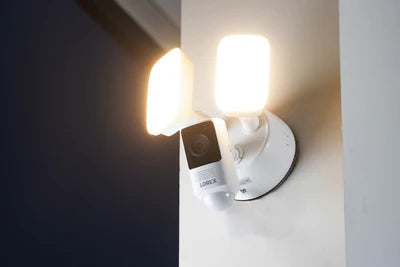

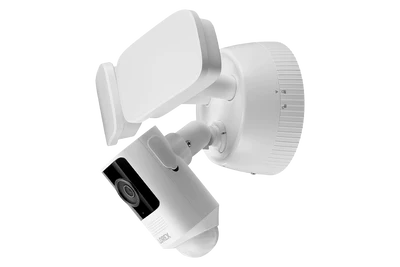

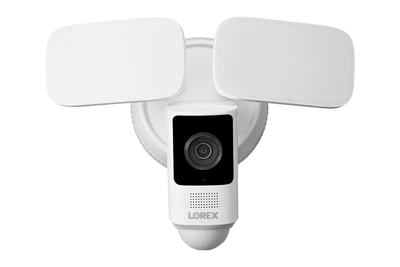

2K Wi-Fi Floodlight Camera

Combine security and lighting with this powerful Floodlight Camera.

Learn More

Capture important details with 2K resolution recording. A wide-angle lens also provides you with more security coverage and helps with earlier detections.

Adjust the position of the LED panels to fit different types of installations.

Converse with those on the other end of the camera with two-way talk. Or if you’re busy, let Quick Response speak for you.

Keep your recordings where they belong – private, at home and in your control with the pre-installed 32GB MicroSD Card (supports up to 256GB).

See more with Color Night Vision (ambient light required). If conditions are too dark for CNV, you can always rely on the floodlight's IR Night Vision, which produces clear black and white video.




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 8 wired and 8 Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.


Get Support for Lorex Fusion How to set up Fusion System


All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.


Fusion Devices


Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.



What's Included?

e893dd

Dimensions (WxDxH): 4.8" x 4.8" x 4.8" (122mm x 122mm x 122mm)
Weight: 1.15lbs / 0.52kg

Package Contents:

4K IP Dome Camera

Mounting Kit

Cat5e Ethernet Cable

Quick Start Guide


  • 4K (8MP) Ultra HD resolution1
  • 108° horizontal field of view
  • Color Night Vision2
  • Up to 150ft (46m) IR night vision in low light condition. Up to 98ft (30m) in total darkness3
  • Smart Motion Detection Plus - Face, Person and Vehicle Detection
  • Face Recognition and Mask Detection technology with automatic voice prompts4
  • Get notifications from your Lorex App™ app
  • Automatic warning light during person or vehicle detection
  • Remote-activated siren
  • Built-in microphone and speaker for 2-Way Talk5
  • Enhanced 2-Way Talk with Quick Response Messages
  • Safeguard - object missing or left behind
  • IP67 (Indoor/Outdoor) Environmental Rating6
B451AJ wall mount dimensions

Dimensions (WxDxH): 5.1" x 1.8" (130mm x 45mm)
Weight: 1.17lbs / 0.53kg

Package Contents:

2K Video Doorbell

Mounting bracket

Horizontal bracket 15°

Vertical bracket 5°

Pre-inserted microSD Card

USB Cable

Anchors and screws (x2)

Wire caps (x3)

Pin

microSD card (pre-inserted)

Chime Kit

Wire harness

Backup cable

Extra wires (x2)

15/64” Drill bit

W452ASD Overview
  1. LED Panel
  2. IR Light
  3. Camera
  4. Microphone
  5. Speaker
  6. Status Indicator
  7. MicroSD Card Slot
  8. Reset Button
  9. Mounting Bracket
  10. Floodlight Housing
  11. Security Screw
  12. Rubber Plug
  13. QR Code
  14. PIR Sensor


Package Contents:

1 × 2K Wired
Floodlight

1 × Quick Start
Guide

1 × Mounting
Plate

2 × Junction Box
Screws

5 × O-Rings

3 × Mounting Anchors
& Screws

2 × Machine
Screws

3 × Wire
Caps

2 × Short Machine
Screws


  1. For product compatibility, visit www.lorex.com/compatibility
  2. Accuracy of Smart Motion Detection is dependent on several factors, including distance, height, and angle of the camera relative to the object. In addition to the size of the object, and the amount of ambient light available.
  3. Person Detection accuracy is compromised when the face and/or body is partially covered.
  4. The clarity and activation of Color Night Vision is dependent on ambient lighting conditions. If there is not sufficient ambient light, the camera will automatically switch to IR (black and white) night vision. IR Night vision range is dependent on the cameras’ installation location, viewing area and subject to surrounding objects and light sources, which will reflect and absorb the light.
  5. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 32 ft or 10 m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  6. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, instructions visit: www.lorex.com/smarthome
  7. Audio and video recordings without consent, is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform to local laws.
  8. Not intended for submersion in water. Installation in a sheltered area recommended.
  9. Recording time may vary based on recording resolution & quality, lighting conditions and movement in the scene.
  10. Require a high-speed internet connection and a Wi-Fi router (not included) that supports 2.4Ghz. A minimum upload and download speed of 10 Mbps is required for optimal performance. For the latest list of supported apps and devices, please visit: www.lorex.com/support

Lorex products are designed for consumer and business use only and not for US federal governments, federally-funded projects or contractors subject to NDAA.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

N845 Front Overview

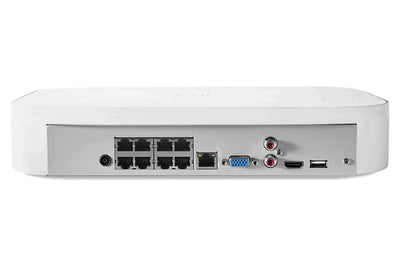

N845 Back Overview

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Hard Drive LED
  2. Power LED
  3. Network LED
  4. USB Ports
  5. Info / Panic Button
  6. Power Port
  7. PoE Ports
  8. LAN Port
  9. VGA Port
  10. Audio In / Out
  11. HDMI Port

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 8 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.

Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
