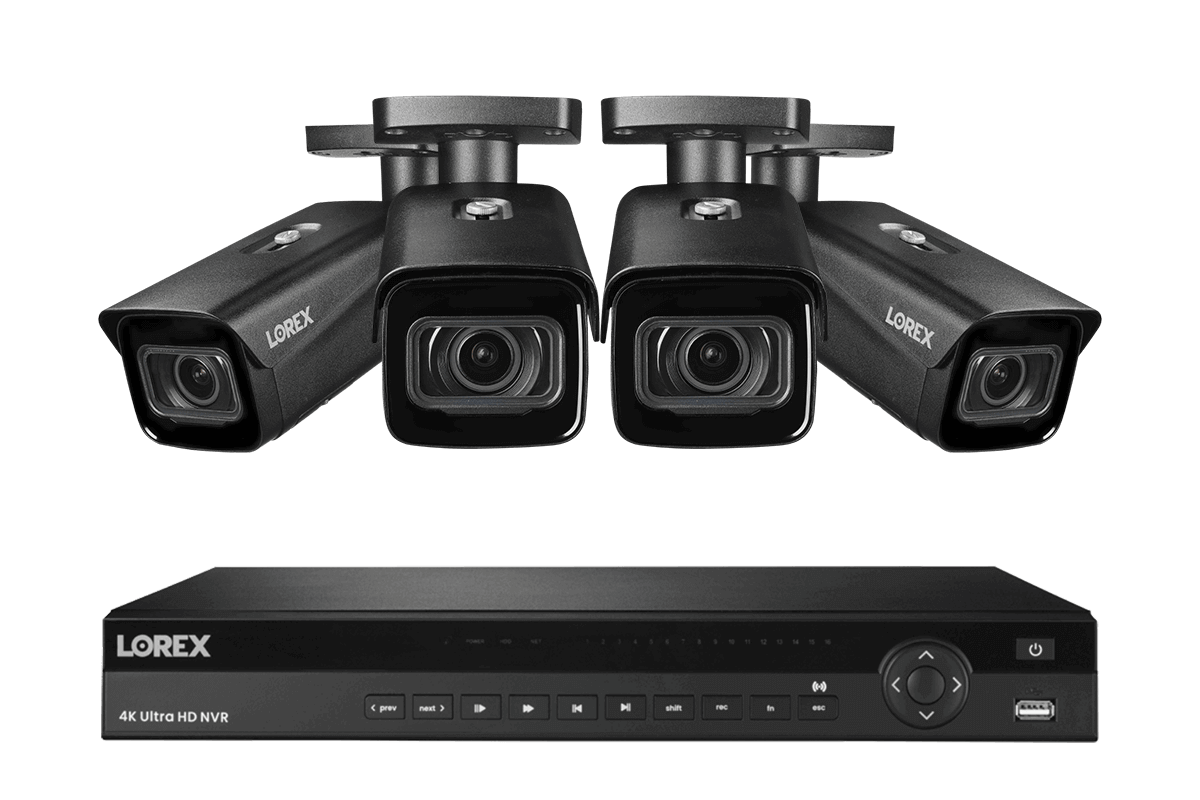

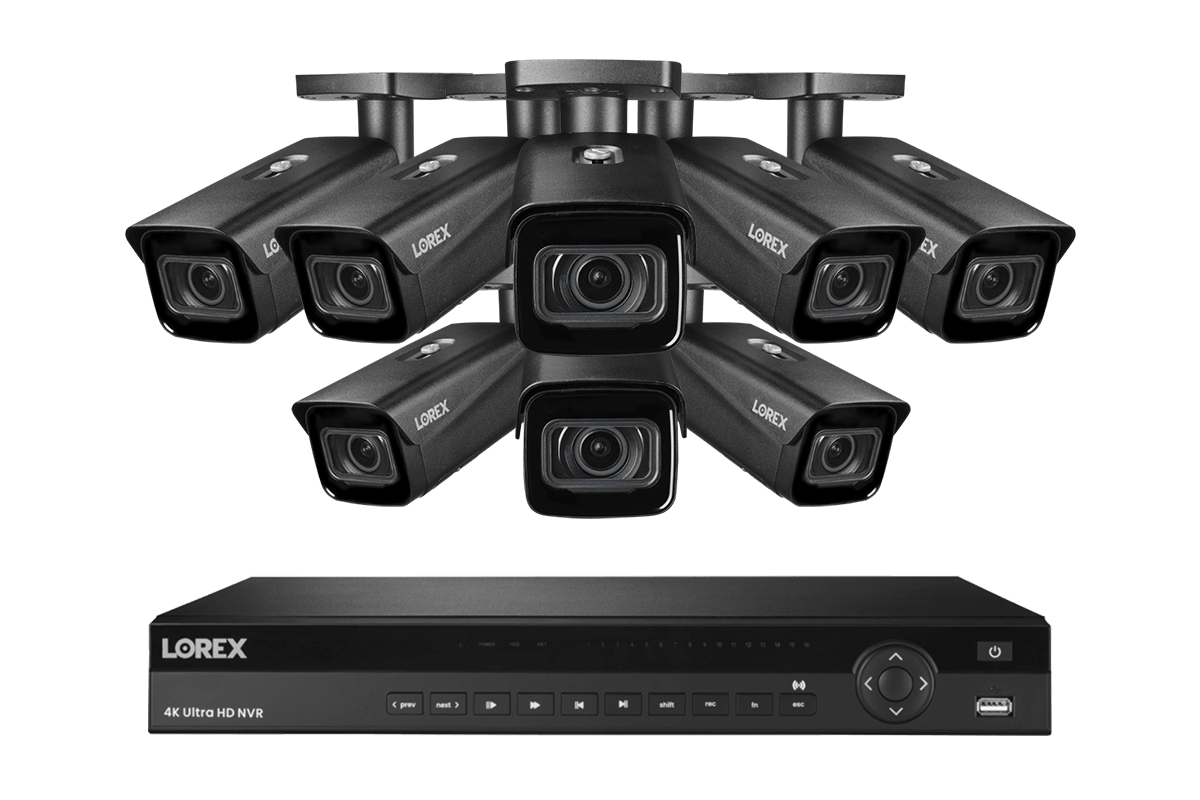

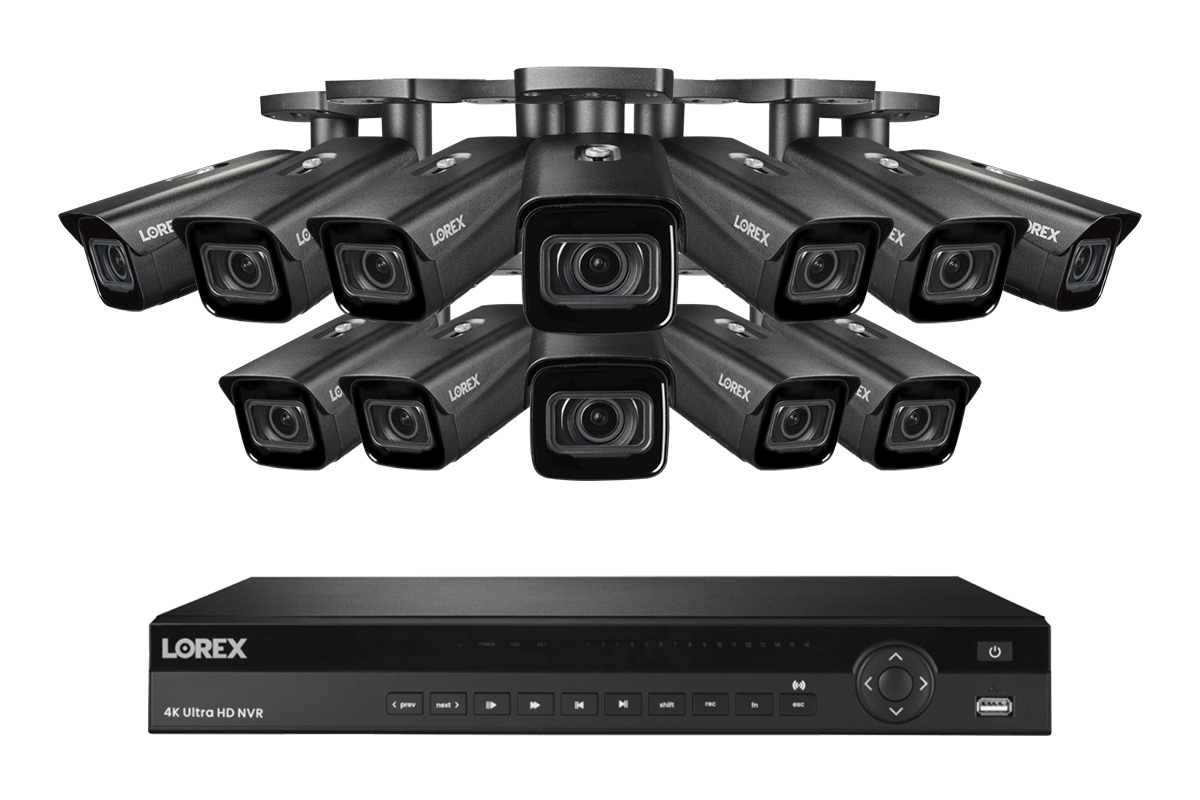

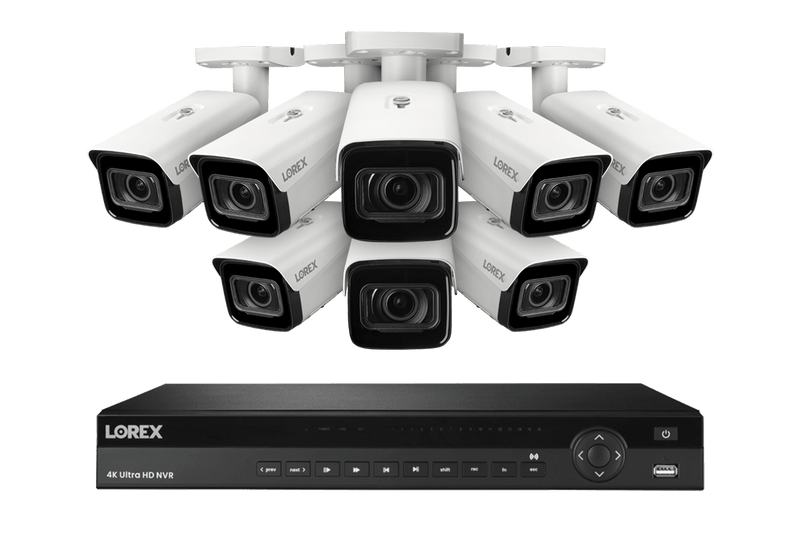

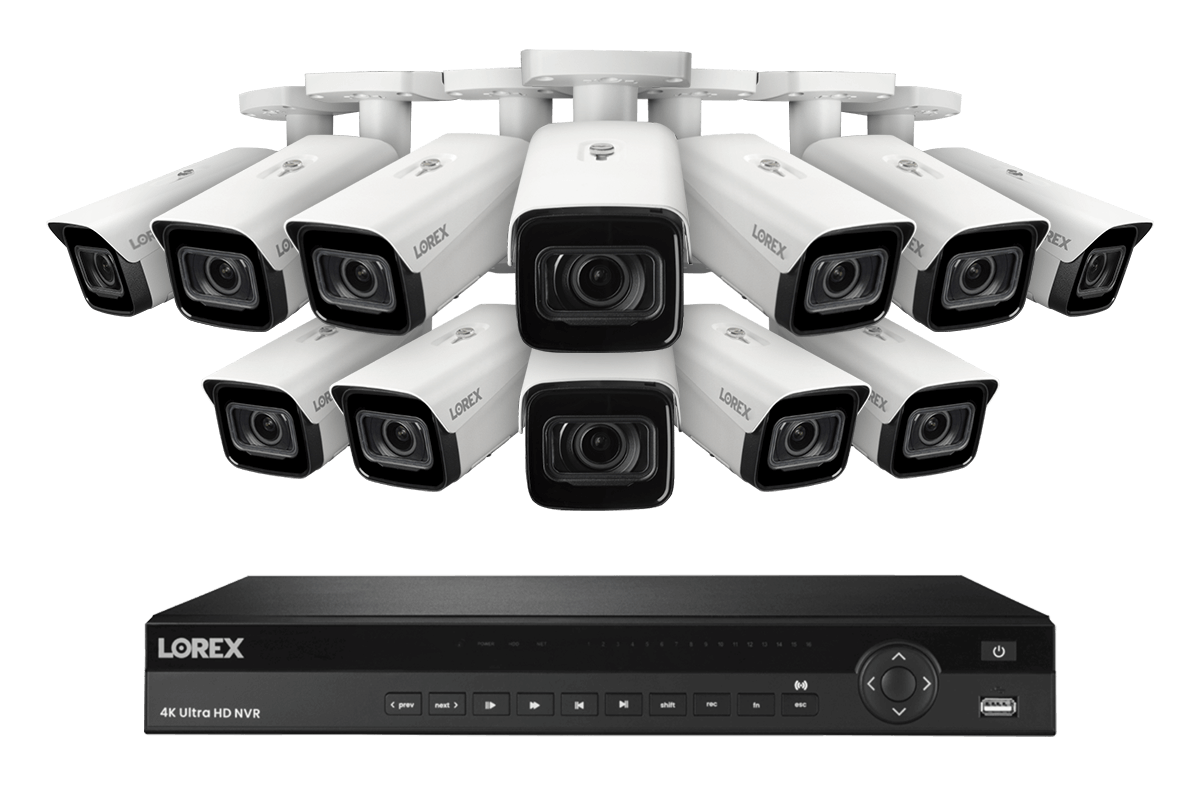

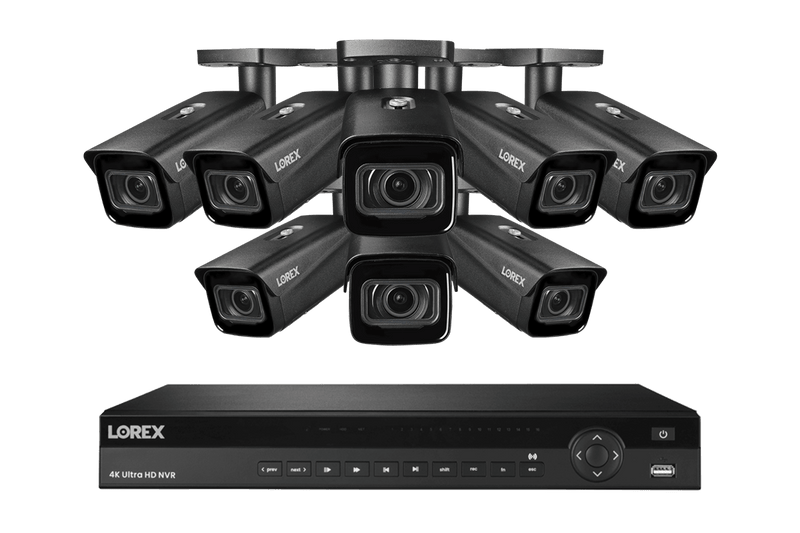

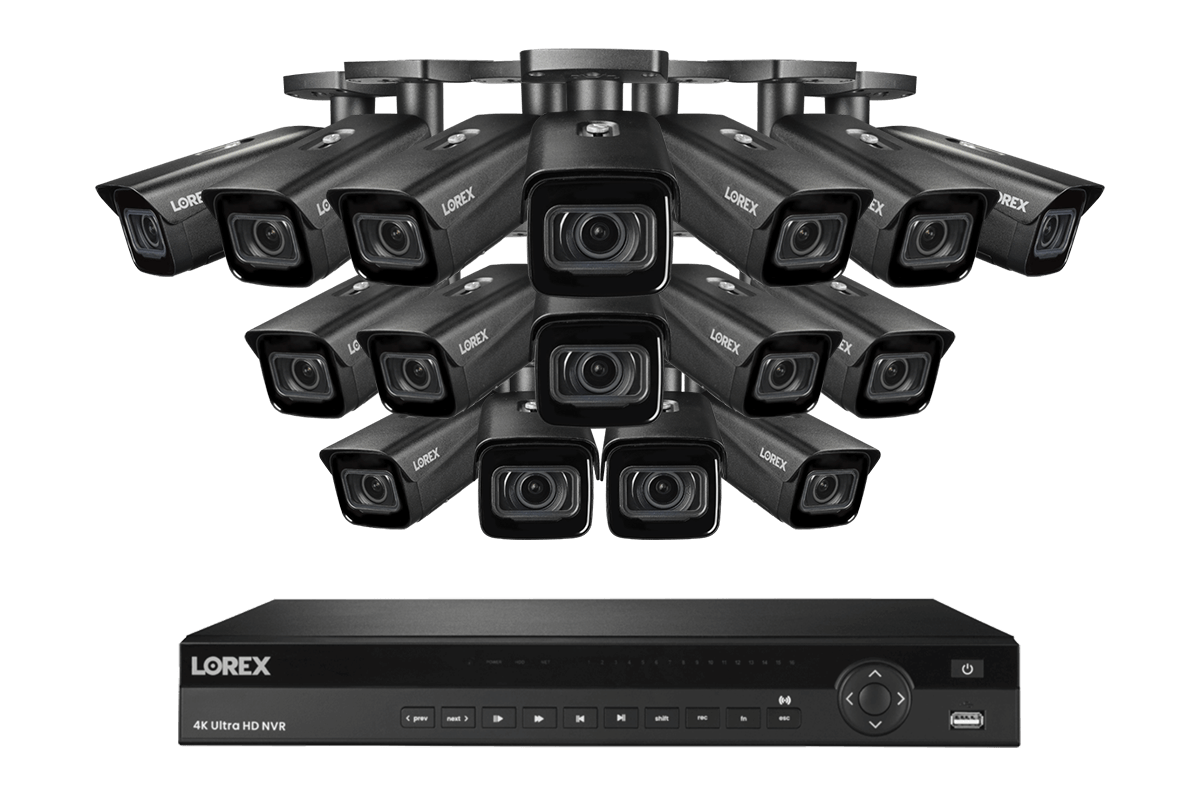

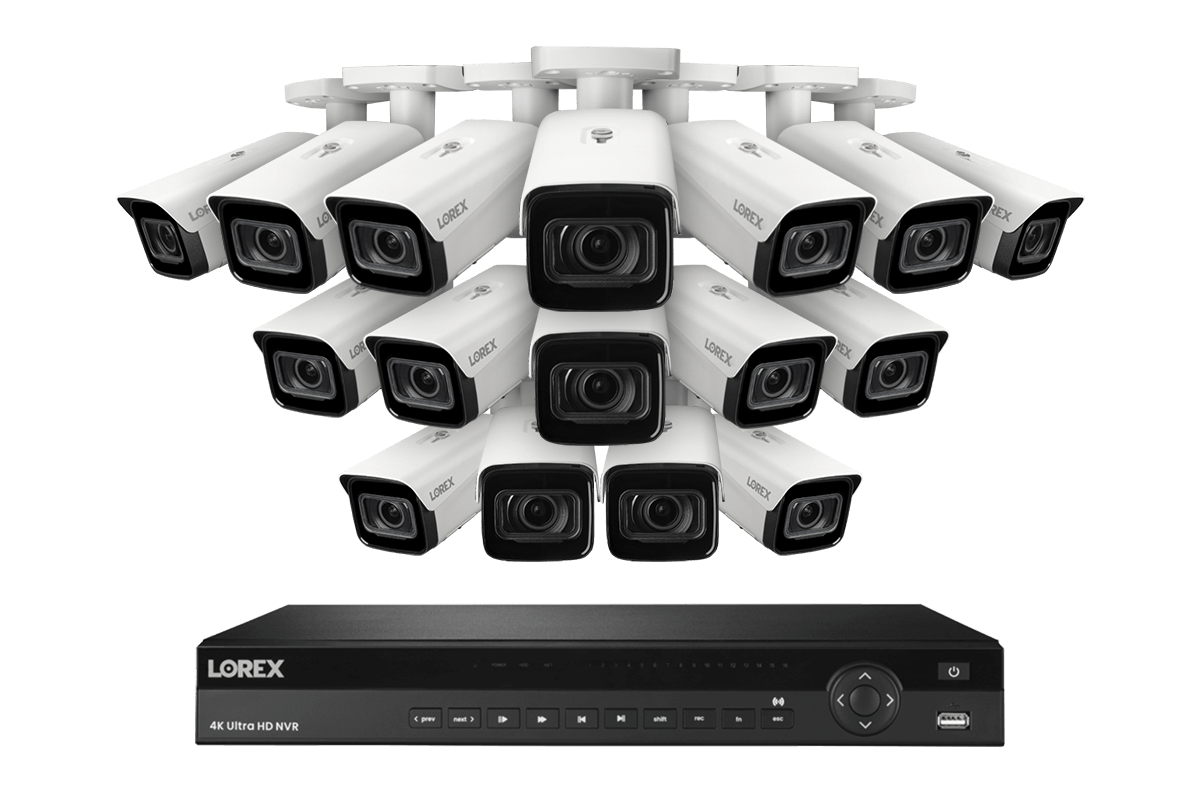

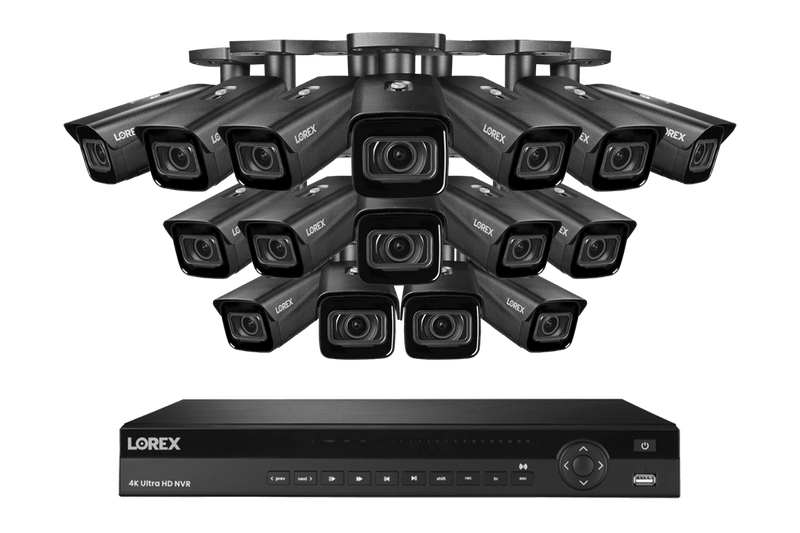

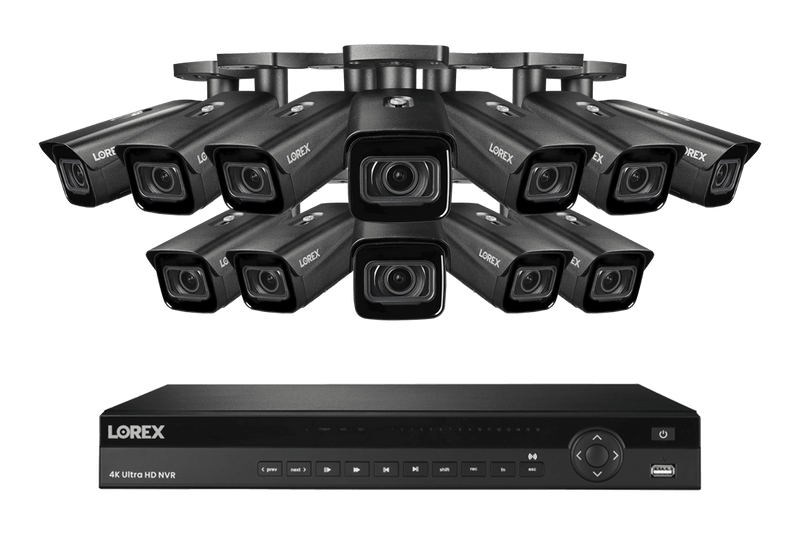

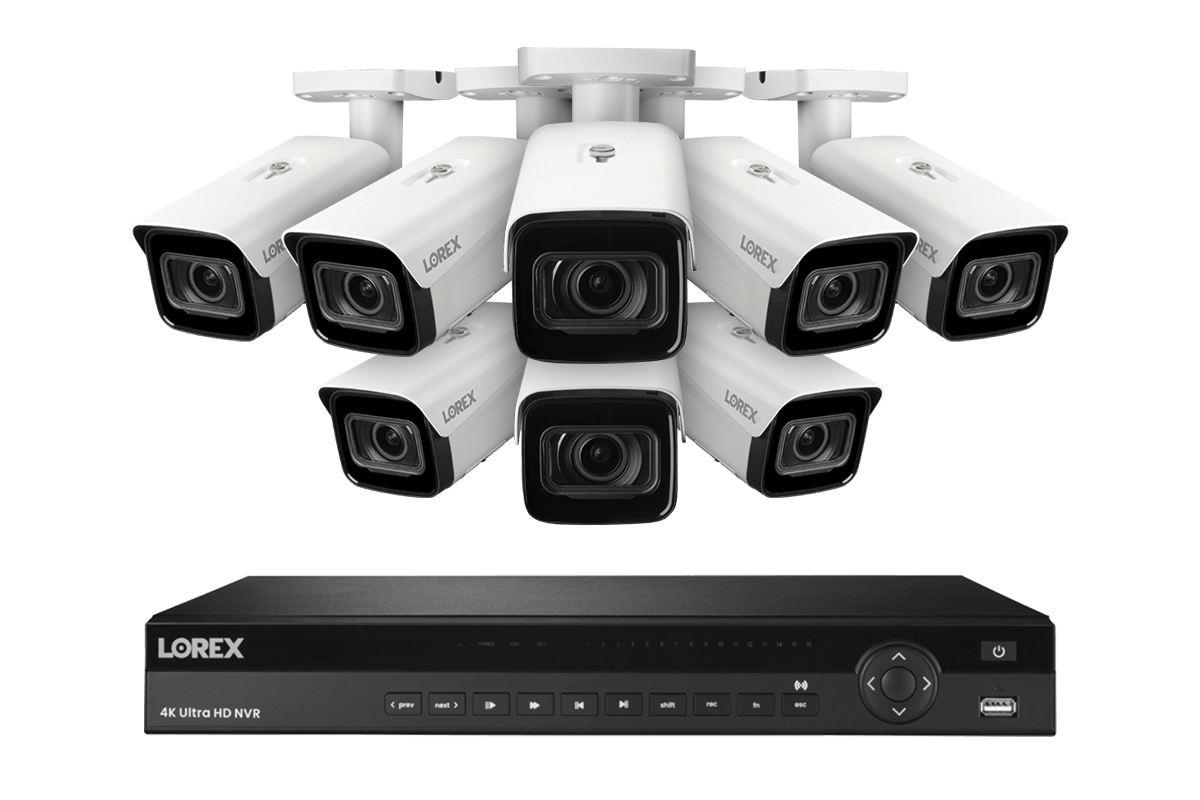

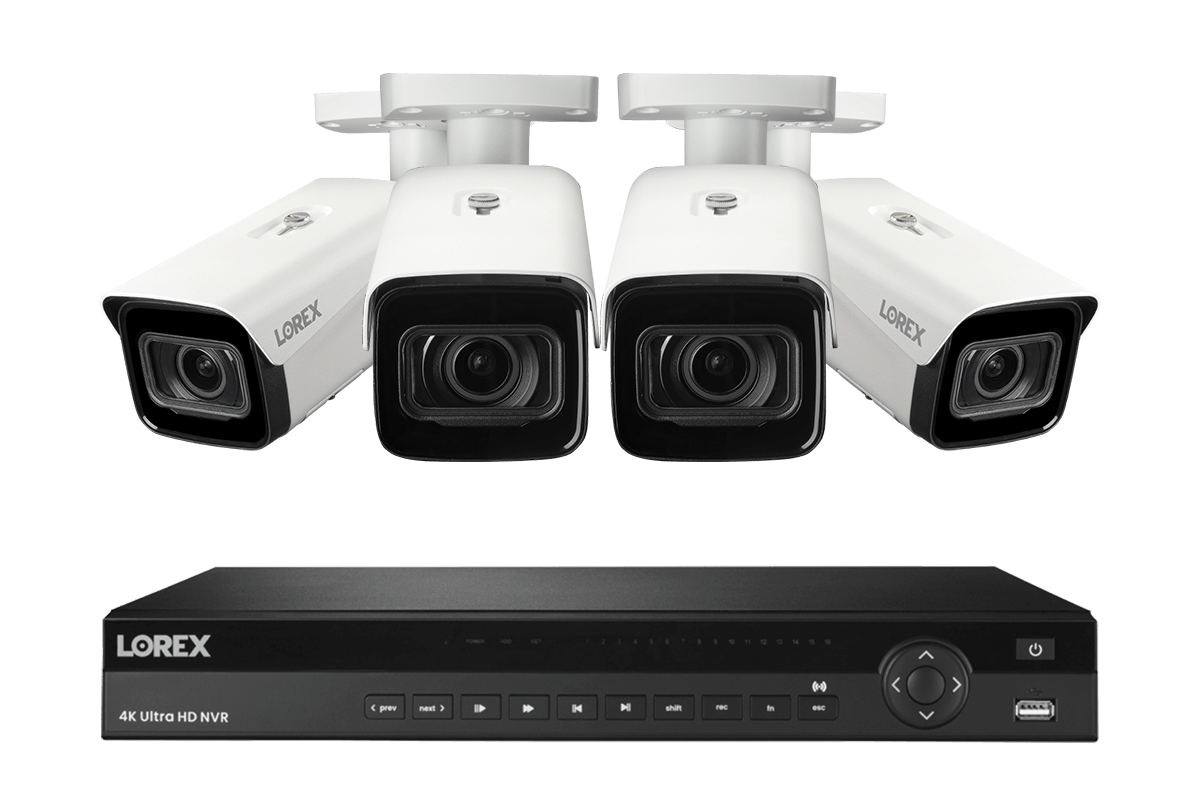

Lorex Nocturnal 3 4K (16 Camera Capable) 4TB NVR System with Smart IP Bullet Security Cameras with Motorized Varifocal Lens

NC4K4MV-164BB
Number of cameras:
Color:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Know that your property is protected around-the-clock with this Nocturnal security camera system from Lorex. This system includes Nocturnal security cameras and a powerful 16-channel Network Video Recorder (NVR). Along with real-time 30fps 4K recording, Color Night Vision, and Smart Motion Detection, these security cameras include motorized optical zoom lenses that allows you to adjust the camera's field of view to suit your monitoring needs. These features make this system an incredibly versatile security solution perfect for any home or business.

16

CHANNELS

4K NVR can support up to 16 cameras

4K

RESOLUTION

4× the resolution of HD 1080p

150FT

NIGHT VISION

Maximum night vision range

4TB

HARD DRIVE

Maximum Capacity 2 × 10TB hard drives

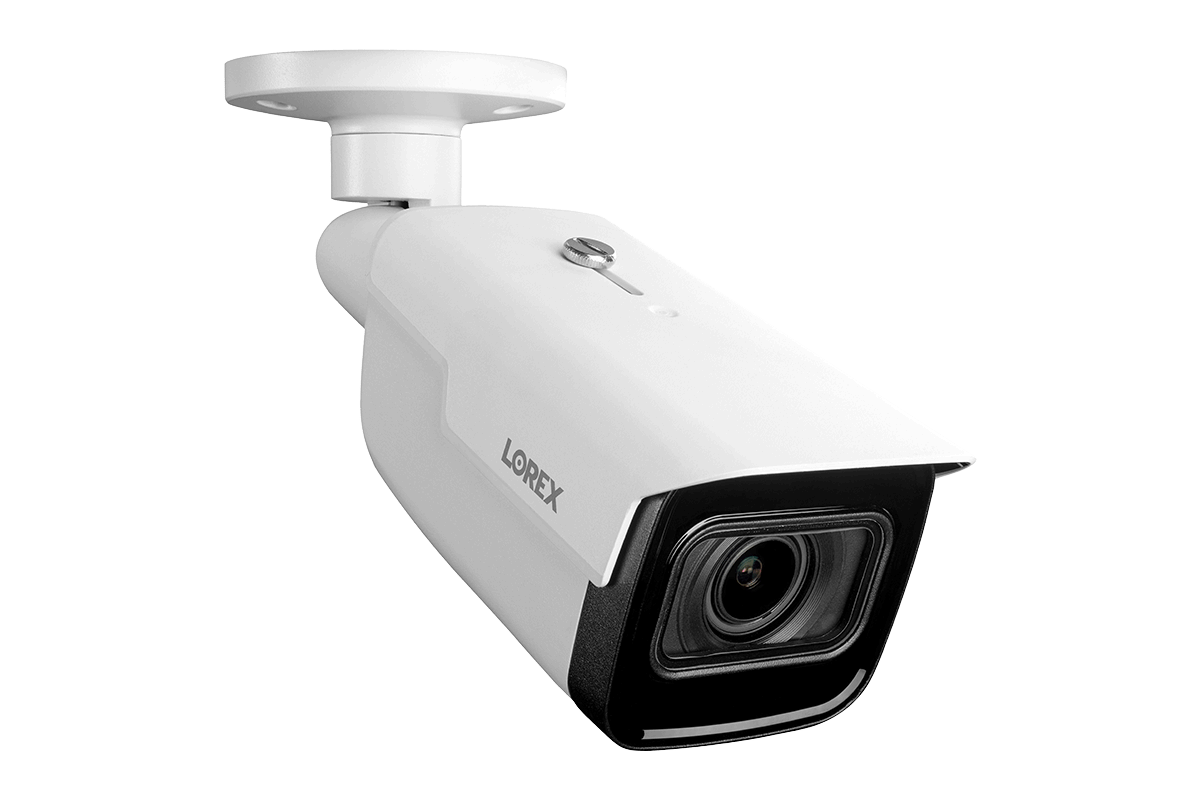

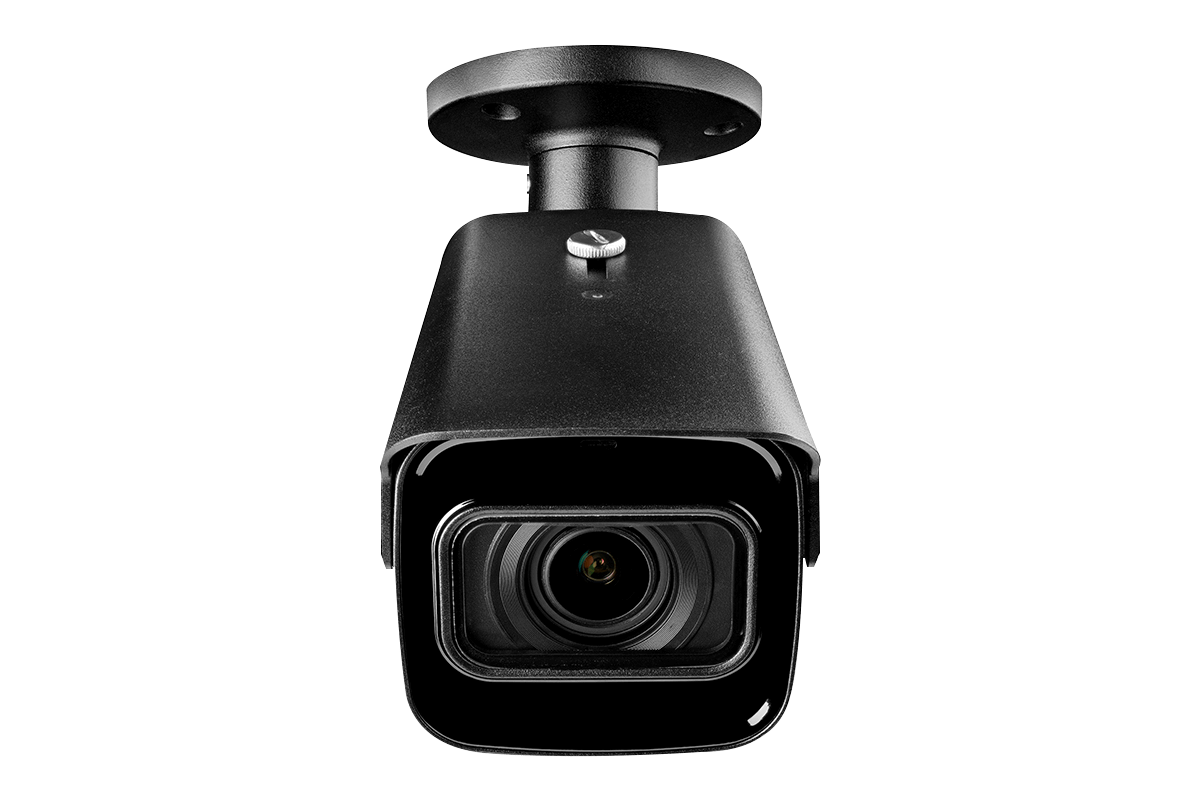

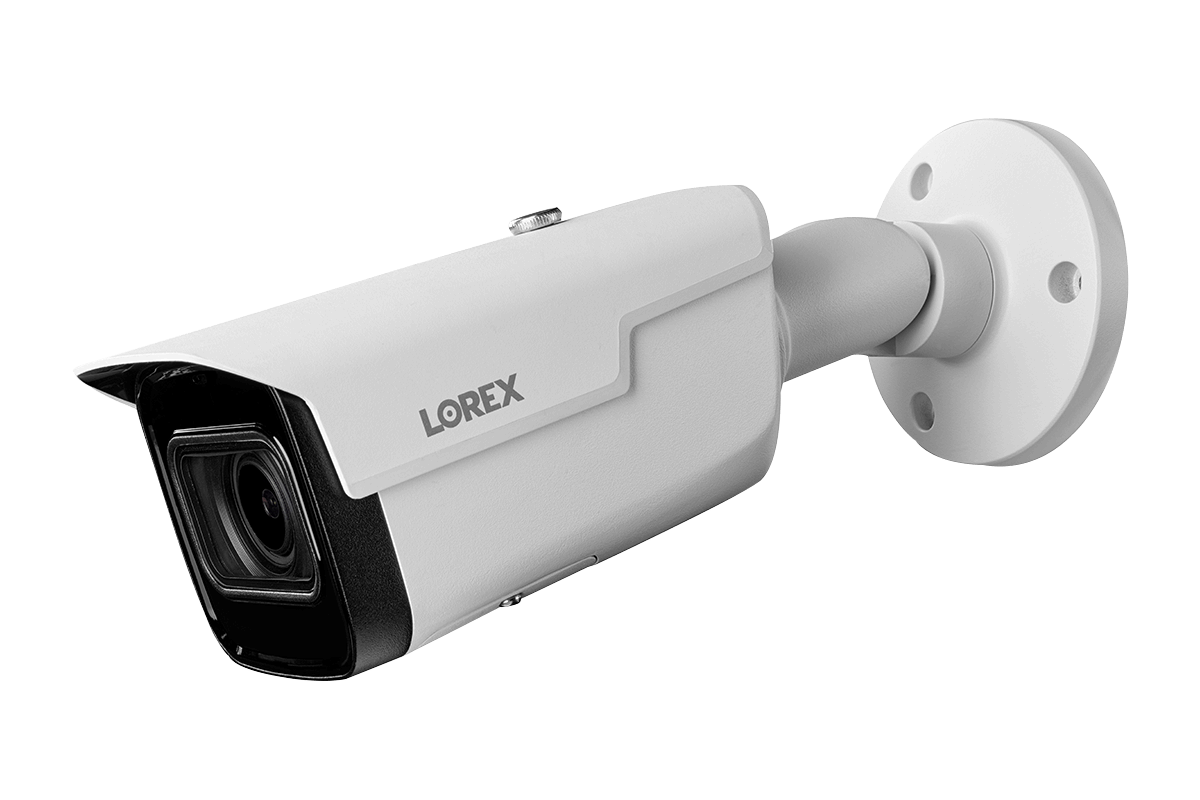

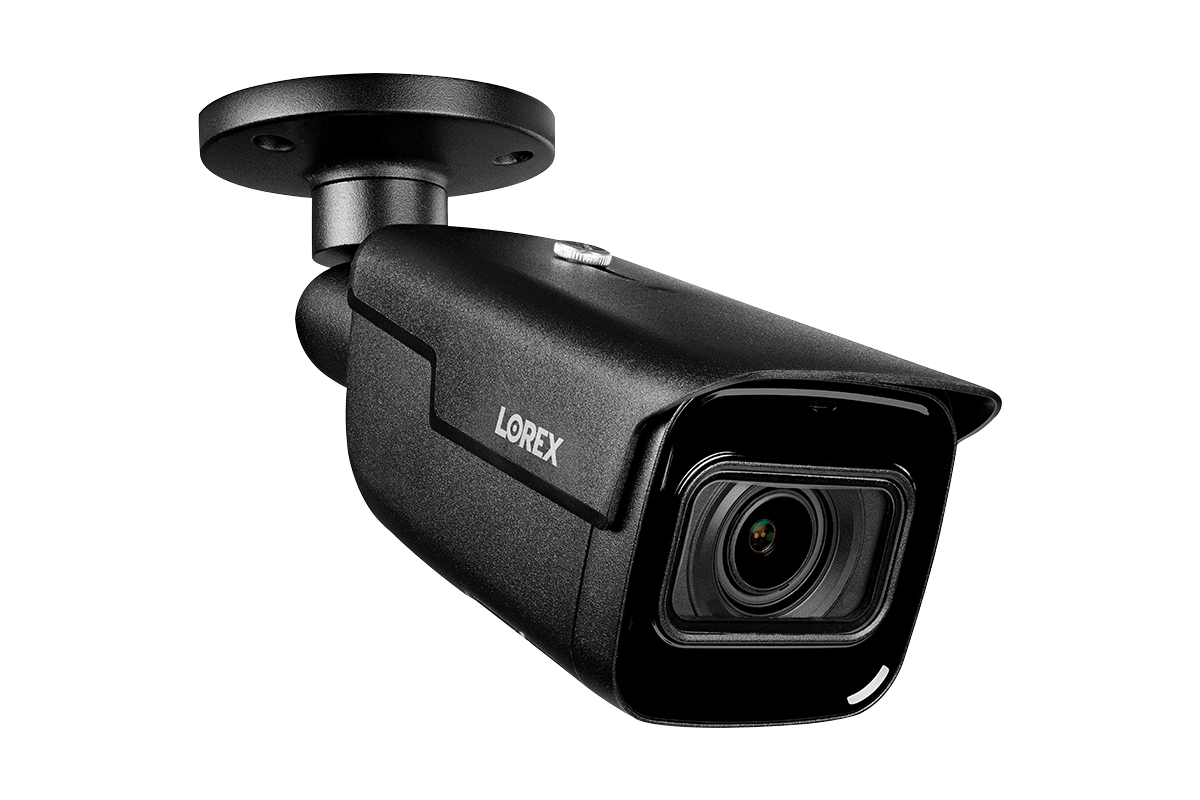

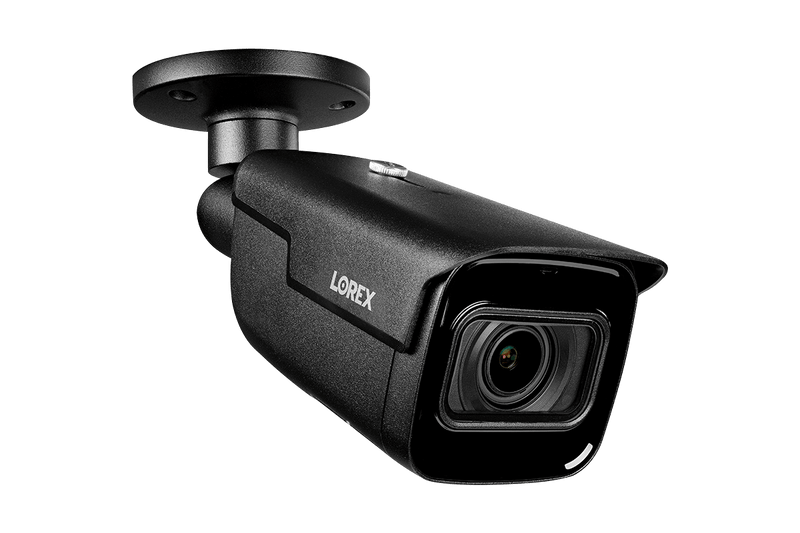

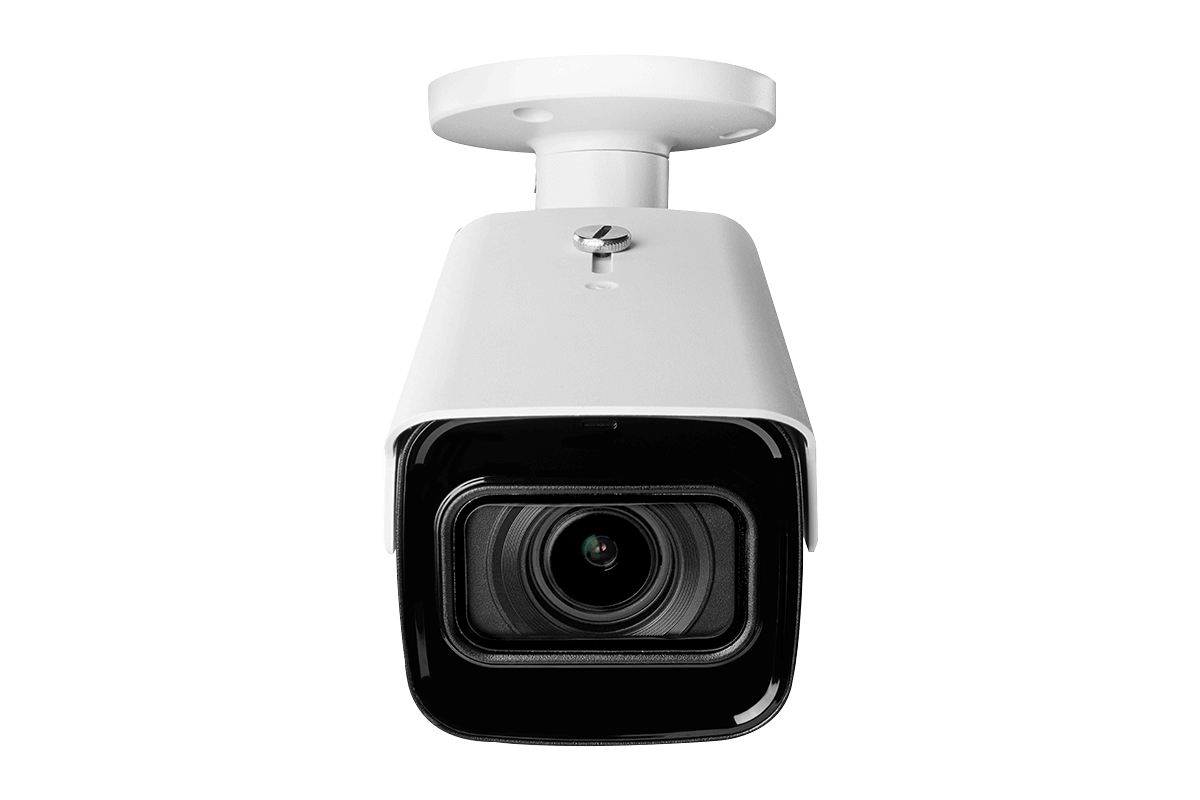

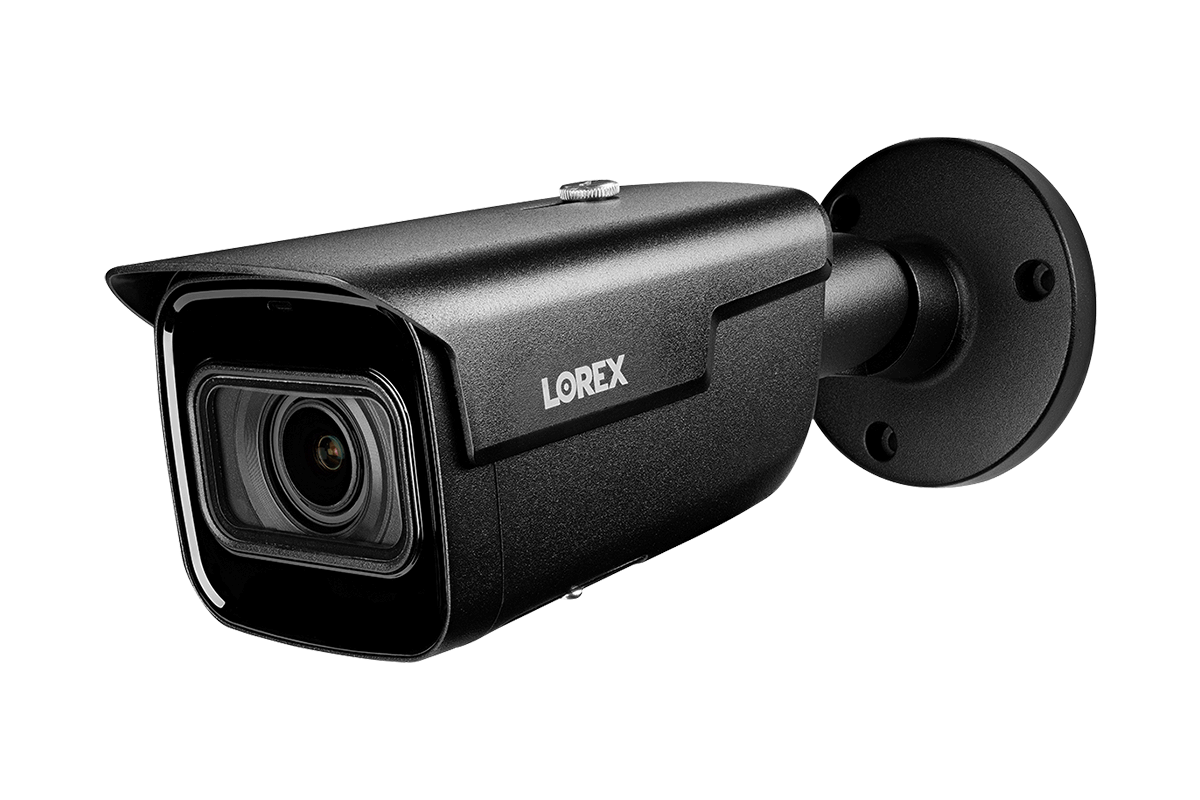

LNB9282B 4K Nocturnal camera

4K

RESOLUTION

4× the resolution of HD 1080p

Optical Zoom

Remotely zoom in and out

150FT

NIGHT VISION

Maximum Night
Vision Range

113-31°

FIELD OF VIEW

Remotely adjustable
field of view

IP67

Weatherproof

Indoor / outdoor IP security camera

The Nocturnal Smart IP Motorized Varifocal Camera is a high-performance security solution with real-time (30FPS) 4K recording and Smart Motion Detection. With the latest in Color Night Vision technology and encased in an aluminum exterior built to withstand the harshest weather conditions, this camera is designed to provide 24/7 surveillance year-round.

Real-time 30fps

Don't miss a moment with our Real-Time 4K Nocturnal Security Cameras. With 30 frames recorded within each second, the on-screen movement will look like you are witnessing events in real life.*

Color Night Vision

These Nocturnal security cameras feature our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera.

*When Smart Motion Detection is enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second.

Motorized Varifocal Lenses


4× Optical Zoom Security Camera

Varifocal cameras are able to zoom in and out using their 4× optical zoom lenses. Optical zooms mean that no video quality is lost when you are zoomed in, making these cameras extremely versatile.

Smart Motion Detection

This system comes with Smart Person and Vehicle Detection that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Cloud app whenever motion from a person/vehicle is detected on your property*. This effectively reduces the number of unwanted false alerts.

*Please note that the mobile push notifications will not differentiate between a vehicle or person event.

4K Ultra HD Resolution

Ultra HD
Resolution

Nocturnal security cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video.

Color Night Vision

Long-range
IR night vision

This camera will use it's infrared LEDs in regular nighttime conditions that are too dark for CNV to render full-color images.

High Dynamic Range

High Dynamic
Range (HDR)

HDR improves video clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image.

HEVC Compression

High Efficiency
Video Coding (HEVC)

HEVC compresses video file sizes without any noticable difference in quality, which will save you lots of hard drive space.

Metal housing

Full Metal
Exteriors

Heavy-duty aluminum exteriors will extend the life-cycle so you can count on years of uninterupted service.

Power Over Ethernet

Easy PoE
Installation

IP cameras only need a single Cat5e ethernet cable to connect it to a compatible NVR for video, power and a stable network connection.

Extreme Weather Capabilities

Rated IP67, Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-40°F | -40°C

Cold Rating

remote monitoring NR900 Lorex Cloud App

Remote mobile viewing with Lorex Cloud App

Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device. Connect your NVR to Lorex Cloud™ and securely access your system no matter where you are in the world. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of this app.

security certified NVR hard drive

Reliable security-grade hard drive preinstalled

A 4TB security grade hard drive (expandable up to 2 × 10TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.

Motion Zones

Regional
Motion Zones

Using the NVR, you can program specific motion zones so that they are customized for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").

Privacy Mask

Privacy
Masking

In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.

High Dynamic Range

Multiple Recording
Options

Record security footage continuously, during scheduled times, or when movement is detected. Motion recordings include a pre-recording function that will go back to record the five seconds before activity is detected.



What's Included?

E896AB Overview

Dimensions (WxDxH): 3.6" x 9.5" x 3.6" (91mm x 242mm x 91mm)
Weight: 1.15lbs / 0.52kg



Package Contents:

4K Bullet IP Camera

Mounting Kit

Ethernet Extension Cable*

*With pre-attached weather-resistant cap.
  1. 4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
  2. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  3. Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
  4. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  5. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  6. In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit: lorextechnology.com/compatibility
  7. Not intended for submersion in water. Installation in a sheltered area recommended.
  8. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
N883 Front Overview
  1. Power, Hard Drive & Network Statuses
  2. Channel Statuses
  3. Navigation Controls
  4. Power Button
  5. Playback Controls
  6. Switch Keyboards (shift)
  7. Start/Stop Recording (rec)
  8. Special Functions (fn)
  9. Back/Cancel (esc)
  10. Info Button
  11. USB Port

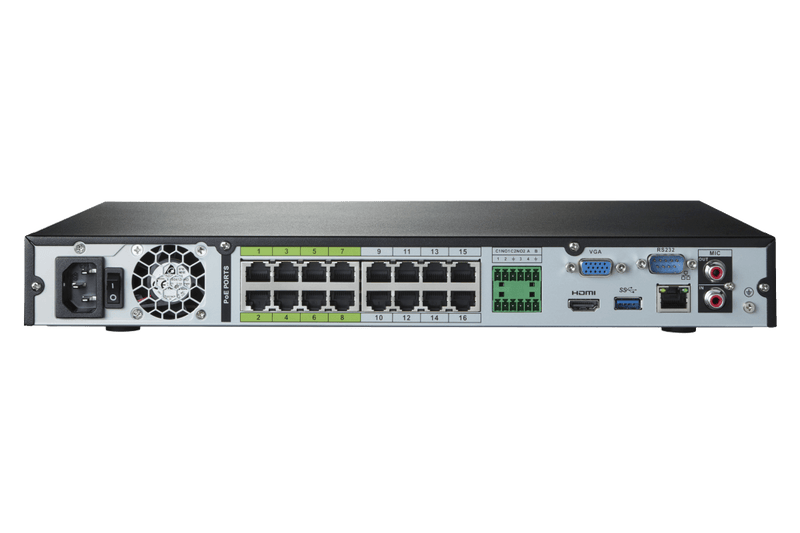

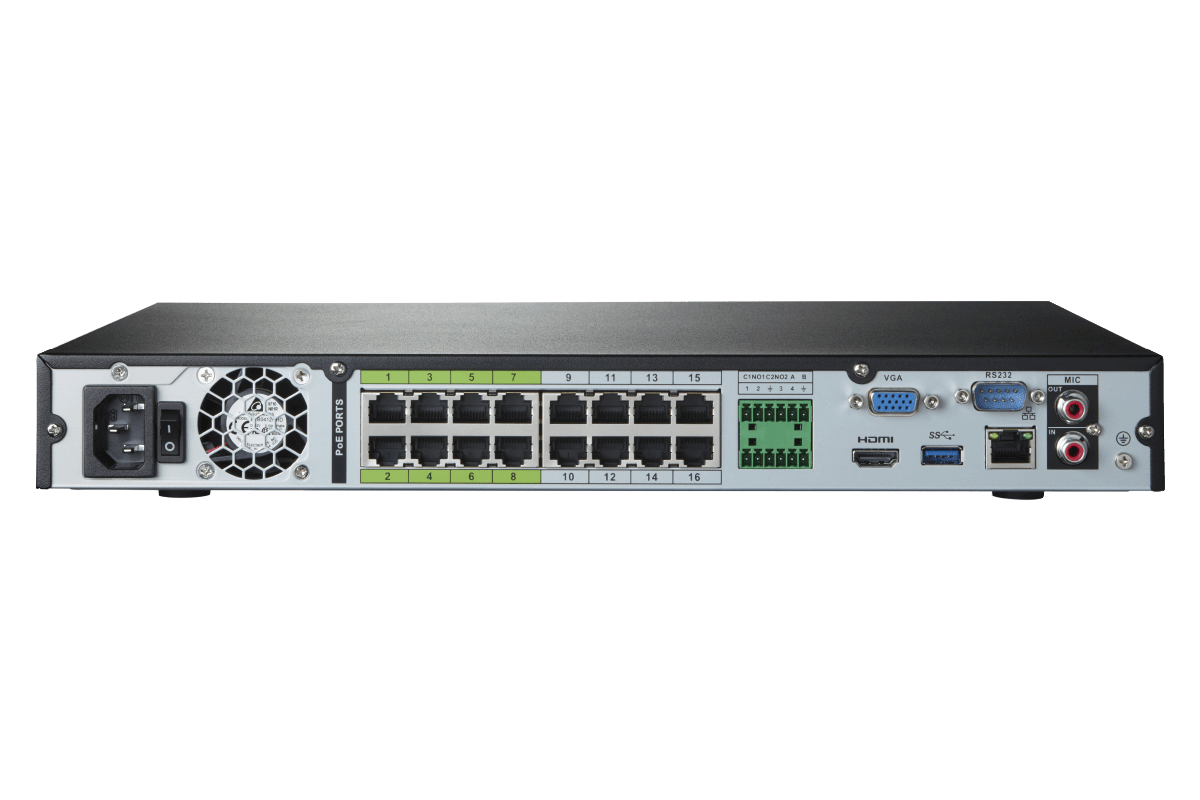

N883 Back Overview
  1. Power Connection
  2. Power Switch
  3. Camera Connection (ePoE)
  4. Camera Connection (PoE)
  5. RS485 Alarm
  6. Monitor Connection (VGA)
  7. RS232
  8. Audio In/Out
  9. Monitor Connection (HDMI)
  10. USB Port
  11. Network Connection (LAN)

Package Contents:

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

  • 4K (8MP) IP cameras are required to take advantage of 4K recording.
  • Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  • Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
  • Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6 Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  • Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  • HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  • Both firmware and software must be updated to latest version to ensure remote connectivity.
