Lorex Fusion 4K (16 Camera Capable) 3TB Wired NVR System with 8 IP Bullet Cameras, 2K Video Doorbell and Smart Sensor Kit

FN4K3-168WB-DS
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Welcome to the next generation of Fusion. This revolutionary 16-channel Fusion NVR can connect and continuously record any combination of wired and wireless cameras. For a start, this system includes eight 4K wired IP bullet security cameras and a Video Doorbell. This leaves you with seven open channels to perfectly tailor your security system to your property. It also includes a Lorex’s Smart Sensor Kit with two add-on sensors (one motion and one door/window), to add some easy video-free indoor security. All cameras and sensors are easily monitored right from the palm of your hand thanks to the Lorex app, which will keep you connected no matter where life takes you.



See Clearly,
Day and Night




Ultra HD Resolution

Color Night Vision



Built for the outdoors

Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.



140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof

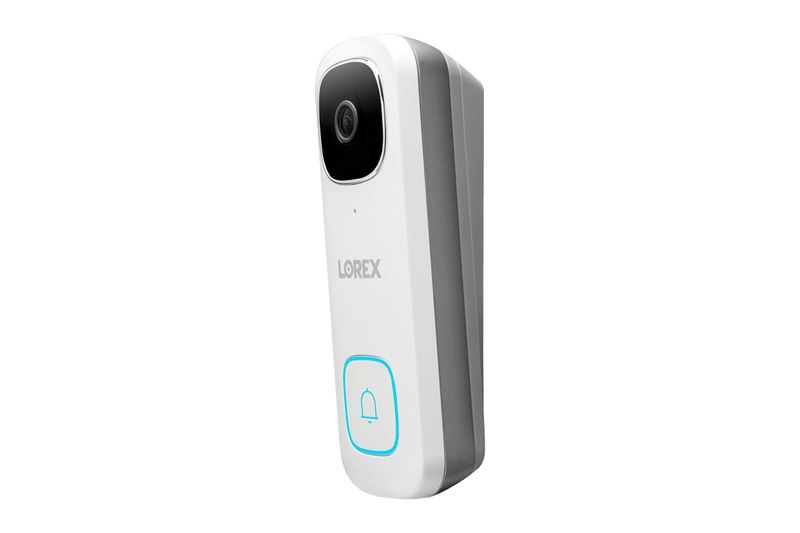

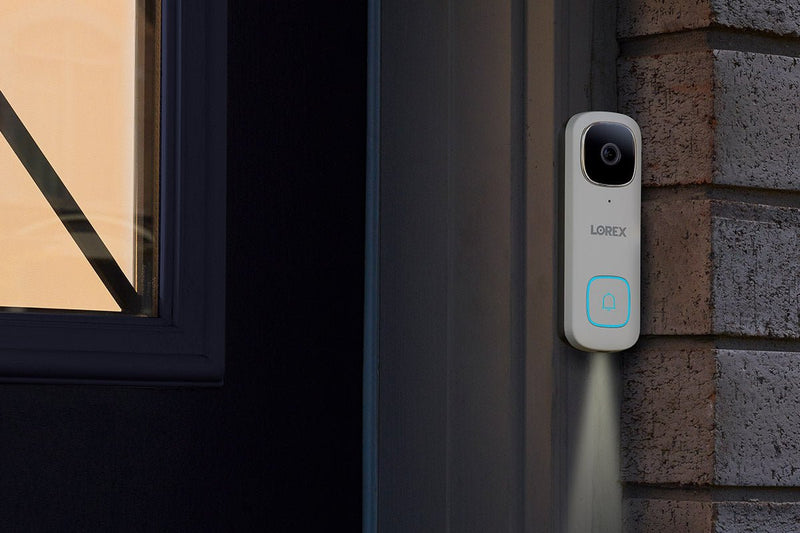

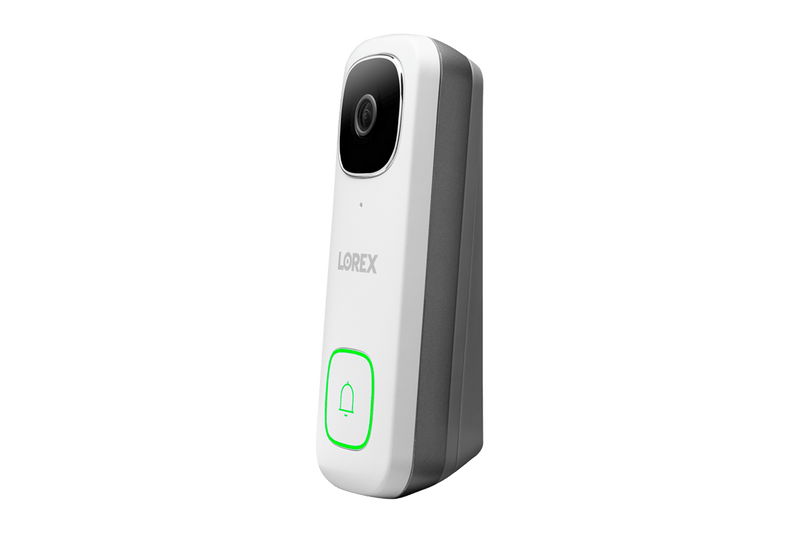

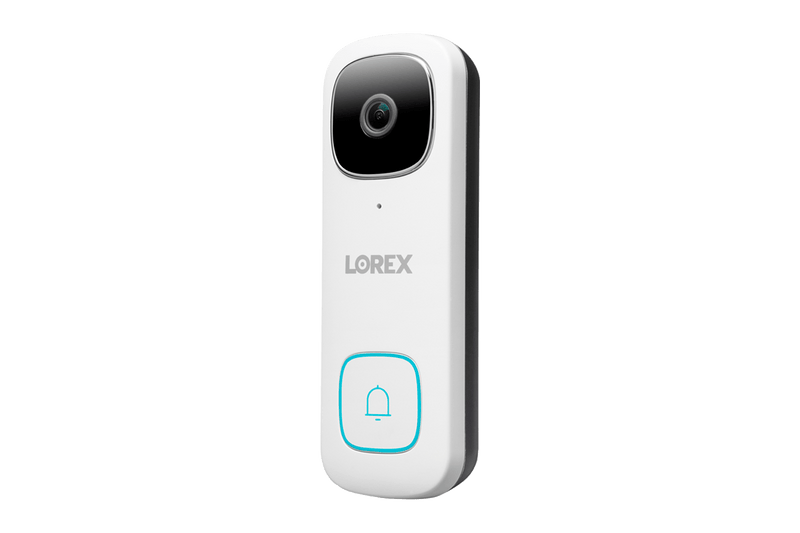

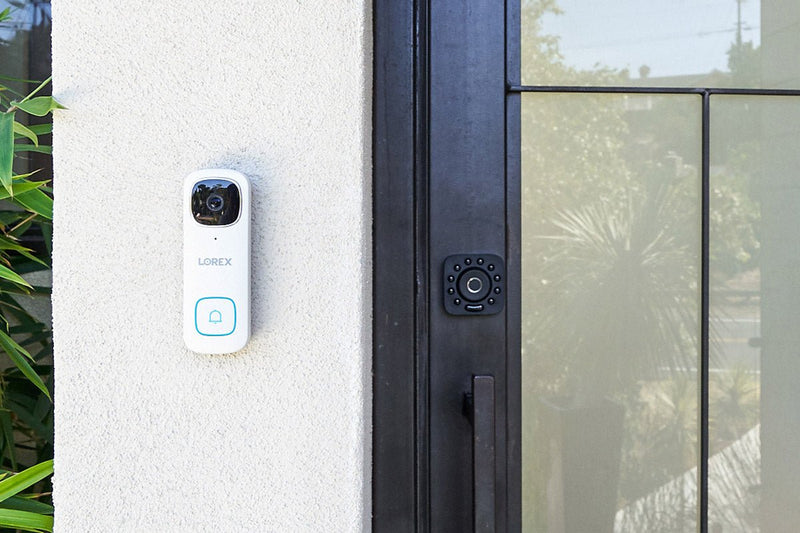

2K Wired Video Doorbell

See who's at the door, greet guests with a nightlight, answer the door from anywhere, play pre-recorded messages when someone rings, and talk to those on the other side with the 2K QHD Doorbell.

Learn More

Thanks to a pre-motion recording feature, the doorbell will automatically start recording 5 seconds before the event starts so you don't miss any action.

Automatically receive notifications to your phone telling you that there is someone at the door.

Use 1 of 3 quick responses to greet visitors who ring your doorbell. You can even record your own custom message to add your personal touch or speak directly through the doorbell using 2-Way Talk.

See more with a 164° viewing angle and 4:3 aspect ratio showing you the full picture.

HDR automatically corrects exposure when lighting is not ideal.

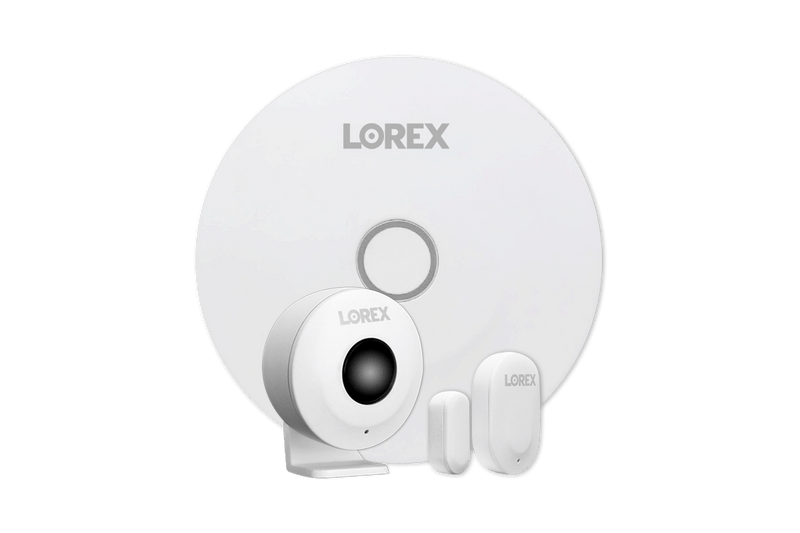

Smart Sensor Starter Kit

Add some vital security to your house without the video.

Learn More

Connect the Lorex Sensor Hub to the Lorex App - No NVR channel required.

Simply stick the sensors on any door or window frame in your home.

Peel and stick to locations around your house, including ceilings, walls, or the top of any flat surface.




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 16 wired or Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.




All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.


Fusion Devices


Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.



What's Included?

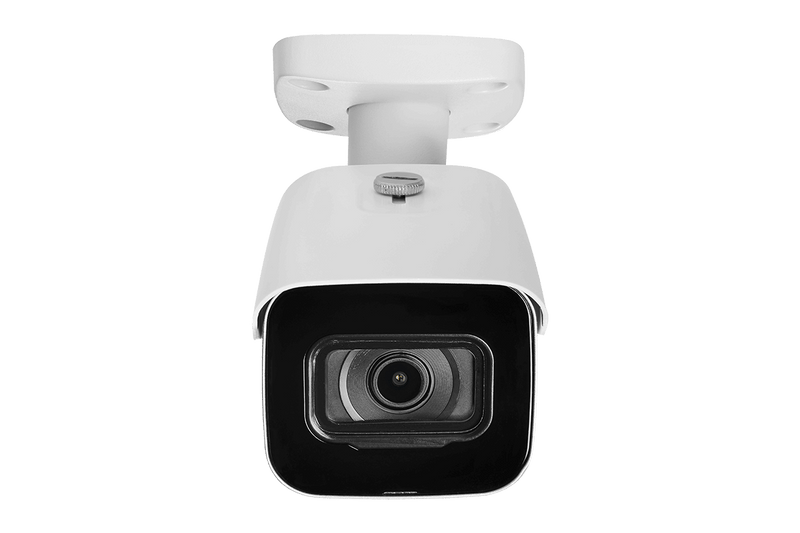

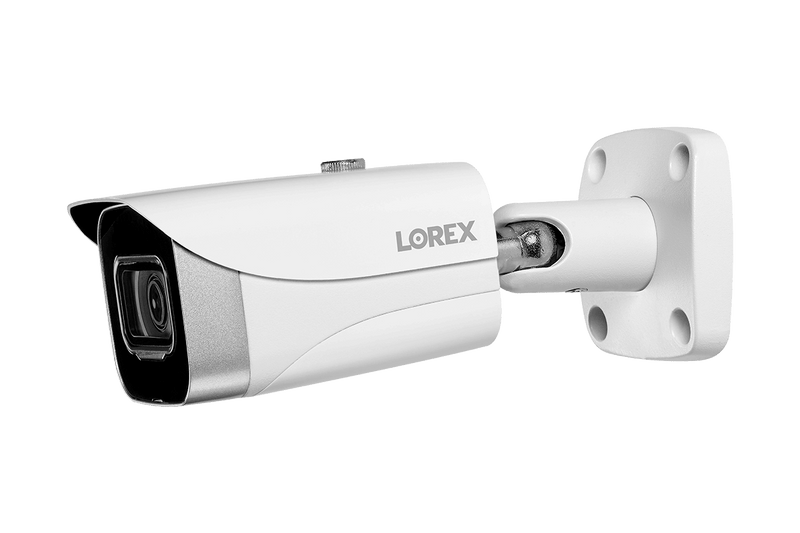

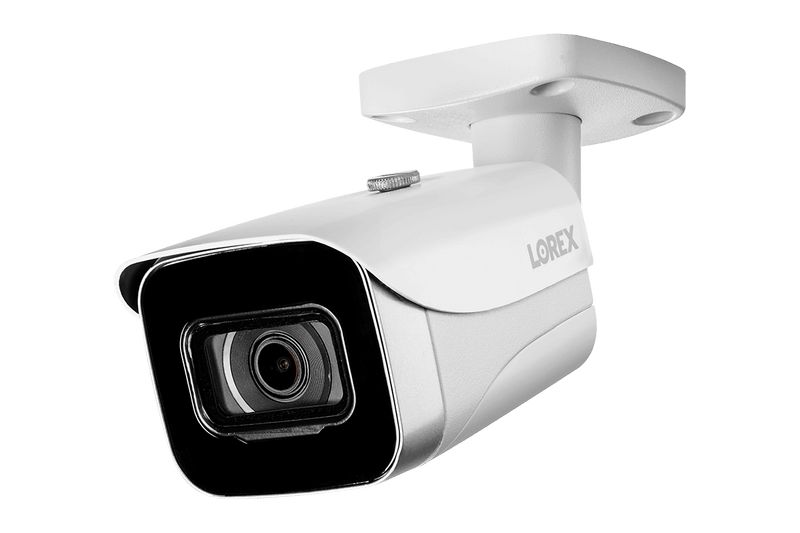

E841CAB Overview

Dimensions (WxDxH): 2.8" x 7.1" x 2.8" (70mm x 180mm x70mm)
Weight: 0.95lbs / 0.44kg



Package Contents:

4K IP Security Camera

Mounting Kit

60ft Cat5e Cable

Quick Start Guide

*With pre-attached weather-resistant cap.
  1. 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  2. See more with a wide-angle 105° field of view
  3. HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
  4. Weatherproof rated (IP67)2
  5. Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
  6. Aluminum Alloy housing, designed to withstand harsh weather conditions
  7. Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
  8. Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4

B451AJ wall mount dimensions

Dimensions (WxDxH): 5.1" x 1.8" (130mm x 45mm)
Weight: 1.17lbs / 0.53kg

Package Contents:

2K Video Doorbell

Pre-inserted microSD Card

USB Cable

Electrical Wiring

Mounting Kit

Quick Start Guide

15° Horizontal Bracket

5° Vertical Bracket

  1. Impressive 2K Resolution for clear video quality.
  2. See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
  3. Get the best picture always with HDR imaging.
  4. Use pre-recorded messages or 2-way talk1 to greet visitors.
  5. Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
  6. Deter unwanted guests with the remote-activated siren.
  7. Be aware of activity around your doorstep with built-in Person Detection feature.
  8. Receive notifications from the Lorex Home™ app when motion is detection2.
  9. Local microSD storage, expandable up to 256GB.
  10. Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
  11. Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
  12. Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
  13. Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3

Smart Sensor

AY41TR-KTK1-MTK1

AY41TR Sensor Hub
AY41TR Sensor Hub
Color White
Power Power adapter input: 100-240V AC, Power adapter output: 5V DC
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements Lorex Home APP
Compatibility Lorex DVR's or NVR's using Lorex Home APP
Operating Conditions Indoor Use
Warranty 1 year limited warranty
AM41TK PIR Motion Sensor
AM41TK PIR Motion Sensor
Color White
Power Battery: CR2450, included
Connectivity BLE5.0
Detection Range 26ft Max.*
Detection Angle 110° Max.
Installation Type Tabletop, wall or ceiling
Lights Status Indicator Light
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex Home Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty
AK41TK Door and Window Sensors
AK41TK Door / Window Sensors
Color White
Power Battery: CR1632, included
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex Home Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty

Package Contents:

Sensor Hub

1 × PIR Motion Sensor

1 × Door / Window Sensors

Sensor Hub Power Accessory

Sensor Hub Bracket

PIR Motion Sensor Bracket

Mounting Adhesives

Pin

Sensor Pre-Inserted Batteries

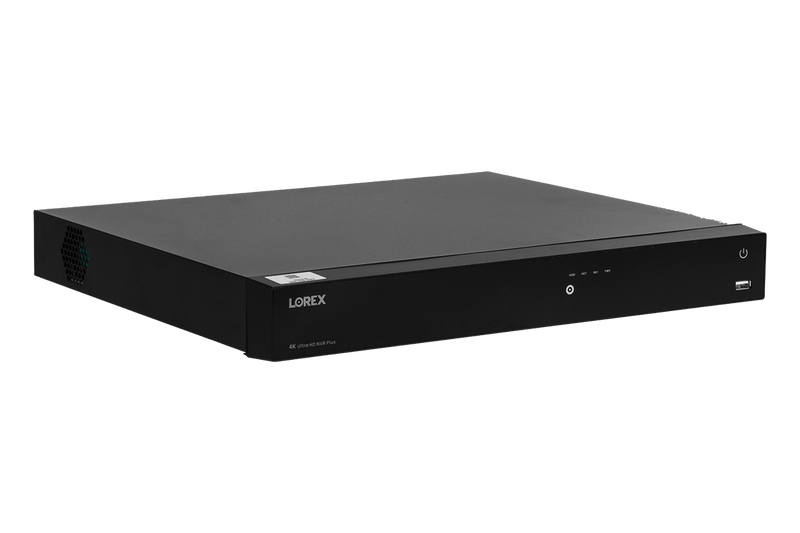

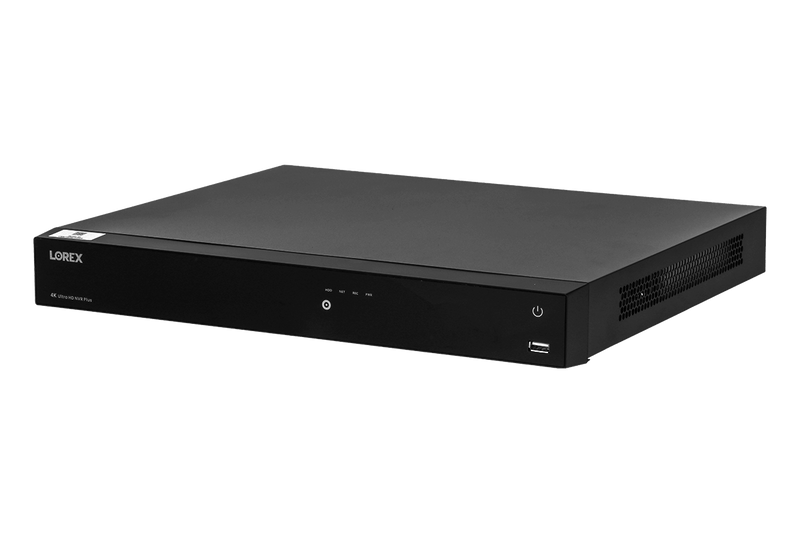

N864 Front Overview
N864 Back Overview

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Info / Panic Button
  2. Hard Drive, Network, Recorder & Power LEDs
  3. USB
  4. Power Button
  5. Power Input
  6. Power Switch
  7. PoE Ports
  8. Alarm
  9. HDMI
  10. VGA Port
  11. RS232
  12. LAN
  13. Audio In / Out

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
