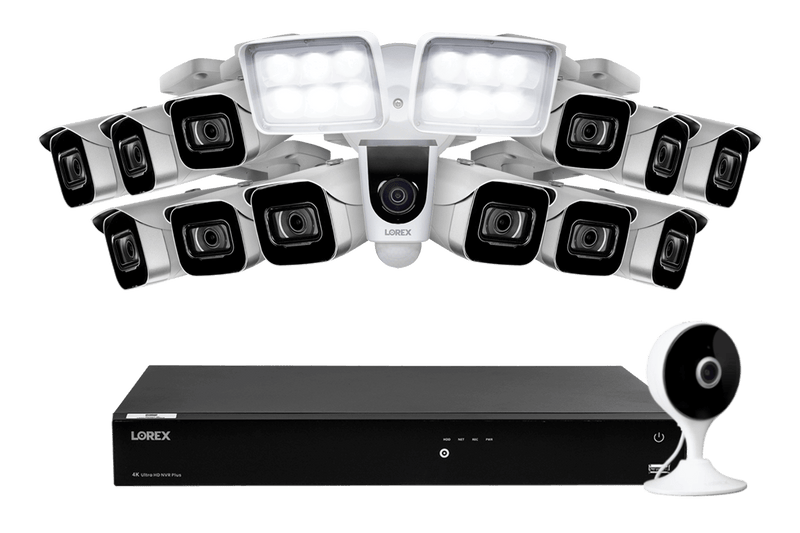

Lorex Fusion 4K (16 Camera Capable) 3TB Wired NVR System with 8 IP Bullet Cameras, One 1080P Floodlight and One 2K Indoor Wi-Fi Camera

FN4K3-1612WB-JF
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Welcome to the next level of Fusion. This system starts with our 16-channel Fusion NVR, which can connect any combination of Wired and Wi-Fi cameras. This means that you can record the included 4K Wired IP Security Cameras, the Floodlight Camera, and the 2K Indoor Wi-Fi Camera around the clock to the NVRs large 3TB security grade hard drive. It also means that you can add up to six more Wired or Smart Home cameras to create your perfect security ecosystem.



See Clearly,
Day and Night




Ultra HD Resolution

Color Night Vision

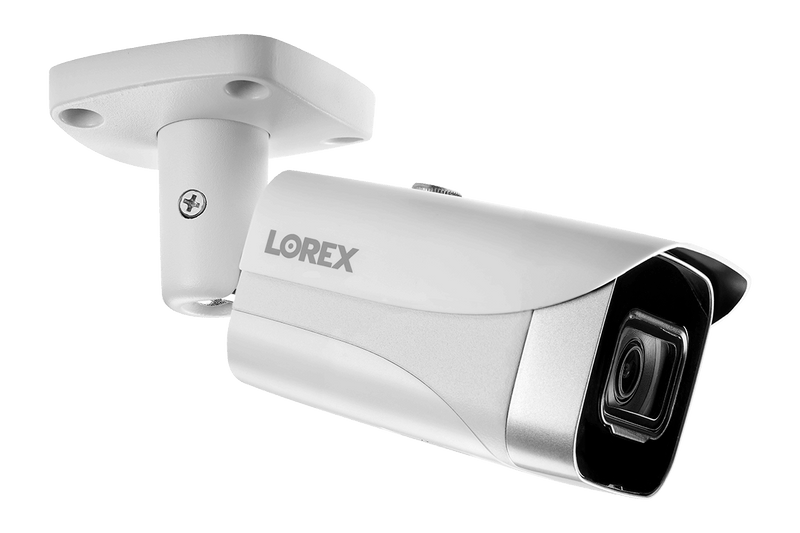

Built for the outdoors

Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.



140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof

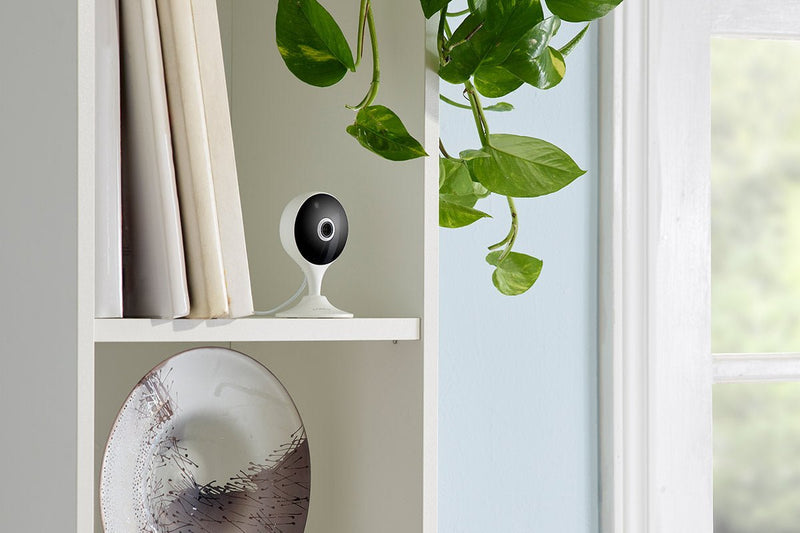

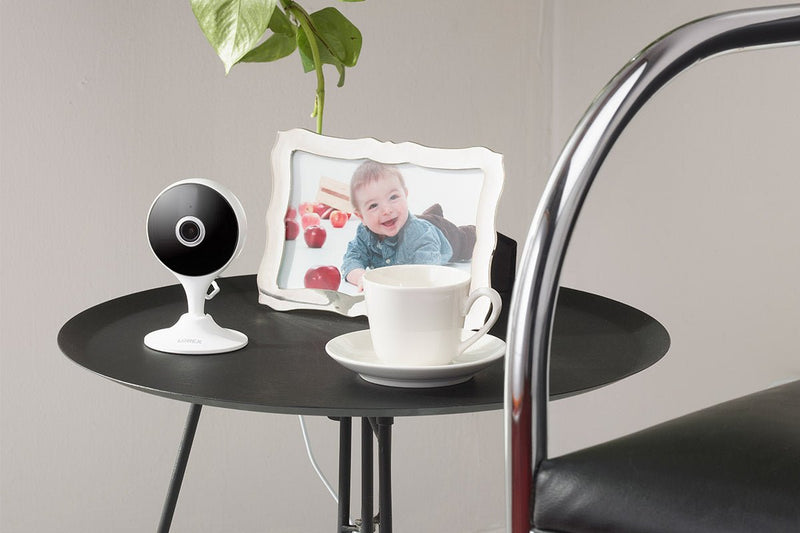

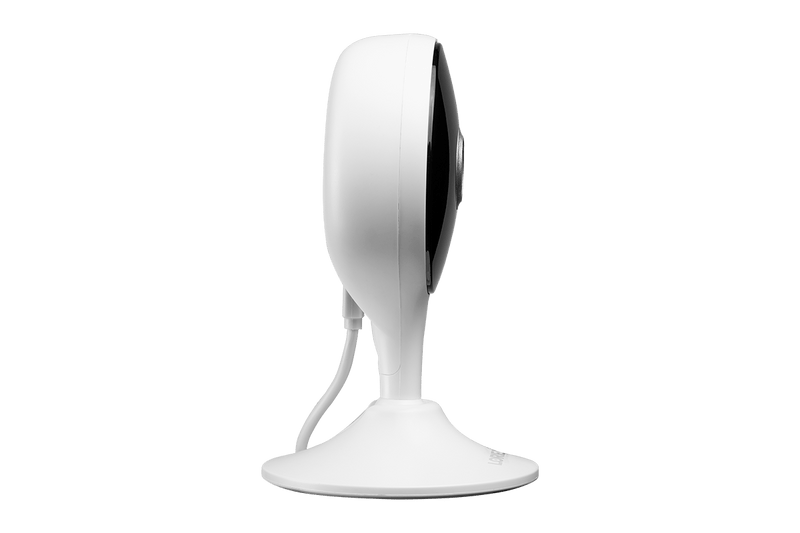

2K Indoor Wi-Fi Security Camera

The compact, lightweight design and magnetic base promise flexibility in placement, while the included mounting kit allows for ceiling or wall installation.

Learn More

A 4MP image sensor provides 2× the resolution as 1080p. This creates exceptionally sharp and detailed video.

Avoid false alerts and unnecessary notifications with person detection, which is designed to recognize when a person enters the camera's field of view.

Use the 2-Way Talk via the Lorex Home app to talk and listen to the person on the other end of the camera.

Keep your footage private and secure with the camera's built-in local storage or use the NVR's included hard drive storage.

When light is limited, the camera will automatically switch to infrared night vision so you won't miss a thing.

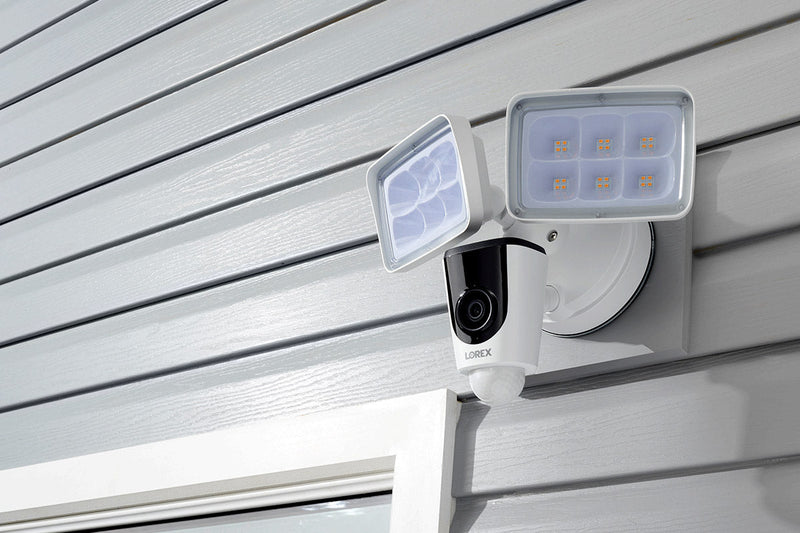

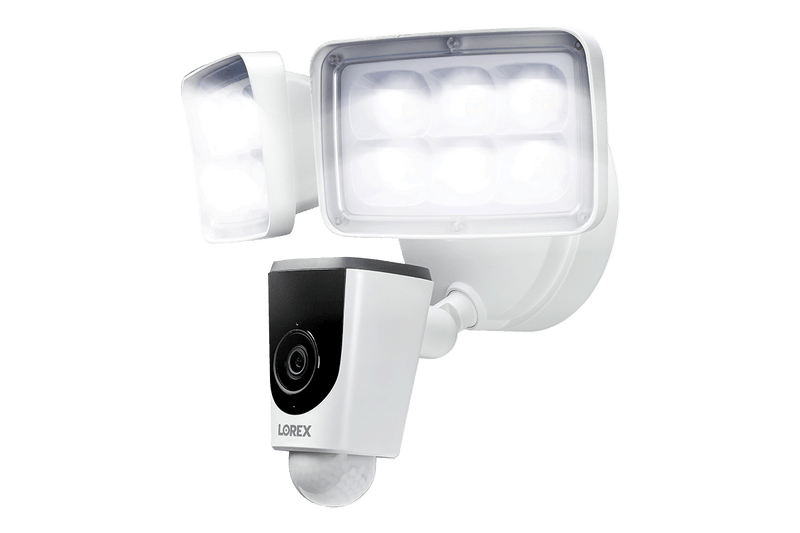

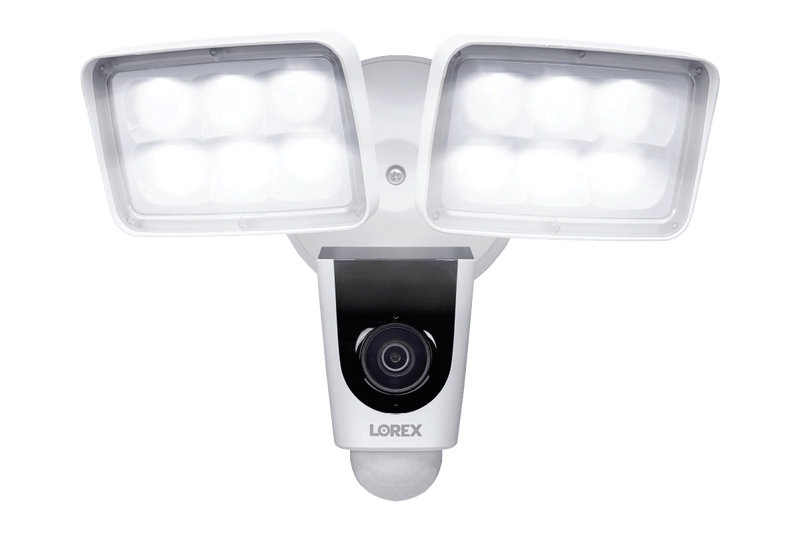

1080P Video Floodlight

Combine security and lighting with this powerful Floodlight Camera.

Learn More

Capture important details with real-time 30 fps (frames-per-second) full 1080p HD resolution recording. A wide-angle lens also provides you with more security coverage and helps with earlier detections.

The camera is equipped with dual LED floodlights, two-way talk, and a deterrence siren to stop potential events before they happen.

The Passive Infrared (PIR) motion detector has a 270° horizontal field of view and is designed to sense the infrared energy that eminates from people, animals, or vehicles.

Conveniently use the existing wiring from your previous floodlight or outdoor house light. It can also connect to your pre-existing standard junction box.

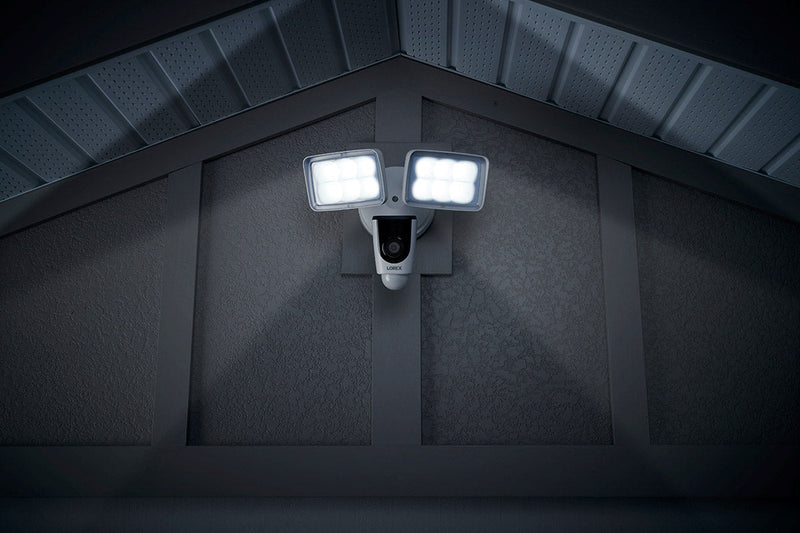

The Floodlight Camera works 24/7. It contains infrared LEDs that allows the camera to see up to 50ft (15m) in the dark.




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 16 wired or Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.




All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.


Fusion Devices


Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.



What's Included?

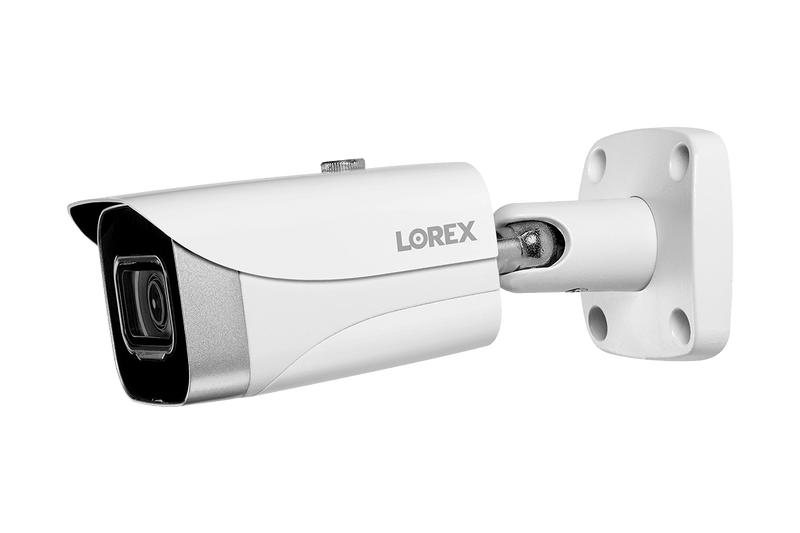

E841CAB

Dimensions (W×D×H): 16 x 5.7 x 4.5” (405 x 145 x 114 mm)
Weight: 3.3 lbs. / 1.5 kg

Package Contents:

4K IP Bullet Camera

Mounting Kit

Cat5e Ethernet Cable

Quick Start Guides

  1. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 90ft/27m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Not intended for submersion in water. Installation in a sheltered location recommended.
  4. Compatible with select Lorex Series NVRs. For a list of compatible recorders, please visit www.lorex.com/compatibility
W461ASC dimensions

Dimensions (WxDxH): 7.7" x 7.3" x 2" (196mm x 185mm x51mm)
Weight: 1.17lbs / 0.53kg

Package Contents:

2K Wi-Fi Camera

16GB MicroSD Card

Universal Mount

Power Adapter

Mounting Kit

Quick Start Guide

  1. Receive push notifications from the Lorex Home app1
  2. 2-way communication allows for seamless communication with your visitor/family, if you're in a different room or even different home.
  3. Easily access your videos with voice commands (Compatible with: Google Assistant and Amazon Alexa)2
  4. View live or recorded videos from your smartphone, tablet, or Apple TV3
  5. View more with night vision range up to 32ft (10m)4
  6. Convenient built-in local MicroSD card slot upgradable to 256GB

V261LCD Overview

Dimensions (WxDxH): 12.5" x 9.3" x 6.8" (318mm x 236mm x 173mm)
Weight: 3.97lbs / 1.8kg



Package Contents:

1080P Floodlight

Mounting Kit

MicroSD Card

Quick Start Guide

  1. 2 × 2000 lumens light arrays for optimal light coverage
  2. LED floodlight can activate when motion is detected, manually, or on a schedule
  3. See more with 1080p resolution and a wide 137° Field of View (diagonal)
  4. PIR Motion 270° Field of View (diagonal)
  5. IR night vision up to 50ft (15m)1
  6. No monthly fee for video recording, storage and photo capturing
  7. Includes a 32 GB microSD card. Supports up to 256 GB microSD storage
  8. Built-in mic and speaker for 2-way talk. Listen or talk directly to anyone on your property using the Lorex Home App2
  9. Conveniently use the existing wiring from your previous floodlight or outdoor house light

N864 Front Overview
N864 Back Overview

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Info / Panic Button
  2. Hard Drive, Network, Recorder & Power LEDs
  3. USB
  4. Power Button
  5. Power Input
  6. Power Switch
  7. PoE Ports
  8. Alarm
  9. HDMI
  10. VGA Port
  11. RS232
  12. LAN
  13. Audio In / Out

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
