Lorex Fusion 4K 16-Channel (8 Wired + 8 Wi-Fi) 2TB NVR System with 4 IP Bullet Cameras and 2 Wi-Fi Cameras

FN4K2-84WB-2L
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Start your security ecosystem with this 16-channel (8 Wired and 8 Wi-Fi) Fusion NVR bundle. This bundle includes four 4K wired IP security cameras and two 2K outdoor Wi-Fi security cameras, which can be expanded with four more 4K wired IP cameras and up to six more Smart Home products, such as Wi-Fi Cameras, Video Doorbells, and Floodlights. Thanks to this wired and wireless Fusion, all cameras can now record around-the-clock to the NVRs 2TB hard drive and can easily be monitored all in one place thanks to the Lorex Home app.



See Clearly,
Day and Night




Ultra HD Resolution

Color Night Vision



Built for the outdoors

Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.



140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof






Smart home compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen, or download the Lorex Home app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.


*Requires Gen 4 or newer Apple TV with support for App Store

works with Google works with Alexa


Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex Home app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to . This allows you to record continuous video from all Wired and Wi-Fi cameras to the NVRs hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.




All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.

Lorex Home App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.




Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.

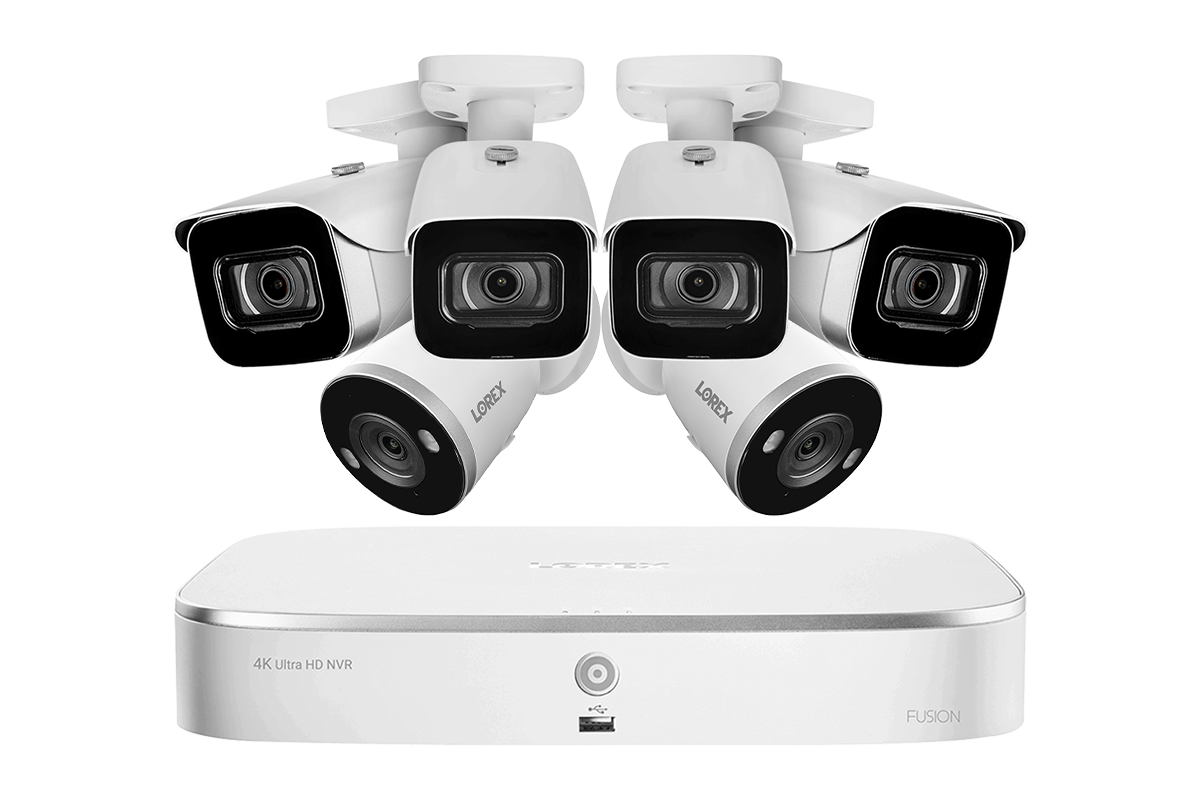

What's Included?

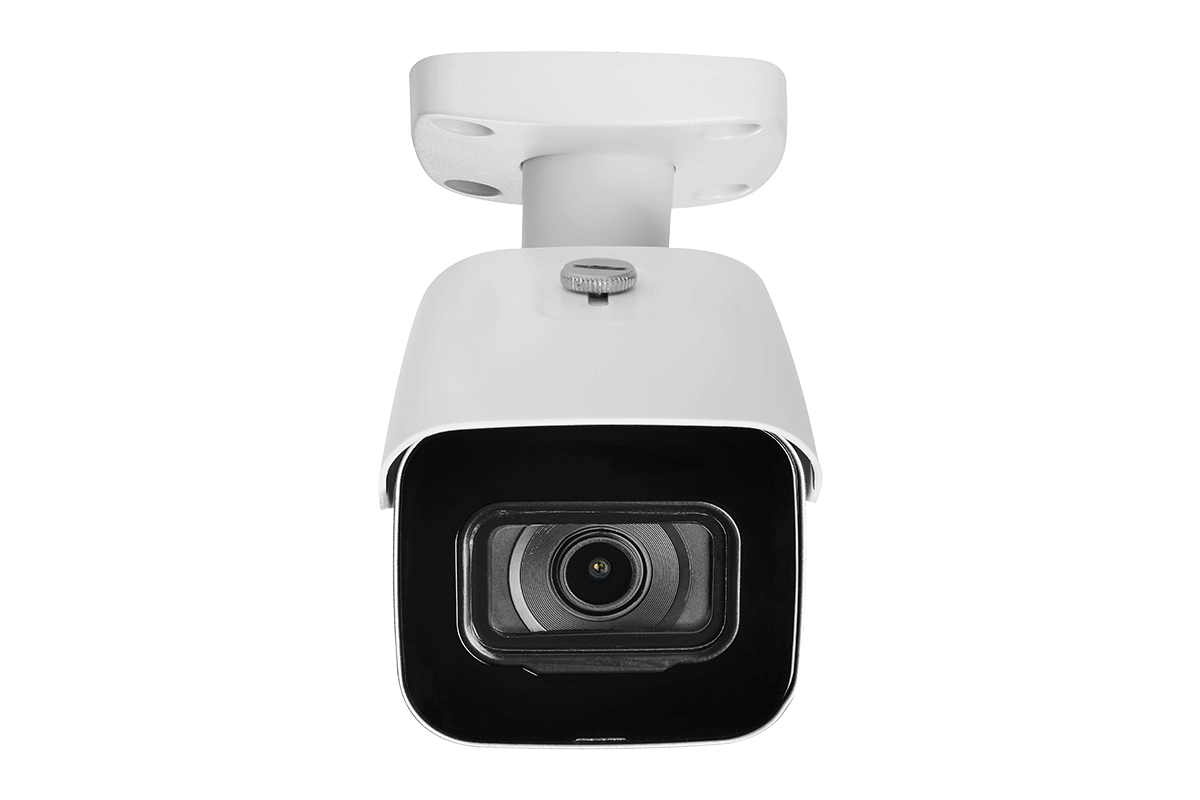

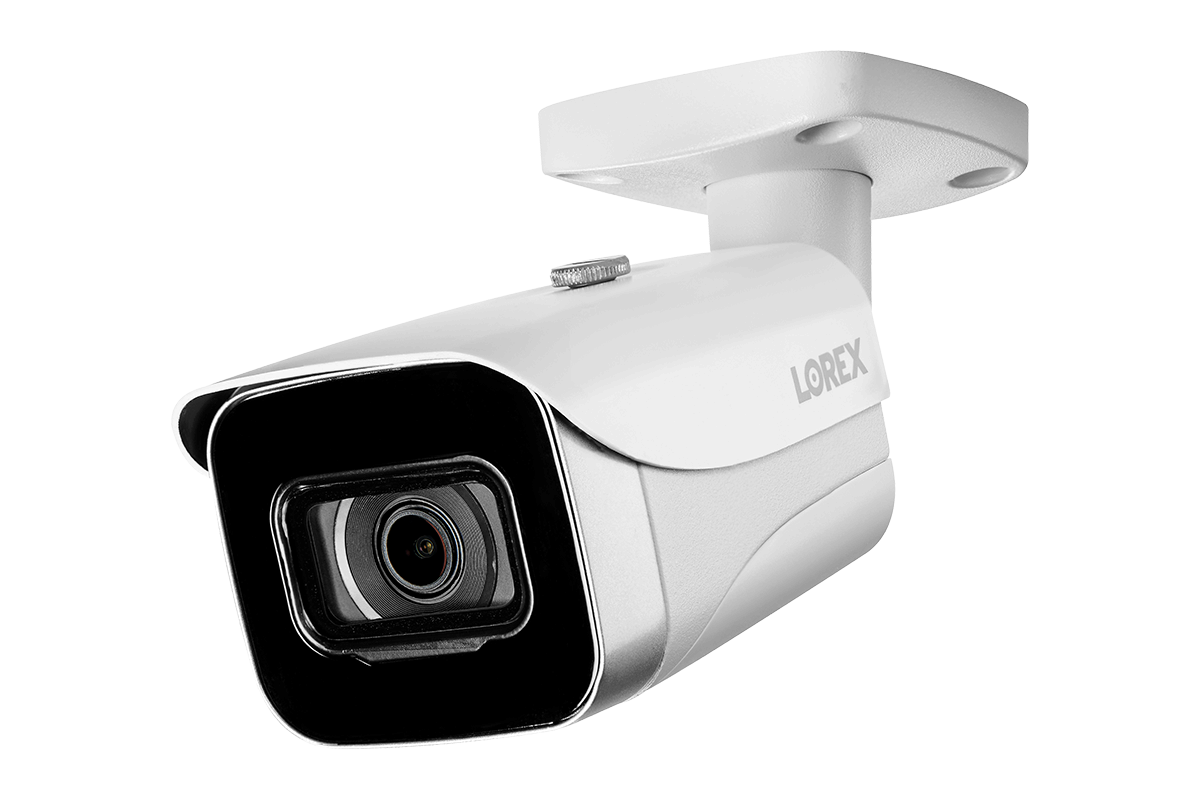

E841CAB Overview

Dimensions (WxDxH): 2.8" x 7.1" x 2.8" (70mm x 180mm x70mm)
Weight: 0.95lbs / 0.44kg



Package Contents:

4K IP Security Camera

Mounting Kit

60ft Cat5e Cable

Quick Start Guide

*With pre-attached weather-resistant cap.
  1. 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  2. See more with a wide-angle 105° field of view
  3. HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
  4. Weatherproof rated (IP67)2
  5. Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
  6. Aluminum Alloy housing, designed to withstand harsh weather conditions
  7. Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
  8. Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4

W482CAD wall mount dimensions W482CAD ceiling mount

Dimensions (WxDxH): 3.07" x 3.5" x 3.07" (78mm x 88mm x78mm)
Weight: 0.73lbs / 0.33kg

Package Contents:

Wi-Fi Camera

Wall Mount

Table/Ceiling Mount

32GB microSD

Power Adapter

Weatherproof Cable

Mounting Kit

Quick Start Guide

  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  5. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  6. Not intended for submersion in water. Installation in a sheltered location recommended.
  7. Cable length is dependent on product configuration. See product packaging for details.
  8. Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  9. Color Night Vision Booster can be enabled using the Lorex Home app and will light for 3 minutes when turned on.

N845 Front Overview

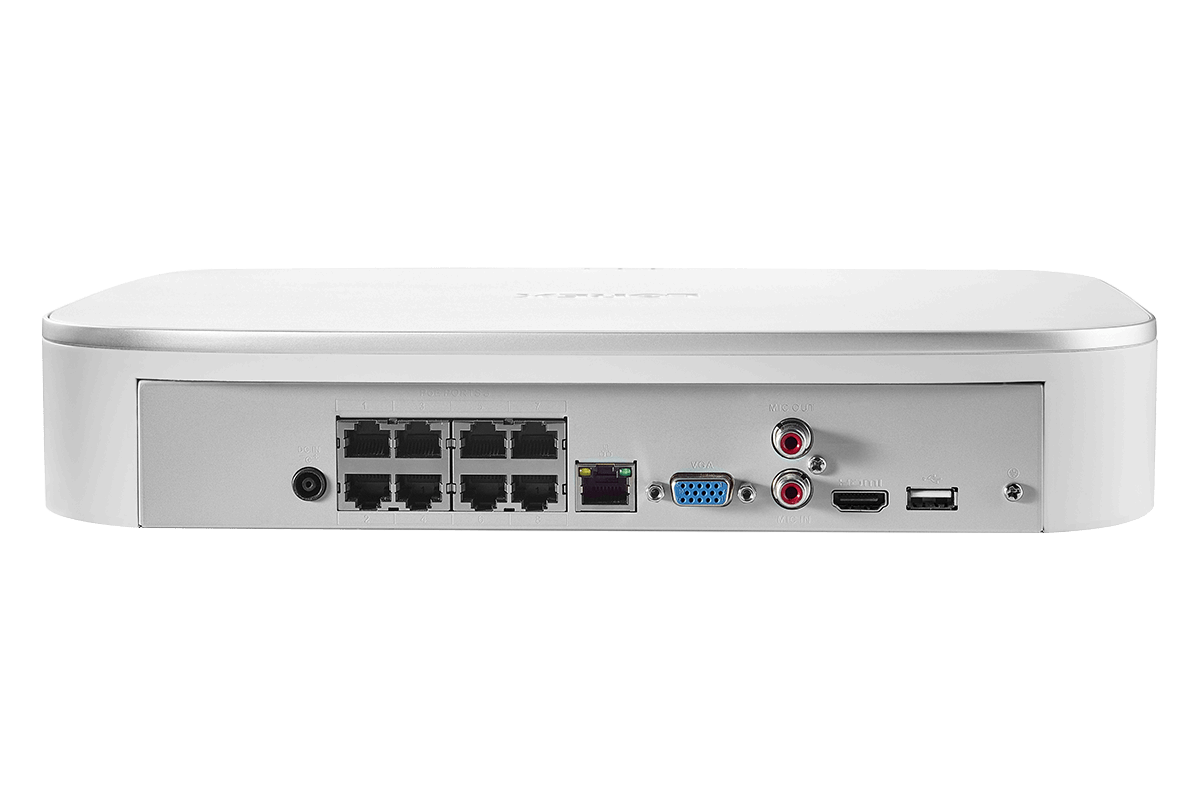

N845 Back Overview

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Hard Drive LED
  2. Power LED
  3. Network LED
  4. USB Ports
  5. Info / Panic Button
  6. Power Port
  7. PoE Ports
  8. LAN Port
  9. VGA Port
  10. Audio In / Out
  11. HDMI Port

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
