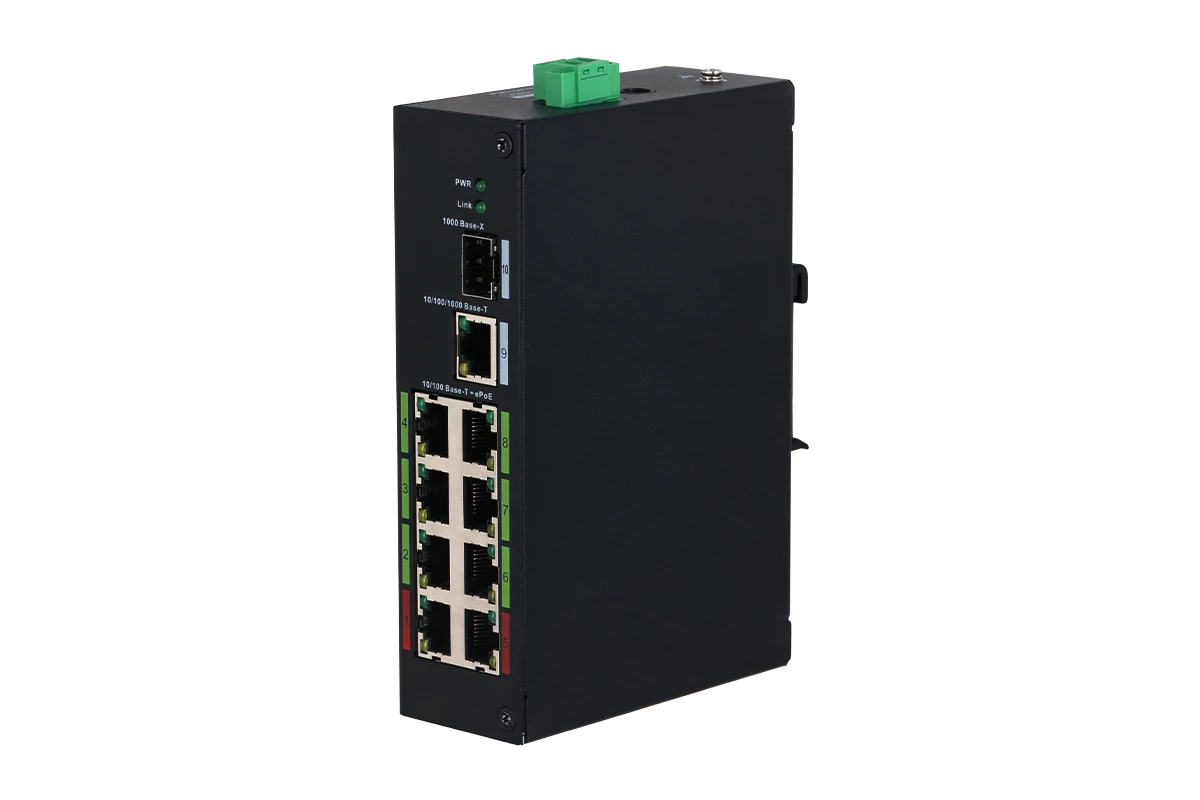

Expand the reach and simplify the installation of your NVR security camera system with this 8-Port ePoE switch. This switch can provide PoE (Power-over-Ethernet) transmission 800 meters at the speed of 10Mbps or 300 meters at the speed of 100Mbps.
ECO-FRIENDLY
Less power consumption
ECONOMIC
Cost-effective
EXTENDED
Long-range transmission
ETHERNET OVER COAX*
Easy upgrade to IP
*Coaxial-To-Ethernet Converter is needed (sold separately)
Save on Power Consumption
Power consumption per switch is 3 Watts. In total, you can save 21 Watts when using this ePoE switch with your ePoE IP Camera.
0.5kWh
15kWh
182.5kWh
143kg per year

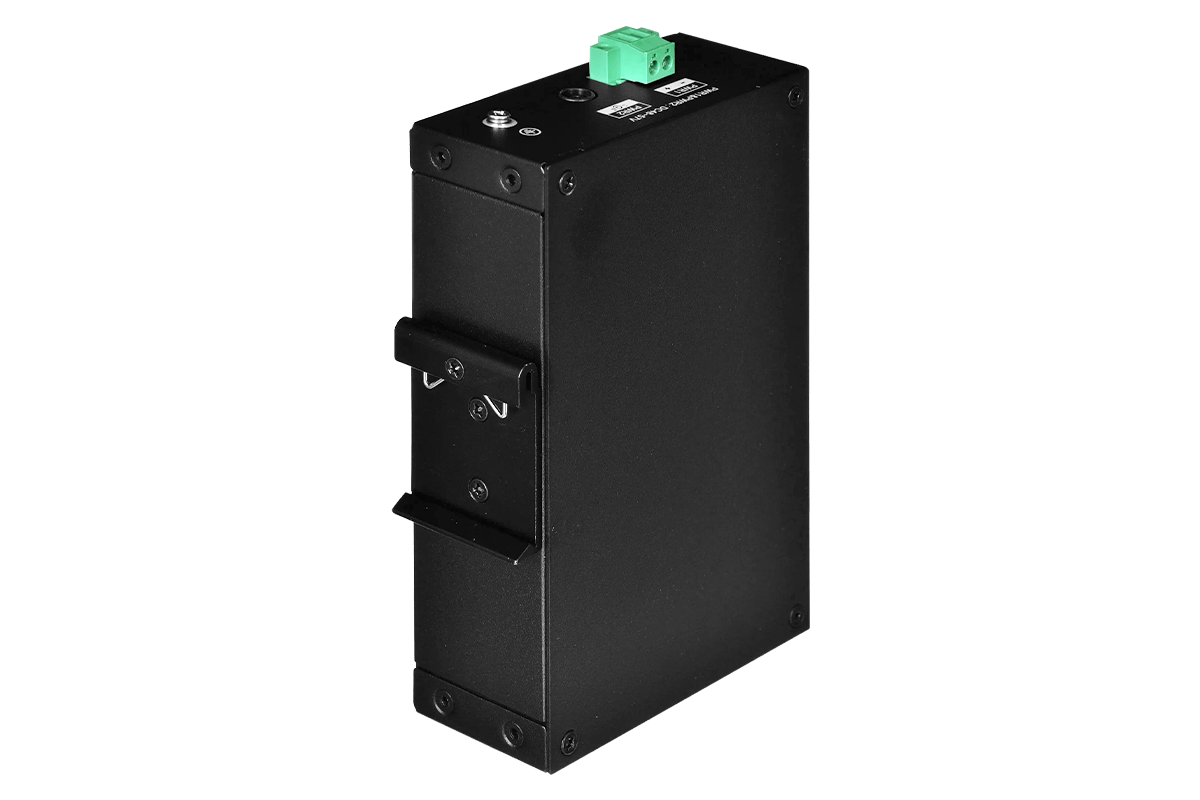

Quick and Easy Mounting
Easily mount this ePoE Switch using the DIN rail mounting. Simply lay the switch hook on the rail then press in to secure the buckle into the slide.
Note: The AEX8-2 ePoE switch supports the slide width of 28mm (1.1"). The mount shown in the image is for illustrative purposes only and is not included in the package.
Flexible Surveillance System Design
Use this PoE switch to extend the distance of your cameras from your recorder. With ePoE support up to 800m, this switch allows for more flexible surveillance system design, improves reliability, and saves on construction and wiring costs.
Product Specifications
- Supports long distance PoE transmission up to 800m with ePoE technology
- Layer-two ePoE switch
- MAC auto study and aging, MAC address list capacity is 8K
- Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
- Supports IEEE802.3af, IEEE802.3at, IEEE802.3bt, and Hi-PoE power supply standard
- Industrial wide temperature design
- Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
| Ethernet Port | 1*1000 Base-X 1*10/100/1000 Base-T 8*10/100 Base-T(PoE power supply) |
|---|---|
| PoE Power Consumption | Port1,5≤90W, Port2,3,4,6,7,8≤30W, Total≤120W |
| PoE Protocol | IEEE802.3af, IEEE802.3at, IEEE802.3bt, Hi-PoE |
| Switching Capacity | 8.8Gbps |
| Packet Forwarding Rate | 2.75Mpps |
| Packet Buffer Memory | 2.75 Mbit |
| MAC Table Size | 8K Byte |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Power | 54VDC, 2.22A External power supply |
| Lightning Protection | Common Mode 4KV Differential Mode 2KV |
|---|---|
| Working Temperature | -30°C~65°C |
| Weight | 0.6kg (1.32lb) |
| Dimensions (H×D×W) | 5.9 × 3.9 × 1.6" 150 × 100 × 42mm |
| Working Mode | LED Indicator |
| IEEE mode | Normally on |
| E100 | On for 3 seconds, off for 1 second |
| E10 | On for 1 second, off for 1 second |

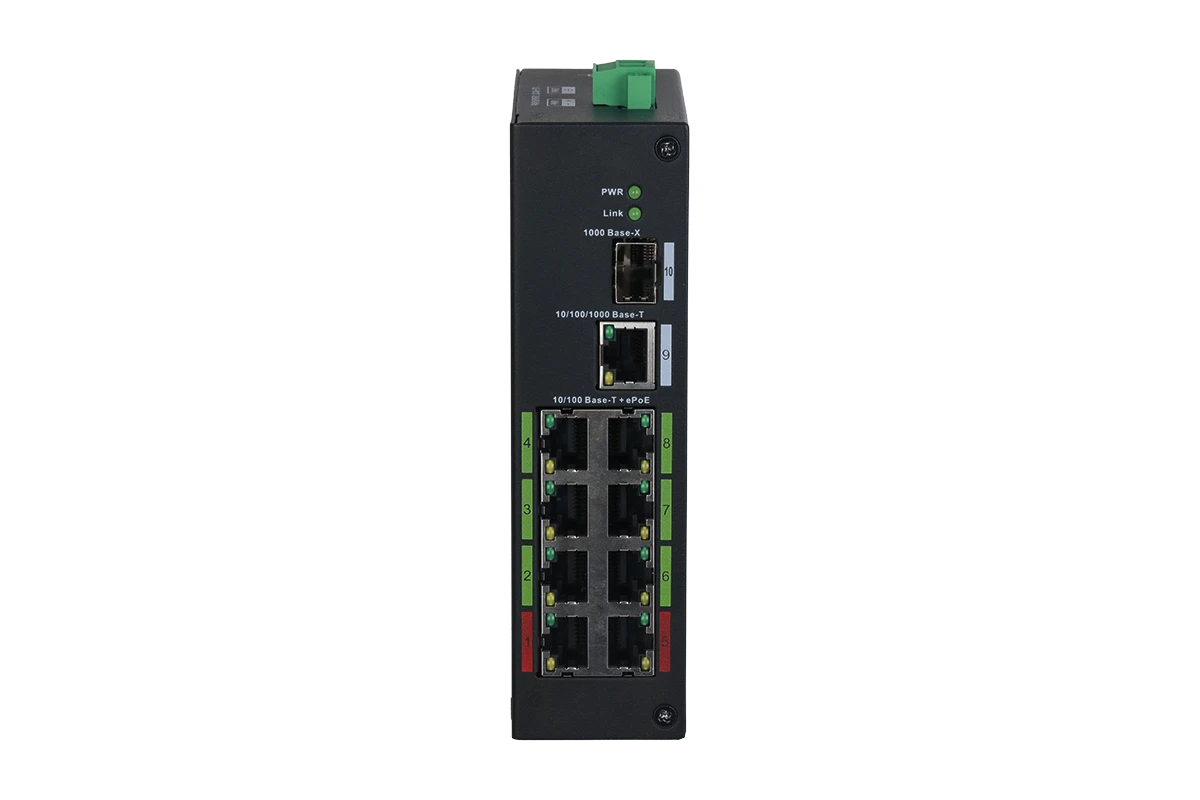

What's Included?
- 10/100 Base-T + ePOE
- 10/100/1000 Base-T
- 100/1000 Base-X
- Fiber Port Status Indicator
- Power Status Indicator
- PWR1
- PWR2
- Ground Wire Terminal
Package Contents:
AEX8-2 Switch × 1

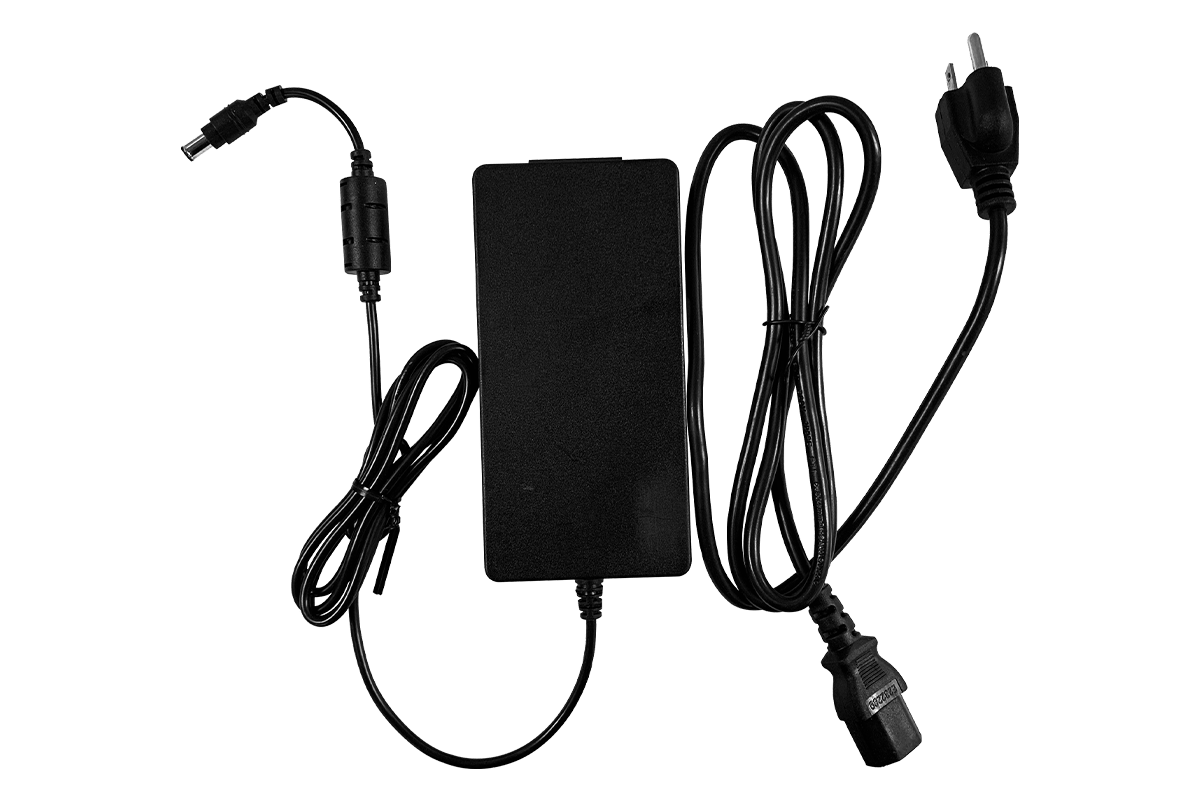

Power Adapter and Cable (53") × 1
