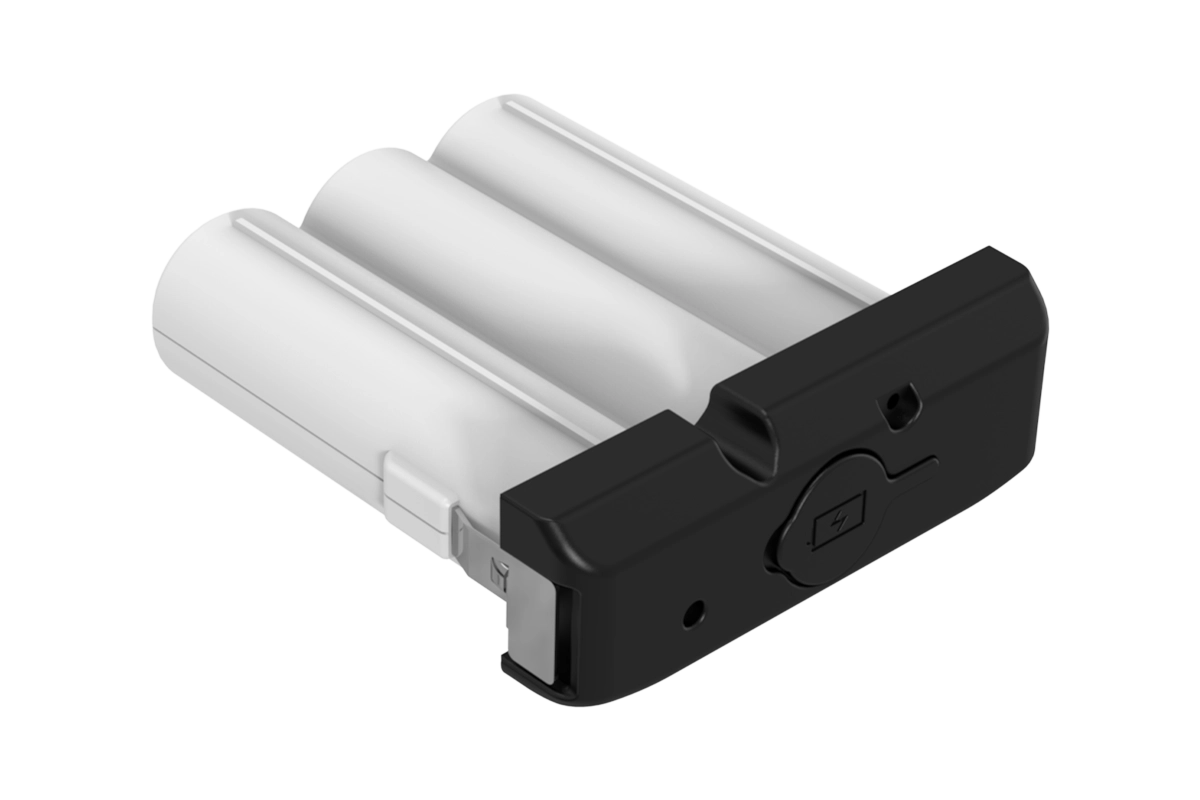

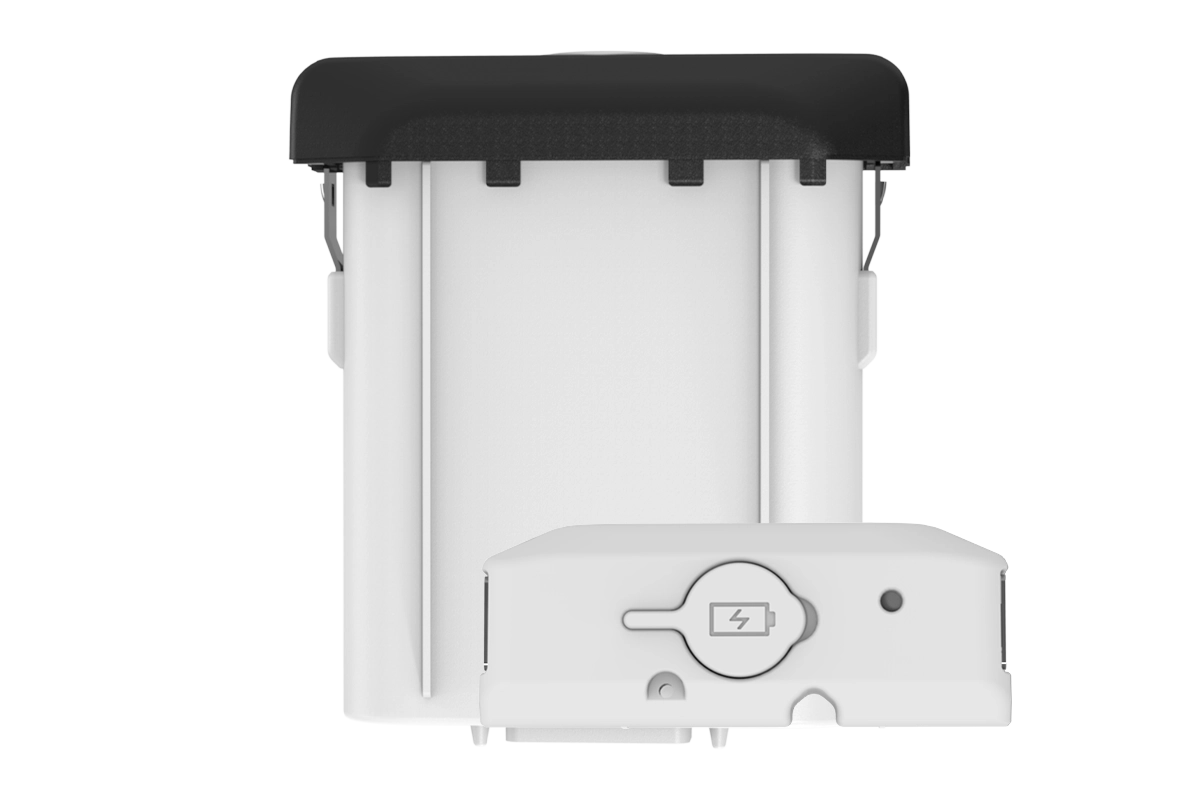

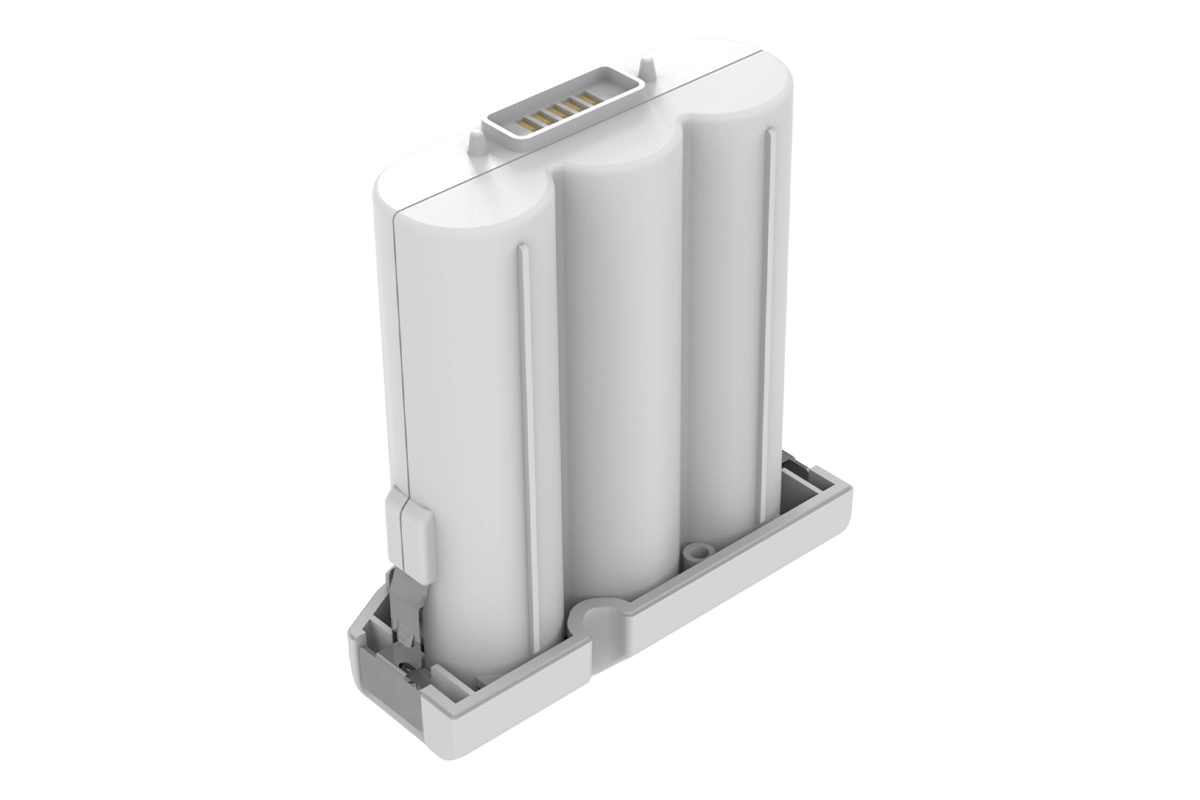

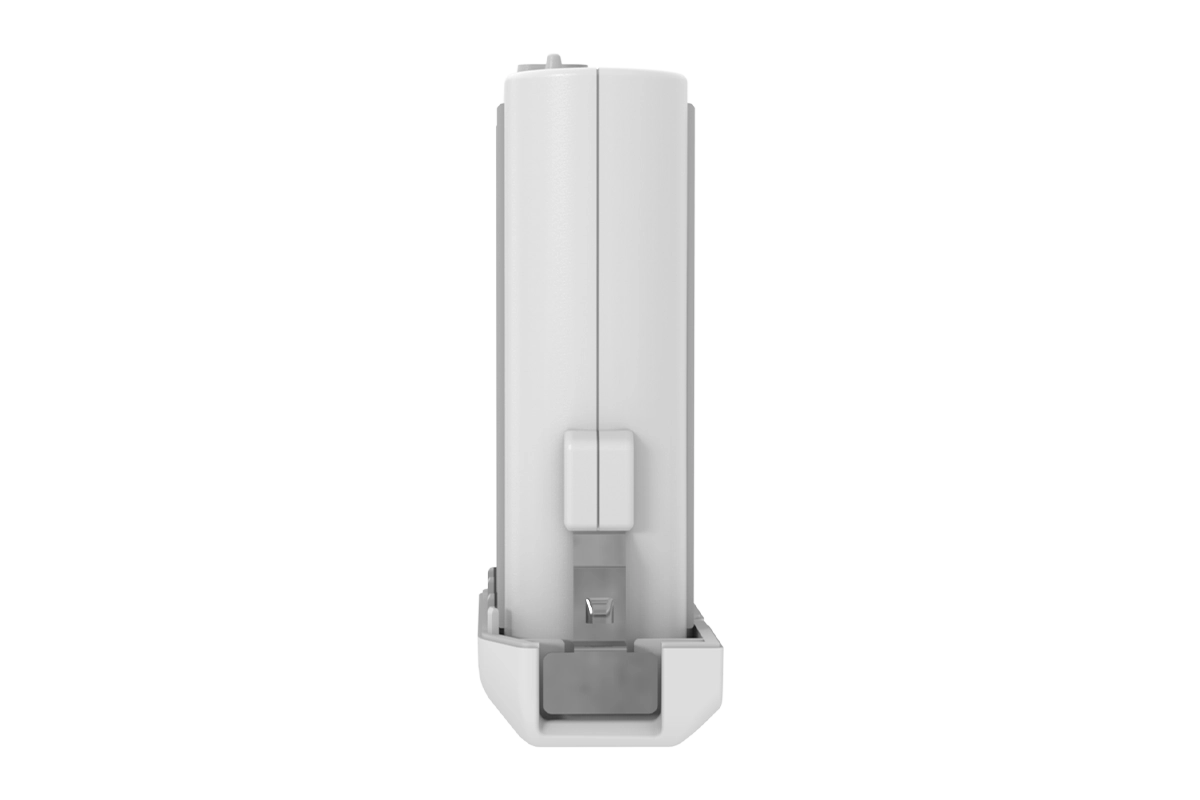

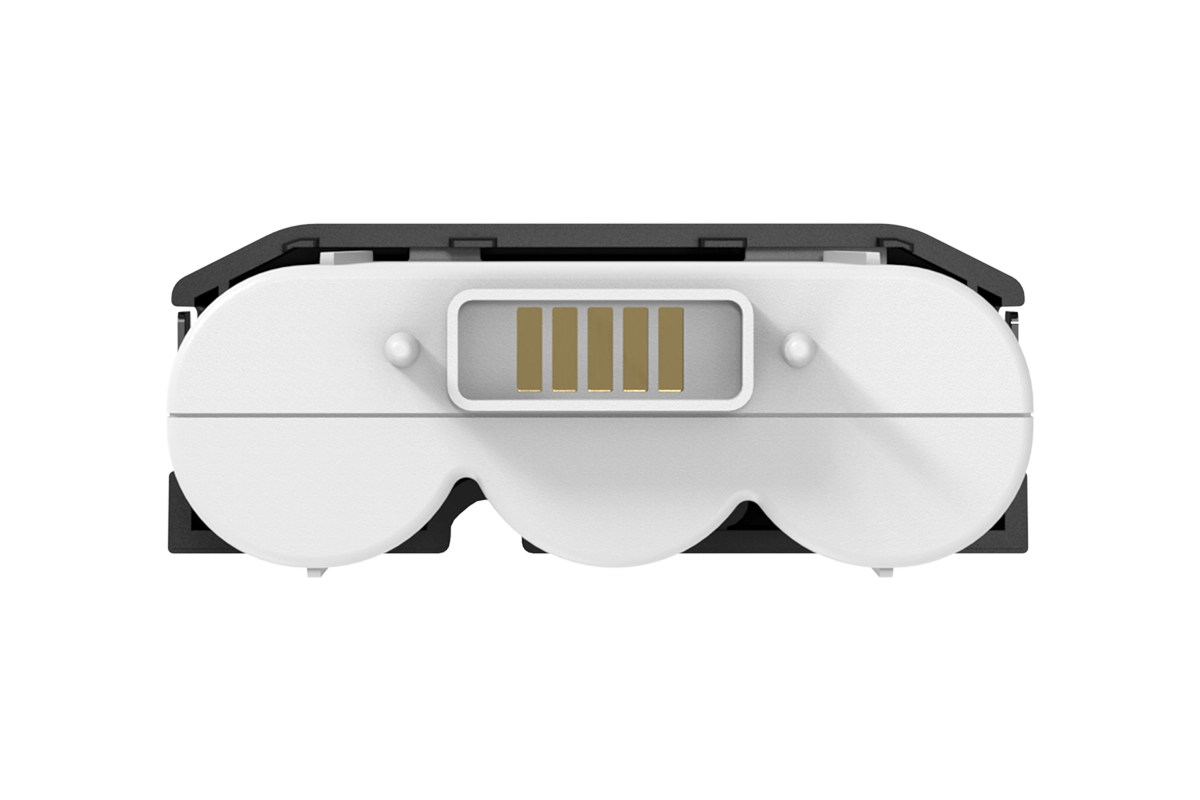

Keep your wire-free camera up and running
Ensure no down time in your wire-free security monitoring with this quick-release 3-cell lithium-ion battery pack. With easy charging via micro USB, it's never been simpler to keep your cameras powered up. Plus, it comes with white and black covers, allowing you to seamlessly match the color of your camera for a sleek and discreet setup.

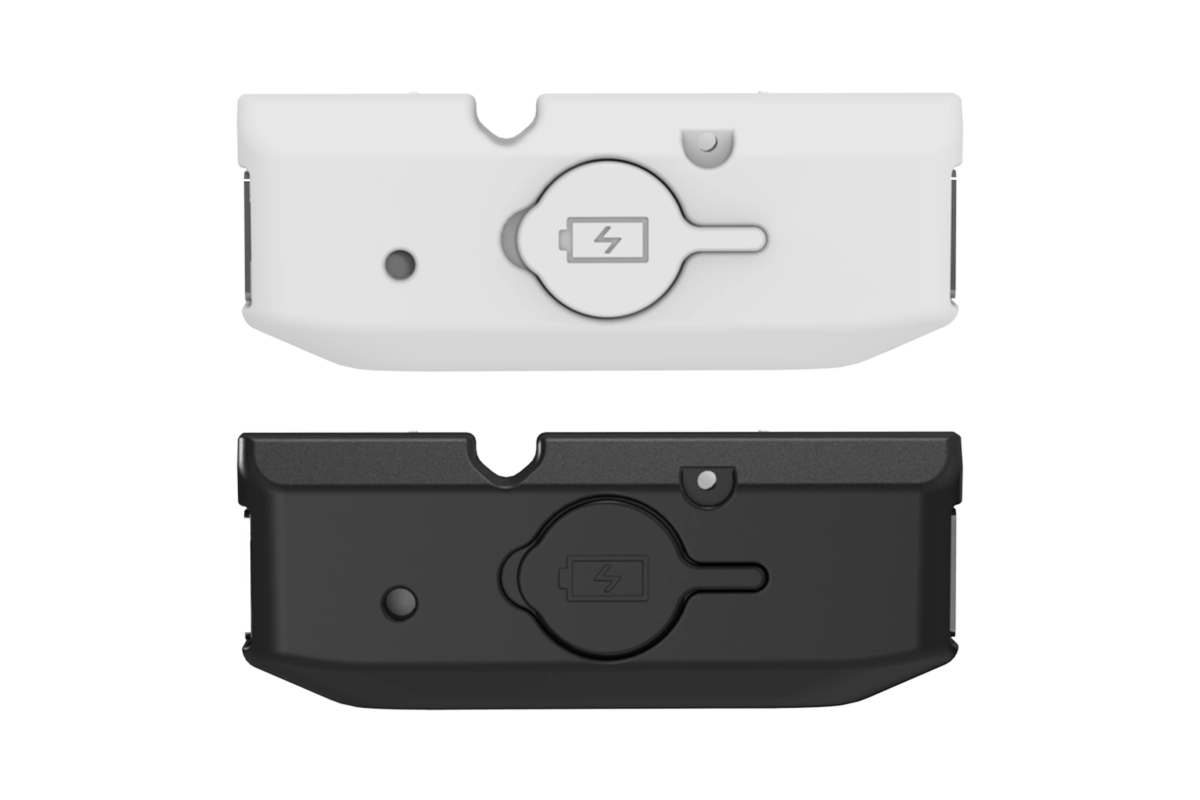

Black and white covers included
This battery power pack offers the flexibility to match your wire-free camera effortlessly. With both white and black covers included, you can customize the color of the battery pack to seamlessly blend with your camera.
Long lasting lithium-ion technology
This Power Pack uses cutting-edge lithium-ion technology to provide you with reliable and long-lasting power for your wire-free security cameras. Lithium-ion batteries offer numerous advantages, including high energy density for longer-lasting power, extended lifespan, rapid charging capability, lightweight design, minimal self-discharge rate, absence of memory effect, and eco-friendliness, making them an ideal choice for various applications.
Easy charging
Wire-free Power Packs snap easily onto the camera base, enabling quick removal and replacement. No need to remove the camera from its mount. Simply connect the power adapter (sold-separately) to the micro USB port. An LED indicator turns green when fully charged, and charging automatically stops to prevent damage.
How long will a battery Power Pack last for?
The battery life of this Power Pack is dependent on how often the security camera turns on. This means that the battery life will be significantly less if the camera is in a high traffic area full of motion activity or much longer if it is in a very low traffic area. The period of time that the camera remains recording after the camera senses motion will also impact how long a Power Pack Plus will last. At 10 seconds recording with approximately 24 events per day, the battery will last 6 months.
Disclaimers:
- Estimates provided are for 20°C / 68°F
- Battery consumption varies on temperature
- Darker environments may reduce battery life up to 50%
- Colder climates may reduce battery life up to 50%
- We recommend to not install cameras close to tree's to increase battery life (falling leaves increase potential events)
- We recommend to not install camera's facing high traffic streets or paths in order to increase battery life
- The capacity of the power pack degrades over time due to aging.
Product Specifications
| Battery Model | ACBATTR3A |
|---|---|
| Battery Description | Rechargeable Lithium-ion battery pack |
| Battery Type | 3-cell 18650 cylindrical Lithium-ion cell |
| Battery Capacity | 8,700mAh |
| Nominal Voltage | 3.7V |
| Charging Voltage | 4.2V |
| Standard Charge Current | 1A |
| Discharge Cut-off Voltage | 2.8V |
|---|---|
| Standard Discharge Current | 4A |
| Operating Temperature | Charge: 0 to 50°C, Discharge: -20 to 60°C |
| Storage Temperature | ≤70%RH, -20 to 25°C |
| Protection | Over-charge, Over-discharge, Short-circuit |
| Weight | 174.5g |
| Dimension | 72.94 x 78 x 27.89mm |
What's Included?
Package Contents:
3-Cell Power Pack
Battery Cover (Black)
Battery Cover (White)
Battery Locking Screw Kit
Quick Start Guide
Product Compatibility
LWB4800, 1080p HD Wire-Free Security Camera
compatible
LWB4850-Series HD Wire-Free Security Camera
compatible
LWB4900 1080p HD Wire-Free Security Camera
compatible
LWB5800, 1080p HD Wire-Free Security Camera
compatible
LWB6800 1080p HD Wire-Free Security Camera
compatible
LWB6850-Series Wire-Free Accessory Camera
compatible
U222AA-Series 1080p HD Wire-Free Security Camera with Rechargeable Power Pack
compatible
U424AA Add-On 2K Wire-Free Security Camera
compatible
U855 Series - 4K Battery-Operated Cameras
compatible
ACPWF1 White Power Adapter
compatible
ACPWFBK1 Black Power Adapter
compatible
Product Support
ACBATTR3A Series - Accessory Power Pack for Lorex Wire-Free Cameras
