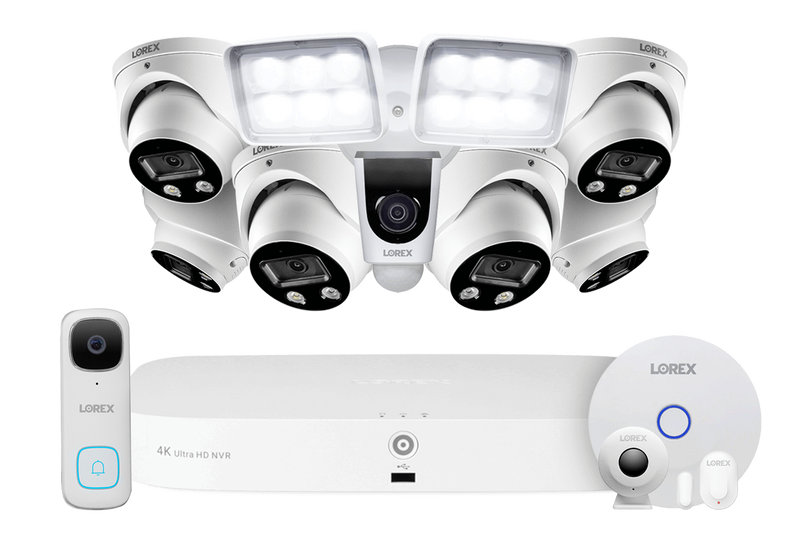

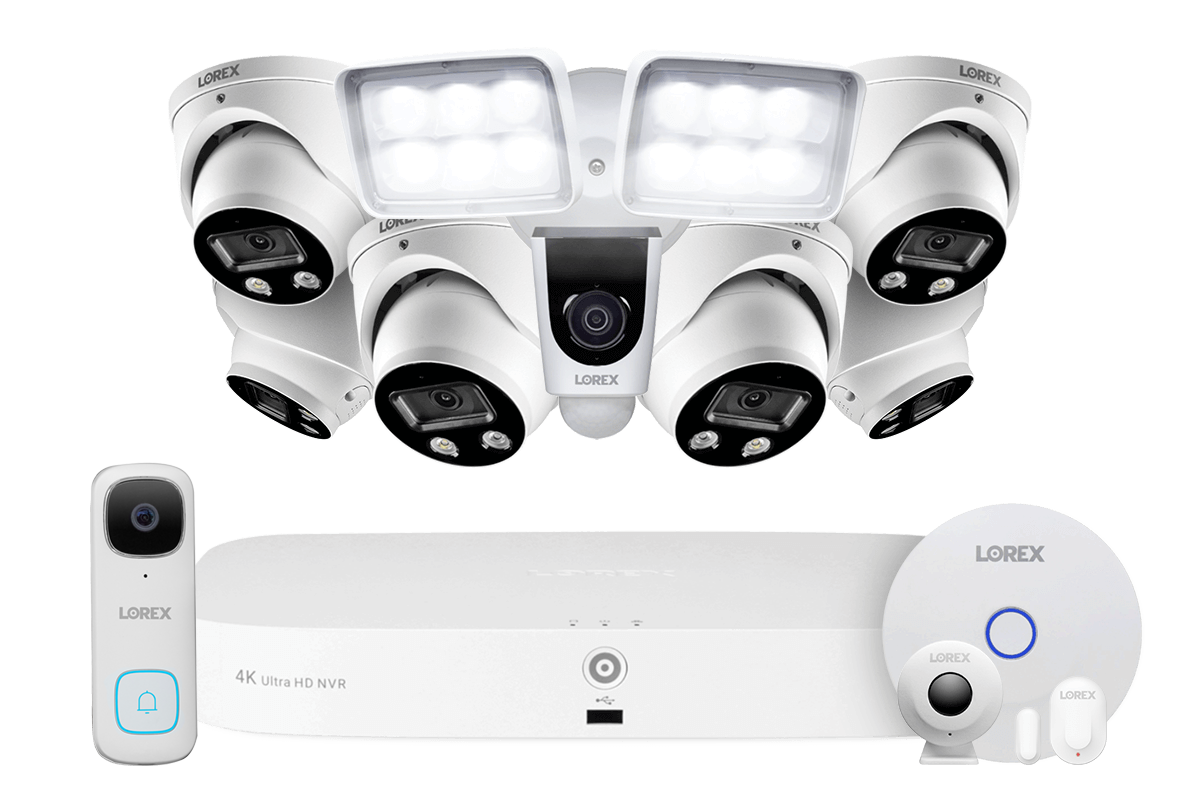

8-Channel NVR Fusion System with Six 4K Smart Deterrence IP Dome Security Cameras, 2K Wi-Fi Video Doorbell, Wi-Fi Floodlight Camera and Smart Sensor Starter Kit

N4K2SD-86WD-DSF-1
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Lorex Fusion Collection

This Fusion NVR system is united by our Lorex app, which can "fuse" the included wired 4K cameras and Wi-Fi Doorbell and Floodlight on the same NVR!

What's Included (N4K2SD-86WD-DSF-1)

Wired NVR System

Wired NVR System

8 Channels  |  6 Cameras  |  2TB HDD

Wi-Fi video doorbell

Wi-Fi Cameras

1 × 2K Doorbell & 1 × Floodlight

Lorex Fusion Bundle

Our award-winning Fusion NVRs can incorporate two Wi-Fi devices through the Lorex App. This allows you to record them continuously for full coverage and secondary data backup.


Learn more

Record the highest level of detail to help you capture moments like never before!


Learn more

4K night vision security cameras

Color
Night Vision™

IP67 weather rating security camera

IP67
Weatherproof

HEVC 4K security cameras

HEVC
Encoding

Power over ethernet IP security cameras

PoE
Installation

Detect, record, and talk to those on the other side of your door with ease.


Learn more

2K resolution doorbell camera

2K QHD
Recording

welcome messages doorbell camera

Pre-Recorded
Messages

color night vision

Color
Night Vision™

wired installation

Wired
Installation

Floodlight Video Camera

Combine security and lighting with the 1080p Wi-Fi Floodlight Camera.


Learn more

Floodlight Dual LED security camera

Dual LED
Floodlights

wired installation

Wired
Installation

Lorex sensor Hub
sensor hub

Lorex Sensor Hub

door window motion add-on sensors

Add-On Sensors

Add some vital security to your house without the video. Connect the Lorex Sensor Hub to the Lorex App to utilize the included Add-On Sensors. Up to 10 add-on sensors can be added to the Lorex Hub.


Learn more

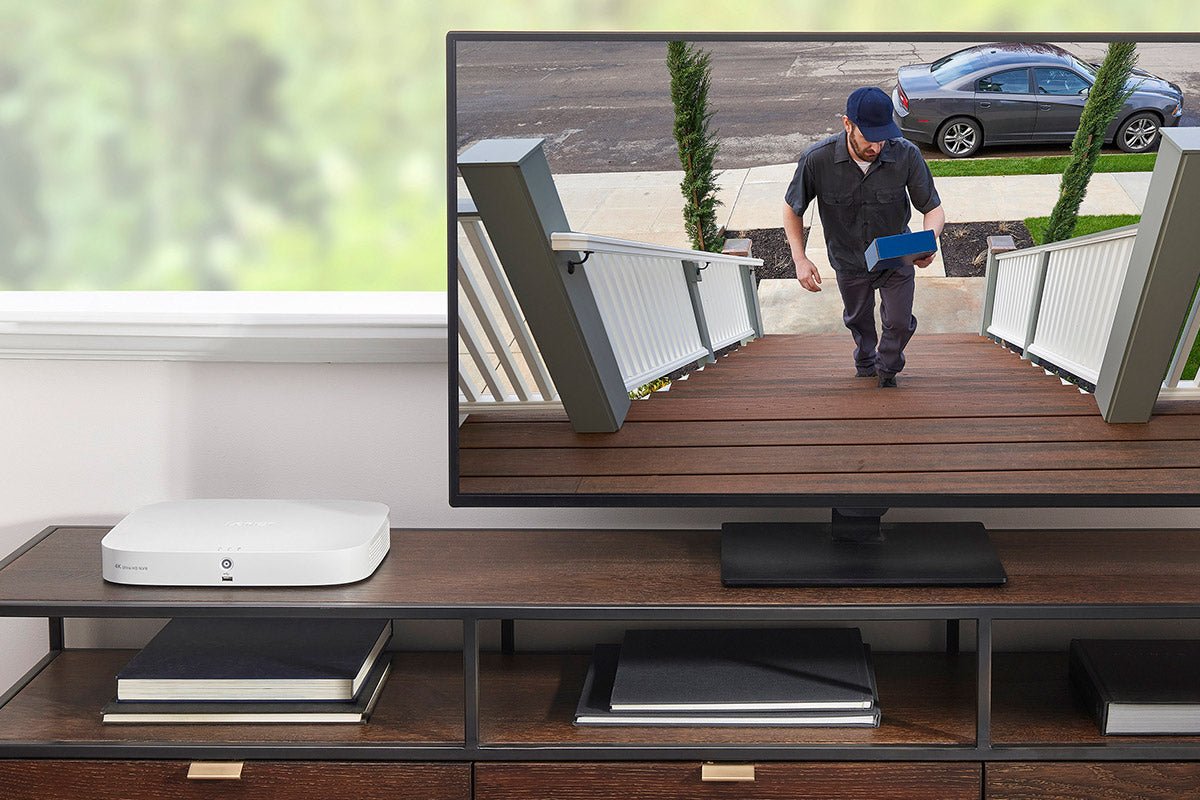

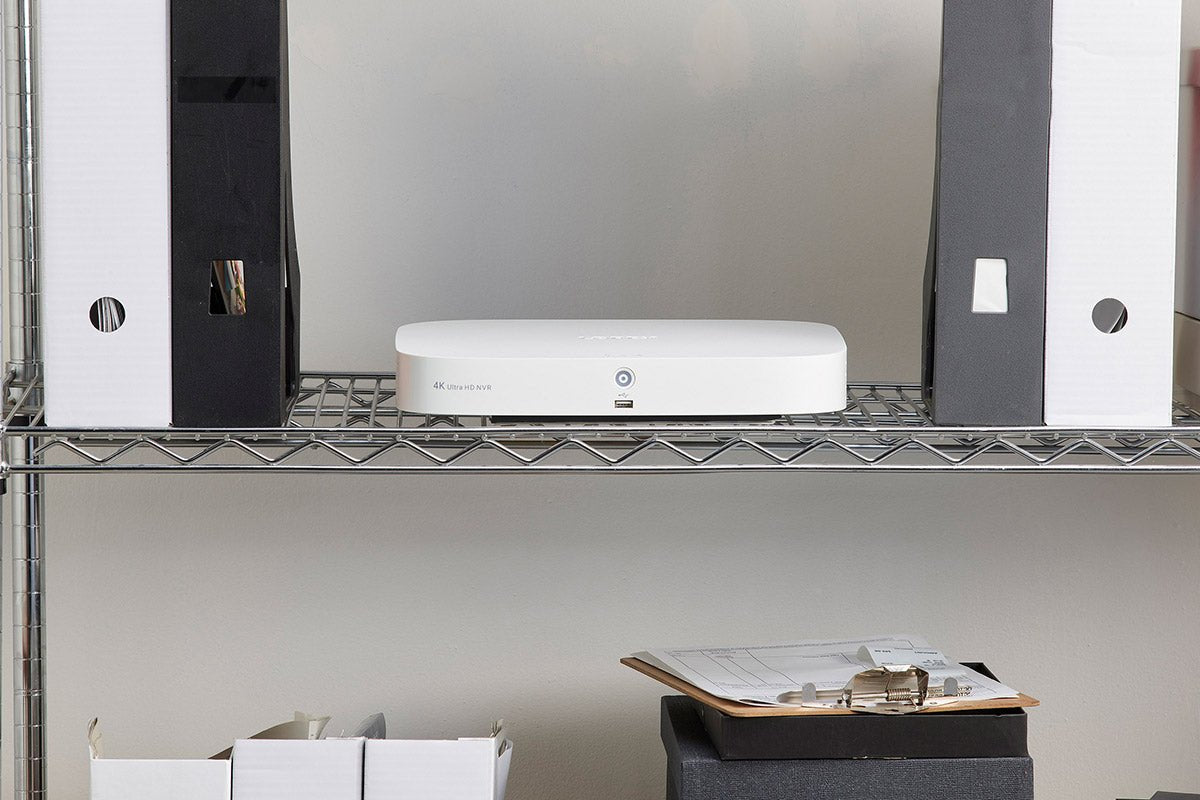

fusion NVR
remote access

Remote Viewing

local storage

Security Hard Drive

Learn more

smart home security

Smart Home Compatible

works with Alexa
works with Google Assistant

Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. You can also use the NVR with Chromecast, Firestick, and Apple TV to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

What's Included?

N842 dimensions

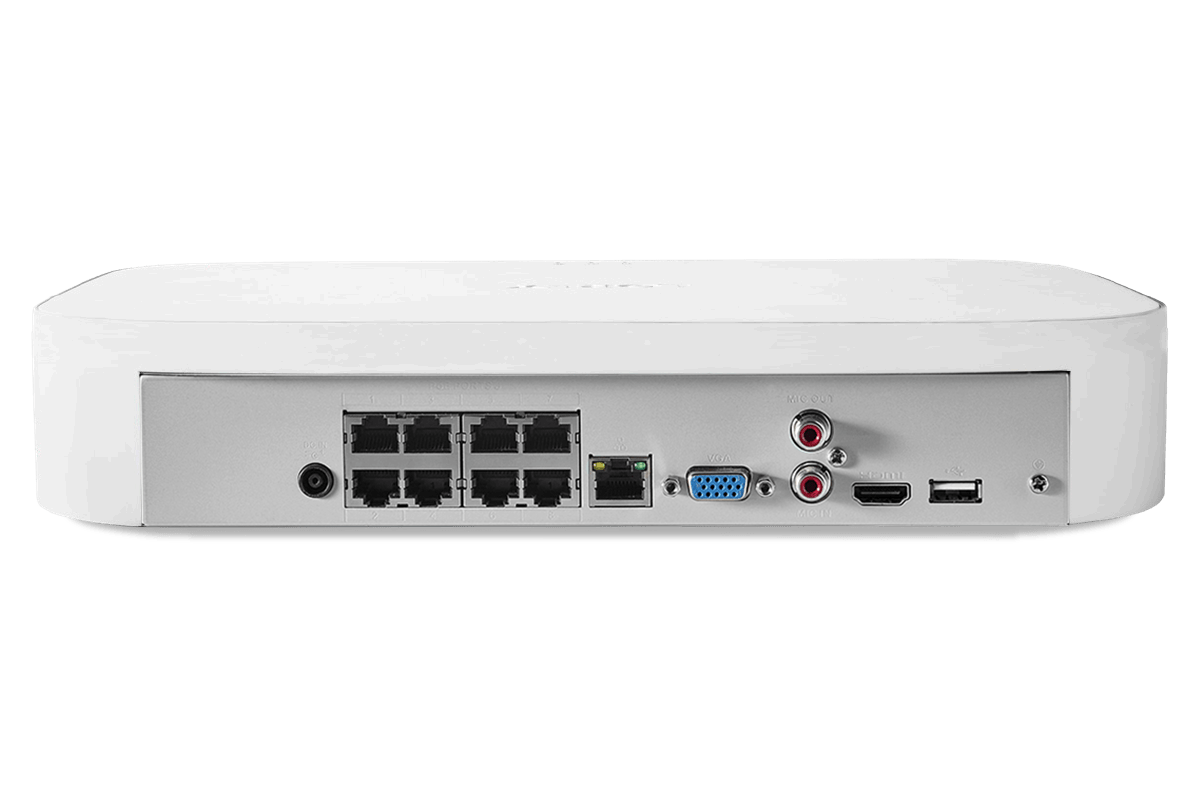

  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all channels.1
  • Digitally zoom in on distant objects for better clarity.2
  • View synchronized playback of up to 4 cameras at the same time
  • Expand your security system with up to 8 IP cameras with built-in PoE ports.
  • Pair your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, doorbells, floodlights, and more.3
  • Stream and record continuous video from your Wi-Fi devices on your recorder.
  • Wi-Fi cameras can now record continuously, taking advantage of the hard drive storage space.
  • Quickly access your live footage with simple voice commands, compatible with Amazon and Google.4
  • Control your Active Deterrence cameras features with your voice (compatible with Google Assistant only).4
  • Support for Smart Motion Detection - Get notifications with the Lorex Home™ App when motion is detected from a person or vehicle. Be notified when a person is not wearing mask.5
  • Use Smart Search to search through recorded footage and filter events for motion detected by person, vehicle or face.6
  • Max 8TB storage space with no hidden monthly cloud fees.
  • Security Grade hard drive designed for advanced processing and the workload of 24/7 monitoring.
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place.

Each N843A82 Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick start guides
  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.

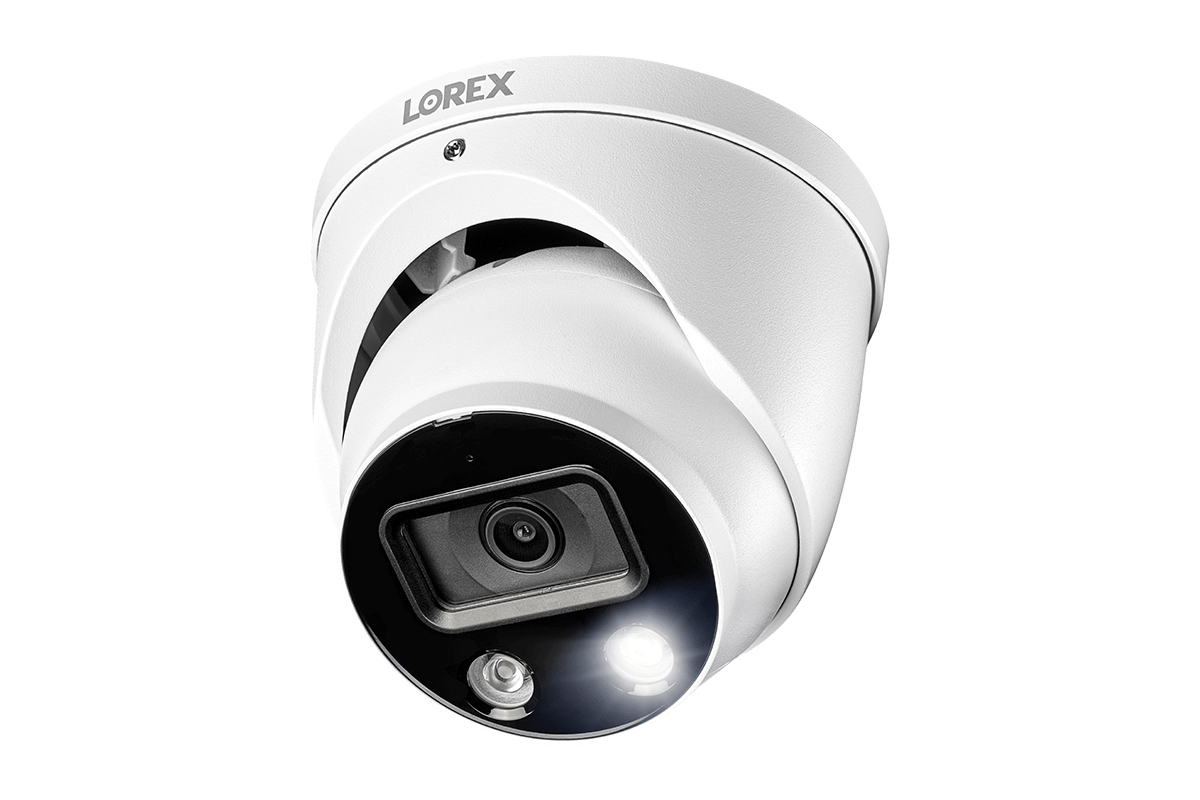

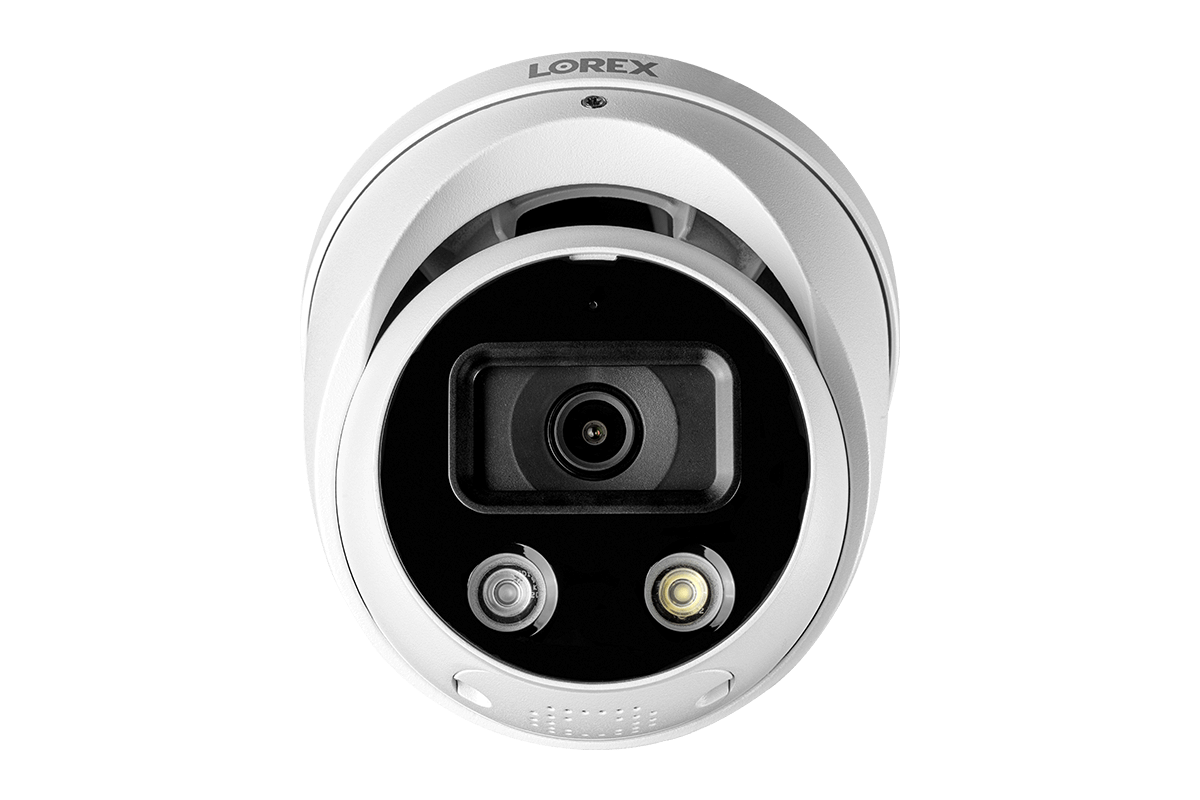

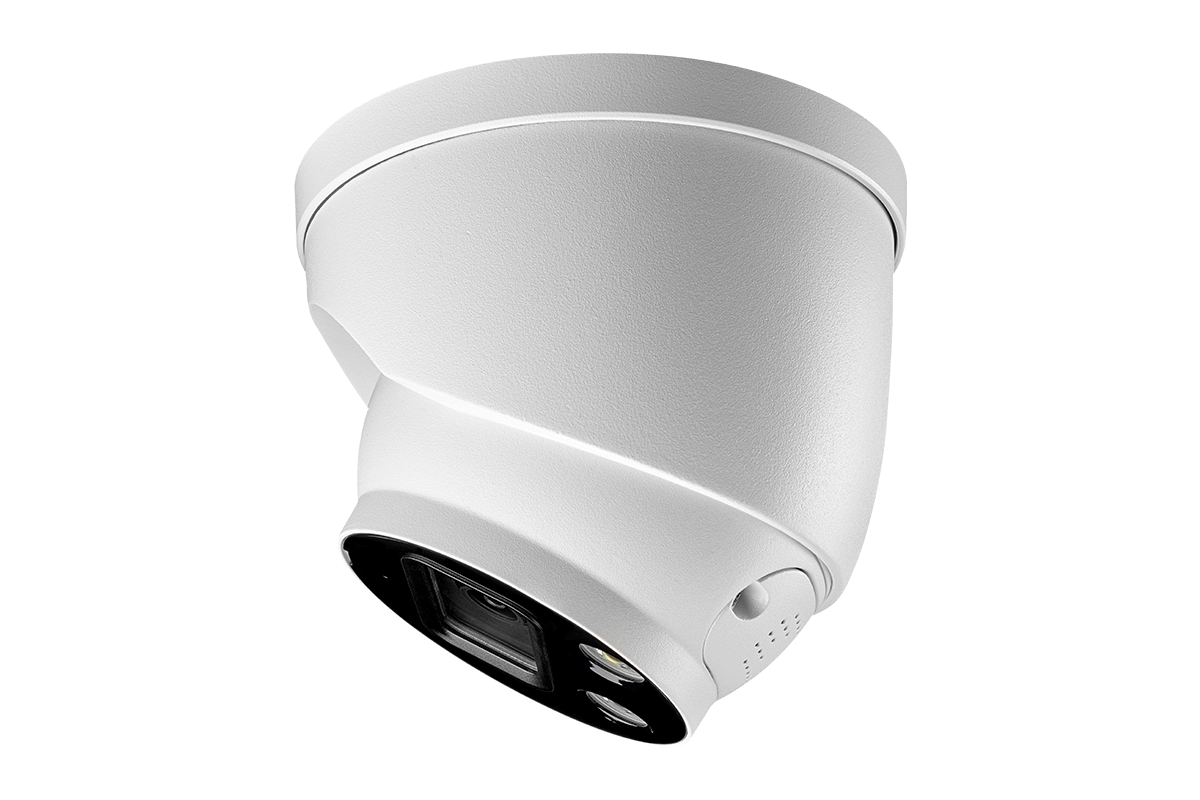

E892DD 4K active deterrence weatherproof security camera
  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 108° field of view
  • Enhanced nighttime clarity with Color Night Vision™2
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness3
  • Smart motion detection plus offers the option of either Face detection or Person and Vehicle Detection4
  • Receive notifications when a person, vehicle or face is detected on your property from your Lorex Home™ app5
  • Dual motion-activated LED warning lights can be set to be only be triggered when a person or vehicle is detected
  • Deter unwanted guests with the remote-activated siren
  • Built-in mic and speaker allows you to listen and speak to visitors with 2-way talk6
  • Get notified when an object is removed or left behind in a selected area with Safeguard4
  • Track and follow motion by customizing your motion detection settings with Active View7

Each E892DD Series Includes:

1 × 4K IP Security Camera
1 × Mounting Kit
1 × Cat5e Ethernet Cable*
1 × Quick Start Guides

1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
4. Smart Motion Detection and Face Detection can not be enabled at the same time from a single camera. Compatible with select Lorex Series NVRs. In order for Person and Vehicle detection, Active View, and Safeguard to operate, this camera requires a connection to a compatible Lorex NVR with smart detection technology. For a list of compatible recorders, please visit: www.lorex.com/compatibility
5. Face Detection is disabled by default. For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
6. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
7. To properly view the Active View live footage, the NVR must be set to single-channel, full screen, live view mode to view the live track and follow activity on your monitor. This feature is not available for viewing in the Lorex Home App.

*Cable length is dependent on product configuration. See product packaging for details.

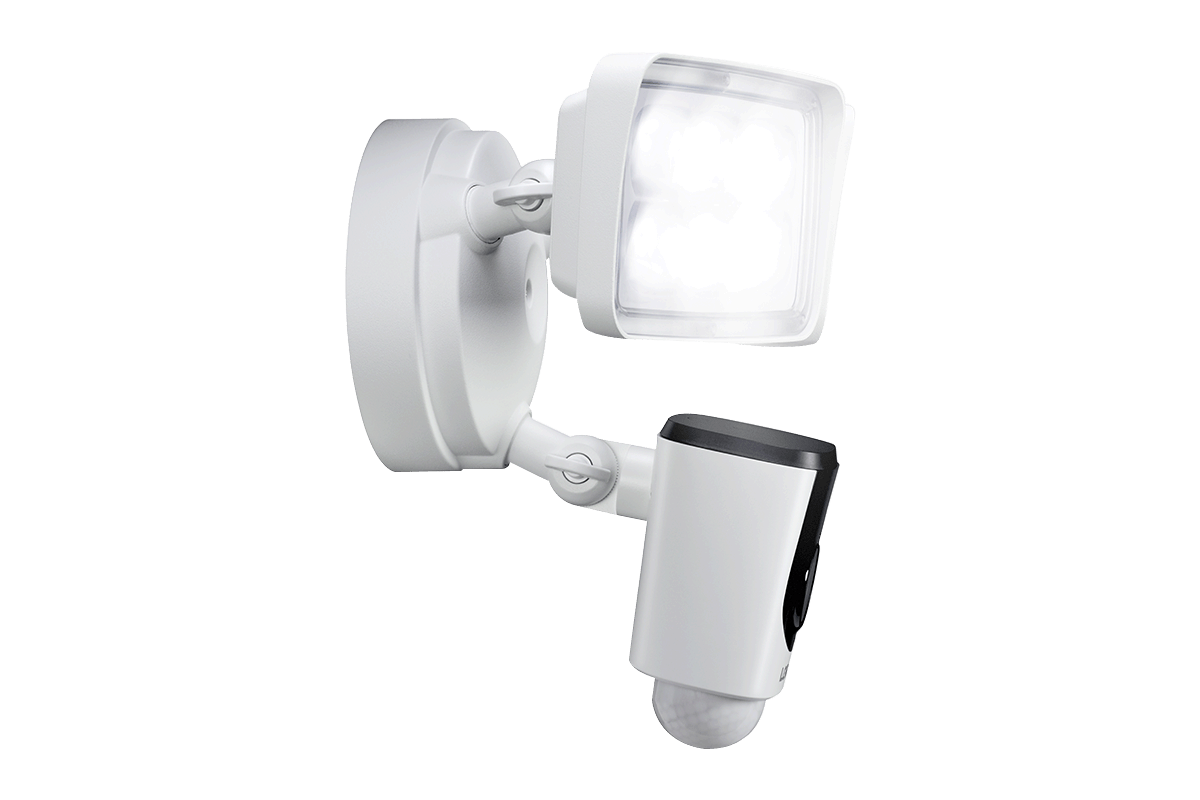

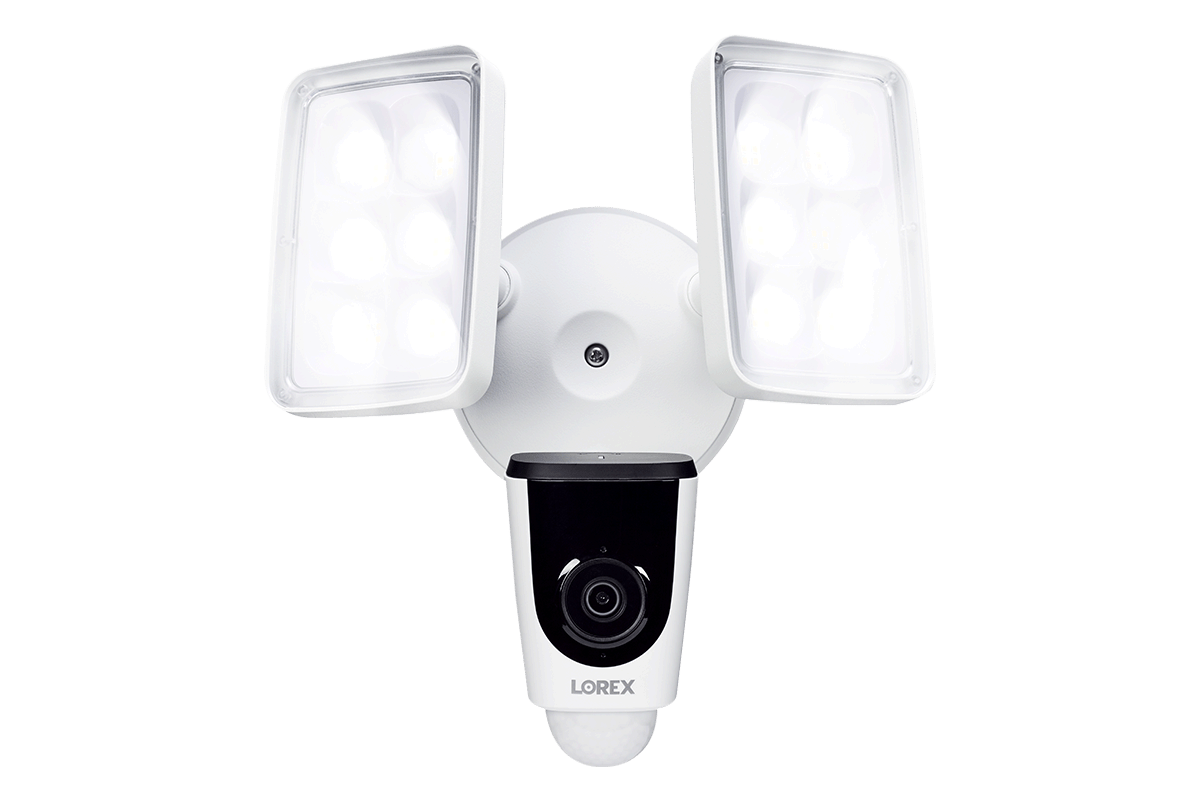

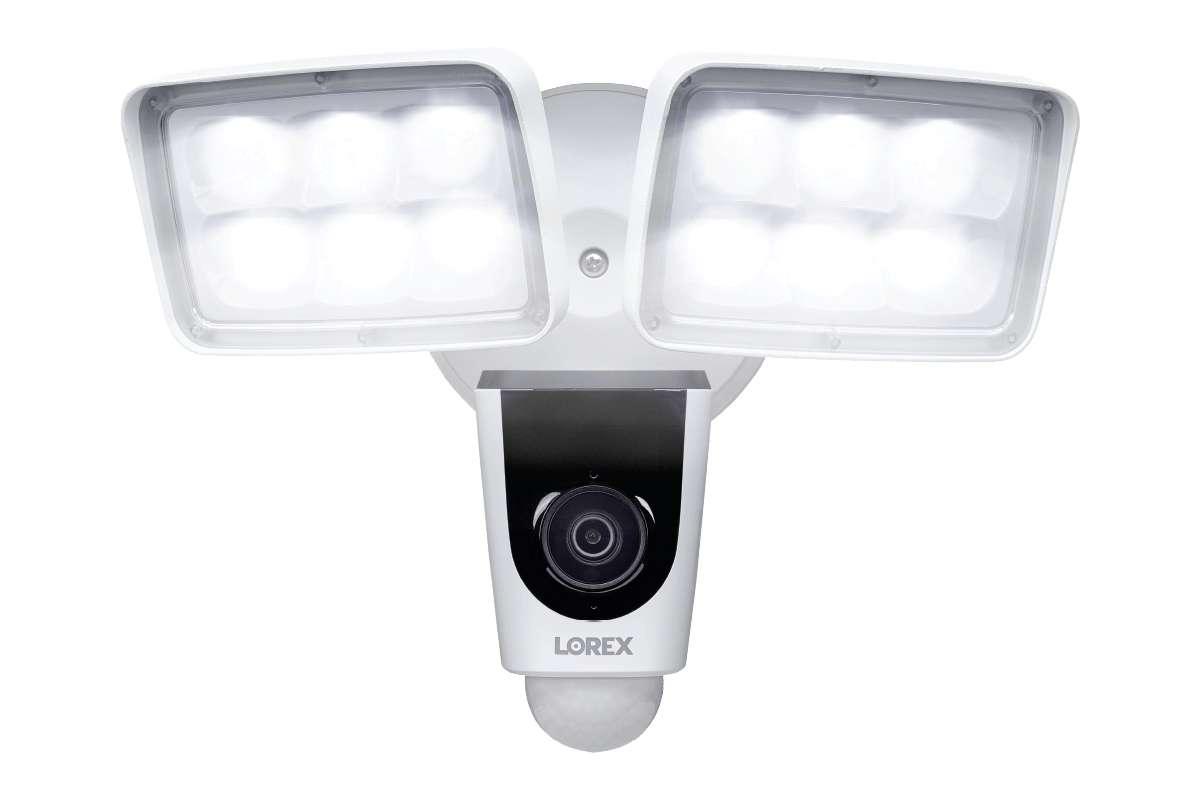

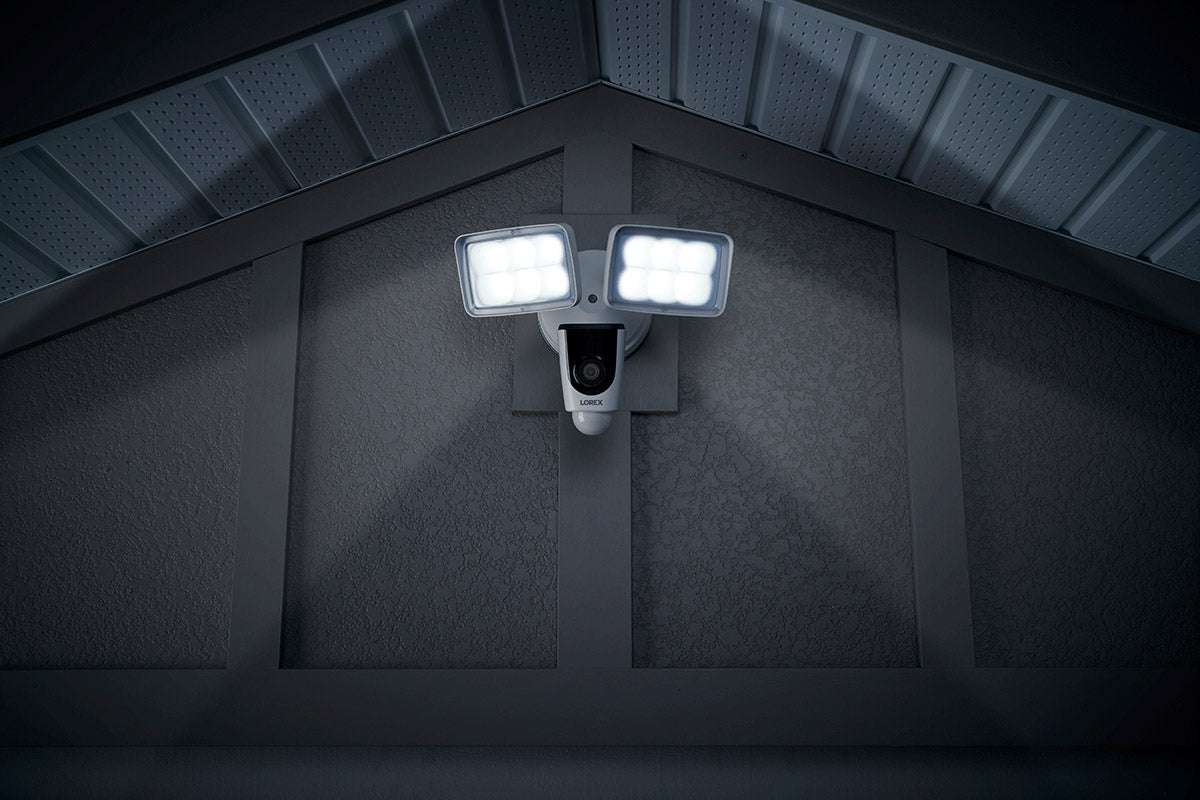

V261LCD HD WiFi Floodlight security camera
  • 2 × 2000 lumens light arrays for optimal light coverage
  • LED floodlight can activate when motion is detected, manually, or on a schedule
  • See more with 1080p resolution and a wide 137° Field of View (diagonal)
  • PIR Motion 270° Field of View (diagonal)
  • IR night vision up to 50ft (15m)1
  • No monthly fee for video recording, storage and photo capturing
  • Includes a 32 GB microSD card. Supports up to 256 GB microSD storage
  • Built-in mic and speaker for 2-way talk. Listen or talk directly to anyone on your property using the Lorex Home App2
  • Conveniently use the existing wiring from your previous floodlight or outdoor house light

Each V261LCD-E Camera Includes:

1 × HD Video Floodlight
1 × Mounting Kit
1 × MicroSD Card
1 × Quick Start Guide

1. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 50ft/15m). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption
2. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.

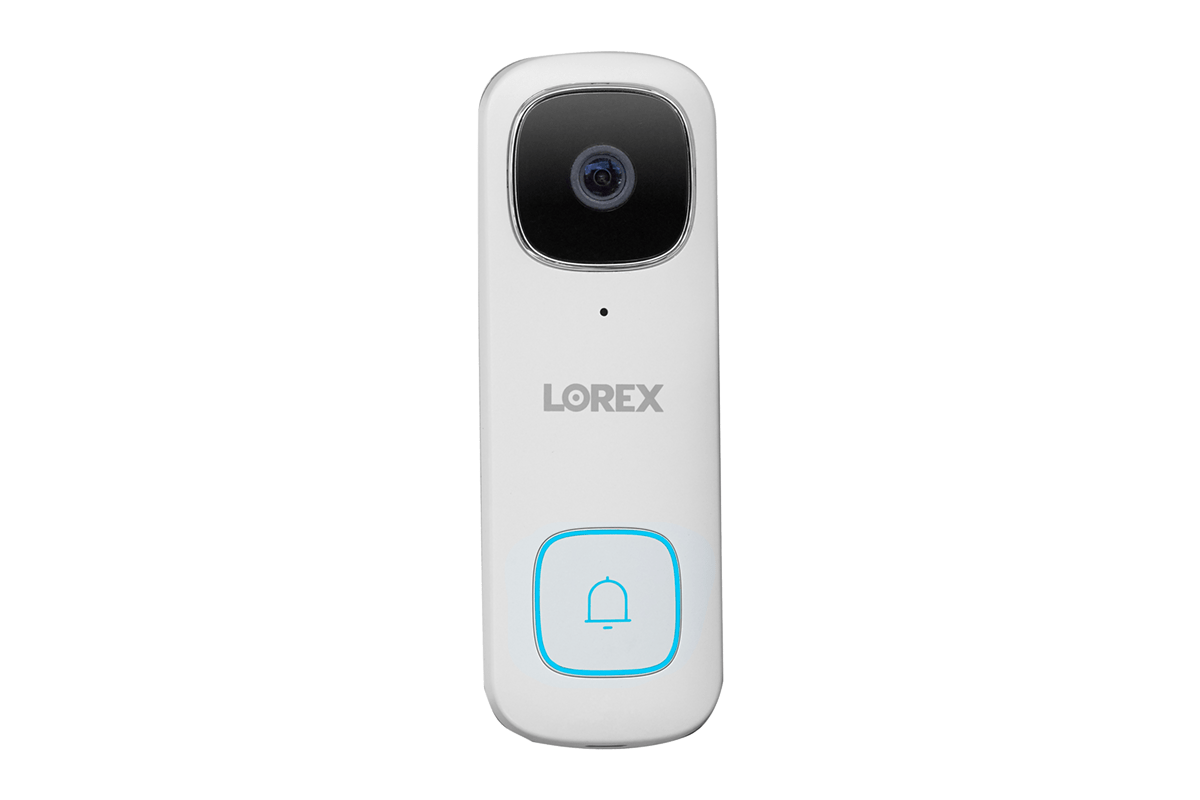

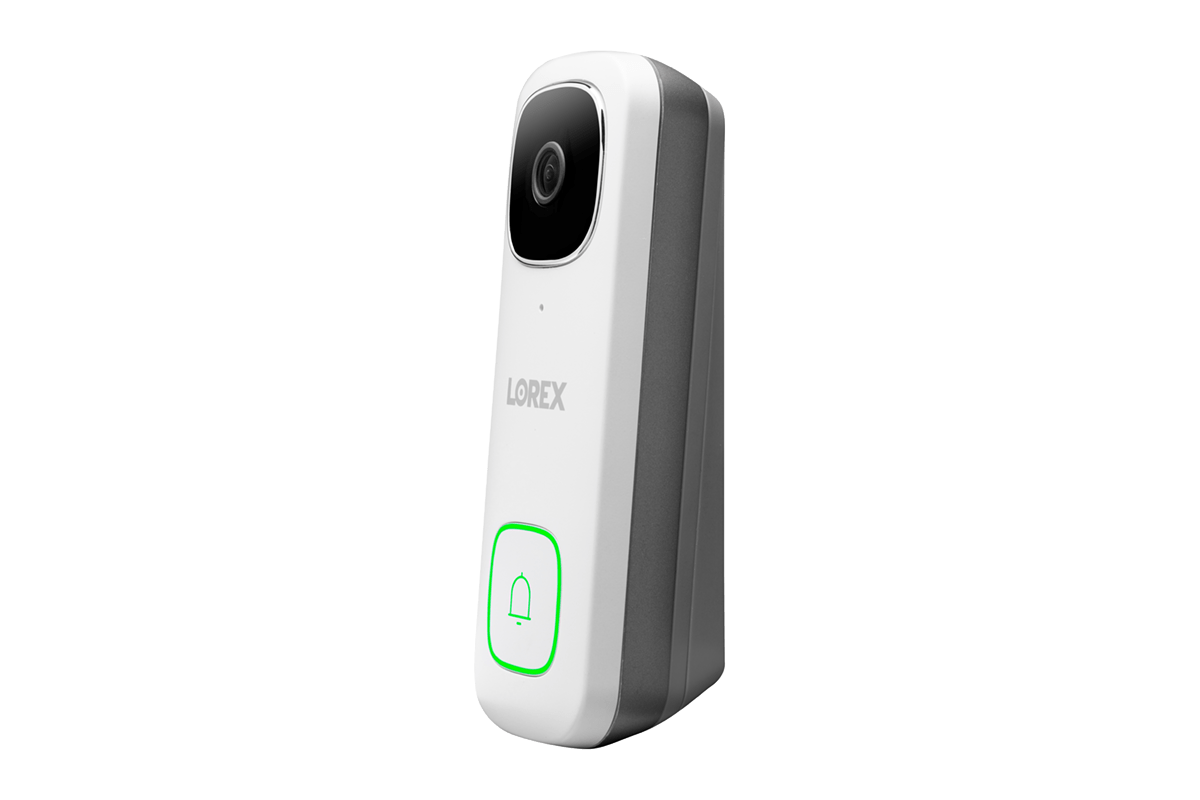

B451AJ dimensions

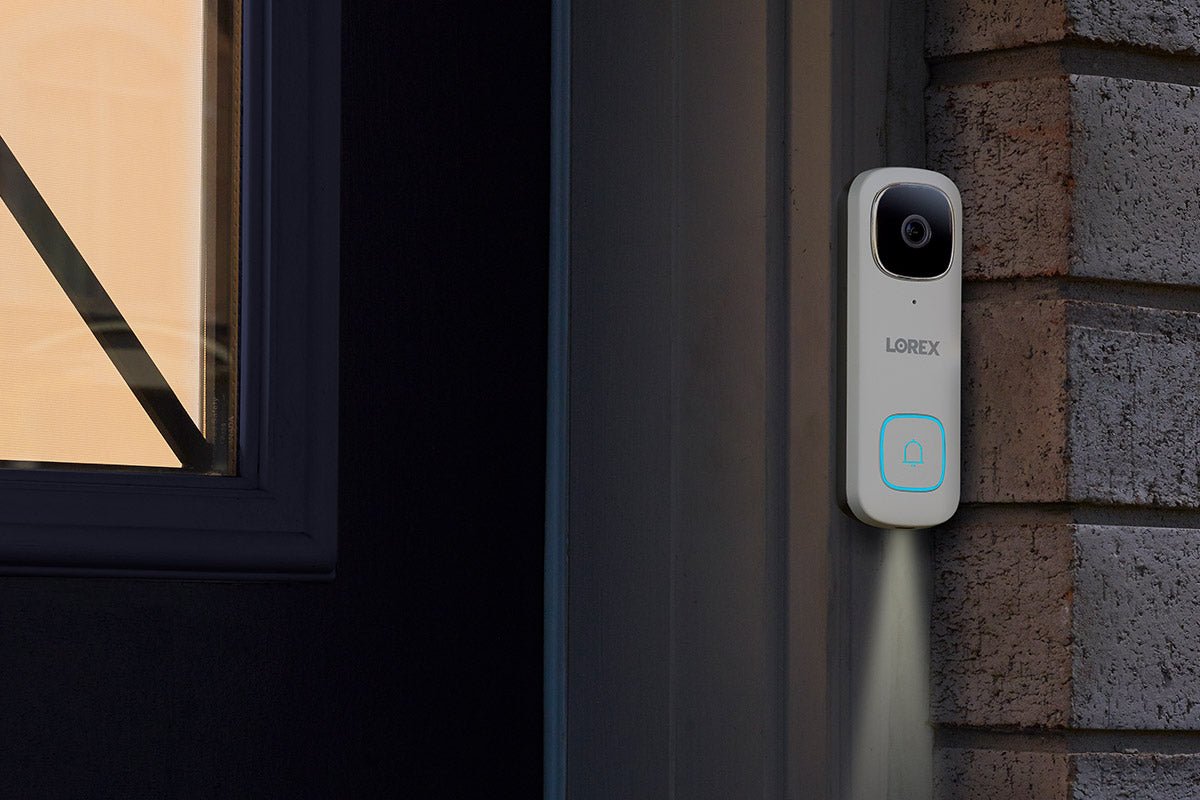

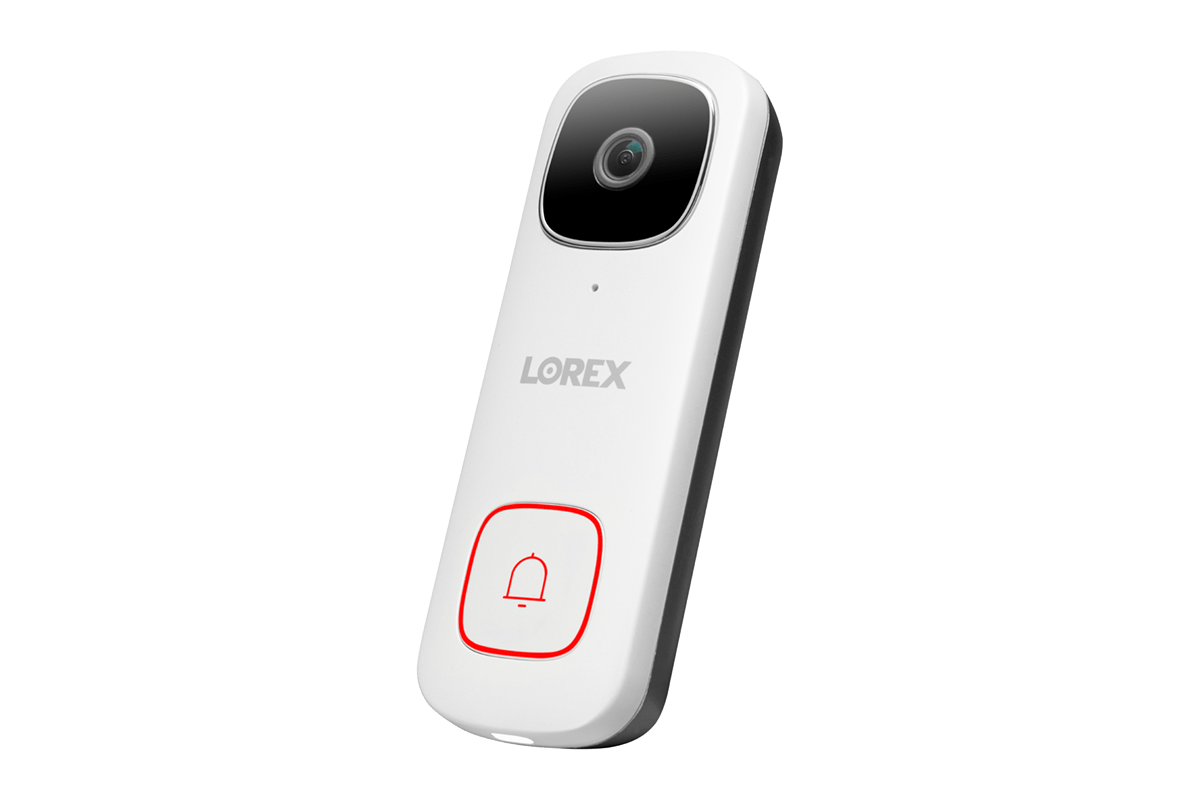

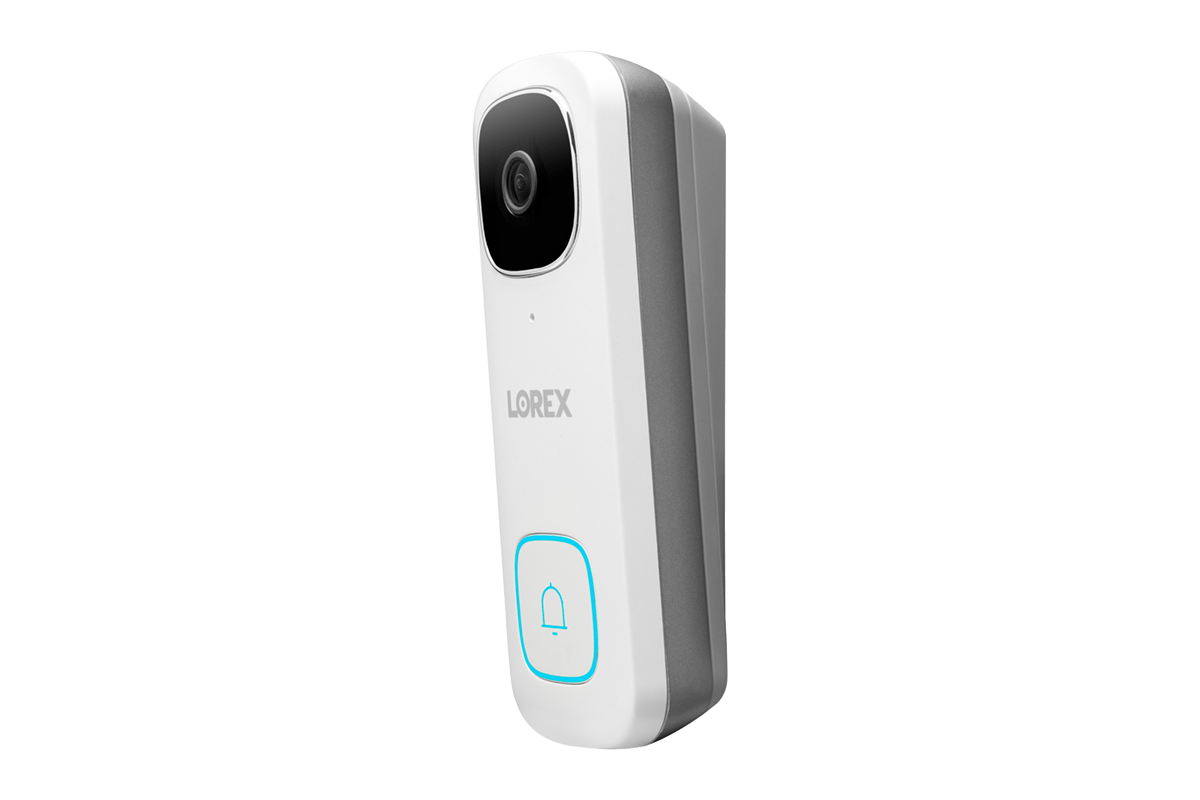

  • Impressive 2K QHD Resolution for clear video quality.
  • See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
  • Get the best picture always with HDR imaging.
  • Use pre-recorded messages or 2-way talk1 to greet visitors.
  • Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
  • Deter unwanted guests with the remote-activated siren.
  • Be aware of activity around your doorstep with built-in Person Detection feature.
  • Receive notifications from the Lorex Home™ app when motion is detection2.
  • Local microSD storage, expandable up to 256GB.
  • Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
  • Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
  • Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
  • Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3

Each B451AJD Camera Includes:

Video Doorbell
Chime Kit
Pre-inserted microSD Card
USB Cable
Electrical Wiring
15° Horizontal Bracket
5° Vertical Bracket
Mounting Kit
Quick Start Guide

Smart Sensor

AY41TR-KTK1-MTK1

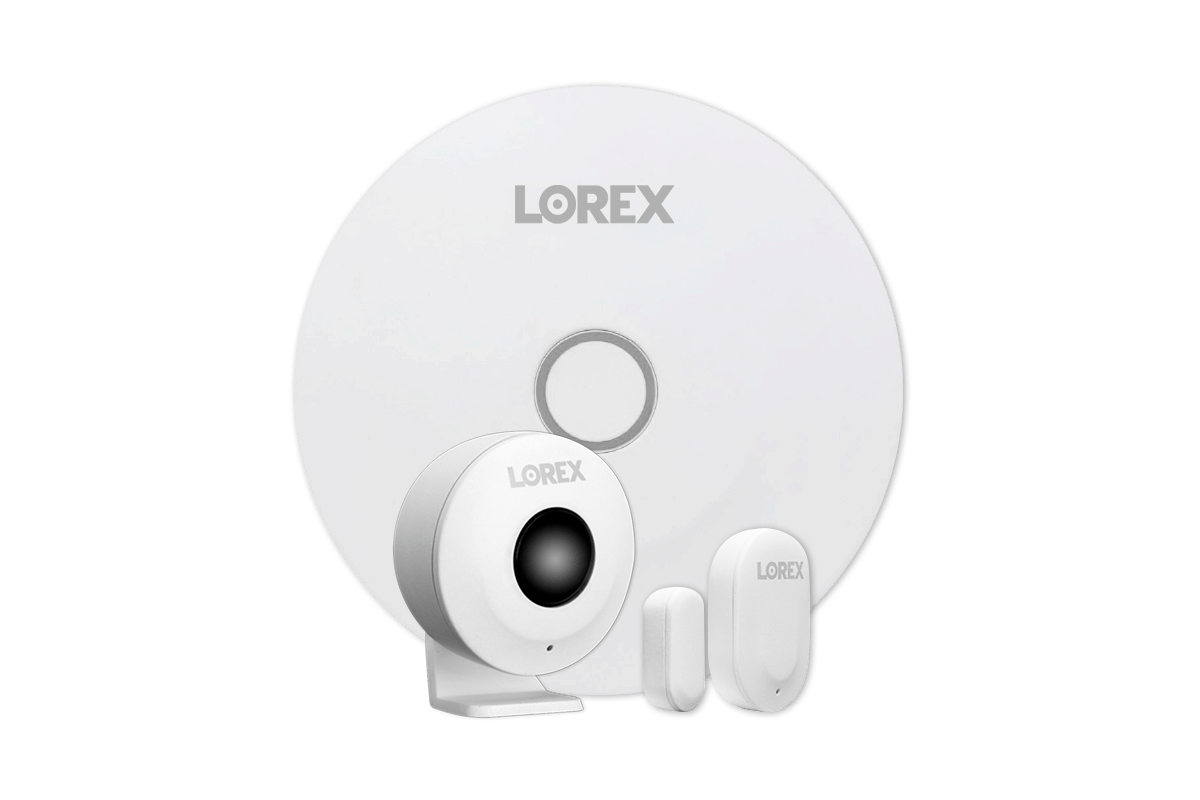

AY41TR Sensor Hub
AY41TR Sensor Hub
Color White
Power Power adapter input: 100-240V AC, Power adapter output: 5V DC
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements Lorex Home APP
Compatibility Lorex DVR's or NVR's using Lorex Home APP
Operating Conditions Indoor Use
Warranty 1 year limited warranty
AM41TK PIR Motion Sensor
AM41TK PIR Motion Sensor
Color White
Power Battery: CR2450, included
Connectivity BLE5.0
Detection Range 26ft Max.*
Detection Angle 110° Max.
Installation Type Tabletop, wall or ceiling
Lights Status Indicator Light
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex Home Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty
AK41TK Door and Window Sensors
AK41TK Door / Window Sensors
Color White
Power Battery: CR1632, included
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex Home Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty

Each Smart Sensor Starter Kit Includes:

1 × Sensor Hub
1 × PIR Motion Sensor
2 × Door / Window Sensors
1 × Power Accessories
1 × Sensor Hub Bracket
1 × PIR Motion Sensor Bracket
Mounting Adhesives
1 × Pin

*Range will be affected by environmental factors
