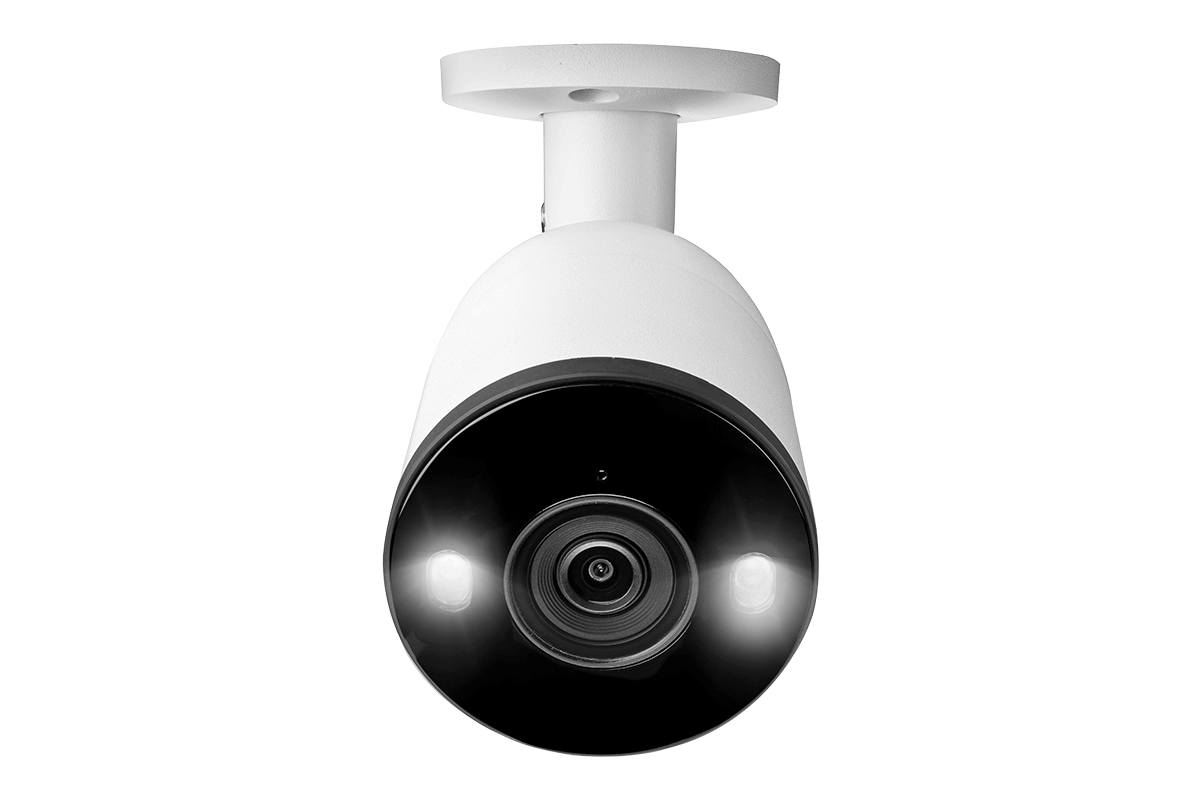

4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit
zoom Roll over image to zoom in Click on image to zoom

4K Smart Deterrence Wired NVR Security System with Fusion Capabilities, Smart Motion Detection Plus and Smart Sensor Kit

TN84428AF8SK-E
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

TN84428AF8SK-E

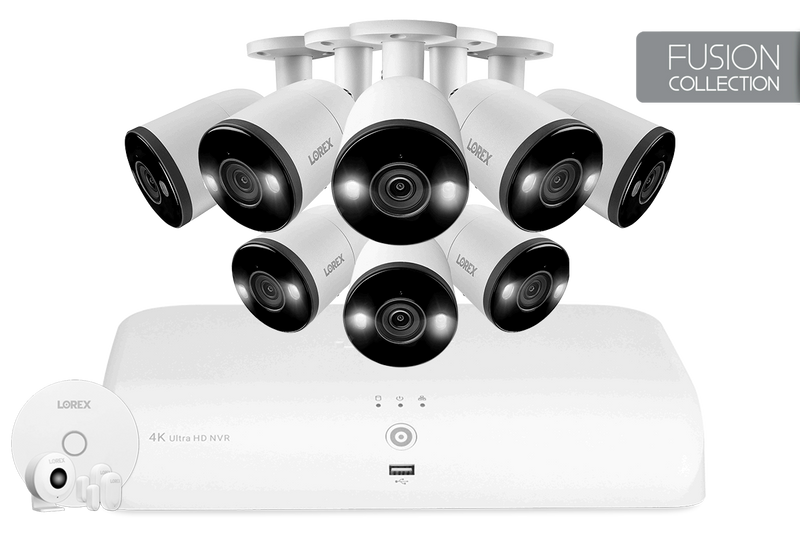

By combining our latest N844 Series NVR, eight 4K Smart Active Deterrence cameras and Smart Sensor Kit, this security camera system will provide you with the highest quality recording and the smartest features to protect your property. Featuring Smart Motion Detection Plus (either Face Detection or Smart Motion Detection), Active Deterrence LED lights and siren, two-way talk audio, this system is designed to stop potential events before happen. The NVR also includes a large hard drive for private local recording with no monthly fees and is easily connected to our Lorex App for easy remote viewing and motion notifications. The included cameras are fully weatherproof and can withstand all types of extreme weather, making this a perfect outdoor security camera system for any size of home.

TN84428AF8SK-E

SPECIFICATIONS

8

CHANNELS

4K NVR can support up to 8 cameras

8

CAMERAS

8 × 4K Smart Deterrence IP cameras

3

SENSORS

2 × Door / Window
1 × Motion

2TB

HARD DRIVE

Maximum capacity 1 × 8TB hard drive

Works with
Lorex App

4K resolution smart security camera


Experience the 4K difference

Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video and higher quality digital zooms to capture the details you need.


Smart Motion Detection Plus

Limit motion detection notifications with Smart Motion Detection Plus. This feature offers the option of either Face Detection or Person and Vehicle Detection.

Face and Mask
Detection

Face Detection with Mask Detection Technology will only notify you of motion events when a face has been detected or when a person is not wearing a mask. This prevents motion notifications from people or vehicles simply passing by and not coming towards the camera5. You can also easily preview all the different faces that the camera has captured for quick reference. Review and filter only face detection events in Smart Search.

Person and Vehicle
Detection

Smart Person and Vehicle Detection helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification whenever a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts caused by moving branches or animals. Recorded motion alerts can easily be reviewed by using the Smart Search function.

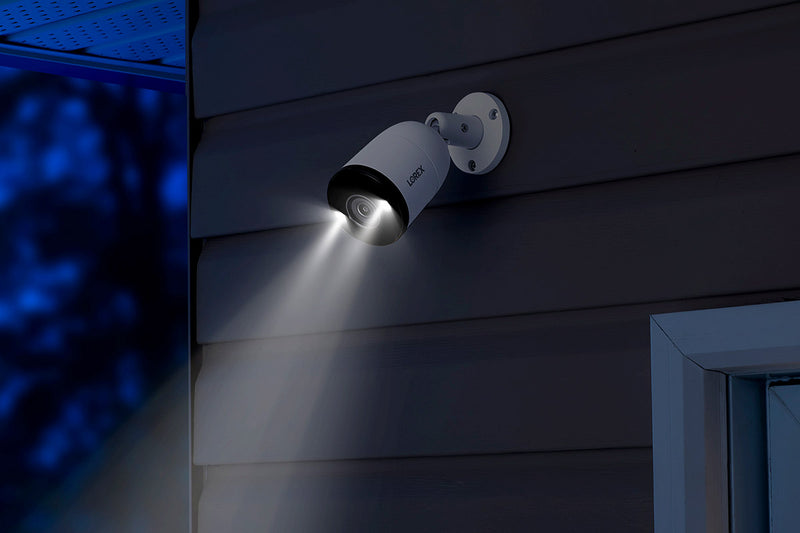

Take an active stance against uninvited guests

This camera comes with plenty of features that will help ward off uninvited guests. First, there is a motion-activated warning light that can be customized to only be triggered when a person or vehicle is detected. Second, you can use 1 of 3 selectable siren that you can control from your Lorex app. When the camera sensors detect motion, the system will send a notification directly to your phone, allowing you to remotely access the camera and set off a loud warning alert.

Listen-in Audio and Two-Way Talk

A built-in speaker and microphone allows for crystal-clear audio functionality. Listen-in audio recording will add a whole new dimension to your overall security monitoring, as it can provide additional details (like a voice) should an incident occur. This camera also has enhanced two-way talk with Quick Response Messages that lets you pre-record specific messages with your own voice using the Lorex app.*


*Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.

Protect the things that matter with Safeguard

Lorex's Safeguard™ technology is perfect if you have very specific objects or areas that you need to to monitor. The feature allows you to set-up to three "Missing" areas and one "Left Behind" area. The Missing feature allows you to select important objects of value that you would want to be notified if they are removed from the area. Conversely, the Left Behind feature allows you to select an area to be notified if something is added.



See in color through the night

This camera features our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera. CNV also adds a further level of detail (the color of clothes or cars, for example), and increases contrast for easier detection and recognition of people and objects. In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 150ft (46m) away and up to 98ft (30m) in complete darkness.

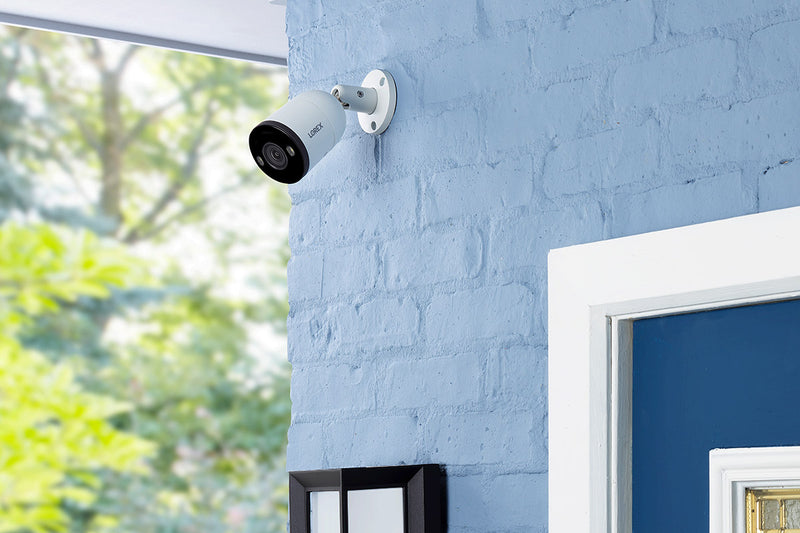

Built for the outdoors

While this camera is suitable for both indoor and outdoor use, it has been especially designed to withstand the harsh impacts of nature. It has an IP67 rating, meaning it can tolerate extreme temperatures ranging from -22°F to 140°F (-30°C to 60°C). It also has a durable, all-metal housing for added protection.

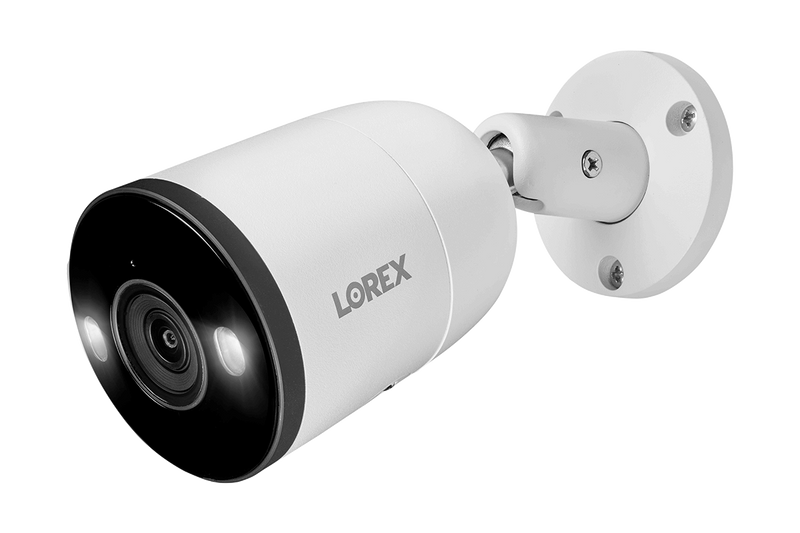

E893AB-E

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

Water Rating

IP67

Water Rating

Smart Sensor Kit

The Lorex Smart Sensor Kit expands your system and adds an extra layer of security to your home. Receive instant alerts to your phone with the Lorex mobile app whenever your door or windows are opened. The sensors feature simplified installation processes that save both time and money.

1 × Sensor Hub

1 × Motion Sensor

2 × Door / Window Sensors

All pictures shown are for illustration purpose only. Actual product sizes may vary.

Remote viewing from your mobile with Lorex

This NVR is designed for use with our innovative Lorex app. Using this app, you can quickly view your security system remotely and control camera features from your smartphone. The app will also send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.

Works With


works with Apple iPhone
Apple iPhone
works with Apple iPad
Apple iPad
works with Android phones
Android Phone
works with android tablets
Android Tablet
works with AppleTV
Apple TV


iphone icon
Apple iPhone
ipad icon
Apple iPad
android phone icon
Android Phone

android tablet icon
Android Tablet
appleTV
Apple TV




Smart home compatibility

Get faster access to your security system by connecting it to your other Smart Home devices. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. Or download the Lorex app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.


*Requires Gen 4 or newer Apple TV with support for App Store



Easy PoE installation

This security camera only needs a single Cat5e ethernet cable to connect it to the NVR. This cable provides video transmission, power to the camera, a stable network connection, and installation flexibility up to 300ft (as the camera does not need to be plugged into a nearby power source).

Panic button

Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras to deter potential intruders.

H.265 / HEVC encoding

This security camera is equipped with High-Efficiency Video Encoding (HEVC) or H.265 video compression. This encoding technology efficiently compresses file sizes. In fact, it can compress file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality. HEVC encoding will also save you plenty of bandwidth while watching live or recorded video remotely.

Reliable security grade hard drive with no hidden storage fees

Included in the NVR is a built-in security-grade hard drive that has been designed to meet the demands of 24/7 surveillance recording. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store all motion events that only you can access.



What's Included?

N844 front dimensions N844 side
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all channels1
  • Digitally zoom in on distant objects for better clarity2
  • View synchronized playback of up to 4 cameras at the same time
  • Expand your security system with up to 8 IP cameras with built-in PoE ports
  • Pair your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, doorbells, floodlights, and more3
  • Stream and record continuous video from your Wi-Fi devices on your recorder
  • Wi-Fi cameras can now record continuously, taking advantage of the hard drive storage space
  • Quickly access your live footage with simple voice commands, compatible with Amazon and Google4
  • Control your Active Deterrence cameras features with your voice (compatible with Google Assistant only)4
  • Smart Motion Detection Plus offers the option of either Face Detection or Person and Vehicle Detection Detection with the ability to receive notifications when a face, person or vehicle are detected on your property via the Lorex App5
  • By activating Face Detection with Mask Detection Technology, get notifications when a person is not waring a mask5
  • Use Smart Search to search through recorded footage and filter events for motion detected by person, vehicle or face5
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place.
  • Track and follow motion by customizing your motion detection settings with Active View5
  • Max 8TB storage space with no hidden monthly cloud fees
  • Security Grade hard drive designed for advanced processing and the workload of 24/7 monitoring

Each N844A82 Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick Setup Guide
  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion.
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome.
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility.
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility.
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.

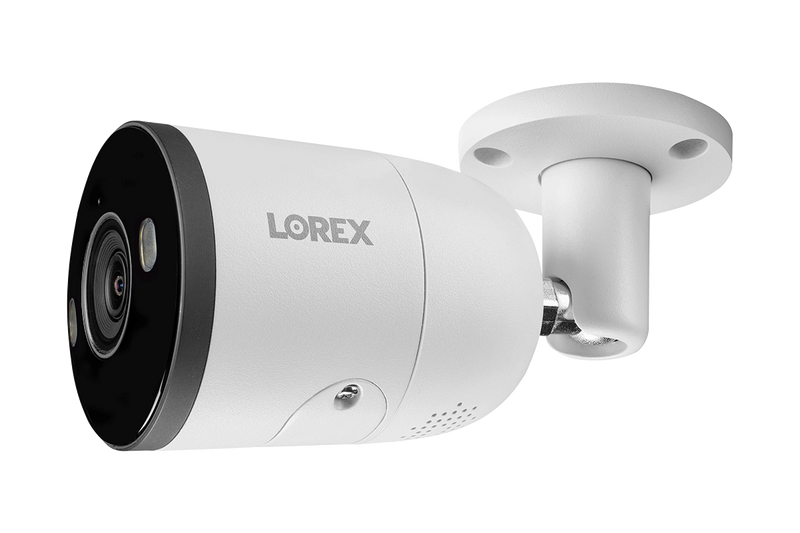

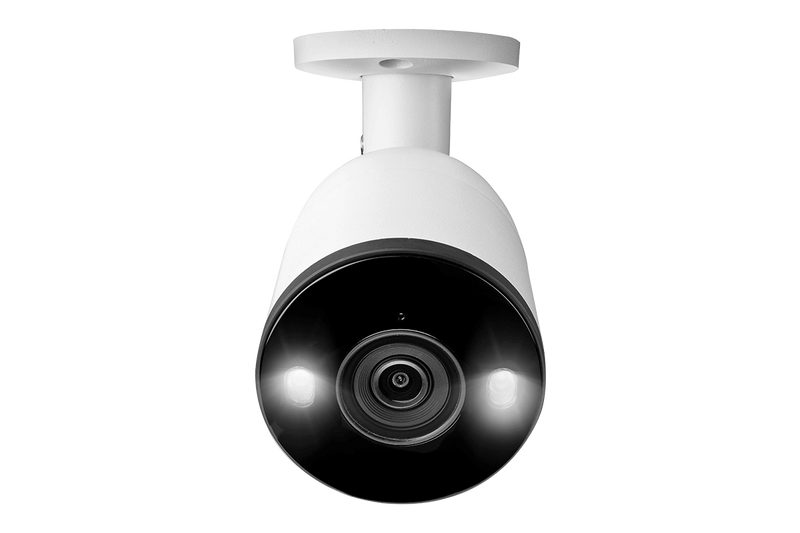

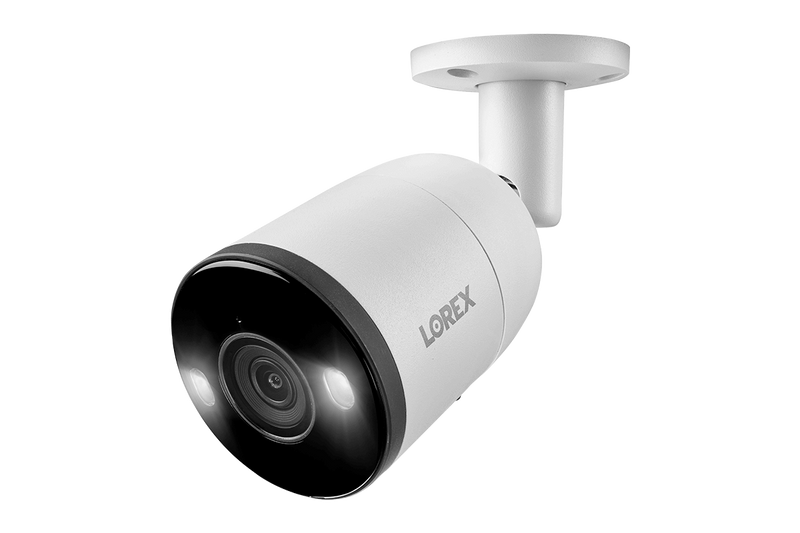

E893AB Dimensions
  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 108° field of view
  • Superior nighttime clarity with Color Night Vision2
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness3
  • Warning light can be programmed to illuminate when a person or vehicle is detected
  • Using 1 of 3 selectable, remote activated sirens to deter unwanted guests
  • Built-in mic and speaker allows you to listen and speak to visitors with Two-way talk4
  • Enhanced Two-way Talk with Quick Response Messages lets you pre-record specific messages with your own voice
  • Deter unwanted guests with the remote-activated siren
  • Smart motion detection plus offers the option of either Face detection or Person and Vehicle Detection5
  • By activating Face Detection with Mask Detection Technology, get notifications when a person is not wearing mask. When automatic voice prompts enabled, the system will ask visitors to "Please wear a face mask" when masks are not detected
  • Receive notifications when a person, vehicle or face is detected on your property from your Lorex App™ app5
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value

Each E893AB-E Includes:

1 × 4K IP Security Camera
1 × Mounting Kit
1 × Cat5e Ethernet Cable
1 × Quick Start Guide
  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  5. For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  6. Not intended for submersion in water. Installation in a sheltered location recommended.
  7. Cable length is dependent on product configuration. See product packaging for details.
  8. Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  9. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.

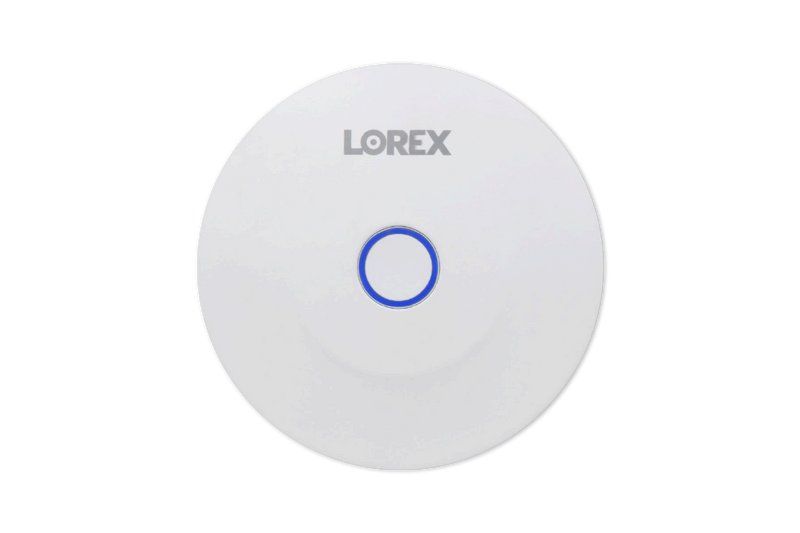

AY41TR Sensor Hub
AY41TR Sensor Hub
Color White
Power Power adapter input: 100-240V AC, Power adapter output: 5V DC
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements Lorex App
Compatibility Lorex DVR's or NVR's using Lorex App
Operating Conditions Indoor Use
Warranty 1 year limited warranty

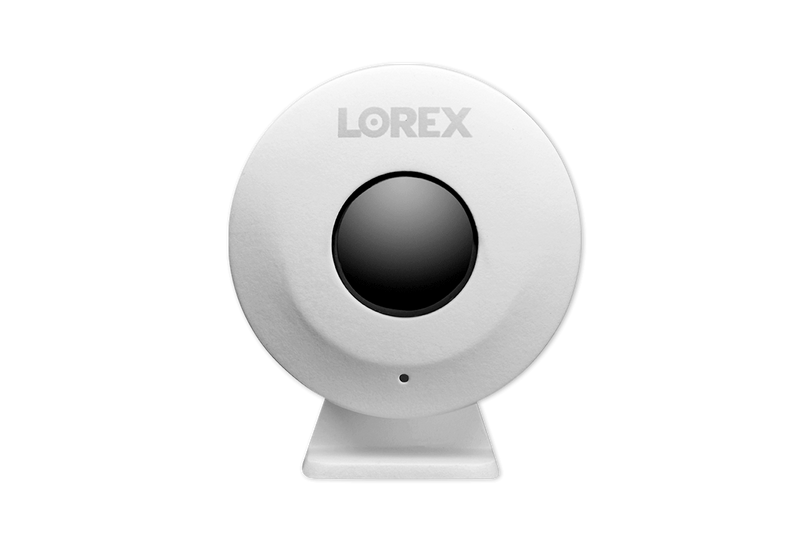

AM41TK PIR Motion Sensor
AM41TK PIR Motion Sensor
Color White
Power Battery: CR2450, included
Connectivity BLE5.0
Detection Range 26ft Max.*
Detection Angle 110° Max.
Installation Type Tabletop, wall or ceiling
Lights Status Indicator Light
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex App Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty

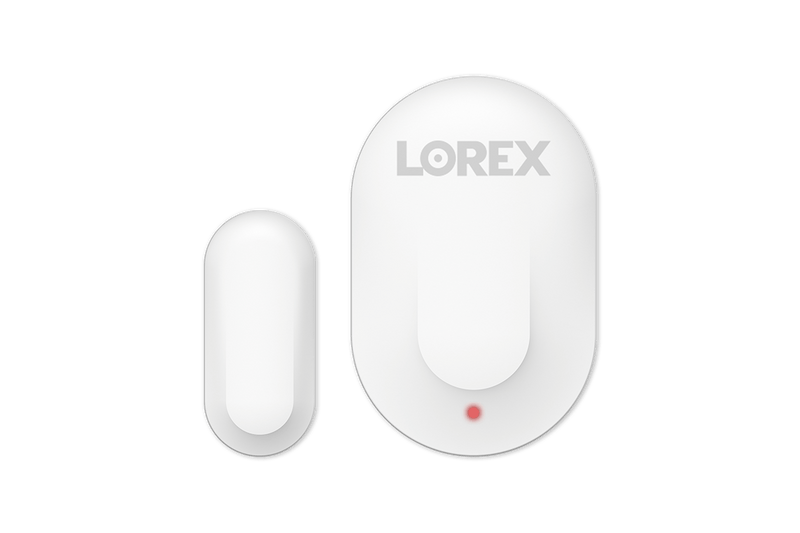

AK41TK Door and Window Sensors
AK41TK Door / Window Sensors
Color White
Power Battery: CR1632, included
Connectivity BLE5.0
Lights Status Indicator Light
Installation Type Tabletop or wall mount
Setup Requirements / Compatibility Lorex Sensor Hub, Lorex App Center
Mounting Adhesive, included
Operating Conditions Indoor Use
Operating Temperature 14°F ~ 113°F / -10°C ~ 45°C
Operating Humidity 0 ~ 95% RH
Warranty 1 year limited warranty
