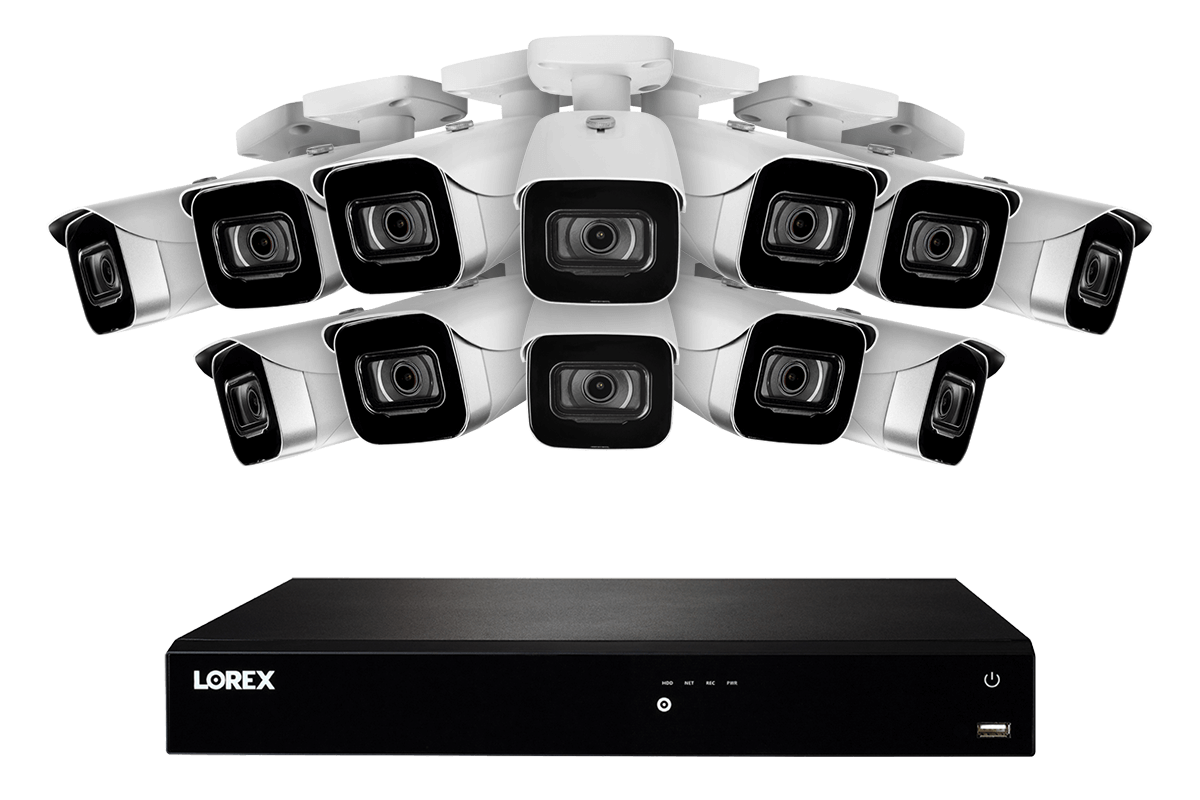

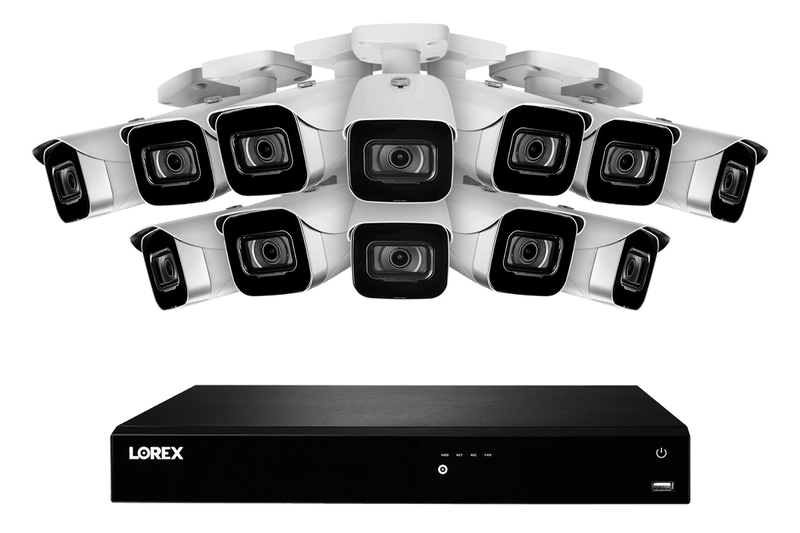

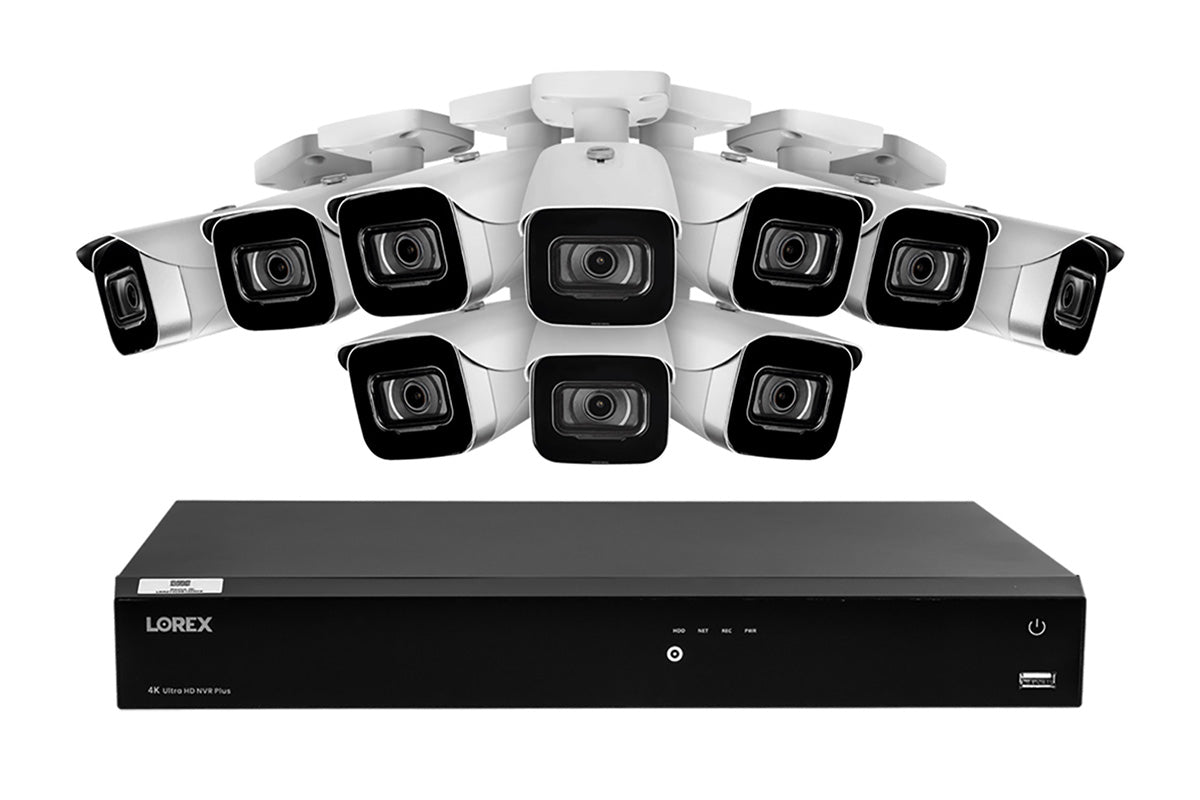

Lorex 4K (16 Camera Capable) 3TB Wired NVR System with IP Bullet Cameras

N86363-8CAC
Number of cameras:
$1,399.99
OR
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features



Featuring industry-leading 4K (8 megapixel) resolution recording, this security camera system from Lorex will bring a whole new level of detail to your monitoring. It includes a 16-channel Network Video Recorder (NVR) and 4K IP bullet security cameras. Whether you are looking to protect your home or small business, this powerful security camera system will help you secure the things that matter most.



16

CHANNELS

4K NVR can support up to 16 cameras

4K

RESOLUTION

4× the resolution of HD 1080p

130FT

NIGHT VISION

Maximum night vision range

3TB

HARD DRIVE

Expandable up 2 × 8TB




Experience the promise of 4K surveillance

Thanks to the camera's powerful 8MP image sensor, you'll experience the difference that 4K resolution makes when it comes to your security. 4K means there are more than 8 million pixels, and that results in sharper video, realistic color representation and superior digital zoom capabilities.






Superior nighttime clarity with Color Night Vision™

This camera features our revolutionary Color Night Vision (CNV) technology, which will produce full-color video with the help of external lighting around the camera. In regular nighttime conditions that are too dark for CNV to render full-color images, this camera will use it's infrared LEDs to record crisp black and white video footage up to 130ft (40m) away and up to 90ft (27m) in complete darkness.



High Dynamic Range

High Dynamic
Range (HDR)

HDR improves video clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image.

HEVC Compression

High Efficiency
Video Coding (HEVC)

HEVC compresses video file sizes without any noticable difference in quality, which will save you lots of hard drive space.

Metal housing

Full Metal
Exteriors

Heavy-duty aluminum exteriors add extra protection against vandalism and the elements, extending the life-cycle of the cameras.

Power Over Ethernet

Easy PoE
Installation

IP cameras only need a single Cat5e ethernet cable to connect it to a compatible NVR for video, power and a stable network connection.

Weatherproof security camera

Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.

Heat Rating

140°F | 60°C

Heat Rating

Cold Rating

-22°F | -30°C

Cold Rating

Water Rating

IP67

Water Rating


Remote viewing from your mobile with Lorex Home™

This NVR is designed for use with our innovative Lorex Home™ app. Using this app, you can quickly view your security system remotely and control camera features from your smartphone. The app will also send you motion-activated push notifications straight to your phone to keep you connected to your property at all times.


Lorex Sensor Kit and Lorex Home App



Add A Sensor Kit!

The Lorex Sensor Hub also uses the Lorex Home App, allowing you to seamlessly integrate Add-On Sensors into your home security.

Motion Sensor

Video-Free

Real-time sensor alerts

Instant Alerts

link sensors with wifi cameras

Sensor Linking*






*Link individual sensors to another Wi-Fi camera connected to the Lorex Home App. N842, N843, N844, N862, N863, D861, D862, D871 Series recorders also support sensor linking to a wired camera through the Lorex Home App. Lorex Sensor Hub Compatibility




Smart home compatibility

Get faster access to your security system by connecting it to your other Smart Home devices. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. Or download the Lorex Home app on your Apple TV* to view live video in single or multiple feeds. For more information about current smart home integrations, visit our Smart Home Guide.


*Requires Gen 4 or newer Apple TV with support for App Store



Panic button

Stop events before they happen. An easy-to-use panic button located on the front of the recorder will activate all lights and sirens on your compatible Active Deterrence cameras to deter potential intruders.

Reliable security grade hard drive with no hidden storage fees

Included in the NVR is a built-in security-grade hard drive that has been designed to meet the demands of 24/7 surveillance recording. With the possibility of increasing storage space up to 8TB, there is more than enough room to safely store all motion events that only you can access.

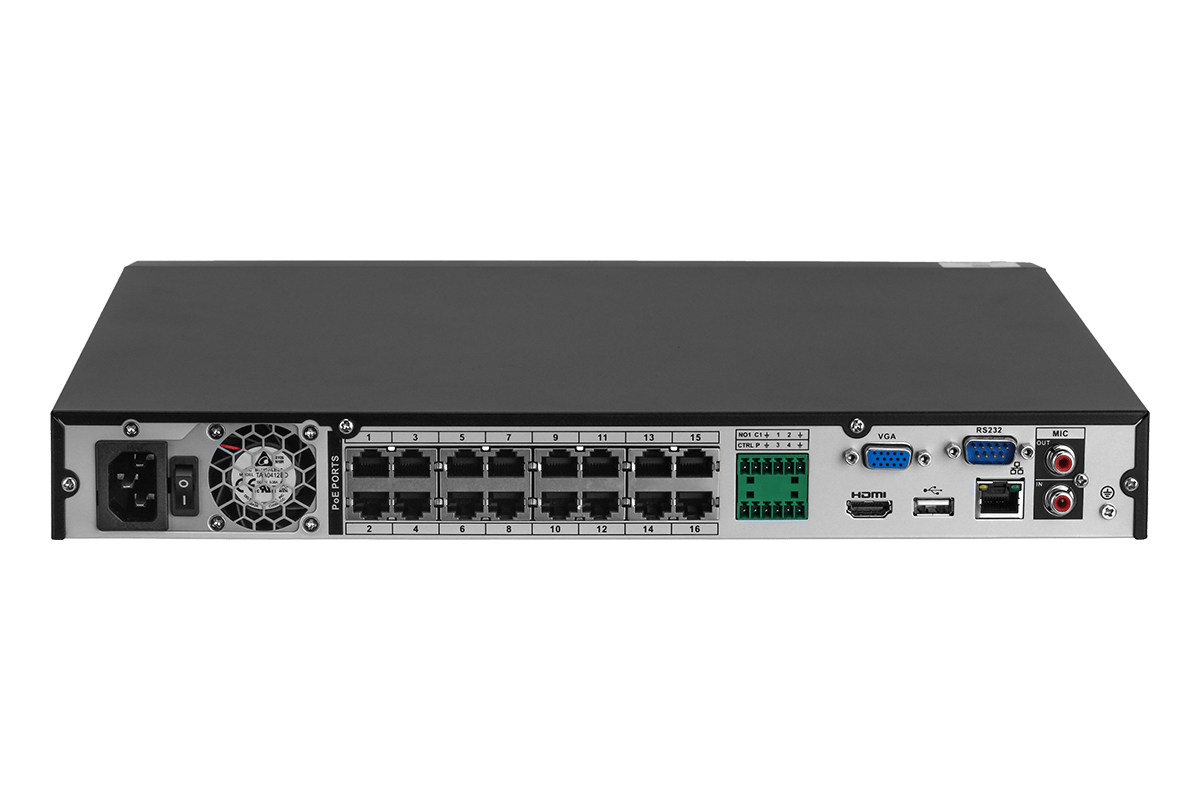

Two storage bays

This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 8TB, giving you the potential for a total of 16TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up if the recording hard drive fails.

detection zones

Regional
Motion Zones

The NVR can program specific motion zones for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").

Privacy Mask

Privacy
Masking

In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.

Area Search

Easy Area
Search

Find what you are looking for quickly with Lorex's Area Search. Using the NVR, select an area of interest to automatically playback any video footage showing scene changes in that area.



What's Included?

V261LCD Overview

Dimensions (WxDxH): 2.8" x 7.1" x 2.8" (70mm x 180mm x 70mm)
Weight: 1.15lbs / 0.52kg

Package Contents:

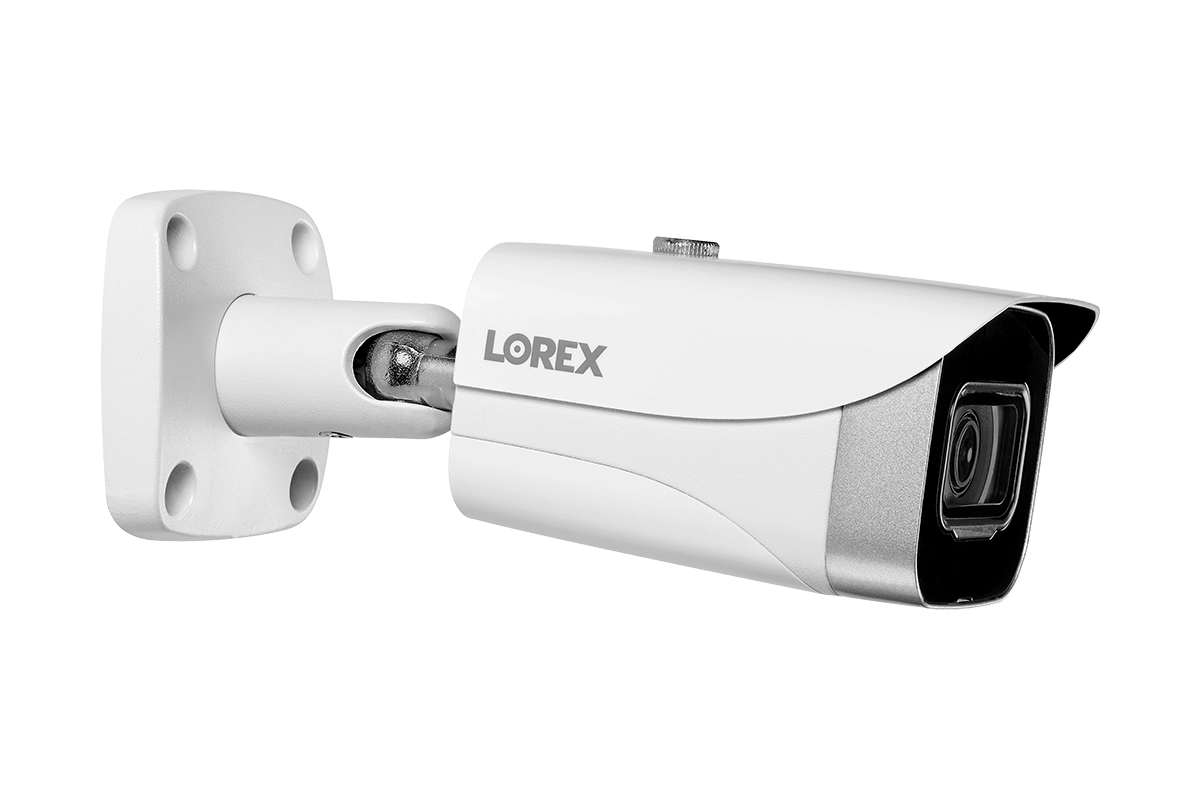

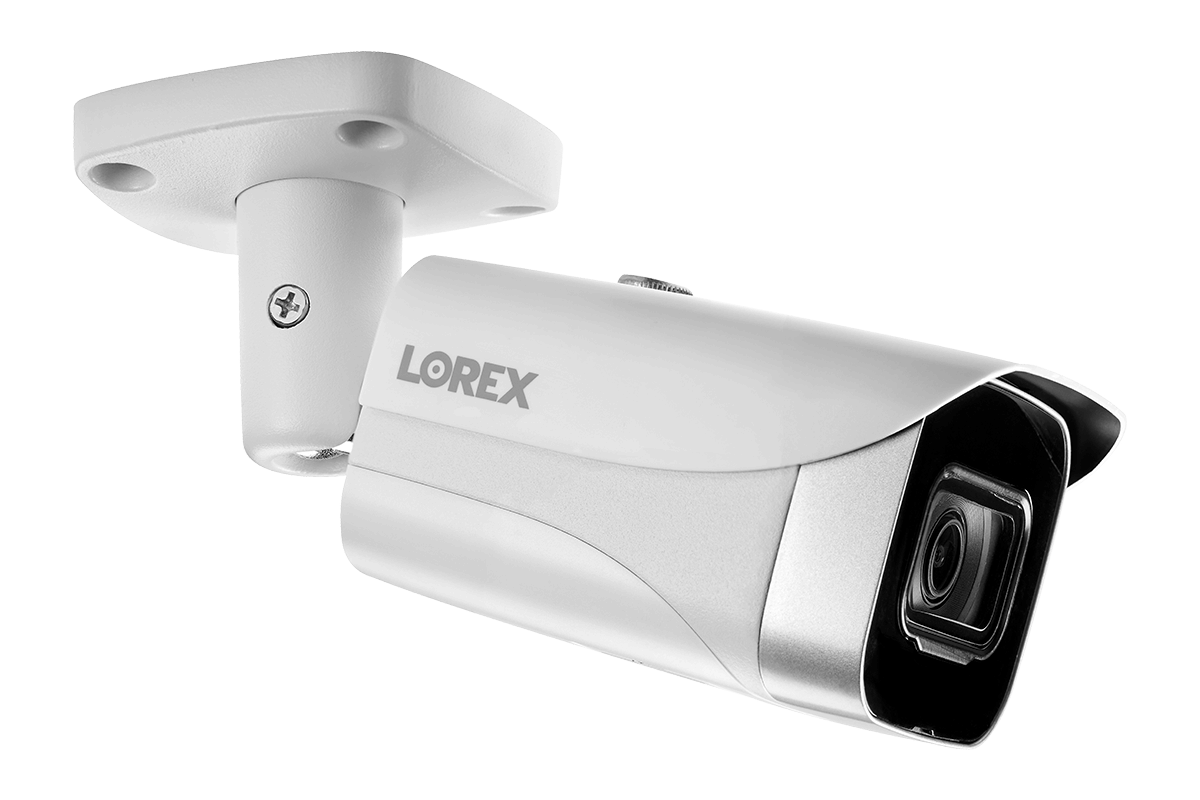

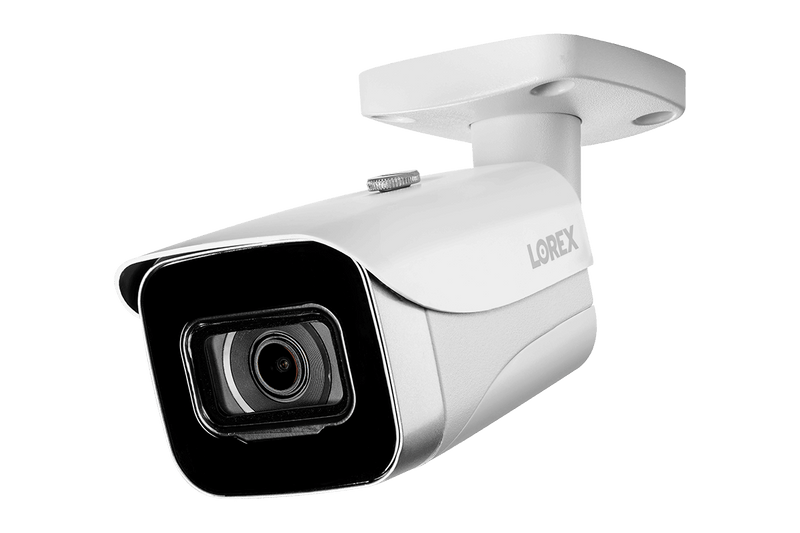

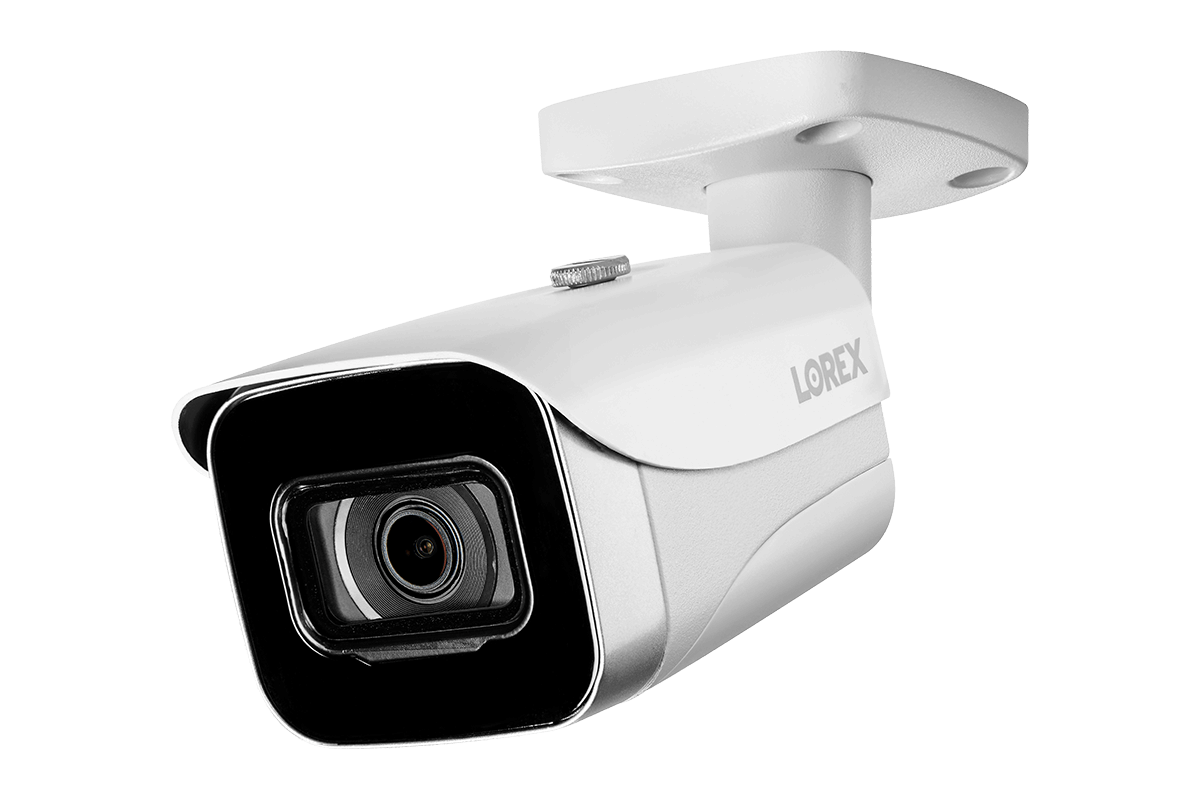

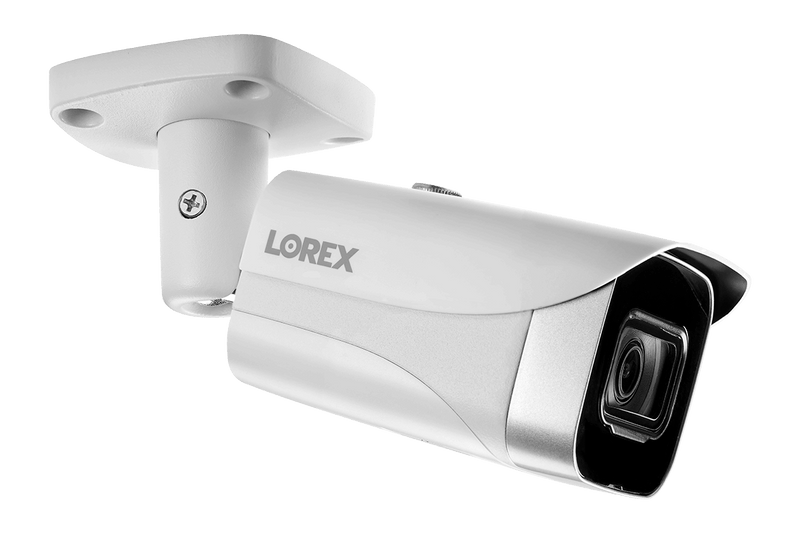

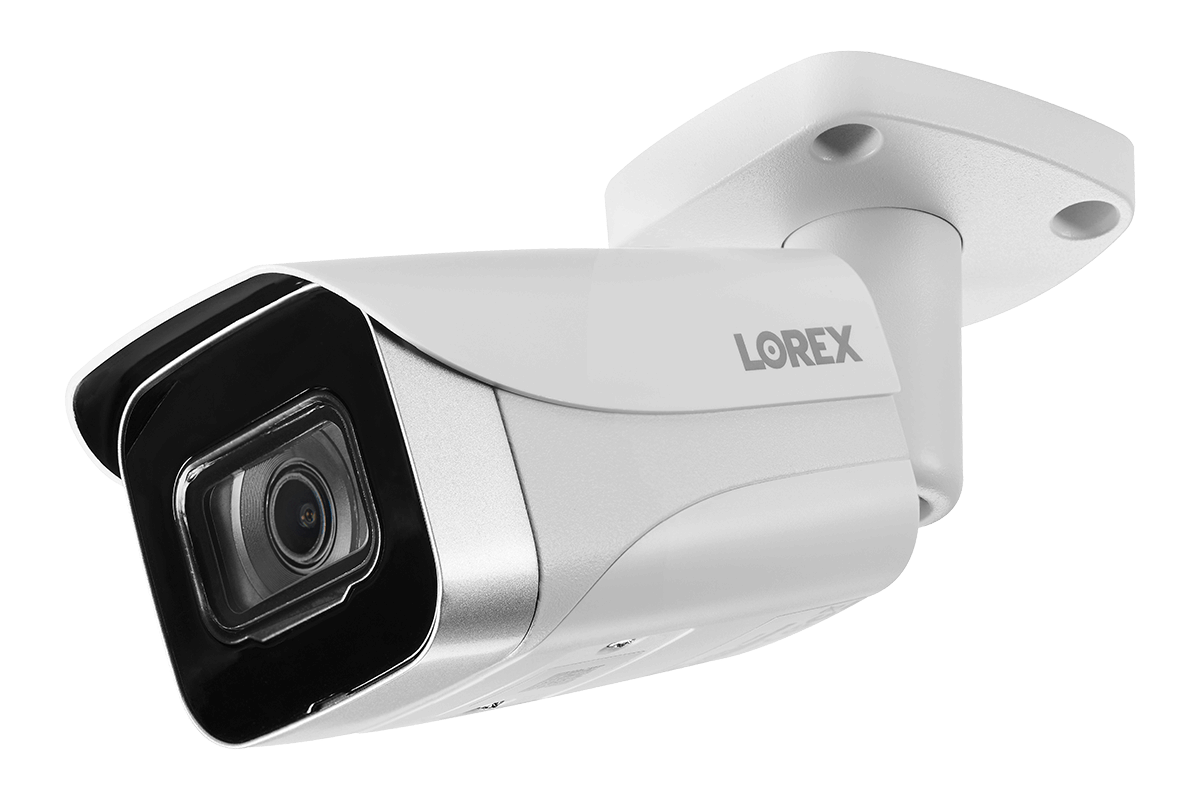

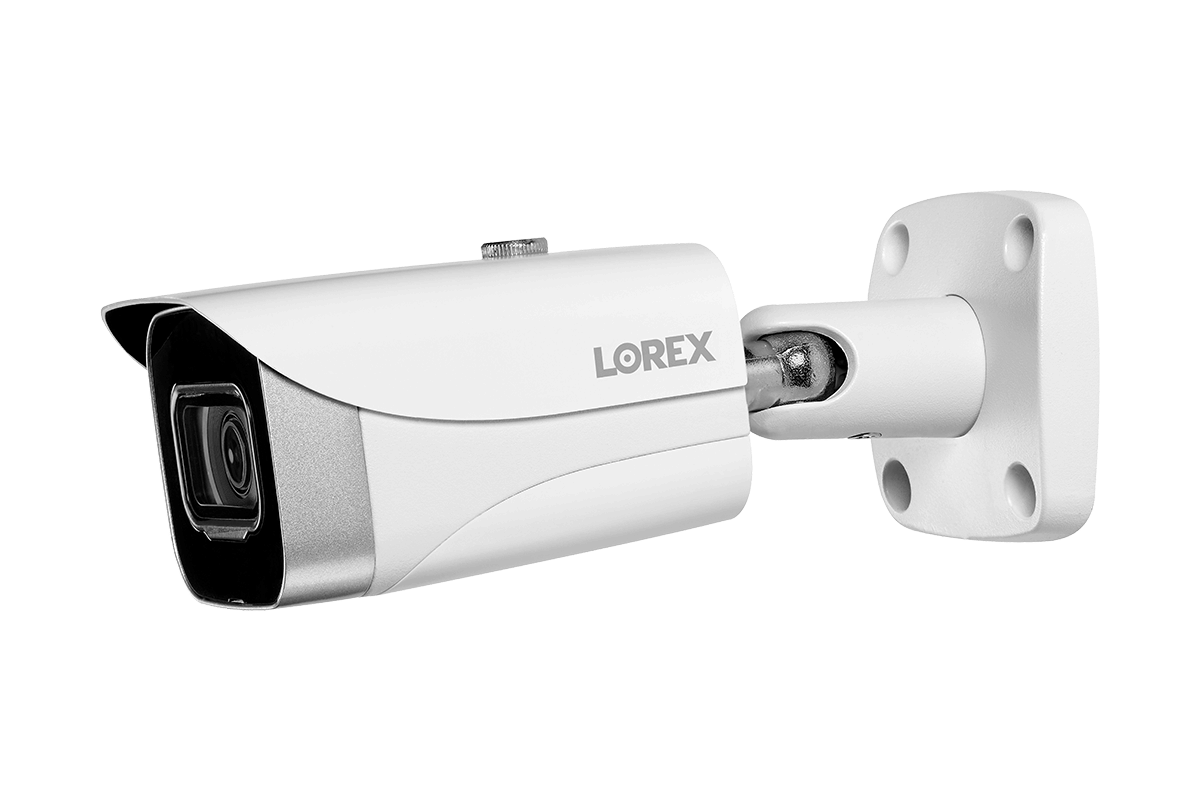

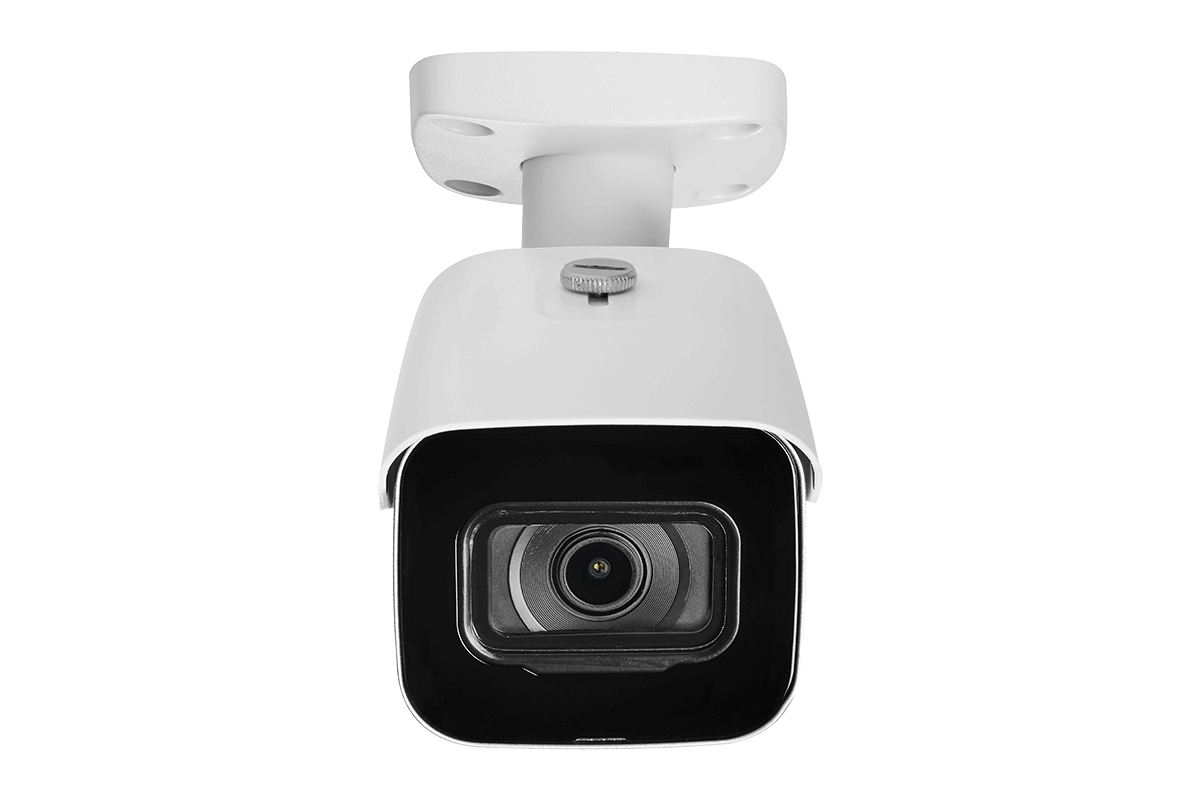

4K IP Bullet Camera

Mounting Kit

Cat5e Ethernet Cable

Quick Start Guide


  • 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
  • See more with a wide-angle 105° field of view
  • HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
  • Weatherproof rated (IP67)2
  • Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
  • Aluminum Alloy housing, designed to withstand harsh weather conditions
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
  • Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4
  • A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
N863B front dimensions N863B side
  • Record and view video in up to 4K (8MP) Ultra HD Resolution on all cameras1
  • View live footage in up to 15fps and digitally zoom in on distant objects for better clarity2
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection3
  • Get push notifications when motion from a person or vehicle is detected4
  • A choice of four different siren sounds are available including a Police siren or a house alarm sound5
  • Use Smart Search to filter motion events for reviewing footage quickly and easily
  • Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value. Auto-voice messages can be activated when an event takes place.
  • Quickly access your live footage with simple voice commands (compatible with Amazon Alexa and Google Assistant)6
  • View live or recorded video directly on your TV with smart home compatibility (Compatible with: Apple TV and Chromecast)
  • 2 bay hard drive with up to 2 × 8TB of storage space with no hidden monthly fees
  • Local built-in security-grade hard drive
  • Heavy-duty hard drive designed for advanced processing and the workload of 24/7 monitoring
  • For improved security simply use the Lorex Home app to set a notification for when someone enters your business without a proper face mask
  • The voice prompt is another benefit that can be used to alert and remind non-mask wearers: "Please wear your face mask"
  • Expand your system with up to two Lorex Fusion™ compatible Wi-Fi products such as Wi-Fi cameras, Doorbells, Floodlights, and more7
  • Stream and record continuous video from your Wi-Fi cameras on your recorder with Lorex Fusion™
  • Increase the limited Wi-Fi SD-Card storage capacity of pair cameras by taking advantage of recording directly to the NVRs built-in HDD

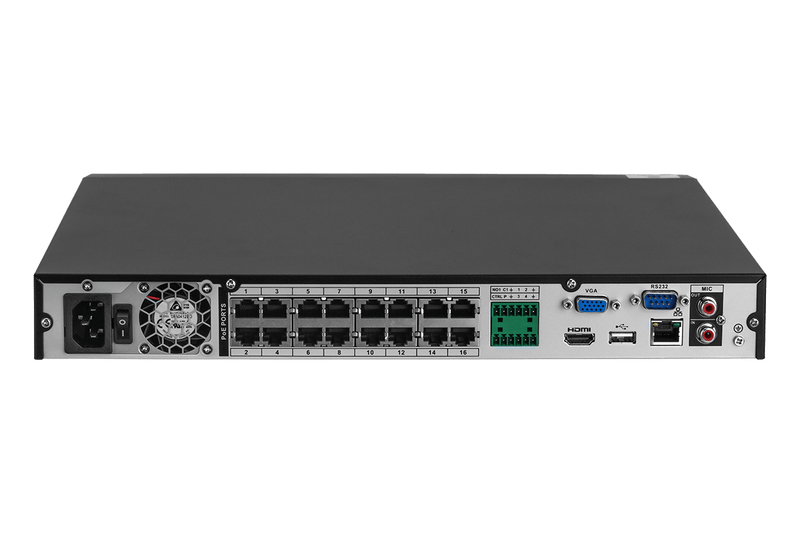

Each N863A63B Includes:

1 × NVR
1 × AC power adapter
1 × USB mouse
1 × Ethernet cable
1 × HDMI cable
Quick Setup Guide
  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
  4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visitwww.lorex.com/smarthome
  7. Fusion™ capabilities are limited to 2 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  8. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  9. NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility
