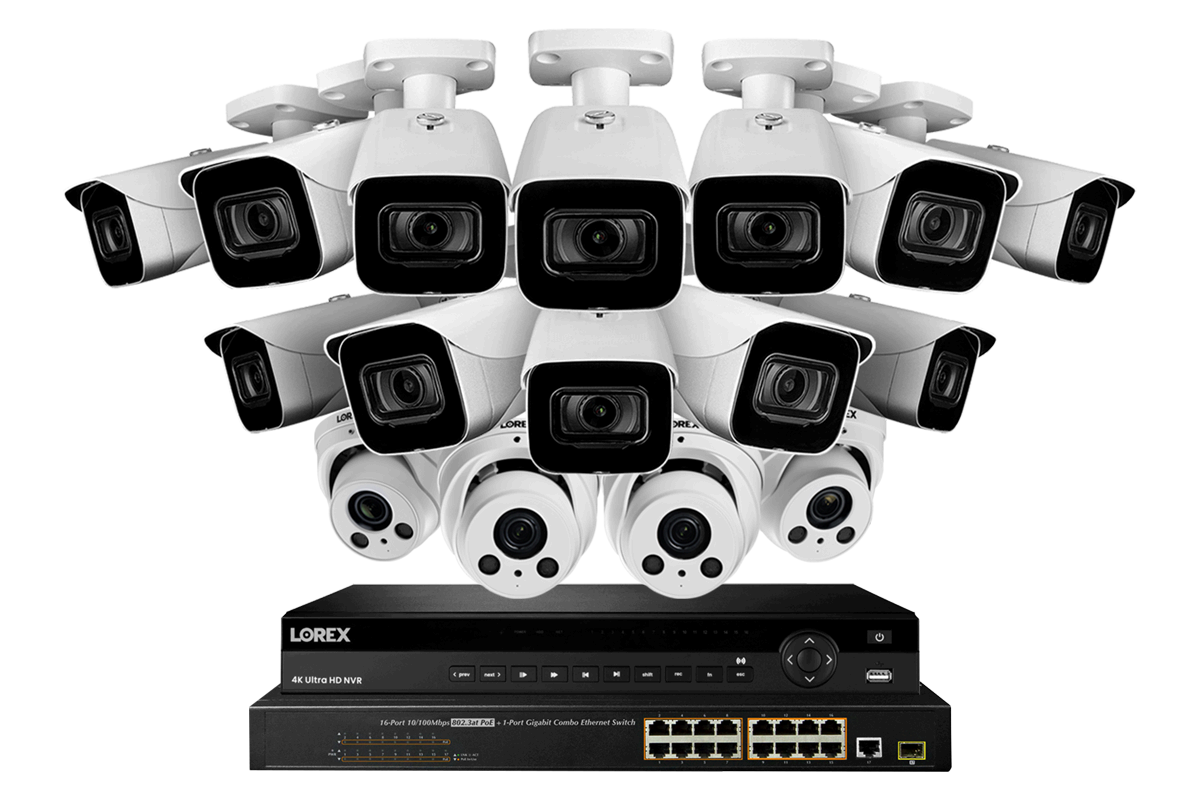

32 Channel IP Security Camera System with 12 4K Ultra HD Smart IP Bullet and 4 4K Motorized Varifocal Audio Dome Security Cameras. - Lorex Corporation

Roll over image to zoom in Click on image to zoom

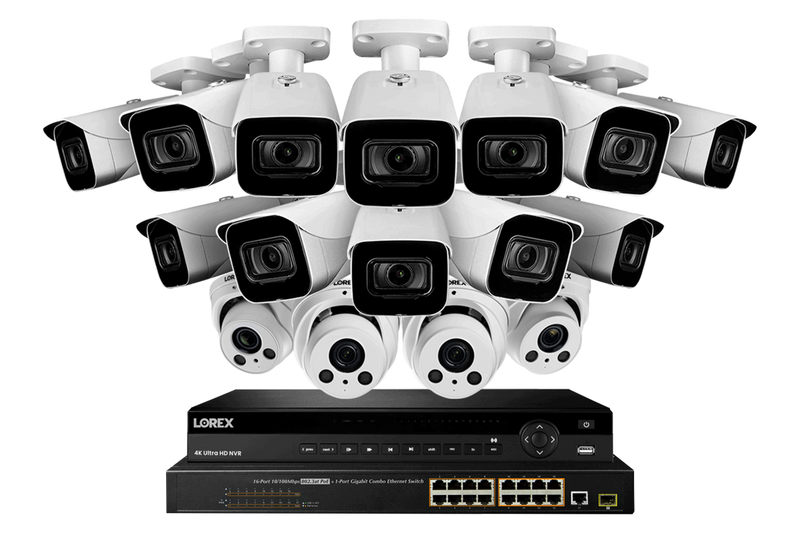

32 Channel IP Security Camera System with 12 4K Ultra HD Smart IP Bullet and 4 4K Motorized Varifocal Audio Dome Security Cameras.

Name: 32 Channel IP Security Camera System with 12 4K Ultra HD Smart IP Bullet and 4 4K Motorized Varifocal Audio Dome Security Cameras.
Brand: Lorex Discontinued
SKU: TN81388BC8F4
Availability: OutOfStock

TN81388BC8F4

Share this product

OR

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

The next generation of security monitoring is here. With industry-leading 4K (8 megapixel) resolution, this security camera system from Lorex will bring a whole new level of detail to your security monitoring. It includes our revolutionary 4K Ultra HD 32-channel N882 Series network video recorder (NVR) and sixteen 4K Ultra HD security cameras. Whether you are looking to protect your home, small business or commercial property, this powerful security camera system will help you secure the things that matter most.

TN81388BC8F4

SPECIFICATIONS

32

CHANNELS

4K NVR can support up to 32 cameras

16

CAMERAS

12 × 4K Smart IP Bullet and 4 × 4K Motorized Varifocal Dome

250^FT

NIGHT VISION

Maximum night vision range

8^TB

HARD DRIVE

Maximum Capacity 2 × 10TB hard drives

Works With
Lorex Cloud™ App

4K nocturnal security camera resolution chart

Over 8 million pixels

These 4K resolution security cameras contain 4× the amount of pixels as a 1080p security camera. Instead of recording at a pixel ratio of 1920 × 1080 (a total of 2,073,600 pixels), your 4K cameras can record at a pixel ratio of 3840 × 2160 (a total of 8,294,400 pixels). This higher amount of pixels allows for much better digital zooms. This means that when you spot something in your footage that you need to zoom in on, specific details, such as facial features, will remain visible for longer as you zoom in further and further into the image.

Person and vehicle smart motion detection

This system supports general motion detection from all cameras and will send push notification to your Lorex Cloud app. However, the E861AB bullet cameras come with advanced person and vehicle detection that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Cloud app whenever a person or vehicle is detected by the E861AB bullet cameras on your property which effectively reduces the number of unwanted false alerts caused by moving branches or animals. All recorded motion alerts can easily be reviewed by using the Smart Search function in the Lorex Cloud mobile app.

Lorex Cloud mobile App

This 4K security camera system is designed for use with our innovative Lorex Cloud™ app for your mobile device. Using this app, you will be able to securely view your security cameras from virtually anywhere in the world, keep track of all motion activity with easy-to-read timelines, and receive push notifications for motion-triggered events.

Works With

Apple iPhone

Apple iPad

Android Phone

Android Tablet

Apple iPhone

Apple iPad

Android Phone

Android Tablet

Enhanced security monitoring with HDR

Your security cameras use an HDR (High Dynamic Range) feature that uses the difference between the brightest point and the darkest point of the video to automatically adjust the picture's brightness. This results in optimized, highly-detailed security video in all sections of the frame.

4× optical zoom security camera

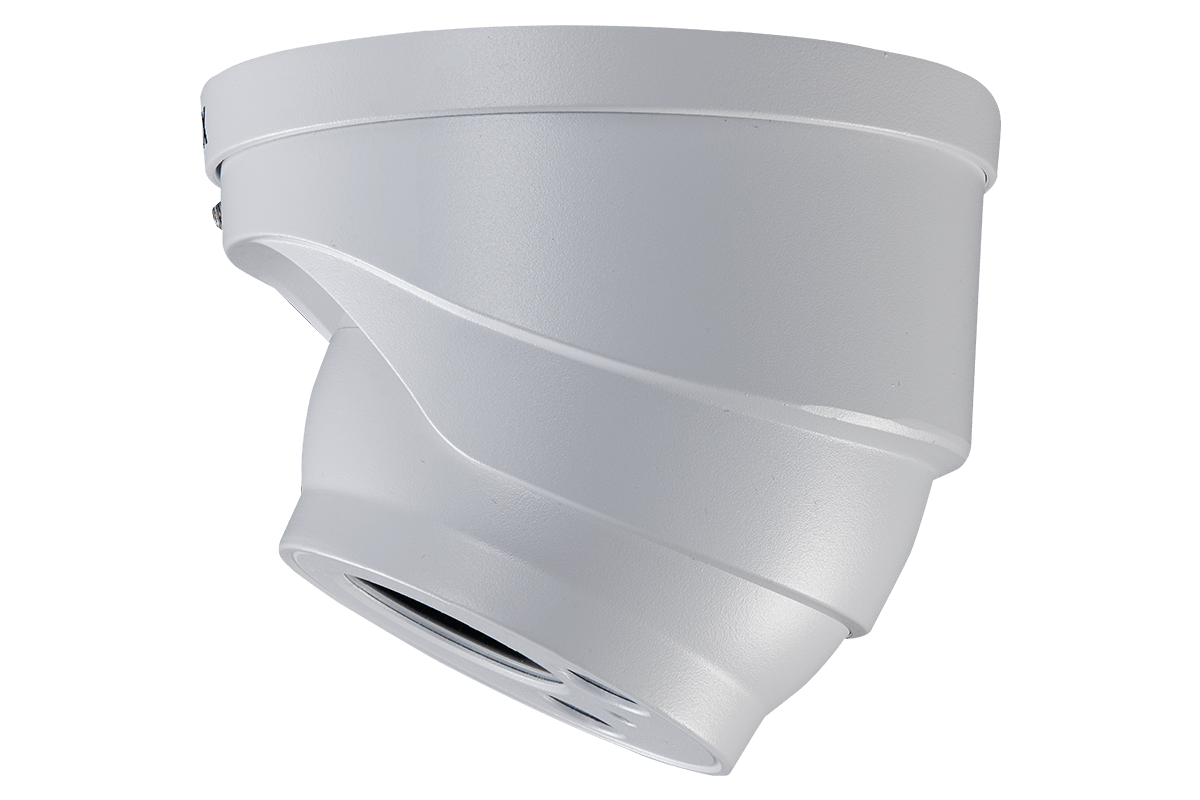

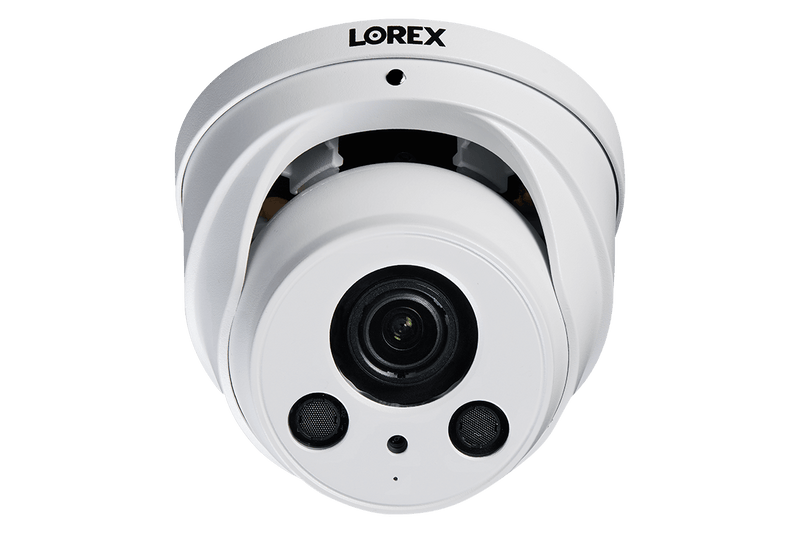

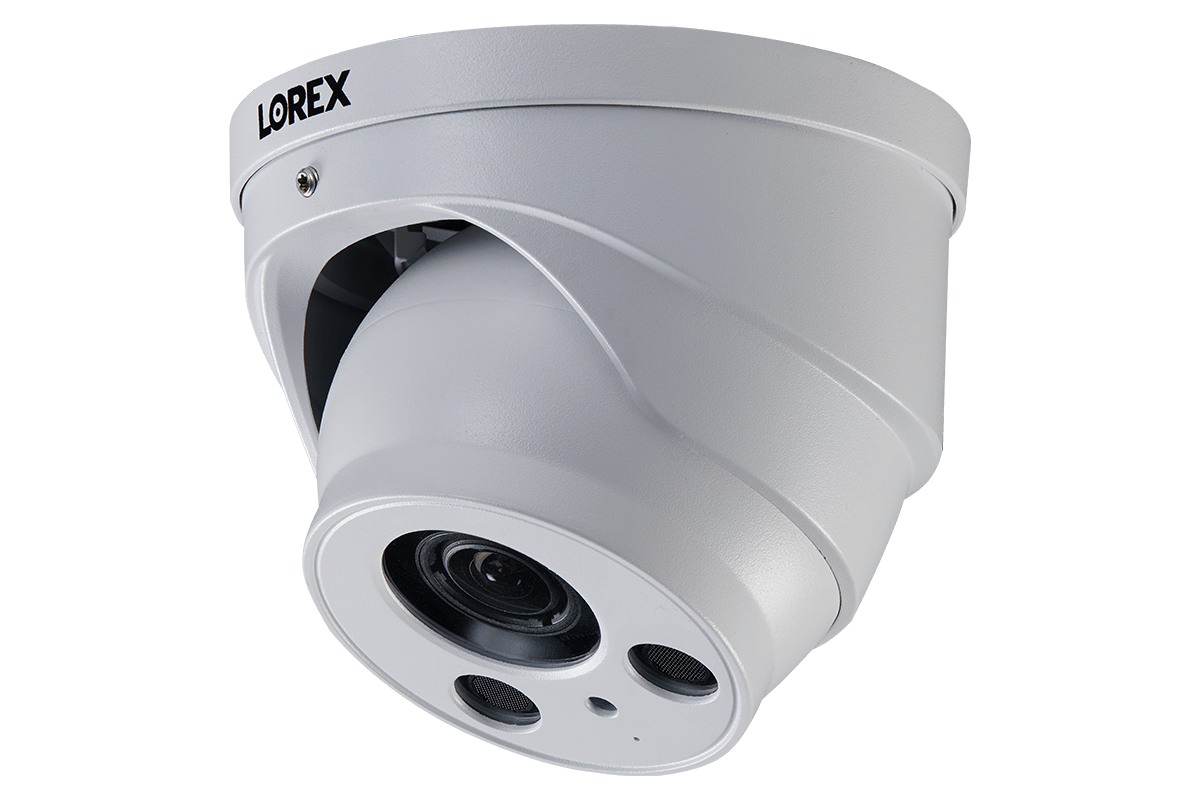

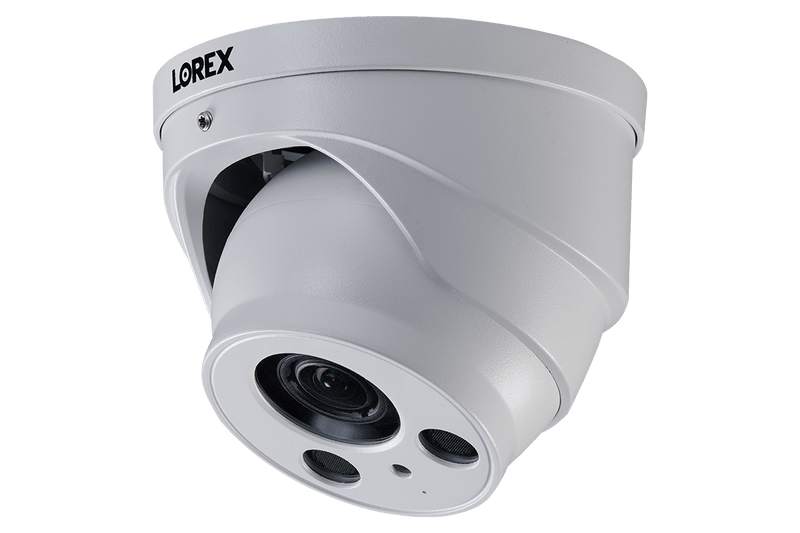

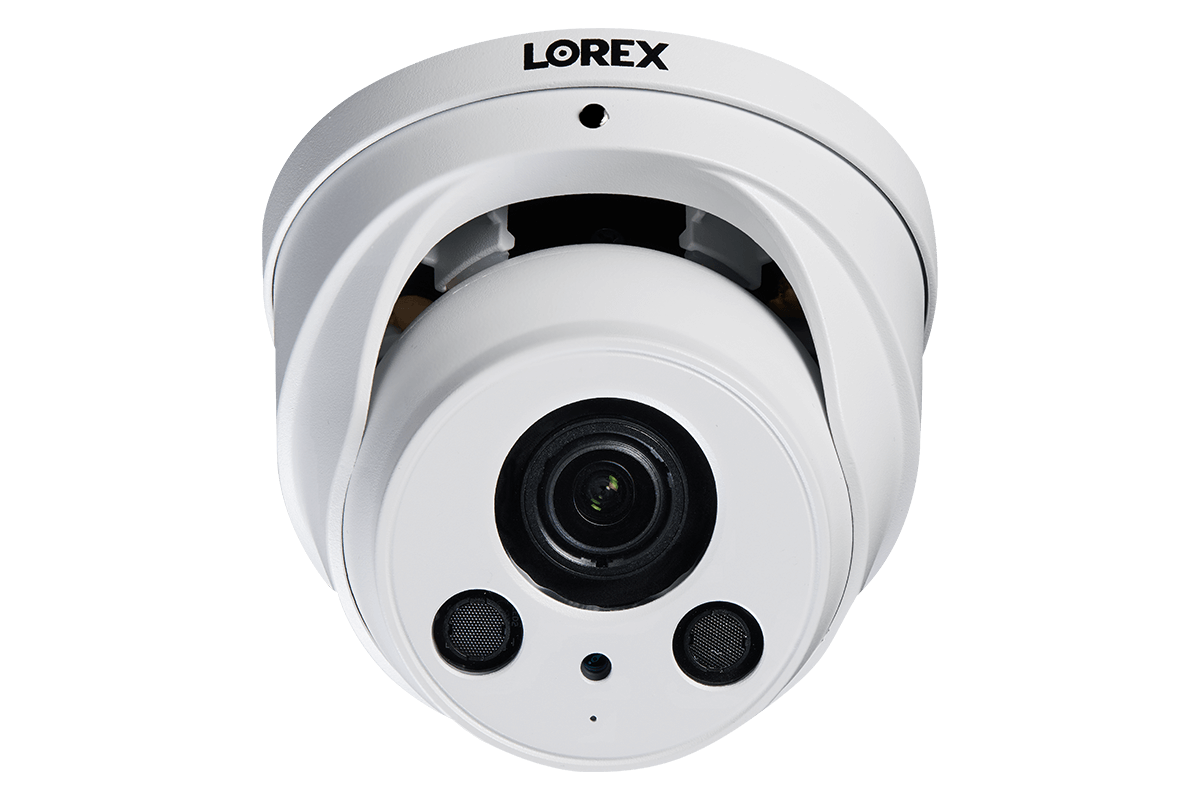

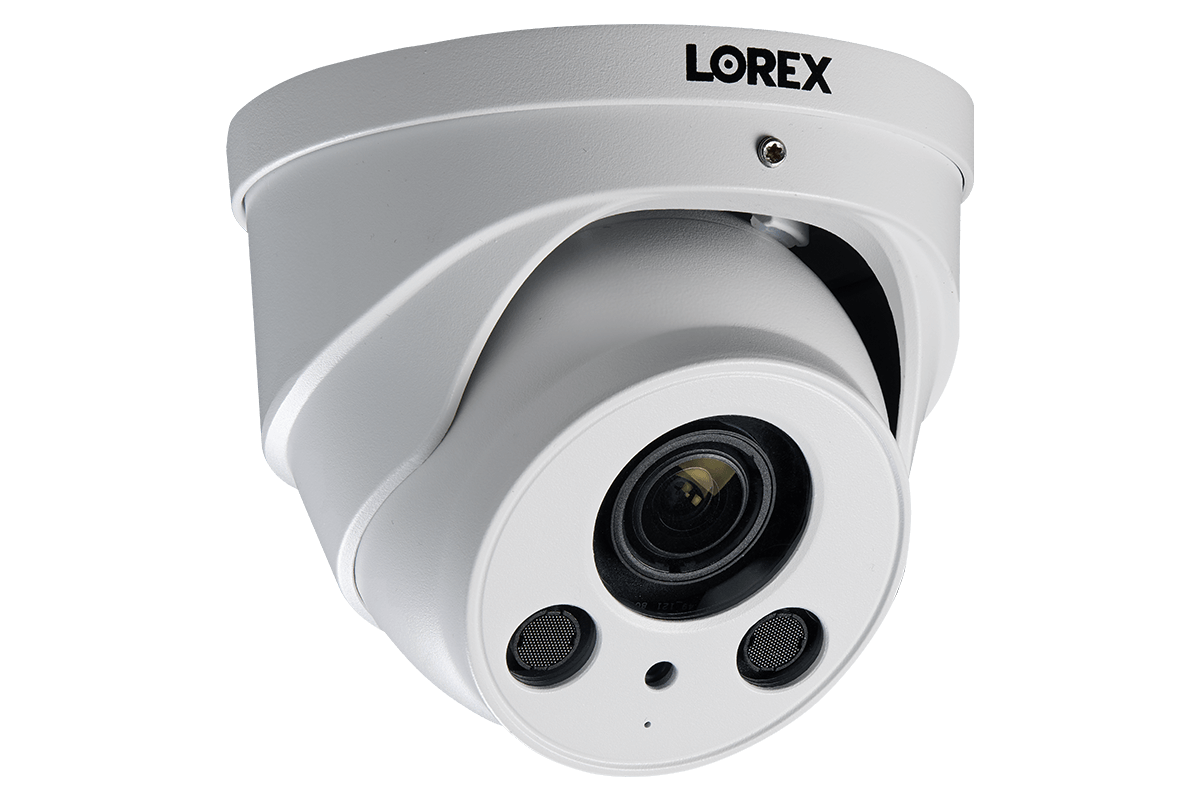

The LNE8964AB nocturnal IP dome security cameras include a unique zoom lens, otherwise known as a motorized varifocal lens, that enables remote customization of your viewing area (and focus). Focus on a small area in astonishing detail thanks to the 4× optical zoom or survey a larger scene for maximum coverage. These adjustments can be easily made with your N881 NVR or through the Lorex Cloud app.

Infrared Night Vision

Say goodbye to grainy nighttime video for good. These security cameras are equipped with powerful LED bulbs that emit infrared light in the camera's field of view. Invisible to the naked eye, but not to the camera, this infrared lighting will allow your security camera to see in complete darkness.

Color Night Vision (CNV™)

For an added level of nighttime protection, these security cameras can also capture color footage, thanks to our state-of-the art Color Night Vision (CNV) technology. CNV brings extra details to light, such as the color of a car, a person's clothes, and also provides better contrast for enhanced detection.

Real-time 30FPS recording rate

Choose to record 4K resolution at 15 frames-per-second (FPS) or record at a real-time 30 FPS rate at 2K (3MP) resolution. Recording at 30 FPS will provide you with exceptionally smooth on-screen movement and provide you with more frames to choose from when reviewing footage.

HEVC / H.265 compression

The security cameras and the NVR in this bundle come equipped with HEVC (High Efficiency Video Coding), otherwise known as H.265, video compression capabilities. Thanks to this improved compression, HEVC delivers significantly better video quality with similar file sizes as H.264. This means that HEVC will keep the 4K video quality, but save you plenty of storage space and allow you to record for longer periods. It will also let you watch the highest quality security footage while you are away from your home or business without large data transfers.

Expanded coverage with built in microphone

A built-in microphone will add a whole new level of security monitoring.^* This feature of the LNE8964AB dome camera can provide you with more information (such as voices) should an incident ever occur. It will also help provide more insight into key events, even if they occur off-screen.

^{*Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.}

Plug-and-play simplicity with Power over Ethernet technology

PoE plug-and-play installation

This 4K security camera system will be up and running in no time thanks to Power-over-Ethernet (PoE) technology. All that is required to connect each of your security cameras to your NVR is a single Cat5e ethernet cable run. This cable provides both power and video transmission up to 300 feet / 91m.

32-channel NVR - add 32 cameras to one security system

How do I use all 32 channels on my NVR?

Your NVR supports up to 32 security cameras. Out of the box you can directly connect 16 cameras to the back of the NVR, and accommodate sixteen more using the included PoE switch. Learn more about PoE switches here.

ARTICLE

How to Install Security Cameras

ARTICLE

Understanding PoE Technology

ARTICLE

Understanding 2K and 4K Security Cameras

Weatherproof & cold climate capable

Although the E861AB and LNE8964AB cameras are suitable for both indoor and outdoor installation, their IP67 weatherproof rating and aluminum casing means it can withstand pretty much anything, such as heavy snowfalls, rain or wind.

E861AB-E

122°F | 50°C

Heat Rating

-4°F | -20°C

Cold Rating

IP67

Water Rating

LNE8964BW 4K security camera weather ratings

LNE8964AB

140°F | 60°C

Heat Rating

-22°F | -30°C

Cold Rating

IP67

Water Rating

Full Metal Camera Housings

Built from a solid unibody metal housing, your cameras allow for durability while still maintaining a lightweight design. This also makes them strong enough to withstand large impacts unlike conventional plastic security cameras.

Area Search

Find what you are looking for quickly with Lorex's Area Search. Select an area of interest to easily playback any video footage showing scene changes in that area or filter by specific motion events to view only the type of motion (ie. Person/Vehicle) that you are interested in viewing. Ideal for doorways, drive ways, etc.

Reliable security-grade hard drive preinstalled

A 8TB⁷ security grade hard drives (expandable up to 2 × 10TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.

Two storage bays

This NVR comes with two separate hard drive bays. Each of which can be upgraded with a hard drive up to 10TB, giving you the potential for a total of 20TB's of storage space. You can also use the second hard drive to record videos in parallel with the primary hard drive. This way, the footage is automatically backed up if the recording hard drive fails

Receive automatic firmware updates

The NVR included in this security system is designed to automatically update its firmware without you having to push a button. This ensures that your NVR will always be up-to-date. Just make sure your NVR is connected to the internet.

What's Included?

Quick View

NVR

N882A38B

PoE Switch

ACCLPS263B

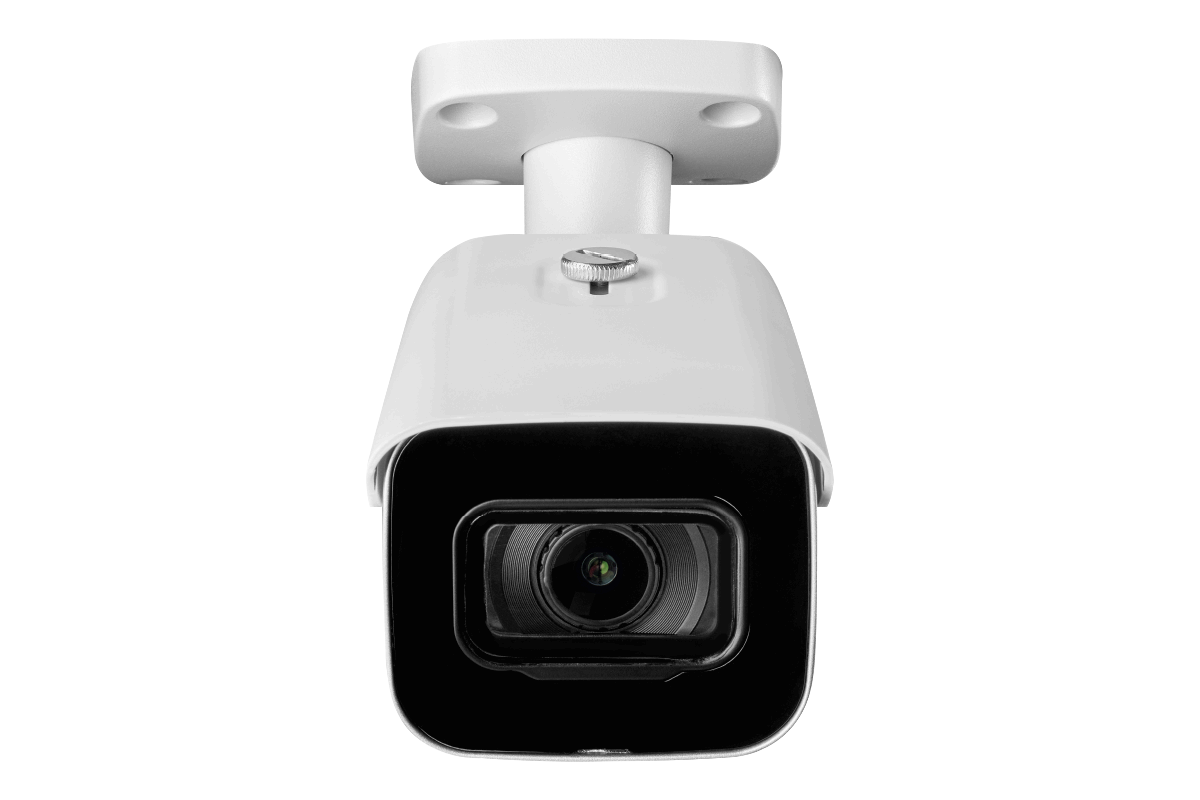

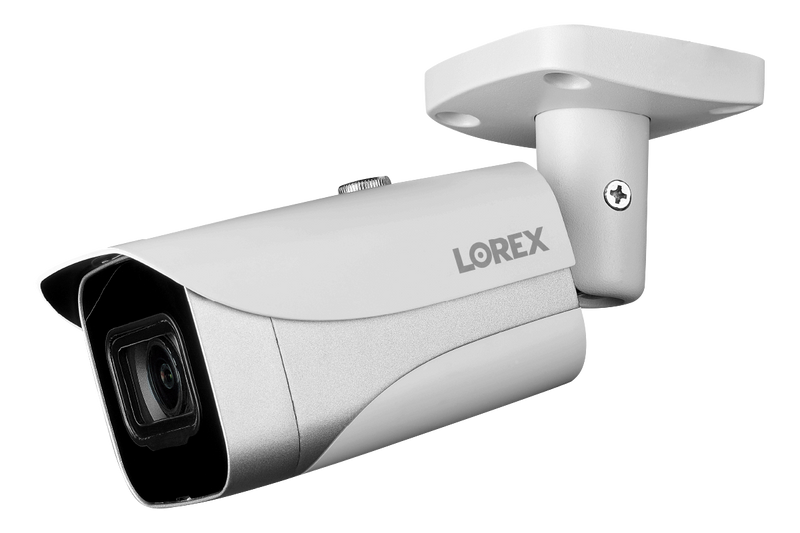

Bullet Camera

E861AB-E

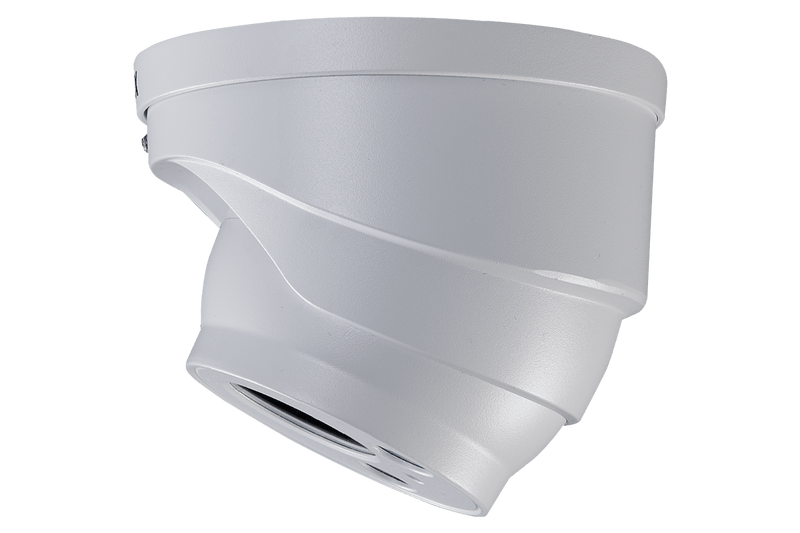

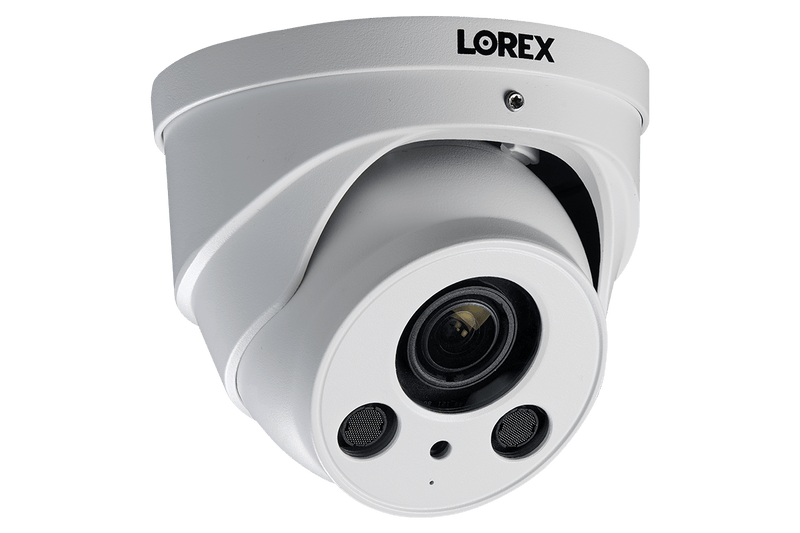

Dome Camera

LNE8964AB

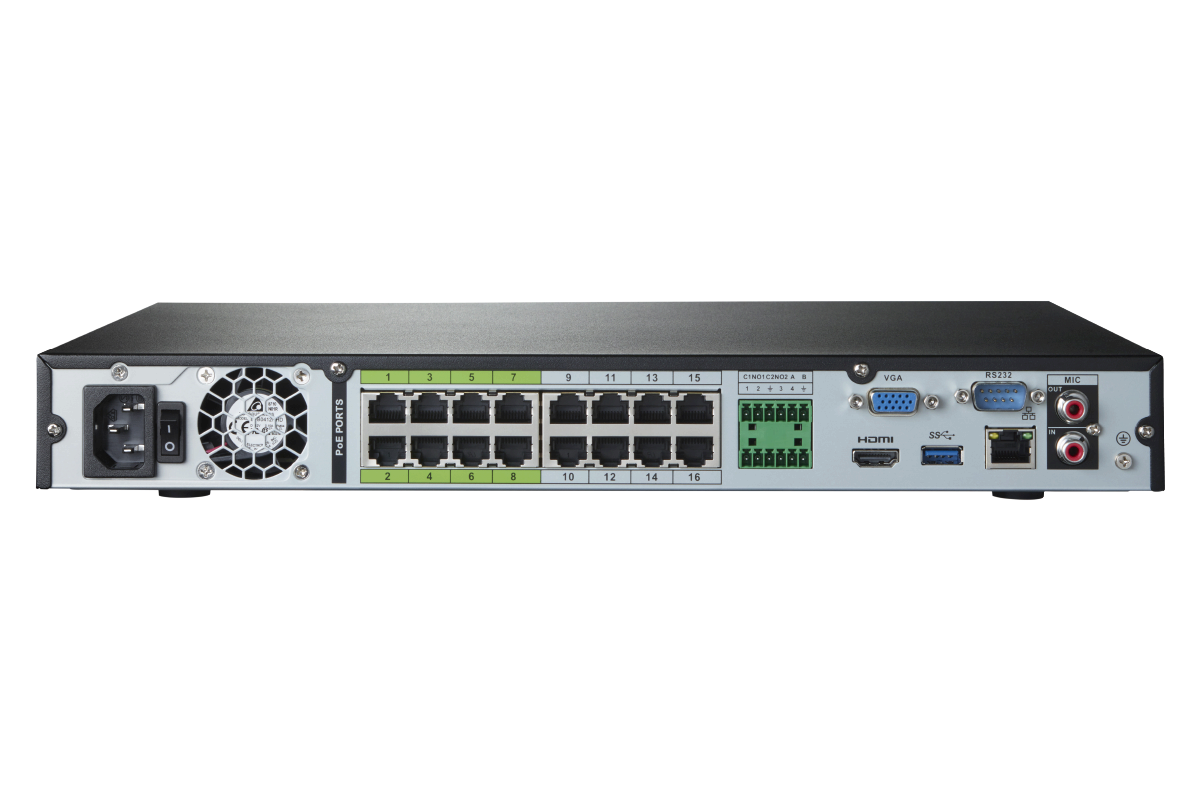

N882A38B

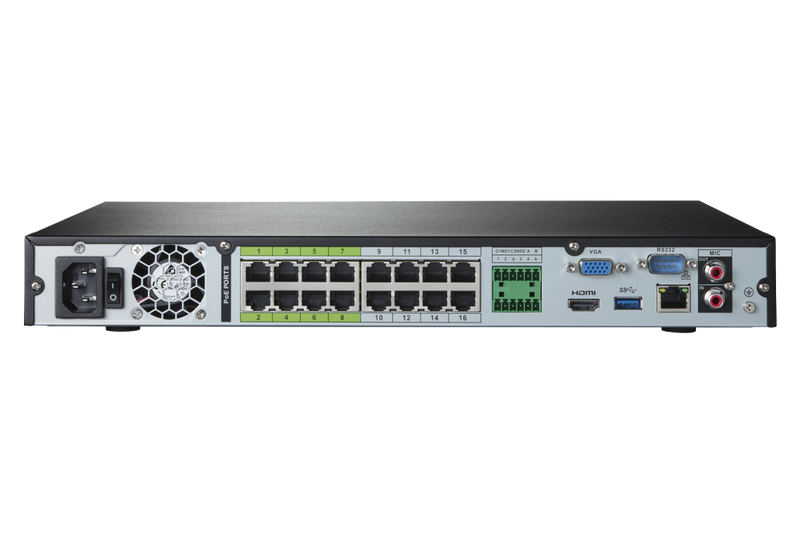

4K Ultra HD Network Video Recorder:

Record and view video up to 4K (8MP) resolution¹
View live footage in up to 30fps and digitally zoom in on distant objects for better clarity
2 hard drive bays with up to 2 × 10TB of storage space
Security grade hard drive designed for advanced processing and the workload of 24/7 recording
Storage mirroring for continuous back-up of data from one hard drive to another
Get Motion push notifications when motion from a person/vehicle is detected²
Reduce unnecessary alerts and false alarms with advanced motion detection⁴
Use Smart Search to filter motion events for reviewing footage quickly and easily
This NVR system contains a built-in 16-channel capacity
Increase your surveillance area with adding a POE switch expanding your system up to 32 channels (for model N882A38B)

Each N882A38B NVR Includes:

1 × 4K Ultra HD Pro Series NVR

1 × Power Adapter

1 × USB Mouse

1 × Ethernet Cable

1 × HDMI Cable

Quick Setup Guide

1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
2. Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
3. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
4. Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
5. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
6. Both firmware and software must be updated to latest version to ensure remote connectivity.
7. A 2×4TB or 1×8TB may be provided, depending on product configuration.

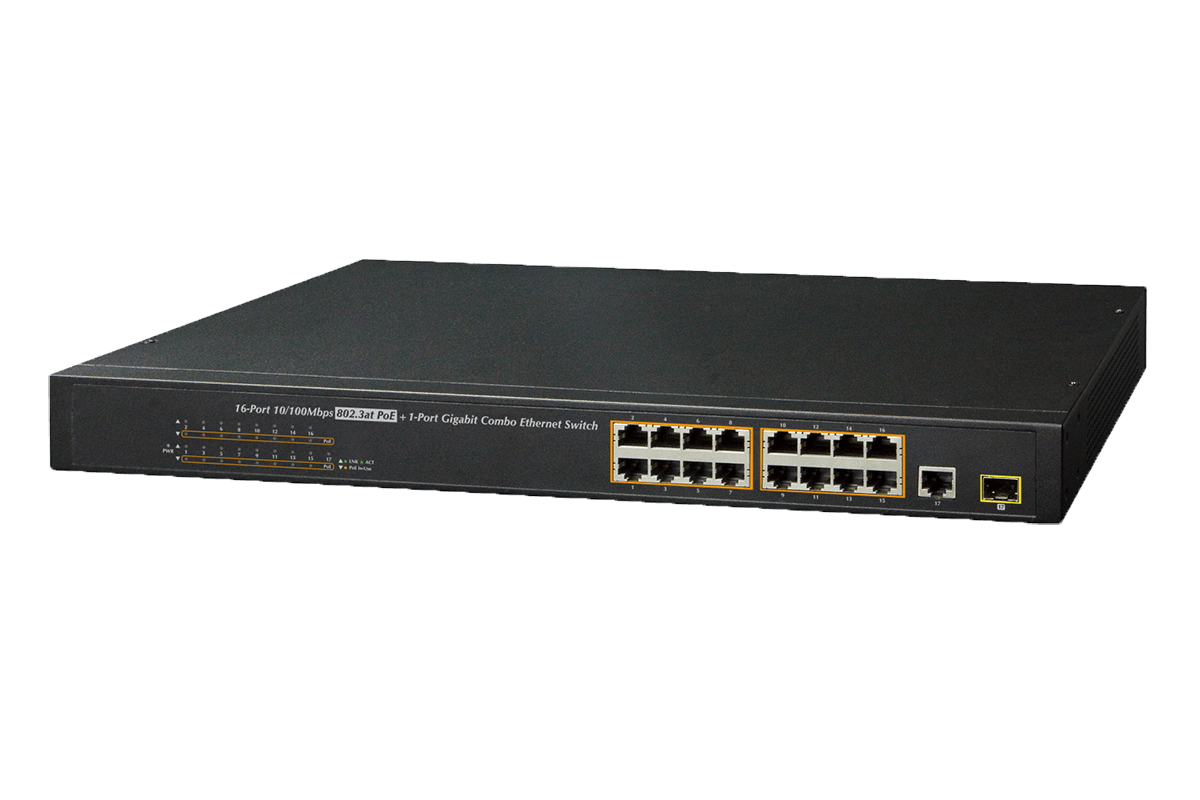

ACCLPS263B

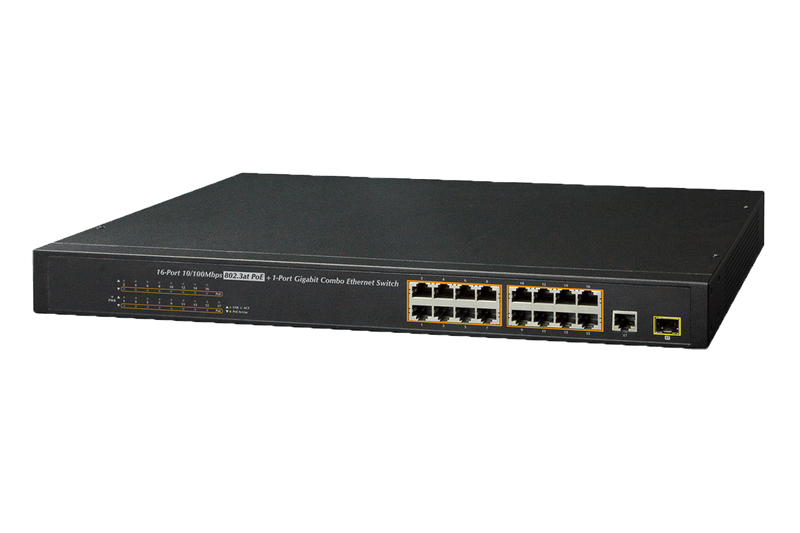

16-Channel PoE Switch:

Centralized power distribution - Easy all-in-one PoE switch
1 Gigabit rated RJ45/SFP port for fast device/network connection
High speed transmission of IP surveillance data
220W total PoE power budget (up to 30.8W per port)
Convenient Real-time PoE usage LED indicators

Each ACCLPS263B Includes:

1 × PoE Switch

1 × Power cable

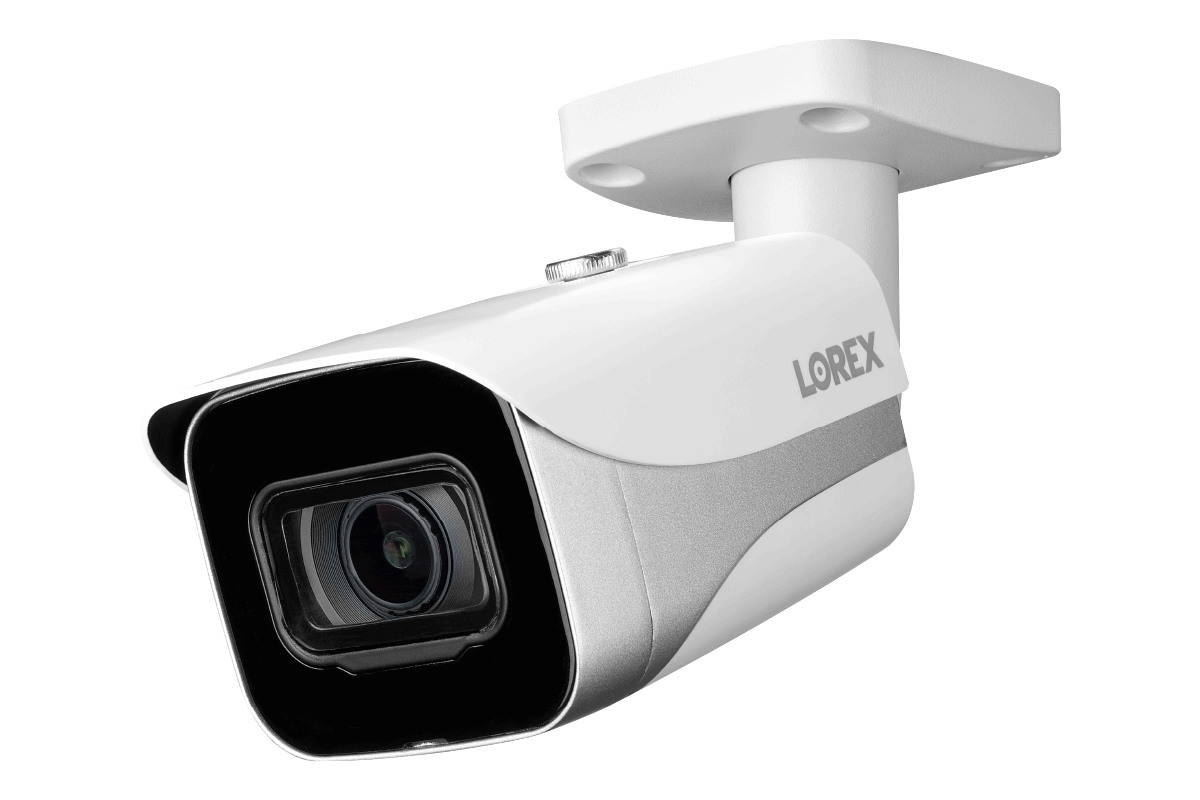

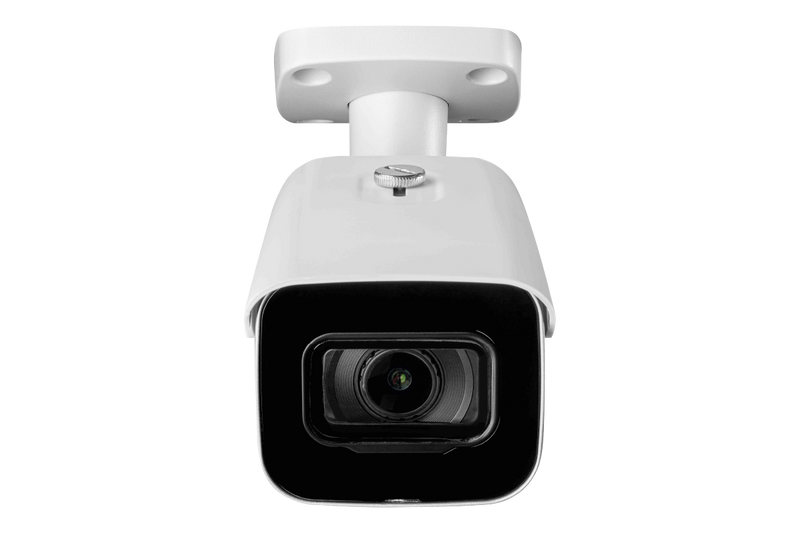

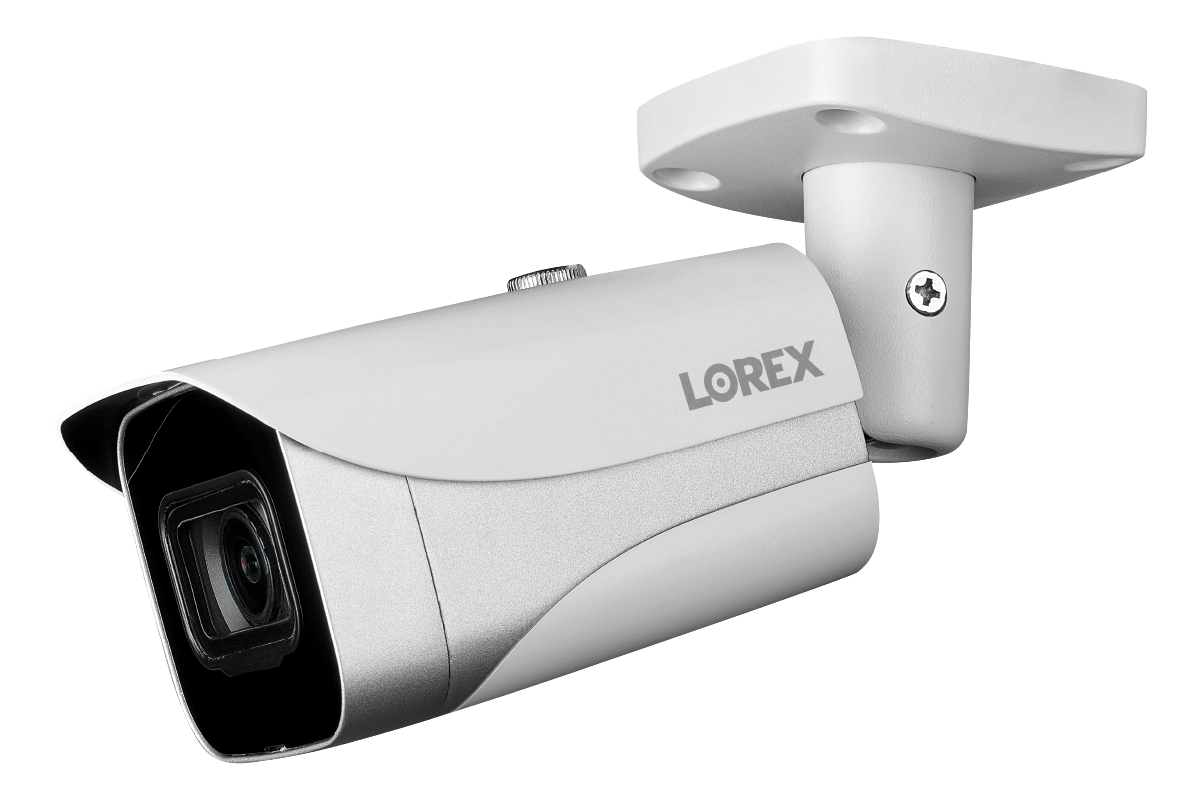

E861AB-E

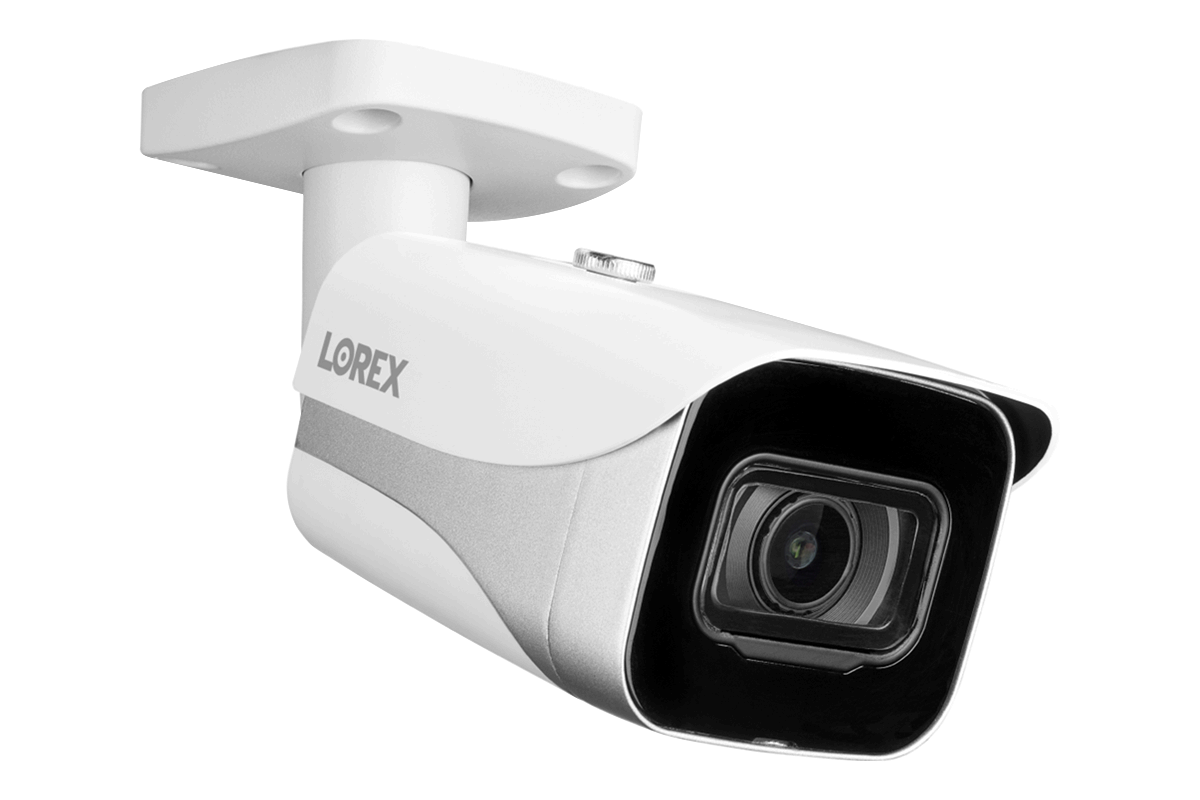

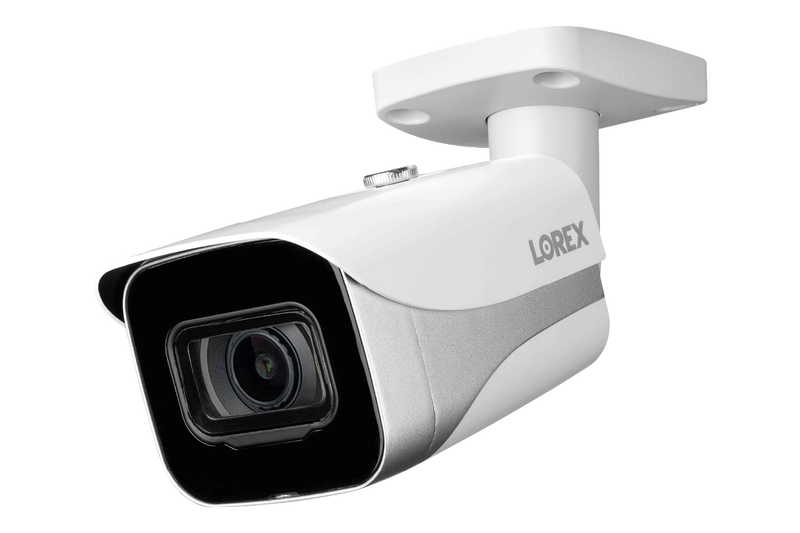

4K Ultra HD IP Camera Features:

View video in 4K (8MP) resolution², providing the highest quality video evidence
Wide-angle 111° field of view offers optimal coverage
High Dynamic Range (HDR), automatically adjusts to changing light conditions to ensure consistent video quality
Experience enhanced nighttime clarity and better video evidence with Color Night Vision
