Features
Not all locations require video monitoring, especially when it comes to the inside of your house. That's why we have developed this sensor kit to help add some vital security without video. Simply connect the included sensors to the Lorex Sensor Hub, which pairs with the Lorex mobile app, and you will know the moment any motion is detected by the motion sensor or if a door or window has been opened with push notifications. The Lorex Sensor Hub can accommodate up to ten sensors, so feel free to expand this kit with additional sensors to any spots around your house you want to add some indoor security while maintaining your privacy.

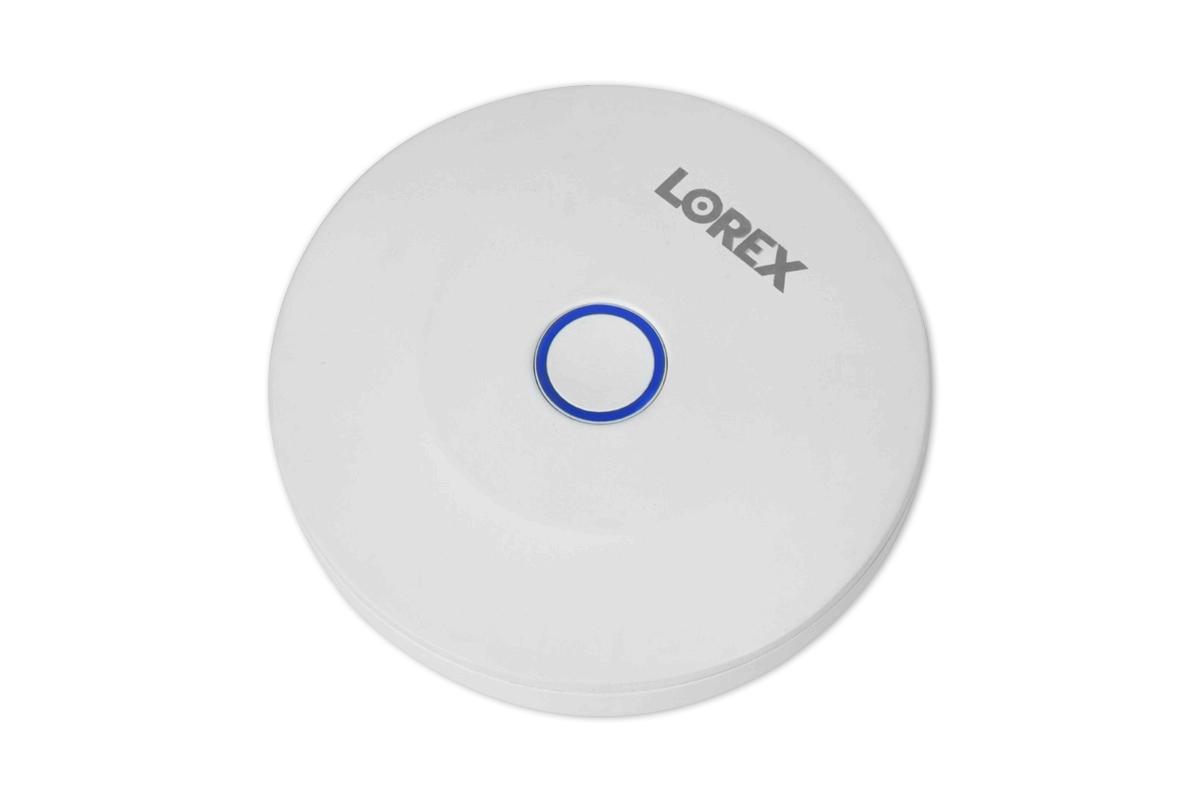

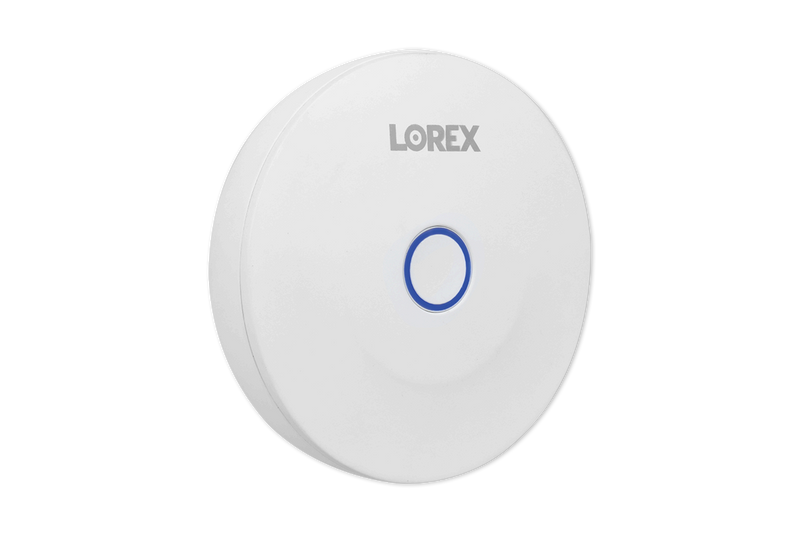

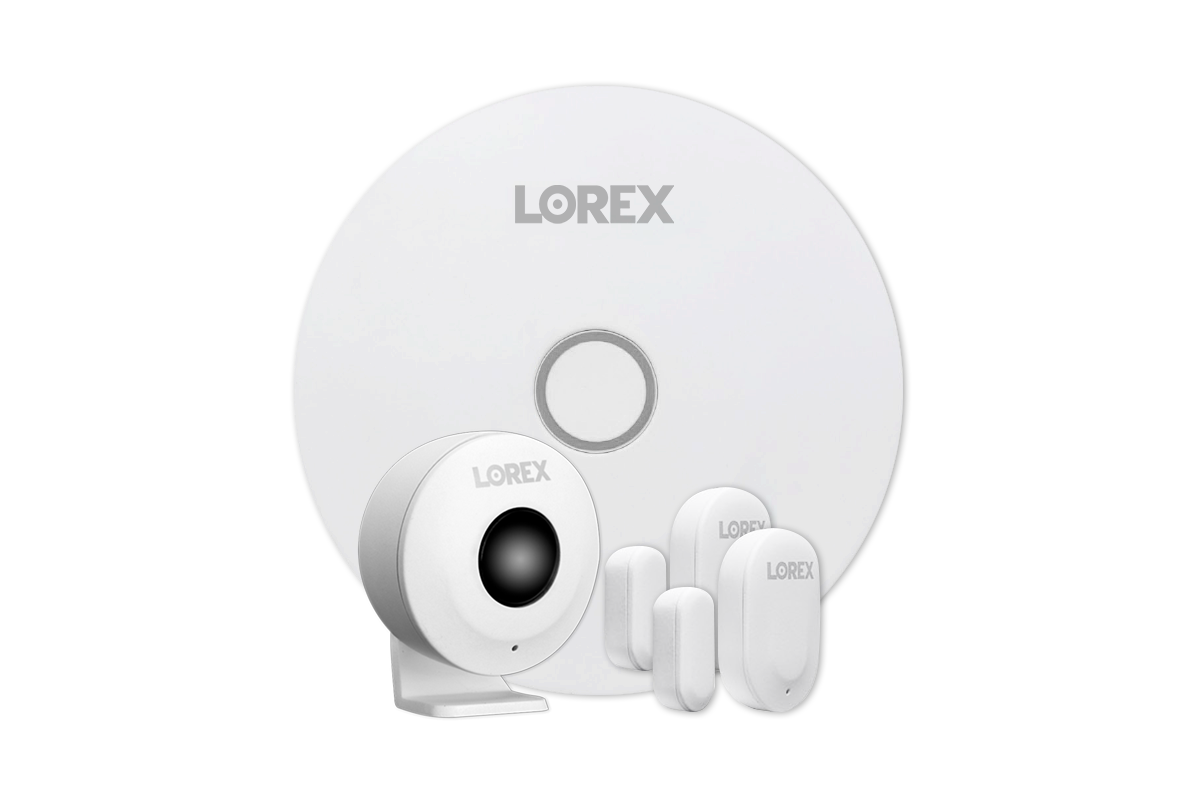

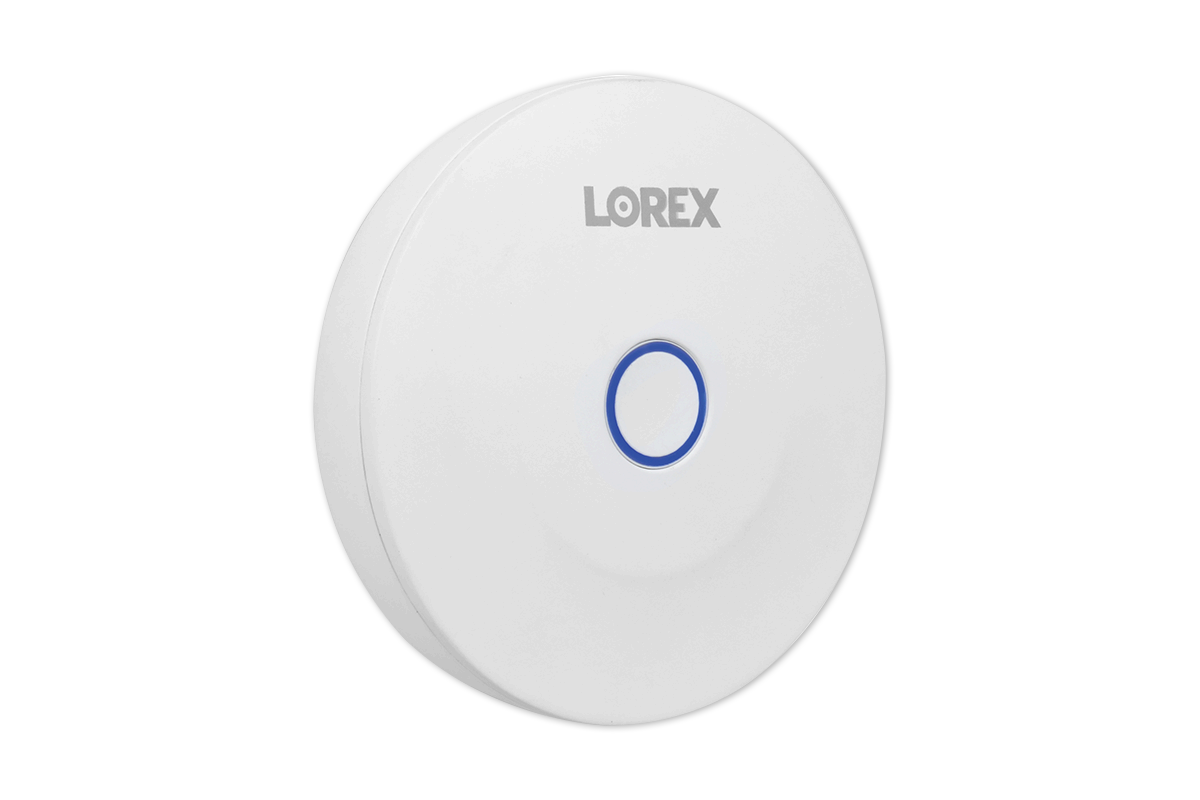

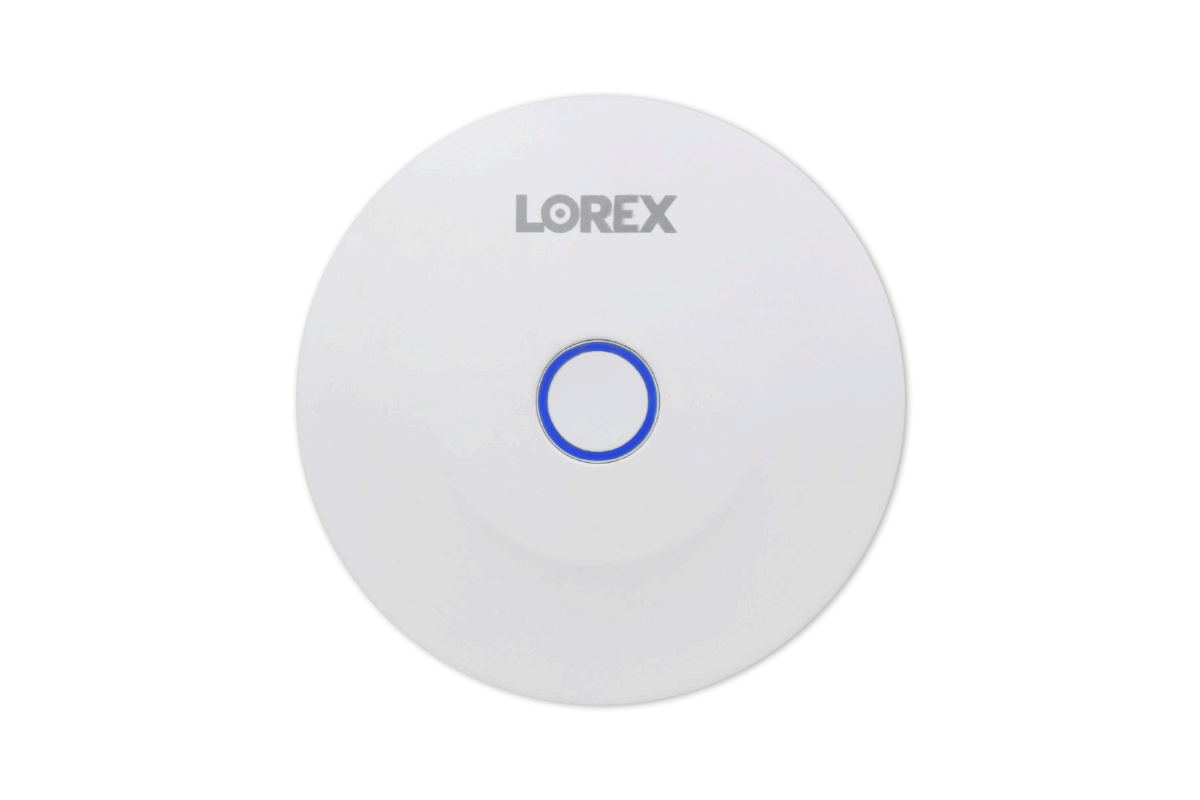

1 × Sensor Hub
Each hub can accommodate up to 10 sensors.

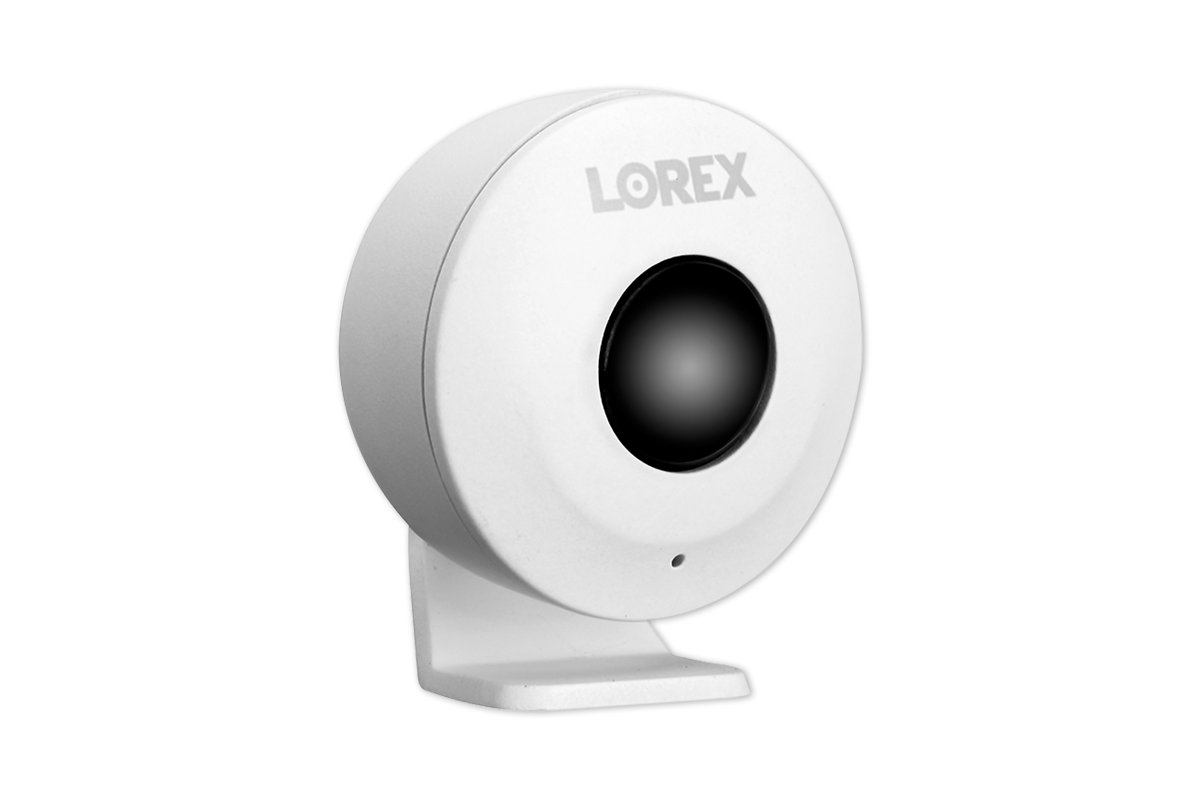

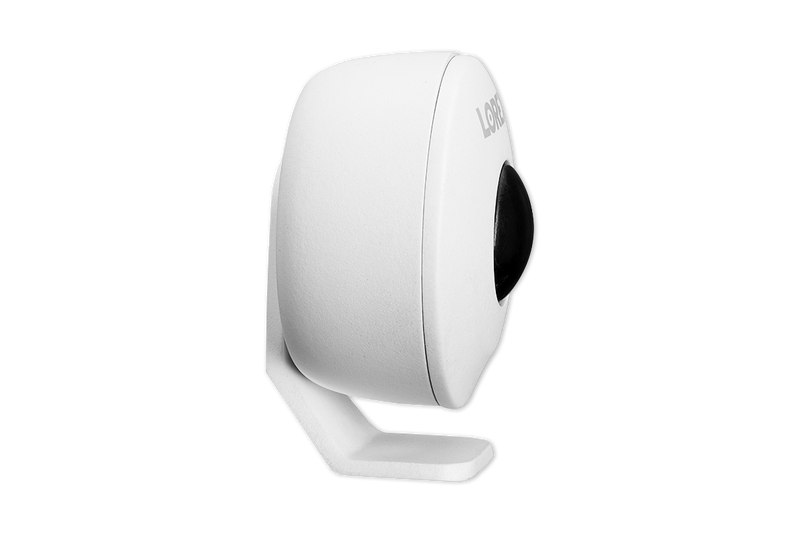

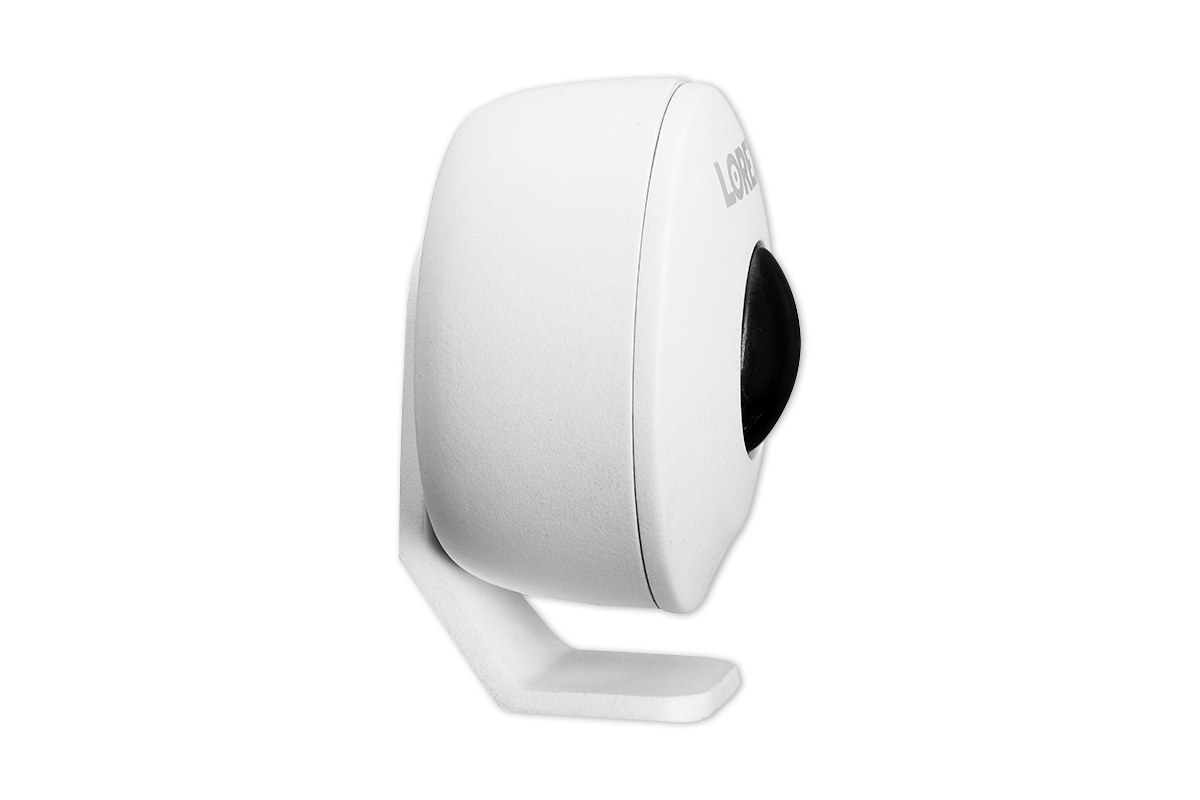

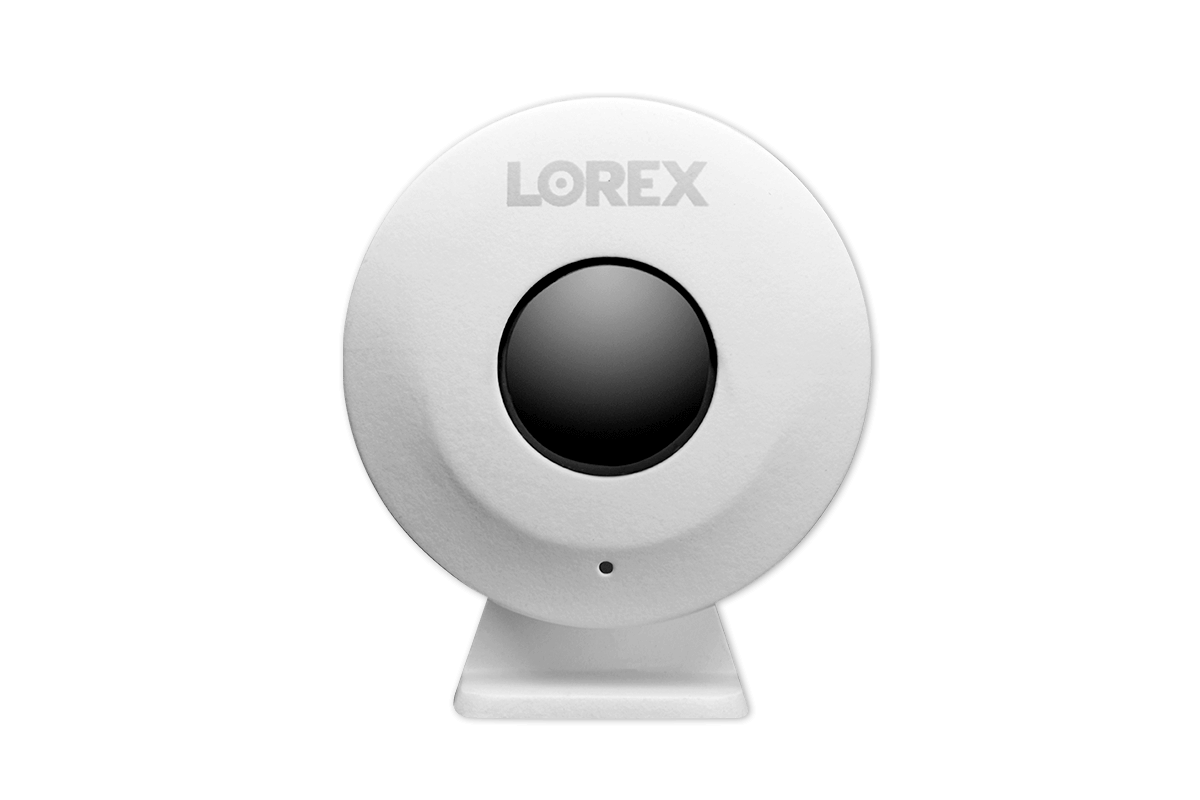

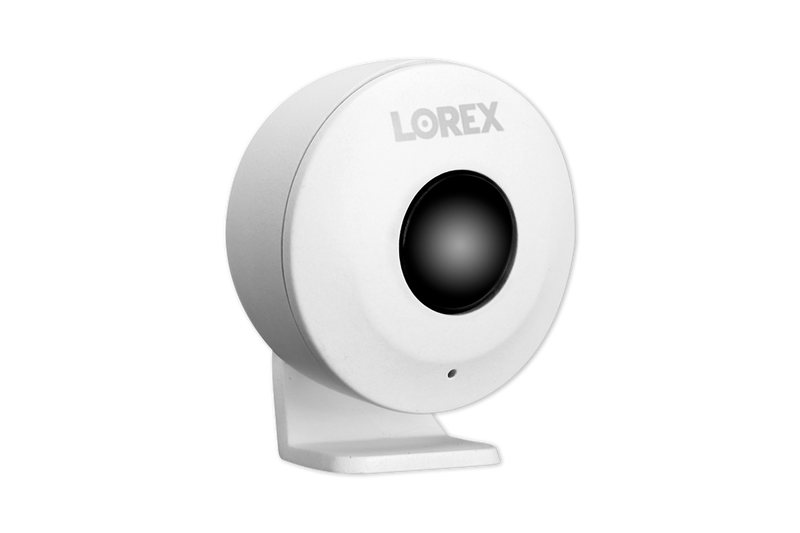

1 × Motion Sensor
Peel and stick to locations around your house, including ceilings, walls, or the top of any flat surface.

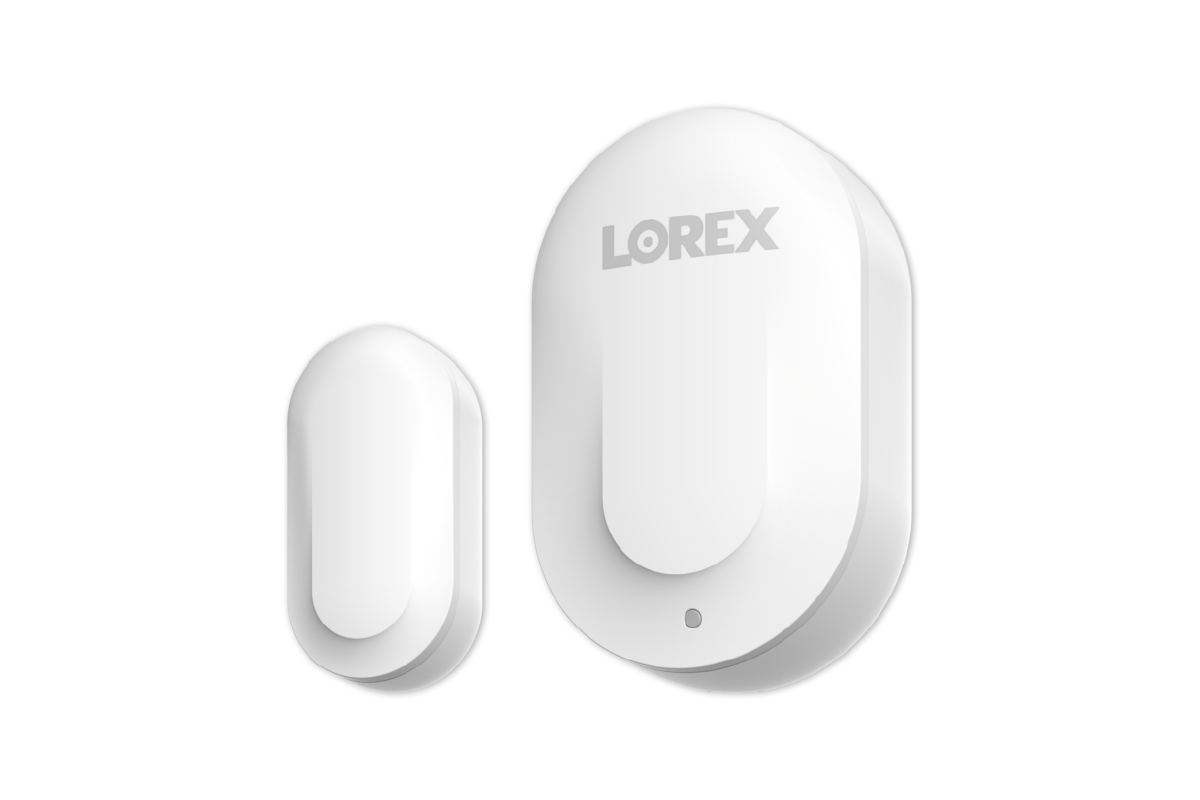

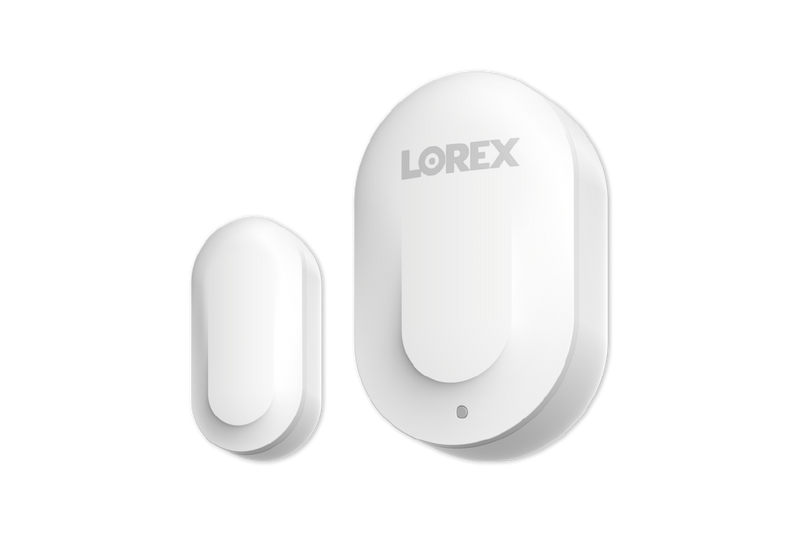

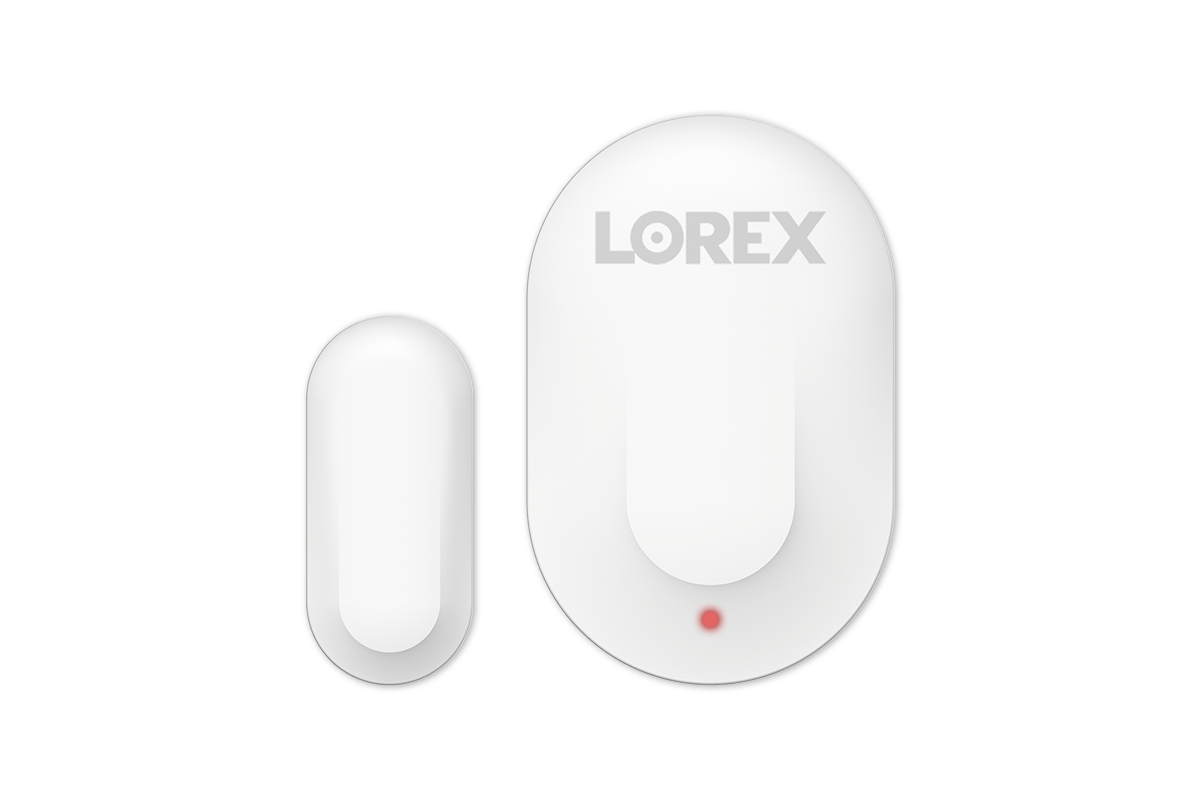

2 × Window / Door Sensor
Simply stick the sensors on any door or window frame in your home.
All pictures shown are for illustration purpose only. Actual product sizes may vary.
Do I need a Starter Kit?
No
If using with the Lorex Smart Home Security Center.
Add-on Sensors are connected directly to the Lorex Smart Home Security Center without a Lorex Sensor Hub.
Keep tabs when you are away
Manage your sensors with the easy-to-use Lorex app. You can also specify which sensors will be armed or disarmed using the mobile app.
Home Mode: Door / Window sensors are enabled, but Motion sensors will be disabled.
Away Mode: All sensors will be monitored and an alert will be sent if they're triggered.
Disarmed Mode: No sensors in your home will be monitored and no alerts will be sent.
A perfect accessory for NVR and DVR systems also using the Lorex App
Keep all your security together. This Sensor Kit seamlessly integrates with your NVR or DVR security camera system that also connects to the Lorex App.
Sensor Linking to Lorex Security Cameras
Automatically start recording on a compatible Lorex security camera the moment an add-on sensor is activated. This means that the linked camera will already be recording before it is able to detect the motion itself, which can give you valuable pre-event video to provide more context.
Sensor Linking with Wireless Cameras
The Lorex Sensor Hub is able to link connected Add-On Sensors to other Lorex wireless products connected to the Lorex App, such as Indoor and outdoor Wi-Fi Cameras*, Wi-Fi Video Doorbells, and Wi-Fi Video Floodlights.
Sensor Linking with Wired Cameras
The Lorex Sensor Hub is able to link Add-On Sensors to wired cameras through select recorders. Please see the compatibility chart to see which NVRs and DVRs can use this feature.
Video
Product Specifications
| AY41TR Sensor Hub | |
|---|---|
| Color | White |
| Power | Power adapter input: 100-240V AC, Power adapter output: 5V DC |
| Connectivity | BLE5.0 |
| Lights | Status Indicator Light |
| Installation Type | Tabletop or wall mount |
| Setup Requirements | Lorex App |
| Compatibility | Lorex DVR's or NVR's using Lorex App |
| Operating Conditions | Indoor Use |
| Warranty | 1 year limited warranty |
| AM41TK PIR Motion Sensor | |
|---|---|
| Color | White |
| Power | Battery: CR2450, included |
| Connectivity | BLE5.0 |
| Detection Range | 26ft Max.* |
| Detection Angle | 110° Max. |
| Installation Type | Tabletop, wall or ceiling |
| Lights | Status Indicator Light |
| Setup Requirements / Compatibility | Lorex Sensor Hub, Lorex App Center |
| Mounting | Adhesive, included |
| Operating Conditions | Indoor Use |
| Operating Temperature | 14°F ~ 113°F / -10°C ~ 45°C |
| Operating Humidity | 0 ~ 95% RH |
| Warranty | 1 year limited warranty |
| AK41TK Door / Window Sensors | |
|---|---|
| Color | White |
| Power | Battery: CR1632, included |
| Connectivity | BLE5.0 |
| Lights | Status Indicator Light |
| Installation Type | Tabletop or wall mount |
| Setup Requirements / Compatibility | Lorex Sensor Hub, Lorex App Center |
| Mounting | Adhesive, included |
| Operating Conditions | Indoor Use |
| Operating Temperature | 14°F ~ 113°F / -10°C ~ 45°C |
| Operating Humidity | 0 ~ 95% RH |
| Warranty | 1 year limited warranty |

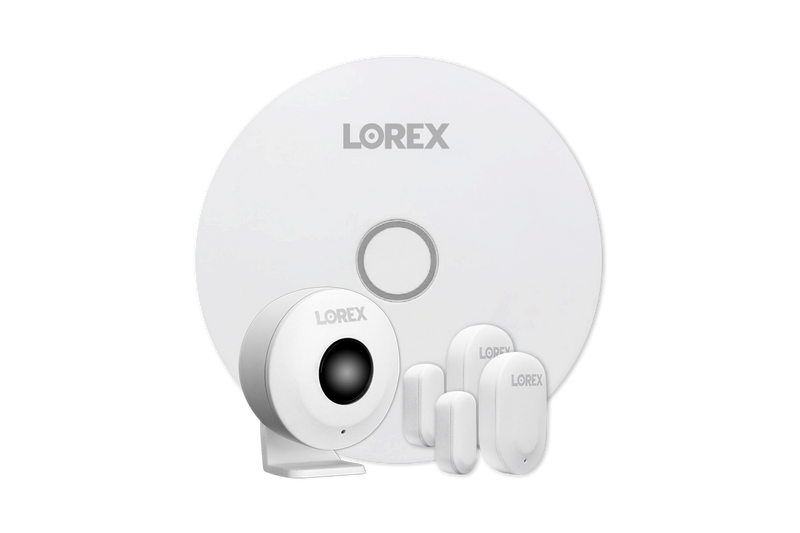

What's Included?
Package Contents:
Sensor Hub
1 × PIR Motion Sensor
2 × Door / Window Sensors
Sensor Hub Power Accessory
Sensor Hub Bracket
PIR Motion Sensor Bracket
Mounting Adhesives
Pin
Sensor Pre-Inserted Batteries
