Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.
Lorex products are designed for consumer and business use only and not for US federal governments,
federally-funded projects or contractors subject to NDAA.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the
trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change
models, configurations or specifications without notice or liability. Product may not be exactly as
shown.
Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other
countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks
of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

Taking your security further
Update or start your security system with this future-ready 16 camera capable (8 wired + 8 Fusion Wi-Fi) NVR. For the first time, this NVR introduces 12MP recoding capabilities and a revamped Fusion onboarding experience for fast, easy wireless camera connections. Along with support for all the latest smart detection, deterrence, and privacy features, this NVR will be a powerful cornerstone for your security ecosystem for years to come.
From 4K to 4K+
See your property like never before. This NVR works with cameras with ultra high-definition 12MP sensor, which produces 50% more pixels than 4K (8MP), delivering impressive clarity and enhanced detail to your video footage.

No Monthly Fees
Access all premium features and have ample storage for your video recordings without recurring fees or subscriptions.
Keep your video recordings private
Your security camera records countless hours of you. Keep your recordings in your control thanks to the NVR’s local 2TB security grade hard drive. Equipped with the largest storage capacity to date, this NVR can be upgraded to a maximum 16TB of storage.
Get Alerts that Matter
Get detailed notifications when motion is detected and personalize your settings to only receive the alerts you want.
Quick Search
Easily find the video clips you need with Quick Search. Search based on the color of a car or a number (such as digits on a licence plate) to help find and save the evidence you may need.
Product Specifications
Recording Resolution | 12MP (16:9) and 4K+ (11.3MP 16:9) |
---|---|
Recording Schedule | Schedule recordings through Continuous, Motion, Smart Motion (Person, Vehicle and Face), Alarm, Day, Hour per channel |
Video Compression | H.265/H.264 |
Hard Drive Bays | 1 Bay |
Hard Drive Capacity | Up to 16TB (SATA) |
Wired/Wireless Fusion support | Yes |
Lorex Sensor (only) Compatible | Yes |
Detection Support | Person, Vehicle, Face, Mask, Package (Missing and Left Behind), Animal |
Active Deterrence Support | Yes |
Active View Support | Yes |
---|---|
Selectable Siren Support | Yes |
Panic Button | Yes |
Smart Search | Yes |
Attribution Search (Person Clothes Color, Vehicle Color and Number) | Yes |
Voice Control | Amazon Alexa™, Google Assistant™ |
Streaming Options | Chromecast™, Amazon Echo Show™, Google Home Hub™ |
Mobile Viewing | Android, iOS |
Compatible APP | Lorex Home™ |
PC/Mac Remote Viewing | Yes/Lorex Cloud™ client |
---|---|
Email Notification | Text and Snapshot |
Power Consumption | Approx. 8.3W (HDD excl.) |
Supply Voltage | 100VAC-240VAC, 50/60hz, DC 53V/1.8A |
Total PoE Power Output | PoE: Max 25.5W for single port, 72W total |
Unit Dimensions (W × D × H) |
12.9 x 9.6 x 2.1” / 328 x 245 x 53 mm |
Unit Weight | 2.75 lbs. / 1.26 kg (excl. HDD) |
Operating Temperature | 14° ~ 131°F / -10° ~ 50°C |
Humidity | 10 ~ 90% RH |

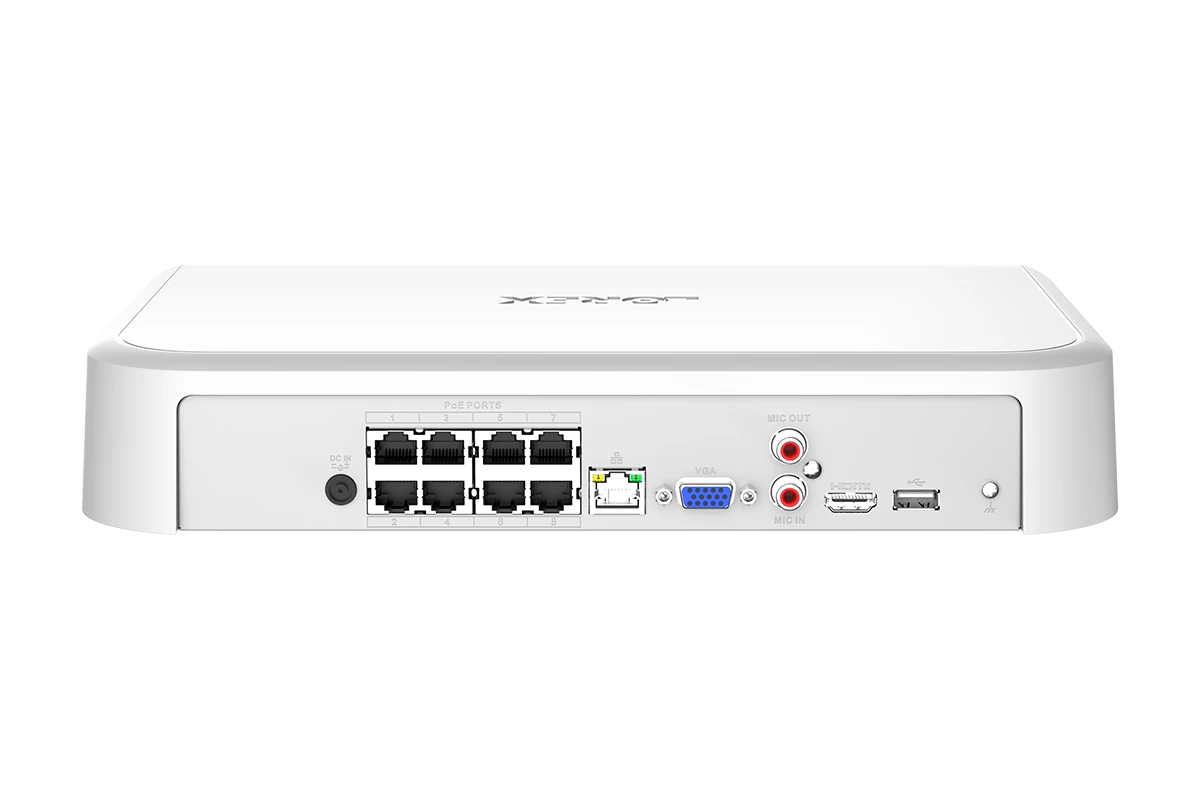

What's Included?


- Hard Drive, Power & Network Statuses
- USB Port
- Info / Panic Button
- Power Connection
- Camera Connection (PoE)
- Network Connection (LAN)
- Monitor Connection (VGA)
- Audio Out / In
- Monitor Connection (HDMI)
Package Contents:

4K+ Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Lorex Fusion supports compatible Lorex wired cameras and Wi-Fi devices with sufficiente signal strengh between the Wi-Fi devices and your Wi-Fi router. All cameras must be connected to the same network. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
- Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6Mbps is recommended for reasonable video performance.
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- Detection types need to be supported by the camera.
Product Compatibility
Product Support
N910 Series - 4K+ Ultra HD 12MP 16 Camera Capable NVR
