Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

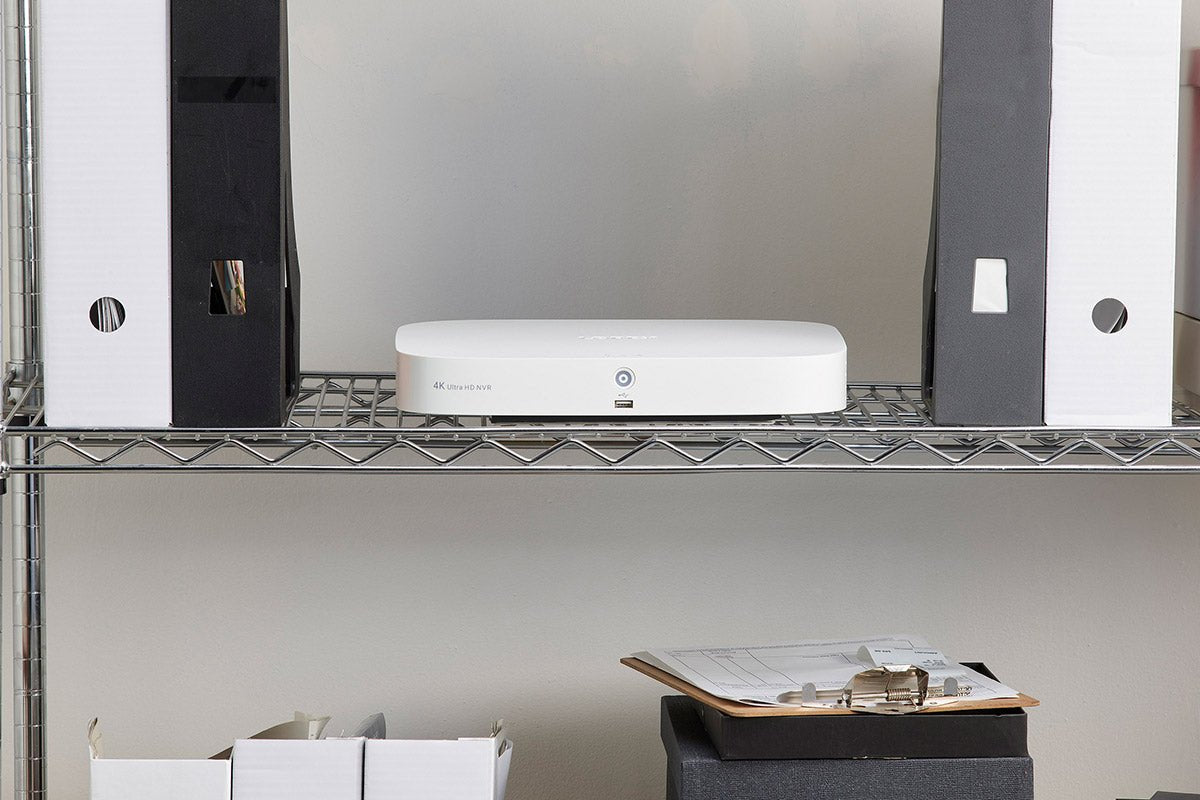

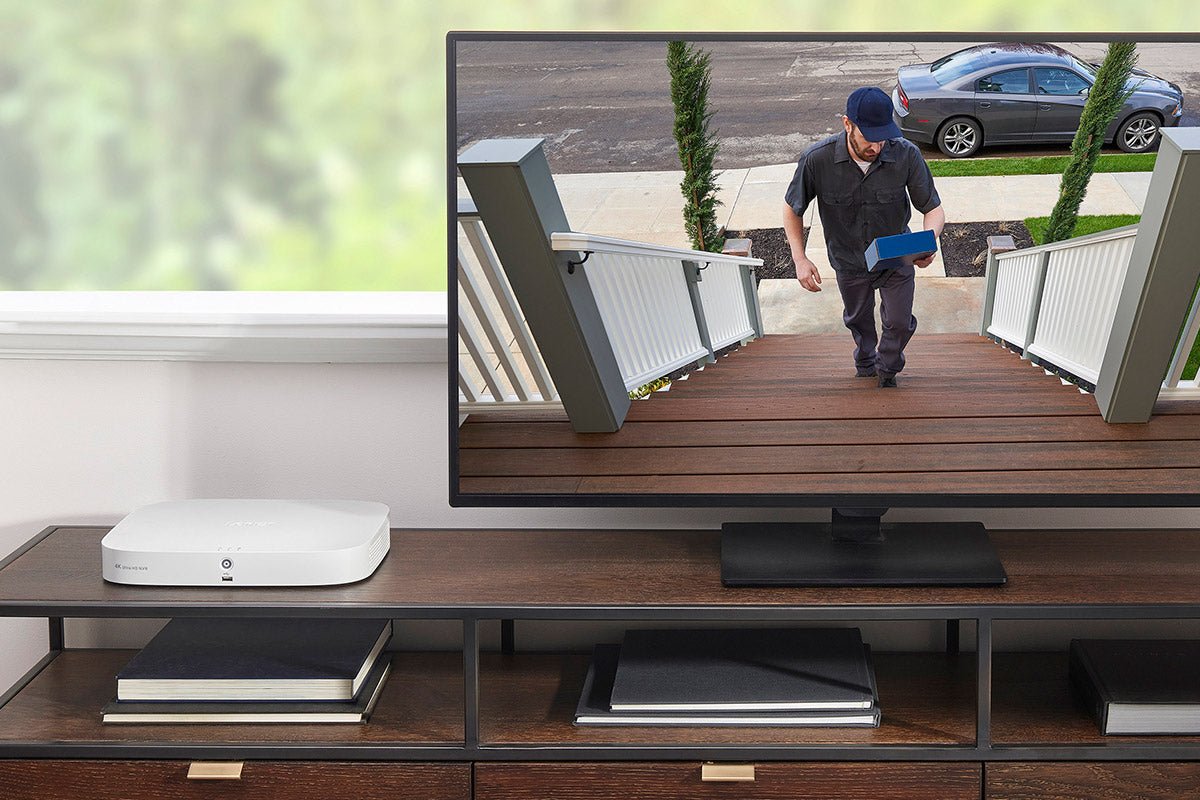

Welcome to the next generation of Fusion. This revolutionary NVR has 8 wired channels and 8 Wi-Fi channels. This allows you to combine the reliability and performance of the included 4K IP Security Cameras with the versatility and convenience of Smart Home Wi-Fi Cameras, Video Doorbells, and Floodlights to create a tailored security system perfect for your property.
Capture the details you need
4K recording resolution can make all the difference when it comes to capturing those important moments. This camera features an 8MP image sensor, which provides an exceptionally high level of detail and clarity. 4K quality also improves post-recording digital zooms to help decipher distant details, as the higher amount of pixels will keep the quality of the image for longer as the digital zoom is applied.
Don’t lose any details at night
See in color all night long thanks to this camera’s Color Night Vision (CNV) technology. CNV works best with plenty of ambient lighting, but not to worry, in total darkness, this camera will automatically revert to its powerful infrared LEDs for crisp black and white footage.
Built for the outdoors
Mother Nature is no match for this security camera. Rated IP67, it can endure anything from torrential downpours to freezing snowstorms. So go ahead and place this security camera where you need it most.
140°F | 60°C Heat Rating
-22°F | -30°C Cold Rating
IP67 Weatherproof
Free Local Storage, No Monthly Fees
Local storage means no monthly fees and with the built-in 2TB hard drive, you will have ample storage, while your recordings stay safe and private.
What's Included?
Dimensions (WxDxH): 2.8" x 7.1" x 2.8" (70mm x 180mm x 70mm)
Weight: 1.15lbs / 0.52kg
Package Contents:
4K IP Bullet Camera
Mounting Kit
Cat5e Ethernet Cable
Quick Start Guide

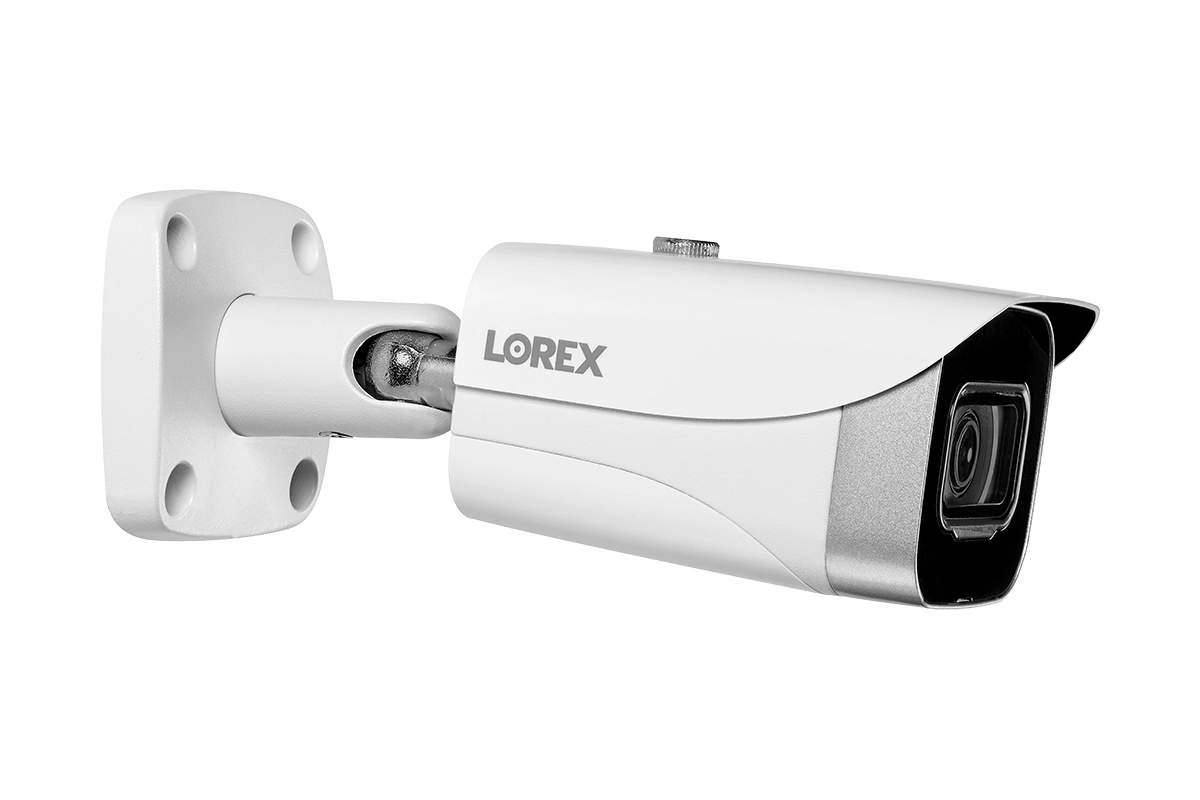

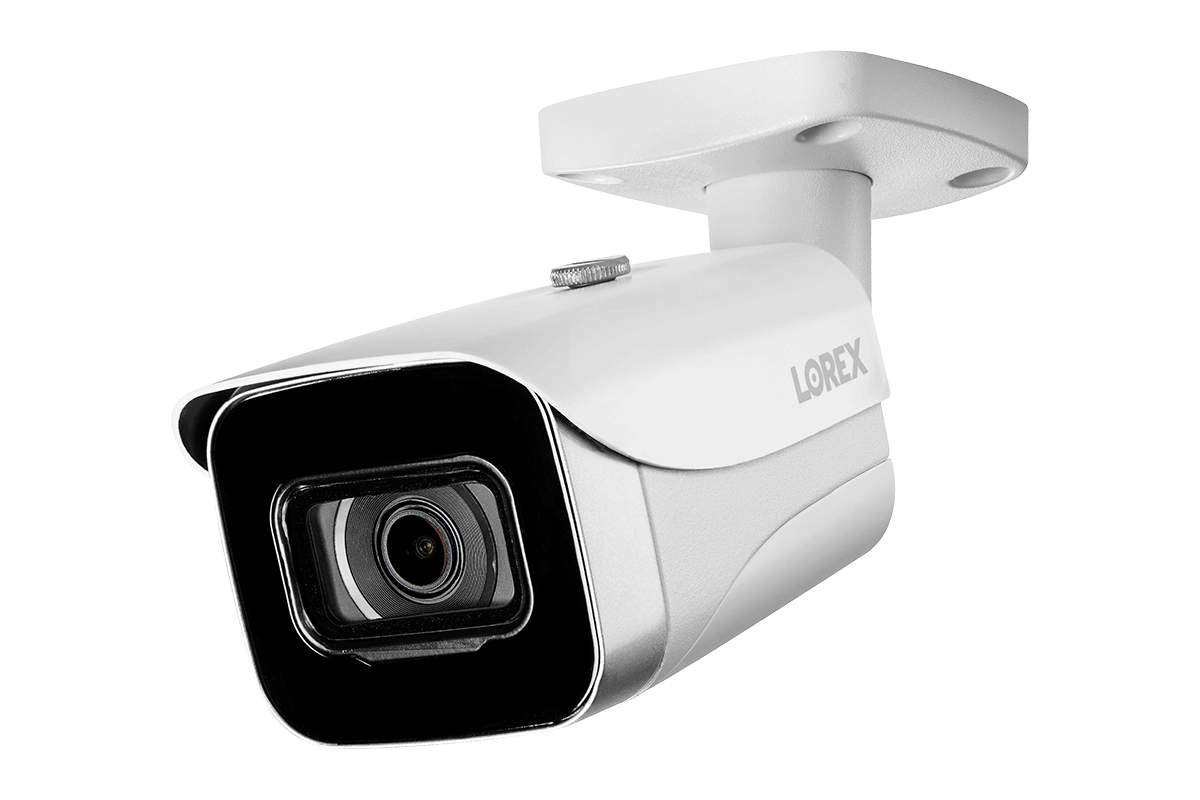

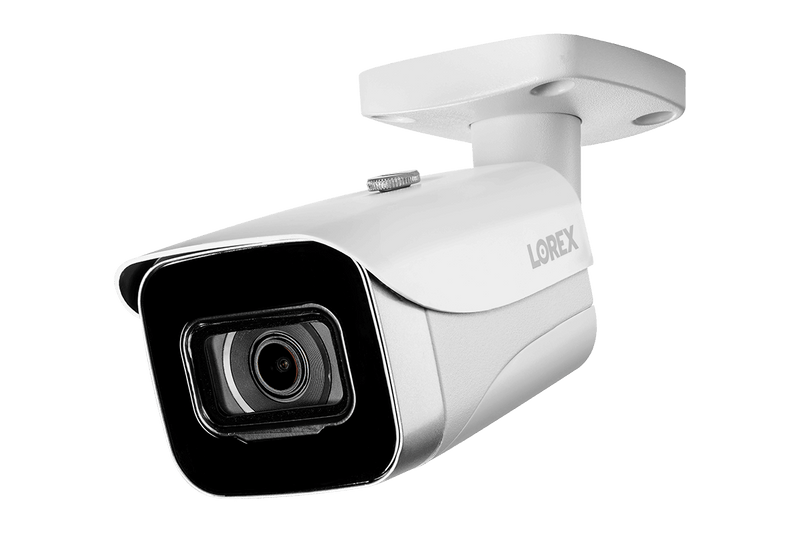

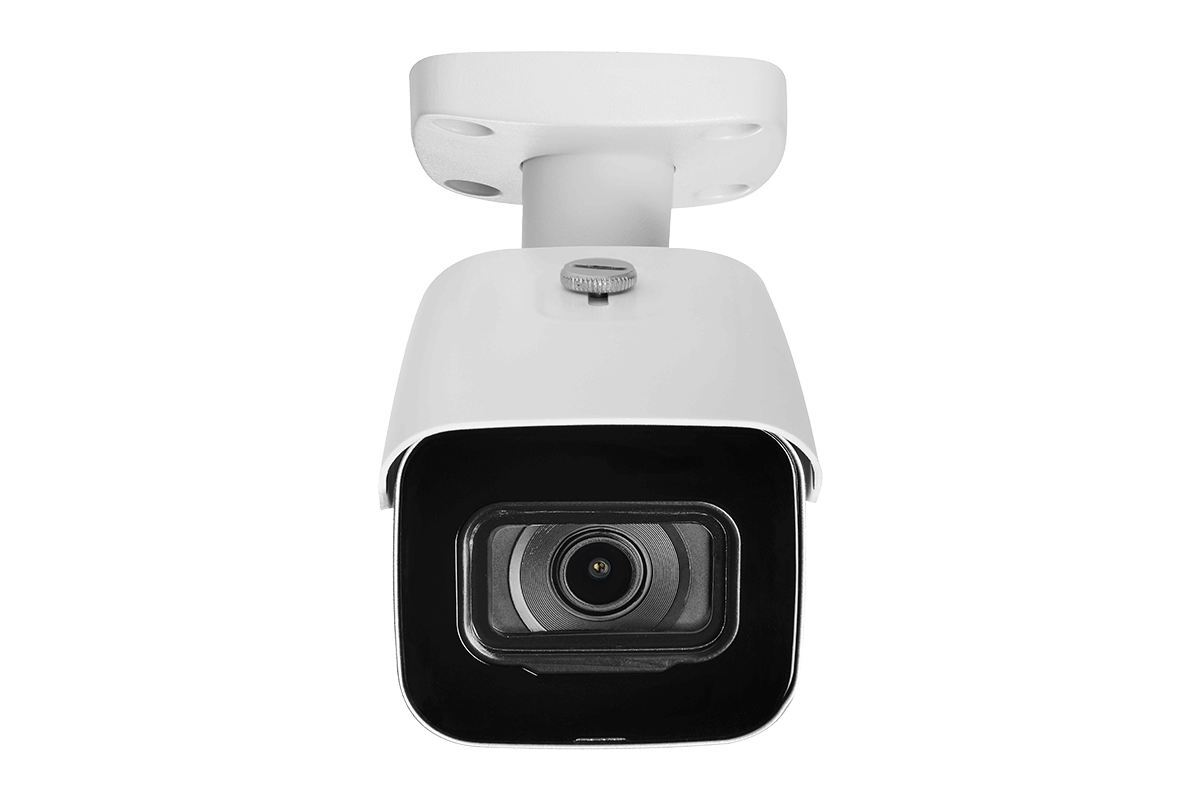

- 4K (8MP) Ultra HD, ensuring clear and detailed footage, every time1
- See more with a wide-angle 105° field of view
- HDR (High Dynamic Range) provides improved video clarity in high-contrast lighting, revealing details in extremely bright and darks areas of the footage
- Weatherproof rated (IP67)2
- Operates in temperatures as low as -22°F (-30°C) and high as 140°F (60°C)
- Aluminum Alloy housing, designed to withstand harsh weather conditions
- Experience enhanced nighttime clarity and better video evidence with Color Night Vision™ (ambient lighting required)3
- Up to 130ft (40m) IR night vision in low light and 90ft (27m) in total darkness4
- A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

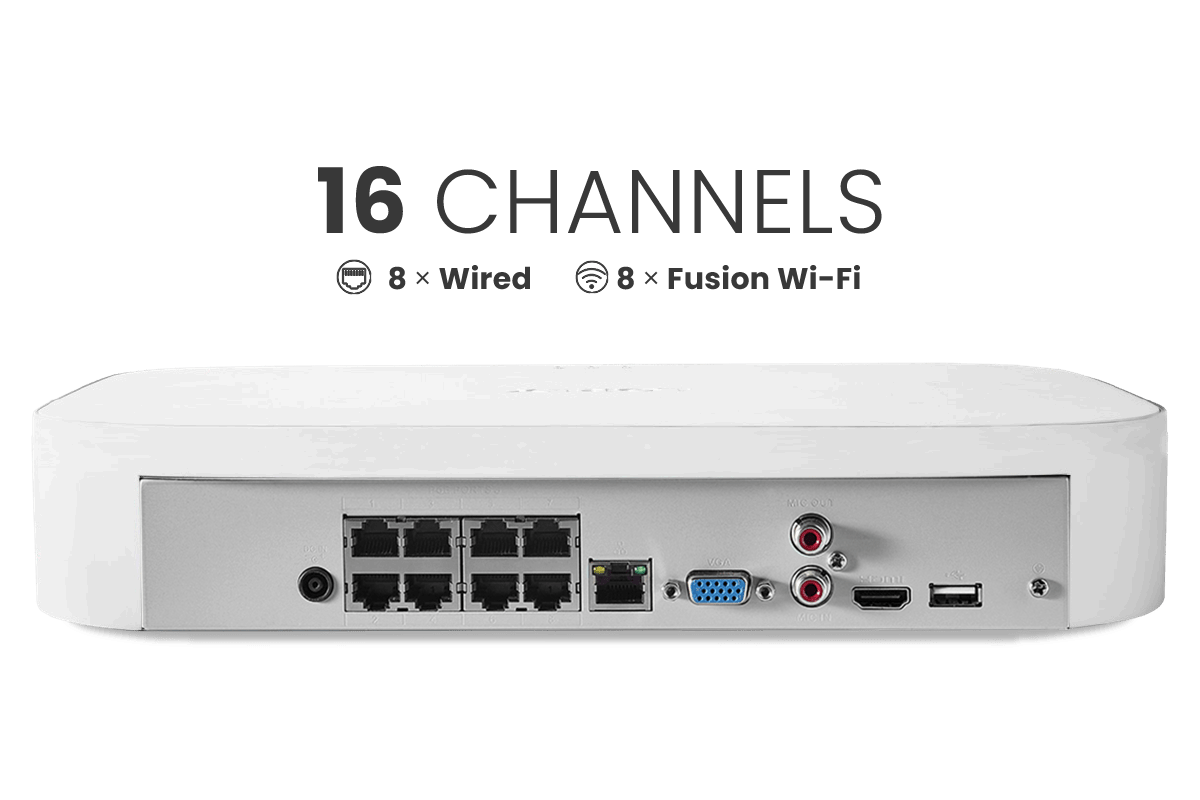

- Hard Drive LED
- Power LED
- Network LED
- USB Ports
- Info / Panic Button
- Power Port
- PoE Ports
- LAN Port
- VGA Port
- Audio In / Out
- HDMI Port
Package Contents:
4K Fusion NVR
Ethernet Cable
USB Mouse
HDMI Cable
Power Adapter
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Fusion™ capabilities are limited to 8 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
- Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
Product Support
E841CA Series - 4K Ultra HD Bullet IP Security Camera
N847 Series - Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi ) NVR
