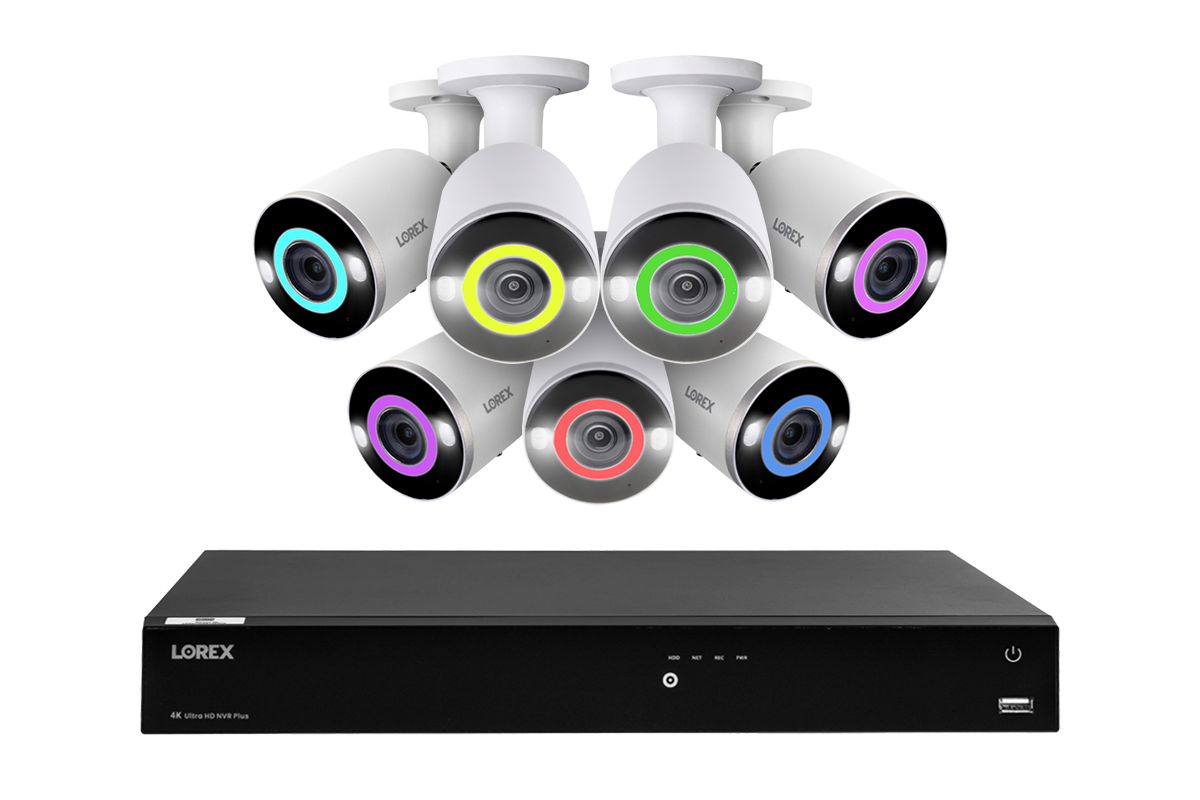

Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 7 Bullet Camera Featuring Smart Security Lighting and 2-Way Audio
Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 7 Bullet Camera Featuring Smart Security Lighting and 2-Way Audio - Lorex Corporation
Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 7 Bullet Camera Featuring Smart Security Lighting and 2-Way Audio - Lorex Corporation
Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 7 Bullet Camera Featuring Smart Security Lighting and 2-Way Audio - Lorex Corporation
Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 7 Bullet Camera Featuring Smart Security Lighting and 2-Way Audio - Lorex Corporation
Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 7 Bullet Camera Featuring Smart Security Lighting and 2-Way Audio - Lorex Corporation
zoom Roll over image to zoom in Click on image to zoom

Lorex Fusion 4K (16 Camera Capable) 4TB Wired NVR System with 7 Bullet Camera Featuring Smart Security Lighting and 2-Way Audio

AZN4K4SL-167WB
$1,239.99
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Choose your favorite colors to welcome (or deter) guests with Smart Security Lighting. This system, featuring our colorful new 4K IP security cameras will add a personal touch to your security. Along with stunning 4K recording and deterrence features (motion spotlights, warning siren, and two-way audio), these cameras also feature Smart Detection Plus (person, vehicle, face, animal, and package) to help you stay-in-the-know of events happening at your home or business. The included Fusion NVR is also unlike any other recorder on the market. It can connect a total of 16 wired IP cameras and Smart Home wireless cameras (like Wi-Fi cameras and video doorbells), giving you unprecedented versatility in creating a perfectly tailored security ecosystem for your property.




Customize light colors with



The customizable smart LED light band comes with 16.7 million color options to choose from. Colors can be assigned to pre-set camera modes, such as a "Welcome" or "Panic" mode.

Select Color



Get alerts that matter

Reduce unwanted alerts and only get notifications you care about with key motion detection modes at no extra cost.


Person Detection Person Detection

Vehicle Detection Vehicle Detection

Face Detection Face Detection

Animal Detection Animal Detection

Package Detection Package Detection




Impressive clarity and wider coverage



Get the best view of your property around-the-clock with stunning 4K clarity and vivid Color Night Vision.



4K Ultra HD
Resolution

Color Night
Vision Booster
drag left and right to see product in 360 view


Wide field of view in full 4K

At the core of this camera is an 8MP image sensor. 8MP means there are more than 8 million pixels, which results in exceptionally sharp 4K video, realistic color representation, and superior digital zoom capabilities. The 127° diagonal field-of-view also allows your camera to monitor a broader area so you see more and detect motion earlier.



Boost Your Color Night Vision

Experience the best night vision on the market. This camera features our revolutionary Color Night Vision (CNV) Booster, which produces our most vivid and longest range full-color nighttime video yet. CNV works best with the help of ambient lighting, however, in conditions that are too dark, this camera will use its infrared LEDs to record crisp black and white video footage.



IR Night Vision



Color Night Vision



Color Night Vision Booster




Built to Last

Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.




Proactive Security

Stop events before they happen with with two motion-activated LED lights and a remotely triggered siren from the Lorex Home app.



Motion-activated LED lights

Remote-activated siren



Built for the outdoors

This camera has been designed to withstand the harsh impacts of nature. It has an IP67 rating (our highest weatherproof rating) and has a durable, all-metal housing for added protection.



140°F | 60°C Heat Rating

-22°F | -30°C Cold Rating

IP67 Weatherproof



Speak with Ease

Easily communicate through the camera’s built-in microphone and speaker using the Lorex Home App. You can also choose pre-set or personalized voice messages to welcome or instruct visitors.



Microphone

Speaker




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa

Same Look - Home or Away

Enjoy a seamless monitoring experience whether you are accessing your system locally through the recorder or remotely through the app. The Recorder User Interface now uses the same look and feel as the Lorex app, making it easier than ever to navigate and find events as you switch platforms.




Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 16 wired or Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.


Get Support for Lorex Fusion How to set up Fusion System


All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.


Fusion Devices


Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 4TB hard drive, you will have ample storage, while your recordings stay safe and private.




Fusion Series NVR Comparison Chart

  N845 Series Lorex Fusion 4K 16-Channel NVR N843 Series Lorex Fusion 4K 8-Channel NVR N864 Series Lorex Fusion 4K 16-Channel NVR N863 Series Lorex Fusion 4K 8-Channel NVR
Channels (Wired / Wi-Fi Fusion) 16 Total (8 Wired and 8 Wi-Fi) 8 Total (up to two Wi-Fi) 16 Total (Wired and Wi-Fi) 16 Total (up to two Wi-Fi)
Resolution 4K @ 15fps 4K @ 15fps 4K @ 15fps 4K @ 15fps
Storage / Capacity 1 Bay / Up to 8TB 1 Bay / Up to 8TB 2 Bay / Up to 2 x 8TB 2 Bay / Up to 2 x 8TB
Video Compression H.265/H.264 H.265/H.264 H.265/H.264 H.265/H.264
PoE Output Max 25.5W for single port, 72W total Max 25.5W for single port, 72W total PoE: Max 25.5W for single port, 130W total PoE: Max 25.5W for single port, 130W total
Power Consumption Approx. 8.3W Approx. 8.3W Approx. 13.2W Approx. 13.2W
Smart Motion Detection Person / Vehicle / Face / Animal / Package Person / Vehicle / Face / Package Person / Vehicle / Face / Animal / Package Person / Vehicle / Face / Package
Special Features Active Deterrence / Panic Button / Smart Search Active Deterrence / Panic Button / Smart Search Active Deterrence / Panic Button / Smart Search Active Deterrence / Panic Button / Smart Search
Lorex Sensor Compatible Yes Yes Yes Yes
Mobile Viewing Lorex App Lorex App Lorex App Lorex App
Smart Home Amazon Alexa™, Google Assistant™ Amazon Alexa™, Google Assistant™ Amazon Alexa™, Google Assistant™ Amazon Alexa™, Google Assistant™
Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™ Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™ Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™ Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™, Lenovo Smart Display™
PC/Mac Remote Viewing Yes - Lorex Cloud Client Yes - Lorex Cloud Client Yes - Lorex Cloud Client Yes - Lorex Cloud Client

Video

What's Included?

E896AB Overview

Dimensions (W—D—H): 2.9" x 6.9" x 2.9" (73mm x 175mm x70mm)
Weight: 1.15lbs / 0.52kg

  1. Cable Notch
  2. Adjustment Screw
  3. Speaker and Siren
  4. MicroSD Card Slot
  5. Reset Button
  6. Warning Lights
  7. Smart Security Lighting
  8. Microphone


Package Contents:

4K Deterrence IP Camera

Mounting Kit

Ethernet Extension Cable*

*With pre-attached weather-resistant cap.
  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  5. When Face Detection is enabled, all other Smart Plans will be disabled. When not using Face Detection, Smart Plans vary by model. Click here to learn more
  6. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  7. Not intended for submersion in water. Installation in a sheltered location recommended.
  8. Cable length is dependent on product configuration. See product packaging for details.
  9. Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  10. Color Night Vision Booster can be enabled using the Lorex App and will light for 3 minutes when turned on.
  11. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

N864 Front Overview

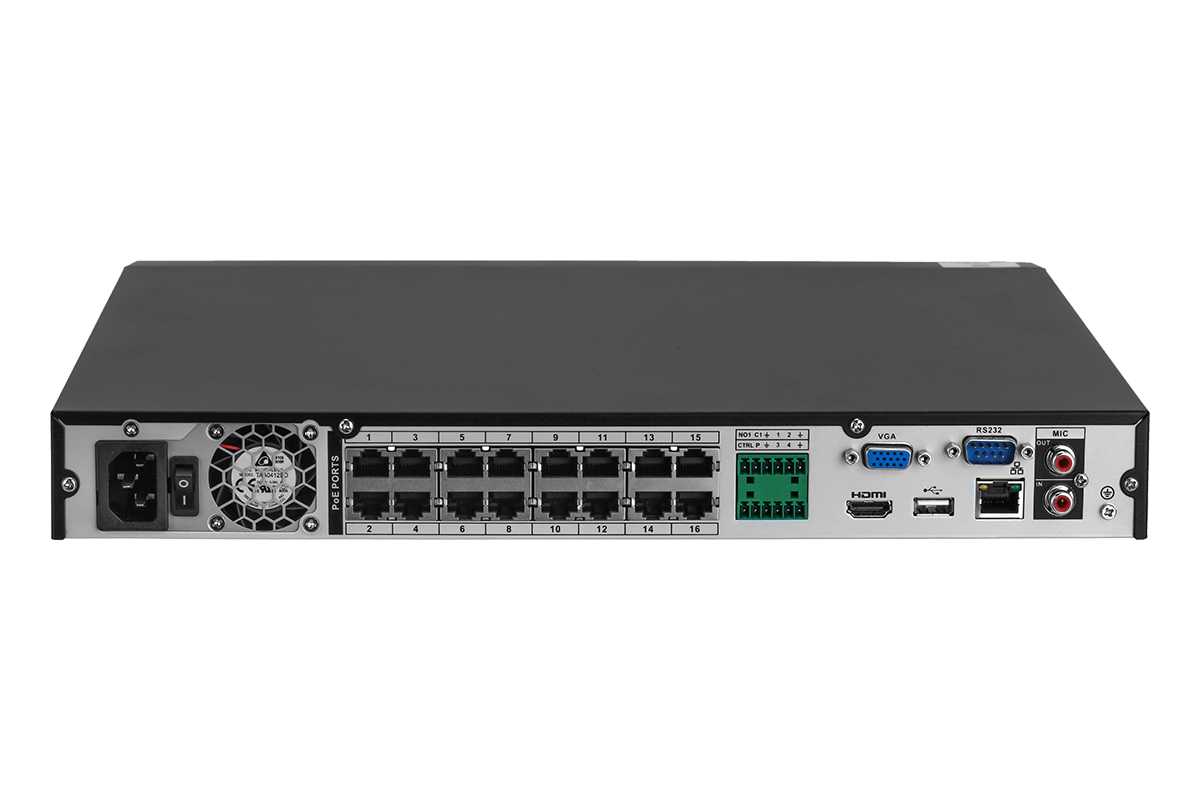

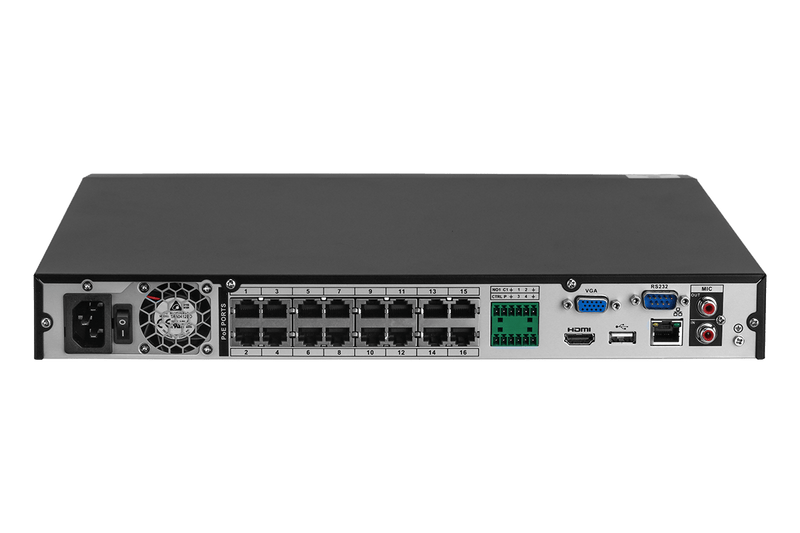

N864 Back Overview
  1. Info / Panic Button
  2. Hard Drive, Network, Recorder & Power LEDs
  3. USB
  4. Power Button
  5. Power Input
  6. Power Switch
  7. PoE Ports
  8. Alarm
  9. HDMI
  10. VGA Port
  11. RS232
  12. LAN
  13. Audio In / Out

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

  • 4K (8MP) IP cameras are required to take advantage of 4K recording.
  • Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  • This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  • Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  • Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
  • Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  • Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  • HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  • NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility

Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
