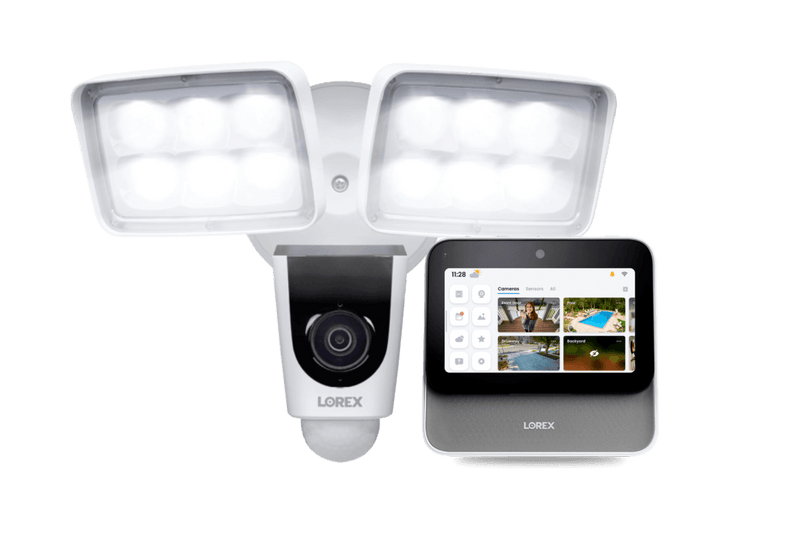

Lorex Smart Home Security Center with Floodlight Camera

LHC-KS5Open Box
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

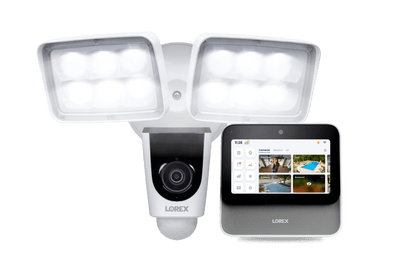

Create your own personal smart home security eco-system with the Lorex Smart Home Security Center (LSHSC) at its core. Designed to provide easy viewing, control, and customization of your cameras, the Lorex Smart Home Security Center is a revolutionary solution to protect what matters most. This kit includes a Wi-Fi Floodlight Camera. You can also expand your coverage with further Wi-Fi Cameras and Accessory Sensors to build the perfect security system for your home.



LHC-KS5

SPECIFICATIONS

1

LSHSC

7" touch-screen control hub

1

CAMERA

1080p Full HD Floodlight Camera

64GB

microSD

Maximum 1× 256GB microSD / 1TB M.2 2280 SATA SSD M.

0

Monthly Fees

Secure and private

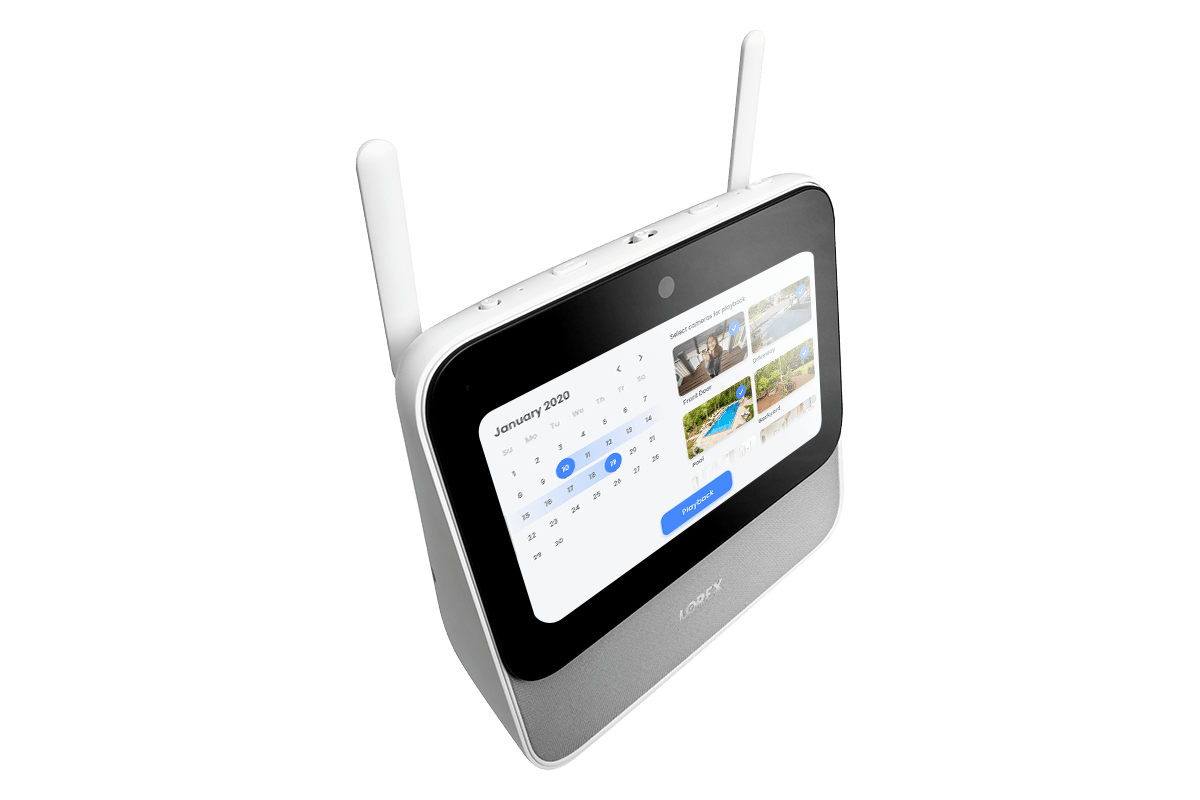

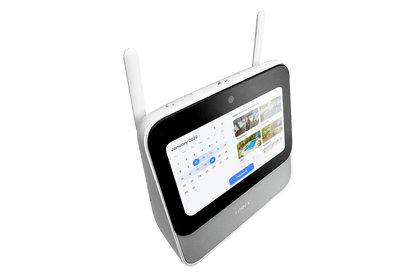

The center of your home

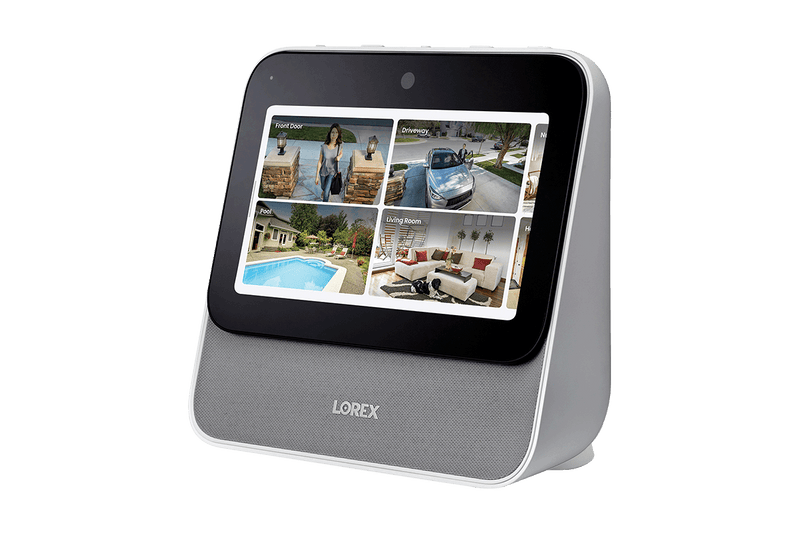

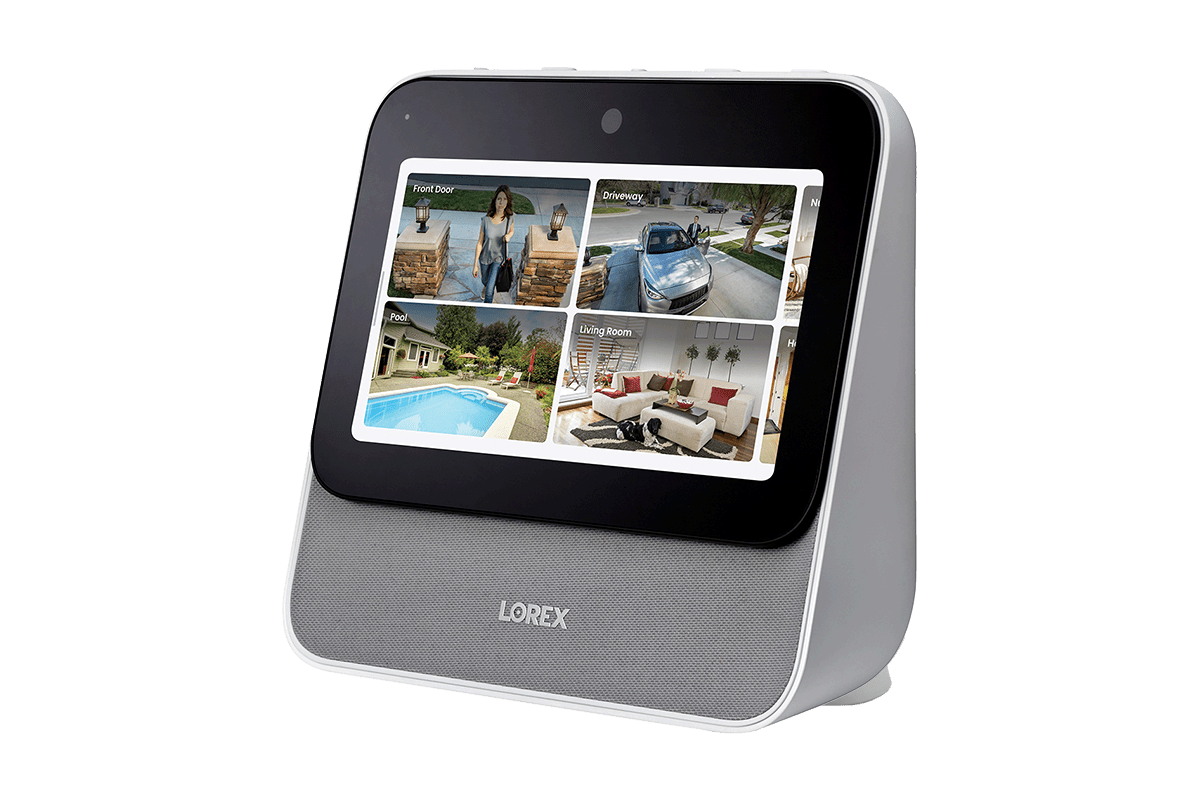

The all-in-one LSHSC simplifies your home monitoring experience with its intuitive touch smart display.

Control and access all compatible Lorex devices with the intuitive 7-inch touch display.

There are several built-in features to ensure your privacy. Log in to the LSHSC quickly with the Face Unlock feature. Select privacy mode for compatible cameras to turn off streaming and recording for those private moments. You also have the option to disable the built-in microphone and cover the front camera lens.

Pair a variety of Lorex wireless devices and control them from the LSHSC to build the perfect security system for your home. Adding new devices is simple with a built-in step by step setup guide.

View all compatible devices

Use the Lorex Voice™ Assistant to access your cameras and view footage with simple voice commands. This voice assistant is hosted entirely on the LSHSC and is not connected to the internet for ultimate privacy.

The LSHSC includes a surveillance-grade class 10 64GB microSD card, upgradable to a maximum of 256GB microSD and/or a 1TB M.2 2280 SATA SSD M.

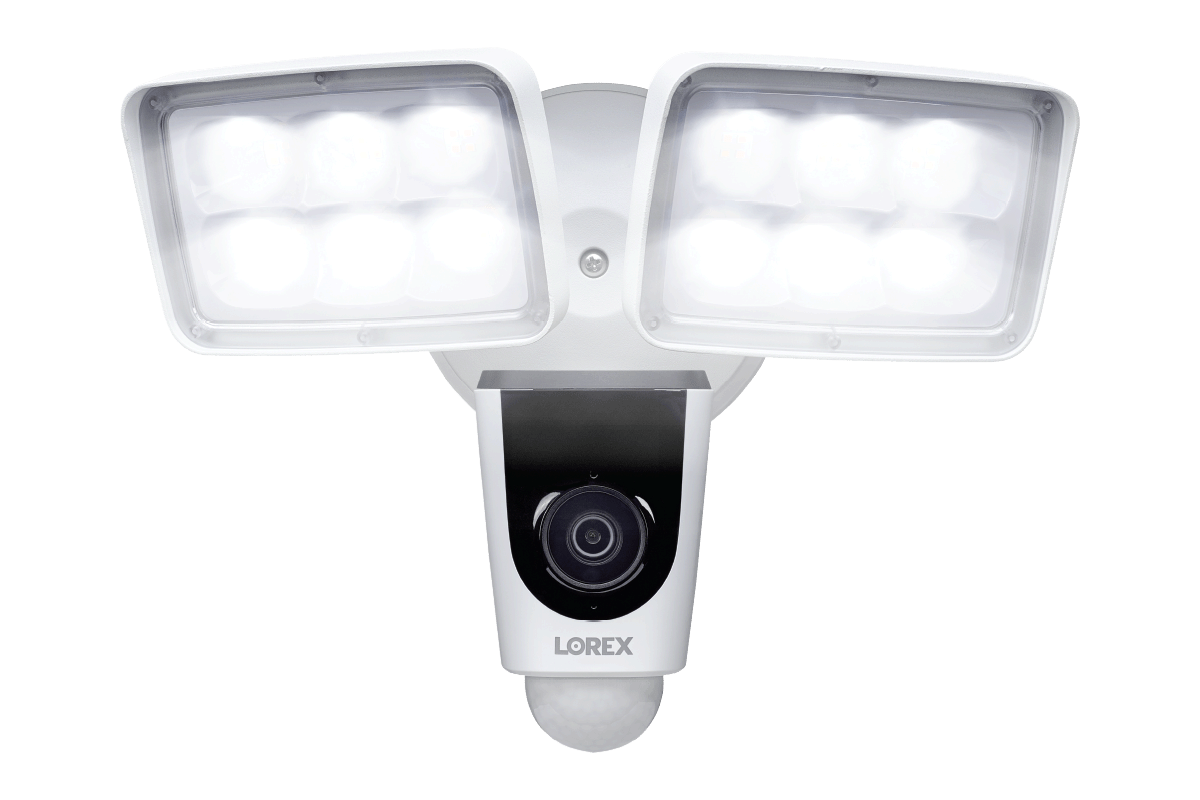

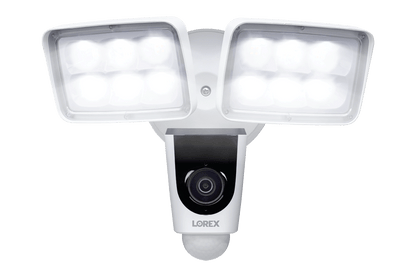

Security in a Flash

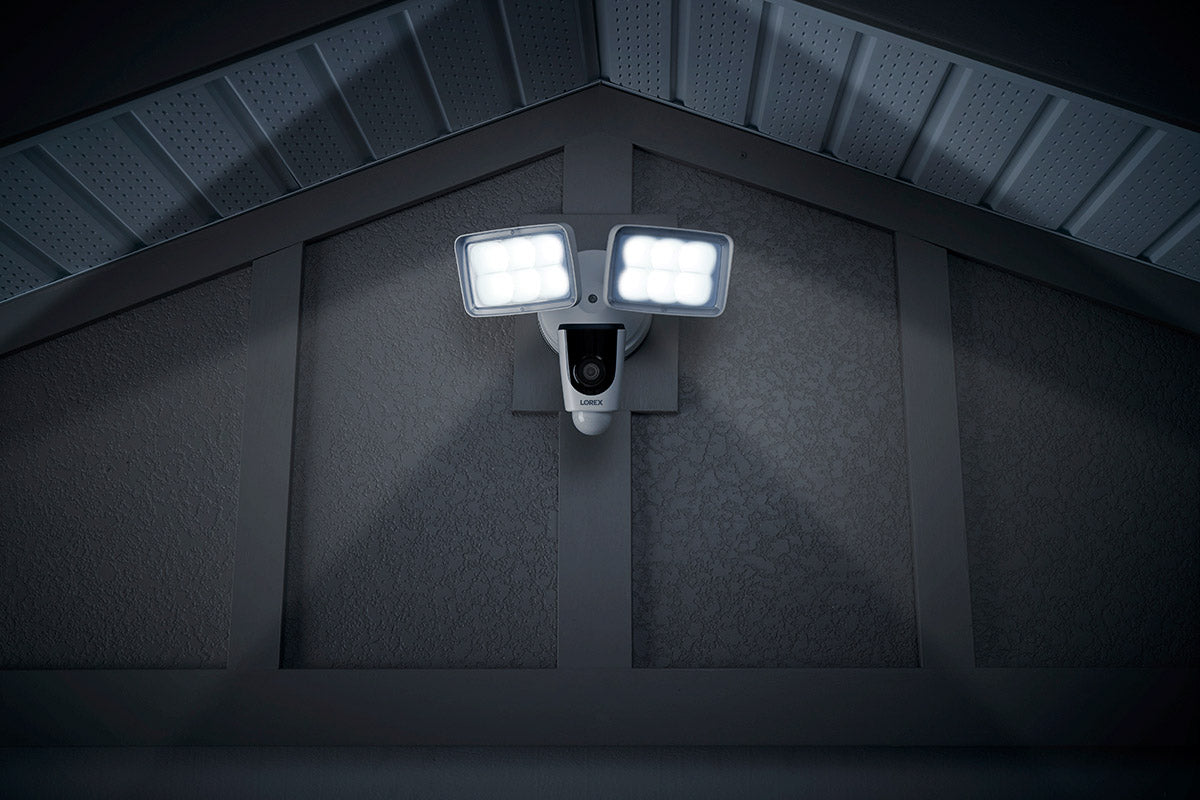

Combine security and lighting with this powerful Floodlight Camera.

Capture important details with real-time 30 fps (frames-per-second) full 1080p HD resolution recording. A wide-angle lens also provides you with more security coverage and helps with earlier detections.

The camera is equipped with dual LED floodlights, two-way talk, and a deterrence siren to stop potential events before they happen.

The Passive Infrared (PIR) motion detector has a 270° horizontal field of view and is designed to sense the infrared energy that eminates from people, animals, or vehicles.

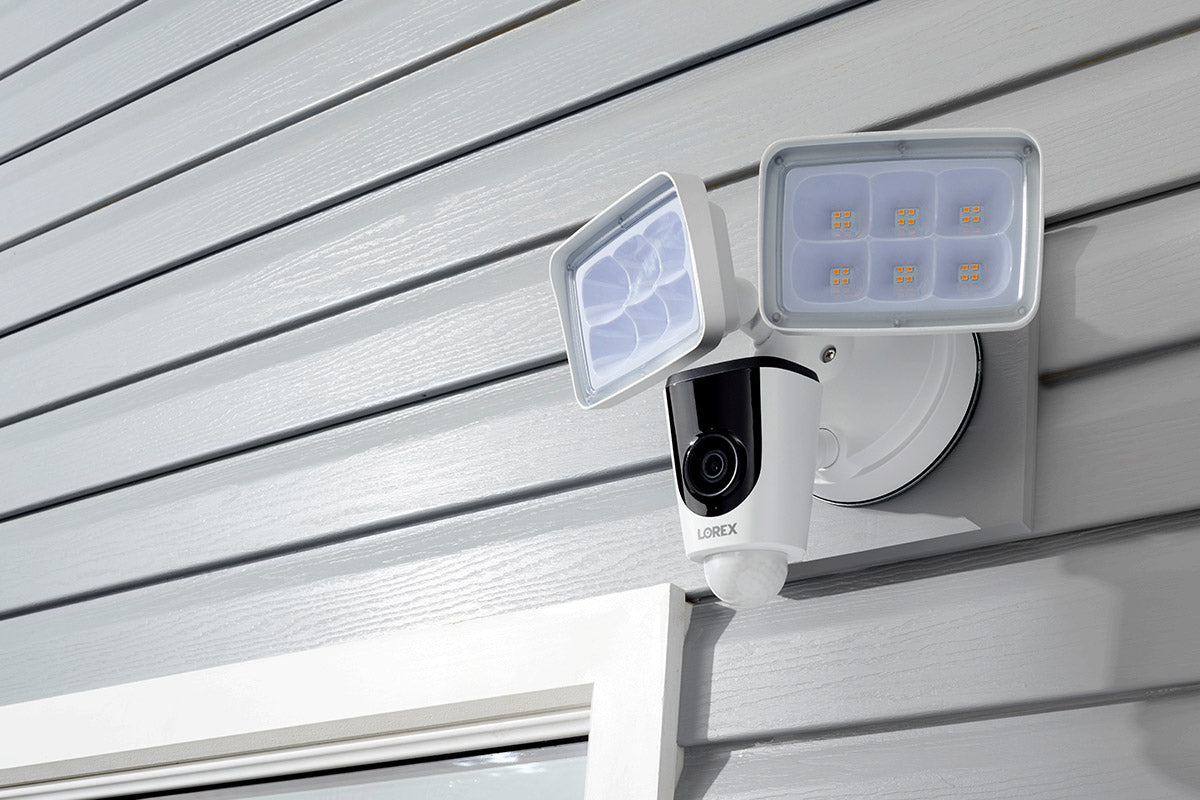

Conveniently use the existing wiring from your previous floodlight or outdoor house light. It can also connect to your pre-existing standard junction box.

The Floodlight Camera works 24/7. It contains infrared LEDs that allows the camera to see up to 50ft (15m) in the dark.



Lorex Smart Home Security Center Compatibility

Pair a variety of Lorex wireless devices and control them from the LSHSC.



How to Pair Devices to the LSHSC

The connection process for some LSHSC compatible devices differs:



Direct Setup Method

Connect directly to the LSHSC

*Doorbell and LSHSC firmware updates required.



App Setup Method

Connect to the Lorex Home App *

*Make sure to upgrade the camera to the latest firmware via the App




Stay connected on-the-go with the Lorex app



Your Lorex devices will always be within reach with help from the Lorex App. This versatile app allows you to remotely access your Lorex cameras so you can easily view live videos, customize your system settings, playback recorded motion events and more.

Download on the App Store
Get it on Google Play


Frequently Asked Questions

Step 1. Connect your LSHSC to your network via Ethernet or Wi-Fi.

Step 2. On the LSHSC, go to Home Screen > Device Settings > Device Info > LSHSC, then tap Device ID to open the QR Code.

Step 3. Now, get your smartphone and open the Lorex app, then tap + at the topmost right corner of the screen and scan the QR Code bring displayed on your LSHSC.

Step 4. Follow the on-screen instructions on adding your LSHSC to the Lorex app.

Step 1. Go to Home Screen > Device Settings > Security Settings.

Step 2. Turn On or Off Require passcode to unlock or Face Unlock.

NOTE: Using the camera cover to hide the lens will not turn off the feature. It will simply prevent video capturing for the Face Unlock feature.

NOTE: In Offline Mode, you can still view your camera, and your sensors remain functional, but you cannot see your devices remotely from the Lorex app.

Step 1. Go to Home Screen > Device Settings > Network Settings.

Step 2. Tap Wi-Fi Network, then toggle the button to on or off.

Step 3. Tap Wired Network, then toggle the button to on or off.

Still Have Questions?

Video

What's Included?

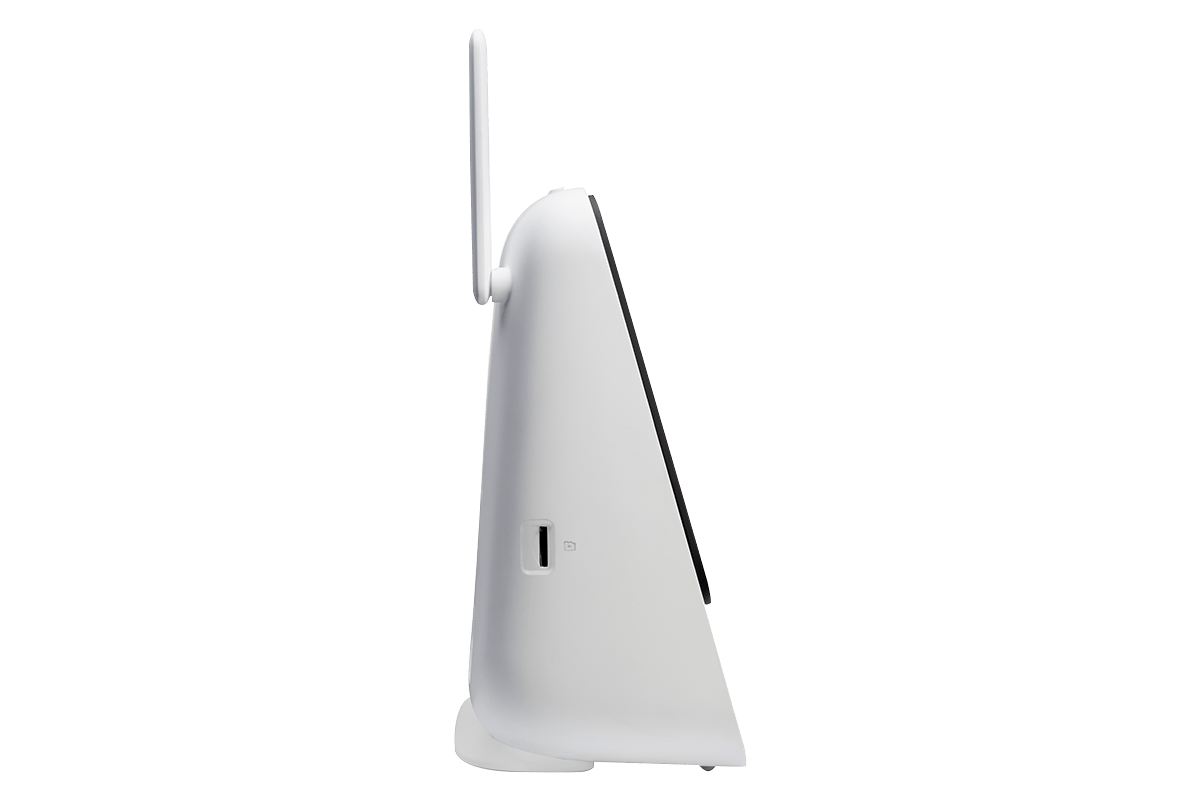

LSHSC Dimensions LSHSC Labels

Screen Size 7" Diagonal
Screen Type LCD Touch Screen
Audio Full Duplex 2-way Audio
Microphone 2 × Noise Cancelling Microphones
Built-in front camera 1080p, support physical cover
Speakers 3 × Speakers
Camera Built-in
Wireless Camera Support Up to 8×1080p or 4×2K
Wireless Sensor Support Up to 32
Simultanous Camera Viewing Up to 4 channels
Voice Assistant Lorex Voice Assistant

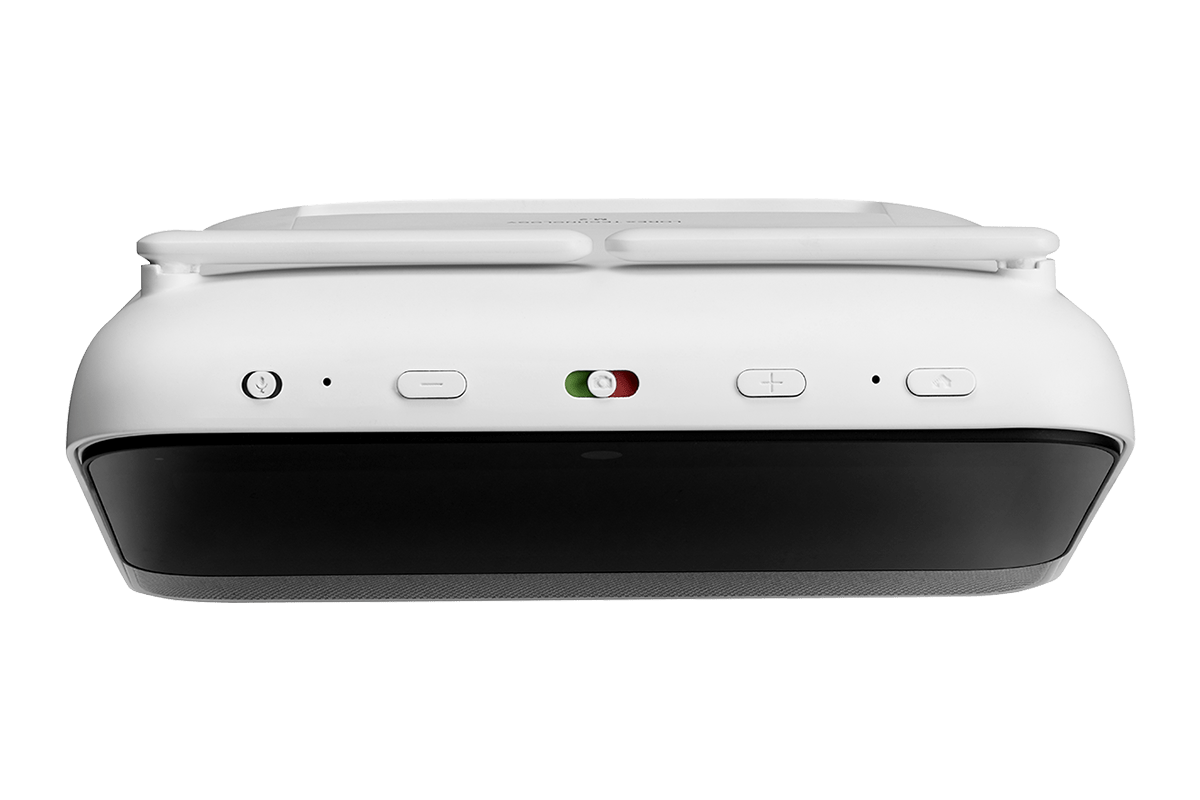

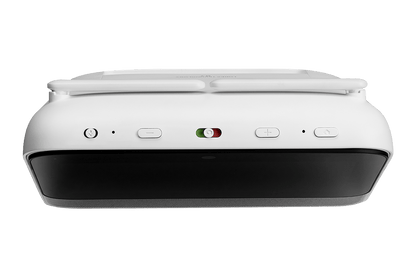

Privacy Features Local Voice Assistant, Microphone Disconnect Switch, Camera Cover
Digital Zoom Camera Dependent
Log-in Options Password or Face Unlock
Status LED Multi-color LED status bar indicator
Sensors Ambient Light
Storage microSD (up to 256GB) or M.2 2280 SATA SSD M (up to 1TB)*
Internet Recommendation 2 cameras ~4Mbps / 4 cameras ~10Mbps @1080p upload speed**
Home Router Connectivity 100Mbps Ethernet or 5GHz Wi-Fi
Device Connectivity 2.4/5GHz Wi-Fi / BLE 5.0

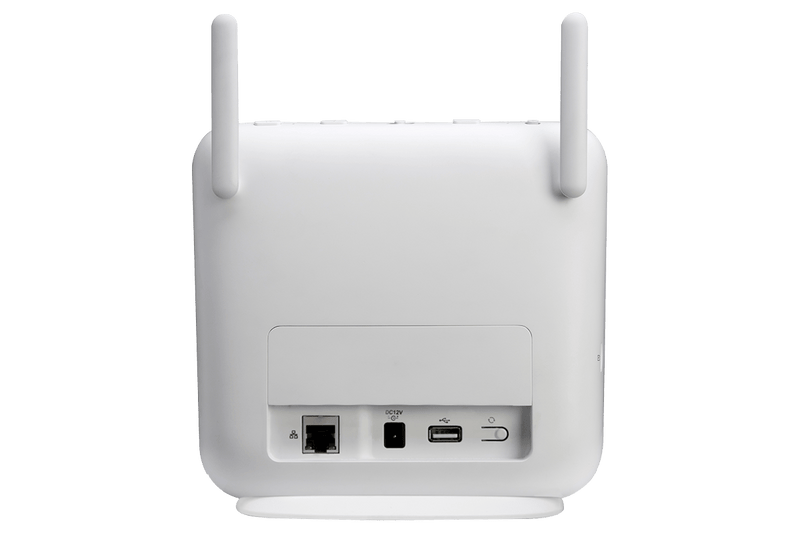

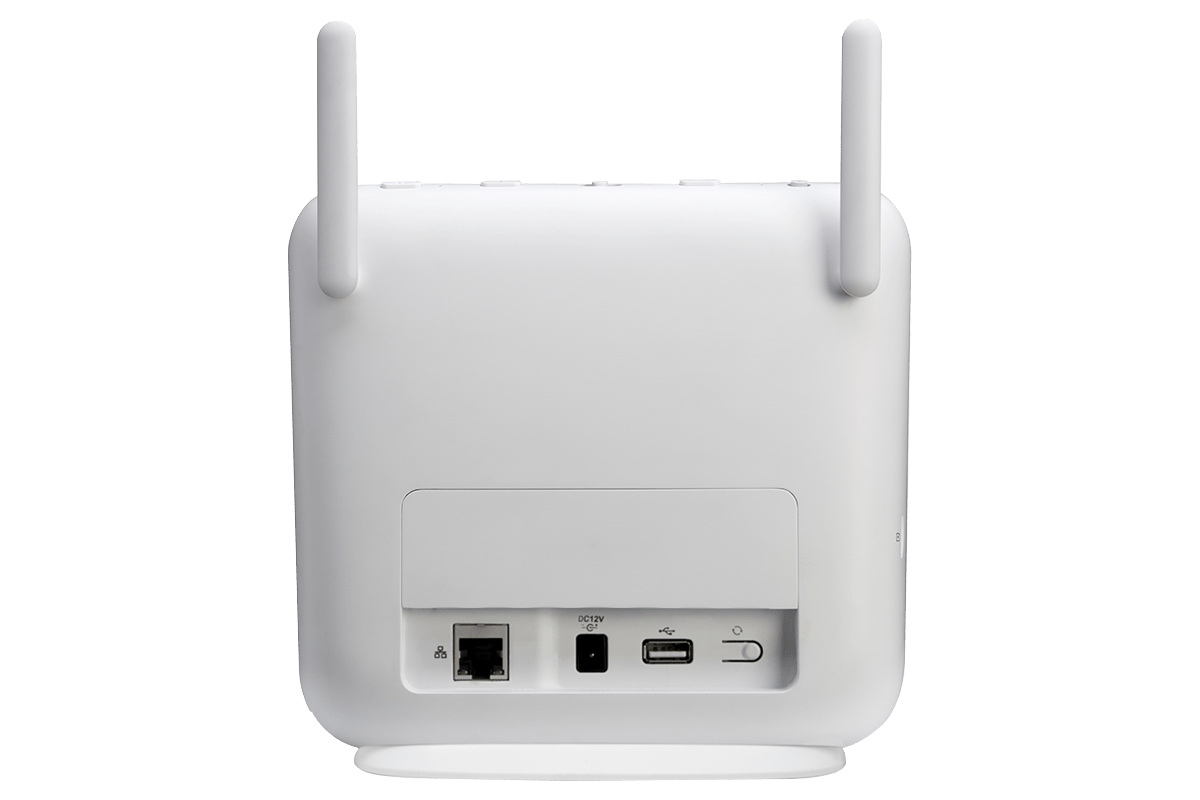

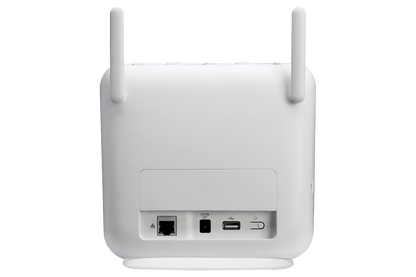

Ports Power, Ethernet, 1 × USB
Weather Rating Indoor only
Operating Temp. Range 32~104°F / 0~40?
Languages English
Power 12V DC / 2A
Available Color White
Dimensions 7.5 x 3.6 x 7.0" / 19.0 x 9.1 x 17.7cm
Weight 1.81lb / 0.92kg

Each L871T8E-E Camera Includes:

1 × Lorex Home Center
1 × Power Adapter
1 × Ethernet cable
Quick setup guide
1 × 64GB microSD card (pre-inserted)
  1. Playback screen is HD resolution. Footage can be exported at full resolution, or can be zoomed into on the device.
  2. Compatible with certain Lorex wireless cameras only. For a list of compatible cameras please visit lorex.com/compatibility
  3. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit: lorex.com/smarthome
  4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your recorder has a connection to a router (not included). An upload speed of at least 5 Mbps is recommended for remote video viewing.
  5. For the latest list of supported apps and devices, please visit lorex.com/compatibility

*Check packaging for included storage
**Devices stream by default using substream at lower resolution

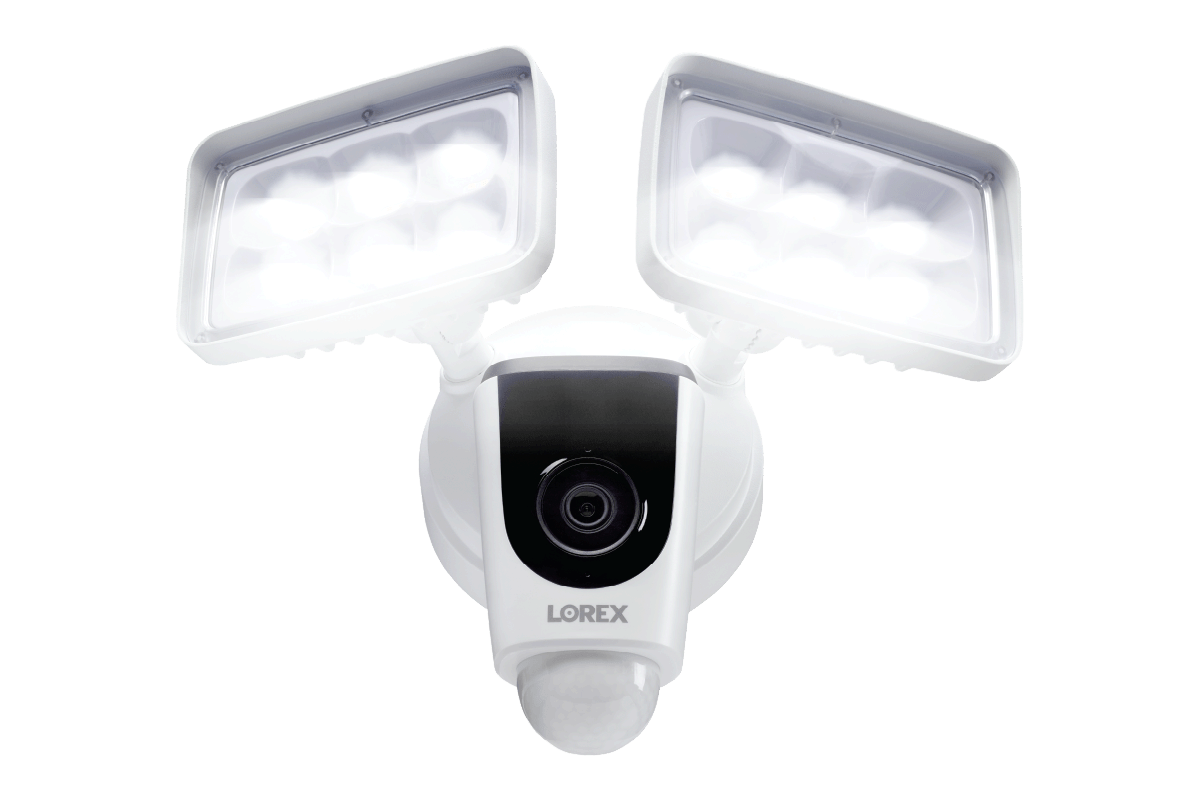

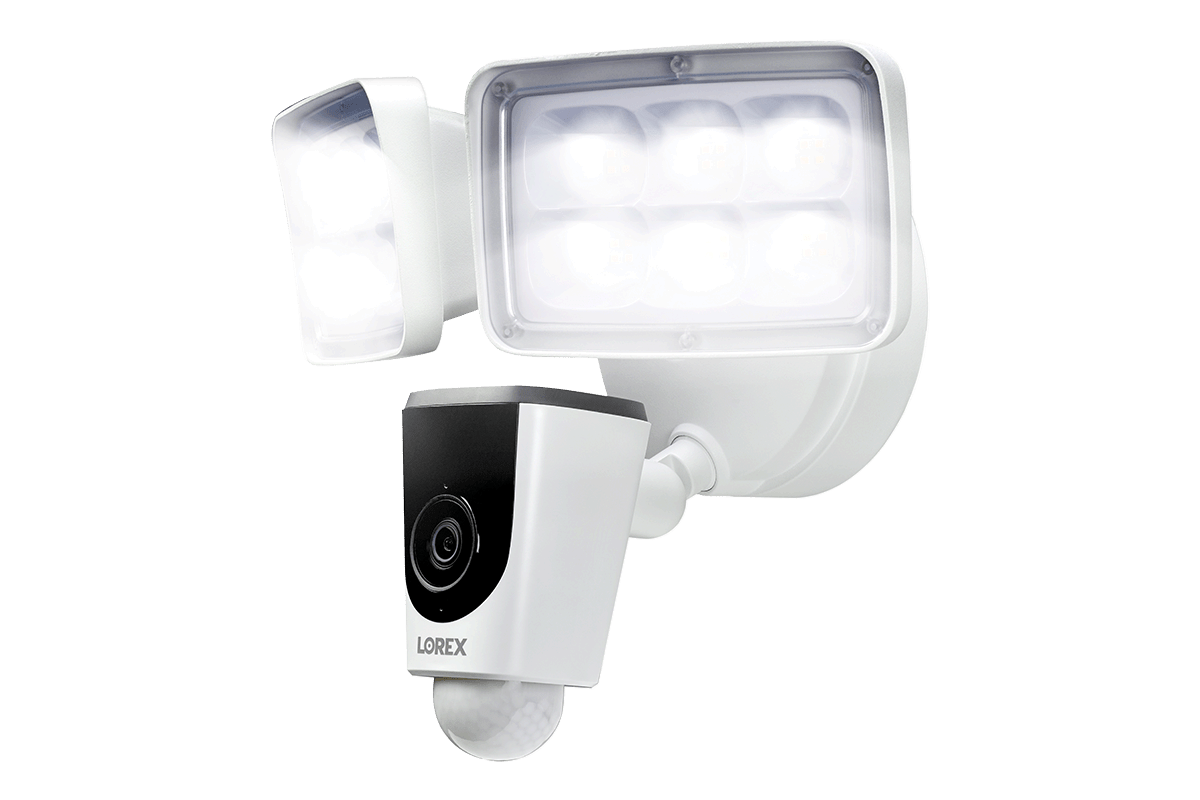

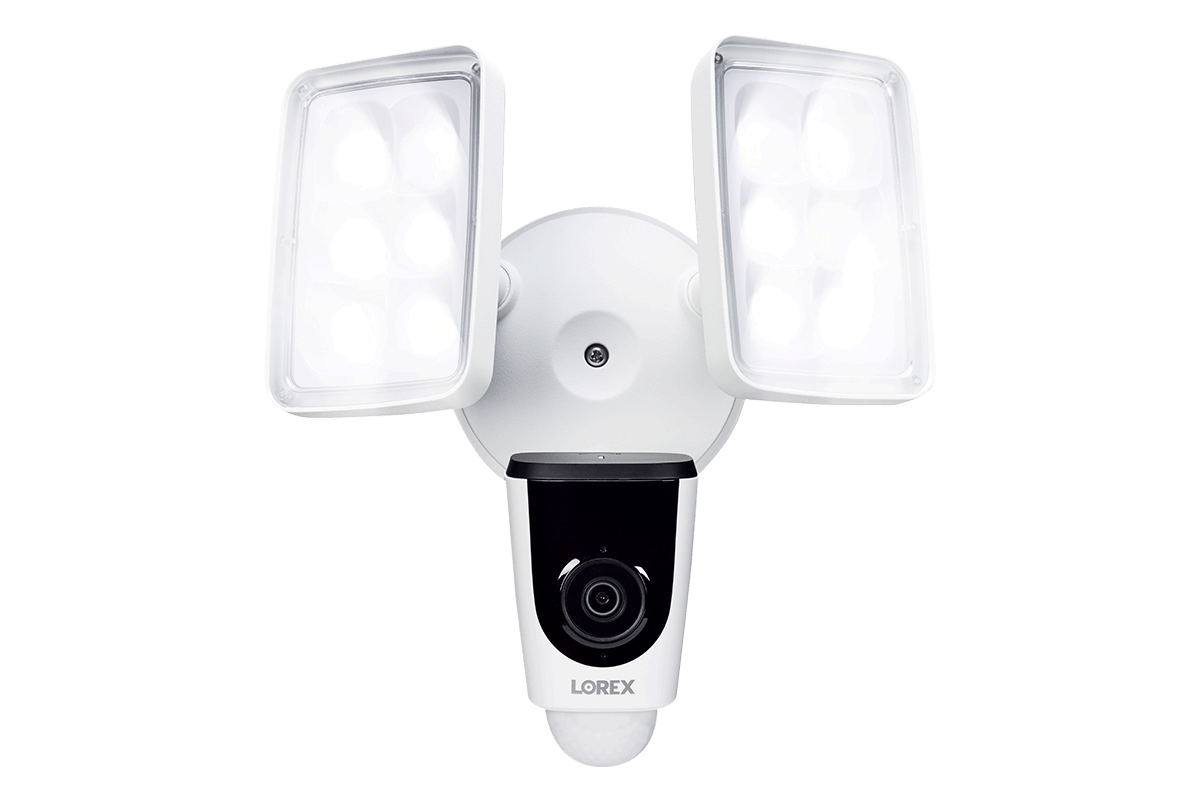

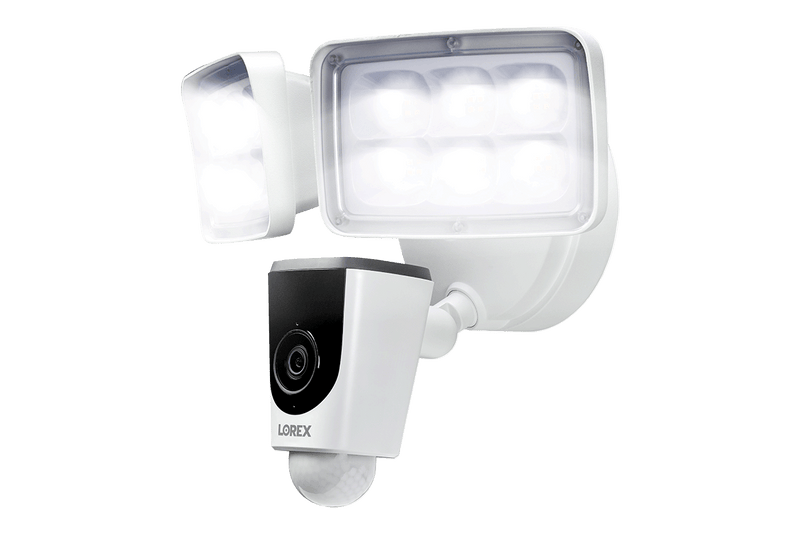

V261LCD HD WiFi Floodlight security camera
  • 2 × 2000 lumens light arrays for optimal light coverage
  • LED floodlight can activate when motion is detected, manually, or on a schedule
  • See more with 1080p resolution and a wide 137° Field of View (diagonal)
  • PIR Motion 270° Field of View (diagonal)
  • IR night vision up to 50ft (15m)1
  • No monthly fee for video recording, storage and photo capturing
  • Includes a 32 GB microSD card. Supports up to 256 GB microSD storage
  • Built-in mic and speaker for 2-way talk. Listen or talk directly to anyone on your property using the Lorex Home App2
  • Conveniently use the existing wiring from your previous floodlight or outdoor house light

Each V261LCD-E Camera Includes:

1 × HD Video Floodlight
1 × Mounting Kit
1 × MicroSD Card
1 × Quick Start Guide
  1. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 50ft/15m). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption
  2. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Amazon Alexa/Google Assistant compatibility may depend on the availability of services in your country.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Google, Google Home, Google Play and Google Play logo are trademarks of Google Inc.

Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
