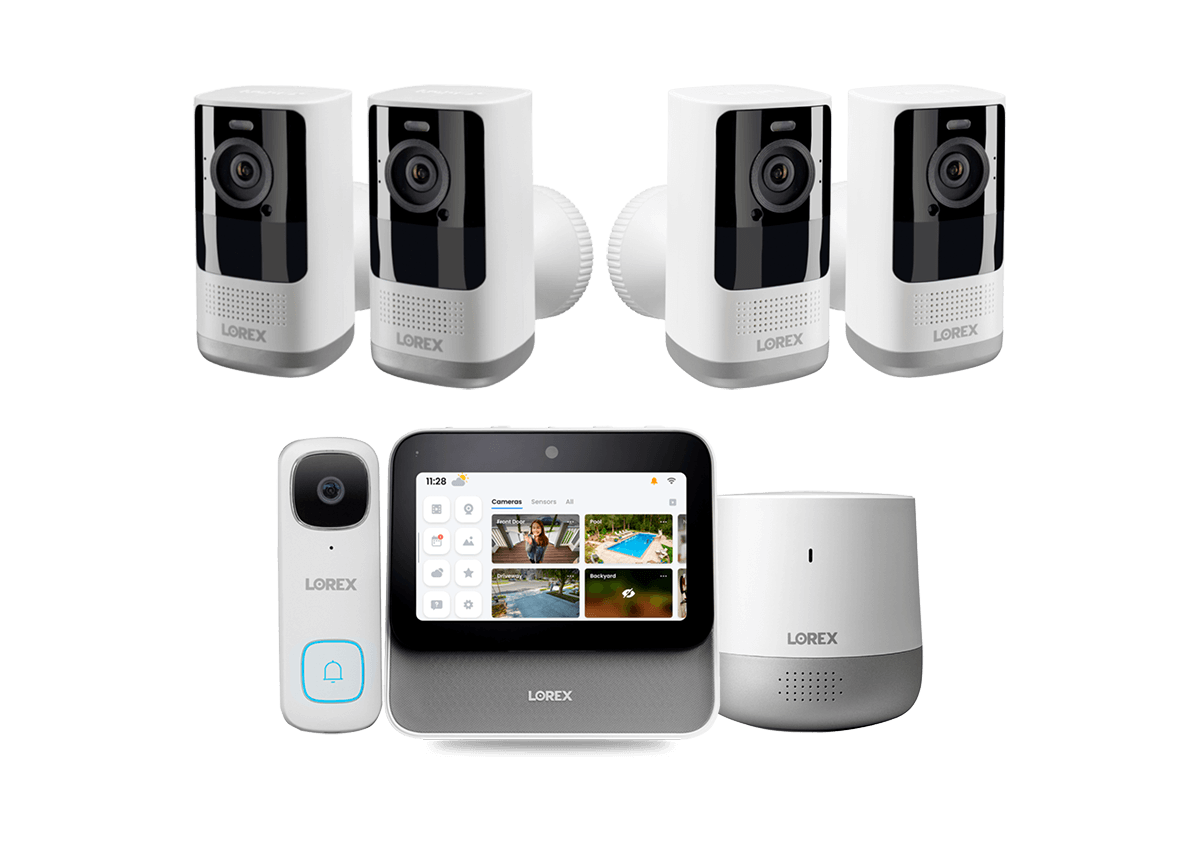

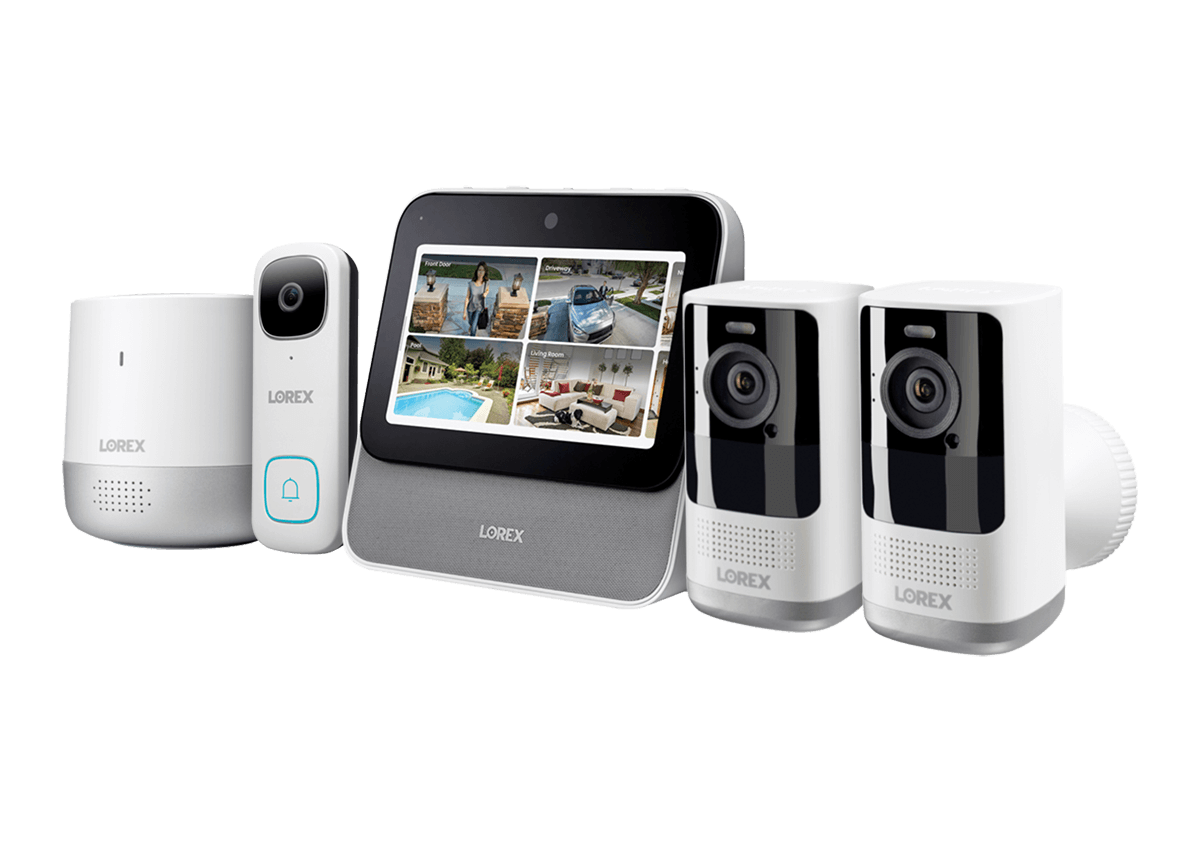

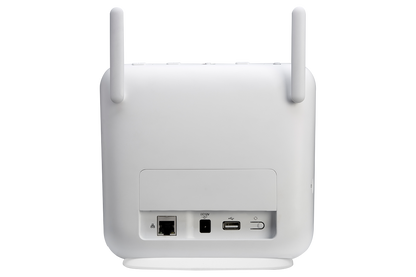

Lorex Smart Home Security Center with 2K Wire-Free Cameras, 2K Doorbell and Range Extender

HC64AT2U-W
Number of cameras:
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

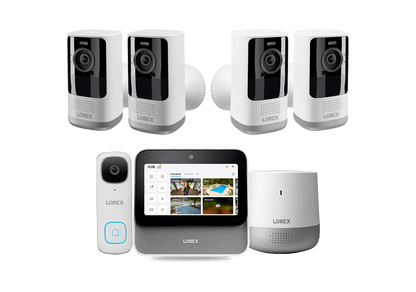

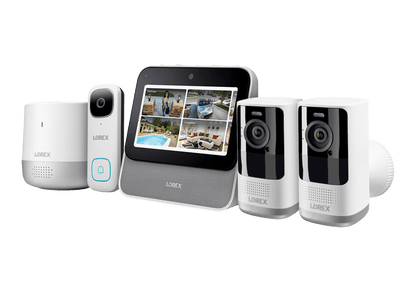

Home monitoring has never been easier with this indoor/outdoor 2K Wire-Free Security System. Featuring the Lorex Smart Home Security Center (LSHSC), a 2K Wi-Fi Video Doorbell, a 2K resolution wire-free cameras and a range extender, this system will provide you with straightforward and secure home security to help you protect what matters most with no monthly fees



HC64ATU-W

SPECIFICATIONS

2K

RESOLUTION

Twice the resolution of 1080p

2

CAMERAS

Wire-Free camera + Video doorbell

64GB

MICRO SD

Maximum 1× 256GB microSD / 1TB M.2 2280 SATA SSD M

2K Resolution Recording

A 4MP image sensor provides 2X the resolution as 1080p. This creates exceptionally sharp and detailed video.

Color Night Vision™

Have around-the-clock coverage, even in ambient lighting with Colour Night Vision™. For very low light setting, IR Night vision activates.

Built-in Person Detection

Know the moment a person is detected on your property with notification alerts sent directly to your smartphone.

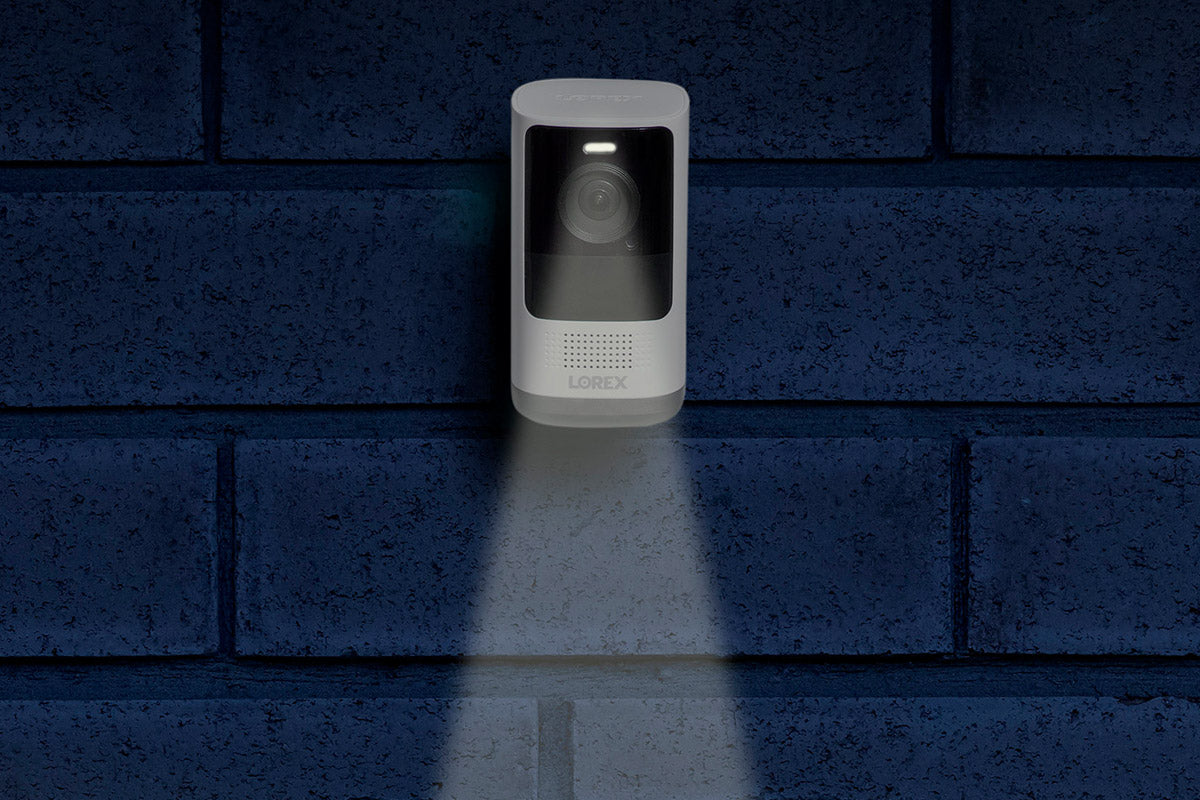

Smart Deterrence

Easily deter any unwanted guests with a motion-activated LED warning light on your wire-free cameras and doorbell.

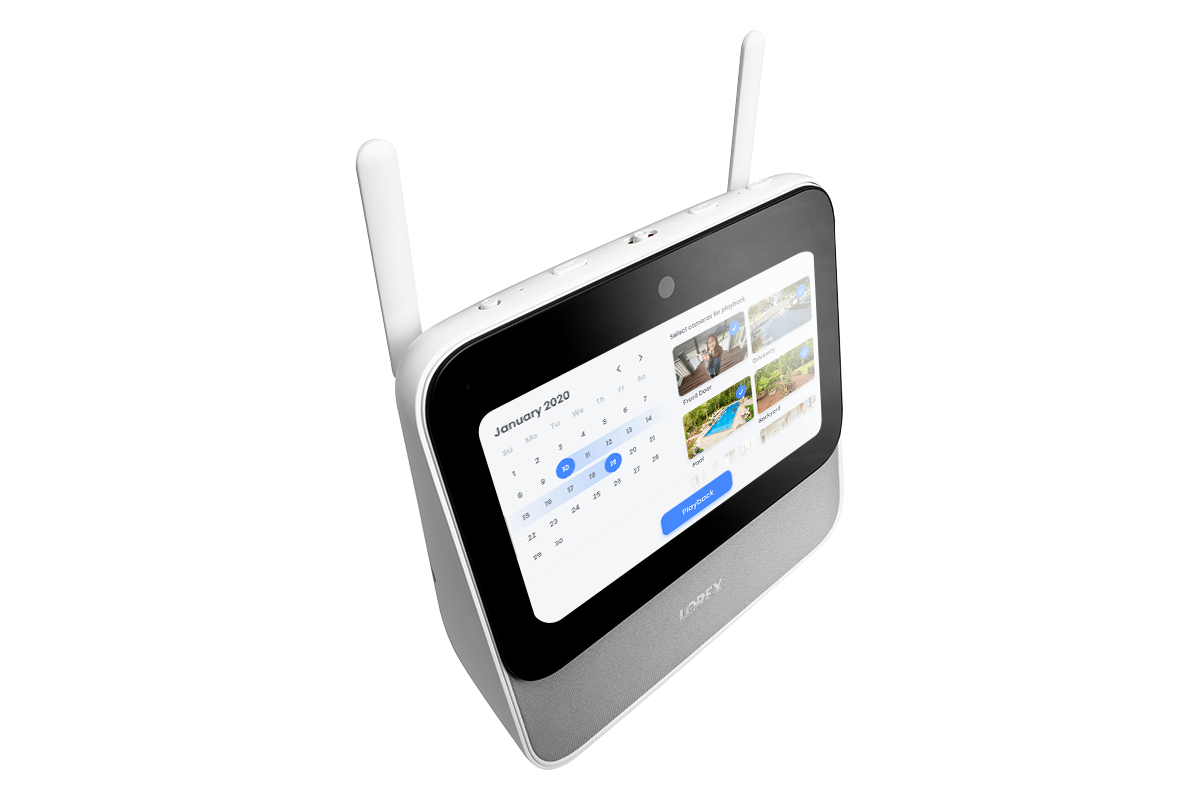

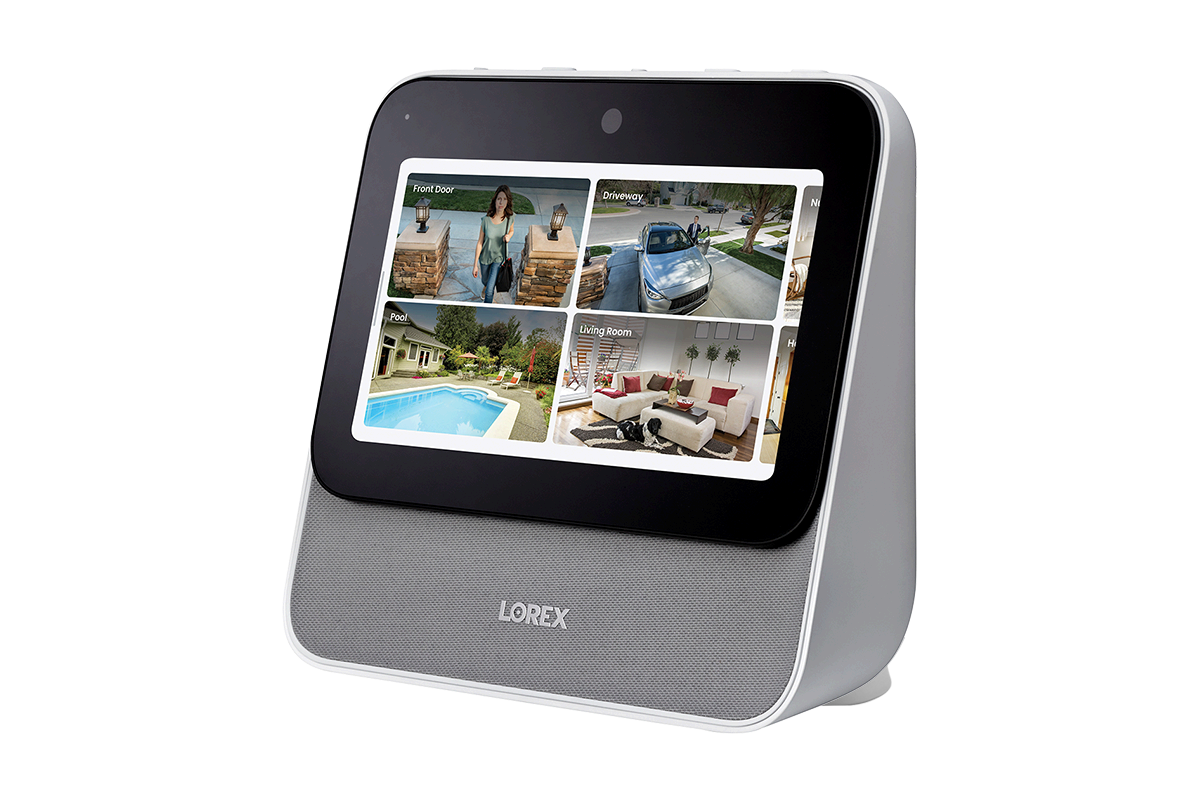

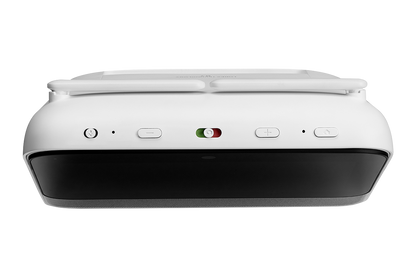

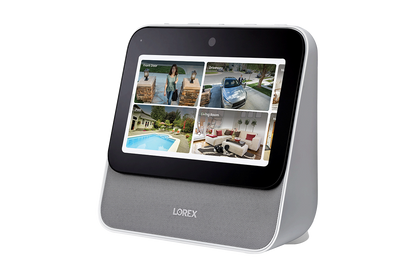

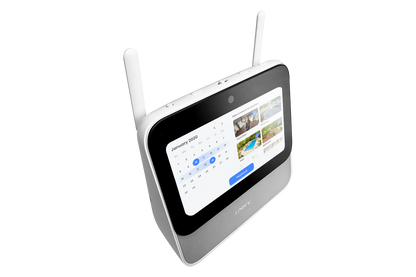

The center of your home



The all-in-one LSHSC simplifies your home monitoring experience with its intuitive touch smart display.

Control and access all compatible Lorex devices with the intuitive 7-inch touch display.

There are several built-in features to ensure your privacy. Log in to the LSHSC quickly with the Face Unlock feature. Select privacy mode for compatible cameras to turn off streaming and recording for those private moments. You also have the option to disable the built-in microphone and cover the front camera lens.

Pair a variety of Lorex wireless devices and control them from the LSHSC to build the perfect security system for your home. Adding new devices is simple with a built-in step by step setup guide.

View all compatible devices

Use the Lorex Voice™ Assistant to access your cameras and view footage with simple voice commands. This voice assistant is hosted entirely on the LSHSC and is not connected to the internet for ultimate privacy.

The LSHSC includes a surveillance-grade class 10 64GB microSD card, upgradable to a maximum of 256GB microSD and/or a 1TB M.2 2280 SATA SSD M.

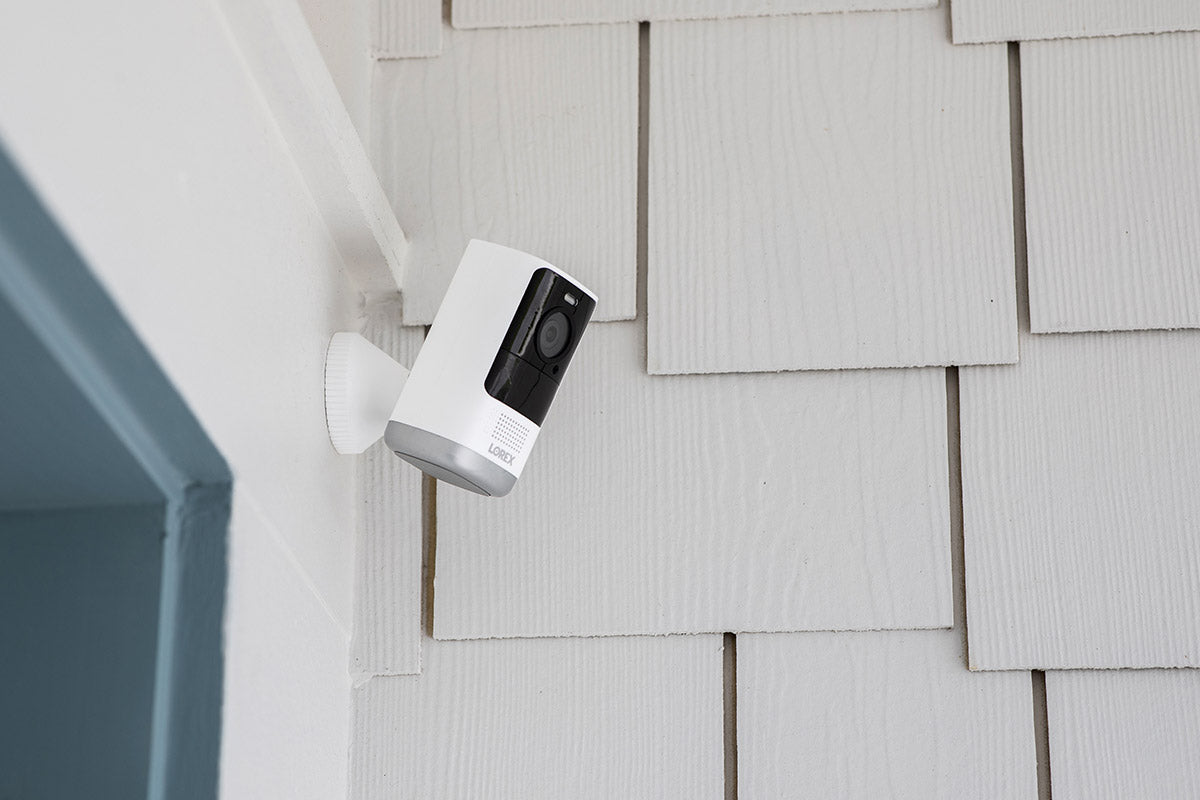

Wire-Free, worry-free



Have the coverage that you need to keep everyone and everything safe and secure.

Quick-release, rechargeable battery pack to ensure no down time in your wire-free security monitoring.

IP65 Weather resistant rating for indoor or outdoor application.

The built-in microphone and speaker allows you to use your smartphone to communicate to anyone at the other end of the camera. This is perfect for meeting people at doors or deterring any unwanted guests.

The remote-triggered siren is activated directly from your smartphone. So when a motion alert is sent to your phone, you can turn on the siren to deter unwanted guests from your property.

HEVC (also known as H.265) encoding technology efficiently compresses file sizes up to 50% more than files using the previous encoding technology (H.264), without any noticeable degradation in quality.

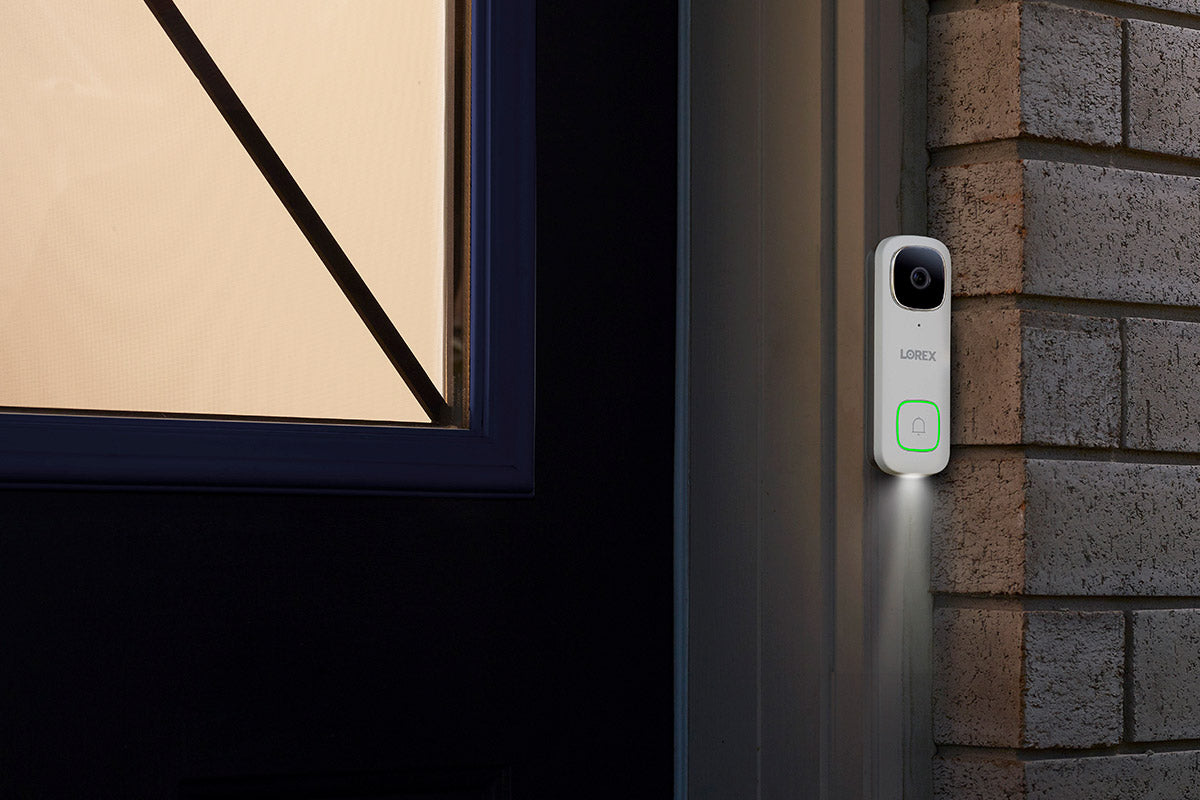

Convenience and Security

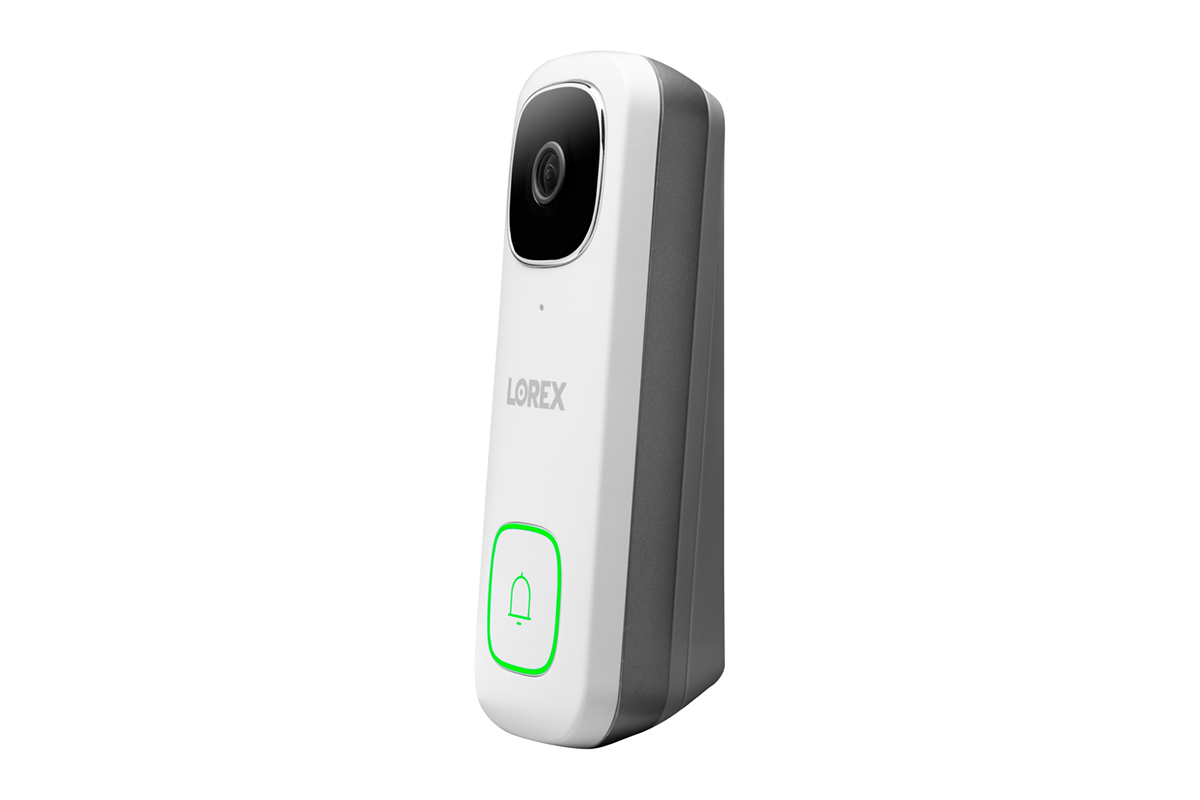

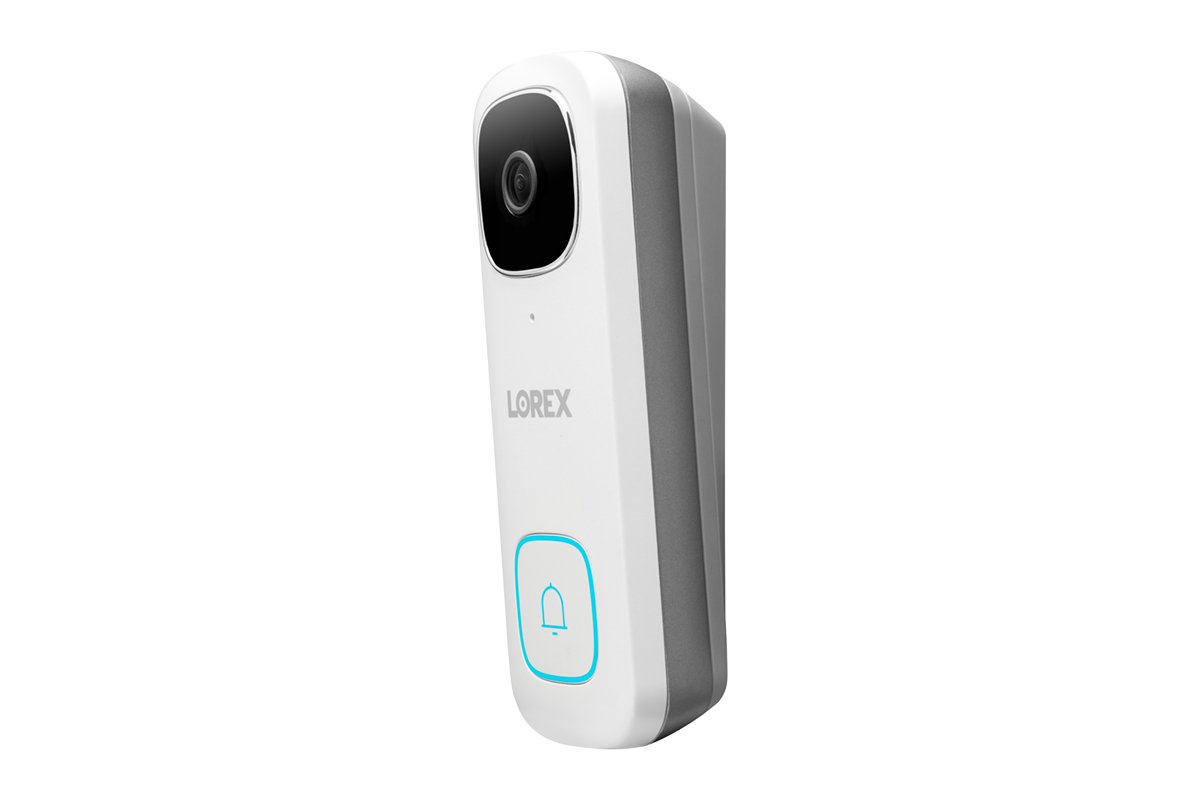

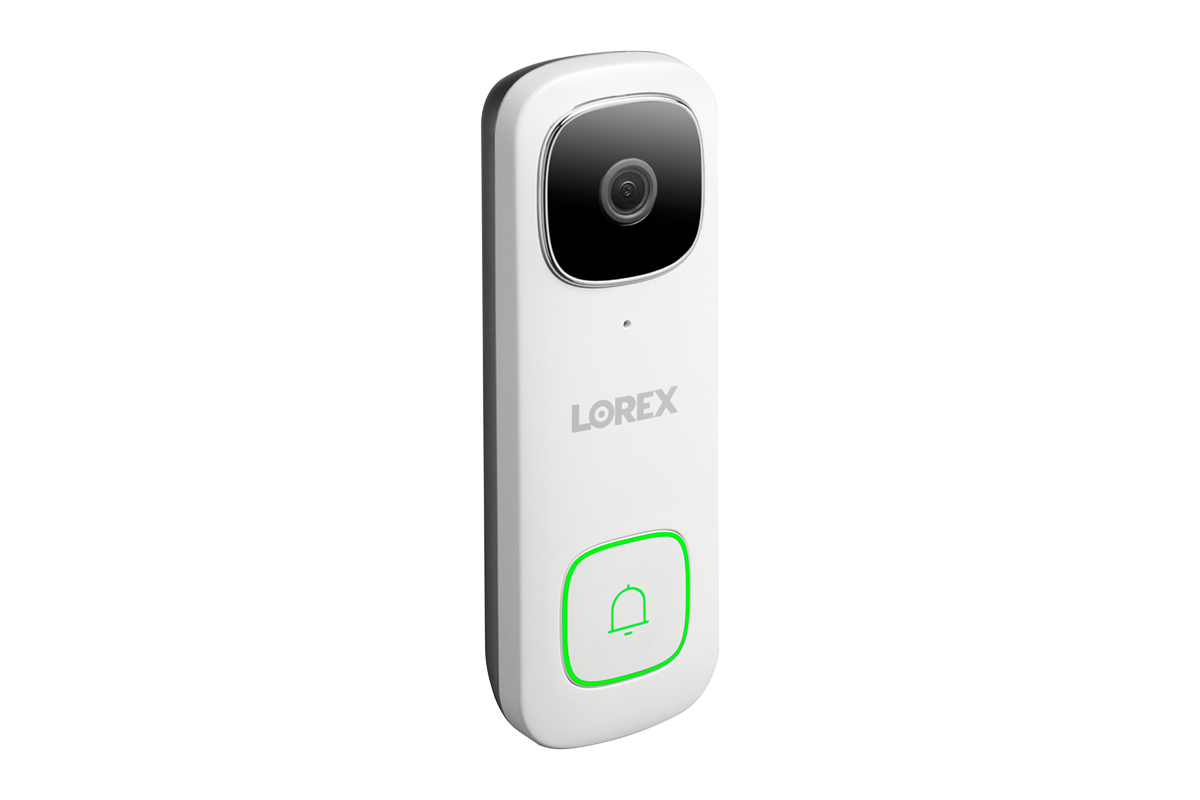

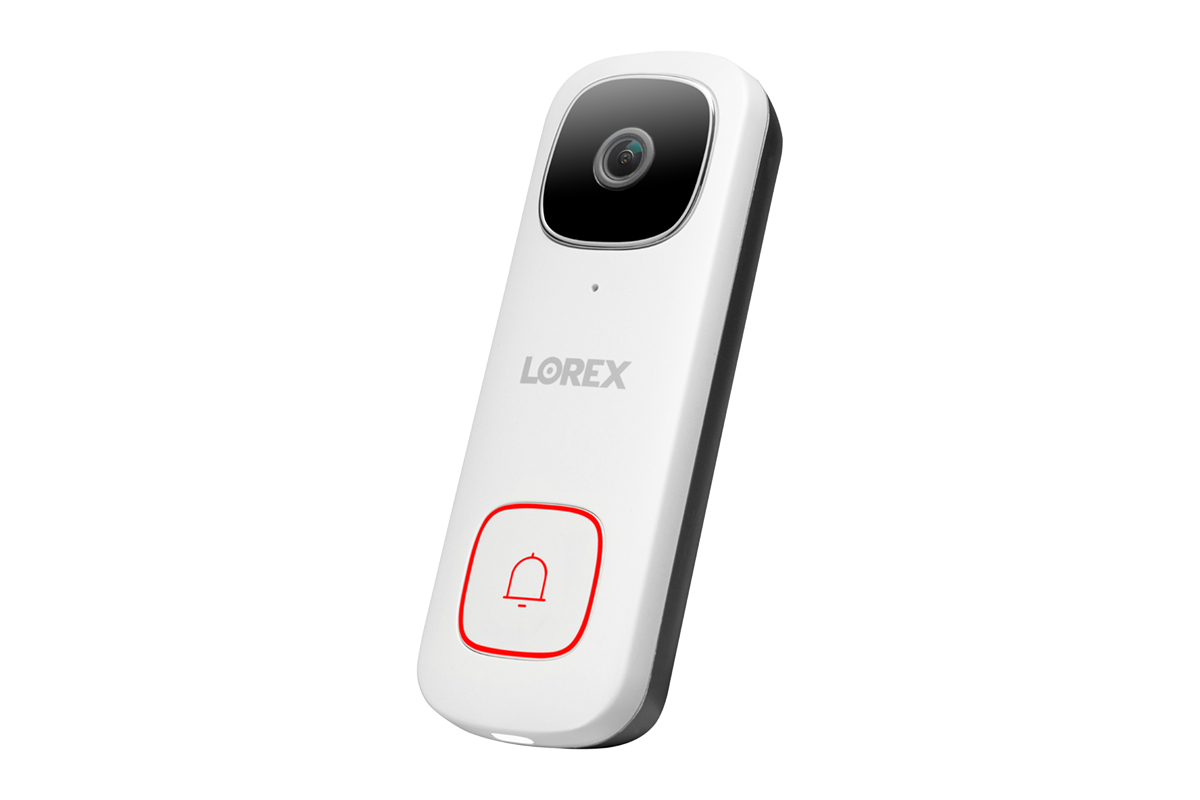

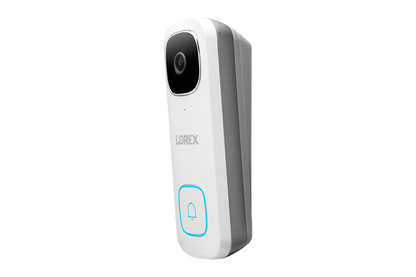

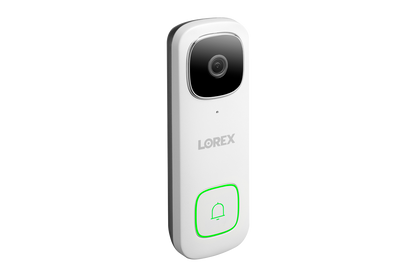

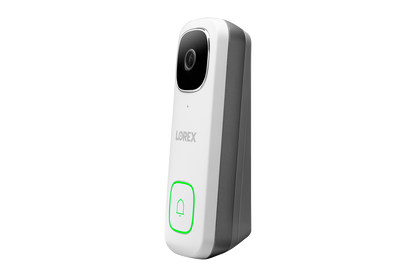

See who's at the door, greet guests with a nightlight, answer the door from anywhere, play pre-recorded messages when someone rings, and talk to those on the other side with the 2K QHD Doorbell.

Thanks to a pre-motion recording feature, the doorbell will automatically start recording 5 seconds before the event starts so you don't miss any action.

Automatically receive notifications to your phone telling you that there is someone at the door.

Use 1 of 3 quick responses to greet visitors who ring your doorbell. You can even record your own custom message to add your personal touch or speak directly through the doorbell using 2-Way Talk.

See more with a 164° viewing angle and 4:3 aspect ratio showing you the full picture.

View comparison

HDR automatically corrects exposure when lighting is not ideal.

View comparison

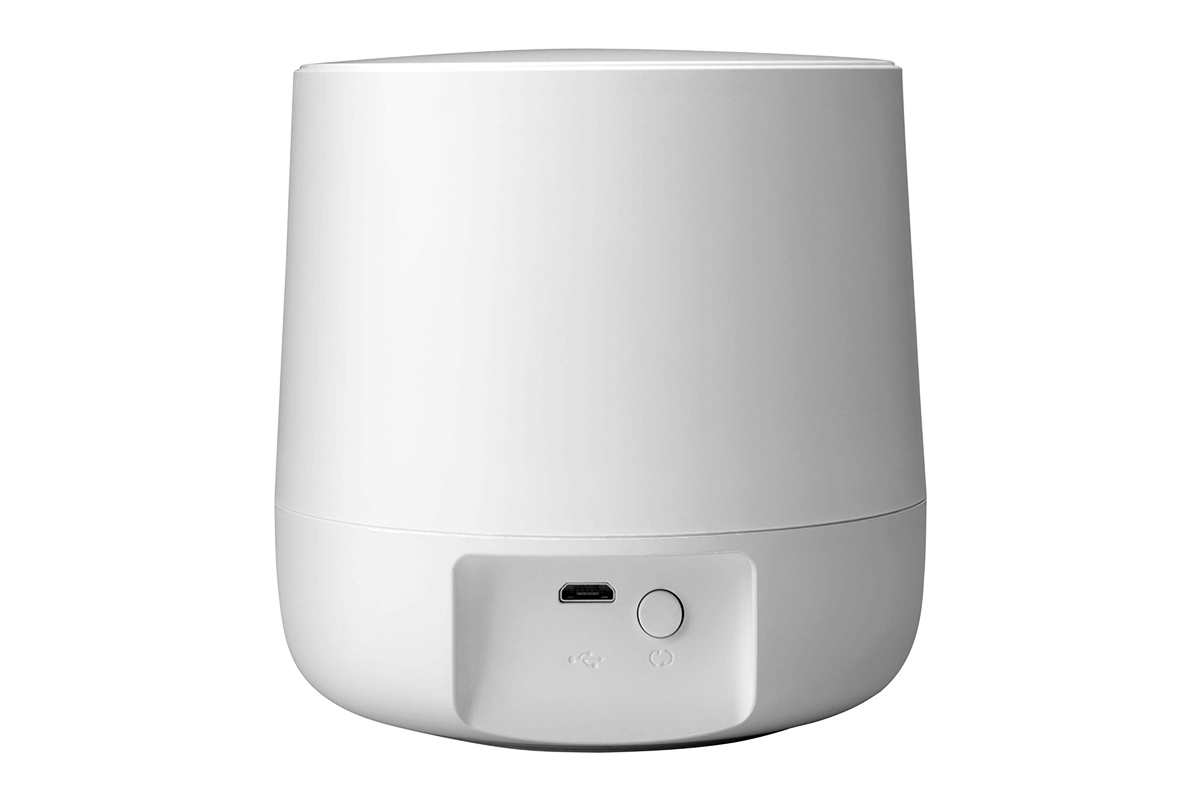

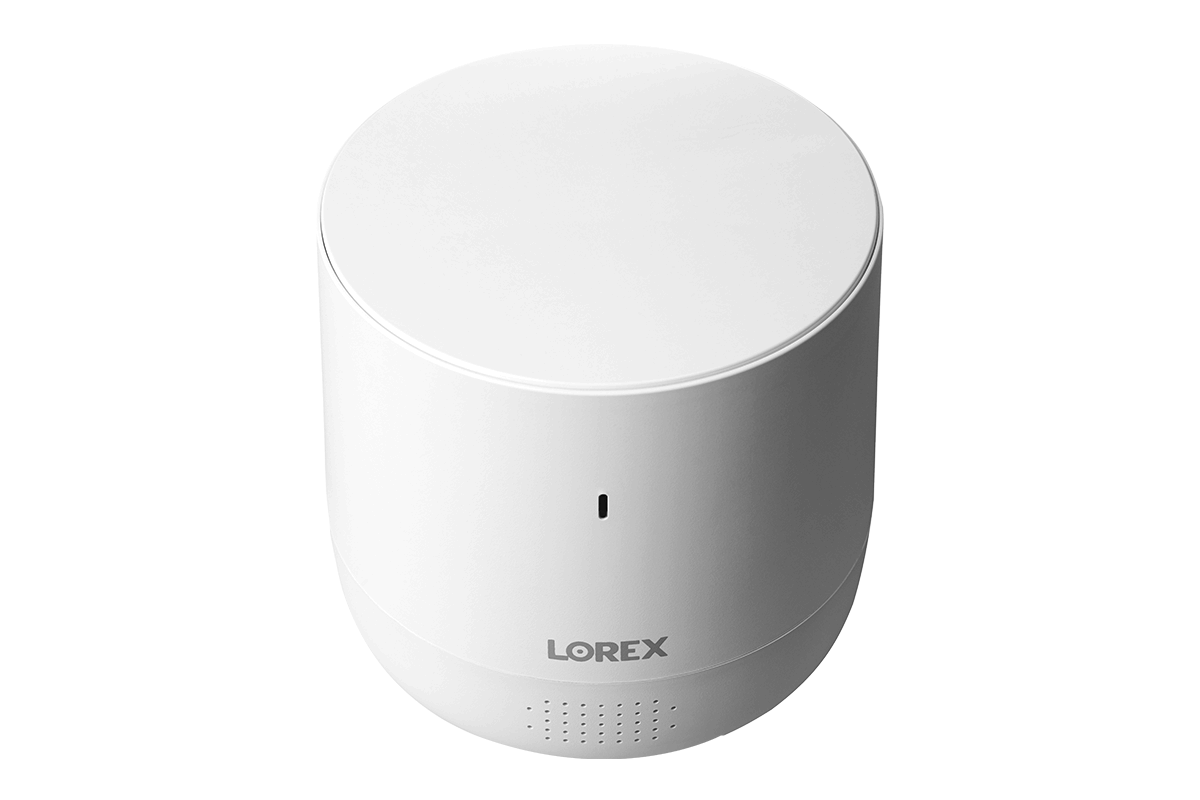

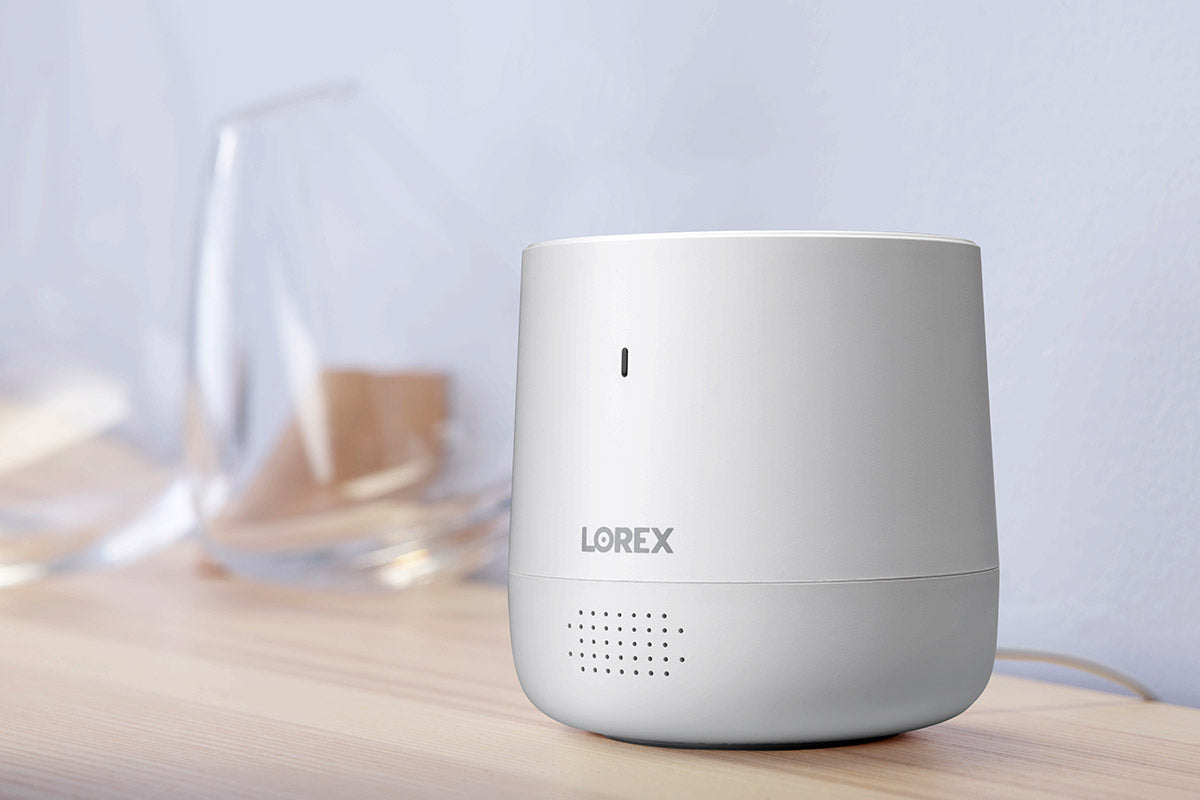

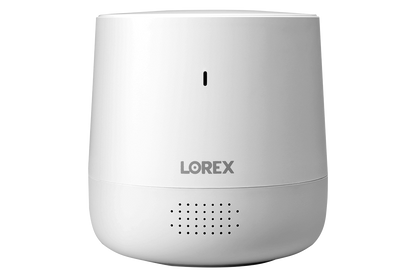

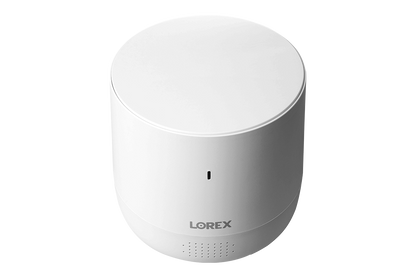

Extend the range of your cameras



Use the included Range Extender with your LSHSC to amplify the wireless signal to all connected devices. This will create a stronger link to distant cameras or doorbells and increase their performance to help maintain a constant connection.

Works with Google Assistant Works with Alexa

Smart home compatibility

Get faster access to you security system with hands-free voice control. Use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™. Use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.



Stay connected on-the-go with the Lorex app



Your Lorex devices will always be within reach with help from the Lorex App. This versatile app allows you to remotely access your Lorex cameras so you can easily view live videos, customize your system settings, playback recorded motion events and more.

Download on the App Store
Get it on Google Play


Video

What's Included?

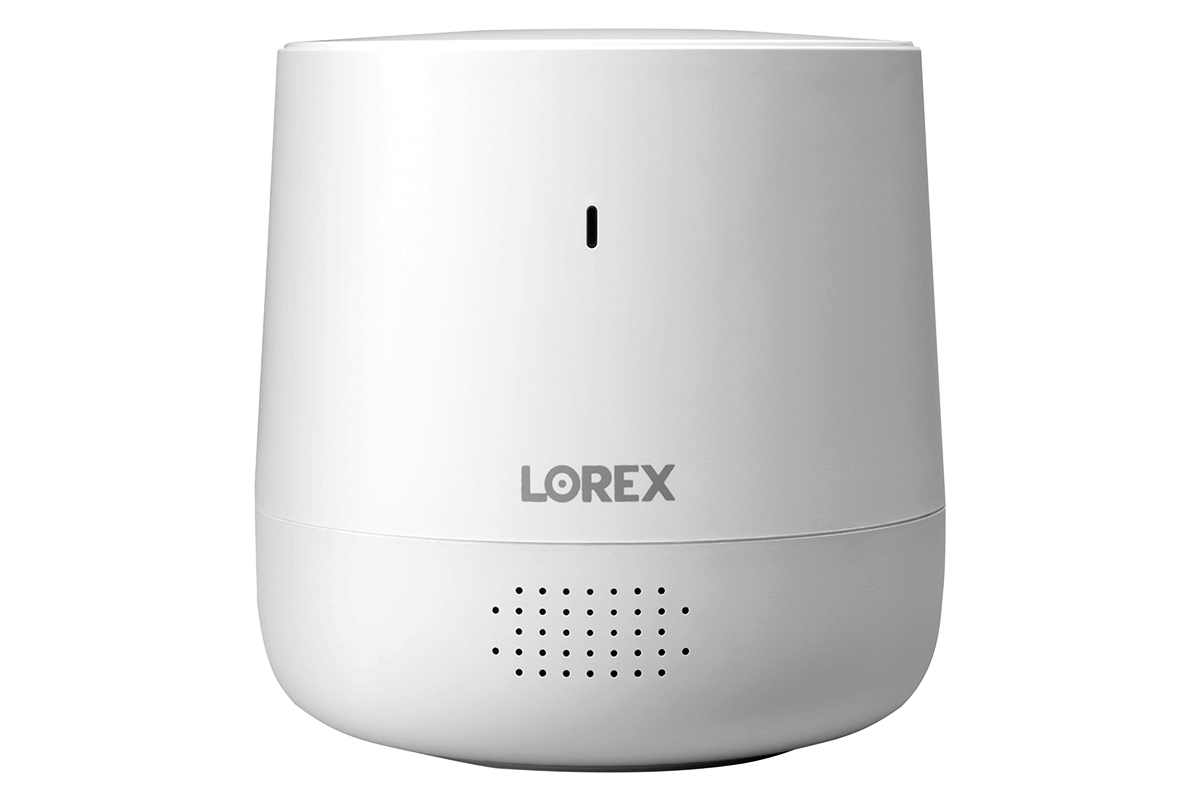

AX62TR.svg Line Art

  • Light status indicator
  • Built-in speaker and chime
  • Compact and modern design
  • Quick and easy setup
  • Works with the LSHSC

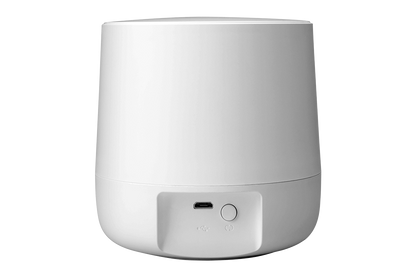

Each AX62TR Series Includes:

1 × Range extender
1 × Power adapter
1 × Power cable
  1. This product requires a Lorex Smart Home Security Center and is not a stand-alone device.

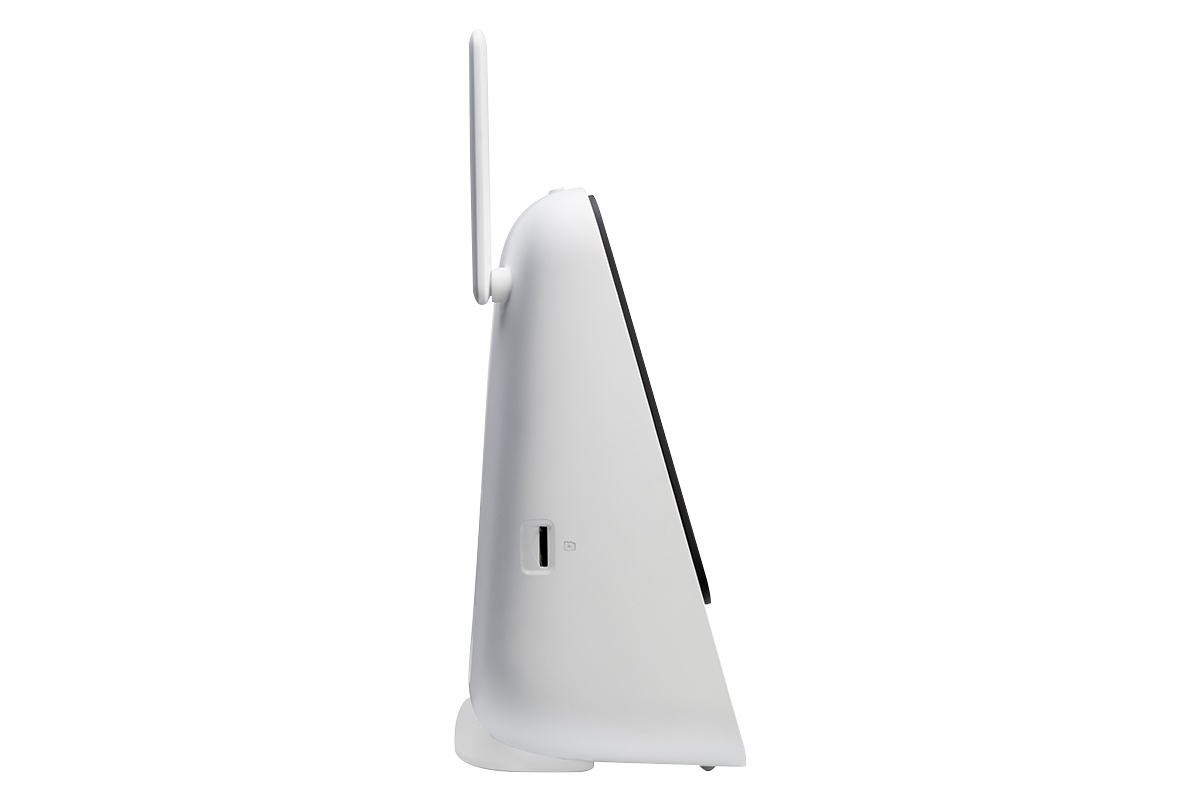

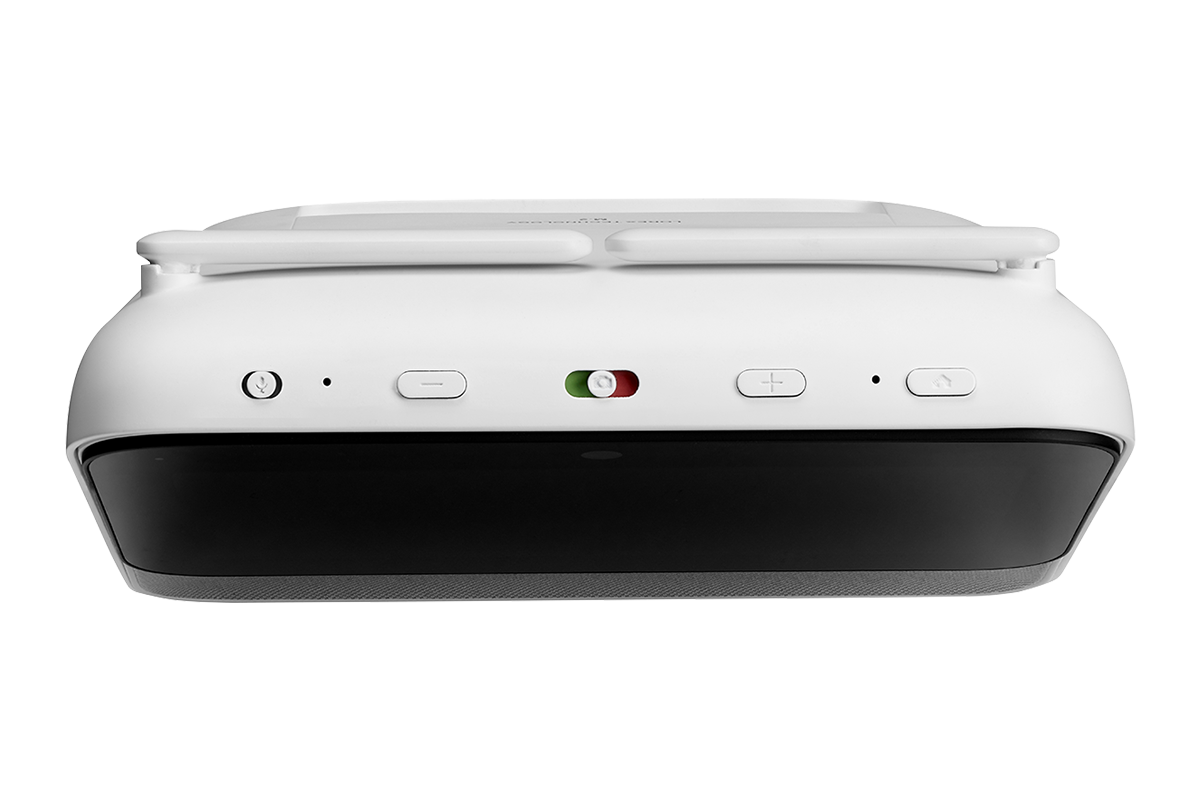

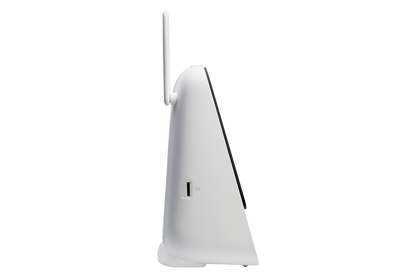

LSHSC Dimensions LSHSC Labels

Screen Size 7" Diagonal
Screen Type LCD Touch Screen
Audio Full Duplex 2-way Audio
Microphone 2 × Noise Cancelling Microphones
Built-in front camera 1080p, support physical cover
Speakers 3 × Speakers
Camera Built-in
Wireless Camera Support Up to 8×1080p or 4×2K
Wireless Sensor Support Up to 32
Simultanous Camera Viewing Up to 4 channels
Voice Assistant Lorex Voice Assistant
Privacy Features Local Voice Assistant, Microphone Disconnect Switch, Camera Cover
Digital Zoom Camera Dependent
Log-in Options Password or Face Unlock
Status LED Multi-color LED status bar indicator
Sensors Ambient Light
Storage microSD (up to 256GB) or M.2 2280 SATA SSD M (up to 1TB)*
Internet Recommendation 2 cameras ~4Mbps / 4 cameras ~10Mbps @1080p upload speed**
Home Router Connectivity 100Mbps Ethernet or 5GHz Wi-Fi
Device Connectivity 2.4/5GHz Wi-Fi / BLE 5.0

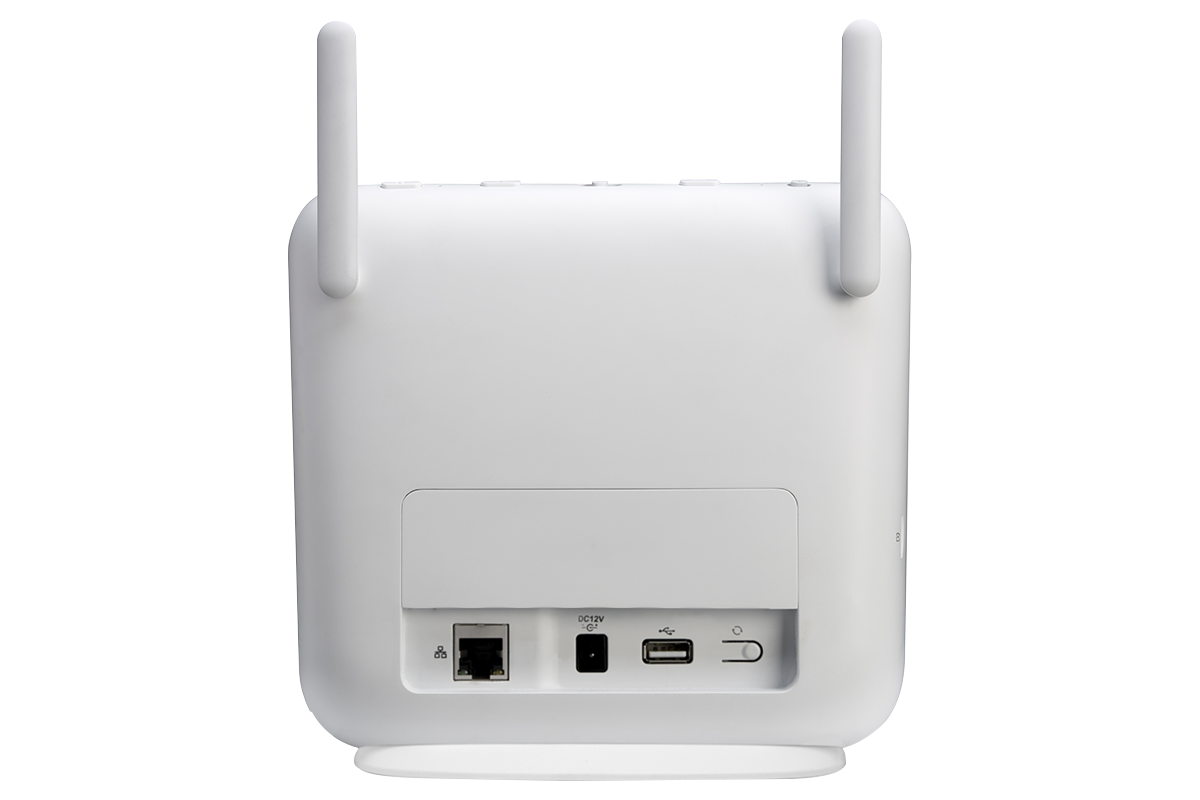

Ports Power, Ethernet, 1 × USB
Weather Rating Indoor only
Operating Temp. Range 32~104°F / 0~40?
Languages English
Power 12V DC / 2A
Available Color White
Dimensions 7.5 x 3.6 x 7.0" / 19.0 x 9.1 x 17.7cm
Weight 1.81lb / 0.92kg

Each LSHSC-E Camera Includes:

Lorex Smart Home Security Center
1 × Power Adapter
1 × Ethernet cable
Quick setup guide
64GB microSD card (pre-inserted)
  1. Playback screen is HD resolution. Footage can be exported at full resolution, or can be zoomed into on the device.
  2. Compatible with certain Lorex wireless cameras only. For a list of compatible cameras please visit lorex.com/compatibility
  3. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit: lorex.com/smarthome
  4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your recorder has a connection to a router (not included). An upload speed of at least 5 Mbps is recommended for remote video viewing.
  5. For the latest list of supported apps and devices, please visit lorex.com/compatibility

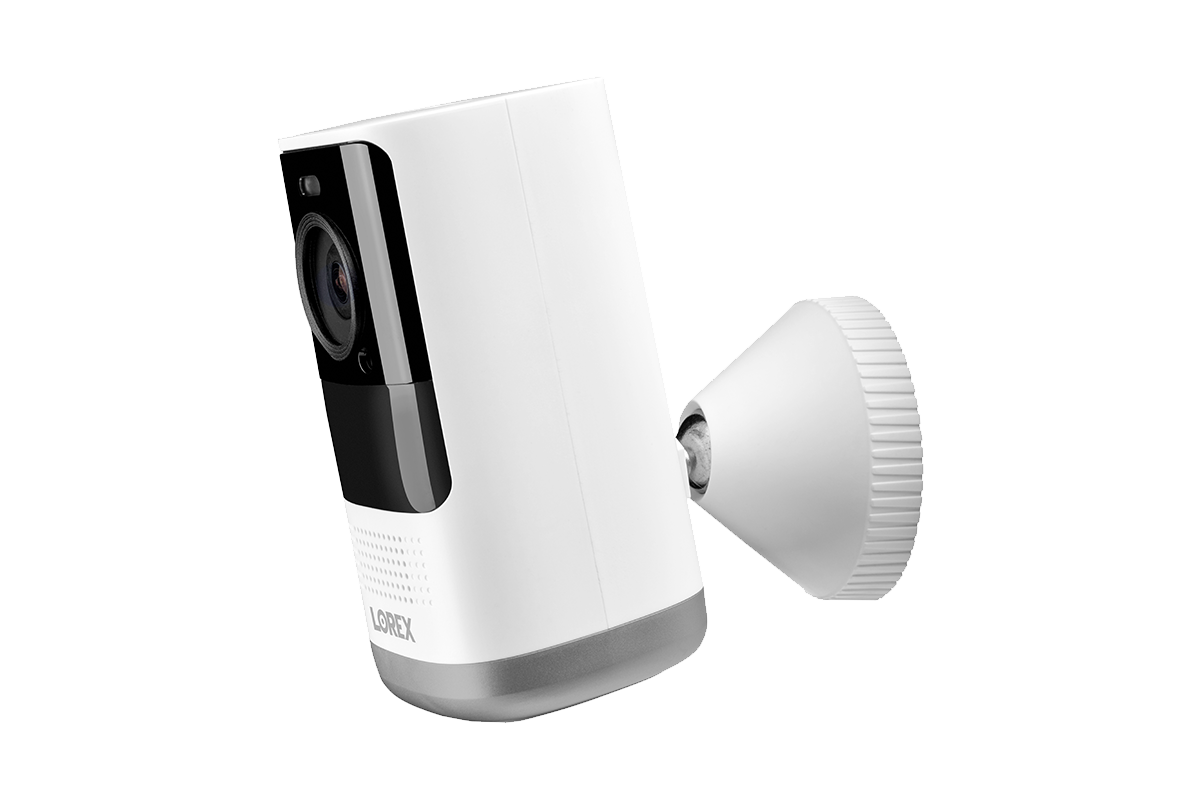

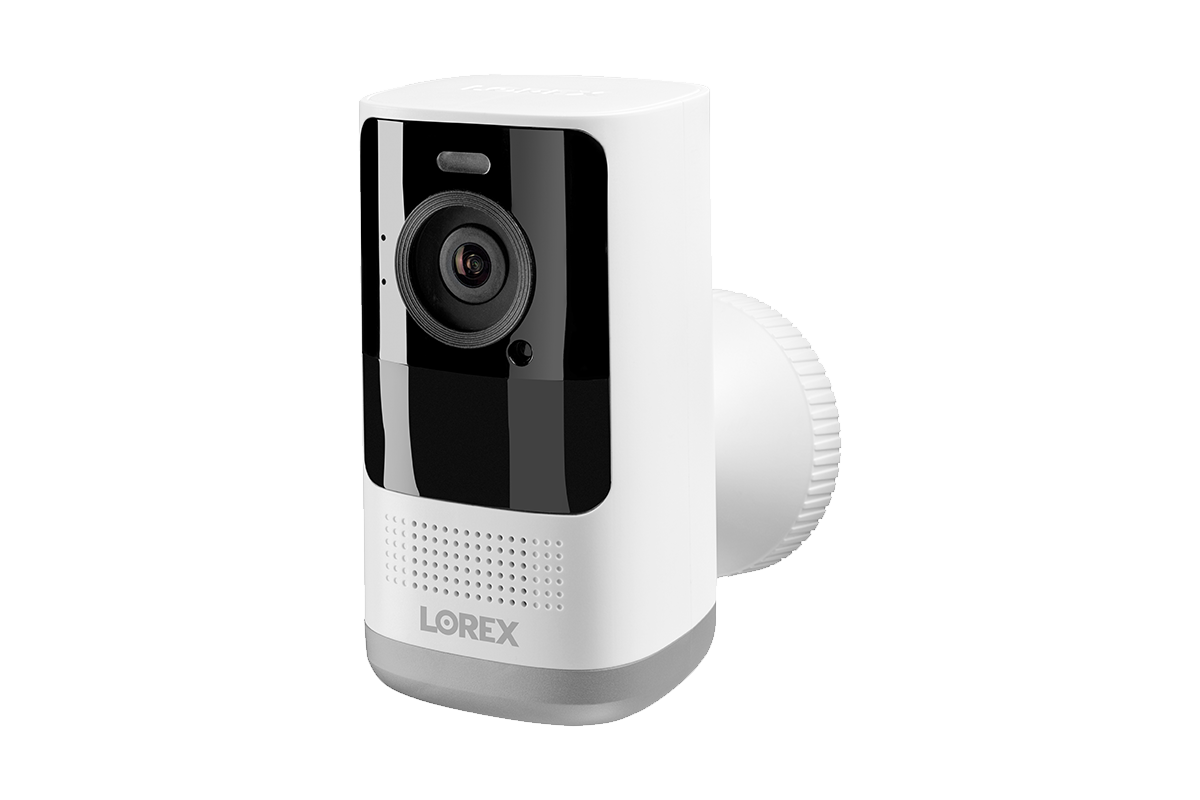

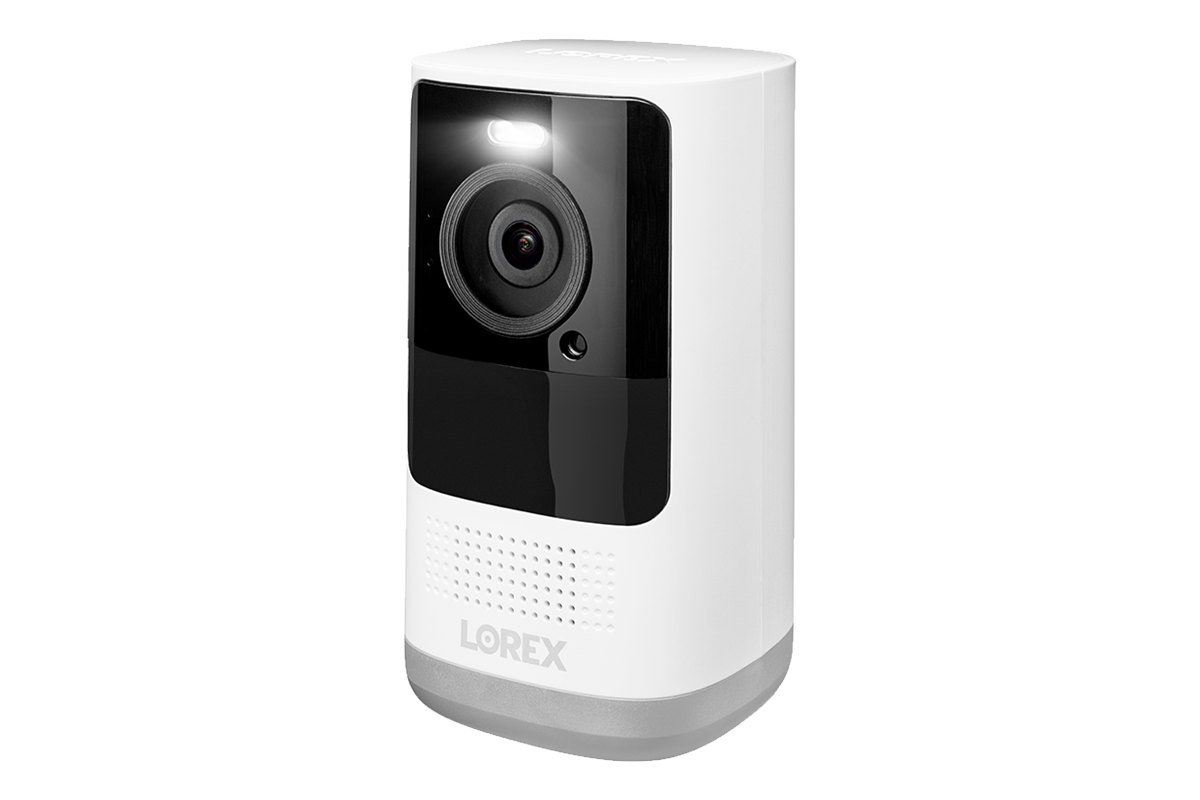

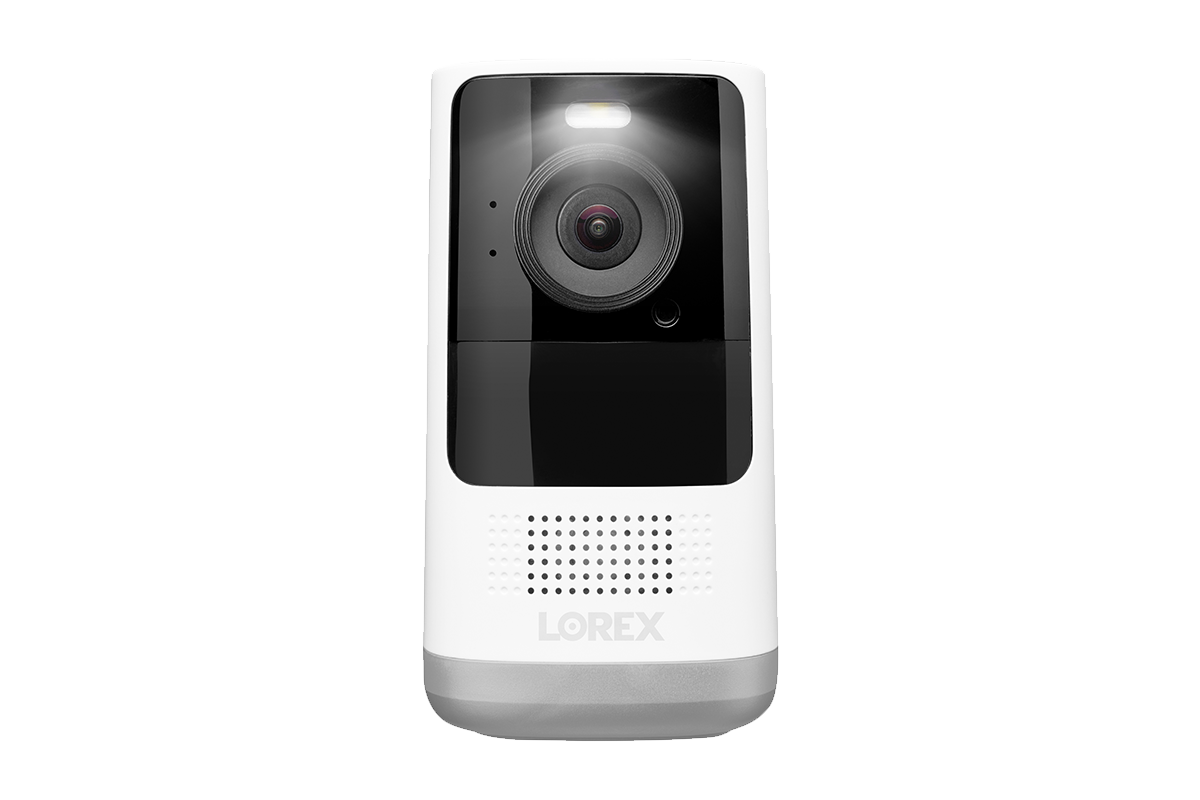

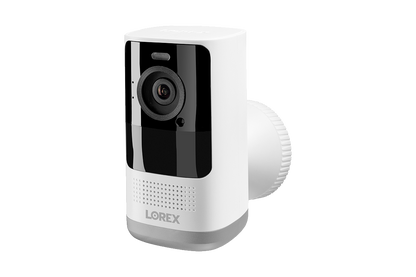

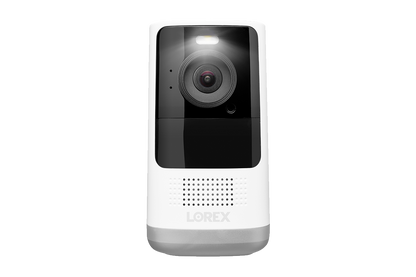

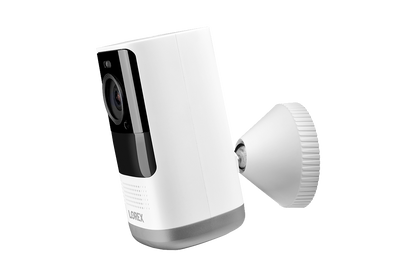

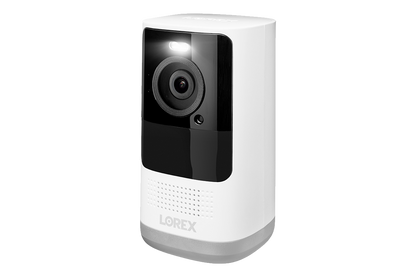

U471AA 2K QHD Wire-Free Camera

  • 2K QHD Resolution
  • Built-in Person Detection
  • Color Night Vision™
  • Warning Light and Siren Including 2-Way Talk
  • 140° Wide Field of View
  • Quick-release Rechargeable Battery
  • IP65 Weather Resistant

Each U471AA-E Camera Includes:

1 × Wire-Free Camera
1 × Mounting Bracket
1 × Mounting Kit
1 × Rechargeable Battery
1 × Quick Start Guide
  • Cameras not intended for submersion in water. Installation in a sheltered area recommended.
  • Battery life will vary based on temperature, settings, and number of events.
  • Power adapter is highly recommended for high-traffic areas. Additional camera power adapters are sold separately.
  • Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to conform with local laws.

For smart home compatibility, features, and instructions visit lorex.com/smarthome.

B451AJ wall mount dimensions

Dimensions (WxDxH): 5.1" x 1.8" (130mm x 45mm)
Weight: 1.17lbs / 0.53kg

Package Contents:

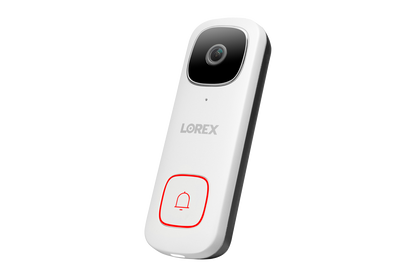

2K Video Doorbell

Pre-inserted microSD Card

USB Cable

Electrical Wiring

Mounting Kit

Quick Start Guide

15° Horizontal Bracket

5° Vertical Bracket

  1. Impressive 2K Resolution for clear video quality.
  2. See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
  3. Get the best picture always with HDR imaging.
  4. Use pre-recorded messages or 2-way talk1 to greet visitors.
  5. Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
  6. Deter unwanted guests with the remote-activated siren.
  7. Be aware of activity around your doorstep with built-in Person Detection feature.
  8. Receive notifications from the Lorex App™ app when motion is detection2.
  9. Local microSD storage, expandable up to 256GB.
  10. Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
  11. Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
  12. Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
  13. Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3
