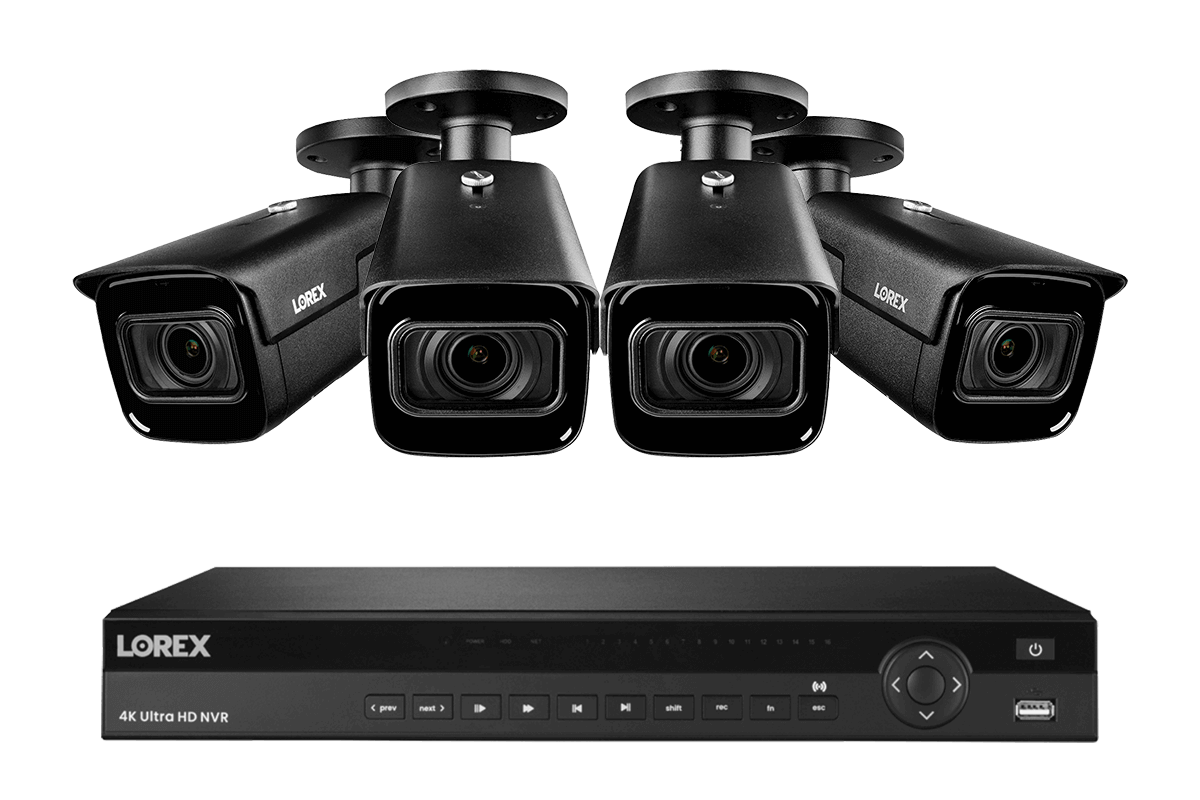

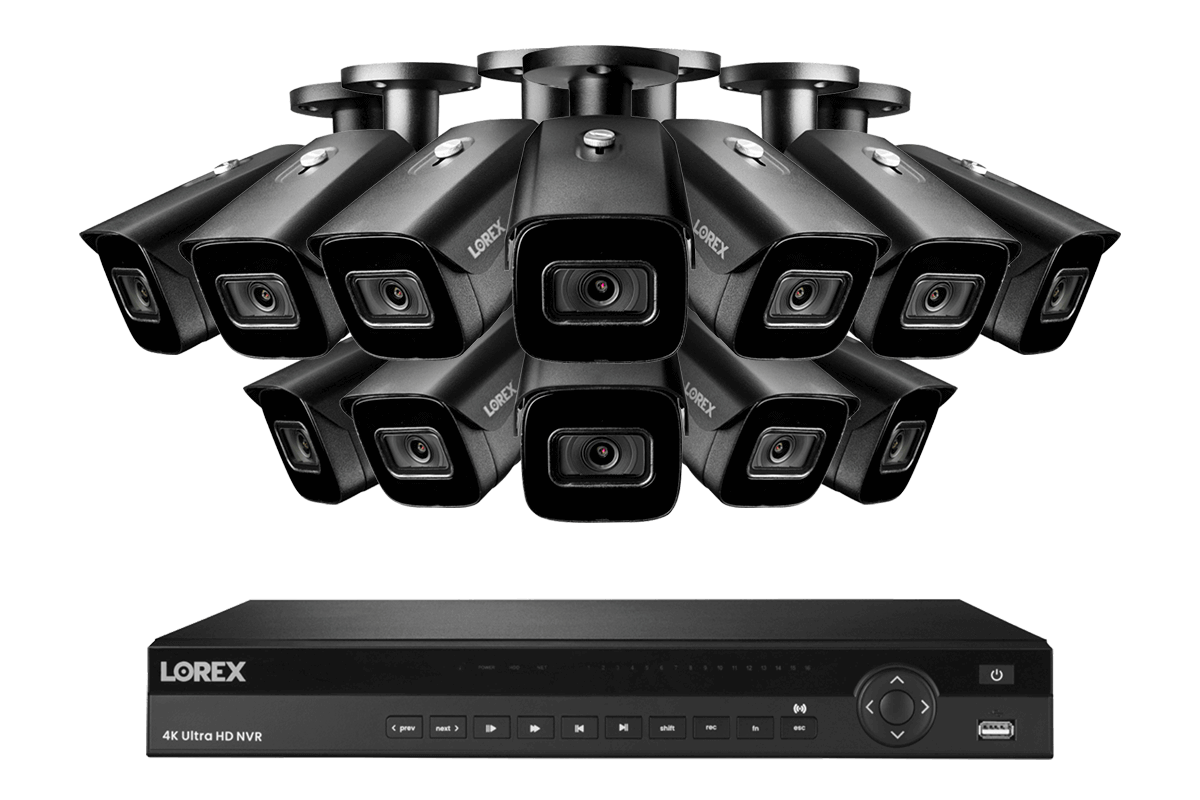

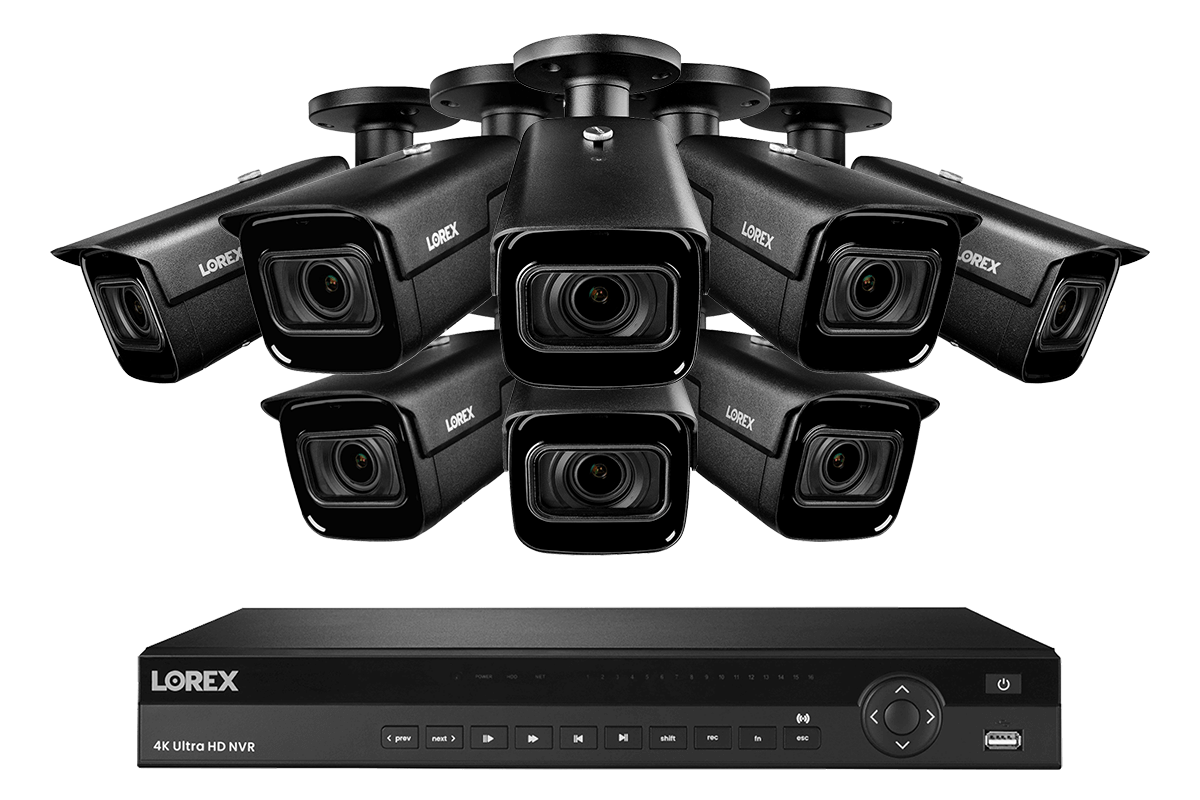

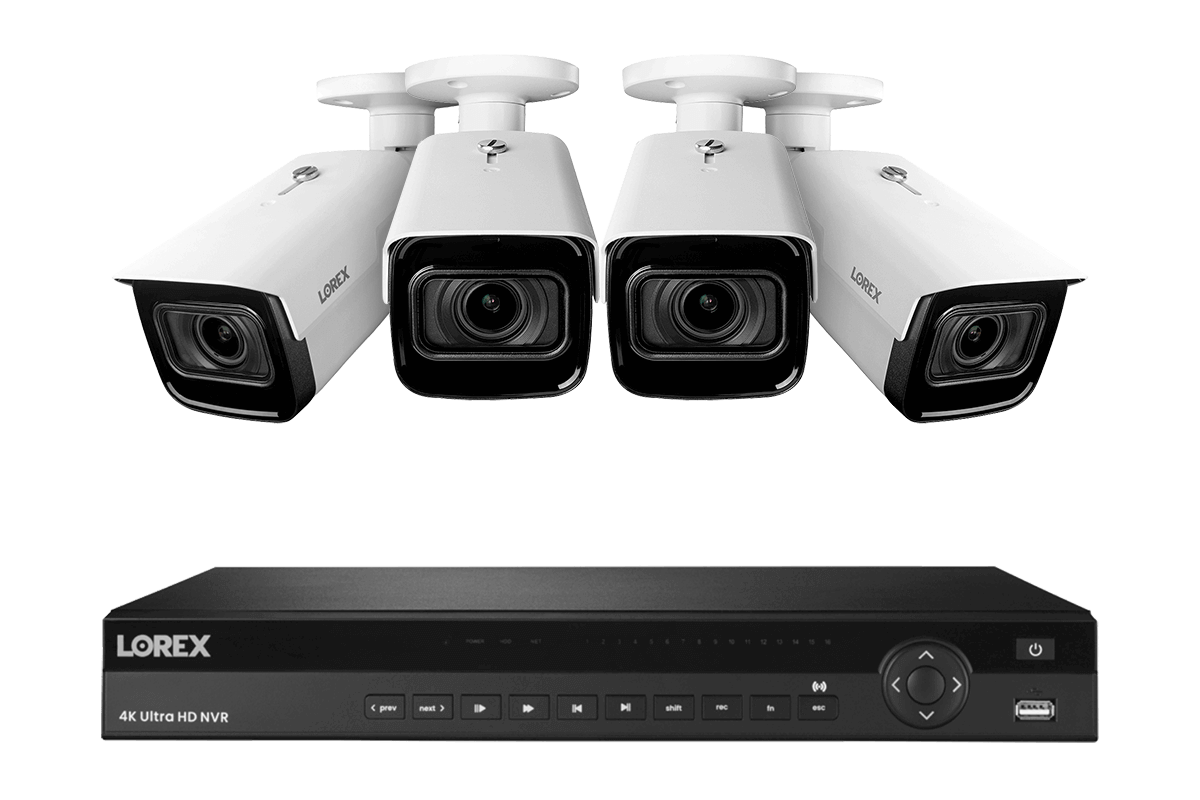

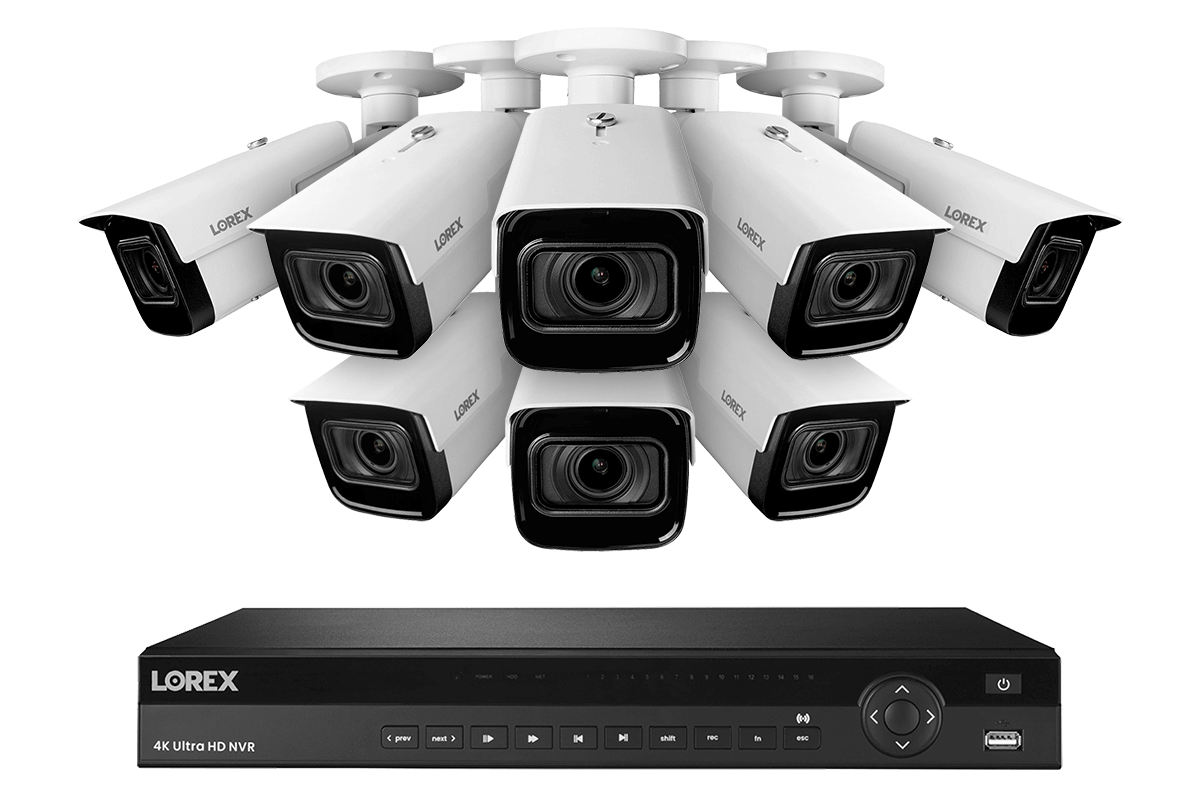

Lorex Nocturnal 3 4K 16-Channel 4TB Wired NVR System with Smart IP Cameras, 30FPS Recording and Motorized Varifocal Zoom Lenses - Lorex Corporation

Roll over image to zoom in Click on image to zoom

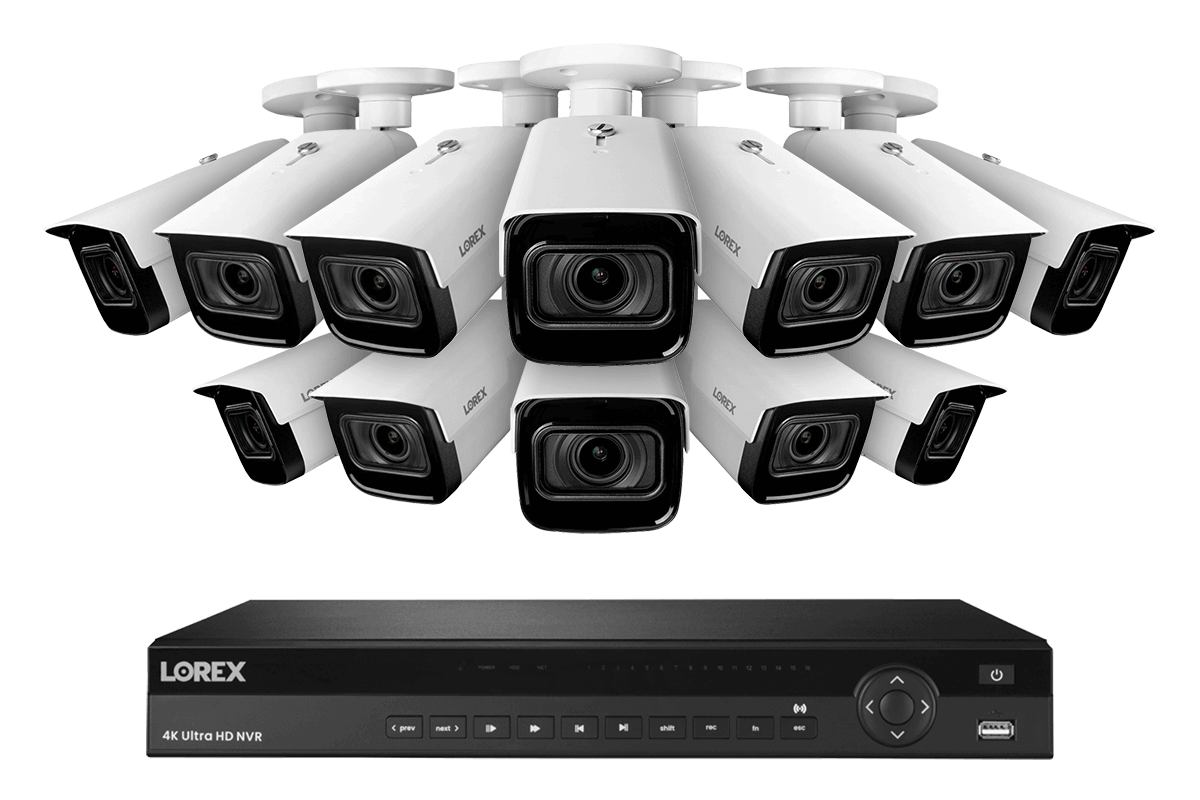

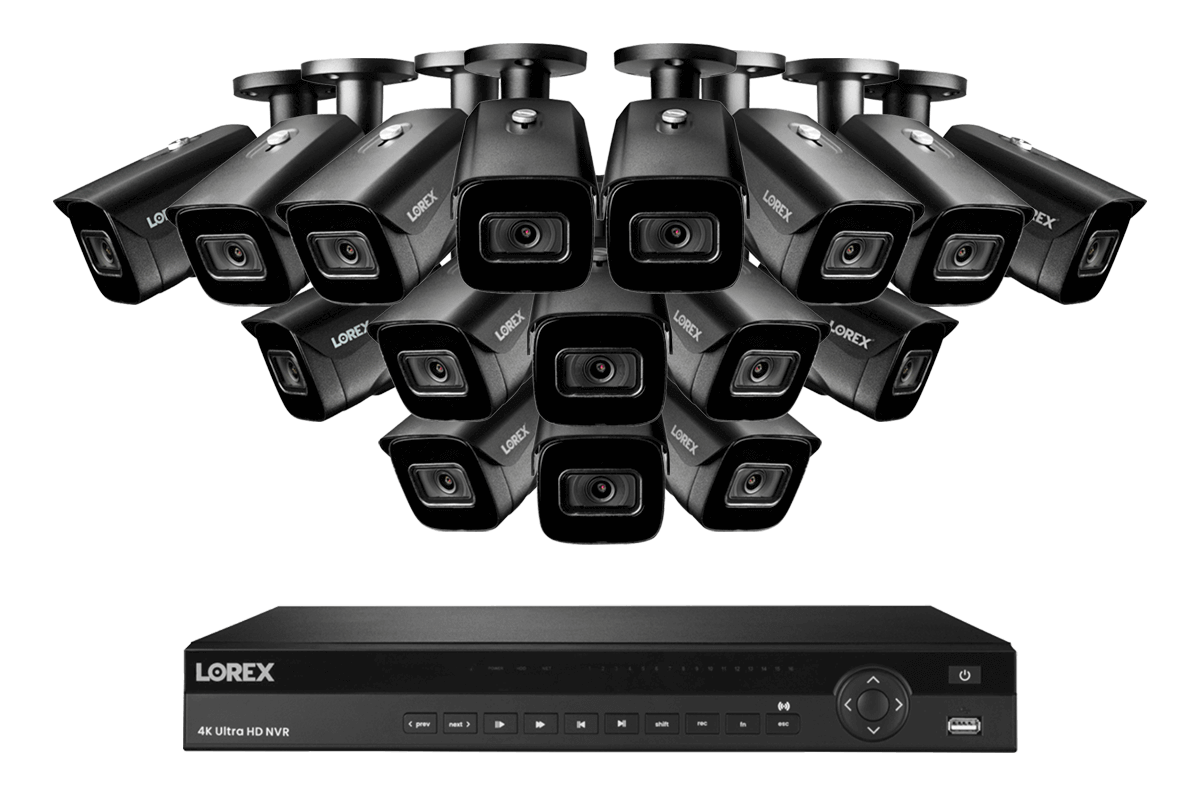

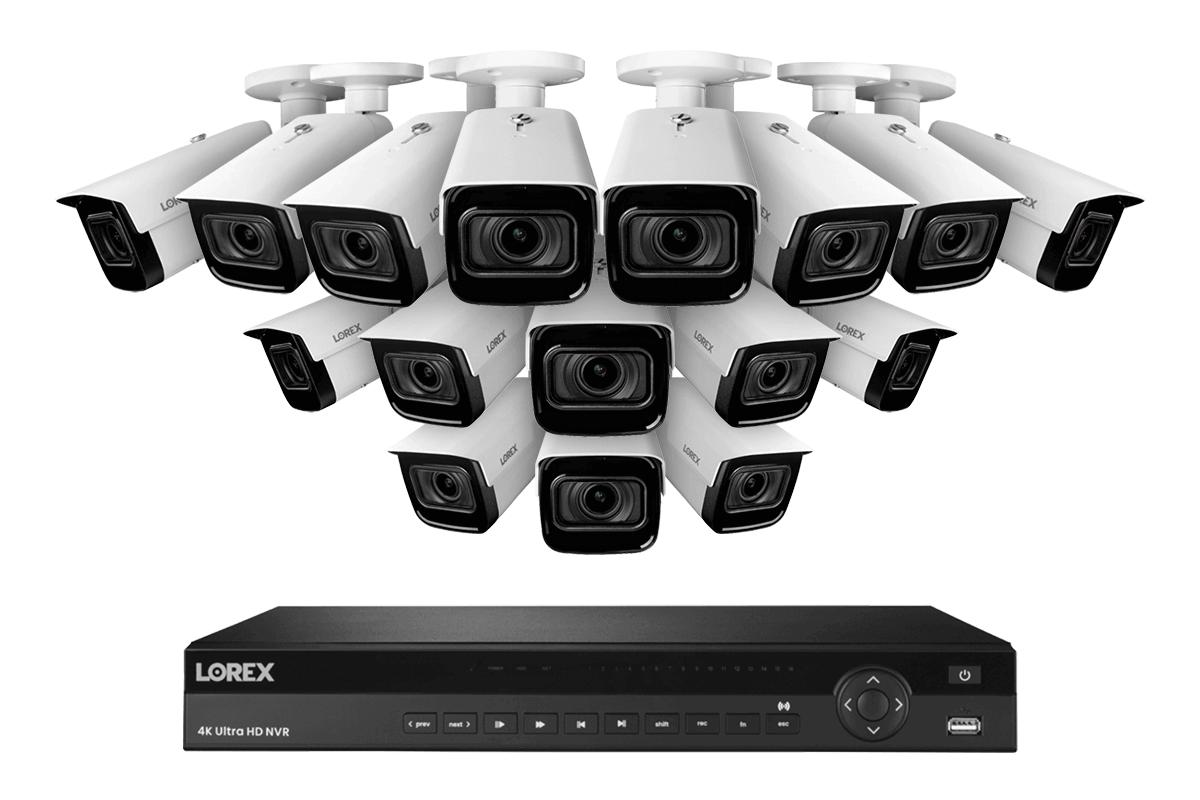

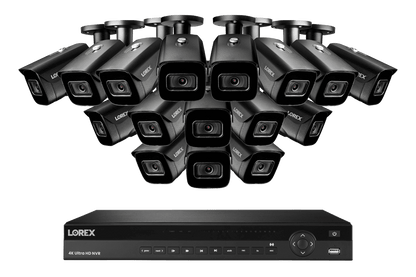

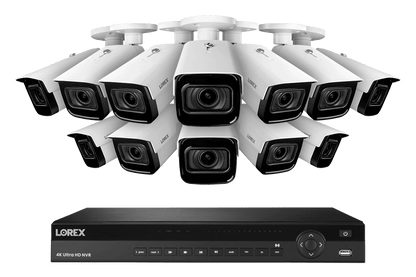

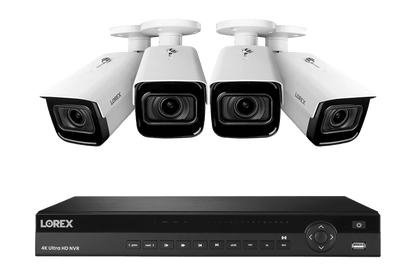

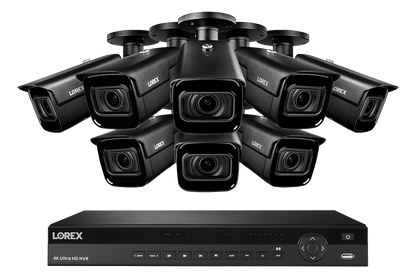

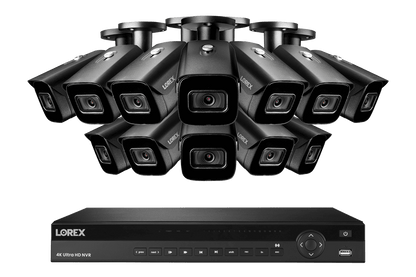

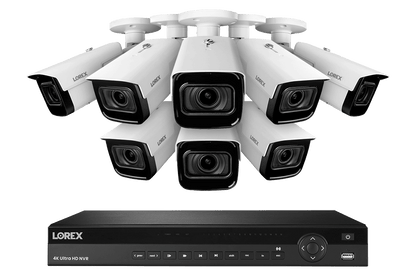

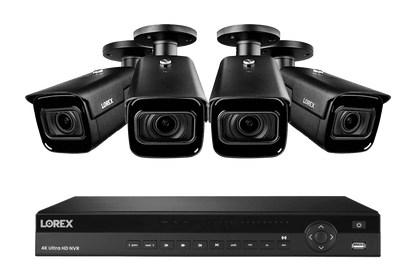

Lorex Nocturnal 3 4K 16-Channel 4TB Wired NVR System with Smart IP Cameras, 30FPS Recording and Motorized Varifocal Zoom Lenses

Name: Lorex Nocturnal 3 4K 16-Channel 4TB Wired NVR System with Smart IP Cameras, 30FPS Recording and Motorized Varifocal Zoom Lenses
Brand: Lorex Discontinued
SKU: NC4K3MV-164BB-1
Price: 1299.99 USD
Availability: OutOfStock

NC4K3MV-164BB-1

Number of cameras:

Color:

Variant

Share this product

Safe & Secure

Apps are protected with end-to-end data encryption.

Risk Free

Return for any reason within 30 days of delivery.

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Know that your property is protected around-the-clock with this Nocturnal security camera system from Lorex. This system includes Nocturnal security cameras and a powerful 16-channel Network Video Recorder (NVR). Along with real-time 30fps 4K recording, Color Night Vision, and Smart Motion Detection, these security cameras include motorized optical zoom lenses that allows you to adjust the camera's field of view to suit your monitoring needs. These features make this system an incredibly versatile security solution perfect for any home or business.

16

CHANNELS

4K NVR can support
up to 16 cameras

4K

RESOLUTION

4× the resolution
of HD 1080p

150^FT

NIGHT VISION

Maximum night
vision range

4^TB

HARD DRIVE

Maximum Capacity 2 × 10TB hard drives

4K

RESOLUTION

4× the resolution of HD 1080p

4×

Optical Zoom

Remotely zoom in and out

150^FT

NIGHT VISION

Maximum Night
Vision Range

113-31°

FIELD OF VIEW

Remotely adjustable
field of view

IP67

Weatherproof

Indoor / outdoor IP security camera

The Nocturnal Smart IP Motorized Varifocal Camera is a high-performance security solution with real-time (30FPS) 4K recording and Smart Motion Detection. With the latest in Color Night Vision technology and encased in an aluminum exterior built to withstand the harshest weather conditions, this camera is designed to provide 24/7 surveillance year-round.

Don't miss a moment with our Real-Time 4K Nocturnal Security Cameras. With 30 frames recorded within each second, the on-screen movement will look like you are witnessing events in real life.*

These Nocturnal security cameras feature our revolutionary Color Night Vision™ (CNV) technology, which will produce full-color video with the help of external lighting around the camera.

^{*When Smart Motion Detection is enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second.}

4× Optical Zoom Security Camera

Varifocal cameras are able to zoom in and out using their 4× optical zoom lenses. Optical zooms mean that no video quality is lost when you are zoomed in, making these cameras extremely versatile.

Smart Motion Detection

This system comes with Smart Person and Vehicle Detection that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Cloud app whenever motion from a person/vehicle is detected on your property^*. This effectively reduces the number of unwanted false alerts.

^{*Please note that the mobile push notifications will not differentiate between a vehicle or person event.}

Smart Motion Detection

This system comes with Smart Person and Vehicle Detection that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification to your Lorex Cloud app whenever motion from a person/vehicle is detected on your property^*. This effectively reduces the number of unwanted false alerts.

^{*Please note that the mobile push notifications will not differentiate between a vehicle or person event.}

Ultra HD
Resolution

Nocturnal security cameras use an 8MP image sensor that delivers exceptionally detailed 4K Ultra HD resolution video.

Long-range
IR night vision

This camera will use it's infrared LEDs in regular nighttime conditions that are too dark for CNV to render full-color images.

High Dynamic
Range (HDR)

HDR improves video clarity in high-contrast lighting, revealing details in extremely bright and dark areas of the image.

High Efficiency
Video Coding (HEVC)

HEVC compresses video file sizes without any noticable difference in quality, which will save you lots of hard drive space.

Full Metal
Exteriors

Heavy-duty aluminum exteriors will extend the life-cycle so you can count on years of uninterupted service.

Easy PoE
Installation

IP cameras only need a single Cat5e ethernet cable to connect it to a compatible NVR for video, power and a stable network connection.

Extreme Weather Capabilities

Rated IP67, Nocturnal security cameras can endure anything from torrential downpours to freezing snowstorms. So go ahead and place these security cameras where you need them most.

140°F | 60°C

Heat Rating

-40°F | -40°C

Cold Rating

IP67

Weatherproof

Remote mobile viewing with Lorex Cloud App

Always have your security system at your fingertips with the Lorex Cloud™ app for your mobile device. Connect your NVR to Lorex Cloud™ and securely access your system no matter where you are in the world. See what your cameras see, watch recorded playback, and receive push notifications for motion-triggered events with the help of this app.

Works With

Apple iPhone

Apple iPad

Android Phone

Android Tablet

Apple iPhone

Apple iPad

Android Phone

Android Tablet

Reliable security-grade hard drive preinstalled

A 4TB security grade hard drive (expandable up to 2 × 10TB) comes preinstalled within this NVR. Designed to meet the high workload demands of continuous security monitoring, this heavy-duty hard drive can reliably record weeks (even months) of footage without taking a break. All recorded footage is then safely stored on the hard drive where only you can access it, so there are no surprise fees or monthly cloud subscriptions.

Regional
Motion Zones

Using the NVR, you can program specific motion zones so that they are customized for heightened sensitivity (the amount of motion needed to register that movement) and threshold (how much motion is needed before creating a motion "event").

Privacy
Masking

In the event that the camera is facing areas that you do not want recorded, simply activate the privacy masking option. Use the NVR to draw a square around the spot(s) you don't want the camera to record.

Multiple Recording
Options

Record security footage continuously, during scheduled times, or when movement is detected. Motion recordings include a pre-recording function that will go back to record the five seconds before activity is detected.

Record and view video up to 4K (8MP) resolution¹
View live footage in up to 30fps and digitally zoom in on distant objects for better clarity
2 hard drive bays with up to 2 × 10TB of storage space
Security grade hard drive designed for advanced processing and the workload of 24/7 recording
Storage mirroring for continuous back-up of data from one hard drive to another
Get Motion push notifications when motion from a person/vehicle is detected²
Reduce unnecessary alerts and false alarms with advanced motion detection⁴
Use Smart Search to filter motion events for reviewing footage quickly and easily

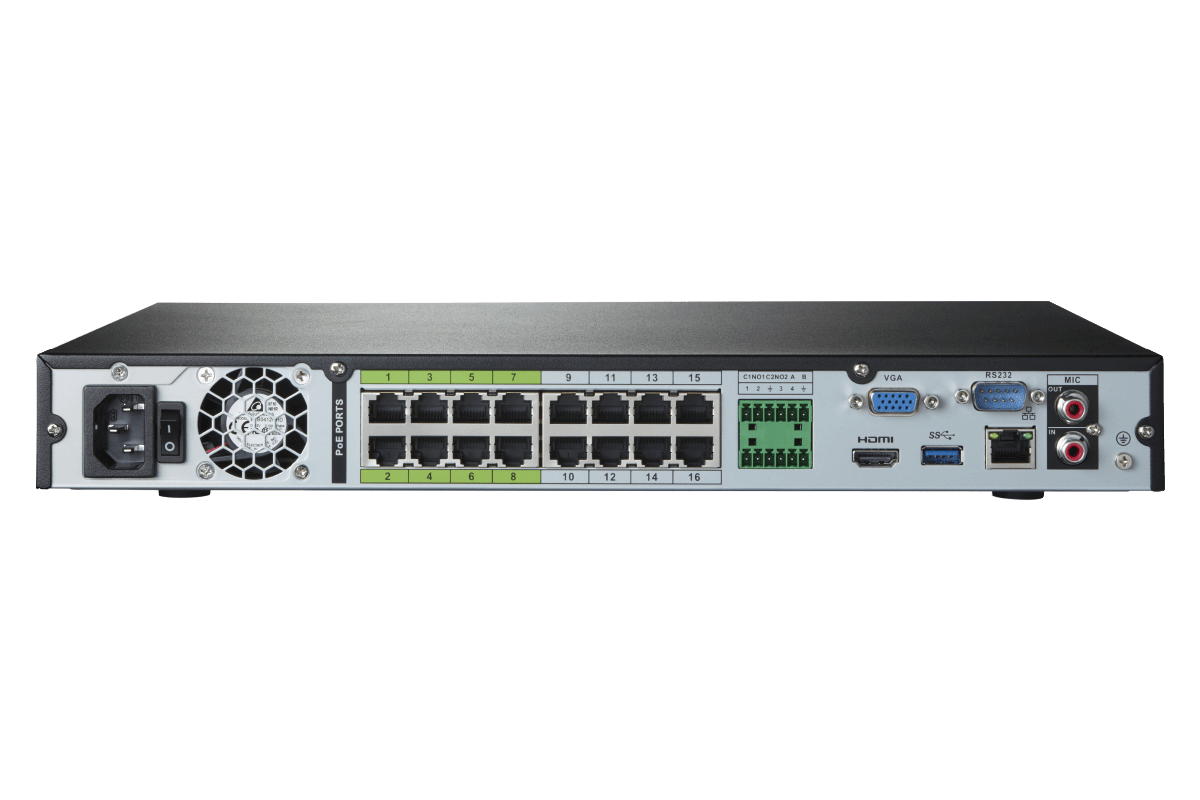

This NVR system contains a built-in 16-channel capacity

Each N882A64B NVR Includes:

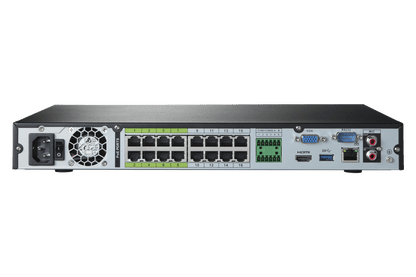

1 × 4K Ultra HD Pro Series NVR

1 × Power Adapter

1 × USB Mouse

1 × Ethernet Cable

1 × HDMI Cable

Quick Setup Guide

4K (8MP) IP cameras are required to take advantage of 4K recording.
Accuracy of Advanced Person and Vehicle Motion Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility.
Compatible with certain Lorex IP cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility.
HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
Both firmware and software must be updated to latest version to ensure remote connectivity.

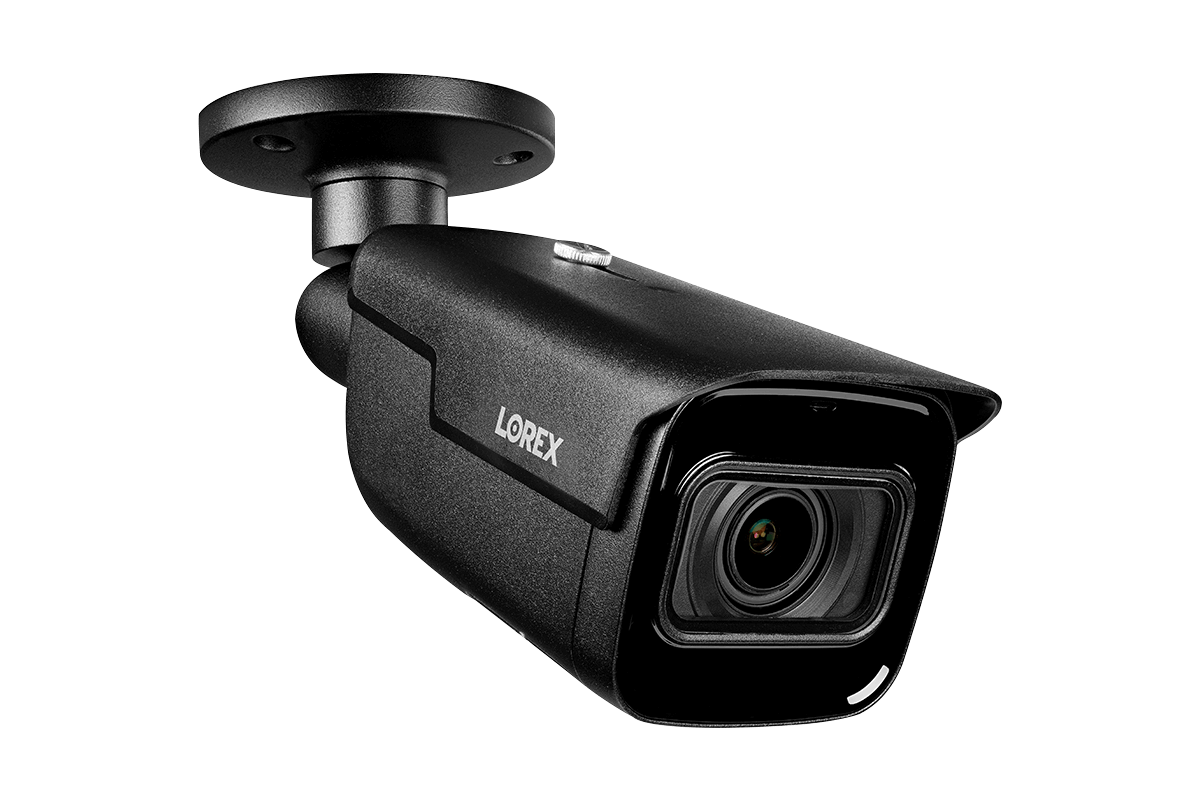

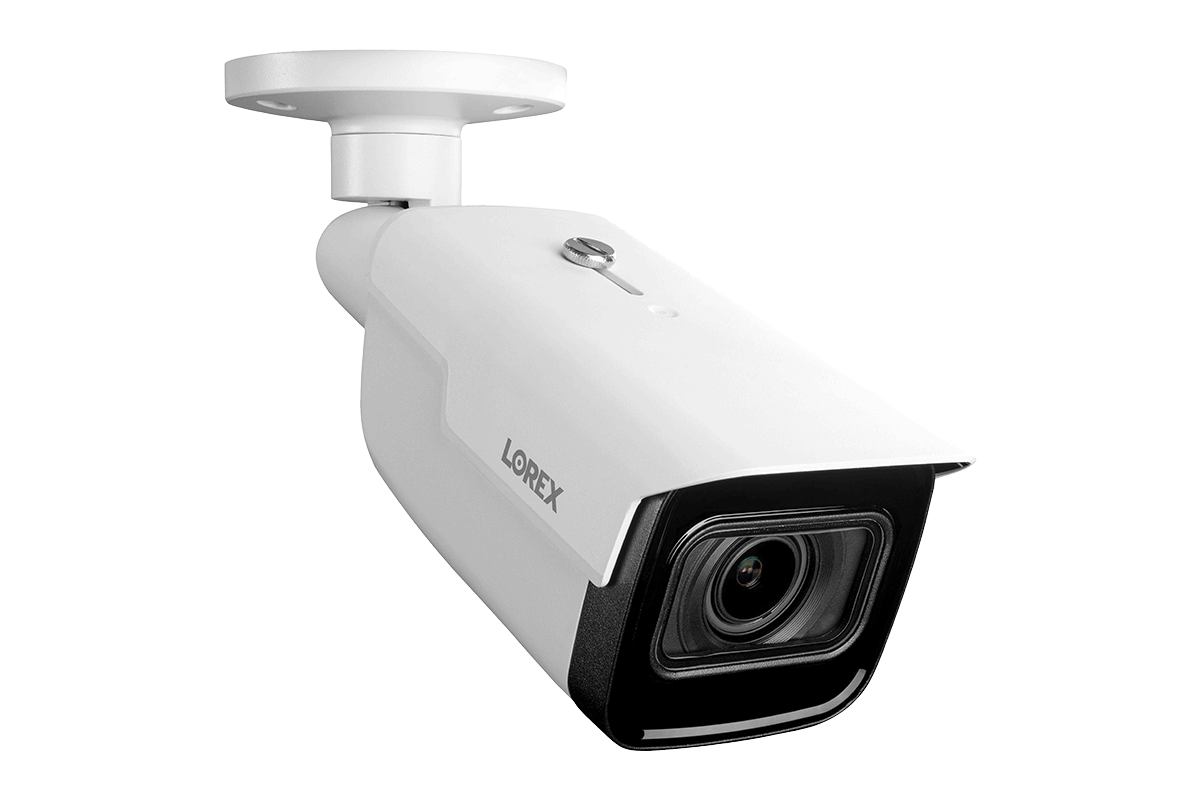

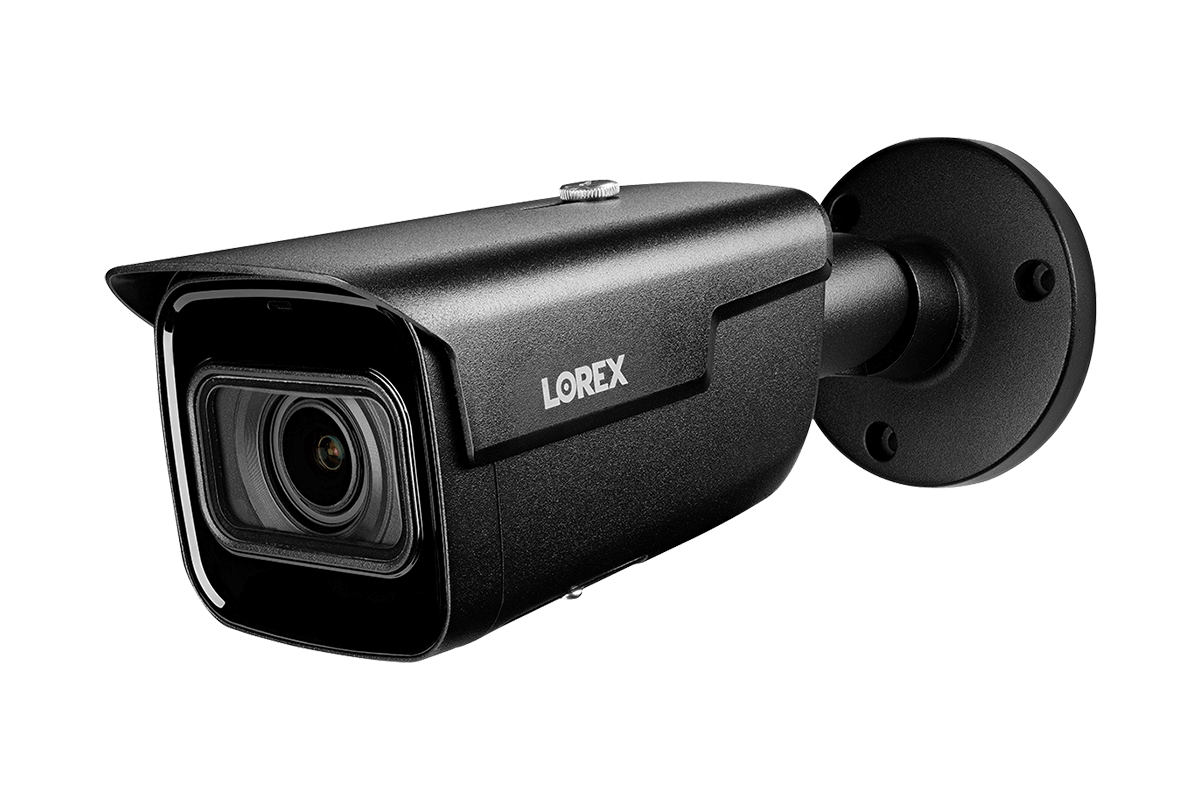

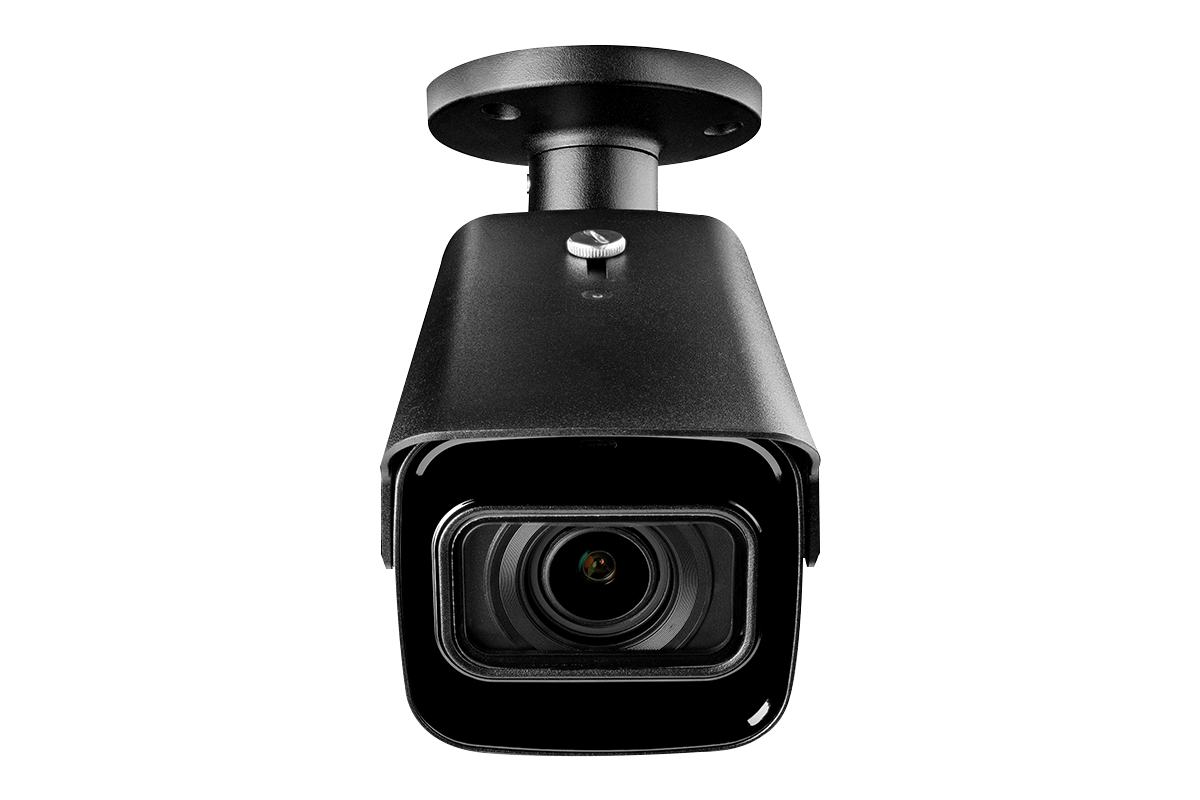

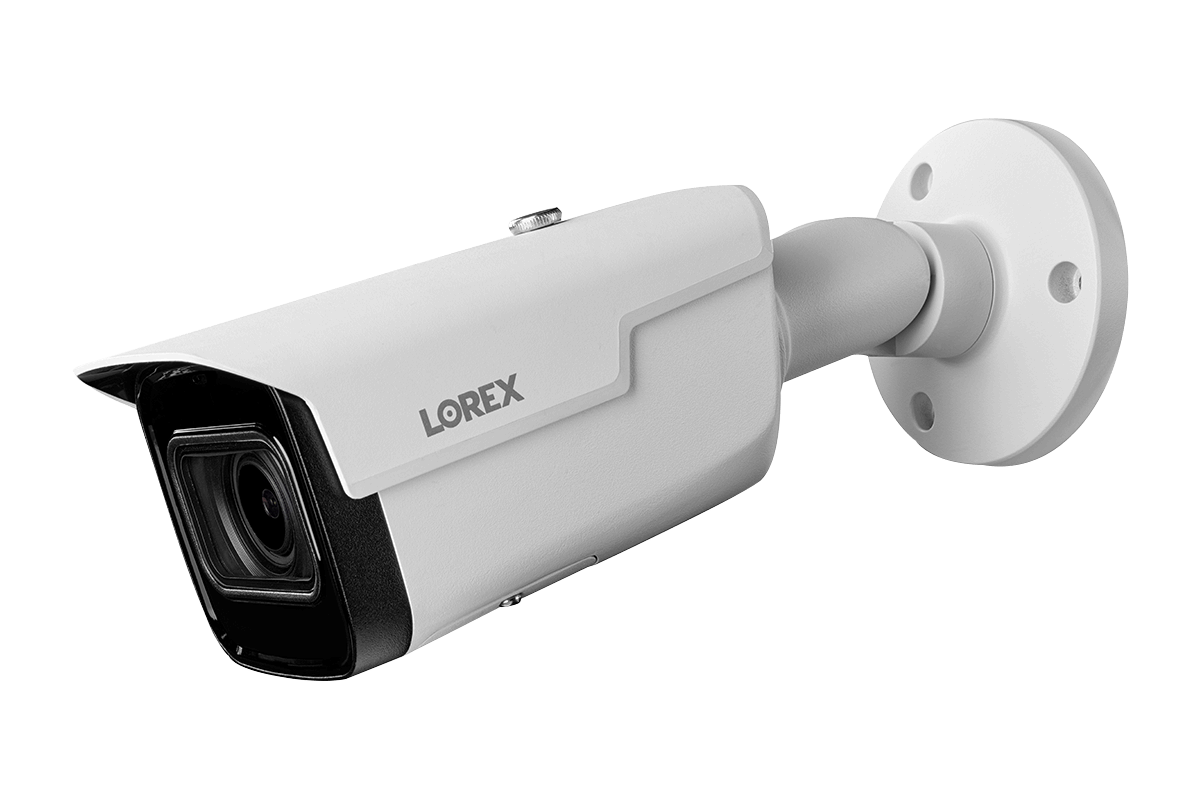

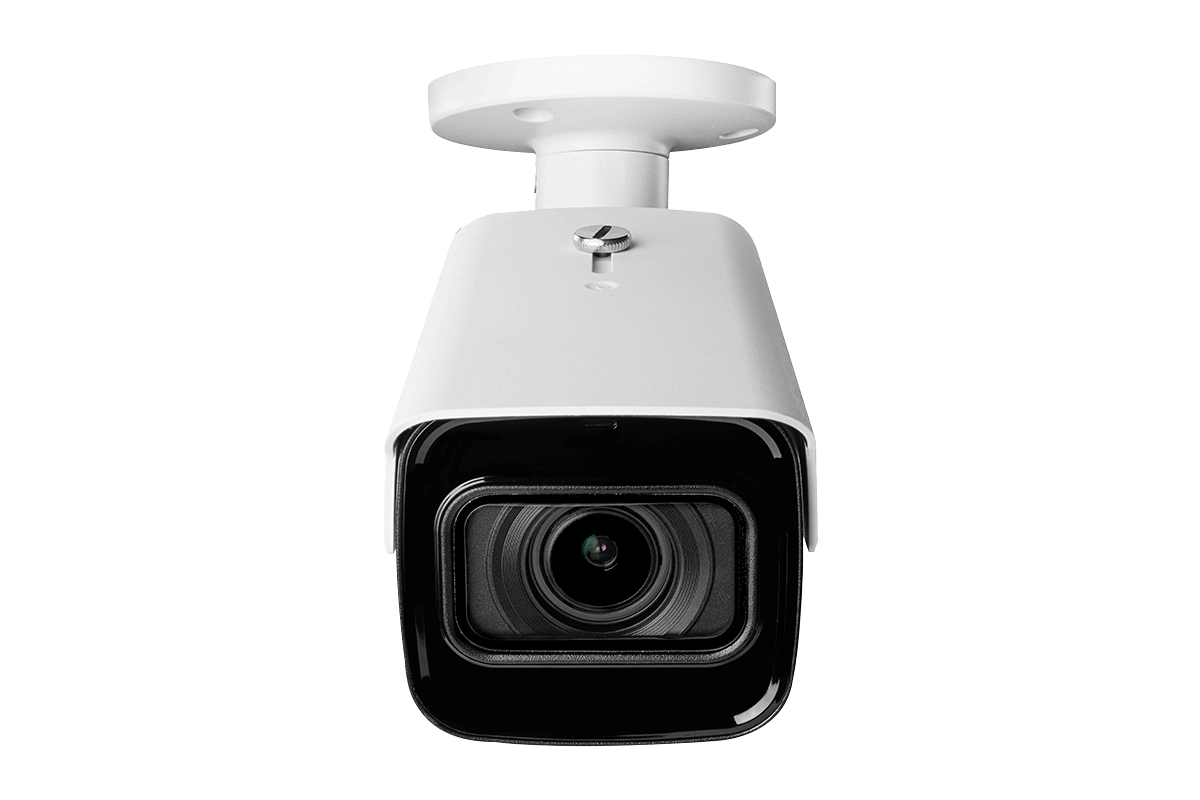

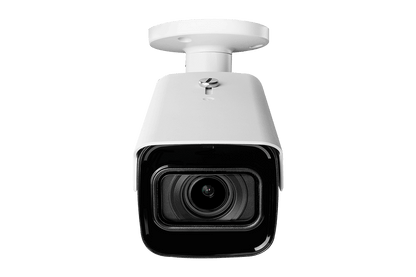

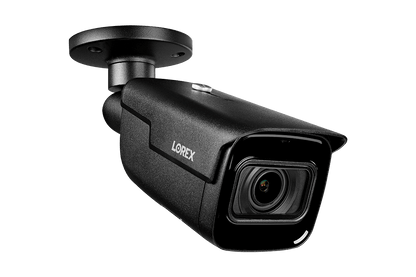

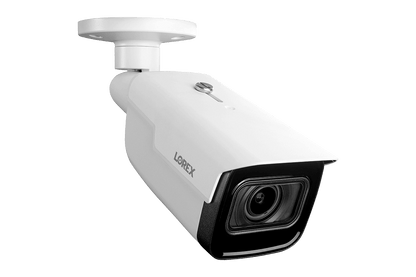

E892AB 4K active deterrence weatherproof security camera

4K (8MP) Ultra HD resolution, ensuring clear and detailed footage¹
See more with a with up to 113° field of view, depending on the level of zoom desired
Motorized varifocal lens provides 4× Optical zoom, enabling remote customization of your viewing area (and focus)
Record at a real-time 30 frames-per-second, providing smooth and clearer footage²
Reduce unnecessary alerts and false alarms with Smart Motion Detection³
Receive motion notifications when only a person/vehicle is detected on your property from your Lorex App
Enhanced nighttime clarity with Color Night Vision™⁴ thanks to an impressive large format lens
Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness⁵
Weatherproof rated (IP67)⁶
Operates in temperatures low as -40°F (-40°C) and high as 140°F (60°C)
Aluminum Alloy housing, designed to withstand harsh weather conditions

Each LNB9282B / LNB9292B Includes:

1 × IP Bullet Camera

1 × Ethernet Cable

1 × Mounting Kit

1 × Mounting Template

1 × Allen Key

4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility.
In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit lorextechnology.com/compatibility.
Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 90ft/27m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
