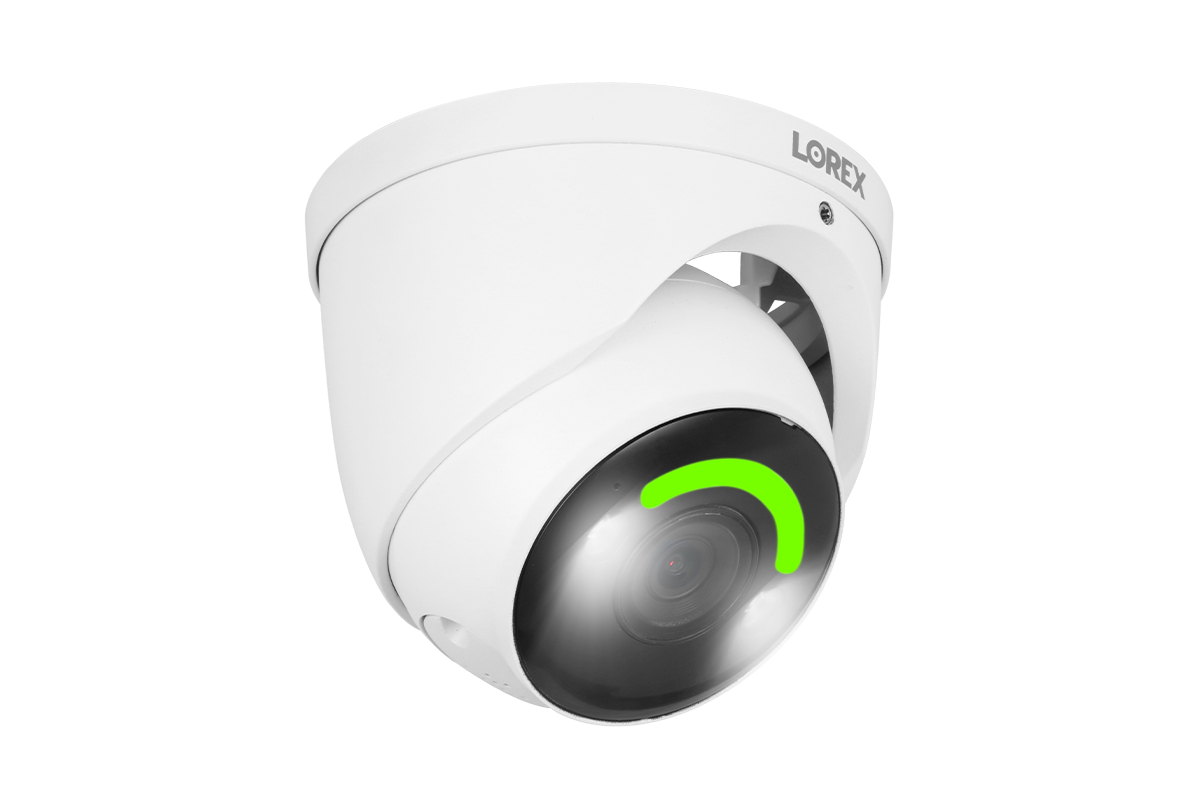

Monitor and protect your property like never before. The 4K IP Smart Deterrence Dome Camera sports a suite of features, such as Smart Motion Detection Plus, Smart Security Lighting, and a Deterrence Siren, to enhance security and ensure peace of mind. Compatible with Lorex Fusion 4K NVRs (see full compatibility list).
Impressive clarity and wider coverage
Get the best view of your property around-the-clock with stunning 4K clarity and vivid Color Night Vision.

Wide field of view in full 4K
At the core of this camera is an 8MP image sensor. 8MP means there are more than 8 million pixels, which results in exceptionally sharp 4K video, realistic color representation, and superior digital zoom capabilities. The 127° diagonal field-of-view also allows your camera to monitor a broader area so you see more and detect motion earlier.
Nighttime clarity with Color Night Vision
Experience the best night vision on the market. Color Night Vision works best with the help of ambient lighting. In conditions that are too dark, this camera will use its infrared LEDs to record crisp black and white video footage. This camera also features our revolutionary Color Night Vision (CNV) Booster, which can be activated to produce our most vivid and longest range full-color nighttime video yet.
IR Night Vision

Color Night Vision

Color Night Vision Booster

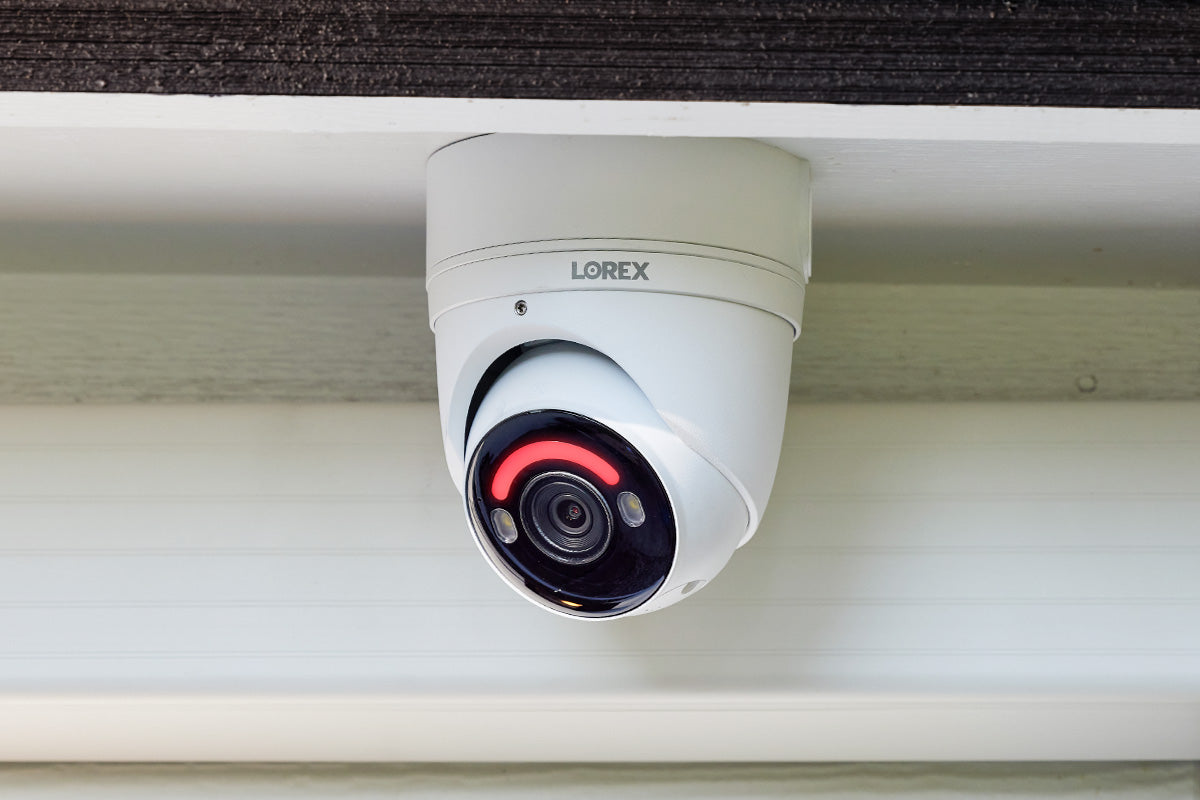

Built to Last
Pro-Grade heavy-duty aluminum housings protect against weather and vandalism, extending the life-cycle of your camera so you can count on years of uninterrupted service.


Free Local Storage, No Monthly Fees
Local storage means no monthly fees and with the built-in 4TB hard drive, you will have ample storage, while your recordings stay safe and private.
What's Included?

- Adjustment Screw

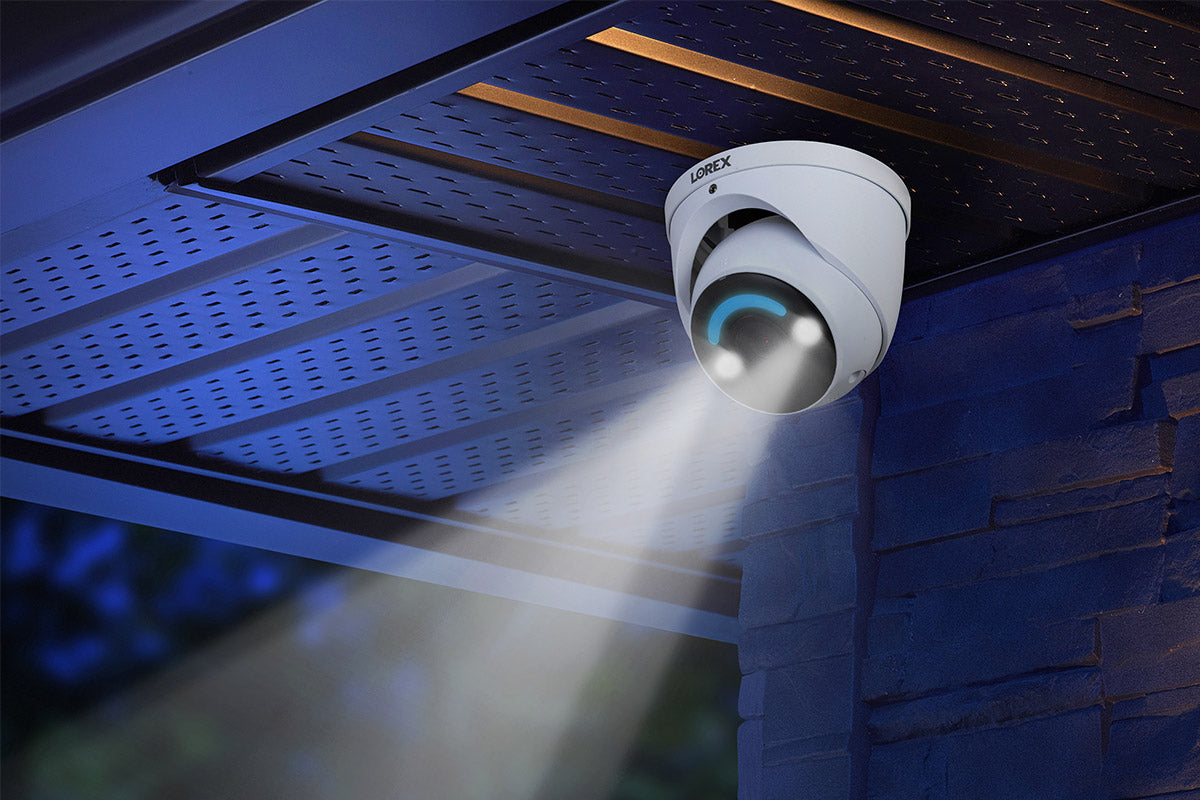

- Smart Security Lighting
- Microphone
- Infrared (IR) Light
- Reset Button
- Speaker
- Camera Lens
- Warning Lights
- Cable Notch
- MicroSD Card Slot
Package Contents:

4K Deterrence IP Camera

Mounting Kit

Cat5 Ethernet Extension Cable*
- Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
- Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
- Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
- For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
- Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
- Not intended for submersion in water. Installation in a sheltered location recommended.
- Cable length is dependent on product configuration. See product packaging for details.
- Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
- Color Night Vision Booster can be enabled using the Lorex App and will light for 3 minutes when turned on.
- A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
- When Face Detection is enabled, all other Smart Plans will be disabled. When not using Face Detection, Smart Plans vary by model. Click here to learn more


- Info / Panic Button
- Hard Drive, Network, Recorder & Power LEDs
- USB
- Power Button
- Power Input
- Power Switch
- PoE Ports
- Alarm
- HDMI
- VGA Port
- RS232
- LAN
- Audio In / Out
Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
- Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
- Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility
Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.
