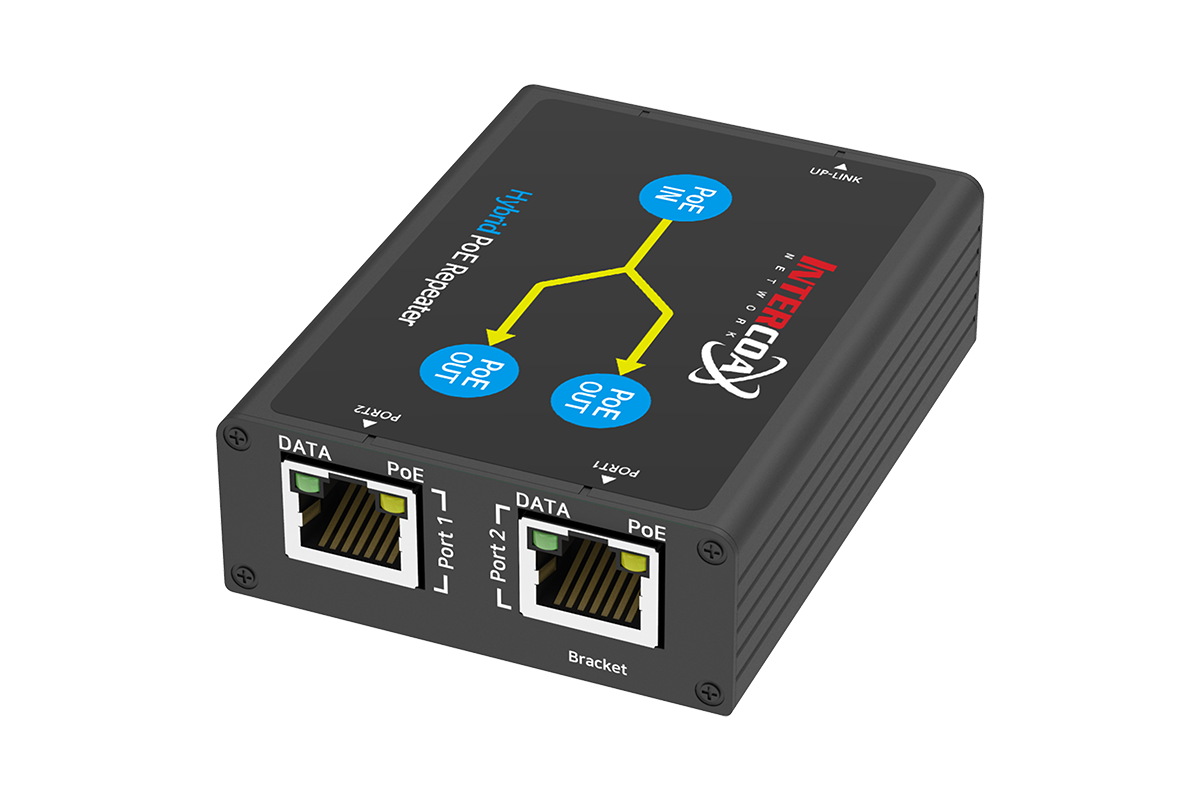

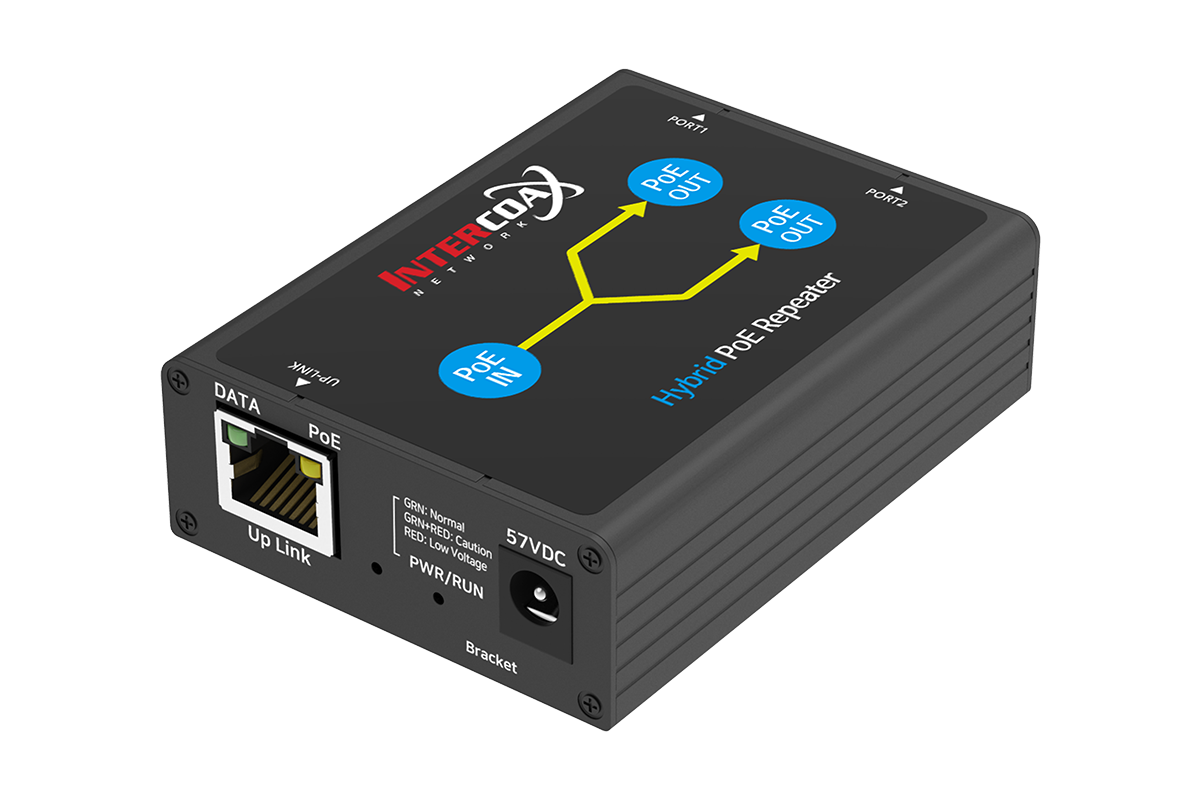

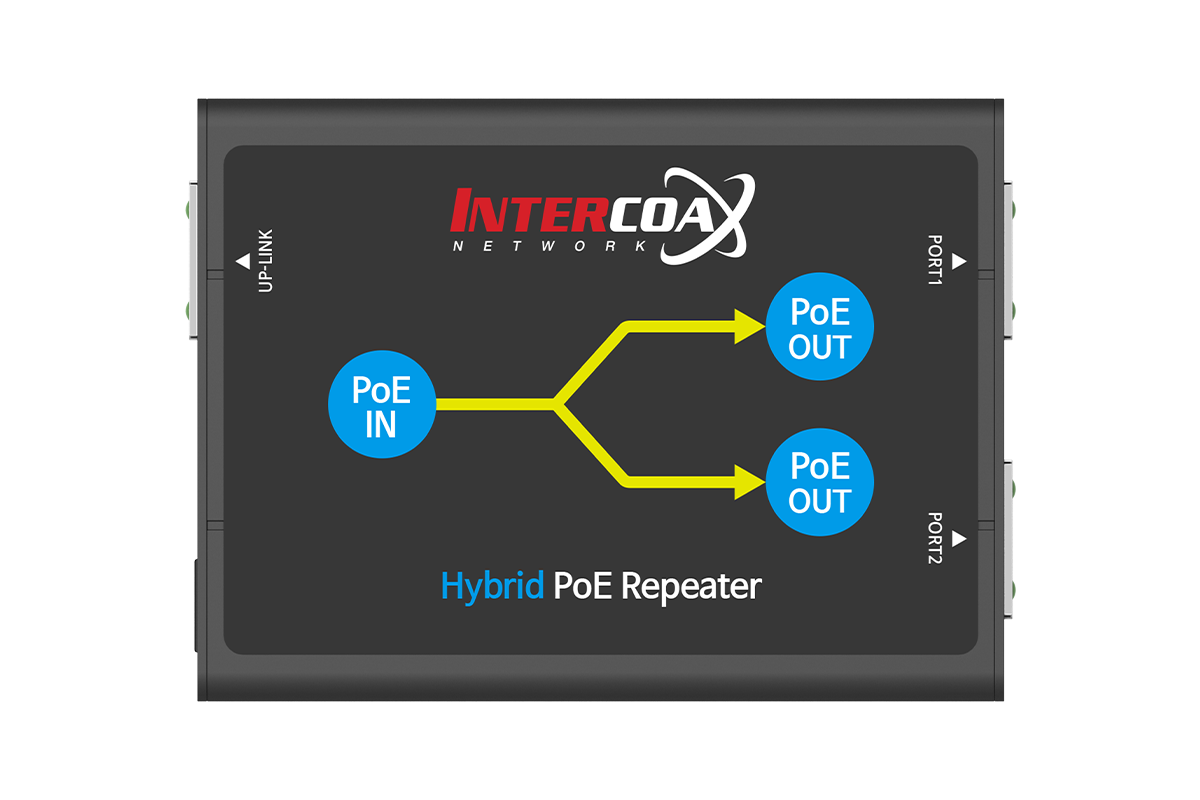

2 Port PoE+ Repeater (100m/300ft 1-in 2-out Daisy Chain PoE Repeater)

2 Port PoE+ Repeater (100m/300ft 1-in 2-out Daisy Chain PoE Repeater)

SKU: ALP-HPS-01

1 Input → 2 Output PoE

Daisy Chain Connection

PoE from NVR to IP Camera

8K High-Quality Video Stream

Surge / Short Protection

Professional CCTV Quality

Simplified Installation

Cost Saving

Worldwide Certification

The HPS-01 is a 2-port Hybrid PoE Switch that transmits both network signals and PoE+ power up to 200 meters between devices. Its 1-input, 2-output design simplifies the installation of two network devices onto a single LAN cable and enables the connection of multiple devices in a cascade configuration. Equipped with a built-in standard PD, the device provides a secure PoE+ power supply and supports PoE output up to 25.5W (up to 30W with a DC 57V power supply).

Connection Diagram

Connection Diagram

*Transmission distance may vary depending on the type and quality of cable.

Product Specifications

Model HPS-01: 2 Port Hybrid PoE Switch
Interface
EoDownlink 2 x RJ-45
Uplink 1 x RJ-45 – 10/100 Base-T with Auto-detect MDIX
Transmission Rate 100 Mbps Full Duplex
Transmission distance Ethernet / PoE Up to 100m - 1000 Base-T
Up to 200m between devices – 10/100 Base-T
LED Indication
Data 3 x Data Link (Green)
PoE 3 x PoE Link (Amber)
PWR 1 x Input Power Quality
(Green: Normal/48VDC and more, Green+Red: Caution,
Red : Power Shortage/38VDC and below
Power Input
PoE IEEE802.3af, IEEE802.3at
DC DC48V ~ 57V
Power Output PoE IEEE802.3af, IEEE802.3at
Model HPS-01: 2 Port Hybrid PoE Switch
Mechanical
Dimension 80.4(L) x 61.6(W) x 24(H) mm
Weight 102g
Environment
Operating Temp -20 ~ 60°C
Storage Temp -30 ~ 80°C
Relative Humidity 10% ~ 90%
Compliance
Certification FCC, CE, KC, RoHS
Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kV(8 / 20us)

What's Included?

HPS-01 Overview

Package Contents:

HPS-01

Bracket x 2

Screw x 4

Manual

Product Compatibility

Product Support

Manuals & Downloads

Product Reviews

Overall rating: 4.0 / 5 from 3 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Questions before purchase

"I have several questions. 1. I believe these are not waterproof, if its not what is the advised method to secure this when used in outdoors 2. Currently I have a 40foot ethernet connected from the Lorex NVR to my outdoor camera. Can I connect this PoE+Repeater close to my existing outdoor camera where I can attach my existing outdoor camera + another outdoor camera to the output of the PoE+Repeater ? 3. Do I need to supply 57DC power supply to this PoE+Repeater or ths power supply is required only when I need to connected additional PoE for more cameras 4. what is the bandwidth for a setup where it will be less than 100meters"

— Vinoth (5/5)

works

"works"

— Martin P. (5/5)

Not enough instructions

"What seamed to be a plug-n-play device turned out to be 2 hours on the phone with tech to get it to work."

— WLC D. (2/5)

Q&A

Do you need to power it up even though your only using it as a "splitter"
The ALP-HPS PoE needs to be connected directly to power. Please contact our Technical Support Team at 1-888-425-6739. We will guide you to install the product.
Are these waterproof?
These repeaters are not waterproof.
Does this device connect two cameras to the poe camera port on my switch? Or to the LAN port in my switch? If it's the LAN prort can I connect it directly to my router which will effectively connect it to my switch through the LAN. I'm asking because the cameras need to be on anther building that also has LAN connection
Yes, both cameras connect to the PoE port of the recorder or PoE switch, as they need power, and the LAN port only transmits signal.
Can I use an after market repeater on the Lorex E892AB camera?
No, it is not compatible with a aftermarket repeater.
When you connect 2 cameras to the device, and the single cable going back to the nvr, how do the 2 cameras display on the single channel?
Each camera will be displayed on an individual channel.
>
